Java Control Panel

The Java Control Panel is a multipurpose control panel. It allows you to view and set a wide range of parameters controlling how Java runs on your computer. It lets you view and delete temporary files used for Java Plug-in, which allows Sun Java to be used by your web browser to run applets, and Java Web Start, which allows you to run Java applications over the network. It allows you to control certificates, making it safe to run applets and applications over the network. It allows you to set runtime parameters for applets run with Java Plug-in and applications run with Java Web Start. It provides a mechanism for updating your version of Java so that you always have the latest. And it allows you to set options for debugging, desktop integration, applet handling, etc. The Java Control Panel includes the following separately viewable panels:

Each is discussed below.

General

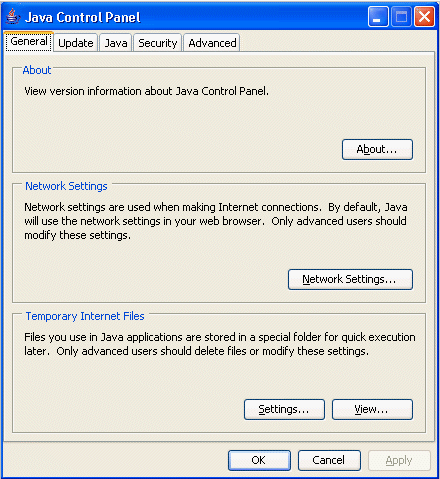

The General panel looks like this:

It includes three subpanels: About, Network Settings, and Temporary Internet Files.

About

The About... button displays version information for the latest JRE installed on the computer.

Network Settings Subpanel

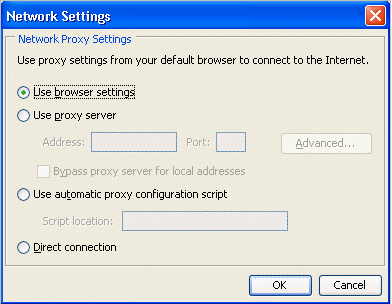

These settings are for network connections. Press the Network Settings... button to get the Network Settings dialog. There are four choices:

Use browser settings

Check this to use the browser default proxy settings. This is the default setting (checked).

Use proxy server

You have two choices here:

• You can set the Address and the Port for a proxy server with the option to bypass it for local addresses.
• You can press the Advanced ... button to get the Advanced Network Settings dialog. In this panel you can individually set the proxy server for HTTP, Secure, FTP, and Socks connections. You can also provide a list of addresses for which you do not want to use a proxy server. The Advanced Network Settings panel looks like this:

Use automatic proxy configuration script

You can specify the location (URL) for the JavaScript file (.js or .pac extension) that contains the FindProxyForURL function. FindProxyForURL has the logic to determine the proxy server to use for a connection request.

Direct Connection

Select this for situations where you do not want to use a proxy.

Temporary Internet Files Subpanel

You can do the following:

• Press the Delete Files... button to get the Delete Temporary Files dialog from which you can delete:
  • Downloaded Applets;
  • Downloaded Applications;
  • Other Files.
• Press the Settings... button to get the Temporary Files Settings dialog from which you can:
• Press the Delete Files... button (same as above) to get the Delete Temporary Files dialog, from which you can delete:
  • Downloaded Applets,
  • Downloaded Applications,
  • Other Files;
• press the View Applications... button to get the Java JNLP Applications Viewer dialog, from which you can:
  • view and remove applications, applets, libraries, and installers,
  • launch online and offline applications, applets, and installers;
• press the View Applets... button to view the Details - Cache dialog, from which you can view cached applet files, enable/disable caching in Java Plug-in, Delete cached files, and Refresh the viewer;
• from the Settings subpanel, set the location, the amount of disk space, and the compression for .jar files.

Security

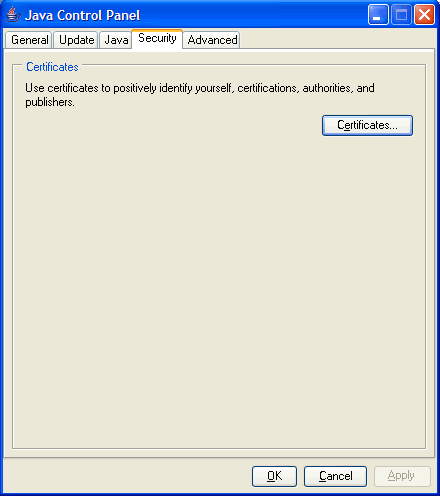

The Security panel looks like this:

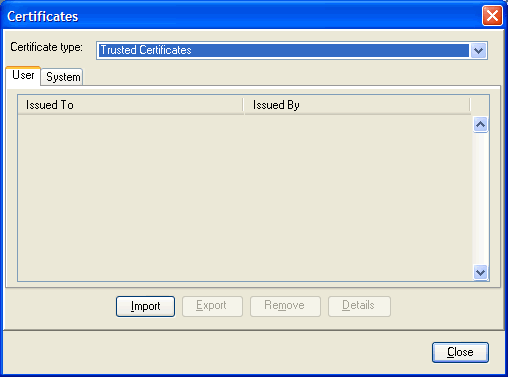

Press the Certificates... button to get the Certificates dialog, which looks like this:

Certificate Types

It handles both User- and System-Level (enterprise-wide) certificates of the following types:

• Trusted
• Secure Site
• Signer CA
• Secure site CA
• Client Authentication

Trusted Certificates

These are certificates for signed applets and applications that are trusted.

Secure site

These are certificates for secure sites.

Signer CA

These are certificates of Certificate Authorities (CAs) for Trusted Certificates; Certificate Authorities are the ones who issue the certificates to the signers of Trusted Certificates.

Secure site CA

These are certificates of Certificate Authorities (CAs) for secure sites; Certificate Authorities are the ones who issue the certificates for secure sites.

Client Authentication

These are certificates for a client to authenticiate itself to a server.

User-Level Certificates

Options

For Trusted, Secure site, and Client Authentication certificates, there are four options: Import, Export, Remove, and Details. The user can import, export, remove, and view the details of a certificate.

For Signer CA and Secure site CA, there is only one option: Details. The user can only view the details of a certificate.

Default Keystore Location

The default locations of the of the keystore files for Unix and Windows are as follows:

Operating System	Location
Unix	${user.home}/.java/deployment/security.
Windows	${deployment.user.home}\security

For instance, on Windows 2000/XP, the default location of the keystore files for user jsmith would be as follows:

C:\Docments and Settings\jsmith\Application Data\Sun\Java\Deployment\security

Non-Default Keystore Location

For non-default locations of the certificate keystore files, specify them in the User-Level deployment.properties file with the following property names:

Certificate Type	Property Name
Trusted Certificates	deployment.user.security.trusted.certs
Secure site	deployment.user.security.trusted.jssecerts
Signer CA	deployment.user.security.trusted.cacerts
Secure site CA	deployment.user.security. trusted.jssecacerts
Client Authentication	deployment.user.security.trusted.clientcerts

System-Level Certificates

Options

For System-Level certificates, the only options a user has are Export and Details.

Default Keystore Location

Trusted, Secure Site, and Client Authentication certificate keystore files do not exist by default. Thus there are no default locations for them.

The default location for the Signer CA keystore is:

Operating System	Location
Unix	$JAVA_HOME/lib/security/cacerts
Windows	$JAVA_HOME\lib\security\cacerts

The default location for the Secure Site CA keystore is:

Operating System	Location
Unix	$JAVA_HOME/lib/security/jssecacerts
Windows	$JAVA_HOME\lib\security\jssecacerts

Non-Default Keystore Location

The location of the keystore files for the various types of certificates can also be set in a System-Level deployment.properties file, if it exists. (The System-Level deployment.properties file does not exist by default. It is specified in a deployment.config file. See System-Level deployment.properties file.) The following properties may be specified:

Certificate Type	Property Name
Trusted Certificates	deployment.system.security.trusted.certs
Secure site	deployment.system.security.trusted.jssecerts
Signer CA	deployment.system.security.trusted.cacerts
Secure site CA	deployment.system.security. trusted.jssecacerts
Client Authentication	deployment.system.security.trusted.clientcerts

Java

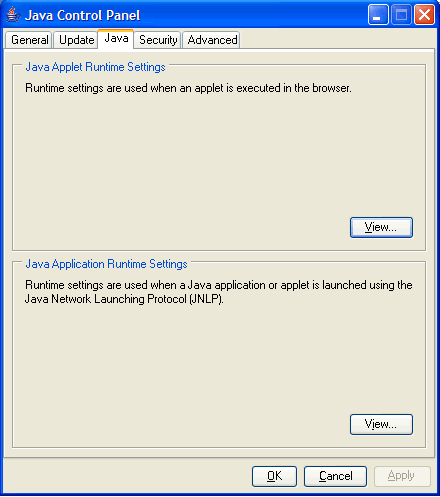

The Java panel looks like this:

It has two subpanels: Java Applet Runtime Settings and Java Application Runtime Settings.

Java Applet Runtime Settings

These settings will be used when an applet is launched in a browser. Press View... for the Java Runtime Settings for applets. On Windows you will see this:

Note that on Unix there will also be Add and Remove buttons.

On Unix you can add a JRE by pressing Add and specifiying its location (see notes above).

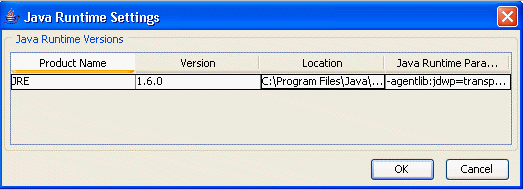

For Window and Unix you can optionally set Java Runtime Settings for the JRE.

Java Runtime Parameters

You can override the Java Plug-in default startup parameters by specifying custom options in the Java Runtime Parameters field. With the exception of setting classpath and cp (see Setting classpath and cp below), the syntax is the same as used with parameters to the java command line invocation. See the java launcher for a full list of command line options:

java launcher: Windows, Solaris and Linux.

Below are some examples of Java runtime parameters.

Setting classpath and cp

The following format should be used for setting classpath and cp in Java Plug-in. It differs slightly from the java command line format, which uses a space instead of the equal (=) sign.

-classpath=<path>

-cp=<path>

Enabling and disabling assertion support

To enable assertion support, the following system property must be specified in the Java Runtime Parameters:

-D[ enableassertions | ea ][:<package name>"..." | : <class name> ]

To disable assertion in the Java Plug-in, specify the following in the Java Runtime Parameters:

-D[ disableassertions | da ][:<package name>"..." | : <class name> ]

See Assertion Facility for more details on enabling/disabling assertions.

Assertion is disabled in Java Plug-in code by default. Since the effect of assertion is determined during Java Plug-in startup, changing assertion settings in the Java Plug-in Control Panel will require a browser restart in order for the new settings to take effect.

Because Java code in Java Plug-in also has built-in assertion, it is possible to enable the assertion in Java Plug-in code through the following:

-D[ enableassertions | ea ]:sun.plugin

Tracing and logging support

Tracing is a facility to redirect any output in the Java Console to a trace file (.plugin<version>.trace).

-Djavaplugin.trace=true
-Djavaplugin.trace.option=basic|net|security|ext|liveconnect

If you do not want to use the default trace file name:

-Djavaplugin.trace.filename=<tracefilename>

Similar to tracing, logging is a facility to redirect any output in the Java Console to a log file (.plugin<version>.log) using the Java Logging API. Logging can be turned on by enabling the property javaplugin.logging.

-Djavaplugin.logging=true

If you do not want to use the default log file name, enter:

-Djavaplugin.log.filename=<logfilename>

Furthermore, if you do not want to overwrite the trace and log files each session, you can set the property:

-Djavaplugin.outputfiles.overwrite=false.

If the property is set to false, then trace and log files will be uniquely named for each session. If the default trace and log file names are used, then the files would be named as follows

.plugin<username><date hash code>.trace
.plugin<username><date hash code>.log

Tracing and logging set through the Control Panel will take effect when the Plug-in is launched, but changes made through the Control Panel while a Plug-in is running will have no effect until a restart.

For more information about tracing and logging, see the chapter called Tracing and Logging.

Debugging applets in Java Plug-in

The following options are used when debugging applets in the Java Plug-in. For more information on this topic see the Debugging Support in the Java Plug-in Developer Guide.

-Djava.compiler=NONE
-Xnoagent
-Xdebug
-Xrunjdwp:transport=dt_shmem,address=<connect-address>,server=y,suspend=n

The <connect-address> can be any string (example: 2502) which is used by the Java Debugger (jdb) later to connect to the JVM

Default connection timeout

When a connection is made by an applet to a server and the server doesn't respond properly, the applet may appear to hang and may also cause the browser to hang, since by default there is no network connection timeout.

To avoid this problem, Java Plug-in 1.4 has added a default network timeout value (2 minutes) for all HTTP connections. You can override this setting in the Java Runtime Parameters:

-Dsun.net.client.defaultConnectTimeout=<value in milliseconds>

Another networking property that you can set is sun.net.client.defaultReadTimeout.

-Dsun.net.client.defaultReadTimeout=<value in milliseconds>

Note Java Plug-in does not set sun.net.client.defaultReadTimeout by default. If you want to set it, do so through the Java Runtime Parameters as shown above.

Networking properties description:

sun.net.client.defaultConnectTimeout
sun.net.client.defaultReadTimeout

These properties specify, respectively, the default connect and read timeout values for the protocol handlers used by java.net.URLConnection. The default value set by the protocol handlers is -1, which means there is no timeout set.

sun.net.client.defaultConnectTimeout specifies the timeout (in milliseconds) to establish the connection to the host. For example, for http connections it is the timeout when establishing the connection to the http server. For ftp connections it is the timeout when establishing the connection to ftp servers.

sun.net.client.defaultReadTimeout specifies the timeout (in milliseconds) when reading from an input stream when a connection is established to a resource.

For the official description of these properties, see Networking Properties.

Java Application (JNLP) Runtime Settings

These settings will be used when a JNLP application is launched. Press View... for JNLP Java Runtime Settings. You will see this:

The Table contains the following information:

• Platform Version
• Product Version
• Product Location
• Path (Command)
• Enabled -- a checkbox that indicates that this JRE is enabled.

The panel includes the following buttons:

The Choose... button allows user to choose content of the Path (Command) field. This button becomes enabled when the user clicks on Path (Command) field of an existing JRE.

The Find... button pops up a tool that allows the user to find JREs installed on the system.

The Add button adds a new line to the table of JREs.

The Remove button removes a line from the table of JREs.

When the OK button is pressed, the changes will be saved in the config file and the dialog will be dismissed. When the Cancel button is pressed, the changes will be discarded and the dialog will be dismissed.

Update

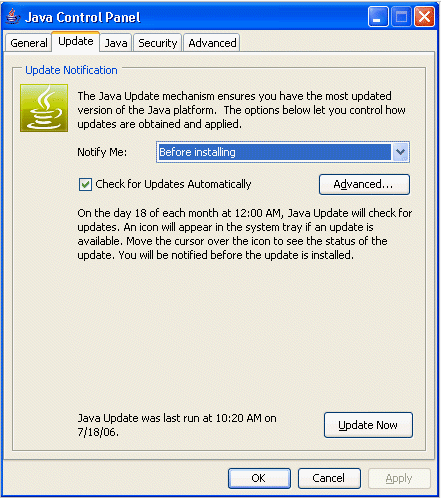

The Update panel looks like this:

The Update panel, in conjunction with the Java Update Scheduler (jusched.exe), is used to provide the latest Java updates to the end user.

Update Panel Options

There are two basic options on the Update tab:

• Automatic update—available only on Windows XP, 2003, 2000 (SP2 or higher) and set by default for those operating systems
• Manual update

Automatic update is performed on a scheduled basis and it is selected by checking the Check for Updates Automatically check box.

Manual update is performed by pressing the Update Now button.

If you select automatic update, you can then set the notification via the Notify Me: drop-down menu, and you can set the update schedule via the Advanced... button.

With notification, you can chose to be notified before an update is downloaded and before it is installed; or you can chose to be notified only before an update is installed (i.e., the download is automatic).

The Advanced... allows you to select the desired frequency for updates: daily, weekly (default), or montly. For daily updates, you can select the time of the day for the udpate; for weekly updates, you can select the day of the week and the time of the day; for montly updates, you can select the day of the month and the time of the day.

You can do manual updates at any time by presseing the Update Now button. This allows you to do immediate, unscheduled upates.

Java Update Scheduler

The Java Update Scheduler (jusched.exe) is used for launching automatic updates when Update Automatically is selected in the Update tab. jusched.exe runs as a background process that launches the Update Manager at predefined intervals set by the user through the Advanced ... button of the Update tab. The Update Manager coordinates the update process.

jusched.exe is launched when the user reboots the computer after installing the SDK/JRE. It is normally transparent to the user but can be viewed in the Processes tab of the Windows Task Manager. Should a user for some reason not want the scheduler to run, it can be killed via End Process button of the Processes tab.

Advanced

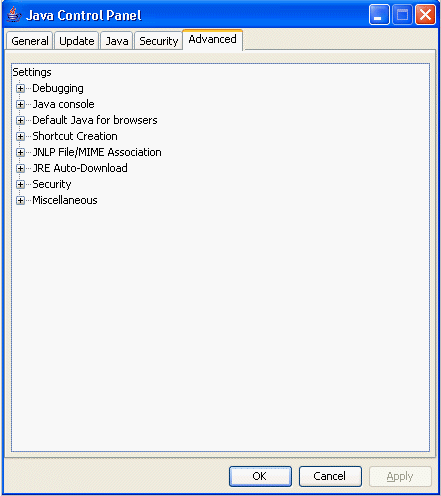

The Advanced panel looks like this:

It includes options for Debugging, Java console, Default Java for Browsers, Desktop integration, JNLP File/MIME Association, and Security.

Debugging

You can enable tracing and logging. For more information on tracing and logging and how to set runtime parameters for tracing and logging, see Tracing and Logging.

Java Console

There are three options:

• Show the console
• Hide the console (default)
• Do not start the console

See Java Console for information about it.

<APPLET> tag support (Windows only)

Here you can specify whether a particular browser should use the Sun VM for the standard <APPLET> tag.

Shortcut Creation (Windows only)

This provides options for Java Web Start for creating shorcuts on the desktop. The options are:

• Always allow
• Always allow if hinted
• Prompt user
• Prompt user if hinted
• Never allow

JNLP File/MIME Association (Windows only)

This allows you to associate files with the JNLP MIME type. The options are (radio button, select only one):

• Prompt user
• Prompt user to replace
• Allow if association is new
• Never allow

Security

The options are checkboxes. You can select any number of available options. All options are checked by default except for those specified. The following are the various Java security options:

• Allow user to grant permissions to signed content
• Allow user to grant permissions to content from an untrusted authority
• Use certificates and keys in browser keystore
• Use personal certificate automatically if only one matches server request
• Warn if site certification does not match hostname
• Show sandbox warning banner
• Allow user to accept JNLP security requests
• Check publisher certificate for verification (Not Checked by Default)
• Enable online certificate validation (Not Checked by Default)
• Use SSL 2.0
• Use SSL 3.0
• Use TLS 1.0 (Not Checked by Default)

Miscellaneous (Window only)

Here you have the option to place the Java icon in the system tray (default).

Command to launch default browser (Unix only, not shown above)

Allows you to specify the location of the default browser to be launched.
