If you do not specify facnam, $PUTMSG uses the default facility prefix associated with the message.

actprm


OpenVMS usage: user_arg
type: longword (unsigned)
access: read only
mechanism: by value

Parameter to be passed to the action routine. The actprm argument is a longword value containing this parameter. If you do not specify actprm, no parameter is passed.

Description

In the operating system, a message is identified by a longword value, which is called the message code. To construct a message code, you specify values for its four fields, using the Message utility. The following diagram depicts the longword message code:

Thus, each message has a unique longword value associated with it: its message code. You can give this longword value a symbolic name using the Message utility. Such a symbolic name is called the message symbol.

The Message utility describes how to construct a message symbol according to the conventions for operating system messages. Basically, the message symbol has two parts: (1) a facility prefix, which is an abbreviation of the name of the facility with which the message is associated, and (2) a mnemonic name for the message text, which serves to hint at the nature of the message. These two parts are separated by an underscore character (_) in the case of a user-constructed message and by a dollar sign/underscore ($_) in the case of system messages.

The message components written by $PUTMSG are derived both from the message code and from the message symbol. For additional information about both the message code and the message symbol, see the HP OpenVMS Command Definition, Librarian, and Message Utilities Manual.

The $PUTMSG service writes the message components in the following format:

%FACILITY-L-IDENT, message text

where:
% Is the prefix used for the first message written. The hyphen (-) is the prefix used for the remaining messages.
FACILITY Is the facility prefix taken from the message symbol. This facility prefix can be overridden by a facility prefix specified in the facnam argument in the call to $PUTMSG.
L Is the severity level indicator. The severity level indicator is taken from the message code.
IDENT Is a mnemonic name for the message text, taken from the message symbol.
message text Is the message text specified in the message source file.

The $PUTMSG service does not check the length of the argument list and therefore cannot return the SS$_INSFARG (insufficient arguments) condition value. Be sure you specify the required number of arguments.

If an error occurs while $PUTMSG calls the Formatted ASCII Output ($FAO) service, $FAO parameters specified in the message vector do not appear in the output.

You cannot call the $PUTMSG service from kernel mode.

Required Access or Privileges

None

Required Quota

None

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR


Condition Values Returned

SS$_NORMAL The service completed successfully.

Example


#include <ssdef.h>
#include <rmsdef.h>
#include <starlet.h>

main()
{
    int msgvec[] = {3,                  /* Arg count and message flags */
                    SS$_ABORT,          /* Message code */
                    RMS$_FNF,           /* RMS Message code */
                    0};                 /* RMS Status value */

    return (sys$putmsg(msgvec));        /* Generate message */
}



$QIO

Queues an I/O request to a channel associated with a device. This service completes asynchronously; for synchronous completion, use the Queue I/O Request and Wait ($QIOW) service.

For additional information about system service completion, see the Synchronize ($SYNCH) service.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$QIO [efn] ,chan ,func ,[iosb] ,[astadr] ,[astprm] ,[p1] ,[p2] ,[p3] ,[p4] ,[p5] ,[p6]


C Prototype

int sys$qio (unsigned int efn, unsigned short int chan, unsigned int func, struct _iosb *iosb, void (*astadr)(__unknown_params), __int64 astprm, void *p1, __int64 p2, __int64 p3, __int64 p4, __int64 p5, __int64 p6);


Arguments

efn


OpenVMS usage: ef_number
type: longword (unsigned)
access: read only
mechanism: by value

Event flag that $QIO is to set when the I/O operation completes. The efn argument is a longword value containing the number of the event flag; however, $QIO uses only the low-order byte.

If you do not specify efn, event flag 0 is used.

When $QIO begins execution, it clears the specified event flag or event flag 0 if efn was not specified.

The specified event flag is set if the service terminates without queuing an I/O request.

chan


OpenVMS usage: channel
type: word (unsigned)
access: read only
mechanism: by value

I/O channel assigned to the device to which the request is directed. The chan argument is a word value containing the number of the I/O channel; however, $QIO uses only the low-order word.

Specifying an invalid value for the chan argument will result in either SS$_IVCHAN or SS$_IVIDENT being returned.

func


OpenVMS usage: function_code
type: longword (unsigned)
access: read only
mechanism: by value

Device-specific function codes and function modifiers specifying the operation to be performed. The func argument is a longword containing the function code.

Each device has its own function codes and function modifiers. For complete information about the function codes and function modifiers that apply to the particular device to which the I/O operation is to be directed, see the HP OpenVMS I/O User's Reference Manual.

iosb


OpenVMS usage: io_status_block
type: quadword (unsigned)
access: write only
mechanism: by 32- or 64-bit reference (Alpha and Integrity servers)

I/O status block to receive the final completion status of the I/O operation. The iosb argument is the address of the quadword I/O status block. The following diagram depicts the structure of the I/O status block.

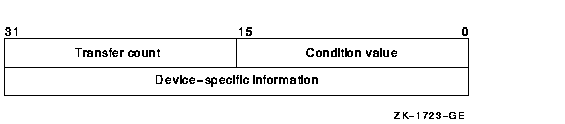

The following table defines the I/O status block fields.
Status Block Field Definition
Condition value Word-length condition value that $QIO returns when the I/O operation actually completes.
Transfer count Number of bytes of data transferred in the I/O operation. For information about how specific devices handle this field of the I/O status block, see the HP OpenVMS I/O User's Reference Manual.
Device-specific information Contents of this field vary depending on the specific device and on the specified function code. For information on how specific devices handle this field of the I/O status block, see the HP OpenVMS I/O User's Reference Manual.

When $QIO begins execution, it clears the quadword I/O status block if the iosb argument is specified.

Though this argument is optional, HP strongly recommends that you specify it, for the following reasons:

astadr


OpenVMS usage: ast_procedure
type: procedure value
access: call without stack unwinding
mechanism: by 32- or 64-bit reference (Alpha and Integrity servers)

AST service routine to be executed when the I/O completes. The astadr argument is the address of the AST routine.

The AST routine executes at the access mode of the caller of $QIO.

astprm


OpenVMS usage: user_arg
type: quadword unsigned (Alpha and Integrity servers)
access: read only
mechanism: by 64-bit value (Alpha and Integrity servers)

AST parameter to be passed to the AST service routine. On Alpha and Integrity server systems, the astprm argument is a quadword value containing the AST parameter.

p1 to p6


OpenVMS usage: varying_arg
type: quadword (unsigned) (Alpha and Integrity servers)
access: read only
mechanism: by 32- or 64-bit reference or by 64-bit value, depending on the I/O function (Alpha and Integrity servers)

Optional device-specific and function-specific I/O request parameters. For example, the p1 parameter usually specifies a buffer by reference. Other parameters, such as the buffer size, disk block number, or carriage control are often passed by value.

For more information about these parameters, see the HP OpenVMS I/O User's Reference Manual.


Description

The Queue I/O Request service operates only on assigned I/O channels and only from access modes that are equal to or more privileged than the access mode from which the original channel assignment was made.

The $QIO service uses system dynamic memory to construct a database to queue the I/O request and might require additional memory depending on the queued device.

For $QIO, you can synchronize completion (1) by specifying the astadr argument to have an AST routine execute when the I/O completes or (2) by calling the Synchronize ($SYNCH) service to await completion of the I/O operation. The $QIOW service completes synchronously, and it is the best choice when synchronous completion is required.

For information about how to use the $QIO service for network operations, see the DECnet for OpenVMS Networking Manual.

Required Access or Privileges

LOG_IO or PHY_IO is required, depending upon the device type and the requested operation. DIAGNOSE is required to issue a $QIO with an associated diagnostic buffer. In addition, read or write access is generally required for the device. For more information, see the HP OpenVMS Guide to System Security.

Required Quota

The $QIO service uses the following quotas:

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR, $IO_CLEANUP, $IO_PERFORM, $IO_SETUP


Condition Values Returned

SS$_NORMAL The service completed successfully. The I/O request was successfully queued.
SS$_ABORT A network logical link was broken.
SS$_ACCVIO Either the I/O status block cannot be written by the caller, or the parameters for device-dependent function codes are specified incorrectly.
SS$_CONNECFAIL The connection to a network object timed out or failed.
SS$_DEVOFFLINE The specified device is off line and not currently available for use.
SS$_EXQUOTA The process has (1) exceeded its AST limit (ASTLM) quota, (2) exceeded its buffered I/O byte count (BYTLM) quota, (3) exceeded its buffered I/O limit (BIOLM) quota, (4) exceeded its direct I/O limit (DIOLM) quota, or (5) requested a buffered I/O transfer smaller than the buffered byte count quota limit (BYTLM), but when added to other current buffer requests, the buffered I/O byte count quota was exceeded.
SS$_FILALRACC A logical link is already accessed on the channel (that is, a previous connect on the channel).
SS$_FILEFULL File full; allocation failure. An attempt to extend a file will exceed the maximum supported size of the file. For ODS-2 and ODS-5 disks, this is 2 TB (4,294,967,295 blocks). Reduce the size of the extend request. If the difference between the maximum file size and the current file is less than the cluster size, the file cannot be extended.
SS$_ILLEFC You specified an illegal event flag number.
SS$_INSFMEM The system dynamic memory is insufficient for completing the service.
SS$_INVLOGIN The access control information was invalid at the remote node.
SS$_IVCHAN You specified an invalid channel number, that is, a channel number of 0, or you failed to specify a channel number.
SS$_IVIDENT You specified a channel number greater than the number of channels assigned for the process.
SS$_IVDEVNAM The NCB has an invalid format or content.
SS$_LINKABORT The network partner task aborted the logical link.
SS$_LINKDISCON The network partner task disconnected the logical link.
SS$_LINKEXIT The network partner task was started, but exited before confirming the logical link (that is, $ASSIGN to SYS$NET).
SS$_NOLINKS No logical links are available. The maximum number of logical links as set for the executor MAXIMUM LINKS parameter was exceeded.
SS$_NOPRIV The specified channel does not exist or was assigned from a more privileged access mode, or the process does not have the necessary privileges to perform the specified functions on the device associated with the specified channel.
SS$_NOSUCHNODE The specified node is unknown.
SS$_NOSUCHOBJ The network object number is unknown at the remote node; or for a TASK= connect, the named DCL command procedure file cannot be found at the remote node.
SS$_NOSUCHUSER The remote node could not recognize the login information supplied with the connection request.
SS$_NOT64DEVFUNC On Alpha and Integrity server systems, this fatal condition value is returned under the following circumstances: (1) The caller has specified a 64-bit virtual address in the P1 device dependent parameter but the device driver does not support 64-bit addresses with the requested I/O function. (2) The caller has specified a 64-bit address for a diagnostic buffer but the device driver does not support 64-bit addresses for diagnostic buffers. (3) Some device drivers might also return this condition value when 64-bit buffer addresses are passed using the P2 through P6 parameters and the driver does not support a 64-bit address with the requested I/O function.
SS$_PATHLOST The path to the network partner task node was lost.
SS$_PROTOCOL A network protocol error occurred. This error is most likely due to a network software error.
SS$_REJECT The network object rejected the connection.
SS$_REMRSRC The link could not be established because system resources at the remote node were insufficient.
SS$_SHUT The local or remote node is no longer accepting connections.
SS$_THIRDPARTY The logical link was terminated by a third party (for example, the system manager).
SS$_TOOMUCHDATA The task specified too much optional or interrupt data.
SS$_UNASEFC The process is not associated with the cluster containing the specified event flag.
SS$_UNREACHABLE The remote node is currently unreachable.
SS$_UNSUPPORTED Unsupported operation or function. An attempt has been made to create a contiguous file with a size greater than the supported maximum. For ODS-2 and ODS-5 disks, this value is 1,073,741,824 blocks. Reduce the size of the request when creating such a file.

Condition Values Returned in the I/O Status Block

1
Device-specific condition values; the HP OpenVMS I/O User's Reference Manual lists these condition values for each device.

$QIOW

The Queue I/O Request and Wait service queues an I/O request to a channel associated with a device.

The $QIOW service completes synchronously; however, Digital recommends that you use an IOSB with this service to avoid premature completion.

For asynchronous completion, use the Queue I/O Request ($QIO) service.

In all other respects, $QIOW is identical to $QIO. For more information about $QIOW, refer to the description of $QIO.

For additional information about system service completion, refer to the Synchronize ($SYNCH) service.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$QIOW [efn] ,chan ,func ,[iosb] ,[astadr] ,[astprm] ,[p1] ,[p2] ,[p3] ,[p4] ,[p5] ,[p6]


C Prototype

int sys$qiow (unsigned int efn, unsigned short int chan, unsigned int func, struct _iosb *iosb, void (*astadr)(__unknown_params), __int64 astprm, void *p1, __int64 p2, __int64 p3, __int64 p4, __int64 p5, __int64 p6);


$READ

The Read service retrieves a specified number of bytes from a file (beginning on a block boundary) and transfers them to memory. A Read service using block I/O can be performed on any file organization.

For additional information about this service, see the OpenVMS Record Management Services Reference Manual.


$READEF

Returns the current status of all 32 event flags in a local or common event flag cluster and indicates whether the specified event flag is set or clear.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$READEF efn ,state


C Prototype

int sys$readef (unsigned int efn, unsigned int *state);


Arguments

efn


OpenVMS usage: ef_number
type: longword (unsigned)
access: read only
mechanism: by value

Number of any event flag in the cluster whose status is to be returned. The efn argument is a longword containing this number; however, $READEF uses only the low-order byte. Specifying an event flag within a cluster requests that $READEF return the status of all event flags in that cluster.

There are two local event flag clusters, which are local to the process: cluster 0 and cluster 1. Cluster 0 contains event flag numbers 0 to 31, and cluster 1 contains event flag numbers 32 to 63.

There are two common event flag clusters: cluster 2 and cluster 3. Cluster 2 contains event flag numbers 64 to 95, and cluster 3 contains event flag numbers 96 to 127.

state


OpenVMS usage: mask_longword
type: longword (unsigned)
access: write only
mechanism: by 32- or 64-bit reference (Alpha and Integrity servers)

State of all event flags in the specified cluster. The state argument is the 32- or 64-bit address (on Alpha and Integrity server systems) of a longword into which $READEF writes the state (set or clear) of the 32 event flags in the cluster.

Condition Values Returned

SS$_WASCLR The service completed successfully. The specified event flag is clear. Note that this is also the same value as SS$_NORMAL.
SS$_WASSET The service completed successfully. The specified event flag is set. Note that while the message id is the same as SS$_ACCVIO, the severity bits are different.
SS$_ACCVIO The longword that is to receive the current state of all event flags in the cluster cannot be written by the caller.
SS$_ILLEFC You specified an illegal event flag number.
SS$_UNASEFC The process is not associated with the cluster containing the specified event flag.
