$ICC_REPLY

Sends a single message over a connection. This service is used in response to the reception of a Request Handle in a previous $ICC_RECEIVE system service.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$ICC_REPLY conn_handle ,ios_icc ,[astadr] ,[astprm] ,reply_buf ,reply_len


C Prototype

sys$icc_reply (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *reply_buf, unsigned int reply_len);


Arguments

conn_handle


OpenVMS usage: connection_id
type: longword (unsigned)
access: read only
mechanism: by value

The handle of the fully established connection.

ios_icc


OpenVMS usage: io_status_block
type: quadword (unsigned)
access: modify
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

I/O status block:

Completion status values:

SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_LINKABORT, SS$_LINKDISCON

astadr


OpenVMS usage: ast_procedure
type: procedure_entry_mask
access: call without stack unwinding
mechanism: by 32-bit or 64-bit linkage reference (Alpha and Integrity servers)

The AST routine to be executed when the operation completes.

astprm


OpenVMS usage: user_arg
type: quadword (unsigned) (Alpha and Integrity servers)
access: read only
mechanism: by 64-bit value (Alpha and Integrity servers)

The parameter to be passed to the AST routine.

reply_buf


OpenVMS usage: byte_stream
type: character-coded text string
access: read only
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

The 32-bit or 64-bit address (on Alpha and Integrity server systems) of the buffer containing the reply data to be sent. The length of this buffer is specified by the argument reply_len.

reply_len


OpenVMS usage: buffer_length
type: longword (unsigned)
access: read only
mechanism: by value

The length (in bytes) of the reply data to be sent over the connection. This value specifies the length of the buffer reply_buf. ICC segments larger buffers internally.

The maximum Reply length is the smaller of the Reply buffer size supplied in the $ICC_RECEIVE call, or 1MB.

IOS_ICC Argument:

request_handle (input)


OpenVMS usage: request_id
type: longword (unsigned)
access: read only
mechanism: by value

This parameter is passed through the ios_icc. The Request/Response handle from the received Transceive request is placed at offset ios_icc$l_replyto_handle of the ios_icc.

Description

This service is almost identical to the $ICC_TRANSMIT system service in that it sends a single message over a connection. The only difference is that it is used in response to the reception of a Request Handle in a previous Receive Data system service.

When completion is signaled by calling the AST (if supplied), the data has been delivered to the communications system, but not necessarily to the application at the other end of the connection. The user can reuse the buffer after completion has been signaled.

Alternatively, if the synchronous completion option was requested at connection time, the service may return the optional success status, SS$_SYNCH. When SS$_SYNCH is returned, completion has occurred, and no AST will be delivered.

Required Access or Privileges

None.

Required Quota

BYTLM (for Reply buffer)

Related Services

$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW, $ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE, $ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLYW, $ICC_TRANSCEIVE, $ICC_TRANSCEIVEW, $ICC_TRANSMIT, $ICC_TRANSMITW


Condition Values Returned

SS$_NORMAL Normal completion.
SS$_ACCVIO Access violation on parameter.
SS$_BADPARAM Bad parameter value specified.
SS$_EXBYTLM Insufficient byte count quota.
SS$_INSFARG Too few arguments supplied.
SS$_IVCHAN Unknown connection specified or invalid connection handle.
SS$_IVMODE Attempted to use a connection from a more privileged access mode than the mode in which it was opened.
SS$_LINKDISCON An Incoming disconnect event is already in progress.
SS$_NOSUCHID The request_handle is invalid.
SS$_SYNCH If synchronous mode was requested at connection time, this return value indicates that completion has already occurred and the AST routine, if specified, will not be called.
SS$_TOO_MANY_ARGS Too many arguments specified.
SS$_WRONGSTATE Connection is in the wrong state for the request.

$ICC_REPLYW

The Intra-Cluster Communications Reply and Wait service transmits a single message over a connection in response to a $ICC_TRANSCEIVE[W] request.

The $ICC_REPLYW service completes synchronously; that is, it returns to the caller when the underlying transport layer has released use of the reply buffer.

For asynchronous completion, use the $ICC_REPLY service; $ICC_REPLY returns to the caller as soon as the transmission request has been queued to the transport layer, without waiting for notification that the transport layer has released control of the data buffer.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$ICC_REPLYW conn_handle, ios_icc, [astadr], [astprm], reply_buf, reply_len


C Prototype

sys$icc_replyw (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *reply_buf, unsigned int reply_len);


$ICC_TRANSCEIVE

Sends a single message over a connection and then waits for a reply.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$ICC_TRANSCEIVE conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len


C Prototype

sys$icc_transceive (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);


Arguments

conn_handle


OpenVMS usage: connection_id
type: longword (unsigned)
access: read only
mechanism: by value

The handle of the fully established (open) connection.

ios_icc


OpenVMS usage: io_status_block
type: five longwords (unsigned)
access: modify
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

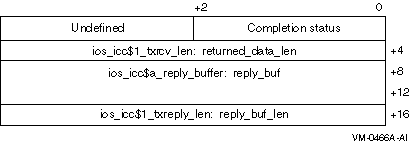

I/O status block:

Completion status values:

SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_BUFOVFL, SS$_LINKABORT, SS$_LINKDISCON

astadr


OpenVMS usage: ast_procedure
type: procedure_entry_mask
access: call without stack unwinding
mechanism: by 32-bit or 64-bit linkage reference (Alpha and Integrity servers)

The AST routine to be executed when the operation completes.

astprm


OpenVMS usage: user_arg
type: quadword (unsigned) (Alpha and Integrity servers)
access: read only
mechanism: by 64-bit value (Alpha and Integrity servers)

The parameter to be passed to the AST routine.

send_buf


OpenVMS usage: byte_stream
type: character-coded text string
access: read only
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

The 32-bit or 64-bit address (on Alpha and Integrity server systems) of the buffer containing the data to be sent. The length of this buffer is specified by the argument send_len.

send_len


OpenVMS usage: buffer size
type: longword (unsigned)
access: read only
mechanism: by value

The length (in bytes) of the data to be sent over the connection. This value specifies the length of the buffer send_buf.

IOS_ICC Arguments:

returned_data_len (output)


OpenVMS usage: longword_unsigned
type: longword (unsigned)
access: write only
mechanism: by value

This parameter is passed through the ios_icc. The $ICC_TRANSCEIVE service writes the actual length (in bytes) of the reply data received into offset ios_icc$l_txrcv_len of the ios_icc. This value represents how much data in reply_buf was returned by the target application.

reply_buf (input)


OpenVMS usage: byte_stream
type: character-coded text string
access: write only
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

This parameter is passed through the ios_icc. The 32-bit or 64-bit address (on Alpha and Integrity server systems) of the buffer available to receive the incoming reply message is placed in offset ios_icc$a_reply_buffer of the ios_icc.

reply_buf_len (input)


OpenVMS usage: buffer_size
type: longword (unsigned)
access: read only
mechanism: by value

This parameter is passed through the ios_icc. The length (in bytes) of the buffer to receive the reply message. This value specifies the length of the buffer reply_buf. This value is placed in offset ios_icc$l_txreply_len of the ios_icc.

Description

This service sends a single message over a connection and then waits for a reply. When completion is signaled by calling the AST (if supplied), the data has been delivered to the application at the other end of the connection and that application has delivered a reply, now present in the reply buffer. The user can reuse the send and reply buffers after completion.

For efficiency reasons, the number of parameters on this routine has been limited to six parameters. Three additional parameters are passed by the ios_icc data structure.

Required Access or Privileges

None.

Required Quota

BYTLM (Send and Reply buffers)

Related Services

$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW, $ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE, $ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVEW, $ICC_TRANSMIT, $ICC_TRANSMITW


Condition Values Returned

SS$_NORMAL Normal completion.
SS$_ACCVIO Access violation on parameter.
SS$_BADPARAM Bad parameter value specified.
SS$_EXBYTLM Insufficient byte count quota.
SS$_INSFARG Too few arguments were supplied.
SS$_INSFMEM Insufficient process or system memory to complete the request.
SS$_IVCHAN Unknown connection specified or invalid connection handle.
SS$_IVMODE Attempted to use a connection from a more privileged access mode than the mode in which it was opened.
SS$_LINKDISCON An Incoming disconnect event is in progress.
SS$_SYNCH If synchronous mode was requested at connection time, this return value indicates that completion has already occurred and the AST routine, if specified, will not be called.
SS$_TOO_MANY_ARGS Too many arguments were specified.
SS$_WRONGSTATE Connection is in wrong state for request.

$ICC_TRANSCEIVEW

Sends a single message over a connection and waits for a reply.

The $ICC_TRANSCEIVEW service completes synchronously; that is, it returns to the caller when the data from the reply is available.

For asynchronous completion, use the $ICC_TRANSCEIVE service; $ICC_TRANSCEIVE returns to the caller when the transmit portion of the tranceive request has been queued to the transport layer, but without waiting for notification that the transport layer has released control of the data buffer or for the reply data from the receiving end of the connection.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$ICC_TRANSCEIVEW

conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len


C Prototype

sys$icc_transceivew (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);


$ICC_TRANSMIT

Sends a single message over a connection.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$ICC_TRANSMIT conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len


C Prototype

sys$icc_transmit (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);


Arguments

conn_handle


OpenVMS usage: connection_id
type: longword (unsigned)
access: read only
mechanism: by value

The handle of the fully established (open) connection to send the data over.

ios_icc


OpenVMS usage: ios_status_block
type: structure IOS_ICC
access: write only
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

I/O status block:

Completion status values:

SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_LINKABORT, SS$_LINKDISCON

astadr


OpenVMS usage: ast_procedure
type: procedure_entry_mask
access: call without stack unwinding
mechanism: by 32-bit or 64-bit linkage reference (Alpha and Integrity servers)

The AST routine to be executed when the operation completes.

astprm


OpenVMS usage: user_arg
type: quadword (unsigned) (Alpha and Integrity servers)
access: read only
mechanism: by 64-bit value (Alpha and Integrity servers)

The parameter to be passed to the AST routine.

send_buf


OpenVMS usage: byte_stream
type: character-coded text string
access: read only
mechanism: by 32-bit or 64-bit reference (Alpha and Integrity servers)

The 32-bit or 64-bit address (on Alpha and Integrity server systems) of the buffer containing the data to be sent. The length of this buffer is specified by the argument send_len.

send_len


OpenVMS usage: buffer_length
type: longword (unsigned)
access: read only
mechanism: by value

The length (in bytes) of the data to be sent over the connection. This value specifies the length of the buffer send_buf. The maximum transmission size is 1MB.

Description

This service sends a single message over a connection. When completion is signalled by calling the AST (if supplied), the data has been delivered to the communications system, but not necessarily to the system or application at the other end of the connection. After completion, the user can reuse the buffer.

Alternatively, if the synchronous completion option was requested at connection time, the service may return the optional success status, SS$_SYNCH. When SS$_SYNCH is returned, completion has occurred, and no AST will be delivered.

Required Access or Privileges

None.

Required Quota

BYTLM (send_buf)

Related Services

$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW, $ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE, $ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVE, $ICC_TRANSCEIVEW, $ICC_TRANSMITW


Condition Values Returned

SS$_NORMAL Normal completion.
SS$_ACCVIO Access violation on parameter.
SS$_BADPARAM Bad parameter value specified.
SS$_EXBYTLM Insufficient byte count quota.
SS$_INSFARG Too few arguments were supplied.
SS$_INSFMEM Insufficient process or system memory to complete the request.
SS$_IVCHAN Unknown connection specified or invalid connection handle.
SS$_IVMODE Attempted to use a connection from a more privileged access mode than the mode in which it was opened.
SS$_LINKDISCON An Incoming disconnect event is in progress.
SS$_SYNCH If synchronous mode was requested at connection time, this return value indicates that completion has already occurred and the AST routine, if specified, will not be called.
SS$_TOO_MANY_ARGS Too many arguments were specified.
SS$_WRONGSTATE Connection is in the wrong state for the request.
