$INIT_SYS_ALIGN_FAULT_REPORT (Alpha and Integrity servers)

On Alpha and Integrity server systems, initializes system process alignment fault reporting.

This service accepts 64-bit addresses.


Format

SYS$INIT_SYS_ALIGN_FAULT_REPORT match_table ,buffer_size ,flags


C Prototype

int sys$init_sys_align_fault_report (void *match_table, int buffer_size, unsigned int flags);


Arguments

match_table


OpenVMS usage: address
type: longword (unsigned)
access: read
mechanism: by 32-bit or 64-bit reference

Describes the system fault match table. The match_table argument is the 32-bit or 64-bit virtual address of an array of longwords describing the system fault match table. The first longword is the number of match entries; the remaining longwords are the match entries.

The match table is used to restrict the number of alignment faults reported. Each entry in the table is a bit mask divided into three groups: mode bits, program counter (PC) space bits, and virtual address (VA) space bits.

The following table lists the symbols that can be used to define these bits:
Bit Type Symbols
Mode bits AME$M_KERNEL_MODE Kernel mode
  AME$M_EXEC_MODE Executive mode
  AME$M_SUPER_MODE Supervisor mode
  AME$M_USER_MODE User mode
Program counter bits AME$M_USER_PC PC in User space
  AME$M_SYSTEM_PC PC in System space
Virtual address bits AME$M_SYSTEM_VA VA in System space
  AME$M_USER_VA_P0 VA in User P0 space
  AME$M_USER_VA_P1 VA in User P1 space
  AME$M_USER_VA_P2 VA in User P2 space

The following diagram illustrates the data structure of the match table:


When an alignment fault occurs, a fault bit mask is created with one bit set in each group. The alignment fault handler then compares this fault bit mask against each entry in the match table. If the fault bit mask is a subset of an entry in the match table, the fault is reported.

buffer_size


OpenVMS usage: byte count
type: longword (signed)
access: read
mechanism: by value

The number of bytes to allocate, from nonpaged pool, to save the alignment fault data. The buffer you allocate must be sufficient to accommodate one data item of the size specified in the flags argument.

flags


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by value

Flag bit mask specifying options for the $GET_SYS_ALIGN_FAULT_DATA operation.

If the flags argument is 0, data items of size AFR$K_VMS_LENGTH will be returned. If the flags argument is AFR$M_USER_INFO, the user name and image name are added to each data item and they are returned in a buffer of length AFR$K_EXTENDED_LENGTH. If the user name and image name are not available, an empty string is returned in the data item.


Description

The Initialize System Alignment Fault Reporting service initializes system alignment fault reporting.

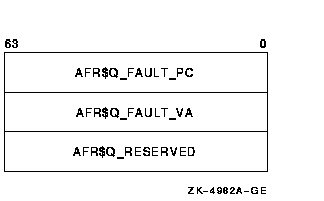

System alignment faults must be written to a buffer. The following diagram illustrates the format in which system alignment fault data is saved in the buffer:


Only one user on a system can initialize system alignment fault reporting at any time. Subsequent calls will return SS$_AFR_ENABLED.

System alignment fault reporting is disabled when the program that called the service completes.

Required Access or Privileges

CMKRNL privilege is required.

Required Quota

None

Related Services

$GET_ALIGN_FAULT_DATA, $GET_SYS_ALIGN_FAULT_DATA, $PERM_DIS_ALIGN_FAULT_REPORT, $PERM_REPORT_ALIGN_FAULT, $START_ALIGN_FAULT_REPORT, $STOP_ALIGN_FAULT_REPORT, $STOP_SYS_ALIGN_FAULT_REPORT


Condition Values Returned

SS$_NORMAL The service completed successfully.
SS$_ACCVIO The match table is not read accessible.
SS$_AFR_ENABLED The service was already called.
SS$_BADPARAM The buffer_size argument is less than the minimum size required. If the flags argument is 0, AFR$K_VMS_LENGTH + 32 is required. If the flags argument is 1, AFR$K_EXTENDED_LENGTH + 32 is required.
SS$_NOPRIV The caller does not have CMKRNL privilege.

$INIT_VOL

Formats a disk or magnetic tape volume and writes a label on the volume. At the end of initialization, the disk is empty except for the system files containing the structure information. All former contents of the volume are lost.

Format

SYS$INIT_VOL devnam, volnam [,itmlst]


C Prototype

int sys$init_vol (void *devnam, void *volnam, void *itmlst);


Arguments

devnam


OpenVMS usage: char_string
type: character string
access: read only
mechanism: by descriptor

Name of the device on which the volume is physically mounted. The descriptor must point to the device name, a character string of 1 to 64 characters. The device name can be a physical device name or a logical name; if it is a logical name, it must translate to a physical name.

The device does not have to be currently allocated; however, allocating the device before initializing it is recommended.

volnam


OpenVMS usage: char_string
type: character string
access: read only
mechanism: by descriptor

Identification to be encoded on the volume. The descriptor must point to the volume name, a character string of 1 to 12 characters. For a disk volume name, you can specify a maximum of 12 ANSI characters; for a magnetic tape volume name, you can specify a maximum of 6 ANSI "a" characters.

Any valid ANSI "a" characters can be used; these include numbers, uppercase letters, and any one of the following nonalphanumeric characters:

! " % ' ( ) * + , - . / : ; < = >

HP strongly recommends that a disk volume name consist of only alphanumeric characters, dollar signs ($), underscores (_), and hyphens (-).

itmlst


OpenVMS usage: item_list_3
type: longword (unsigned)
access: read only
mechanism: by reference

Item list specifying options that can be used when initializing the volume. The itmlst argument is the address of a list of item descriptors, each of which describes one option. The list of item descriptors is terminated by a longword of 0.

The following diagram depicts the format of a single item descriptor:


The following table defines the item descriptor fields:
Descriptor Field Definition
Buffer length A word specifying the length (in bytes) of the buffer that supplies the information $INIT_VOL needs to process the specific item code. The length of the buffer needed depends on the item code specified in the item descriptor.
Item code A word containing an option for the initialize operation. These codes are defined by the $INITDEF macro. There are three types of item codes:

Boolean item code Boolean item codes specify a true or false value. The form INIT$_ code specifies a true value and the form INIT$_NO_ code specifies a false value. For Boolean item codes, the buffer length and buffer address fields of the item descriptor must be 0.
Symbolic value item code Symbolic value item codes specify one of a specified range of possible choices. The buffer length and buffer address fields of the item descriptor must be 0.
Input value item code Input value item codes specify a value to be used by $INIT_VOL. The buffer length and buffer address fields of the item descriptor must be nonzero.
Buffer address A longword containing the address of the buffer that supplies information to $INIT_VOL.
Return length address This field is not used.


Item Codes

INIT$_ACCESSED

An input item code that specifies the number of directories allowed in system space on the volume.

You must specify an integer between 0 and 255 in the input buffer. The default value is 3.

The INIT$_ACCESSED item code applies only to Files-11 On-Disk Structure Level 1 disks.

INIT$_BADBLOCKS_LBN

An input item code that enables $INIT_VOL to mark bad blocks on the volume; no data is written to those faulty areas. INIT$_BADBLOCKS_LBN specifies faulty areas on the volume by logical block number and block count.

The buffer from which $INIT_VOL reads the option information contains an array of quadwords containing information in the following format:


The following table describes the information to be specified for INIT$_BADBLOCKS_LBN:
Field Symbol Name Description

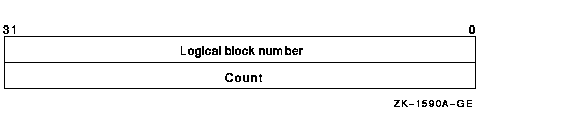

Logical block number INIT$L_BADBLOCKS_LBN Specifies the logical block number of the first block to be marked as allocated.
Count INIT$L_BADBLOCKS_COUNT Specifies the number of blocks to be allocated. This range begins with the first block, as specified in INIT$L_BADBLOCKS_LBN.

For example, if the input buffer contains the values 5 and 3, INIT_VOL starts at logical block number 5 and allocates 3 blocks.

The number of entries in the buffer is determined by the buffer length field in the item descriptor.

All media supplied by HP and supported on the operating system, except disks and TU58 cartridges, are factory formatted and contain bad block data. The Bad Block Locator utility (BAD) or the diagnostic formatter EVRAC can be used to refresh the bad block data or to construct it for the disks and TU58 cartridges. The INIT$_BADBLOCKS_LBN item code is necessary only to enter bad blocks that are not identified in the volume's bad block data. For more information, see the OpenVMS Bad Block Locator Utility Manual (available on the Documentation CD-ROM).

The INIT$_BADBLOCKS_LBN item code applies only to disks.

INIT$_BADBLOCKS_SEC

An input item code that specifies faulty areas on the volume by sector, track, cylinder, and block count. $INIT_VOL marks the bad blocks as allocated; no data is written to them.

The input buffer must contain an array of octawords containing information in the following format:


The following table describes the information to be specified for INIT$_BADBLOCKS_SEC:
Field Symbol Name Description
Sector INIT$L_BADBLOCKS_SECTOR Specifies the sector number of the first block to be marked as allocated.
Count INIT$L_BADBLOCKS_COUNT Specifies the number of blocks to be allocated.

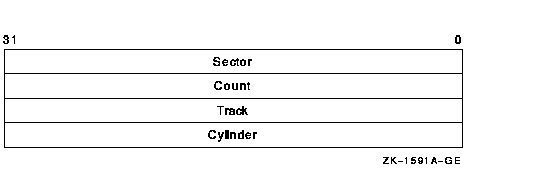

Track INIT$L_BADBLOCKS_TRACK Specifies the track number of the first block to be marked as allocated.
Cylinder INIT$L_BADBLOCKS_CYLINDER Specifies the cylinder number of the first block to be marked as allocated.

For example, if the input buffer contains the values 12, 3, 1, and 2, INIT_VOL starts at sector 12, track 1, cylinder 2, and allocates 3 blocks.

The number of entries in the buffer is determined by the buffer length field in the item descriptor.

All media supplied by HP and supported on the operating system, except disks and TU58 cartridges, are factory formatted and contain bad block data. The Bad Block Locator utility (BAD) or the diagnostic formatter EVRAC can be used to refresh the bad block data or to construct it for the disks and TU58 cartridges. The INIT$_BADBLOCKS_SEC item code is necessary only to enter bad blocks that are not identified in the volume's bad block data. For more information, see the OpenVMS Bad Block Locator Utility Manual.

The INIT$_BADBLOCKS_SEC item code applies only to disks.

INIT$_CLUSTERSIZE

An input item code that specifies the minimum allocation unit in blocks. The input buffer must contain a longword value. The maximum size that can be specified for a volume is one-hundredth the size of the volume; the minimum size is calculated with the following formula:

volume size in blocks/(255 * 4096)

The INIT$_CLUSTERSIZE item code applies only to Files-11 On-Disk Structure Level 2 disks (for Files-11 On-Disk Structure Level 1 disks, the cluster size is 1). For Files-11 On-Disk Structure Level 2 disks, the cluster size default depends on the disk capacity:

Note

This item code applies to ODS-5 disks as well as to ODS-2 disks. For more information, see the INITIALIZE command in the HP OpenVMS DCL Dictionary.

INIT$_COMPACTION

INIT$_NO_COMPACTION---Default

A Boolean item code that specifies whether data compaction should be performed when writing the volume.

The INIT$_COMPACTION item code applies only to TA90 drives.

INIT$_DENSITY

A symbolic item code that specifies the density value for magnetic tapes and diskettes.

For magnetic tape volumes, the INIT$_DENSITY item code specifies the density.

The DENSITY item code is dependent on the type of tape device. If a tape device is seen as capable of using the MT3 density codes the buffer for MNT$_DENSITY item code must contain a longword with one of the MT3 codes, as defined in SYS$LIBRARY:STARLET (MT3$K_TK50, MT3$K_3480, M53$K_DSDLT, MT3$K_AIT2 and so on). Refer to the MT3_SUPPORTED argument for $GETDVI.

If the device does not support MT3 densities, the buffer specifies the density in bytes per inch (bpi) at which the magnetic tape is written. The following are possible symbolic values for tapes:

The specified density value must be supported by the drive. If you do not specify a density item code for a blank magnetic tape, the system uses a default density of the highest value allowed by the tape drive. If the drive allows 6250, 1600, and 800 bpi operation, the default density is 6250. If the drive allows only 1600 and 800 bpi operation, the default density is 1600. If you do not specify a density item code for a magnetic tape that has been previously written, the system uses the previously set volume density.

For diskettes, the INIT$_DENSITY item code specifies how the diskette is to be formatted. Possible symbolic values for diskettes are as follows:

For disk volumes that are to be initialized on RX02, RX23, or RX33 diskette drives, the following values specify how the disk is to be formatted:

Diskettes are initialized as follows:

If you do not specify a density item code for a disk, the system leaves the volume at the density at which it was last formatted. RX02 disks purchased from HP are formatted in single density.

INIT$_DIRECTORIES

An input item code that specifies the number of entries to preallocate for user directories. The input buffer must contain a longword value in the range of 16 to 16000. The default value is 16.

The INIT$_DIRECTORIES item code applies only to disks.

INIT$_ERASE

INIT$_NO_ERASE---Default

A Boolean item code that specifies whether deleted data should be physically destroyed by performing the data security erase (DSE) operation on the volume before initializing it. The INIT$_ERASE item code applies to the following devices:

For disk devices, this item code sets the ERASE volume attribute, causing each file on the volume to be erased when it is deleted.

INIT$_ERASE_ON_DELETE

A Boolean item code that sets the HM2$V_ERASE bit. The volume is marked so that when files are deleted, the blocks that they formerly occupied are erased. See the DCL command SET VOLUME/ERASE for more information.

INIT$_ERASE_ON_INIT

A Boolean item code that specifies whether to perform the data security erase (DSE) operation immediately.

INIT$_EXTENSION

An input item code that specifies, by the number of blocks, the default extension size for all files on the volume. The extension default is used when a file increases to a size greater than its initial default allocation during an update.

For Files-11 On-Disk Structure Level 2 disks, the buffer must contain a longword value in the range 0 to 65535. For Files-11 On-Disk Structure Level 1 disks, the input buffer must contain a longword value in the range of 0 to 255. The default value is 5 for both Structure Level 1 and Structure Level 2 disks.

The default extension set by this item code is used only if the following conditions are in effect:

Note

This item code applies to ODS-5 disks as well as to ODS-2 disks. For more information, see the INITIALIZE command in the HP OpenVMS DCL Dictionary.

INIT$_FPROT

An input item code that specifies the default protection applied to all files on the volume. The input buffer must contain a longword protection mask that contains four 4-bit fields. Each field grants or denies read, write, create, and delete access to a category of users. Cleared bits grant access; set bits deny access.

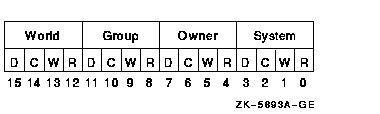

The following diagram depicts the structure of the protection mask on systems:


The INIT$_FPROT item code applies only to Files-11 On-Disk Structure Level 1 disks and is ignored if it is used on an OpenVMS system. OpenVMS systems use the default file extension set by the DCL command SET PROTECTION/DEFAULT.

INIT$_HEADERS

An input item code that specifies the number of file headers to be allocated for the index file. The input buffer must contain a longword value within the range of 16 to the value set by the INIT$_MAXFILES item code. The default value is 16.

The INIT$_HEADERS item code applies only to disks.

INIT$_GPT---Default on Integrity servers INIT$_NO_GPT---Default on Alpha

A Boolean item code that specifies whether or not to create a Global Universal ID (GUID) Partition Table (GPT) structure.

INIT$_HIGHWATER---Default

INIT$_NO_HIGHWATER

A Boolean item code that sets the file highwater mark (FHM) volume attribute, which guarantees that users cannot read data that they have not written.

INIT$_NO_HIGHWATER disables FHM for a volume.

The INIT$_HIGHWATER and INIT$_NO_HIGHWATER item codes apply only to Files-11 On-Disk Structure Level 2 disks.

INIT$_HOMEBLOCKS

Specifies where the volume's homeblock and spare copy of the homeblock are placed on disk. This item code applies to Files-11 ODS--2 volumes, and can have the following values:

Note

This item code applies to ODS-5 disks as well as to ODS-2 disks. For more information, see the INITIALIZE command in the HP OpenVMS DCL Dictionary.

INIT$_INDEX_BEGINNING

A symbolic item code that places the index file for the volume's directory structure at the beginning of the volume. By default, the index is placed in the middle of the volume.

When issuing calls to $INIT_VOL, using this item code in conjunction with INIT$_INDEX_BLOCK results in an error. If you specify both item codes from DCL, INIT$_INDEX_BLOCK takes precedence.

This item code applies only to disks.

INIT$_INDEX_BLOCK

An input item code that specifies the location of the index file for the volume's directory structure by logical block number. The input buffer must contain a longword value specifying the logical block number of the first block of the index file. By default, the index is placed in the middle of the volume.

When issuing calls to $INIT_VOL, using this item code with INIT$_INDEX_BEGINNING, INIT$_INDEX_MIDDLE, or INIT$_INDEX_END results in an error. From DCL, if you specify INIT$_INDEX_BLOCK with INIT$_INDEX_BEGINNING, INIT$_INDEX_MIDDLE, or INIT$_INDEX_END, then INIT$_INDEX_BLOCK takes precedence.

The INIT$_INDEX_BLOCK item code applies only to disks.

INIT$_INDEX_END

A symbolic item code that places the index file for the volume's directory structure at the end of the volume. The default is to place the index in the middle of the volume.

When issuing calls to $INIT_VOL, using this item code with INIT$_INDEX_BLOCK results in an error. If you specify both item codes from DCL, INIT$_INDEX_BLOCK takes precedence.

This item code applies only to disks.

INIT$_INDEX_MIDDLE

A symbolic item code that places the index file for the volume's directory structure in the middle of the volume. This is the default location for the index.

When issuing calls to $INIT_VOL, using this item code with INIT$_INDEX_BLOCK results in an error. If you specify both item codes from DCL, INIT$_INDEX_BLOCK takes precedence.

This item code applies only to disks.

INIT$_INTERCHANGE

An input item code that specifies that the magnetic tape ANSI VOL1 volume label is to be used for interchange in a heterogeneous vendor environment. On OpenVMS, this item code overrides creation of the ANSI VOL2 volume label, which contains security attributes specific to OpenVMS systems.

For more information about the INIT$_INTERCHANGE item code and about magnetic tape labeling and tape interchange, see the HP OpenVMS System Manager's Manual, Volume 1: Essentials.

INIT$_LABEL_ACCESS

An input item code that specifies the character to be written in the volume accessibility field of the ANSI volume label VOL1 on an ANSI magnetic tape. Any valid ANSI "a" characters can be used; these include numbers, uppercase letters, and any one of the following nonalphanumeric characters:

! " % ' ( ) * + , - . / : ; < = >

By default, the operating system provides a routine SYS$MTACCESS that checks this field in the following manner:

INIT$_LABEL_VOLO

An input item code that specifies the text that is written in the owner identifier field of the ANSI volume label VOL1 on an ANSI magnetic tape. The owner identifier field can contain up to 14 valid ANSI "a" characters.

INIT$_MAXFILES

An input item code that restricts the maximum number of files that the volume can contain. The input buffer must contain a longword value between 0 and a value determined by the following calculation:
