This argument is required for clusterwide logical name tables. For all other logical name tables, if you do not specify this argument, a default name in the format LNM$xxxx is used, where xxxx is a unique hexadecimal number.

You need SYSPRV privilege or write access to LNM$SYSTEM_DIRECTORY to specify the name of a shareable logical name table.

partab

If the parent table is shareable, then the newly created table is shareable and is entered into the system directory LNM$SYSTEM_DIRECTORY. If the parent table is process-private, then the newly created table is process-private and is entered in the process directory LNM$PROCESS_DIRECTORY.

You need SYSPRV privilege or write access to the system directory table to create a named shareable table. This argument is required.

acmode

If you do not specify the acmode argument or specify it as 0, the access mode of the caller is associated with the newly created logical name table.

The access mode associated with the logical name table is determined by maximizing the access mode of the caller with the access mode specified by the acmode. The less privileged of the two access modes is used.

However, if the caller has SYSNAM privilege, then the specified access mode is associated with the logical name table, regardless of the access mode of the caller.

Access modes associated with logical name tables govern logical name table processing and provide a protection mechanism that prevents the deletion of inner access mode logical name tables by nonprivileged users. You cannot specify an access mode more privileged than that of the parent table.

A logical name table with supervisor mode access can contain supervisor mode and user mode logical names and can be a parent to supervisor mode and user mode logical name tables, but cannot contain executive or kernel mode logical names or be a parent to executive or kernel mode logical name tables.

You need SYSNAM privilege to specify executive or kernel mode access for a logical name table.

Description

The Create Logical Name Table service creates a process-private or a shareable logical name table.

The $CRELNT service uses the following system resources:

• System paged dynamic memory to create a shareable logical name table
• Process dynamic memory to create a process-private logical name table

The parent table governs whether the new table is process-private or shareable. If the parent table is process-private, so is the new table; if the parent table is shareable, so is the new table.

Note that logical names are case sensitive.

Required Access or Privileges

Create access to the parent table and either SYSPRV privilege or write access to the system directory table are required.

You need the SYSNAM privilege to create a table at an access mode more privileged than that of the calling process.

Required Quota

The parent table must have sufficient quota for the creation of the new table.

Related Services

$CRELNM, $DELLNM, $TRNLNM

Condition Values Returned

SS$_NORMAL	The service completed successfully; the logical name table already exists.
SS$_LNMCREATED	The service completed successfully; the logical name table was created.
SS$_SUPERSEDE	The service completed successfully; the logical name table was created and its logical name superseded the already existing logical names in the directory table.
SS$_ACCVIO	The service cannot access the locations specified by one or more arguments.
SS$_BADPARAM	One or more arguments have an invalid value, or a parent logical name table was not specified.
SS$_DUPLNAM	You attempted to create a logical name table with the same name as an already existing name within the appropriate directory table, and the existing name was created at a more privileged access mode with the LNM$M_NO_ALIAS attribute.
SS$_EXLNMQUOTA	The parent table has insufficient quota for the creation of the new table.
SS$_INSFMEM	The dynamic memory is insufficient for the creation of the table, or there is insufficient dynamic memory to build a message describing the creation of a clusterwide logical name table.
SS$_IVLOGNAM	The partab argument specifies a string whose length is not within the required range of 1 to 31 characters.
SS$_IVLOGTAB	The tabnam argument is not alphanumeric or specifies a string whose length is not within the required range of 1 to 31 characters, or the TABNAM argument is omitted from a clusterwide $CRELNT call.
SS$_NOLOGTAB	The parent logical name table does not exist.
SS$_NOPRIV	The caller lacks the necessary privilege to create the table.
SS$_PARENT_DEL	The creation of the new table would have resulted in the deletion of the parent table.
SS$_RESULTOVF	The table name buffer is not large enough to contain the name of the new table.

Creates a virtual mailbox device named MBAn and assigns an I/O channel to it. The system provides the unit number n when it creates the mailbox. If a logical name is specified and a mailbox with the specified name already exists, the $CREMBX service assigns a channel to the existing mailbox.

Format

SYS$CREMBX [prmflg] ,chan ,[maxmsg] ,[bufquo] ,[promsk] ,[acmode] ,[lognam] ,[flags] ,[nullarg]

C Prototype

int sys$crembx (char prmflg, unsigned short int *chan, unsigned int maxmsg, unsigned int bufquo, unsigned int promsk, unsigned int acmode, void *lognam,...);

Arguments

prmflg

OpenVMS usage:	boolean
type:	byte (unsigned)
access:	read only
mechanism:	by value

Indicator specifying whether the created mailbox is to be permanent or temporary. The prmflg argument is a byte value. The first bit specifies a permanent mailbox; the value 0, which is the default, specifies a temporary mailbox. Any other values result in an error.

chan

OpenVMS usage:	channel
type:	word
access:	write only
mechanism:	by reference

Channel number assigned by $CREMBX to the mailbox. The chan argument is the address of a word into which $CREMBX writes the channel number.

maxmsg

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Maximum size (in bytes) of a message that can be sent to the mailbox. The maxmsg argument is a longword value containing this size.

The maximum value you can specify for the maxmsg argument is 65535. If you do not specify a value or specify the value as 0, the operating system provides a default value from the DEFMBXBUFQUO system parameter.

bufquo

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of bytes of system dynamic memory that can be used to buffer messages sent to the mailbox. The bufquo argument is a value containing this number. If you do not specify the bufquo argument or specify it as 0, the operating system provides a default value from the DEFMBXBUFQUO system parameter.

For a temporary mailbox, this value must be less than or equal to the process buffer quota.

Note that as of Version 7.3-1, the maximum value limit for the bufquo argument is the amount of available non-paged pool.

promsk

OpenVMS usage:	file_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

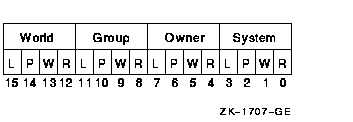

Protection mask to be associated with the created mailbox. The promsk argument is a longword value that is the combined value of the bits set in the protection mask. Cleared bits grant access and set bits deny access to each of the four classes of user: world, group, owner, and system. The following diagram depicts these protection bits:

If you do not specify the promsk argument or specify it as 0, the mailbox template is used.

The logical access bit must be clear for the class of user requiring access to the mailbox. The access bit must be clear for all categories of user because logical access is required to read or write to a mailbox; thus, setting or clearing the read and write access bits is meaningless unless the logical access bit is also cleared.

The physical access bit is ignored for all categories of user.

Logical access also allows you to queue read or write attention ASTs.

acmode

The $PSLDEF macro defines the following symbols for the four access modes:

Symbol	Access Mode	Numeric Value
PSL$C_KERNEL	Kernel	0
PSL$C_EXEC	Executive	1
PSL$C_SUPER	Supervisor	2
PSL$C_USER	User	3

The most privileged access mode used is the access mode of the caller. The specified access mode and the access mode of the caller are compared. The less privileged (but the higher numeric valued) of the two access modes becomes the access mode associated with the assigned channel. I/O operations on the channel can be performed only from equal or more privileged access modes.

lognam

The equivalence name for the mailbox is MBAn. The equivalence name is marked with the terminal attribute. Processes can use the logical name to assign other I/O channels to the mailbox.

For permanent mailboxes, the $CREMBX service enters the specified logical name, if any, in the LNM$PERMANENT_MAILBOX logical name table and, for temporary mailboxes, into the LNM$TEMPORARY_MAILBOX logical name table.

flags

The following table describes each flag:

Flag	Description
CMB$M_READONLY	When this flag is specified, $CREMBX assigns a read-only channel to the mailbox device. An attempt to issue a QIO WRITE operation on the mailbox channel results in an illegal I/O operation error.
CMB$M_WRITEONLY	When this flag is specified, $CREMBX assigns a write-only channel to the mailbox device. An attempt to issue a QIO READ operation on the mailbox channel results in an illegal I/O operation error.

For more information about the flags argument, see the HP OpenVMS I/O User's Reference Manual.

nullarg

Description

The Create Mailbox and Assign Channel service creates a virtual mailbox device named MBAn and assigns an I/O channel to it. The system provides the unit number n when it creates the mailbox. If a mailbox with the specified name already exists, the $CREMBX service assigns a channel to the existing mailbox.

The $CREMBX service uses system dynamic memory to allocate a device database for the mailbox and for an entry in the logical name table (if a logical name is specified).

When a temporary mailbox is created, the process's buffered I/O byte count (BYTLM) quota is reduced by the amount specified in the bufquo argument. The size of the mailbox unit control block and the logical name (if specified) are also subtracted from the quota. The quota is returned to the process when the mailbox is deleted.

The initial security profile created for a mailbox is taken from the mailbox template for the device class. The owner is then set to the process UIC and the promsk argument replaces the protection mask.

After the process creates a mailbox, it and other processes can assign additional channels to it by calling the Assign I/O Channel ($ASSIGN) or Create Mailbox ($CREMBX) service. If the mailbox already exists, the $CREMBX service assigns a channel to that mailbox; in this way, cooperating processes need not consider which process must execute first to create the mailbox.

A channel assigned to the mailbox READ ONLY is considered a READER. A channel assigned to the mailbox WRITE ONLY is considered a WRITER. A channel assigned to the mailbox READ/WRITE is considered both a WRITER and READER.

A temporary mailbox is deleted when no more channels are assigned to it. A permanent mailbox must be explicitly marked for deletion with the Delete Mailbox ($DELMBX) service; its actual deletion occurs when no more channels are assigned to it.

A mailbox is treated as a shareable device; it cannot, however, be mounted or allocated.

The mailbox unit number is determined when the mailbox is created. A process can obtain the unit number of the created mailbox by calling the Get Device/Volume Information ($GETDVI) service using the channel returned by $CREMBX.

Mailboxes are assigned sequentially increasing numbers (from 1 to a maximum of 9999) as they are created. When all unit numbers have been used, the system starts numbering again at unit 1. Logical names or mailbox names should be used to identify a mailbox between cooperating processes.

Default values for the maximum message size and the buffer quota (an appropriate multiple of the message size) are determined for a specific system during system generation. The system parameter DEFMBXMXMSG determines the maximum message size; the system parameter DEFMBXBUFQUO determines the buffer quota. For termination mailboxes, the maximum message size must be at least as large as the termination message (currently 84 bytes).

When you specify a logical name for a temporary mailbox, the $CREMBX service enters the name into the LNM$TEMPORARY_MAILBOX logical name table.

Normally, LNM$TEMPORARY_MAILBOX specifies LNM$JOB, the jobwide logical name table; thus, only processes in the same job as the process that first creates the mailbox can use the logical name to access the temporary mailbox. If you want to use the temporary mailbox to enable communication between processes in different jobs, you must redefine LNM$TEMPORARY_MAILBOX in the process logical name directory table (LNM$PROCESS_DIRECTORY) to specify a logical name table that those processes can access.

For instance, if you want to use the mailbox as a communication device for processes in the same group, you must redefine LNM$TEMPORARY_MAILBOX to specify LNM$GROUP, the group logical name table. The following DCL command assigns temporary mailbox logical names to the group logical name table:

$ DEFINE/TABLE=LNM$PROCESS_DIRECTORY LNM$TEMPORARY_MAILBOX LNM$GROUP

When you specify a logical name for a permanent mailbox, the system enters the name in the logical name table specified by the logical name table name LNM$PERMANENT_MAILBOX, which normally specifies LNM$SYSTEM, the system logical name table. If you want the logical name that you specify for the mailbox to be entered in a logical name table other than the system logical name table, you must redefine LNM$PERMANENT_MAILBOX to specify the desired table. For more information about logical name tables, see the HP OpenVMS Programming Concepts Manual.

If you redefine either LNM$TEMPORARY_MAILBOX or LNM$PERMANENT_MAILBOX, be sure that the name of the new table appears in the logical name table LNM$FILE_DEV. OpenVMS RMS and the I/O system services use LNM$FILE_DEV to translate I/O device names. If the logical name table specified by either LNM$TEMPORARY_MAILBOX or LNM$PERMANENT_MAILBOX does not appear in LNM$FILE_DEV, the system will be unable to translate the logical name of your mailbox and therefore will be unable to access your mailbox as an I/O device.

If you redirect a logical name table to point to a process-private table, then the following occurs:

• Other processes cannot access the mailbox by its name.
• If the creating process issues a second call to $CREMBX, a different mailbox is created and a channel is assigned to the new mailbox. (If the creating process issues a second call to $CREMBX using a shared logical name, a second channel is assigned to the existing mailbox.)
• The logical name is not deleted when the mailbox disappears.

Required Access or Privileges

Depending on the operation, the calling process might need one of the following privileges to use $CREMBX:

• TMPMBX privilege whenever the prmflg argument is specified as 0; however, a process that has PRMMBX privilege will also meet this requirement.
• PRMMBX privilege whenever the prmflg argument is specified as 1.
• SYSNAM privilege to place a logical name for a mailbox in the system logical name table.
• GRPNAM privilege to place a logical name for a mailbox in the group logical name table.

Required Quota

The calling process must have sufficient buffer I/O byte count (BYTLM) quota to allocate the mailbox unit control block (UCB) or to satisfy buffer requirements. When a temporary mailbox is created, the process's buffered I/O byte count (BYTLM) quota is reduced by the amount specified in the bufquo argument. The size of the mailbox UCB and the logical name (if specified) are also subtracted from the quota. The quota is returned to the process when the mailbox is deleted.

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The logical name string or string descriptor cannot be read by the caller, or the channel number cannot be written by the caller.
SS$_BADPARAM	One or more of the arguments has an invalid value. One possible problem is the flags argument has both the CMB$M_READONLY and CMB$M_WRITEONLY flags set; however, only one of these values is allowed.
SS$_EXBYTLM	The process has insufficient buffer I/O byte count (BYTLM) quota to allocate the mailbox UCB or to satisfy buffer requirements.
SS$_INSFMEM	The system dynamic memory is insufficient for completing the service.
SS$_INTERLOCK	The bit map lock for allocating mailboxes from the specified shared memory is locked by another process.
SS$_IVLOGNAM	The logical name string has a length of 0 or has more than 255 characters.
SS$_IVSTSFLG	The bit set in the prmflg argument is undefined; this argument can have a value of 1 or 0.
SS$_NOIOCHAN	No I/O channel is available for assignment.
SS$_NOPRIV	The process does not have the privilege to create a temporary mailbox, a permanent mailbox, a mailbox in memory that is shared by multiple processors, or a logical name.
SS$_NOSHMBLOCK	No shared memory mailbox UCB is available for use to create a new mailbox.
SS$_OPINCOMPL	A duplicate unit number was encountered while linking a shared memory mailbox UCB. If this condition value is returned, contact your HP support representative.
SS$_SHMNOTCNCT	The shared memory named in the name argument is not known to the system. This error can be caused by a spelling error in the string, an improperly assigned logical name, or the failure to identify the multiport memory as shared at system generation time.
SS$_TOOMANYLNAM	The logical name translation of the string named in the lognam argument exceeded the allowed depth.
