When you use the SJC$_SYNCHRONIZE_JOB function code, the return value is the exit status of the specified job.

When you start a symbiont queue with the SJC$_START_QUEUE function code or the SJC$_CREATE_QUEUE function code with the SJC$_CREATE_START item code, any error encountered by the symbiont process will be returned in the IOSB.

Examples

$ vfyold = f$verify(1)
$ create sys$scratch:accounting.c
#include <efndef.h>
#include <lib$routines.h>
#include <sjcdef.h>
#include <ssdef.h>
#include <starlet.h>
#include <stddef.h>
#include <stsdef.h>
struct ItemList3
    {
    short int ItemLength;
    short int ItemCode;
    void *ItemBuffer;
    void *ItemRetLen;
    };

#define MAXITMLST 3
main()
  {
  int i;
  struct ItemList3 JbcIL[MAXITMLST];
  unsigned short int IOSB[4];
  int RetStat, JbcMask, JbcFunc;

  /* To start accounting: */
  JbcFunc = SJC$_START_ACCOUNTING;

  /* Specify image and interactive */
  JbcMask = SJC$M_ACCT_IMAGE | SJC$M_ACCT_INTERACTIVE;

  i = 0;
  JbcIL[i].ItemLength     = sizeof( JbcMask );
  JbcIL[i].ItemCode       = SJC$_ACCOUNTING_TYPES;
  JbcIL[i].ItemBuffer     = (void *) &JbcMask;
  JbcIL[i++].ItemRetLen   = NULL;
  JbcIL[i].ItemLength     = 0;
  JbcIL[i].ItemCode       = 0;
  JbcIL[i].ItemBuffer     = NULL;
  JbcIL[i++].ItemRetLen   = NULL;

  RetStat = sys$sndjbcw(EFN$C_ENF,JbcFunc,0, JbcIL,IOSB,0,0);
  if (!$VMS_STATUS_SUCCESS( RetStat ))
    lib$signal( RetStat );
  if (!$VMS_STATUS_SUCCESS( IOSB[0] ))
    lib$signal( IOSB[0] );

  return SS$_NORMAL;
  }
$ cc/decc/prefix=all sys$scratch:accounting.c/object=sys$scratch:
$ link/executable=sys$scratch:accounting.exe sys$scratch:accounting
$ show accounting
$ prvold = f$setprv("OPER")
$ run sys$scratch:accounting
$ show accounting
$ priv = f$setprv(prvold)
$ vfyold = f$verify(vfyold)
$ exit





This C program demonstrates an $SNDJBCW call.

! Declare system service related symbols
INTEGER*4       SYS$SNDJBCW,
2               STATUS
INCLUDE         '($SJCDEF)'

! Define item list structure
STRUCTURE       /ITMLST/
  UNION
    MAP
      INTEGER*2 BUFLEN, ITMCOD
      INTEGER*4 BUFADR, RETADR
    END MAP
    MAP
      INTEGER*4 END_LIST
    END MAP
  END UNION
END STRUCTURE

! Define I/O status block structure
STRUCTURE       /IOSBLK/
INTEGER*4       STS, ZEROED
END STRUCTURE

! Declare $SNDJBCW item list and I/O status block
RECORD /ITMLST/ SUBMIT_LIST(6)
RECORD /IOSBLK/ IOSB
! Declare variables used in $SNDJBCW item list
CHARACTER*9     QUEUE                   /'SYS$BATCH'/
CHARACTER*23    FILE_SPECIFICATION      /'$DISK1:[COMMON]TEST.COM'/
CHARACTER*12    USERNAME                /'PROJ3036    '/
INTEGER*4       ENTRY_NUMBER

! Initialize item list for the enter file operation
SUBMIT_LIST(1).BUFLEN = 9
SUBMIT_LIST(1).ITMCOD = SJC$_QUEUE
SUBMIT_LIST(1).BUFADR = %LOC(QUEUE)
SUBMIT_LIST(1).RETADR = 0
SUBMIT_LIST(2).BUFLEN = 23
SUBMIT_LIST(2).ITMCOD = SJC$_FILE_SPECIFICATION
SUBMIT_LIST(2).BUFADR = %LOC(FILE_SPECIFICATION)
SUBMIT_LIST(2).RETADR = 0
SUBMIT_LIST(3).BUFLEN = 12
SUBMIT_LIST(3).ITMCOD = SJC$_USERNAME
SUBMIT_LIST(3).BUFADR = %LOC(USERNAME)
SUBMIT_LIST(3).RETADR = 0
SUBMIT_LIST(4).BUFLEN = 0
SUBMIT_LIST(4).ITMCOD = SJC$_NO_LOG_SPECIFICATION
SUBMIT_LIST(4).BUFADR = 0
SUBMIT_LIST(4).RETADR = 0
SUBMIT_LIST(5).BUFLEN = 4
SUBMIT_LIST(5).ITMCOD = SJC$_ENTRY_NUMBER_OUTPUT
SUBMIT_LIST(5).BUFADR = %LOC(ENTRY_NUMBER)
SUBMIT_LIST(5).RETADR = 0
SUBMIT_LIST(6).END_LIST = 0

! Call $SNDJBCW service to submit the batch job
STATUS = SYS$SNDJBCW (,
2               %VAL(SJC$_ENTER_FILE),,
2               SUBMIT_LIST,
2               IOSB,,)
IF (STATUS) STATUS = IOSB.STS
IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL(STATUS))
END



This Fortran program demonstrates the use of the $SNDJBCW service to submit a batch job that is to execute on behalf of another user. No log file is produced for the batch job. This program saves the job's entry number. You need CMKRNL privilege to run this program.

The Send to Job Controller and Wait and $GETQUI services together provide the user interface to the Job Controller (JBC) facility. The $SNDJBCW service allows you to create, stop, and manage queues and the jobs in those queues. Queues can be generic, batch, execution, or output queues. Jobs can be batch or print jobs.

The $SNDJBCW service queues a request to the job controller. For most operations, $SNDJBCW completes synchronously; that is, it returns to the caller after the operation completes; however, if the requested operation is a pause queue, stop queue, or abort job operation, $SNDJBCW returns to the caller after queuing the request. There is no way to synchronize completion of these operations. Also, $SNDJBCW does not wait for a job to complete before it returns to the caller. To synchronize completion of a job, the caller must specify the SJC$_SYNCHRONIZE_JOB function code.

The $SNDJBCW service is identical to the Send to Job Controller ($SNDJBC) service except that $SNDJBC completes asynchronously; the $SNDJBC service returns to the caller immediately after queuing the request, without waiting for the operation to complete.

For additional information about $SNDJBCW, see the documentation of $SNDJBC.

The $SNDJBC and $SNDJBCW services supersede the Send Message to Symbiont Manager ($SNDSMB) and Send Message to Accounting Manager ($SNDACC) services. You should write new programs using $SNDJBC or $SNDJBCW, instead of $SNDSMB or $SNDACC. You should convert old programs using $SNDSMB or $SNDACC to use $SNDJBC or $SNDJBCW, as convenient.

Format

SYS$SNDJBCW [efn] ,func [,nullarg] [,itmlst] [,iosb] [,astadr] [,astprm]

C Prototype

int sys$sndjbcw (unsigned int efn, unsigned short int func, unsigned int nullarg, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), int astprm);

Performs the following functions:

• Sends a user request to operator terminals
• Sends a user cancellation request to operator terminals
• Sends an operator reply to a user terminal
• Enables an operator terminal
• Displays the status of an operator terminal
• Initializes the operator log file

Format

SYS$SNDOPR msgbuf ,[chan]

C Prototype

int sys$sndopr (void *msgbuf, unsigned short int chan);

Arguments

msgbuf

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

User buffer specifying the operation to be performed and the information needed to perform that operation. The msgbuf argument is the address of a character string descriptor pointing to the buffer.

The format and contents of the buffer vary with the requested operation; however, the first byte in any buffer is the request code, which specifies the operation to be performed. The $OPCMSG macro defines the symbolic names for these request codes.

The following table shows each operation that $SNDOPR performs and the request code that specifies that operation:

Request Code	Corresponding Operation
OPC$_RQ_CANCEL	Sends a user cancellation request to specified operator terminals. You use this request code to notify one or more operators that a previous request is to be canceled. To specify OPC$_RQ_CANCEL, you must also specify the chan argument.
OPC$_RQ_LOGI	Initializes the operator log file.
OPC$_RQ_REPLY	Sends an operator reply to a user who has made a request. Operators use this request code to report the status of a user request. The format of the message buffer for this request is the format of the reply found in the user's mailbox after the call to $SNDOPR completes. All functions of $SNDOPR that deliver a reply to a mailbox do so in the format described for this request code.
OPC$_RQ_RQST	Sends a user request to operator terminals. This request code is used to make an operator request. If you specify a reply to the request (by using the chan argument), the operator request is kept active until the operator responds.
OPC$_RQ_STATUS	Reports the status of an operator terminal. Operators use this request to display the operator classes for which the specified terminal is enabled and a list of outstanding requests.
OPC$_RQ_TERME	Enables an operator terminal. You use this request to enable a specified terminal to receive operator messages.

The following diagrams depict the message buffer for each of these request codes. Each field within a diagram has a symbolic name, which serves to identify the field; in other words, these names specify offsets into the message buffer. The list following each diagram shows each field name and what its contents can or should be. The $OPCDEF macro defines the field names, as well as any other symbolic name that can be specified as the contents of a field.

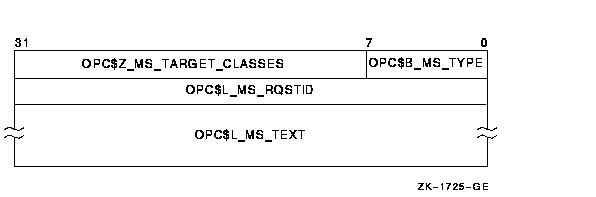

Message Buffer Format for OPC$_RQ_RQST

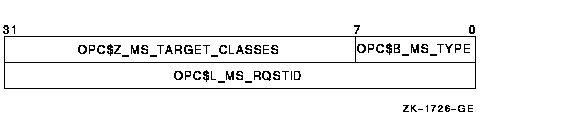

Message Buffer Format for OPC$_RQ_CANCEL

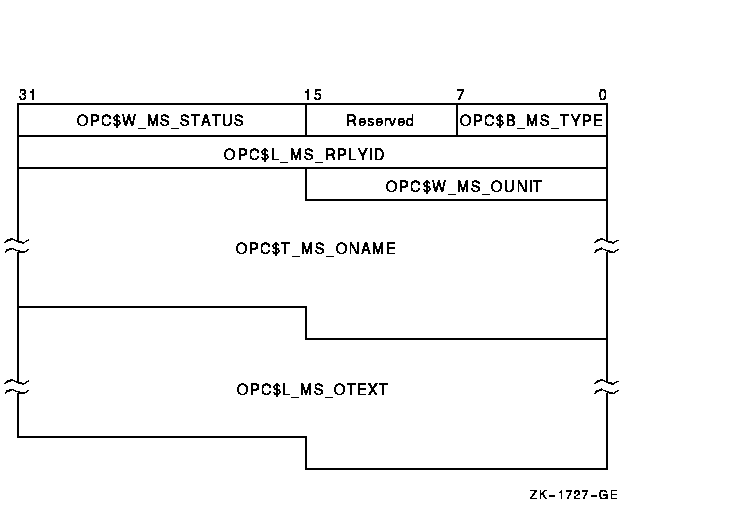

Message Buffer Format for OPC$_RQ_REPLY

OPC$B_MS_TYPE	This 1-byte field contains the request code OPC$_RQ_REPLY.
Reserved	This 1-byte field is reserved for future use.
OPC$W_MS_STATUS	This 2-byte field contains the low-order word of the longword condition value that $SNDOPR returns in the mailbox specified by the chan argument. You can find a list of these longword condition values under Condition Values Returned in the Mailbox. To test the completion status, you need to extract the low-order word from the longword condition value and compare it to the contents of the OPC$W_MS_STATUS field.
OPC$L_MS_RPLYID	This 4-byte field contains a user-supplied message code.
OPC$W_MS_OUNIT	This 2-byte field contains the unit number of the terminal to which the operator reply is to be sent. To obtain the unit number of the terminal, you can call $GETDVI, specifying the DVI$_FULLDEVNAM item code. The information returned will consist of the node name and device name as a padded string. Because the unit number is found on the tail end of the string, you must parse the string. One way to do this is, starting from the tail end, to search for the first alphabetic character; the digits to the right of this alphabetic character constitute the unit number. After extracting the unit number, count the remaining characters in the string. Then, construct a counted ASCII string and use this for the following field, OPC$T_MS_ONAME.
OPC$T_MS_ONAME	This variable-length field contains a counted ASCII string specifying the device name of the terminal that is to receive the operator reply. The maximum total length of the string is 14 bytes. See the preceding field description (OPC$W_MS_OUNIT) to learn how to obtain the device name.
OPC$L_MS_OTEXT	This variable-length field contains an ASCII string specifying operator-written text to be sent to the user terminal. The length of the string must be in the range 0 to 255 bytes. This field is optional.

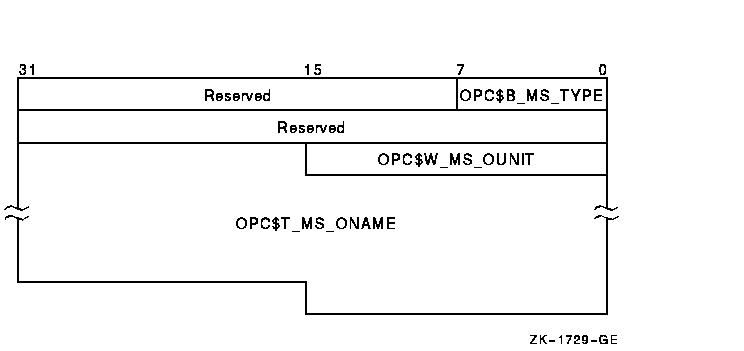

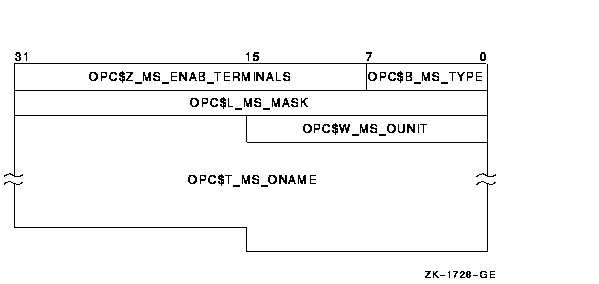

Message Buffer Format for OPC$_RQ_TERME

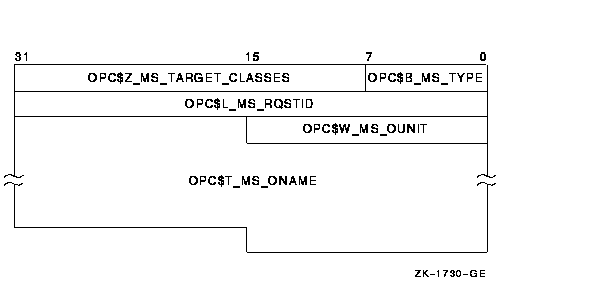

Message Buffer Format for OPC$_RQ_STATUS

Message Buffer Format for OPC$_RQ_LOGI

chan
