Displays the header of the dump file.
SHOW HEADER
None.
None.
The SHOW HEADER command produces a 10-column display, each line of which displays both the hexadecimal and ASCII representation of the contents of the dump file header in 32-byte intervals. Thus, the first eight columns, when read right to left, represent the hexadecimal contents of 32 bytes of the header; the ninth column, when read left to right, records the ASCII equivalent of the contents. (The period [.] in this column indicates an ASCII character that cannot be displayed.)After it displays the contents of the header blocks, the SHOW HEADER command displays the hexadecimal contents of the saved error log buffers.
See the OpenVMS AXP Internals and Data Structures manual for a discussion of the information contained in the dump file header. See also the SHOW DUMP and CLUE ERRLOG commands, which you can use to obtain formatted displays of the dump header and error log buffers.
See also the SHOW DUMP command, which will output a formatted display of the contents of the dump header.

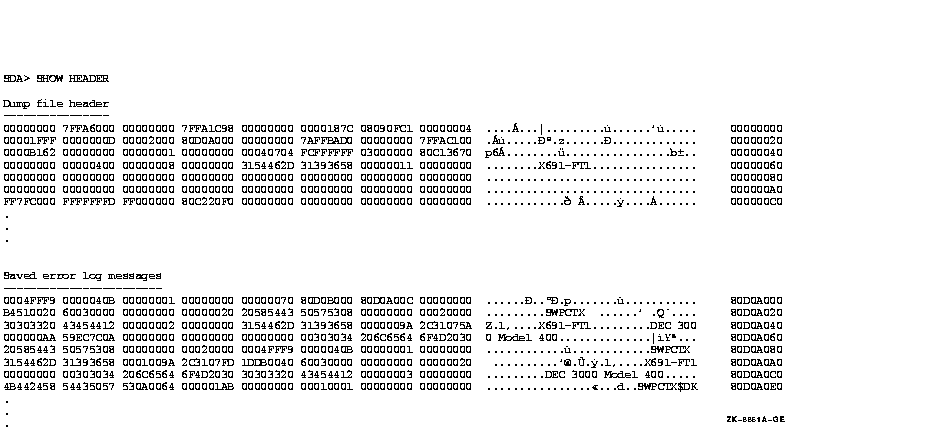

The SHOW HEADER command displays the contents of the dump file's header. Ellipses indicate hexadecimal information omitted from the display.
Displays information about an image, regardless of the type of image (executive, activated, or installed).
SHOW IMAGE image-name
image-name
Name of the image to be displayed. This is a required parameter that may include wildcards.
None.
Searches the executive image list for the image name, and, if a match is found, displays the loaded image information. Next, searches the activated image list for the process (if SDA has a current process context). If a match is found, displays the activated image information. Finally, searches the installed image lists, directory by directory. If a match is found, displays the installed image (known file entry) information.SHOW IMAGE x is equivalent to SHOW EXECUTIVE x followed by SHOW PROCESS/IMAGE=x followed by SHOW KFE x .
SDA> show image sys$public_vectors Image SYS$PUBLIC_VECTORS ------------------------ VMS Executive image layout -------------------------- Image Base End Length ImageOff SymVec --------------------------------- ----------------- ----------------- ----------------- -------- -------- SYS$PUBLIC_VECTORS 81804B18 Nonpaged read only FFFFFFFF.80000000 FFFFFFFF.800025FF 00000000.00002600 00000000 Nonpaged read/write FFFFFFFF.81800000 FFFFFFFF.81807FFF 00000000.00008000 00004000 Linked 30-AUG-2004 09:36 LDRIMG 81C17480 SeqNum 00000000 --< sliced >-- Process activated images ------------------------ Image Name/Link Time/Section Type Start End Type/File Id --------------------------------------- -------- -------- ------------ SYS$PUBLIC_VECTORS 81804B18 818071B7 GLBL IMCB Sym Vect Maj,Minor ID Base End ImageOff -------- -------- ------------ -------- -------- -------- 7FF6A250 81804B18 113,16596271Known File Entries ------------------ KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSLIB>.EXE ----------------------------------------------------------------- KFE Image Name/ KFERES Address/ File ID/ Flags/ Address Section Type Base End ImageOff -------- --------------------------------------- ----------------- ----------------- -------- 82984C50 SYS$PUBLIC_VECTORS;1 (3923,194,0)
This example shows the output from SHOW IMAGE for SYS$PUBLIC_VECTORS. Part of the example has been moved left to stay within page boundaries of the manual.
Displays information about known file entries (installed images).
SHOW KFE [image_name | /ADDRESS=kfe_address | /ALL]SHOW KNOWN_FILE_ENTRY [image_name | /ADDRESS=kfe_address | /ALL]
image-name
Name of the image to be displayed. This may include wildcards, but cannot include device or directory information.
/ADDRESS=kfe_address
Specifies the address of a single KFE of interest. The details are displayed for this KFE with device/directory information from the corresponding KFD (Known File Directory)./ALL
Displays details for all KFEs, including device/directory information from the corresponding KFDs, with the contents of the Known File Pointer Block (KFPB).
The SHOW KFE command displays information about known files (installed images). By default, a summary line without image-section information is given for each image. Use the /ALL qualifier to obtain detailed information for all images. For a single image, specify the image name or KFE address.The image_name parameter, the /ADDRESS, and /ALL qualifiers cannot be used together. SHOW KNOWN_FILE_ENTRY is a synonym for SHOW KFE.
1. SDA> SHOW KFE Known File Entries ------------------ KFPB address: 8292D860 Hash table address: 82975360 Hash table size: 0080 Entry count: 016F KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.CDE$DEFAULTS.SYSTEM.BIN>.EXE ---------------------------------------------------------------------------------- KFD address: 829E8D60 Reference count: 0002 KFE Image Name KFERES Address File ID Flags -------- --------------------------------------- ----------------- ----------------- -------- 829E8290 DECW$LOGINOUT;1 (7204,49,0) LIM Open HdrRes Shared 829E8DB0 DTGREET;1 (5651,19,0) Open HdrRes Shared KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSEXE>.EXE ----------------------------------------------------------------- KFD address: 8299C140 Reference count: 0066 KFE Image Name KFERES Address File ID Flags -------- --------------------------------------- ----------------- ----------------- -------- 8299C210 AUTHORIZE;1 (72,176,0) ProcPriv AuthPriv 829ACE10 BACKUP;1 (73,176,0) 8299C2A0 CDU;1 (75,176,0) ProcPriv Open HdrRes AuthPriv 8299C660 CIA;1 (510,176,0) ProcPriv AuthPriv 829ACE90 CONVERT;1 (77,176,0) 829A3AD0 COPY;1 829A3E70 (78,176,0) Open HdrRes Shared 829ACF10 CREATE;1 (79,176,0) . . .This example shows the first page of summary output for all known images.
2. SDA> show kfe decc* Known File Entries ------------------ KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSLIB>.EXE ----------------------------------------------------------------- KFE Image Name/ KFERES Address/ File ID/ Flags/ Address Section Type Base End ImageOff -------- --------------------------------------- ----------------- ----------------- -------- 829900B0 DECC$SHR;1 82990960 (2431,189,0) LIM Open HdrRes Shared ResCode Paged read only FFFFFFFF.80A70000 FFFFFFFF.80C815FF 00000000 Initialization 00000000.7BEC0000 00000000.7BF00DFF 00220000 Fixup 00000000.7BF10000 00000000.7BF1B1FF 00270000 Nonpaged read/write 00000000.7BF20000 00000000.7BF2FBFF 00280000 Nonpaged read/write 00000000.7BF30000 00000000.7BF309FF 00290000 Fixup 00000000.7BF40000 00000000.7BF401FF 002A0000 Paged read/write 00000000.7BF50000 00000000.7BF56FFF 002B0000 KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSMSG>.EXE ----------------------------------------------------------------- KFE Image Name/ KFERES Address/ File ID/ Flags/ Address Section Type Base End ImageOff -------- --------------------------------------- ----------------- ----------------- -------- 829AE4F0 DECC$MSG;1 (257,176,0) LIM Open HdrRes SharedThis example shows the details for all images that match the wildcard DECC*.
