Revision/Update Information: This is a new manual.
Operating System: OpenVMS Alpha Version 6.2
Software Version: DECwindows Motif Version 1.2--4 for OpenVMS Alpha
Digital Equipment Corporation
Maynard,
Massachusetts
Digital Equipment Corporation makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.
Possession, use, or copying of the software described in this publication is authorized only pursuant to a valid written license from Digital or an authorized sublicensor.
Digital conducts its business in a manner that conserves the environment and protects the safety and health of its employees, customers, and the community.
© Digital Equipment Corporation 1996. All rights reserved.
The following are trademarks of Digital Equipment Corporation: Bookreader, DECdirect, DECwindows, Digital, OpenVMS, OpenVMS Cluster, VAX, VAX DOCUMENT, VAXcluster, VMS, VMScluster, and the DIGITAL logo.
The following are third-party trademarks:
Hewlett-Packard is a registered trademark of Hewlett-Packard Company.
IBM is a registered trademark of International Business Machines, Inc.
Motif, OSF, OSF/1, OSF/Motif, and Open Software Foundation are registered trademarks of the Open Software Foundation, Inc.
Mosaic is a trademark of the University of Illinois.
NFS is a registered trademark of Sun Microsystems, Inc.
Novell is a registered trademark of Novell, Inc.
Sun is a registered trademark of Sun Microsystems, Inc.
UNIX is a registered trademark in the United States and other countries licensed exclusively by X/Open Co. Ltd.
Windows is a registered trademark of Microsoft Corporation.
All other trademarks and registered trademarks are the property of their respective holders.
The OpenVMS documentation set is available on CD-ROM.
This manual is designed for users of the New Desktop component of DECwindows Motif Version 1.2-4 for OpenVMS Alpha. It provides information for general users, system managers, and programmers.
This manual is for all types of users. Table 1- shows the chapters and their intended audience.
| Chapter | Title | Intended Audience |
|---|---|---|
| 1 | Overview of the New Desktop | All users |
| 2 | Using the New Desktop | All users |
| 3 | Managing the New Desktop | System managers and advanced users |
| 4 | Integrating Applications into the New Desktop | Programmers |
| 5 | New Desktop Programming Resources | Programmers |
The documents related to this manual are shown in Table 2.-
| Document | Description |
|---|---|
| DECwindows Motif Version 1.2--4 for OpenVMS Release Notes | Provides new features as well as release notes. |
| DECwindows Motif Version 1.2--4 for OpenVMS Installation Guide | Provides a detailed description of the installation procedure. |
| Guide to the DECwindows Motif Version 1.2--4 for OpenVMS CD--ROM | Includes a list of all the files on the kit, including the CDE manuals and this manual in HTML format. |
| CDE manuals | Developed by UNIX vendors. They are available on the kit in HTML format and also in print, as shown in Section 1.8.1. |
For additional information on OpenVMS products and services, access the Digital OpenVMS World Wide Web site. Use the following URL:
http://www.openvms.digital.com
Digital welcomes your comments on this manual.
Print or edit the online form SYS$HELP:OPENVMSDOC_COMMENTS.TXT and send us your comments by:
| Internet | openvmsdoc@zko.mts.dec.com |
| Fax | 603 881-0120, Attention: OpenVMS Documentation, ZK03-4/U08 |
| OpenVMS Documentation Group, ZKO3-4/U08 110 Spit Brook Rd. Nashua, NH 03062-2698 |

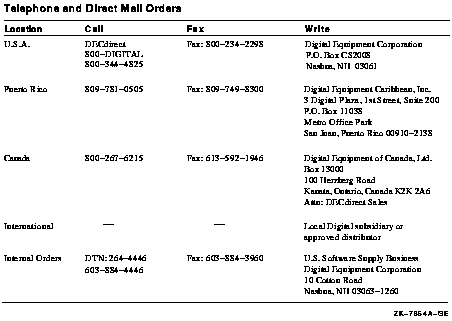

Use the following table to order additional documentation or information. If you need help deciding which documentation best meets your needs, call 800-DIGITAL (800-344-4825).
The name of the OpenVMS AXP operating system has been changed to OpenVMS Alpha. Any references to OpenVMS AXP or AXP are synonymous with OpenVMS Alpha or Alpha.
In this manual, every use of DECwindows and DECwindows Motif refers to DECwindows Motif for OpenVMS software.
The following conventions are also used in this manual:
| MB1 (Select) MB3 (Menu) |
MB1 indicates the left mouse button, and MB3 indicates the right mouse button. |
| Ctrl/x | A sequence such as Ctrl/x indicates that you must hold down the key labeled Ctrl while you press another key or a pointing device button. |
| Return | In examples, a key name enclosed in a box indicates that you press a key on the keyboard. (In text, a key name is not enclosed in a box.) |
| ... | Horizontal ellipsis points in examples indicate one of the following possibilities:
|
| . . . |
Vertical ellipsis points indicate the omission of items from a code example or command format; the items are omitted because they are not important to the topic being discussed. |
| ( ) | In command format descriptions, parentheses indicate that, if you choose more than one option, you must enclose the choices in parentheses. |
| [ ] | In command format descriptions, brackets indicate optional elements. You can choose one, none, or all of the options. (Brackets are not optional, however, in the syntax of a directory name in an OpenVMS file specification or in the syntax of a substring specification in an assignment statement.) |
| { } | In command format descriptions, braces indicate a required choice of options; you must choose one of the options listed. |
| boldface text | Boldface text represents the introduction of a new term or the name of an argument, an attribute, or a reason. Boldface text is also used to show user input in Bookreader versions of the manual. |
| italic text | Italic text indicates important information, complete titles of manuals, or variables. Variables include information that varies in system output (Internal error number ), in command lines (/PRODUCER=name ), and in command parameters in text (where device-name contains up to five alphanumeric characters). |
| UPPERCASE TEXT | Uppercase text indicates a command, the name of a routine, the name of a file, or the abbreviation for a system privilege. |
| Monospace type | Monospace type indicates code examples and interactive screen displays. In the C programming language, monospace type in text identifies the following elements: keywords, the names of independently compiled external functions and files, syntax summaries, and references to variables or identifiers introduced in an example. |
| - | A hyphen at the end of a command format description, command line, or code line indicates that the command or statement continues on the following line. |
| numbers | All numbers in text are assumed to be decimal unless otherwise noted. Nondecimal radixes---binary, octal, or hexadecimal---are explicitly indicated. |
This chapter provides information about the following topics:
The Common Desktop Environment (CDE), based on Motif and X11, is recognized as the next-generation desktop. CDE was created by a group of UNIX vendors (Hewlett-Packard, Sun, IBM, and Novell) to consolidate all the UNIX desktop interfaces and to define a consistent user and development environment.
CDE is built on existing
technologies from these UNIX vendors and from the Open Software
Foundation, Inc.
(OSF).

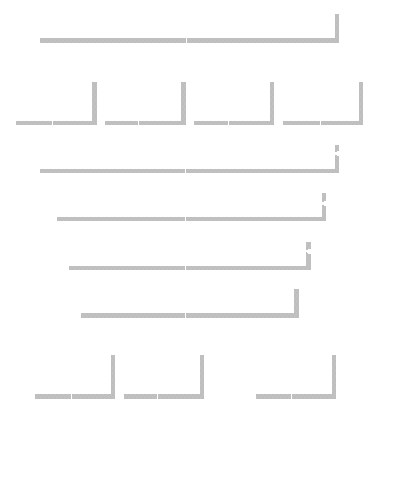

CDE is not a replacement for Motif; rather, it is another software
layer on top
of Motif, as shown in Figure 1-1. CDE provides additional
programming utilities and a consistent, integrated user and development
interface.
1.2 Why is Digital Offering CDE?
Digital adopted CDE for its Digital UNIX operating system and is providing a major subset of CDE for OpenVMS Alpha. As a successor to the DECwindows desktop, CDE is a state-of-the-art graphical user interface. This interface is visually appealing and offers many productivity features.
Standardizing the user interface enables general users and system
managers to work
more effectively on systems from all vendors that provide CDE. It also
reduces
training costs. Standardizing
the development environment for heterogeneous systems facilitates the
creation
and maintenance of applications.
1.3 What is the New Desktop?
The implementation of CDE on OpenVMS Alpha is called the New Desktop. The user environment provided with previous releases of DECwindows Motif is the DECwindows desktop. DECwindows Motif forms the foundation of the New Desktop, as shown in Figure 1-1. Any application at the top level can directly call any of the lower levels.
Choosing the New Desktop does not prevent you from running DECwindows Motif applications. You can run any DECwindows application from the New Desktop using a DECterm window. Furthermore, all DECwindows applications can be configured to run within the New Desktop environment.
On OpenVMS Alpha, the New Desktop is the default desktop, although the traditional DECwindows desktop is also available. During installation or from the New Desktop login box, you can select your preferred desktop. After installation, a privileged user can switch between the two desktops by editing a system setup file and restarting DECwindows (see Section 3.2). Figures 1-1 The New Desktop Architecture
You can become familiar with the New Desktop by using the documentation and applications in the following sequence:
The New Desktop provides many features not available in DECwindows Motif that enable users to be more productive in their work. Some of the most important productivity features follow. Figures 1-2 Front Panel
The level of detail that is automatically saved and restored depends on the application. Some applications restore the entire visual state of the application at the point it was saved, while others restore only the main screen of the application.
Table 1-1 lists all the CDE and DECwindows user applications that are integrated into the New Desktop and indicates the following information about each application:
In addition to the user applications that are integrated into the New Desktop, all DECwindows applications that were included in DECwindows Motif Version 1.2--3 are part of the New Desktop and are accessible from Application Manager. Note that two help viewers are provided with the New Desktop: Help Viewer for New Desktop help and Bookreader for DECwindows help.
| Application Name | Executable Name | CDE or DECwindows | Accessible From Front Panel |
|---|---|---|---|
| Action database and execution management utility (Create Action) | dtcreate | CDE | No |
| Action utility | dtaction | CDE | No |
| Application Manager, File Manager | dtfile | CDE | Yes |
| Bookreader | DECW$BOOKREADER | DECwindows | Yes¹ |
| Calculator | dtcalc | CDE | No |
| Calendar | DECW$CALENDAR | DECwindows | Yes |
| Clock | DECW$CLOCK | DECwindows | No² |
| DECterm | DECW$TERMINAL | DECwindows | Yes |
| Front Panel, Workspace Manager | dtwm | CDE | --- |
| Help Print utility | dthelpprint | CDE | No |
| Help Viewer | dthelpview | CDE | Yes |
| Icon Editor | dticon | CDE | Yes³ |
| DECW$MAIL | DECwindows | Yes | |
| Print Dialog | PRINTDIALOG | DECwindows | Yes4 |
| Session Manager | dtsession | CDE | No |
| Style Manager | dtstyle | CDE | Yes |
| Text Editor | dtpad | CDE | Yes³ |
| Trash Can | dtfile | CDE | Yes |
| Watch Errors | DECW$MESSAGEPANEL | DECwindows | No |
A subset of CDE application programming interfaces (APIs) and application integration services is available with the New Desktop (see Section 5.2).
In addition to these new APIs and application integration
services, all the DECwindows Motif APIs and application integration
services
are available from the New Desktop.
1.8 Documentation for the New Desktop
The following types of documentation are included in the DECwindows Motif kit to support the New Desktop:
See the Guide to the DECwindows Motif Version 1.2--4 for OpenVMS CD--ROM for a list of all manuals provided on line. The CDE documentation set that is provided on line is also available in print. The same is true for the entire DECwindows Motif documentation set.
This manual and the Guide to the DECwindows Motif Version 1.2--4 for OpenVMS CD--ROM are provided in printed format with DECwindows Motif Version 1.2--4. Additional DECwindows Motif printed documentation is available through service contracts or by ordering from DECdirect, as described in the Preface of this manual. Table 1-2 briefly describes the documentation and how to access or order it.
For more information about the documentation, see the Bookreader versions of Overview of DECwindows Motif for OpenVMS Documentation and the DECwindows Motif Version 1.2--4 for OpenVMS Release Notes, as described in this table.
| Documentation | Description | How to Access |
|---|---|---|
| Online Help | ||
| Front Panel Help | Overview help for the CDE desktop; access to the help for all CDE applications in the New Desktop; and access to Bookreader | Click on the Help icon on the Front Panel to display the Help Manager, or display the Help subpanel and select an introductory topic, Help Manager, or Bookreader. From the Help Manager, you can select introductory topics and CDE application help. |
| CDE On Item Help | Brief description of icons and controls on Front Panel and within applications | Click on On Item Help, then position the cursor on the icon or control for which you want help and click; repeat these two steps for each request for On Item help. |
| Application help (CDE and DECwindows) | Help menu for each application, including context-sensitive help for objects within an application | Start the application and select Help from the menu bar; then make your selection from the Help menu. |
| Online Manuals and Reference Pages | ||
| CDE online manuals | Documents prepared by the UNIX vendors who developed CDE | Use the Enhanced Mosaic web browser, as described in Section 1.8.2. |
| CDE online reference pages | Reference documentation for many CDE system commands, written by the UNIX vendors who developed CDE | Select the reference page directory¹ from File Manager; then select the file you want to view. From Application Manager, select Desktop Apps; then select Man Page Viewer; and enter the name of the file you want to view. |
| DECwindows Motif online manuals | Digital documents | Click on the arrow above the Help icon on the Front Panel to display the Help subpanel; then select the Bookreader icon, then select a manual.² |
| Printed Manuals | ||
| CDE printed manuals | Documents prepared by the UNIX vendors who developed CDE (with Digital UNIX covers) | See Section 1.8.1 for the order numbers; then order them by following the instructions in this Preface. |
| DECwindows Motif printed manuals | This manual, the DECwindows Motif Version 1.2--4 for OpenVMS Installation Guide , and the Guide to the DECwindows Motif Version 1.2--4 for OpenVMS CD--ROM are shipped with the software. | See the online version of the Overview of DECwindows Motif for OpenVMS Documentation for brief descriptions and order numbers; then order them by following the instructions in this Preface. |
The CDE manuals and their Digital order numbers are listed in Table 1-3. You can order them from Digital, as described in the Preface of this manual.
| Title | Order Number | Pages |
|---|---|---|
| Common Desktop Environment: User's Guide | AA-QTLNA-TE | 374 |
| Common Desktop Environment: Advanced User's and System Administrator's Guide | AA-QTLQA-TE | 324 |
| Common Desktop Environment: Programmer's Overview | AA-QTLWA-TE | 118 |
| Common Desktop Environment: Programmer's Guide | AA-QTLXA-TE | 204 |
| Common Desktop Environment: Help System Author's and Programmer's Guide | AA-QTLYA-TE | 320 |
| Common Desktop Environment: Internationalization Programmer's Guide | AA-QTM2A-TE | 166 |
| Common Desktop Environment: Style Guide and Certification Checklist | AA-QTM3A-TE | 316 |
| Common Desktop Environment: Product Glossary | AA-QTM4A-TE | 144 |
To access this manual or any of the CDE manuals provided in HTML format on the kit, use the Enhanced Mosaic web browser in the following way:
