DECLARE LONG rec-num MAP (cusrec) WORD cus_num & STRING cus_nam=20, cus_add=20, cus_city=10, cus_zip=9 OPEN "CUS_ACCT.DAT" FOR INPUT AS #1, & RELATIVE FIXED, & ACCESS MODIFY & MAP cusrec INPUT "Which record number would you like to delete";rec_num FIND #1, RECORD rec_num, WAIT DELETE #1 CLOSE #1 END

The FIX function truncates a floating-point value at the decimal point and returns the integer portion represented as a floating-point value.

Format

Syntax Rules

None

Remarks

1. The FIX function returns the integer portion of a floating-point value, not an integer value.
2. BASIC expects the argument of the FIX function to be a real expression. When the argument is a real expression, BASIC returns a value of the same floating-point size. When the argument is not a real expression, BASIC converts the argument to the default floating-point size and returns a value of the default floating-point size.
3. If real-exp is negative, FIX returns the negative integer portion. For example, FIX(-5.2) returns -5.

Example

DECLARE SINGLE result result = FIX(-3.333) PRINT FIX(24.566), result

Output

24 -3

The FNEND statement is a synonym for the END DEF statement. See the END statement for more information.

Format

The FNEXIT statement is a synonym for the EXIT DEF statement. See the EXIT statement for more information.

Format

The FOR statement repeatedly executes a block of statements, while incrementing a specified control variable for each execution of the statement block. FOR loops can be conditional or unconditional, and can modify other statements.

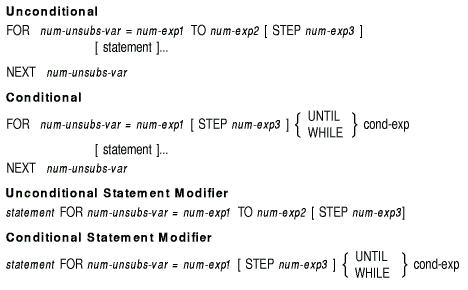

Format

Syntax Rules

1. Num-unsubs-var must be a numeric, unsubscripted variable. Num-unsubs-var cannot be a record field.
2. Num-unsubs-var is the loop variable. It is incremented each time the loop executes.
3. In unconditional FOR loops, num-exp1 is the initial value of the loop variable; num-exp2 is the maximum value.
4. In conditional FOR loops, num-exp1 is the initial value of the loop variable, while the cond-exp in the WHILE or UNTIL clause is the condition that controls loop iteration.
5. Num-exp3 in the STEP clause is the value by which the loop variable is incremented after each execution of the loop.

Remarks

1. There is a limit to the number of inner loops you can contain within a single outer loop. This number varies according to the complexity of the loops. If you exceed the limit, BASIC signals an error message.
2. An inner loop must be entirely within an outer loop; the loops cannot overlap.
3. You cannot use the same loop variable in nested FOR loops. For example, if the outer loop uses FOR I = 1 TO 10, you cannot use the variable I as a loop variable in an inner loop.
4. The default for num-exp3 is 1 if there is no STEP clause.
5. You can transfer control into a FOR loop only by returning from a function invocation, a subprogram call, a subroutine call, or an error handler that was invoked in the loop.
6. The starting, incrementing, and ending values of the loop do not change during loop execution.
7. The loop variable can be modified inside the FOR loop.
8. BASIC converts num-exp1, num-exp2, and num-exp3 to the data type of the loop variable before storing them.
9. When an unconditional FOR loop ends, the loop variable contains the value last used in the loop, not the value that caused loop termination.
10. During each iteration of a conditional loop, BASIC tests the value of cond-exp before it executes the loop.
    • If you specify a WHILE clause and cond-exp is false (value zero), BASIC exits from the loop. If the cond-exp is true (value nonzero), the loop executes again.
    • If you specify an UNTIL clause and cond-exp is true (value nonzero), BASIC exits from the loop. If the exp is false (value zero), the loop executes again.
11. When FOR is used as a statement modifier, BASIC executes the statement until the loop variable equals or exceeds num-exp2 or until the WHILE or UNLESS condition is satisfied.
12. Each FOR statement must have a corresponding NEXT statement or BASIC signals an error. (This is not the case if the FOR statement is used as a statement modifier.)

Examples

Example 1

!Unconditional DECLARE LONG course_num, STRING course_nam FOR I = 3 TO 12 STEP 3 INPUT "Course number";course_num INPUT "Course name";course_nam NEXT I

Output

Course number? 221 Course name? Botany Course number? 231 Course name? Organic Chemistry Course number? 237 Course name? Life Science II Course number? 244 Course name? Programming in BASIC

Example 2

!Unconditional Statement Modifier DECLARE INTEGER counter PRINT "This is an unconditional statement modifier" FOR counter = 1 TO 3 END

Output

This is an unconditional statement modifier This is an unconditional statement modifier This is an unconditional statement modifier

Example 3

!Conditional Statement Modifier DECLARE INTEGER counter, & STRING my_name INPUT "Try and guess my name";my_name FOR counter = 1 UNTIL my_name = "BASIC" PRINT "You guessed it!"

Output

Try and guess my name? VAX PASCAL Try and guess my name? VAX SCAN Try and guess my name? BASIC You guessed it!

The FORMAT$ function converts an expression to a formatted string.

Format

Syntax Rules

The rules for building a format string are the same as those for printing numbers with the PRINT USING statement. See the description of the PRINT USING statement for more information.

Remarks

It is recommended that you use compile-time constant expressions for string expressions whenever possible. When you do this, the BASIC compiler compiles the string at compilation time rather than at run time, thus improving the performance of your code.

Example

DECLARE STRING result, & INTEGER num_exp num_exp = 12345 result = FORMAT$(num_exp,"##,###") PRINT result

Output

12,345

The FREE statement unlocks all records and buckets associated with a specified channel.

Format

Syntax Rules

Chnl-exp is a numeric expression that specifies a channel number associated with a file. It must be immediately preceded by a number sign (#).

Remarks

1. The file specified by chnl-exp must be open.
2. You cannot use the FREE statement with files not on disk.
3. If there are no locked records or buckets on the specified channel, the FREE statement has no effect and BASIC does not signal an error.
4. The FREE statement does not change record buffers or pointers.
5. After a FREE statement has executed, your program must execute a GET or FIND statement before a PUT, UPDATE, or DELETE statement can execute successfully.

Example

OPEN "CUST_ACCT.DAT" FOR INPUT AS #3 . . . INPUT "Enter customer record number to retrieve";cust_rec_num FREE #3 GET #3

In this example, CUST_ACCT.DAT is opened for input. The FREE statement unlocks all records associated with the specified channel contained in the file. Once the FREE statement successfully executes, the user can then obtain a record with either a FIND or GET statement.

The FSP$ function returns a string describing an open file on a specified channel.

Format

Syntax Rules

1. A file must be open on chnl-exp.
2. The FSP$ function must come immediately after the OPEN statement for the file.

Remarks

1. Use the FSP$ function with files opened as ORGANIZATION UNDEFINED. Then use multiple MAP statements to interpret the returned data.
2. See the Compaq BASIC for OpenVMS Alpha and VAX Systems User Manual and the OpenVMS Record Management Services Reference Manual for more information about FSP$ values.

   Note BASIC supports the FSP$ function for compatibility with BASIC-PLUS-2. It is recommended that you use the USEROPEN routine to identify file characteristics.

Example

10 MAP (A) STRING A = 32 MAP (A) BYTE org, rat, WORD mrs, LONG alq, & WORD bks_bls, num_keys,LONG mrn OPEN "STUDENT.DAT" FOR INPUT AS #1%, & ORGANIZATION UNDEFINED, & RECORDTYPE ANY, ACCESS READ A = FSP$(1%) PRINT "RMS organization = ";org PRINT "RMS record attributes = ";rat PRINT "RMS maximum record size = ";mrs PRINT "RMS allocation quantity = ";alq PRINT "RMS bucket size = ";bks_bls PRINT "Number of keys = ";num_keys PRINT "RMS maximum record number = ";mrn

Output

RMS organization = 2 RMS record attributes = 2 RMS maximum record size = 5 RMS allocation quantity = 1 RMS bucket size = 0 Number of keys = 0 RMS maximum record number = 0

The FUNCTION statement marks the beginning of a FUNCTION subprogram and defines the subprogram's parameters.

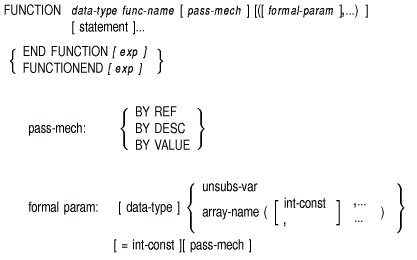

Format

Syntax Rules

1. Note that both Alpha BASIC and VAX BASIC are able to pass actual parameters by value, but only Alpha BASIC allows formal parameters to be passed in by value. This means that while Alpha BASIC can use BY VALUE in a definition and a call, VAX BASIC can use BY VALUE only in a call. It cannot define a function that takes parameters BY VALUE.
2. Func-name names the FUNCTION subprogram.
3. Func-name can be from 1 through 31 characters. The first character must be an alphabetic character (A to Z). The remaining characters, if present, can be any combination of letters, digits (0 to 9), dollar signs ($), periods (.), or underscores (_).
4. Data-type can be any BASIC data type keyword or a data type defined in the RECORD statement. Data type keywords, size, range, and precision are listed in Table 1-2.
5. The data type that precedes the func-name specifies the data type of the value returned by the function.
6. Formal-param specifies the number and type of parameters for the arguments the function expects to receive when invoked.
   • Empty parentheses indicate that the function has no parameters.
   • Data-type specifies the data type of a parameter. If you do not specify a data type, parameters are of the default data type and size. When you do specify a data type, all following parameters are of that data type until you specify a new data type.
     If the data type is STRING and the passing mechanism is by reference (BY REF), the =int-const clause allows you to specify the length of the string.
   • Parameters defined in formal-param must agree in number and type with the arguments specified in the function invocation. BASIC allows you to specify from 1 to 255 formal parameters.
7. Pass-mech specifies the parameter-passing mechanism by which the FUNCTION subprogram receives arguments when invoked. A pass-mech clause should be specified only when the FUNCTION subprogram is being called by a non BASIC program or when the FUNCTION receives a string or array by reference.
8. A pass-mech clause outside the parentheses applies by default to all function parameters. A pass-mech clause in the formal-param list overrides the specified default and applies only to the immediately preceding parameter.
9. Exp specifies the function result, which supersedes any function assignment. Exp must be compatible with the function's data type.

Remarks

1. The FUNCTION statement must be the first statement in the FUNCTION subprogram.
2. Every FUNCTION statement must have a corresponding END FUNCTION or FUNCTIONEND statement.
3. Any BASIC statement except END, PICTURE, END PICTURE, PROGRAM, END PROGRAM, SUB, SUBEND, END SUB, or SUBEXIT can appear in a FUNCTION subprogram.
4. FUNCTION subprograms must be declared with the EXTERNAL statement before your BASIC program can invoke them.
5. FUNCTION subprograms receive parameters by reference, by descriptor, or by value.
   • BY REF specifies that the function receives the argument's address.
   • BY DESC specifies that the function receives the address of a BASIC descriptor. For information about the format of a BASIC descriptor for strings and arrays, see the Compaq BASIC for OpenVMS Alpha and VAX Systems User Manual; for information about other types of descriptors, see the OpenVMS Calling Standard.
   • BY VALUE specifies that the function receives a copy of the argument value.
     Alpha BASIC can use BY VALUE in both definitions and calls. VAX BASIC can use BY VALUE only in calls; it cannot define a function that takes parameters BY VALUE.
6. By default, FUNCTION subprograms receive numeric unsubscripted variables by reference, and all other parameters by descriptor. You can override these defaults with a BY clause:
   • If you specify a string length with the =int-const clause, you must also specify BY REF. If you specify BY REF and do not specify a string length, BASIC uses the default string length of 16.
   • If you specify array bounds, you must also specify BY REF.
7. All variables and data, except virtual arrays, COMMON areas, MAP areas, and EXTERNAL variables, in a FUNCTION subprogram, are local to the subprogram.
8. BASIC initializes local numeric variables to zero and local string variables to the null string each time the FUNCTION subprogram is invoked.
9. If an exception is not handled within the FUNCTION subprogram, control is transferred back to the main program that invoked the function.

Example

FUNCTION REAL sphere_volume (REAL R) IF R < 0 THEN EXIT FUNCTION sphere_volume = 4/3 * PI *R **3 END FUNCTION

The FUNCTIONEND statement is a synonym for the END FUNCTION statement. See the END statement for more information.

Format

The FUNCTIONEXIT statement is a synonym for the EXIT FUNCTION statement. See the EXIT statement for more information.

Format

The GET statement copies a record from a file to a record buffer and makes the data available for processing. GET statements are valid on sequential, relative, and indexed files.

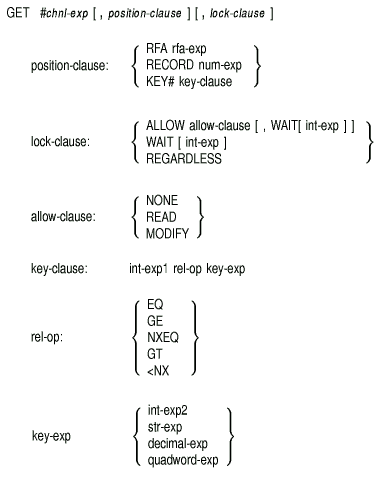

Format

Syntax Rules

1. Chnl-exp is a numeric expression that specifies a channel number associated with a file. It must be immediately preceded by a number sign (#).
2. If you specify a lock-clause, it must follow the position-clause. If the lock-clause precedes the position-clause, BASIC signals an error.
3. If you specify the REGARDLESS lock-clause, you cannot specify another lock-clause in the same GET statement.

Remarks

1. Position-clause
   • Position-clause specifies the position of a record in a file. BASIC signals an error if you specify a position-clause and chnl-exp is not associated with a disk file. If you do not specify a position-clause, GET retrieves records sequentially. Sequential record access is valid on all files.
   • The RFA position-clause allows you to randomly retrieve records by specifying the record file address (RFA); you specify the disk address of a record, and RMS retrieves the record at that address. All file organizations can be accessed by RFA.
     Rfa-exp in the RFA position-clause is an expression of the RFA data type that specifies the record's file address. An RFA expression must be a variable of the RFA data type or the GETRFA function. Use the GETRFA function to obtain the RFA of a record.
   • The RECORD position-clause allows you to randomly retrieve records in relative and sequential fixed files by specifying the record number.
     • Num-exp in the RECORD position-clause specifies the number of the record you want to retrieve. It must be between 1 and the number of the record with the highest number in the file.
     • When you specify a RECORD clause, chnl-exp must be a channel associated with an open relative or sequential fixed file.
   • The KEY position-clause allows you to randomly retrieve records in indexed files by specifying a key of reference, a relational test, or a key value.
   • An RFA value is valid only for the life of a specific version of a file. If a new version of a file is created, the RFA values may change.
   • Attempting to access a record with an invalid RFA value results in a run-time error.
2. Lock-clause
   • Lock-clause allows you to control how a record is locked to other access streams, to override lock checking when accessing shared files that may contain locked records, or to specify what action to take in the case of a locked record.
   • The type of lock you impose on a record remains in effect until you explicitly unlock it with a FREE or UNLOCK statement, until you close the file, or until you perform a GET, FIND, UPDATE or DELETE on the same channel (unless you specified UNLOCK EXPLICIT).
   • The REGARDLESS lock-clause specifies that the GET statement can override lock checking and read a record locked by another program.
   • When you specify a REGARDLESS lock-clause, BASIC does not impose a lock on the retrieved record.
   • If you specify an ALLOW lock-clause, the file associated with chnl-exp must have been opened with the UNLOCK EXPLICIT clause or BASIC signals the error "Illegal record locking clause."
   • The ALLOW allow-clause can be one of the following:
     • ALLOW NONE denies access to the record. This means that other access streams cannot retrieve the record unless they bypass lock checking with the REGARDLESS clause.
     • ALLOW READ provides read access to the record. This means that other access streams can retrieve the record, but cannot DELETE or UPDATE the record.
     • ALLOW MODIFY provides both read and write access to the record. This means that other access streams can GET, FIND, DELETE, or UPDATE the record.
   • If you do not open a file with ACCESS READ or specify an ALLOW lock-clause, locking is imposed as follows:
     • If the file associated with chnl-exp was opened with UNLOCK EXPLICIT, BASIC imposes the ALLOW NONE lock on the retrieved record and the next GET or FIND statement does not unlock the previously locked record.
     • If the file associated with chnl-exp was not opened with UNLOCK EXPLICIT, BASIC locks the retrieved record and unlocks the previously locked record.
   • The WAIT lock-clause accepts an optional int-exp. Int-exp represents a timeout value in seconds. Int-exp must be from 0 to 255 or BASIC issues a warning message.
     • WAIT followed by a timeout value causes RMS to wait for a locked record for a given period of time.
     • WAIT followed by no timeout value indicates that RMS should wait indefinitely for the record to become available.
     • If you specify a timeout value and the record does not become available within that period, BASIC signals the run-time error "Keyboard wait exhausted" (ERR=15). VMSSTATUS and RMSSTATUS then return RMS$_TMO. For more information about these functions, see the RMSSTATUS and VMSSTATUS functions in this chapter and the Compaq BASIC for OpenVMS Alpha and VAX Systems User Manual.
     • If you attempt to wait for a record that another user has locked, and consequently that user attempts to wait for the record you have locked, a deadlock condition occurs. When a deadlock condition persists for a period of time (as defined by the SYSGEN parameter DEADLOCK_WAIT), RMS signals the error "RMS$_DEADLOCK" and BASIC signals the error "Detected deadlock error while waiting for GET or FIND" (ERR=193).
     • If you specify a WAIT clause followed by a timeout value that is less than the SYSGEN parameter DEADLOCK_WAIT, then BASIC signals the error "Keyboard wait exhausted" (ERR=15) even though a deadlock condition may exist.
     • If you specify a WAIT clause on a GET operation to a unit device, the timeout value indicates how long to wait for the input to complete. This is equivalent to the WAIT statement.
3. Key-clause
   • In a key-clause, int-exp1 is the target key of reference. It must be an integer value in the range of zero to the highest-numbered key for the file. The primary key is #0, the first alternate key is #1, the second alternate key is #2, and so on. Int-exp1 must be preceded by a number sign (#) or BASIC signals an error.
   • When you specify a key-clause, chnl-exp must be a channel associated with an open indexed file.
4. Rel-op
   • Rel-op specifies how key-exp is to be compared with int-exp1 in the key-clause.
     • EQ means "equal to"
     • NXEQ means "next or equal to"
     • GE means "greater than or equal to" (a synonym for NXEQ)
     • NX means "next"
     • GT means "greater than" (a synonym for NX)
   • With an exact key match (EQ), a successful GET operation retrieves the first record in the file that equals the key value specified in key-exp. If the key expression is a str-exp whose length is less than the key length, characters specified by the str-exp are matched approximately rather than exactly. That is, if you specify a string expression ABC and the key length is six characters, BASIC matches the first record that begins with ABC. If you specify ABCABC, BASIC matches only a record with the key ABCABC. If no match is possible, BASIC signals the error "Record not found" (ERR=155).
   • If you specify a next or equal to key match (NXEQ), a successful GET operation retrieves the first record that equals the key value specified in key-exp. If no exact match exists, BASIC retrieves the next record in the key sort order. If the keys are in ascending order, the next record will have a greater key value. If the keys are in descending order, the next record will have a lesser key value.
   • If you specify a greater than key match (GT), a successful GET operation retrieves the first record with a value greater than key-exp. If no such record exists, BASIC signals the error "Record not found" (ERR=155).
   • If you specify a next key match (NX), a successful GET operation retrieves the first record that follows the key expression in the key sort order. If no such record exists, BASIC signals the error "Record not found" (ERR=155).
   • If you specify a greater than or equal to key match (GE), the behavior is identical to that of next or equal to (NXEQ). Likewise, the behavior of GT is identical to NX. However, the use of GE in a descending key file may be confusing because GE will retrieve the next record in the key sort order, but the next record will have a lesser key value. For this reason, it is recommended that you use NXEQ in new program development, especially if you are using descending key files.
5. Key-exp
   • Int-exp2 in the key-clause specifies an integer value to be compared with the key value of a record.
   • Str-exp in the key-clause specifies a string value to be compared with the key value of a record. The string expression can contain fewer characters than the key of the record you want to retrieve but it cannot be a null string.
     Str-exp cannot contain more characters than the key of the record you want to locate. If str-exp does contain more characters than the key, BASIC signals "Key size too large" (ERR = 145).
   • Decimal-exp in the key-clause specifies a packed decimal value to be compared with the key value of a record.
   • Quadword-exp in the key-clause specifies a record or group exactly 8 bytes long to be compared with the key value of a record.
6. The file specified by chnl-exp must be opened with ACCESS READ or ACCESS MODIFY or SCRATCH before your program can execute a GET statement. The default ACCESS clause is MODIFY.
7. If the last I/O operation was a successful FIND operation, a sequential GET operation retrieves the current record located by the FIND operation and sets the next record pointer to the record logically succeeding the pointer.
8. If the last I/O operation was not a FIND operation, a sequential GET operation retrieves the next record and sets the record logically succeeding the record pointer to the current record.
   • For sequential files, a sequential GET operation retrieves the next record in the file.
   • For relative files, a sequential GET operation retrieves the record with the next higher cell number.
   • For indexed files, a sequential GET operation retrieves the next record in the current key of reference.
9. A successful random GET operation by RFA or by record retrieves the record specified by rfa-exp or int-exp.
10. A successful random GET operation by key retrieves the first record whose key satisfies the key-clause comparison.
11. A successful random GET operation by RFA, record, or key sets the value of the current record pointer to the record just read. The next record pointer is set to the next logical record.
12. An unsuccessful GET operation leaves the record pointers and the record buffer in an undefined state.
13. If the retrieved record is smaller than the receiving buffer, BASIC fills the remaining buffer space with nulls.
14. If the retrieved record is larger than the receiving buffer, BASIC truncates the record and signals an error.
15. A successful GET operation sets the value of the RECOUNT variable to the number of bytes transferred from the file to the record buffer.
16. You should not use a GET statement on a terminal-format or virtual array file.

Example
