VAX MACRO and Instruction Set Reference Manual
10.14 Vector Edit Instructions
This section describes VAX vector architecture edit instructions.
VMERGE
Vector Merge
Format
vector vector merge:
VVMERGE [/0|1] Va, Vb, Vc
vector scalar merge:
VSMERGE|VSMERGEF|VSMERGED|VSMERGEG} [/0|1] src, Vb, Vc
Architecture
Format
vector-vector: opcode cntrl.rw
vector-scalar: opcode cntrl.rw,src.rq
Opcodes
|
EEFD
|
VVMERGE
|
Vector Vector Merge
|
|
EFFD
|
VSMERGE
|
Vector Scalar Merge
|

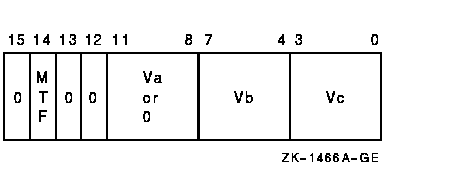

vector_control_word
Exceptions
None.
Description
The scalar src or vector operand Va is merged, elementwise, with vector
register Vb and the resulting vector is written to vector register Vc.
The length of the vector operation is specified by the Vector Length
Register (VLR).
For each vector element, i, if the corresponding Vector Mask Register
bit (VMR<i>) matches cntrl<MTF>, src or Va[i] is written to
the destination vector element Vc[i]. If VMR<i> does not match
cntrl<MTF>, Vb[i] is written to the destination vector element.
IOTA
Generate Compressed Iota Vector
Format
IOTA [/0|1] stride, Vc
Architecture
Format
opcode cntrl.rw, stride.rl
Opcodes
|
EDFD
|
IOTA
|
Generate Compressed Iota Vector
|

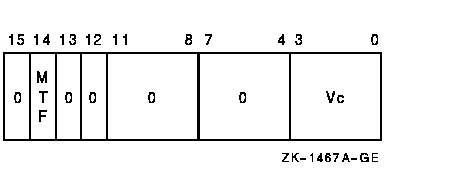

vector_control_word
Exceptions
None.
Description
IOTA constructs a vector of offsets for use by the vector
gather/scatter instructions VGATH and VSCAT.
IOTA first generates an iota vector of length VLR using the stride
operand. An iota vector is a vector whose first element is zero and
whose subsequent elements are spaced by the stride increment. The
stride can be positive, negative, or zero. For example:
0*stride, 1*stride, 2*stride, 3*stride, ..., {VLR-1}*stride
|
The iota vector is then compressed using the contents of the Vector
Mask Register (VMR). Elements of the iota vector for which the
corresponding Vector Mask Register bit matches cntrl<MTF> are
written in contiguous elements of the destination vector register Vc.
Only bits <31:0> of each iota and destination vector element
participate in the operation. Bits <63:32> of the destination
vector elements are UNPREDICTABLE.
The number of elements written to Vc is returned in the Vector Count
Register (VCR). The values of elements in the destination vector
register between the new value of VCR and the vector length are
UNPREDICTABLE.
Note
If a large value is specified for the stride.rl operand, there is a
chance for integer overflow during calculation of the "tmp <- tmp +
stride" step. In this case, the overflow is ignored. For example:
tmp <- tmp + stride
Value of tmp before above step: FFFFFF00
Value of Stride: FFFFFF00
Value of tmp + stride: 1 FFFFFE00
Since the overflow is ignored, the new value of tmp
is FFFFFE00.
|
|
10.15 Miscellaneous Instructions
This section describes VAX vector architecture miscellaneous
instructions.
MFVP
Move from Vector Processor
Format
{MFVCR|MFVLR|MFVMRLO|MFVMRHI|SYNCH|MSYNCH} dst
Architecture
Format
opcode regnum.rw, dst.wl
Opcodes
|
31FD
|
MFVP
|
Move from Vector Processor
|
vector_control_word
None.
Exceptions
None.
MFVP instructions that specify reserved values of the regnum operand
produce UNPREDICTABLE results.
Description
This instruction can be used to read the Vector Count, Length, and Mask
Registers, and to synchronize a scalar processor with its associated
vector processor.
When the scalar processor issues an MFVP instruction to the vector
processor, the scalar processor waits for the MFVP result to be written
before processing other instructions.
MFVP from VCR or VLR does not read that register until all previous
write operations to the register are completed. MFVP from
VMR<31:0> or VMR<63:32> does not read that longword of VMR
until all previous write operations to the same longword of VMR are
completed; however, this is not true for previous write operations to
the other longword.
SYNC allows software to ensure that the unreported exceptions of all
previously issued vector instructions (including vector memory
instructions in asynchronous memory management mode) are detected and
reported to the scalar processor before the scalar processor proceeds
with further instructions. For more details about SYNC and its
exception reporting nature refer to Section 10.7.1, Scalar/Vector
Instruction Synchronization.
MSYNC allows software to ensure that all previously issued memory
instructions of the scalar/vector processor pair are complete before
the scalar processor proceeds with further instructions. For more
details about MSYNC and its exception reporting nature, refer to
Section 10.7.2, Memory Instruction Synchronization.
The value of the vector control register (VCR, VLR, VMR<31:0>,
VMR<63:32>) delivered by an MFVP depends upon the value of
certain vector register elements and vector control register bits.
Unreported exceptions that occur in the production of these elements
and control register bits are reported by the vector processor prior to
the completion of the MFVP from the vector control register.
In addition, there are vector register elements and vector control
register bits that the value of a vector control register delivered by
an MFVP does not depend upon. It is UNPREDICTABLE whether unreported
exceptions that occur in the production of these elements and control
register bits are reported by the vector processor prior to the
completion of the MFVP from the vector control register. Software must
not rely upon the reporting of these exceptions prior to the completion
of the MFVP for the correctness of program results.
Section 10.5.3.3, Dependencies Among Vector Results, gives the necessary
rules to determine what vector control register elements and vector
control register bits the value of a vector control register delivered
by an MFVP depends upon. Examples of MFVP exception reporting using
these rules are found in Section 10.6.5.
When a vector arithmetic exception or memory management exception (in
asynchronous memory management mode) is reported prior to the
completion of an MFVP, the following occur:
- The operation of the MFVP does not complete.
- No longword result is written to the scalar destination of the MFVP
by the scalar processor.
- The MFVP itself (rather than the next vector instruction) takes
either a vector processor disabled fault or a memory management fault.
After the appropriate fault has been serviced, the MFVP may be returned
to through an REI. If both exception conditions are encountered by an
MFVP, then the MFVP itself takes a vector processor disabled fault. In
this case, after the vector processor disabled fault has been serviced,
returning to the MFVP instruction will cause the asynchronous memory
management exception to be reported.
MTVP
Move to Vector Processor
Format
{MTVCR|MTVLR|MTVMRLO|MTVMRHI} src
Architecture
Format
opcode regnum.rw, src.rl
Opcodes
|
A9FD
|
MTVP
|
Move to Vector Processor
|
vector_control_word
None.
Exceptions
None.
Move to Vector Processor instructions that specify reserved values of
the regnum operand produce UNPREDICTABLE results.
Description
This instruction can be used to write the Vector Count, Length, and
Mask Registers.
The new value of VCR, VLR, or VMR does not affect any prior
instructions. The new value remains in effect for all subsequent vector
instructions executed until a new value is loaded.
VSYNC
Synchronize Vector Memory Access
Format
VSYNCH
Architecture
Format
opcode regnum.rw
Opcodes
|
A8FD
|
VSYNC
|
Synchronize Vector Memory Access
|
vector_control_word
None.
Exceptions
None.
Synchronize Vector Memory Access instructions that specify reserved
values of the regnum operand produce UNPREDICTABLE results.
Description
The VSYNC instruction can be used to synchronize memory access within
the vector processor. The instruction allows software to order the
conflicting memory accesses of vector-memory instructions issued after
VSYNC with those of vector-memory instructions issued before VSYNC.
Specifically, VSYNC forces the access of a memory location by any
subsequent vector-memory instruction to wait for (depend upon) the
completion of all prior conflicting accesses of that location by
previous vector-memory instructions. See Section 10.7.1 for more details.
See Section 10.7.5, Required Use of Memory Synchronization Instructions,
for the conditions when VSYNC is not required before a vector store
instruction.
Appendix A
ASCII Character Set
|
Dec Hex ASCII
|
Dec Hex ASCII
|
Dec Hex ASCII
|
Dec Hex ASCII
|
|
00
10 00
16 NUL
|
32
10 20
16 SP
|
64
10 40
16 @
|
96
10 60
16 '
|
|
01
10 01
16 SOH
|
33
10 21
16 !
|
65
10 41
16 A
|
97
10 61
16 a
|
|
02
10 02
16 STX
|
34
10 22
16 "
|
66
10 42
16 B
|
98
10 62
16 b
|
|
03
10 03
16 ETX
|
35
10 23
16 #
|
67
10 43
16 C
|
99
10 63
16 c
|
|
04
10 04
16 EOT
|
36
10 24
16 $
|
68
10 44
16 D
|
100
10 64
16 d
|
|
05
10 05
16 ENQ
|
37
10 25
16 %
|
69
10 45
16 E
|
101
10 65
16 e
|
|
06
10 06
16 ACK
|
38
10 26
16 &
|
70
10 46
16 F
|
102
10 66
16 f
|
|
07
10 07
16 BEL
|
39
10 27
16 '
|
71
10 47
16 G
|
103
10 67
16 g
|
|
08
10 08
16 BS
|
40
10 28
16 (
|
72
10 48
16 H
|
104
10 68
16 h
|
|
09
10 09
16 HT
|
41
10 29
16 )
|
73
10 49
16 I
|
105
10 69
16 i
|
|
10
10 0A
16 LF
|
42
10 2A
16 *
|
74
10 4A
16 J
|
106
10 6A
16 j
|
|
11
10 0B
16 VT
|
43
10 2B
16 +
|
75
10 4B
16 K
|
107
10 6B
16 k
|
|
12
10 0C
16 FF
|
44
10 2C
16 ,
|
76
10 4C
16 l
|
108
10 6C
16 l
|
|
13
10 0D
16 CR
|
45
10 2D
16 -
|
77
10 4D
16 M
|
109
10 6D
16 m
|
|
14
10 0E
16 SO
|
46
10 2E
16 .
|
78
10 4E
16 N
|
110
10 6E
16 n
|
|
15
10 0F
16 SI
|
47
10 2F
16 /
|
79
10 4F
16 O
|
111
10 6F
16 o
|
|
16
10 10
16 DLE
|
48
10 30
16 0
|
80
10 50
16 P
|
112
10 70
16 p
|
|
17
10 11
16 DC1
|
49
10 31
16 1
|
81
10 51
16 Q
|
113
10 71
16 q
|
|
18
10 12
16 DC2
|
50
10 32
16 2
|
82
10 52
16 R
|
114
10 72
16 r
|
|
19
10 13
16 DC3
|
51
10 33
16 3
|
83
10 53
16 S
|
115
10 73
16 s
|
|
20
10 14
16 DC4
|
52
10 34
16 4
|
84
10 54
16 T
|
116
10 74
16 t
|
|
21
10 15
16 NAK
|
53
10 35
16 5
|
85
10 55
16 U
|
117
10 75
16 u
|
|
22
10 16
16 SYN
|
54
10 36
16 6
|
86
10 56
16 V
|
118
10 76
16 v
|
|
23
10 17
16 ETB
|
55
10 37
16 7
|
87
10 57
16 W
|
119
10 77
16 w
|
|
24
10 18
16 CAN
|
56
10 38
16 8
|
88
10 58
16 X
|
120
10 78
16 x
|
|
25
10 19
16 EM
|
57
10 39
16 9
|
89
10 59
16 Y
|
121
10 79
16 y
|
|
26
10 1A
16 SUB
|
58
10 3A
16 :
|
90
10 5A
16 Z
|
122
10 7A
16 z
|
|
27
10 1B
16 ESC
|
59
10 3B
16 ;
|
91
10 5B
16 [
|
123
10 7B
16 {
|
|
28
10 1C
16 FS
|
60
10 3C
16 <
|
92
10 5C
16 \
|
124
10 7C
16 |
|
|
29
10 1D
16 GS
|
61
10 3D
16 =
|
93
10 5D
16 ]
|
125
10 7D
16 }
|
|
30
10 1E
16 RS
|
62
10 3E
16 >
|
94
10 5E
16 ^
|
126
10 7E
16 ~
|
|
31
10 1F
16 US
|
63
10 3F
16 ?
|
95
10 5F
16 _
|
127
10 7F
16 DEL
|
|
