$CREATE_USER_PROFILE can also return any error returned by the $GETUAI or $FIND_HELD services.


$CRELNM

Creates a logical name and specifies its equivalence names.

On Alpha and I64 systems, this service accepts 64-bit addresses.


Format

SYS$CRELNM [attr] ,tabnam ,lognam ,[acmode] ,[itmlst]


C Prototype

int sys$crelnm (unsigned int *attr, void *tabnam, void *lognam, unsigned char *acmode, void *itmlst);


Arguments

attr


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Attributes to be associated with the logical name. The attr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a longword bit mask specifying these attributes.

Each bit in the longword corresponds to an attribute and has a symbolic name. These symbolic names are defined by the $LNMDEF macro. To specify an attribute, specify its symbolic name or set its corresponding bit. The longword bit mask is the logical OR of all desired attributes. All undefined bits in the longword must be 0.

If you do not specify this argument or specify it as 0 (no bits set), no attributes are associated with the logical name.

The attributes are as follows:

Attribute Description
LNM$M_CONFINE If set, the logical name is not copied from the process to its spawned subprocesses. You create a subprocess with the DCL command SPAWN or the LIB$SPAWN Run-Time Library routine. If the logical name is placed into a process-private table that has the CONFINE attribute, the CONFINE attribute is automatically associated with the logical name. This applies only to process-private logical names.
LNM$M_NO_ALIAS If set, the logical name cannot be duplicated in this table at an outer access mode. If another logical name with the same name already exists in the table at an outer access mode, it is deleted.

tabnam


OpenVMS usage: logical_name
type: character-coded text string
access: read only
mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64)
mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the table in which to create the logical name. The tabnam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a descriptor that points to the name of this table. This argument is required and must be specified in uppercase.

The name must be entered in uppercase letters. (This requirement differs from the $CRELNT system service, which automatically changes tabnam to uppercase.)

If tabnam is not the name of a logical name table, it is assumed to be a logical name and is translated iteratively until either the name of a logical name table is found or the number of translations allowed by the system has been performed. If tabnam translates to a list of logical name tables, the logical name is entered into the first table in the list.

lognam


OpenVMS usage: logical_name
type: character-coded text string
access: read only
mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64)
mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the logical name to be created. The lognam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a descriptor that points to the logical name string.

Logical name strings of logical names created within either the system or process directory table must consist of uppercase alphanumeric characters, dollar signs ($), hyphens (-), and underscores (_); the maximum length is 31 characters. The maximum length of logical name strings created within other tables is 255 characters with no restrictions on the types of characters that can be used. This argument is required.

acmode


OpenVMS usage: access_mode
type: byte (unsigned)
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Access mode to be associated with the logical name. The acmode argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a byte that specifies the access mode.

The access mode associated with the logical name is determined by maximizing the access mode of the caller with the access mode specified by the acmode argument, which means that the less privileged of the two is used. Symbols for the four access modes are defined by the $PSLDEF macro.

You cannot specify an access mode more privileged than that of the containing table. However, if the caller has SYSNAM privilege, then the specified access mode is associated with the logical name regardless of the access mode of the caller.

If you omit this argument or specify it as 0, the access mode of the caller is associated with the logical name.

itmlst


OpenVMS usage: 32-bit item_list_3 or 64-bit item_list 64b
type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Item list describing the equivalence names to be defined for the logical name and information to be returned to the caller. The itmlst argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a list of item descriptors, each of which specifies information about an equivalence name. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.

Note that it is possible to create a logical that has no equivalence names. This is done by either omitting the itmlst argument to $CRELNM, or by not including the LNM$_STRING item code to the itmlst data structure that is passed into $CRELNM. It is not possible to create this kind of logical using DCL.

The following diagram depicts the 32-bit format of a single item descriptor:


The following table defines the item descriptor fields for 32-bit item list entries:

Descriptor Field Definition
Buffer length A word specifying the number of bytes in the buffer pointed to by the buffer address field. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor. If the value of buffer length is too small, the service truncates the data.
Item code A word containing a symbolic code that describes the information in the buffer or the information to be returned to the buffer, pointed to by the buffer address field. The item codes are listed in the Item Codes section.
Buffer address A longword containing the 32-bit address of the buffer that receives or passes information.
Return length address A longword containing the 32-bit address of a word specifying the actual length in bytes of the information returned by $CRELNM in the buffer pointed to by the buffer address field. The return length address field is used only when the item code specified is LNM$_TABLE. Although this field is ignored for all other item codes, it must nevertheless be present as a placeholder in each item descriptor.

The following diagram depicts the 64-bit format of a single item descriptor:


The following table defines the item descriptor fields for 64-bit item list entries:

Descriptor Field Definition
MBO The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.
Item code A word containing a symbolic code that describes the information in the buffer or the information to be returned to the buffer, pointed to by the buffer address field. The item codes are listed in the Item Codes section.
MBMO The field must contain a --1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.
Buffer length A quadword specifying the number of bytes in the buffer pointed to by the buffer address field. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor. If the value of buffer length is too small, the service truncates the data.
Buffer address A quadword containing the 64-bit address of the buffer that receives or passes information.
Return length address A quadword containing the 64-bit address of a word specifying the actual length in bytes of the information returned by $CRELNM in the buffer pointed to by the buffer address field. The return length address field is used only when the item code specified is LNM$_TABLE. Although this field is ignored for all other item codes, it must nevertheless be present as a placeholder in each item descriptor.

Item Codes

LNM$_ATTRIBUTES

When you specify LNM$_ATTRIBUTES, the buffer address field of the item descriptor points to a longword bit mask that specifies the current translation attributes for the logical name. The current translation attributes are applied to all subsequently specified equivalence strings until another LNM$_ATTRIBUTES item descriptor is encountered in the item list. The symbolic names for these attributes are defined by the $LNMDEF macro. The symbolic name and description of each attribute are as follows:
Attribute Description
LNM$M_CONCEALED If set, OpenVMS RMS interprets the equivalence name as a device name or logical name with the LNM$M_CONCEALED attribute.
LNM$M_TERMINAL If set, further iterative logical name translation on the equivalence name is not to be performed.

LNM$_CHAIN

When you specify LNM$_CHAIN, the buffer address field of the item descriptor points to another item list that $CRELNM is to process immediately after it has processed the current item list.

If you specify the LNM$_CHAIN item code, it must be the last item code in the current item list.

You can chain together 32-bit and 64-bit item lists.

LNM$_STRING

When you specify LNM$_STRING, the buffer address field of the item descriptor points to a buffer containing a user-specified equivalence name for the logical name. The maximum length of the equivalence string is 255 characters.

When $CRELNM encounters an item descriptor with the item code LNM$_STRING, it creates an equivalence name entry for the logical name using the most recently specified values for LNM$_ATTRIBUTES. The equivalence name entry includes the following information:

  • Name specified by LNM$_STRING.
  • Next available index value. Each equivalence is assigned a unique value from 0 to 127.
  • Attributes specified by the most recently encountered item descriptor with item code LNM$_ATTRIBUTES (if these are present in the item list).

Therefore, you should construct the item list so that the LNM$_ATTRIBUTES item codes immediately precede the LNM$_STRING item code or codes to which they apply.

Note that it is possible to create a logical that has no equivalence names. This is done by either omitting the itmlst argument to $CRELNM, or by not including the LNM$_STRING item code to the itmlst data structure that is passed into $CRELNM. It is not possible to create this kind of logical using DCL.

LNM$_TABLE

When you specify LNM$_TABLE, the buffer address field of the item descriptor points to a buffer in which $CRELNM writes the name of the logical name table in which it entered the logical name. The return length address field points to a word that contains a buffer that specifies the length in bytes of the information returned by $CRELNM. The maximum length of the name of a logical name table is 31 characters.

This item code can appear anywhere in the item list.


Description

The Create Logical Name service creates a logical name and specifies its equivalence name. Note that logical names are case sensitive.

Required Access or Privileges

The calling process must have the following:

  • Write access to shareable tables to create logical names in those tables
  • GRPNAM or GRPPRV privilege to enter a logical name into the group logical name table
  • SYSNAM or SYSPRV privilege to enter a logical name into the system logical name table

Required Quota

The quota for the specified logical name table must be sufficient for the creation of the logical name.

Related Services

$CRELNT, $DELLNM, $TRNLNM


Condition Values Returned

SS$_NORMAL The service completed successfully; the logical name has been created. However, if you attempted to create a new clusterwide logical name with the same access mode and identical equivalence names and attributes as an existing clusterwide logical name, this message indicates only that the service completed successfully. Because an identical clusterwide logical name already exists, and because a clusterwide update would adversely affect performance, the name is not created.
SS$_SUPERSEDE The service completed successfully; the logical name has been created and a previously existing logical name with the same name has been deleted.
SS$_BUFFEROVF The service completed successfully; the buffer length field in an item descriptor specified an insufficient value, so the buffer was not large enough to hold the requested data.
SS$_ACCVIO The service cannot access the locations specified by one or more arguments.
SS$_BADPARAM One or more arguments have an invalid value, or a logical name table name or logical name was not specified. Or, an item list containing both 32-bit and 64-bit item list entries was found.
SS$_DUPLNAM An attempt was made to create a logical name with the same name as an already existing logical name, and the existing logical name was created at a more privileged access mode and with the LNM$M_NO_ALIAS attribute.
SS$_EXLNMQUOTA The quota associated with the specified logical name table for the creation of the logical name is insufficient.
SS$_INSFMEM The dynamic memory is insufficient for the creation of the logical name, or there is insufficient dynamic memory to build a message describing the creation of a clusterwide name.
SS$_IVLOGNAM The tabnam argument, the lognam argument, or the equivalence string specifies a string whose length is not in the required range of 1 through 255 characters. The lognam argument specifies a string whose length is not in the required range of 1 to 31 characters for directory table entries.
SS$_IVLOGTAB The tabnam argument does not specify a logical name table.
SS$_NOLOGTAB Either the specified logical name table does not exist or the logical name translation of the table name exceeded the allowable depth of 10 translations.
SS$_NOPRIV The caller lacks the necessary privilege to create the logical name.
SS$_TOOMANYLNAM An attempt was made to create a logical name with more than 128 equivalence names.

$CRELNT

Creates a process-private or shareable logical name table.

On Alpha and I64 systems, this service accepts 64-bit addresses.


Format

SYS$CRELNT [attr] ,[resnam] ,[reslen] ,[quota]
,[promsk] ,[tabnam] ,partab ,[acmode]


C Prototype

int sys$crelnt (unsigned int *attr, void *resnam, unsigned short int *reslen, unsigned int *quota, unsigned short int *promsk, void *tabnam, void *partab, unsigned char *acmode);


Arguments

attr


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Attributes to affect the creation of the logical name table and to be associated with the newly created logical name table. The attr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a longword bit mask specifying these attributes.

Each bit in the longword corresponds to an attribute and has a symbolic name. These symbolic names are defined by the $LNMDEF macro. To specify an attribute, specify its symbolic name or set its corresponding bit. The longword bit mask is the logical OR of all desired attributes. All unused bits in the longword must be 0.

If you do not specify this argument or specify it as 0 (no bits set), no attributes are associated with the logical name table or affect the creation of the new table.

The following table describes each attribute:

Attribute Description
LNM$M_CONFINE If set, the logical name table is not copied from the process to its spawned subprocesses. You create a subprocess with the DCL command SPAWN or the Run-Time Library LIB$SPAWN routine. You can specify this attribute only for process-private logical name tables; it is ignored for shareable tables.
  The state of this bit is also propagated from the parent table to the newly created table and can be overridden only if the parent table does not have the bit set. Thus, if the parent table has the LNM$M_CONFINE attribute, the newly created table will also have it, no matter what is specified in the attr argument. On the other hand, if the parent table does not have the LNM$M_CONFINE attribute, the newly created table can be given this attribute through the attr argument.
  The process-private directory table LNM$PROCESS_DIRECTORY does not have the LNM$M_CONFINE attribute.
LNM$M_CREATE_IF This attribute applies to all types of logical name tables except clusterwide logical name tables. If set, a new logical name table is created only if the specified table name is not already entered at the specified access mode in the appropriate directory table. If the table name exists, a new table is not created and no modification is made to the existing table name. This holds true even if the existing name has differing attributes or quota values, or even if it is not the name of a logical name table.

If LNM$M_CREATE_IF is not set, the new logical name table will supersede any existing table name with the same access mode within the appropriate directory table. Setting this attribute is useful when two or more users want to create and use the same table but do not want to synchronize its creation.

Regardless of the setting of LNM$M_CREATE_IF:

  • You cannot create a new clusterwide logical name table with the same name and the same mode as an existing clusterwide logical name table until you delete the existing one.
  • If you specify a new clusterwide logical name table with the same name and access mode as an existing local logical name table, the new clusterwide logical name table is created, and the local table and its logical names are deleted.
LNM$M_NO_ALIAS If set, the name of the logical name table cannot be duplicated at an outer access mode within the appropriate directory table. If this name already exists at an outer access mode, it is deleted. Note that this attribute does not apply to clusterwide logical name tables.

resnam


OpenVMS usage: logical_name
type: character-coded text string
access: write only
mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64)
mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the newly created logical name table, returned by $CRELNT. The resnam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a descriptor pointing to this name. The name is a character string whose maximum length is 31 characters.

reslen


OpenVMS usage: word_unsigned
type: word (unsigned)
access: write only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Length in bytes of the name of the newly created logical name table, returned by $CRELNT. The reslen argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a word to receive this length.

quota


OpenVMS usage: longword_unsigned
type: longword (unsigned)
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Maximum number of bytes of memory to be allocated for logical names contained in this logical name table. The quota argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a longword specifying this value.

If you specify no quota value, the logical name table has an infinite quota. Note that a shareable table created with infinite quota permits users with write access to that table to consume system dynamic memory without limit.

promsk


OpenVMS usage: file_protection
type: word (unsigned)
access: read only
mechanism: by 32- or 64-bit reference (Alpha and I64)
mechanism: by 32-bit reference (VAX)

Protection mask to be associated with the newly created shareable logical name table. The promsk argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a word that contains a value that represents four 4-bit fields. Each field grants or denies the type of access, either delete, create, write, or read, allowed for system, owner, group, and world users.

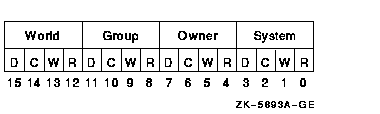

The following diagram depicts these protection bits:


Create access is required to create a shareable table within another shareable table.

Each field consists of 4 bits specifying protection for the logical name table. The remaining bits in the protection mask are as follows:

  • Read privileges allow access to names in the logical name table.
  • Write privileges allow creation and deletion of names within the logical name table.
  • Delete privileges allow deletion of the logical name table.

If a bit is clear, access is granted.

The initial security profile for any shared logical name table is taken from the logical name table template. The owner is then set to the process UIC and, if the promsk argument is nonzero, that value replaces the protection mask.

tabnam


OpenVMS usage: logical_name
type: character-coded text string
access: read only
mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64)
mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

The name of the new logical name table. The tabnam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a character-string descriptor pointing to this name string. Table names are contained in either the process or system directory table (LNM$PROCESS_DIRECTORY or LNM$SYSTEM_DIRECTORY); therefore, table names must consist of alphanumeric characters, dollar signs ($), and underscores (_); the maximum length is 31 characters. Names of logical name tables must be in uppercase latters. If you specify a lowercase name, the $CRELNT service automatically changes it to uppercase.
