HP OpenVMS System Services Reference Manual
$ICC_REPLYW
The Intra-Cluster Communications Reply and Wait service transmits a
single message over a connection in response to a $ICC_TRANSCEIVE[W]
request.
The $ICC_REPLYW service completes synchronously; that is, it returns to
the caller when the underlying transport layer has released use of the
reply buffer.
For asynchronous completion, use the $ICC_REPLY service; $ICC_REPLY
returns to the caller as soon as the transmission request has been
queued to the transport layer, without waiting for notification that
the transport layer has released control of the data buffer.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$ICC_REPLYW conn_handle, ios_icc, [astadr], [astprm], reply_buf,
reply_len
C Prototype
sys$icc_replyw (unsigned int conn_handle, struct _ios_icc *ios_icc,
void (*astadr)(__unknown_params), __int64 astprm, char *reply_buf,
unsigned int reply_len);
$ICC_TRANSCEIVE
Sends a single message over a connection and then waits for a reply.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$ICC_TRANSCEIVE conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf
,send_len
C Prototype
sys$icc_transceive (unsigned int conn_handle, struct _ios_icc *ios_icc,
void (*astadr)(__unknown_params), __int64 astprm, char *send_buf,
unsigned int send_len);
Arguments
conn_handle
| OpenVMS usage: |
connection_id |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
The handle of the fully established (open) connection.
ios_icc
| OpenVMS usage: |
io_status_block |
| type: |
five longwords (unsigned) |
| access: |
modify |
| mechanism: |
by 32-bit or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |

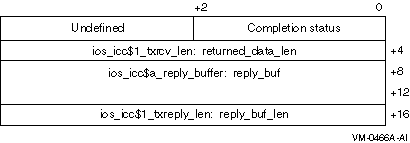

I/O status block:
Completion status values:
SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_BUFOVFL, SS$_LINKABORT,
SS$_LINKDISCON
astadr
| OpenVMS usage: |
ast_procedure |
| type: |
procedure_entry_mask |
| access: |
call without stack unwinding |
| mechanism: |
by 32-bit or 64-bit linkage reference (Alpha and I64); by
32-bit reference (VAX) |
The AST routine to be executed when the operation completes.
astprm
| OpenVMS usage: |
user_arg |
| type: |
quadword (unsigned) (Alpha and I64); longword (unsigned)
(VAX) |
| access: |
read only |
| mechanism: |
by 64-bit value (Alpha and I64); by 32-bit value
(VAX) |
The parameter to be passed to the AST routine.
send_buf
| OpenVMS usage: |
byte_stream |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32-bit or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
The 32-bit or 64-bit address (on Alpha and I64 systems) or the 32-bit
address (on VAX systems) of the buffer containing the data to be sent.
The length of this buffer is specified by the argument
send_len.
send_len
| OpenVMS usage: |
buffer size |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
The length (in bytes) of the data to be sent over the connection. This
value specifies the length of the buffer send_buf.
IOS_ICC Arguments:
returned_data_len (output)
| OpenVMS usage: |
longword_unsigned |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
This parameter is passed through the ios_icc. The
$ICC_TRANSCEIVE service writes the actual length (in bytes) of the
reply data received into offset ios_icc$l_txrcv_len of
the ios_icc. This value represents how much data in
reply_buf was returned by the target application.
reply_buf (input)
| OpenVMS usage: |
byte_stream |
| type: |
character-coded text string |
| access: |
write only |
| mechanism: |
by 32-bit or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
This parameter is passed through the ios_icc. The
32-bit or 64-bit address (on Alpha and I64 systems) or the 32-bit
address (on VAX systems) of the buffer available to receive the
incoming reply message is placed in offset
ios_icc$a_reply_buffer of the ios_icc.
reply_buf_len (input)
| OpenVMS usage: |
buffer_size |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
This parameter is passed through the ios_icc. The
length (in bytes) of the buffer to receive the reply message. This
value specifies the length of the buffer reply_buf.
This value is placed in offset ios_icc$l_txreply_len
of the ios_icc.
Description
This service sends a single message over a connection and then waits
for a reply. When completion is signaled by calling the AST (if
supplied), the data has been delivered to the application at the other
end of the connection and that application has delivered a reply, now
present in the reply buffer. The user can reuse the send and reply
buffers after completion.
For efficiency reasons, the number of parameters on this routine has
been limited to six parameters. Three additional parameters are passed
by the ios_icc data structure.
Required Access or Privileges
None.
Required Quota
BYTLM (Send and Reply buffers)
Related Services
$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW,
$ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE,
$ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVEW,
$ICC_TRANSMIT, $ICC_TRANSMITW
Condition Values Returned
|
SS$_NORMAL
|
Normal completion.
|
|
SS$_ACCVIO
|
Access violation on parameter.
|
|
SS$_BADPARAM
|
Bad parameter value specified.
|
|
SS$_EXBYTLM
|
Insufficient byte count quota.
|
|
SS$_INSFARG
|
Too few arguments were supplied.
|
|
SS$_INSFMEM
|
Insufficient process or system memory to complete the request.
|
|
SS$_IVCHAN
|
Unknown connection specified or invalid connection handle.
|
|
SS$_IVMODE
|
Attempted to use a connection from a more privileged access mode than
the mode in which it was opened.
|
|
SS$_LINKDISCON
|
An Incoming disconnect event is in progress.
|
|
SS$_SYNCH
|
If synchronous mode was requested at connection time, this return value
indicates that completion has already occurred and the AST routine, if
specified, will not be called.
|
|
SS$_TOO_MANY_ARGS
|
Too many arguments were specified.
|
|
SS$_WRONGSTATE
|
Connection is in wrong state for request.
|
$ICC_TRANSCEIVEW
Sends a single message over a connection and waits for a reply.
The $ICC_TRANSCEIVEW service completes synchronously; that is, it
returns to the caller when the data from the reply is available.
For asynchronous completion, use the $ICC_TRANSCEIVE service;
$ICC_TRANSCEIVE returns to the caller when the transmit portion of the
tranceive request has been queued to the transport layer, but without
waiting for notification that the transport layer has released control
of the data buffer or for the reply data from the receiving end of the
connection.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$ICC_TRANSCEIVEW
conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len
C Prototype
sys$icc_transceivew (unsigned int conn_handle, struct _ios_icc
*ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char
*send_buf, unsigned int send_len);
$ICC_TRANSMIT
Sends a single message over a connection.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$ICC_TRANSMIT conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf
,send_len
C Prototype
sys$icc_transmit (unsigned int conn_handle, struct _ios_icc *ios_icc,
void (*astadr)(__unknown_params), __int64 astprm, char *send_buf,
unsigned int send_len);
Arguments
conn_handle
| OpenVMS usage: |
connection_id |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
The handle of the fully established (open) connection to send the data
over.
ios_icc
| OpenVMS usage: |
ios_status_block |
| type: |
structure IOS_ICC |
| access: |
write only |
| mechanism: |
by 32-bit or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
I/O status block:
Completion status values:
SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_LINKABORT, SS$_LINKDISCON
astadr
| OpenVMS usage: |
ast_procedure |
| type: |
procedure_entry_mask |
| access: |
call without stack unwinding |
| mechanism: |
by 32-bit or 64-bit linkage reference (Alpha and I64); by
32-bit reference (VAX) |
The AST routine to be executed when the operation completes.
astprm
| OpenVMS usage: |
user_arg |
| type: |
quadword (unsigned) (Alpha and I64); longword (unsigned)
(VAX) |
| access: |
read only |
| mechanism: |
by 64-bit value (Alpha and I64); by 32-bit value
(VAX) |
The parameter to be passed to the AST routine.
send_buf
| OpenVMS usage: |
byte_stream |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32-bit or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
The 32-bit or 64-bit address (on Alpha and I64 systems) or the 32-bit
address (on VAX systems) of the buffer containing the data to be sent.
The length of this buffer is specified by the argument
send_len.
send_len
| OpenVMS usage: |
buffer_length |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
The length (in bytes) of the data to be sent over the connection. This
value specifies the length of the buffer send_buf. The
maximum transmission size is 1MB.
Description
This service sends a single message over a connection. When completion
is signalled by calling the AST (if supplied), the data has been
delivered to the communications system, but not necessarily to the
system or application at the other end of the connection. After
completion, the user can reuse the buffer.
Alternatively, if the synchronous completion option was requested at
connection time, the service may return the optional success status,
SS$_SYNCH. When SS$_SYNCH is returned, completion has occurred, and no
AST will be delivered.
Required Access or Privileges
None.
Required Quota
BYTLM (send_buf)
Related Services
$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW,
$ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE,
$ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVE,
$ICC_TRANSCEIVEW, $ICC_TRANSMITW
Condition Values Returned
|
SS$_NORMAL
|
Normal completion.
|
|
SS$_ACCVIO
|
Access violation on parameter.
|
|
SS$_BADPARAM
|
Bad parameter value specified.
|
|
SS$_EXBYTLM
|
Insufficient byte count quota.
|
|
SS$_INSFARG
|
Too few arguments were supplied.
|
|
SS$_INSFMEM
|
Insufficient process or system memory to complete the request.
|
|
SS$_IVCHAN
|
Unknown connection specified or invalid connection handle.
|
|
SS$_IVMODE
|
Attempted to use a connection from a more privileged access mode than
the mode in which it was opened.
|
|
SS$_LINKDISCON
|
An Incoming disconnect event is in progress.
|
|
SS$_SYNCH
|
If synchronous mode was requested at connection time, this return value
indicates that completion has already occurred and the AST routine, if
specified, will not be called.
|
|
SS$_TOO_MANY_ARGS
|
Too many arguments were specified.
|
|
SS$_WRONGSTATE
|
Connection is in the wrong state for the request.
|
$ICC_TRANSMITW
Sends a single message over a connection.
The $ICC_TRANSMITW service completes synchronously; that is, it returns
to the caller when the underlying transport layer has released use of
the Transmit buffer. This does not mean that the data has been received
by the partner application.
For asynchronous completion, use the $ICC_TRANSMIT service. The
$ICC_TRANSMIT service returns to the caller as soon as the transmission
request has been queued to the transport layer, without waiting for
notification that the transport layer has released control of the data
buffer.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$ICC_TRANSMITW conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf
,send_len
C Prototype
sys$icc_transmitw (unsigned int conn_handle, struct _ios_icc *ios_icc,
void (*astadr)(__unknown_params), __int64 astprm, char *send_buf,
unsigned int send_len);
$IDTOASC
Translates the specified identifier value to its identifier name.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$IDTOASC id ,[namlen] ,[nambuf] ,[resid] ,[attrib] ,[contxt]
C Prototype
int sys$idtoasc (unsigned int id, unsigned short int *namlen, void
*nambuf, unsigned int *resid, unsigned int *attrib, unsigned int
*contxt);
Arguments
id
| OpenVMS usage: |
rights_id |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
Binary identifier value translated by $IDTOASC. The id
argument is a longword containing the binary value of the identifier.
To determine the identifier names of all identifiers in the rights
database, you specify id as --1 and call $IDTOASC
repeatedly until it returns the status code SS$_NOSUCHID. The
identifiers are returned in alphabetical order.
namlen
| OpenVMS usage: |
word_unsigned |
| type: |
word (unsigned) |
| access: |
write only |
| mechanism: |
by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Number of characters in the identifier name translated by $IDTOASC. The
namlen argument is the 32- or 64-bit address (on Alpha
and I64 systems) or the 32-bit address (on VAX systems) of a word
containing the length of the identifier name written to
nambuf.
nambuf
| OpenVMS usage: |
char_string |
| type: |
character-coded text string |
| access: |
write only |
| mechanism: |
by 32- or 64-bit descriptor--fixed-length string descriptor
(Alpha and I64); by 32-bit descriptor--fixed-length string descriptor
(VAX) |
Identifier name text string returned when $IDTOASC completes the
translation. The nambuf argument is the 32- or 64-bit
address (on Alpha and I64 systems) or the 32-bit address (on VAX
systems) of a descriptor pointing to the buffer in which the identifier
name is written.
resid
| OpenVMS usage: |
rights_id |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Identifier value of the identifier name returned in
nambuf. The resid argument is the 32-
or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on
VAX systems) of a longword containing the 32-bit code of the identifier.
attrib
| OpenVMS usage: |
mask_longword |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Mask of attributes associated with the identifier returned in
resid. The attrib argument is the 32-
or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on
VAX systems) of a longword containing the attribute mask.
Symbol values are offsets to the bits within the longword. You can also
obtain the values as masks with the appropriate bit set using the
prefix KGB$M rather than KGB$V. The following symbols for each bit
position are defined in the system macro library ($KGBDEF):
| Bit Position |
Meaning When Set |
|
KGB$V_DYNAMIC
|
Allows holders of the identifier to remove it from or add it to the
process rights list using the DCL command SET RIGHTS_LIST.
|
|
KGB$V_NAME_HIDDEN
|
Allows holders of an identifier to have it translated, either from
binary to ASCII or vice versa, but prevents unauthorized users from
translating the identifier.
|
|
KGB$V_NOACCESS
|
Makes any access rights of the identifier null and void. This attribute
is intended as a modifier for a resource identifier or the Subsystem
attribute.
|
|
KGB$V_RESOURCE
|
Allows holders of an identifier to charge disk space to the identifier.
It is used only for file objects.
|
|
KGB$V_SUBSYSTEM
|
Allows holders of the identifier to create and maintain protected
subsystems by assigning the Subsystem ACE to the application images in
the subsystem.
|
contxt
| OpenVMS usage: |
context |
| type: |
longword (unsigned) |
| access: |
modify |
| mechanism: |
by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Context value used when repeatedly calling $IDTOASC. The
contxt argument is the 32- or 64-bit address (on Alpha
and I64 systems) or the 32-bit address (on VAX systems) of a longword
used while $IDTOASC searches for all identifiers. The context value
must be initialized to the value 0, and the resulting context of each
call to $IDTOASC must be presented to each subsequent call. After
contxt is passed to $IDTOASC, you must not modify its
value.
Description
The Translate Identifier to Identifier Name service translates the
specified binary identifier value to an identifier name. While the
primary purpose of this service is to translate the specified
identifier to its name, you can also use it to find all identifiers in
the rights database. Owner or read access to the rights database is
required. To determine all the identifiers, call $IDTOASC repeatedly
until it returns the status code SS$_NOSUCHID. When SS$_NOSUCHID is
returned, $IDTOASC has returned all the identifiers, cleared the
context value, and deallocated the record stream.
If you complete your calls to $IDTOASC before SS$_NOSUCHID is returned,
use $FINISH_RDB to clear the context value and deallocate the record
stream.
When you use wildcards with this service, the records are returned in
identifier name order.
Required Access or Privileges
None, unless the id argument is NAME_HIDDEN, in which
case you must hold the identifier or have read access to the rights
list.
Required Quota
None
Related Services
$ADD_HOLDER, $ADD_IDENT, $ASCTOID, $CHECK_ACCESS, $CHKPRO, $CREATE_RDB,
$ERAPAT, $FIND_HELD, $FIND_HOLDER, $FINISH_RDB, $FORMAT_ACL,
$FORMAT_AUDIT, $GET_SECURITY, $GRANTID, $HASH_PASSWORD, $MOD_HOLDER,
$MOD_IDENT, $MTACCESS, $PARSE_ACL, $REM_HOLDER, $REM_IDENT, $REVOKID,
$SET_SECURITY
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_ACCVIO
|
The
namlen,
nambuf,
resid,
attrib, or
contxt argument cannot be written by the caller.
|
|
SS$_INSFMEM
|
The process dynamic memory is insufficient for opening the rights
database.
|
|
SS$_IVCHAN
|
The contents of the context longword are not valid.
|
|
SS$_IVIDENT
|
The specified identifier is of invalid format.
|
|
SS$_NOIOCHAN
|
No more rights database context streams are available.
|
|
SS$_NORIGHTSDB
|
The rights database does not exist.
|
|
SS$_NOSUCHID
|
The specified identifier name does not exist in the rights database, or
the entire rights database has been searched if the ID is --1.
|
Because the rights database is an indexed file that you access with
OpenVMS RMS, this service can also return RMS status codes associated
with operations on indexed files. For descriptions of these status
codes, refer to the OpenVMS Record Management Services Reference Manual.
|
