Function

The FILE STATUS clause specifies a data item to contain the status of an input/output operation.

file-stat

is the data-name of a two-character alphanumeric Working-Storage Section, or Linkage Section data item. file-stat is the file's FILE STATUS data item.

Syntax Rules

1. file-stat can be qualified.
2. The FILE STATUS clause can be in the file's SELECT clause or in its file description entry. However, it cannot be in both the SELECT clause and the file description entry for the same file.
3. If the FILE STATUS clause is associated with an external file connector, file-stat must reference the same data item in all programs in the run unit.

General Rule

After the execution of every I-O statement that refers to the specified file, a value is moved to file-stat. This value indicates the file's I-O status after the execution of the I-O statement.

Additional References

• Appendix C, File Status Values
• Section 6.6.8, I-O Status

Function

The FOREGROUND-COLOR clause specifies the foreground color for a screen item.

color-num

is an integer in the range 0--7 specifying a color as follows:

Color	Color Value	Color	Color Value
Black	0	Red	4
Blue	1	Magenta	5
Green	2	Yellow/Brown	6
Cyan	3	White	7

Syntax Rule

The FOREGROUND-COLOR clause can be specified in any screen description entry.

General Rules

1. The FOREGROUND-COLOR clause is effective only with color screens.
2. If the FOREGROUND-COLOR clause is omitted, the initial default foreground color is white.
3. If the clause is specified at group level, it applies to all subordinate screen items.
4. If the BLANK SCREEN clause is specified and the FOREGROUND-COLOR clause is specified or inherited, then when a DISPLAY statement displays the screen item, the specified color becomes the default foreground color. It remains the default foreground color until another screen item with this combination of options is displayed (whether in the same DISPLAY statement or in another).
5. If the HIGHLIGHT clause is also specified, foreground and background colors are brightened and lightened; for example, black may become grey and brown may become yellow.

Technical Note

The colors in the list above are supported only on terminals and workstations that support the ANSI Standard color sequences. ¹

Additional References

• Section 6.8.1 in Chapter 6
• Section 6.8.10 in Chapter 6 <>

Function

The FULL clause specifies that a screen item must be left either completely empty or it must be entirely filled with data.

Syntax Rules

1. If the FULL clause is specified in a screen description entry, the JUSTIFIED clause cannot be specified.
2. The FULL clause is valid only in the description of an input or update screen item.

General Rules

1. If the FULL clause is specified at group level, it applies to all subordinate input or update screen items.
2. The FULL clause is effective during the execution of any ACCEPT statement when the cursor enters the screen item. Until this clause is satisfied, the operator cannot leave the field and normal terminator keystrokes are rejected.
3. To satisfy the FULL clause for an alphanumeric screen item, either the field must contain all spaces, or both the first and last character positions must contain nonspace characters.
4. To satisfy the FULL clause for a numeric or numeric edited screen item, either the value must be zero or there must be no digit position in which zero suppression has taken effect.
5. For update fields, the FULL clause can be satisfied by the contents of the identifier or literal referenced in the FROM or USING phrase of the PICTURE clause, as well as by operator-keyed data.
6. The FULL clause is not effective if a function key terminates the accept operation.
7. Specifying the FULL and REQUIRED clauses together requires that the user must always entirely fill the field.
8. The FULL clause is ignored for an elementary output field.

Additional Reference

Section 6.8.1 statement in Chapter 6 <>

5.3.25 GLOBAL

Function

The GLOBAL clause specifies that data-name, file-name, or report-name is available to every program contained within the program that declares it.

Syntax Rules

1. The GLOBAL clause can appear only in file description entries, Report Description entries, a data description entry whose level number is 01, in the File or Working-Storage Section, or a data description entry whose level number is 77, in the Working-Storage Section.
2. In the same Data Division, the GLOBAL clause must not appear in Data Description entries that contain identical data-names.
3. If you use the SAME RECORD AREA clause for several files, the Record Description entries or the file description entries for these files must not include the GLOBAL clause.
4. Entries that contain the GLOBAL clause must be named.

General Rules

1. Any data-name, file-name, or report-name specifying the GLOBAL clause is a global name. All data items subordinate to a global data-name or file-name are global names. All condition-names associated with a global name are global names.
2. A statement in a program contained directly or indirectly within a program that describes a global name may reference the name without describing it again.
3. If the GLOBAL clause is used in a data description entry that contains the REDEFINES clause, the global attribute applies only to the subject of the REDEFINES clause.

Technical Note

Each global sequential file becomes a print format file.

Additional Reference

Section 6.2.6, Scope of Names

5.3.26 GROUP INDICATE

Function

The GROUP INDICATE clause specifies that the associated printable item is presented only on the first occurrence of its DETAIL report group after a control break or page advance.

Syntax Rule

The GROUP INDICATE clause must be specified only in a DETAIL report group entry that defines a printable item.

General Rules

1. If the program contains a GROUP INDICATE clause, the compiler suppresses printing of the printable item and supplies spaces, except:
   1. On the first presentation of the DETAIL report group
   2. On the first presentation of the DETAIL report group after every page advance
   3. On the first presentation of the DETAIL report group after every control break
2. If the program specifies neither the PAGE clause nor the CONTROL clause in a Report Description entry, then the first time a DETAIL report group is presented a GROUP INDICATE printable item is also presented. Thereafter, spaces are supplied for indicated items with SOURCE or VALUE clauses.

Additional Reference

Appendix D, Report Writer Presentation Rules and Tables

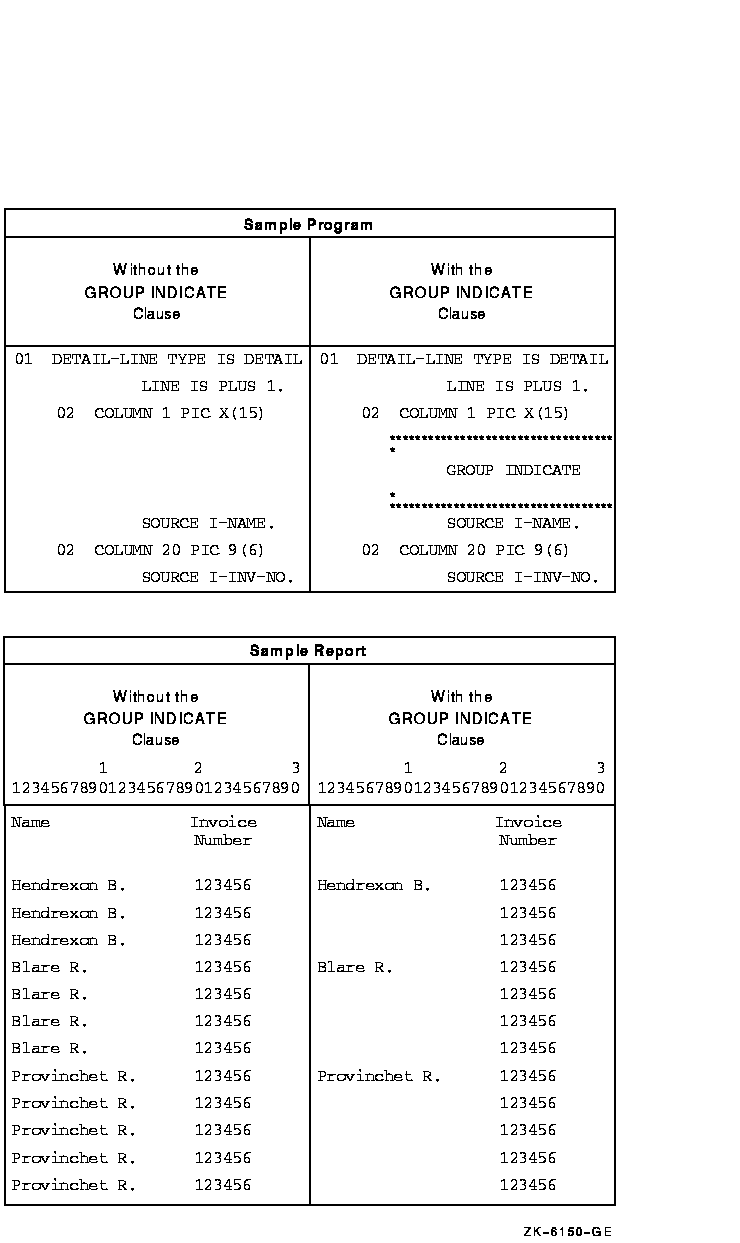

Example

The following example shows the effect of the GROUP INDICATE clause on a printable item (SOURCE I-NAME).
