WORKING-STORAGE SECTION.
01  TEXT-STRING           PIC X(30).
01  INPUT-MESSAGE         PIC X(60).
01  NAME-ADDRESS-RECORD.
    03  CIVIL-TITLE       PIC X(5).
    03  LAST-NAME         PIC X(10).
    03  FIRST-NAME        PIC X(10).
    03  STREET            PIC X(15).
    03  CITY              PIC X(15).
* Assume CITY ends with "/"
    03  STATE             PIC XX.
    03  ZIP               PIC 9(5).
01 PTR                    PIC 99.
01 HOLD-PTR               PIC 99.
01 LINE-COUNT             PIC 99.

• Using both delimiters and SIZE:

  DISPLAY " ". DISPLAY NAME-ADDRESS-RECORD. MOVE SPACES TO TEXT-STRING. STRING CIVIL-TITLE DELIMITED BY " " " " DELIMITED BY SIZE FIRST-NAME DELIMITED BY " " " " DELIMITED BY SIZE LAST-NAME DELIMITED BY SIZE INTO TEXT-STRING. DISPLAY TEXT-STRING. DISPLAY STREET. MOVE SPACES TO TEXT-STRING. STRING CITY DELIMITED BY "/" ", " DELIMITED BY SIZE STATE DELIMITED BY SIZE " " DELIMITED BY SIZE ZIP DELIMITED BY SIZE INTO TEXT-STRING. DISPLAY TEXT-STRING.

  Results


  Mr. Smith Irwin 603 Main St. Merrimack/ NH03054 Mr. Irwin Smith 603 Main St. Merrimack, NH 03054 Miss Lambert Alice 1229 Exeter St.Boston/ MA03102 Miss Alice Lambert 1229 Exeter St. Boston, MA 03102 Mrs. Gilbert Rose 8 State Street New York/ NY10002 Mrs. Rose Gilbert 8 State Street New York, NY 10002 Mr. Cowherd Owen 1064 A St. Washington/ DC20002 Mr. Owen Cowherd 1064 A St. Washington, DC 20002

• Using the POINTER phrase:

  MOVE 0 TO LINE-COUNT. MOVE 1 TO PTR. GET-WORD. IF LINE-COUNT NOT < 4 DISPLAY " " TEXT-STRING GO TO GOT-WORDS. ACCEPT INPUT-MESSAGE. DISPLAY INPUT-MESSAGE. SAME-WORD. MOVE PTR TO HOLD-PTR. STRING INPUT-MESSAGE DELIMITED BY SPACE ", " DELIMITED BY SIZE INTO TEXT-STRING WITH POINTER PTR ON OVERFLOW STRING " " DELIMITED BY SIZE INTO TEXT-STRING WITH POINTER HOLD-PTR DISPLAY " " TEXT-STRING MOVE SPACES TO TEXT-STRING ADD 1 TO LINE-COUNT MOVE 1 TO PTR GO TO SAME-WORD. GO TO GET-WORD. GOT-WORDS. EXIT.

  Results


  This example demonstrates how This, example, demonstrates, the STRING statement can how, the, STRING, statement, construct text strings can, construct, text, using the POINTER phrase strings, using, the, POINTER, phrase,

Function

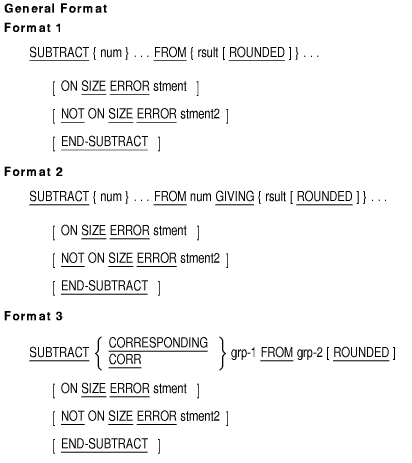

The SUBTRACT statement subtracts one, or the sum of two or more, numeric items from one or more items. It stores the difference in one or more items.

num

is a numeric literal or the identifier of an elementary numeric item.

rsult

is the identifier of an elementary numeric item. However, in Format 2, rsult can be an elementary numeric edited item. It is the resultant identifier.

stment

is an imperative statement executed when a size error condition has occurred.

stment2

is an imperative statement executed when no size error condition has occurred.

grp-1

is the identifier of a group item.

grp-2

is the identifier of a group item.

Syntax Rule

CORR is an abbreviation for CORRESPONDING.

General Rules

1. In Format 1, the values of the operands before the word FROM are summed. This total is then subtracted from each rsult.
2. In Format 2, the values of the operands before the word FROM are summed. This total is subtracted from the num following the word FROM. The result replaces the current value of each rsult.
3. In Format 3, data items in grp-1 are subtracted from and stored in the corresponding data items in grp-2.

Additional References

• Section 6.1.4, Scope of Statements
• Section 6.6.1, Arithmetic Operations
• Section 6.6.2, Multiple Receiving Fields in Arithmetic Statements
• Section 6.6.3, ROUNDED Phrase
• Section 6.6.4, ON SIZE ERROR Phrase
• Section 6.6.5, CORRESPONDING Phrase
• Section 6.6.7, Overlapping Operands and Incompatible Data

Examples

Each of the examples assume these data descriptions and initial values.

INITIAL VALUES

     03  ITEMA  PIC S99 VALUE -85.             -85
     03  ITEMB  PIC 99 VALUE 2.                  2
     03  ITEMC  VALUE "123".
         05  ITEMD  OCCURS 3 TIMES             1 2 3
                 PIC 9.
     03  ITEME  PIC S99 VALUE -95.             -95

1. Without GIVING phrase: RESULTS

   SUBTRACT 2 ITEMB FROM ITEMA. ITEMA = -89

2. SIZE ERROR clause:
   (When the size error condition occurs and the SIZE ERROR clause is specified, the values of the affected resultant identifiers do not change.)

   SUBTRACT 14 FROM ITEMA, ITEME ITEMA = -99 ON SIZE ERROR ITEME = -95 MOVE 0 TO ITEMB. ITEMB = 0

3. NOT ON SIZE ERROR clause:

   SUBTRACT 14 FROM ITEMA ITEMA = -99 ON SIZE ERROR MOVE 9 TO ITEMB. NOT ON SIZE ERROR MOVE 1 TO ITEMB. ITEMB = 1

4. Multiple receiving fields:
   (The operations proceed from left to right. Therefore, the subscript for ITEMB is evaluated after the subtraction changes its value.)

   SUBTRACT 1 FROM ITEMB ITEMD (ITEMB). ITEMB = 1 ITEMD (1) = 0

5. GIVING phrase:

   SUBTRACT ITEME ITEMD (ITEMB) FROM ITEMA ITEMB = 8 GIVING ITEMB.

6. END-SUBTRACT:
   (The first SUBTRACT terminates with END-SUBTRACT. If the SIZE ERROR condition had not occurred, the second SUBTRACT statement would have executed anyway: the value of ITEMA would have been -86.)

   SUBTRACT 10 ITEMB FROM ITEMD (ITEMB) ITEMD (2) = 2 ON SIZE ERROR ITEMA = 0 MOVE 0 TO ITEMA END-SUBTRACT. SUBTRACT 1 FROM ITEMA. ITEMA = -1


   (The following example shows the usefulness of END-SUBTRACT inside an IF statement. Without it, there would be no way to code the DISPLAY statements.)

   IF ITEMB < 3 AND > 1 SUBTRACT 1 FROM ITEMD(ITEMB) ON SIZE ERROR MOVE 0 TO ITEMA END-SUBTRACT DISPLAY 'yes' ELSE DISPLAY 'no'.

Function

The SUPPRESS statement causes the Report Writer Control System (RWCS) to inhibit the presentation of a report group.

Syntax Rule

The SUPPRESS statement can appear only in a USE BEFORE REPORTING Declarative procedure.

General Rules

1. The SUPPRESS statement inhibits only the presentation of a report-group-name (a 01-level Report Group Description entry).
2. Each time the presentation of a report group is to be inhibited, the program must execute a SUPPRESS statement.
3. The SUPPRESS statement directs the Report Writer Control System (RWCS) to inhibit the processing of these report group functions:
   • The presentation of the print lines
   • The processing of all LINE clauses
   • The processing of the NEXT GROUP clause
   • The adjustment of LINE-COUNTER
4. The SUPPRESS statement does not inhibit the processing of sum counters or control breaks.

Additional References

• Section 6.6.7, Overlapping Operands and Incompatible Data
• Section 6.8.42 statement

Example

PROCEDURE DIVISION.
DECLARATIVES.
DET SECTION.
    USE BEFORE REPORTING DETAIL-LINE.
DETA-1.
    IF SORTED-NAME = NAME
        ADD A TO B
        SUPPRESS PRINTING.
    IF NAME = SPACES SUPPRESS PRINTING.
END DECLARATIVES.
MAIN SECTION.
    .
    .
    .
