HP OpenVMS System Services Reference Manual

Previous Contents Index

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_LENGTH

Returns, as a longword integer value, the physical length of the specified form in lines. This item code is applicable only to output execution queues.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_MARGIN_BOTTOM

Returns, as a longword integer value, the bottom margin of the specified form in lines.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_MARGIN_LEFT

Returns, as a longword integer value, the left margin of the specified form in characters.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_MARGIN_RIGHT

Returns, as a longword integer value, the right margin of the specified form in characters.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_MARGIN_TOP

Returns, as a longword integer value, the top margin of the specified form in lines.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_NAME

Returns, as a character string, the name of the specified form or the mounted form associated with the specified job or queue. Because the form name can include up to 31 characters, the buffer length field of the item descriptor should specify 31 (bytes).

For more information about mounted forms, see the HP OpenVMS System Manager's Manual.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_FORM, QUI$_DISPLAY_JOB, QUI$_DISPLAY_QUEUE function codes)

QUI$_FORM_NUMBER

Returns, as a longword integer value, the number of the specified form.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_SETUP_MODULES

Returns, as a comma-separated list, the names of the text modules that are to be extracted from the device control library and copied to the printer before a file is printed on the specified form. Because a text module name can include up to 31 characters and is separated from the previous text module name by a comma, the buffer length field of the item descriptor should specify 32 (bytes) for each possible text module. This item code is meaningful only for output execution queues.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_FORM_STOCK

Returns, as a character string, the name of the paper stock on which the specified form is to be printed. Because the name of the paper stock can include up to 31 characters, the buffer length field of the item descriptor should specify 31 (bytes).

For more information about forms, see the HP OpenVMS System Manager's Manual.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_FORM, QUI$_DISPLAY_JOB, QUI$_DISPLAY_QUEUE function codes)

QUI$_FORM_WIDTH

Returns, as a longword integer value, the width of the specified form in characters.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_GENERIC_TARGET

Returns, as a comma-separated list, the names of the execution queues that are enabled to accept work from the specified generic queue. Because a queue name can include up to 31 characters and is separated from the previous queue name with a comma, the buffer length field of the item descriptor should specify 32 (bytes) for each possible queue name. A generic queue can send work to up to 124 execution queues. This item code is meaningful only for generic queues.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_HOLDING_JOB_COUNT

Returns, as a longword integer value, the number of jobs in the queue being held until explicitly released.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_INTERVENING_BLOCKS

Returns, as a longword integer value, the size (in blocks) of files associated with pending jobs in the queue that were skipped during the current call to $GETQUI. These jobs were not reported because they did not match the selection criterion in effect for the call to $GETQUI.

The value of QUI$_INTERVENING_BLOCKS is 0 when (1) the job is not a pending job, or (2) the job that matches the selection criterion is the first pending job in the queue, or (3) the preceding pending job in the queue was reported in the previous call to $GETQUI.

This item code applies only to output queues.

In a wildcard sequence of calls to $GETQUI using the QUI$_DISPLAY_JOB function code, only information about jobs that match the $GETQUI selection criteria is returned.

(Valid for QUI$_DISPLAY_JOB function code)

QUI$_INTERVENING_JOBS

Returns, as a longword integer value, the number of pending jobs in the queue that were skipped during the current call to $GETQUI. These jobs were not reported because they did not match the selection criterion in effect for the call to $GETQUI.

The value of QUI$_INTERVENING_JOBS is 0 when (1) the job is not a pending job, or (2) the job that matches the selection criterion is the first pending job in the queue, or (3) the preceding pending job in the queue was reported in the previous call to $GETQUI.

This item code applies only to output queues.

In a wildcard sequence of calls to $GETQUI using the QUI$_DISPLAY_JOB function code, only information about jobs that match the $GETQUI selection criteria is returned.

(Valid for QUI$_DISPLAY_JOB function code)

QUI$_JOB_COMPLETION_QUEUE

Returns, as a character string, the name of the queue on which the specified job executed. Because a queue name can include up to 31 characters, the buffer length of the item descriptor should specify 31 (bytes).

This item code has a value only if the QUI$_JOB_RETAINED bit is set in the QUI$_JOB_STATUS longword item code.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_COMPLETION_TIME

Returns, as a quadword absolute time value, the system time at which the execution of the specified job completed.

This item code has a value only if the QUI$_JOB_RETAINED bit is set in the QUI$_JOB_STATUS longword item code.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_COPIES

Returns, as a longword integer value, the number of times the specified print job is to be repeated.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_COPIES_DONE

Returns, as a longword integer value, the number of times the specified print job has been repeated.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_FLAGS

Returns, as a longword bit vector, the processing options that have been selected for the specified job. Each processing option is represented by a bit. When $GETQUI sets a bit, the job is processed according to the corresponding processing option. Each bit in the vector has a symbolic name.

The $QUIDEF macro defines the following symbolic names:

Symbolic Name Description
QUI$V_JOB_CPU_LIMIT CPU time limit for the job.
QUI$V_JOB_ERROR_RETENTION The user requested that the job be retained in the queue, if the job completes unsuccessfully. If the queue is set to retain all jobs because the QUI$V_QUEUE_RETAIN_ALL bit of the QUI$_QUEUE_FLAGS item code is set, the job might be held in the queue even if it completes successfully.

For more information about user-specified job retention, see the /RETAIN qualifier for the PRINT or SUBMIT command in the HP OpenVMS DCL Dictionary.

QUI$V_JOB_FILE_BURST Burst and flag pages precede each file in the job.
QUI$V_JOB_FILE_BURST_ONE Burst and flag pages precede only the first copy of the first file in the job.
QUI$V_JOB_FILE_FLAG Flag page precedes each file in the job.
QUI$V_JOB_FILE_FLAG_ONE Flag page precedes only the first copy of the first file in the job.
QUI$V_JOB_FILE_PAGINATE Symbiont paginates output by inserting a form feed whenever output reaches the bottom margin of the form.
QUI$V_JOB_FILE_TRAILER Trailer page follows each file in the job.
QUI$V_JOB_FILE_TRAILER_ONE Trailer page follows only the last copy of the last file in the job.
QUI$V_JOB_LOG_DELETE Log file is deleted after it is printed.
QUI$V_JOB_LOG_NULL No log file is created.
QUI$V_JOB_LOG_SPOOL Job log file is queued for printing when job is complete.
QUI$V_JOB_LOWERCASE Job is to be printed on printer that can print both uppercase and lowercase letters.
QUI$V_JOB_NOTIFY Message is broadcast to terminal when job completes or aborts.
QUI$V_JOB_RAD (Alpha and I64) Indicates if the job will use the RAD processing option. Supported only on AlphaServer GS series systems.
QUI$V_JOB_REQUEUE Job will requeue after a system failure or can be requeued during execution.
QUI$V_JOB_RESTART Job will restart after a system failure or can be requeued during execution.
QUI$V_JOB_RETENTION The user requested that the job be retained in the queue regardless of the job's completion status. For more information about user-specified job retention, see the /RETAIN qualifier for the PRINT or SUBMIT command in the HP OpenVMS DCL Dictionary.
QUI$V_JOB_WSDEFAULT Default working set size is specified for the job.
QUI$V_JOB_WSEXTENT Working set extent is specified for the job.
QUI$V_JOB_WSQUOTA Working set quota is specified for the job.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_LIMIT

Returns the number of jobs that can execute simultaneously on the specified queue, which is a longword integer value in the range 1 to 65535. This item code is applicable only to batch execution queues.

(Valid for QUI$_DISPLAY_QUEUE function code.)

QUI$_JOB_NAME

Returns, as a character string, the name of the specified job. Because the job name can include up to 39 characters, the buffer length field of the item descriptor should specify 39 (bytes).

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_PID

Returns the process identification (PID) of the executing batch job in standard longword format.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_RESET_MODULES

Returns, as a comma-separated list, the names of the text modules that are to be extracted from the device control library and copied to the printer before each job in the specified queue is printed. Because a text module name can include up to 31 characters and is separated from the previous text module name by a comma, the buffer length field of the item descriptor should specify 32 (bytes) for each possible text module. This item code is meaningful only for output execution queues.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_JOB_RETENTION_TIME

Returns, as a quadword time value, the system time until which the user requested the job be retained in the queue. The system time can be expressed in either an absolute or delta time format.

For more information, see the /RETAIN qualifier for PRINT or SUBMIT in the HP OpenVMS DCL Dictionary.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_SIZE

Returns, as a longword integer value, the total number of disk blocks in the specified print job.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_JOB_SIZE_MAXIMUM

Returns, as a longword integer value, the maximum number of disk blocks that a print job initiated from the specified queue can contain. This item code is applicable only to output execution queues.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_JOB_SIZE_MINIMUM

Returns, as a longword integer value, the minimum number of disk blocks that a print job initiated from the specified queue can contain. This item code is applicable only to output execution queues.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_JOB_STATUS

Returns the specified job's status flags, which are contained in a longword bit vector. The $QUIDEF macro defines the following symbolic names for these flags:
Symbol Name Description
QUI$V_JOB_ABORTING System is attempting to abort execution of job.
QUI$V_JOB_EXECUTING Job is executing or printing.
QUI$V_JOB_HOLDING Job will be held until it is explicitly released.
QUI$V_JOB_INACCESSIBLE Caller does not have read access to the specific job and file information in the system queue file. Therefore, the QUI$_DISPLAY_JOB and QUI$_DISPLAY_FILE operations can return information for only the following output value item codes:
QUI$_AFTER_TIME
QUI$_COMPLETED_BLOCKS
QUI$_ENTRY_NUMBER
QUI$_INTEVENING_BLOCKS
QUI$_INTEVENING_JOBS
QUI$_JOB_SIZE
QUI$_JOB_STATUS
QUI$V_JOB_PENDING Job is pending. See QUI$_PENDING_JOB_REASON for the reason the job is in a pending state.
QUI$V_JOB_REFUSED Job was refused by symbiont and is waiting for symbiont to accept it for processing.
QUI$V_JOB_RETAINED Job has completed, but it is being retained in the queue.
QUI$V_JOB_STALLED Execution of the job is stalled because the physical device on which the job is printing is stalled.
QUI$V_JOB_STARTING The job has been scheduled for execution. Confirmation of execution has not been received.
QUI$V_JOB_SUSPENDED Execution of the job is suspended because the queue on which it is executing is paused.
QUI$V_JOB_TIMED_RELEASE Job is waiting for specified time to execute.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_LAST_PAGE

Returns, as a longword integer value, the page number at which the printing of the specified file should end. This item code is applicable only to output execution queues.

(Valid for QUI$_DISPLAY_FILE function code)

QUI$_LIBRARY_SPECIFICATION

Returns, as an OpenVMS RMS file name component, the name of the device control library for the specified queue. The library specification assumes the device and directory name SYS$LIBRARY and a file type of .TLB. Because a file name can include up to 39 characters, the buffer length field of the item descriptor should specify 39 (bytes). This item code is meaningful only for output execution queues.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_LOG_QUEUE

Returns, as a character string, the name of the queue into which the log file produced for the specified batch job is to be entered for printing. This item code is applicable only to batch jobs. Because a queue name can contain up to 31 characters, the buffer length field of the item descriptor should specify 31 (bytes).

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_LOG_SPECIFICATION

Returns, as an OpenVMS RMS file specification, the name of the log file to be produced for the specified job. Because a file specification can include up to 255 characters, the buffer length field of the item descriptor should specify 255 (bytes). This item code is meaningful only for batch jobs.

The string returned is the log file specification that was provided to the $SNDJBC service to create the job. Therefore, to determine whether a log file is to be produced, testing this item code for a zero-length string is insufficient; instead, you need to examine the QUI$V_JOB_LOG_NULL bit of the QUI$_JOB_FLAGS item code.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_MANAGER_NAME

Returns, as a character string, the queue manager name. Because a queue manager name can include up to 31 characters, the buffer length field of the item descriptor should specify 31 (bytes).

(Valid for QUI$_DISPLAY_MANAGER function code)

QUI$_MANAGER_NODES

Returns, as a comma separated list, the names of the nodes on which this queue manager runs.

(Valid for QUI$_DISPLAY_MANAGER function code)

QUI$_MANAGER_STATUS

Returns the specified queue manager's status flags, which are contained in a longword bit vector. The $QUIDEF macro defines the following symbolic names for these flags:
Symbolic Name Description
QUI$V_MANAGER_FAILOVER Queue manager is in the process of failing over to another node.
QUI$V_MANAGER_RUNNING Queue manager is running.
QUI$V_MANAGER_START_PENDING Queue manager can start up whenever a node on which it can run is booted.
QUI$V_MANAGER_STARTING Queue manager is in the process of starting up.
QUI$V_MANAGER_STOPPING Queue manager is in the process of shutting down.
QUI$V_MANAGER_STOPPED Queue manager is stopped.

(Valid for QUI$_DISPLAY_MANAGER function code)

QUI$_NOTE

Returns, as a character string, the note that is to be printed on the job flag and file flag pages of the specified job. Because the note can include up to 255 characters, the buffer length field of the item descriptor should specify 255 (bytes). This item code is meaningful for batch and output execution queues.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_OPERATOR_REQUEST

Returns, as a character string, the message that is to be sent to the queue operator before the specified job begins to execute. Because the message can include up to 255 characters, the buffer length field of the item descriptor should specify 255 (bytes). This item code is meaningful only for output execution queues.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_OWNER_UIC

Returns the owner UIC as a longword value in standard UIC format.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_PAGE_SETUP_MODULES

Returns, as a comma-separated list, the names of the text modules to be extracted from the device control library and copied to the printer before each page of the specified form is printed. Because a text module name can include up to 31 characters and is separated from the previous text module name by a comma, the buffer length field of the item descriptor should specify 32 (bytes) for each possible text module. This item code is meaningful only for output execution queues.

(Valid for QUI$_DISPLAY_FORM function code)

QUI$_PARAMETER_1 through QUI$_PARAMETER_8

Returns, as a character string, the value of the user-defined parameters that in batch jobs become the value of the DCL symbols P1 through P8 respectively. Because these parameters can include up to 255 characters, the buffer length field of the item descriptor should specify 255 (bytes).

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_PENDING_JOB_BLOCK_COUNT

Returns, as a longword integer value, the total number of blocks for all pending jobs in the queue (valid only for output execution queues).

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_PENDING_JOB_COUNT

Returns, as a longword integer value, the number of jobs in the queue in a pending state.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_PENDING_JOB_REASON

Returns, as a longword bit vector, the reason that the job is in a pending state. The $QUIDEF macro defines the following symbolic names for the flags:
Symbolic Name Description
QUI$V_PEND_CHAR_MISMATCH Job requires characteristics that are not available on the execution queue.
QUI$V_PEND_JOB_SIZE_MAX Block size of job exceeds the upper block limit of the execution queue.
QUI$V_PEND_JOB_SIZE_MIN Block size of job is less than the lower limit of the execution queue.
QUI$V_PEND_LOWERCASE_MISMATCH Job requires lowercase printer.
QUI$V_PEND_NO_ACCESS Owner of job does not have access to the execution queue.
QUI$V_PEND_QUEUE_BUSY Job is pending because the number of jobs currently executing on the queue equals the job limit for the queue.
QUI$V_PEND_QUEUE_STATE Job is pending because the execution queue is not in a running, open state as indicated by QUI$_QUEUE_STATUS.
QUI$V_PEND_STOCK_MISMATCH Stock type required by the job's form does not match the stock type of the form mounted on the execution queue.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_PRIORITY

Returns the scheduling priority of the specified job, which is a longword integer value in the range 0 through 255.

Scheduling priority affects the order in which jobs assigned to a queue are initiated; it has no effect on the base execution priority of a job. The lowest scheduling priority value is 0, the highest is 255; that is, if a queue contains a job with a scheduling priority of 10 and a job with a scheduling priority of 2, the queue manager initiates the job with the scheduling priority of 10 first.

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_JOB function codes)

QUI$_PROCESSOR

Returns, as an OpenVMS RMS file name component, the name of the symbiont image that executes print jobs initiated from the specified queue. The file name assumes the device and directory name SYS$SYSTEM and the file type .EXE. Because an RMS file name can include up to 39 characters, the buffer length field of the item descriptor should specify 39 (bytes).

(Valid for QUI$_DISPLAY_ENTRY, QUI$_DISPLAY_QUEUE function codes)

QUI$_PROTECTION

When you specify QUI$_PROTECTION, $GETQUI returns, as a word, the specified queue's protection mask.

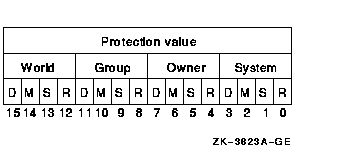

The following diagram illustrates the protection mask:

Bits 0 through 15 specify the protection value---the four types of access (read, submit, manage, and delete) to be granted to the four classes of user (System, Owner, Group, World). Set bits deny access and clear bits allow access.

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_QUEUE_DESCRIPTION

Returns, as a character string, the text that describes the specified queue. Because the text can include up to 255 characters, the buffer length field of the item descriptor should specify 255 (bytes).

(Valid for QUI$_DISPLAY_QUEUE function code)

QUI$_QUEUE_DIRECTORY

Returns a string containing the device and directory specification of the queue database directory for this queue manager.

(Valid for QUI$_DISPLAY_MANAGER function code)

QUI$_QUEUE_FLAGS

Returns, as a longword bit vector, the processing options that have been selected for the specified queue. Each processing option is represented by a bit. When $GETQUI sets a bit, the jobs initiated from the queue are processed according to the corresponding processing option. Each bit in the vector has a symbolic name.

The $QUIDEF macro defines the following symbolic names:

Symbolic Name Description
QUI$V_QUEUE_ACL_SPECIFIED An access control list has been specified for the queue. You cannot retrieve a queue's ACL through the $GETQUI service; instead, you must use the $GET_SECURITY service.
QUI$V_QUEUE_AUTOSTART Queue is designated as an autostart queue.
QUI$V_QUEUE_BATCH Queue is a batch queue or a generic batch queue.
QUI$V_QUEUE_CPU_DEFAULT A default CPU time limit has been specified for all jobs in the queue.
QUI$V_QUEUE_CPU_LIMIT A maximum CPU time limit has been specified for all jobs in the queue.
QUI$V_QUEUE_FILE_BURST Burst and flag pages precede each file in each job initiated from the queue.
QUI$V_QUEUE_FILE_BURST_ONE Burst and flag pages precede only the first copy of the first file in each job initiated from the queue.
QUI$V_QUEUE_FILE_FLAG Flag page precedes each file in each job initiated from the queue.
QUI$V_QUEUE_FILE_FLAG_ONE Flag page precedes only the first copy of the first file in each job initiated from the queue.
QUI$V_QUEUE_FILE_PAGINATE Output symbiont paginates output for each job initiated from this queue. The output symbiont paginates output by inserting a form feed whenever output reaches the bottom margin of the form.
QUI$V_QUEUE_FILE_TRAILER Trailer page follows each file in each job initiated from the queue.
QUI$V_QUEUE_FILE_TRAILER_ONE Trailer page follows only the last copy of the last file in each job initiated from the queue.
QUI$V_QUEUE_GENERIC The queue is a generic queue.
QUI$V_QUEUE_GENERIC_SELECTION The queue is an execution queue that can accept work from a generic queue.
QUI$V_QUEUE_JOB_BURST Burst and flag pages precede each job initiated from the queue.
QUI$V_QUEUE_JOB_FLAG A flag page precedes each job initiated from the queue.
QUI$V_QUEUE_JOB_SIZE_SCHED Jobs initiated from the queue are scheduled according to size, with the smallest job of a given priority processed first (meaningful only for output queues).
QUI$V_QUEUE_JOB_TRAILER A trailer page follows each job initiated from the queue.
QUI$V_QUEUE_PRINTER The queue is a printer queue.
QUI$V_QUEUE_RAD (Alpha and I64) Indicates if the RAD processing option attribute is specified for the batch queue. Supported only on AlphaServer GS series systems.
QUI$V_QUEUE_RECORD_BLOCKING The symbiont is permitted to concatenate, or block together, the output records it sends to the output device.
QUI$V_QUEUE_RETAIN_ALL All jobs initiated from the queue remain in the queue after they finish executing. Completed jobs are marked with a completion status.
QUI$V_QUEUE_RETAIN_ERROR Only jobs that do not complete successfully are retained in the queue.
QUI$V_QUEUE_SECURITY_INACCESSIBLE The requestor does not have access to security information.
QUI$V_QUEUE_SWAP Jobs initiated from the queue can be swapped.
QUI$V_QUEUE_TERMINAL The queue is a terminal queue.
QUI$V_QUEUE_WSDEFAULT Default working set size is specified for each job initiated from the queue.
QUI$V_QUEUE_WSEXTENT Working set extent is specified for each job initiated from the queue.
QUI$V_QUEUE_WSQUOTA Working set quota is specified for each job initiated from the queue.

Previous Next Contents Index
