HP OpenVMS Systems Documentation

HP OpenVMS System Services Reference Manual

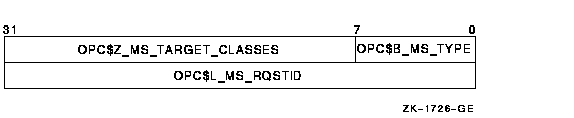

Message Buffer Format for OPC$_RQ_CANCEL

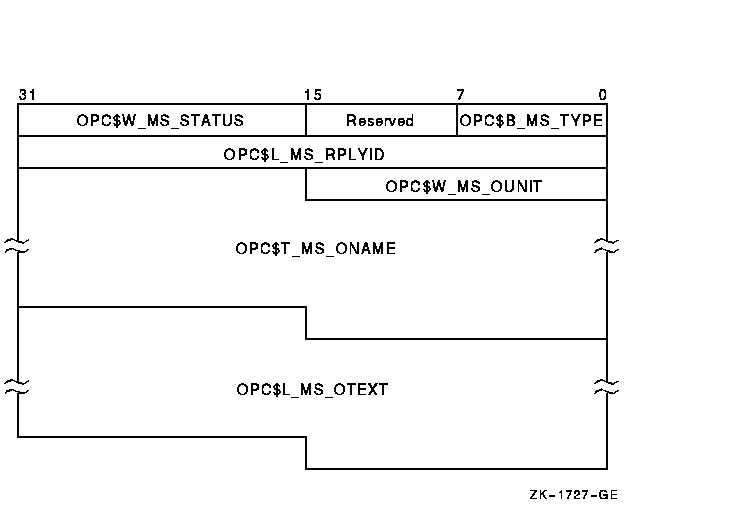

Message Buffer Format for OPC$_RQ_REPLY

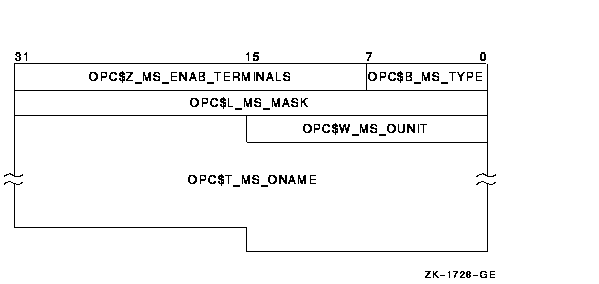

Message Buffer Format for OPC$_RQ_TERME

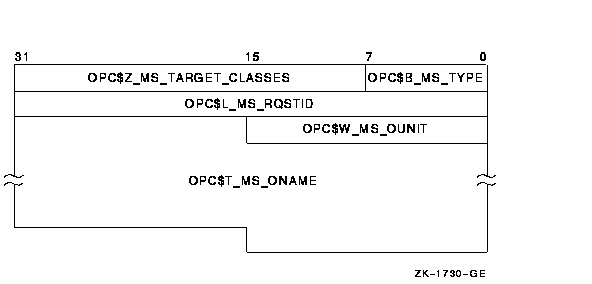

Message Buffer Format for OPC$_RQ_STATUS

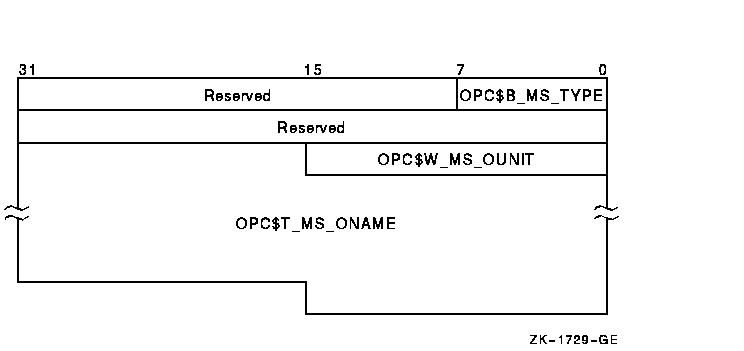

Message Buffer Format for OPC$_RQ_LOGI

chan

If a reply from the operator is desired, you must specify the chan argument.

Description

The $SNDOPR service performs the following functions:

• Sends a user request to operator terminals
• Sends a user cancellation request to operator terminals
• Sends an operator reply to a user terminal
• Enables an operator terminal
• Displays the status of an operator terminal
• Initializes the operator log file

This system service requires system dynamic memory; it cannot be called from kernel mode.

The general procedure for using this service is as follows:

1. Construct the message buffer and place its final length in the first word of the buffer descriptor.
2. Call the $SNDOPR service.
3. Check the condition value returned in R0 to make sure the request was successfully made.
4. Issue a read request to the mailbox specified, if any.
5. When the read operation completes, check the 2-byte condition value in the OPC$W_MS_STATUS field to make sure that the operation was performed successfully.

The format of messages displayed on operator terminals follows:

%%%%%%%%%%% OPCOM dd-mmm-yyyy hh:mm:ss.cc message specific information

The following example shows the message displayed on a terminal as a result of a request to enable that terminal as an operator terminal:

%%%%%%%%%%% OPCOM 30-DEC-2001 13:44:40.37 Operator _NODE$LTA5: has been enabled, username HOEBLE

The following example shows the message displayed on an operator terminal as a result of a request to display the status of that operator terminal:

%%%%%%%%%%% OPCOM 30-DEC-2001 12:11:10.48 Operator status for operator _NODE$OPA0: CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS, CLUSTER, SECURITY, OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7, OPER8, OPER9, OPER10, OPER11, OPER12

The following example shows the message displayed on an operator terminal as a result of a user request:

%%%%%%%%%%% OPCOM 30-DEC-2001 12:57:32.25 Request 1285, from user ROSS on NODE_NAME Please mount device _NODE$DMA0:

Required Access or Privileges

OPER privilege is required for the following functions:

• Enabling a terminal as an operator's terminal
• Replying to or canceling a user's request
• Initializing the operator communication log file

In addition, the operator must have SECURITY privilege to affect security functions.

Required Quota

None

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The message buffer or buffer descriptor cannot be read by the caller.
SS$_BADPARAM	The specified message has a length of 0 or has more than 986 bytes.
SS$_DEVNOTMBX	The channel specified is not assigned to a mailbox.
SS$_INSFMEM	The service was called from kernel mode or the system dynamic memory is insufficient for completing the service.
SS$_IVCHAN	You specified an invalid channel number. An invalid channel number is one that is 0 or a number larger than the number of channels available.
SS$_MBFULL	The mailbox used to support communication is full. Retry at a later time.
OPC$_NOPERATOR	The service completed successfully; the Operator Communications Manager (OPCOM) is not running and the message will not be sent. Note that OPC$_NOPERATOR is a success status and must be tested for explicitly.
SS$_NOPRIV	The process does not have the privilege to reply to or cancel a user's request; the process does not have read/write access to the specified mailbox; or the channel was assigned from a more privileged access mode.

Condition Values Returned in the Mailbox

OPC$_BLANKTAPE	The service completed successfully; the operator responded with the DCL command REPLY/BLANK_TAPE=n.
OPC$_INITAPE	The service completed successfully; the operator responded with the DCL command REPLY/INITIALIZE_TAPE=n.
OPC$_NOPERATOR	The service completed successfully; no operator terminal was enabled to receive the message.
OPC$_RQSTCMPLTE	The service completed successfully; the operator completed the request.
OPC$_RQSTPEND	The service completed successfully; the operator will perform the request when possible.
OPC$_RQSTABORT	The operator could not satisfy the request.
OPC$_RQSTCAN	The caller canceled the request.

Examples

#include <ssdef.h>
#include <opcdef.h>
#include <string.h>
#include <descrip.h>
#include <starlet.h>
#include <lib$routines.h>

char    input_buffer[256];      /* Input buffer, if needed */

/* VMS descriptors: */
$DESCRIPTOR(input_desc, input_buffer);
$DESCRIPTOR(prompt_desc, "Request> ");
struct dsc$descriptor req_desc;

main(int argc, char *argv[])
{
    int status,                 /* Status of system calls */
        length = 0;             /* Length of message text */
    struct OPC request;         /* Request message buffer */

    /* Check for too many arguments on command line */
    if (argc > 2)
        return (SS$_OVRMAXARG);

    /* See if request string present on command line... */
    if (argc > 1)
    {
        /* It is.  Compute length and copy pointer */
        length = strlen(argv[1]);
        input_desc.dsc$a_pointer = argv[1];
    }

    /* If no message present, prompt user for message text */
    while (length == 0)
    {
        status = lib$get_input(&input_desc, &prompt_desc, &length);
        if (status != SS$_NORMAL)
            return (status);
    };

    if (length > 128)           /* Limit message length */
        length = 128;           /*    to 128 characters */

    /* Set up request buffer... */
    request.opc$b_ms_type = OPC$_RQ_RQST;
    request.opc$b_ms_target = OPC$M_NM_CENTRL;
    request.opc$l_ms_rqstid = 0;
    memcpy(&request.opc$l_ms_text, input_desc.dsc$a_pointer, length);

    /* Set up request buffer descriptor and send message */
    req_desc.dsc$w_length = length + 8;
    req_desc.dsc$a_pointer = (char *) &request;
    return (sys$sndopr(&req_desc, 0));
}





This example allows you to build an operator request and send the request to the operator.

IMPLICIT NONE

        ! Symbol definitions
        INCLUDE '($DVIDEF)'
        INCLUDE '($OPCDEF)'

        ! Structures for SNDOPR
        STRUCTURE /MESSAGE/
         UNION
          MAP
           BYTE TYPE,
        2       ENABLE(3)
           INTEGER*4 MASK
           INTEGER*2 OUNIT
           CHARACTER*14 ONAME
          END MAP
          MAP
           CHARACTER*24 STRING
          END MAP
         END UNION
        END STRUCTURE
        RECORD /MESSAGE/ MSGBUF
        ! Length of MSGBUF.ONAME
        INTEGER*4 ONAME_LEN

        ! Status and routines
        INTEGER*4 STATUS,
        2         LIB$GETDVI,
        2         SYS$SNDOPR

        ! Type
        MSGBUF.TYPE = OPC$_RQ_TERME
        ! Enable
        MSGBUF.ENABLE(1) = 1
        ! Operator type
        MSGBUF.MASK = OPC$M_NM_OPER1
        ! Terminal unit number
        STATUS = LIB$GETDVI (DVI$_UNIT,
        2                    ,
        2                    'SYS$OUTPUT',
        2                    MSGBUF.OUNIT,,)
        IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL(STATUS))
        ! Terminal name
        STATUS = LIB$GETDVI (DVI$_FULLDEVNAM,
        2                    ,
        2                    'SYS$OUTPUT',,
        2                    MSGBUF.ONAME,
        2                    ONAME_LEN)
        IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL(STATUS))
        ! Remove unit number from ONAME and set up counted string
        ONAME_LEN = ONAME_LEN - 3
        MSGBUF.ONAME(2:ONAME_LEN+1) = MSGBUF.ONAME(1:ONAME_LEN)
        MSGBUF.ONAME(1:1) = CHAR(ONAME_LEN)
        ! Call $SNDOPR
        STATUS = SYS$SNDOPR (MSGBUF.STRING,)
        IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
        END



This HP Fortran for OpenVMS program enables the current terminal to receive OPER1 operator messages.
