Searches for and returns information about records in the intrusion database matching the caller's specifications.

Format

SYS$SHOW_INTRUSION user_criteria ,intruder ,intruder_len ,breakin_block ,[flags] ,[context]

C Prototype

int sys$show_intrusion (void *user_criteria, void *intruder, unsigned short int *intruder_len, void *breakin_block, unsigned int flags, unsigned int *context);

Arguments

user_criteria

OpenVMS usage:	char_string or item_list_3
type:	character-coded text string or longword (unsigned)
access:	read only
mechanism:	by descriptor--fixed-length string descriptor or by reference

If the CIA$M_ITEMLIST flag is FALSE:

The user_criteria argument is the description of intruder or suspect. The user_criteria argument is the address of a character-string descriptor pointing to a buffer containing the user criteria to match an intrusion record's user specification in the intrusion database.

The user_criteria argument is a character string of between 1 and 1058 bytes containing characters to match the user specification on records in the intrusion database.

A user specification is any combination of the suspect's or intruder's source node name, source user name, source DECnet for OpenVMS address, local failed user name, local terminal, or the string UNKNOWN. The user specification for an intrusion record is based on the input to the $SCAN_INTRUSION service and the settings of the LGI system parameter. For more information, see the HP OpenVMS Guide to System Security.

Wildcards are allowed for the user_criteria argument. For more information about using wildcards to scan the intrusion database, see the Description section.

If the CIA$M_ITEMLIST flag is TRUE:

The user_criteria argument is now the address of an 32-bit item list. If the item list is used, one item, the CIA$_USER_CRITERIAL item, must be present in the item list.

The following table lists the valid item descriptions for the user_criteria argument:

Item	Description
CIA$_OUTPUT_LIST	Address of an 8192-byte buffer into which the service writes the associated node information for the returned intrusion record.
CIA$_SCSNODE_LIST	Address of a list of 8-character null-padded SCS nodenames for which the caller wants to see intrusion information about.
CIA$_USER_CRITERIAL	Address of a buffer, 1-1058 bytes long, containing the intruder or suspect.

If a CIA$_SCSNODE_LIST item is provided, an intrusion record will only be returned if it originated on one of the nodes specified. If a CIA$_SCSNODE_LIST item is not provided, records from all nodes will be candidates for display. Multiple CIA$_SCSNODE_LIST items are permitted in the item list.

If a CIA$_OUTPUT_LIST item is provided, the item is filled with node-count records on return. The returned intrusion record will have a breakin block with a valid attempt-count field. The node-count records will have the name and attempt-count for each node represented.

intruder

OpenVMS usage:	char_string
type:	character-coded text string
access:	write only
mechanism:	by descriptor--fixed-length string descriptor

User specification of the matched intruder or suspect record in the intrusion database. The intruder argument is the address of a character-string descriptor pointing to a buffer to receive the user specification of the matched record in the intrusion database.

The intruder argument is a 1058-byte string that will receive the user specification of a record in the intrusion database that matches the specifications in the user_criteria and flags arguments.

intruder_len

OpenVMS usage:	string length
type:	longword (unsigned)
access:	write only
mechanism:	by reference

Length of returned string in the intrusion buffer. The intruder_len argument is the address of a longword to receive the length of the returned intrusion buffer.

The possible range of the intruder_len argument is 0 to 1058 bytes. If the longword specified by the argument contains a 0 after the call to the service, either the service did not find a record that matched the user criteria in the intrusion database, or there are no more matching items in the intrusion database.

breakin_block

OpenVMS usage:	record
type:	block of 2 longwords (unsigned) and 1 quadword (unsigned)
access:	write only
mechanism:	by reference

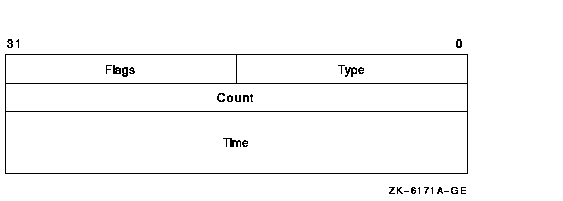

Block to receive various information in the intrusion database about a record matching the user criteria. The breakin_block argument is the address of a structure with the following format:

The following table defines the break-in block fields:

flags

Each option has a symbolic name. The $CIADEF macro defines the following valid names:

Each of these options is mutually exclusive.

context

The initial value contained in the unsigned longword pointed to by the context argument must be 0. The contents of the unsigned longword must not be changed after the service has set its value. If the contents of the context argument are changed between calls to the service, SS$_BADCONTEXT will be returned.

Contexts become invalid after one-half hour of non-use. This means that if you call the $SHOW_INTRUSION service with a wildcard in the user_criteria argument and do not call the service to get the next matching record within one-half hour, the context becomes invalid. If the context has become invalid, you must restart your search of the intrusion database from the beginning by resetting the context to 0.

Description

The Show Intrusion service returns information about records in the intrusion database that match the criteria you specify.

You can retrieve information about multiple records in the intrusion database by specifying wildcards for the user_criteria argument. For example, specifying an asterisk (*) for the user_criteria argument and CIA$M_ALL_RECORDS for the flags argument will return information about all records in the database. Specifying TTA4* for the user_criteria argument and CIA$M_SUSPECTS_ONLY for the flags argument will return information about all suspects who have had failures on terminal TTA4.

If you specify a wildcard string for the user_criteria argument, you must also include a context argument. Because the service can only return information about one intrusion record at a time, you must call the service repeatedly to retrieve information about more than one record. The service will return SS$_NOMOREITEMS when information about all of the matching records has been returned. No intrusion information is returned from the call that returns SS$_NOMOREITEMS.

Required Access or Privileges

SECURITY privilege is required.

Required Quota

None

Related Services

$DELETE_INTRUSION, $SCAN_INTRUSION

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The user_criteria or context argument cannot be read, or the intruder, intruder_len, breakin_block, or context argument cannot be written.
SS$_BADBUFLEN	The length of one of the specified arguments is out of range.
SS$_BADCONTEXT	The context argument did not contain a 0 on the first call to the service. The context argument's value changed between consecutive calls to the service.
SS$_BADPARAM	An invalid value was specified in the flags argument, or mutually exclusive options were specified in the flags argument.
SS$_NOMOREITEMS	All items matching the specified criteria have been returned.
SS$_NOSECURITY	The caller does not have SECURITY privilege.
This service can also return any of the following messages passed from the security server:
SECSRV$_NOSUCHINTRUDER	No records matching the specified criteria were found in the intrusion database.
SECSRV$_SERVERNOTACTIVE	The security server is not currently active. Try the request again later.

Returns the address of a 64-bit signal array. A 32-bit signal array and a mechanism array are passed to a condition handler when it is called. $SIGNAL_ARRAY_64 provides the address of the 64-bit signal array, which might be required for programs that use 64-bit address space.

This service accepts 64-bit addresses.

Format

SYS$SIGNAL_ARRAY_64 mcharg, sigarg_64

C Prototype

int sys$signal_array_64 (unsigned __int64 mcharg, unsigned __int64 sigarg_64);

Arguments

mcharg

OpenVMS usage:	mechanism array
type:	vector quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference, array reference

The mechanism array. The mcharg argument is the 32- or 64-bit address of this array, which was passed to the condition handler. $SIGNAL_ARRAY_64 uses this structure to determine the 64-bit signal array address.

sigarg_64

OpenVMS usage:	64-bit signal array
type:	vector quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference, array reference

The 32- or 64-bit address of the 64-bit signal array is returned in this argument.

Description

$SIGNAL_ARRAY_64 provides the address of the 64-bit version of the signal array for condition handlers that need it. It is normally needed only by applications that use 64-bit address space and want to handle errors involving addresses in that region.

For example, if an access violation occurs on a 64-bit address, the 32-bit signal array passed to the handler will contain only the low 32 bits of the effective address, because each entry is a longword. The 64-bit signal array, which can be obtained using this service, contains quadword entries, so the 64-bit address can be fully expressed.

Required Access or Privileges

None

Required Quota

None

Related Services

$PUTMSG, which accepts either a 32-bit or 64-bit signal array as an argument.

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The sigarg_64 argument cannot be written.
SS$_BADPARAM	The mcharg argument is not a mechanism array in the expected format.

Writes a user-specified message to the system error log file, preceding it with the date and time.

Format

SYS$SNDERR msgbuf

C Prototype

int sys$snderr (void *msgbuf);

Argument

msgbuf

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Message to be written to the error log file. The msgbuf argument is the address of a character string descriptor pointing to the message text.

Description

The Send Message to Error Logger service writes a user-specified message to the system error log file, preceding it with the date and time. The $SNDERR service requires system dynamic memory.

Required Access or Privileges

To send a message to the error log file, the calling process must have BUGCHK privilege.

Required Quota

None

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDJBC, $SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The message buffer or buffer descriptor cannot be read by the caller.
SS$_INSFMEM	The system dynamic memory is insufficient for completing the service.
SS$_NOPRIV	The process does not have the required BUGCHK privilege.

Creates, stops, and manages queues and the batch and print jobs in those queues. The $SNDJBC service completes asynchronously; to synchronize the completion of most operations, use the Send to Job Controller and Wait ($SNDJBCW) service.

Format

SYS$SNDJBC [efn] ,func [,nullarg] [,itmlst] [,iosb] [,astadr] [,astprm]

C Prototype

int sys$sndjbc (unsigned int efn, unsigned short int func, unsigned int nullarg, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), int astprm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag to be set when $SNDJBC completes. The efn argument is a longword containing this number; however, $SNDJBC uses only the low-order byte.

When you queue the request, $SNDJBC clears the specified event flag (or event flag 0 if efn was not specified). Then, when the operation completes, $SNDJBC sets the specified event flag (or event flag 0).

func

OpenVMS usage:	function_code
type:	word (unsigned)
access:	read only
mechanism:	by value

Function code specifying the function that $SNDJBC is to perform. The func argument is a word containing this function code. The $SJCDEF macro defines the names of each function code.

You can specify only one function code in a single call to $SNDJBC. Most function codes require or allow for additional information to be passed in the call. You pass this information by using the itmlst argument, which specifies a list of one or more item descriptors. Each item descriptor in turn specifies an item code, which modifies, restricts, or otherwise affects the action designated by the function code.

nullarg

OpenVMS usage:	null_arg
type:	longword (unsigned)
access:	read only
mechanism:	by value

Placeholding argument reserved to HP.

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Item list supplying information to be used in performing the function specified by the func argument. The itmlst argument is the address of the item list. The item list consists of one or more item descriptors, each of which specifies an item code. The item list is terminated by an item code of 0 or by a longword of 0. The following diagram depicts the structure of a single item descriptor:

The following table defines the item descriptor fields:

The item codes' symbolic names have the following format:

There are three types of item code:

• Boolean item code. Boolean item codes specify a true or false value: the form SJC$_code specifies a true value; SJC$_NO_code specifies a false value. The default value for the Boolean item codes is false. For all Boolean item codes, the buffer length, buffer address, and return length fields of the item descriptor must be 0.
• Input value item code. Input value item codes specify an input value to be used by $SNDJBC. The buffer length and buffer address fields of the item descriptor must be nonzero; the return length field must be 0. Specific buffer length requirements are given in the description of each item code.
• Output value item code. Output value item codes specify a buffer for information returned by $SNDJBC. The buffer length and buffer address fields of the item descriptor must be nonzero; the return length field can be 0 or nonzero. Specific buffer length requirements are given in the description of each item code.

Several item codes specify a queue name, form name, or characteristic name. For these item codes, the buffer must specify a string containing from 1 to 31 characters, exclusive of spaces, tabs, and null characters, which are ignored. Allowable characters in the string are uppercase alphabetic characters, lowercase alphabetic characters (which are converted to uppercase), numeric characters, the dollar sign ($), and the underscore (_).

iosb

At request initiation, $SNDJBC sets the value of the quadword I/O status block to 0. When the requested operation completes, $SNDJBC writes a condition value in the first longword of the I/O status block. It writes the value 0 into the second longword; this longword is unused and reserved for future use.

The condition values returned by $SNDJBC in the I/O status block are usually condition values from the JBC facility. These condition values are defined by the $JBCMSGDEF macro. In some cases, the condition value returned by $SNDJBC can be an error return from a system service or an OpenVMS RMS service that is used in executing the request. For the SJC$_SYNCHRONIZE_JOB request, the condition value returned is the completion status of the requested job.

The condition values returned from the JBC facility are listed in the Condition Values Returned in the I/O Status Block section.

Though this argument is optional, HP strongly recommends that you specify it, for the following reasons:

• If you are using an event flag to signal the completion of the service, you can test the I/O status block for a condition value to be sure that the event flag was not set by an event other than service completion.
• If you are using the $SYNCH service to synchronize completion of the service, the I/O status block is a required argument for $SYNCH.
• The condition value returned in R0 and the condition value returned in the I/O status block provide information about different aspects of the call to the $SNDJBC service. The condition value returned in R0 gives you information about the success or failure of the service call itself; the condition value returned in the I/O status block gives you information about the success or failure of the service operation. Therefore, to accurately assess the success or failure of the call to $SNDJBC, you must check the condition values returned in both R0 and the I/O status block.

astadr
