When customers added additional users to their environment, they started receiving complaints related to response time performance problems. The number of complaints increased as the time since the last reboot increased. After a reboot, the performance was acceptable for part of a normal production day. The problems were seen only by users who were running a large custom application. Typically, users running other applications and DCL commands did not see any performance problems. The users were experiencing random pauses of 3 to 5 seconds, and often multiple processes were seen in a MUTEX wait state for short intervals as shown in Figure 1.

Figure 1: SHOW SYSTEM

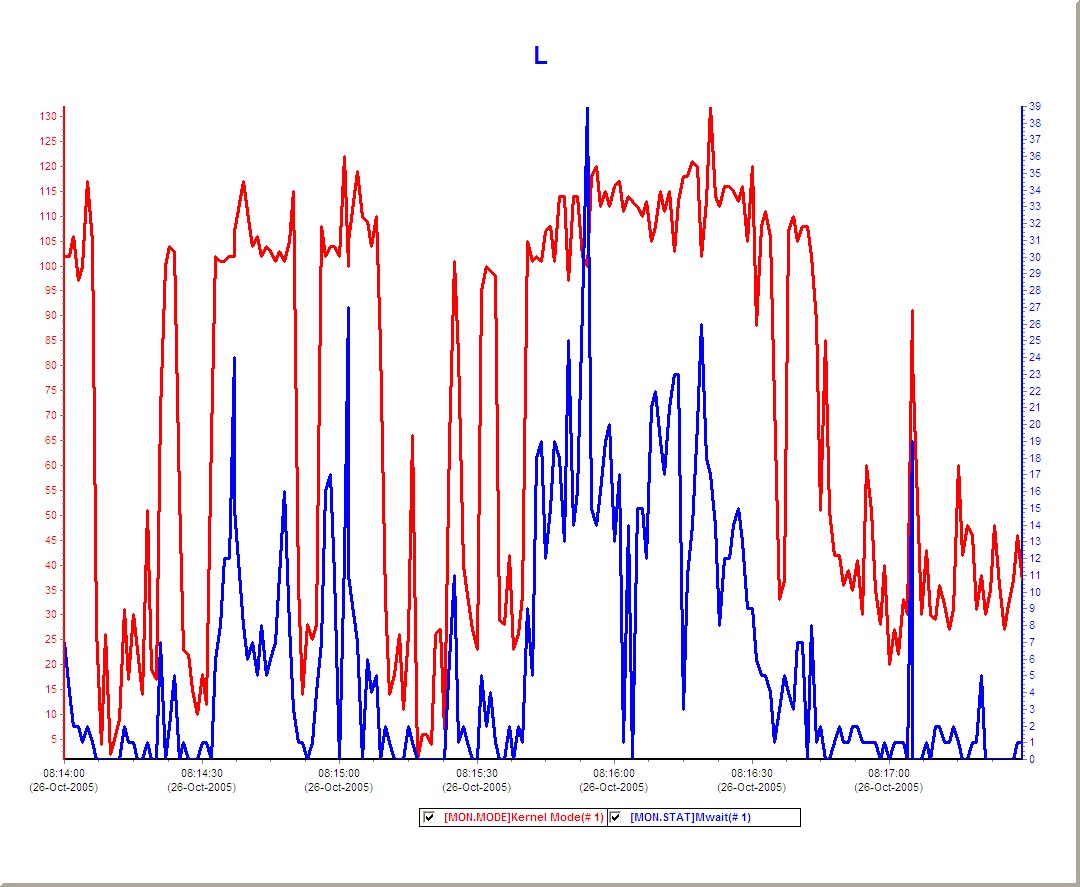

After reviewing the collected T4 data from node L, it was determined that each time an MWAIT spike (Blue) occurred, there was also a similar Kernel Mode spike (Red) just before and throughout the MWAIT spike.

Note: A process in a Mutex wait state is considered an MWAIT process. See Figure 2 below:

Figure 2: KERNEL MODE and PROCESSES in MUTEX WAIT

A process in a Mutex wait state is considered an MWAIT process. See Figure 2 below.

A process running in Kernel Mode owns a MUTEX causing the number of other processes waiting for the same MUTEX to spike. Normally, the time spent in Kernel Mode holding a MUTEX is very short, but there is evidence to show that some Kernel Mode operations are taking longer than expected, and thus causing the other processes, waiting for the same MUTEX, to spike at times.

 In the following example (Figure 3), process 288E3D5A ran continually from 10:11:54.174601 to 10:11:58.000763 with most PC samples in EXE$DEALLOCATE_C+0001C or EXE$DEALLOCATE_C+00020, and an occasional LOGICAL_NAMES+00288. During this time, other processes waiting for the same MUTEX are placed in a MUTEX wait state.

Figure 3: SYSTEM PC SAMPLES SUMMARIZED

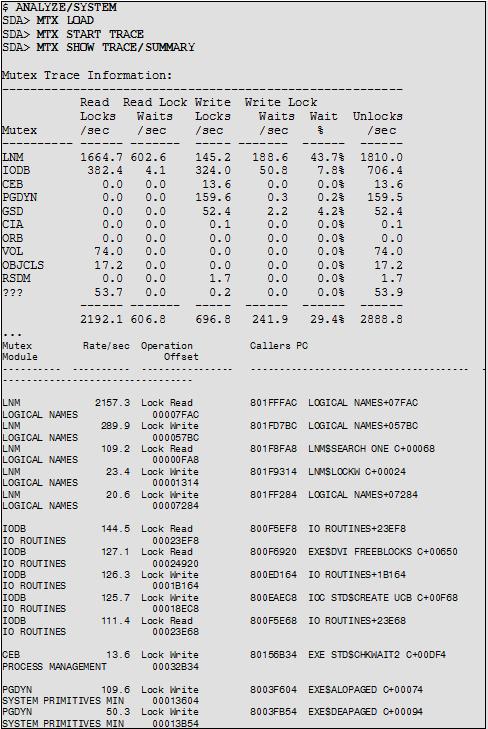

The System Dump Analyzer (SDA) MTX tool is used to determine which MUTEX has the highest usage. In Figure 4, the MUTEX with the highest usage is the LNM MUTEX (logical name MUTEX).

Figure 4: MUTEX USAGE

After observing the system following a reboot, it was evident that the Paged Dynamic Memory (PAGEDYN) free list fragmentation increased the longer the system was up. As the fragmentation increased, the Kernel Mode time and the number of processes in MUTEX wait state increased. Once the PAGEDYN freelist exceeded 10,000 free blocks, the pauses started becoming noticeable to the users.

The high LNM MUTEX utilization was presented to the customer and they were able to identify that their applications used the Job Logical Name Tables quite extensively. Working with the customer, we determined that their production applications frequently execute thousands of Logical Name creations and deletions in the Job Logical Name Table. The data structures that support the Job Logical Name Tables (LNMx) are allocated from PAGEDYN.

PAGEDYN has always been organized as a singly linked list.

Each time new LNMx structures are to be allocated from PAGEDYN, the LOGICAL_ NAMES code acquires the LNM MUTEX and also requests the memory allocation code to traverse the PAGEDYN linked list, one data structure at a time until the proper sized LNMx structure can be allocated from PAGEDYN. The LOGICAL_ NAMES code then adds the LNMx to an existing Job Logical Name Table or creates a new Job Logical Name Table.

When a LNMx is to be returned, the LOGICAL_NAMES code must also acquire the LNM MUTEX and remove the LNMx structure from the Job Logical Name Table and call the memory deallocation code to traverse the PAGEDYN linked list one data structure at a time until the proper place is determined to insert the returned LNMx structure.

If PAGEDYN has become fragmented into several pieces, this can cause users to experience performance problems while the singly linked list is being traversed. During the time that it takes to allocate or return a LNMx, other processes that want to allocate or delete logical names or logical name tables go into a MUTEX wait state.

After reviewing the customer's system, it was determined that PAGEDYN was very fragmented. In the example shown in Figure 5, there are 34,826 fragments. Most of the fragments are less than 64 decimal bytes in length:

To eliminate the performance problem, OpenVMS engineering designed and provided new versions of SYSTEM_PRIMITIVES*.EXE,*.STB

This new code implements PAGEDYN lookaside lists similar to the lookaside lists that have been implemented in Nonpaged Dynamic Memory for years. This new code is implemented in the MEMORYALC routine of the SYSTEM_PRIMITIVES image. The MEMORYALC routine does the actual allocation and deallocation of Paged Dynamic Pool from the new lookaside lists.

Like nonpaged pool, the PAGEDYN lookaside lists start out empty. As packets are deallocated, the size is checked and the packet is returned to the appropriate list. If the packet is larger than RSVD_EXEC_1  (prior to VMS 8.4) or PAGED_LAL_SIZE (VMS 8.4 and later), the packet is returned to the variable paged pool. When an attempt is made to allocate a packet less than or equal to RSVD_EXEC_1 or PAGED_LAL_SIZE, the appropriate PAGEDYN lookaside list containing packets of that size is checked. If a packet is found, it is removed and returned to the caller without having to acquire the PGDYN MUTEX. If a packet is not found, the PGDYN MUTEX will be acquired and the packet will be allocated from the variable free list as had been traditionally done.

When RSVD_EXEC_1 or PAGED_LAL_SIZE is non-zero, PAGEDYN lookaside lists are enabled and the maximum packet size to use on the paged pool lookaside list is established. It can range between 1 - 2560 decimal bytes (the packets themselves have 16 byte granularity, 16, 32, 48, 64, etc). For most systems, setting RSVD_EXEC_1 or PAGED_LAL_SIZE to 512 bytes is more than adequate. The most utilized PAGEDYN lookaside lists are 80 to 208 bytes. Also, as part of further performance enhancements, the PGDYN MUTEX is not used if a packet is found on or returned to one of the PAGEDYN lookaside lists.

If the requested PAGEDYN lookaside lists is empty or the packet request is larger than the SYSGEN parameter setting, the PGDYN MUTEX is acquired and memory is allocated from the PAGEDYN singly linked variable size free list as it was done in past implementations.

If there is a PAGEDYN shortage, the new code will reclaim memory from the PAGEDYN lookaside lists and return it to the singly linked variable size freelist.

This new code can be enabled in SYSTEM_PRIMITIVES images dated after 14-NOV-2008 by setting the SYSGEN parameter RSVD_EXEC_1 to a nonzero value. When RSVD_EXEC_1 is 0, the default value, this feature is disabled. When RSVD_EXEC_1  is nonzero (1 - 2650), it establishes the size of the largest paged pool lookaside list to use. For example, setting RSVD_EXEC_1 to 512 would create multiple lookaside lists for packets sized up to 512 decimal bytes and should be adequate for most systems.

Remedial kits for VMS 7.3-2, V8.2, V8.2-1, V8.3, and V8.3-1H1 containing a SYSTEM_PRIMITIVES.EXE dated on or after 14-NOV-2008 will contain this new functionality.

The following remedial kits or a later version of these kits contain this new functionally:

·         VMS831H1I_SYS-V0400

·         VMS83I_SYS-V0900

·         VMS821I_SYS-V0900

·         VMS83A_SYS-V1100

·         VMS82A_SYS-V1200

·         VMS732_SYS-V1800

The Paged Dynamic Lookaside Lists are expected to be fully implemented with the 8.4 release of OpenVMS. It will be enabled by setting the SYSGEN parameter PAGED_LAL_SIZE to a nonzero value. The default PAGED_LAL_SIZE setting of 0 sets the default behavior as it has been for decades, a singly linked variable size free list.

For more information, refer to the release notes for each of the above mentioned kits . The kits  are available at the following websites:

http://www.itrc.hp.com or ftp://ftp.itrc.hp.com/
