The following was sent to Obsolyte courtesy of:
Robert F Schaefer, who is the proud owner of this Sun 3/280
Here's the case of a 3-280, stripped:

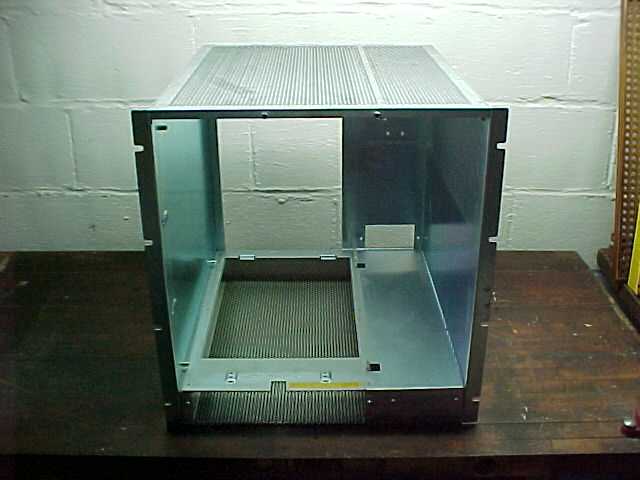

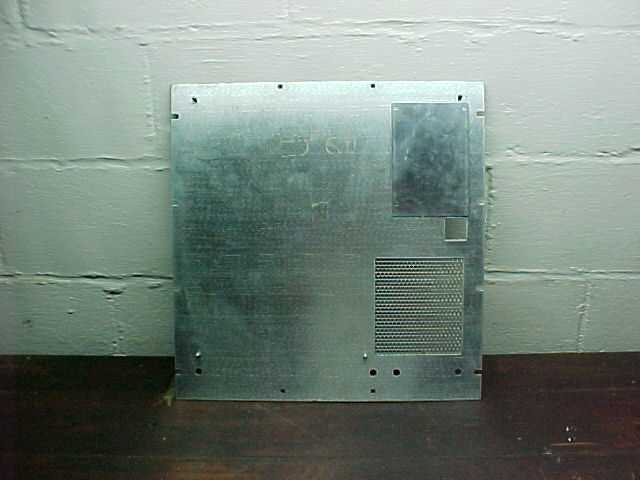

The case,

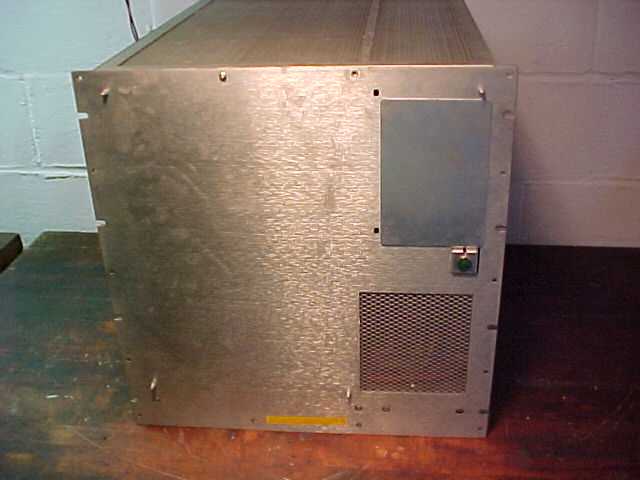

front,

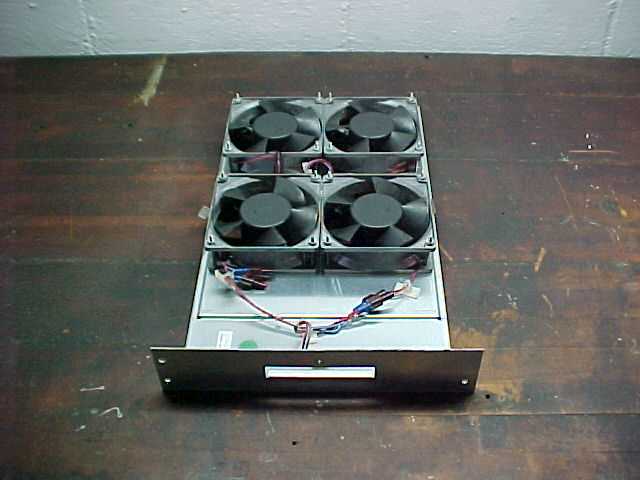

fans,
power supply, and

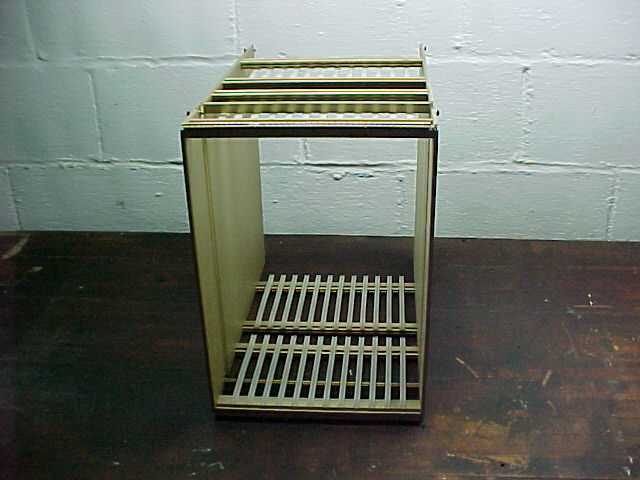

VME cardcage.
You can't get much simpler than that!
Here're a few details of the power supply:
The

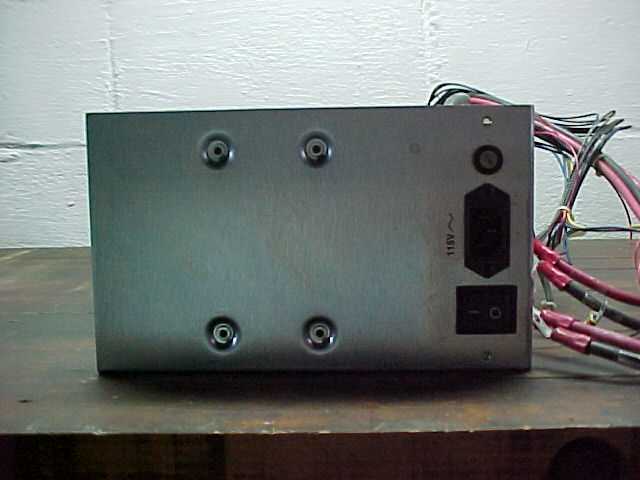

back,

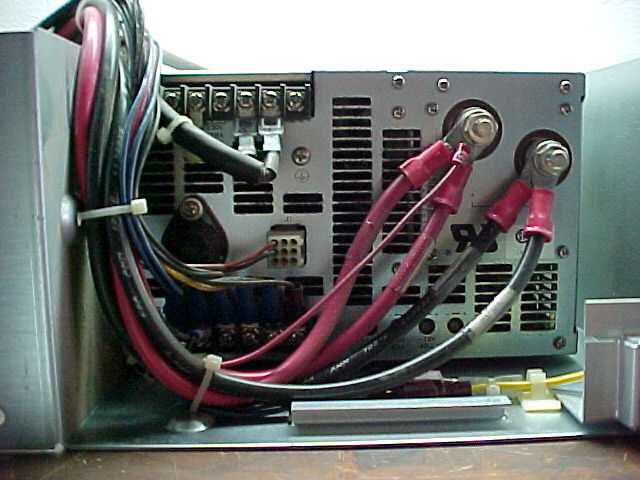

front, and a closeup of the
filter.
A few more of the VME backplane:
The

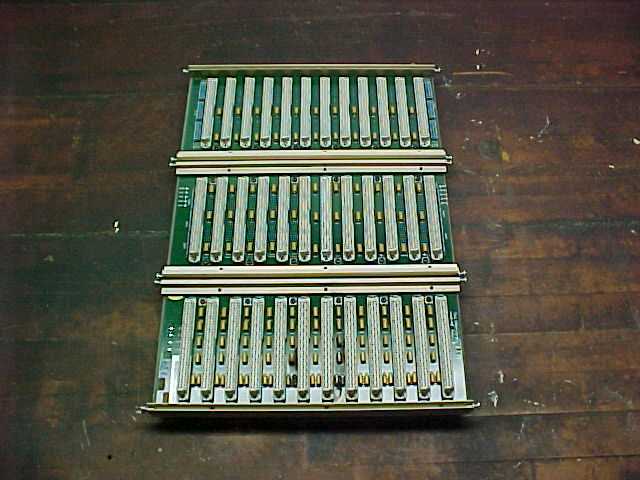

back side,

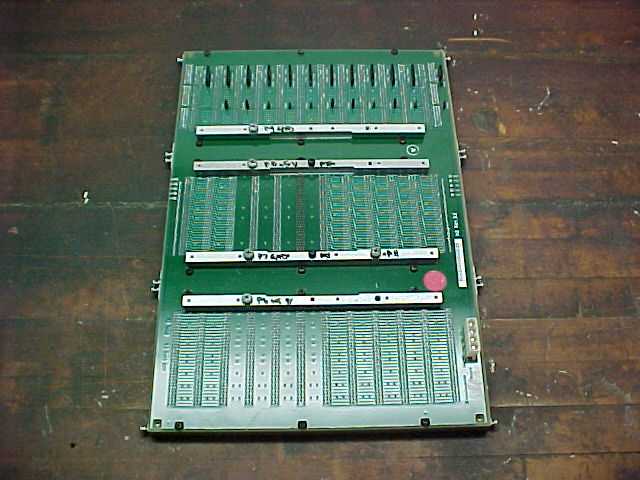

front side, a closeup of the

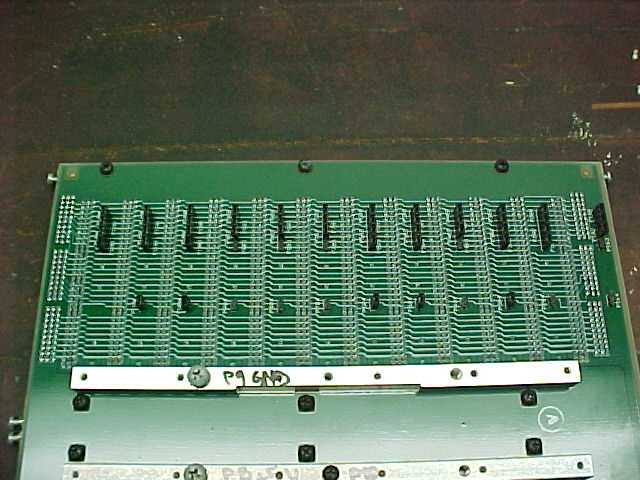

jumpers, and the
damage that occured when I first applied power.

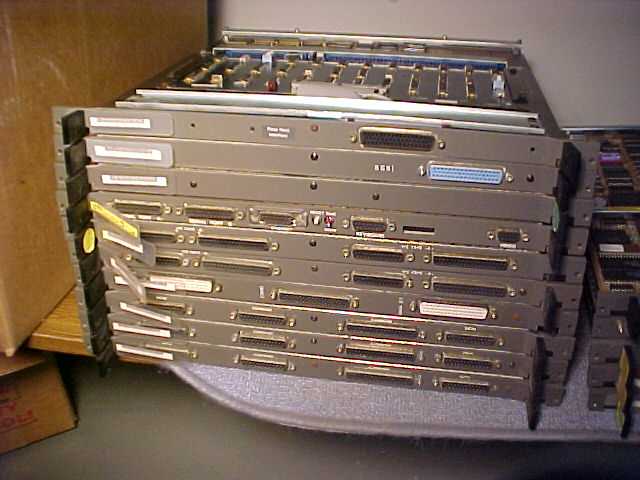

Here are the spare cards I have, and

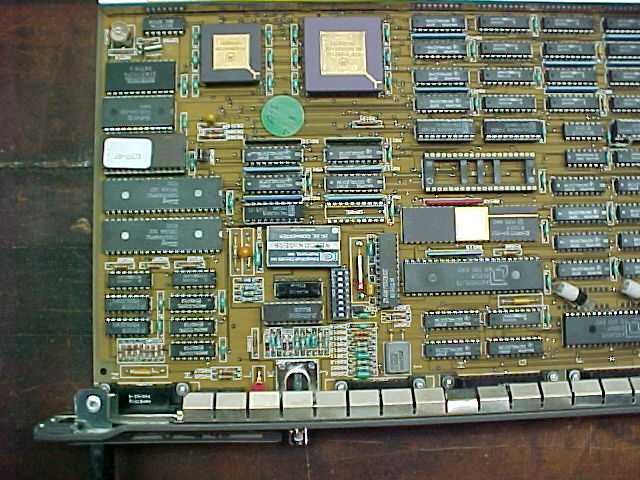

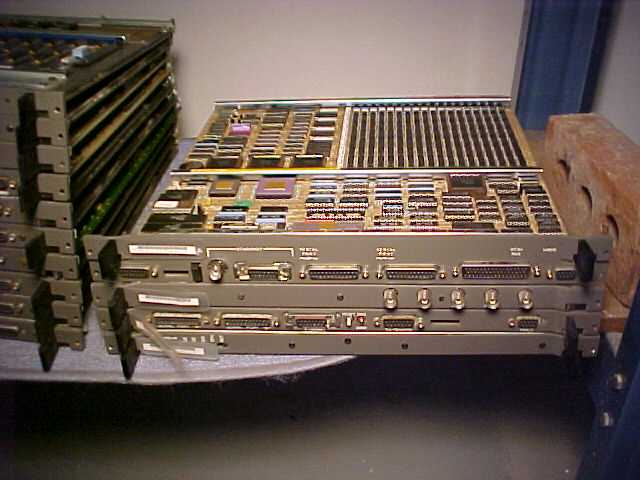

here are the damaged ones, and a shot of the burned up DC-DC converter on the

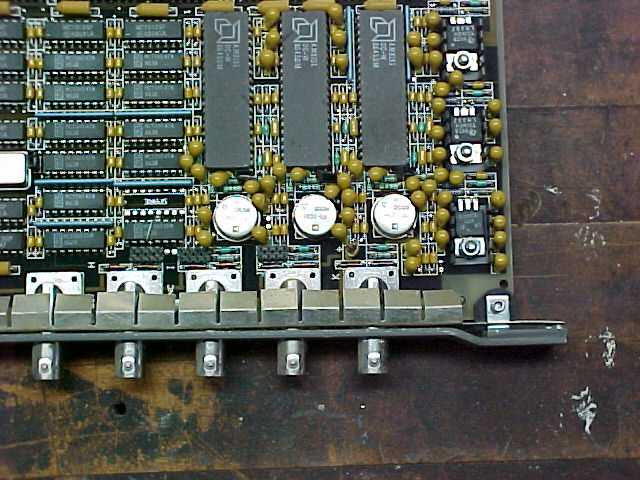

3/50 CPU card and the toasted decoupling caps on the
CG3 framebuffer. The damage to the 3/280 CPU, and RAM board, isn't so apparent!
And now, the pictures you've been waiting for!
Here is the front of a sun 3/280; and perhaps more interesting, the

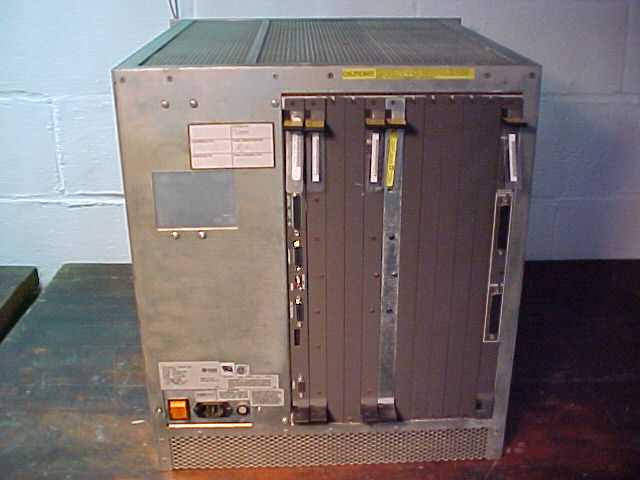

back.
Bonus time! Here are a few shots on the Sun
searching keyspace for
distributed.net and
scanning work units for
SETI@home.
Ok, not really, but it could be, and probably will be eventually.
