This page is a collection of scans provided by Blue Feather Tech. Thanks Bruce! It is a set of GIF files with RQDX technical data.

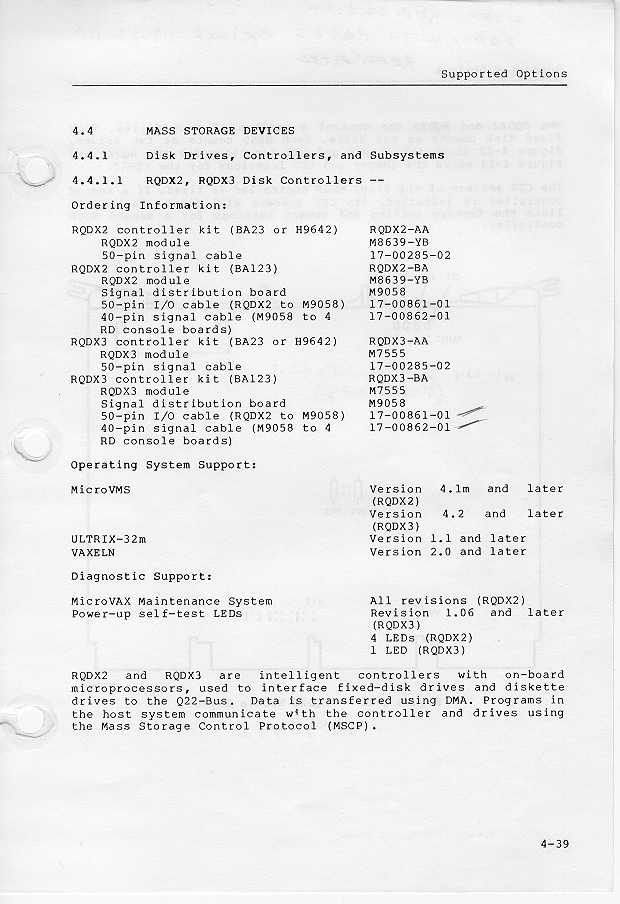

Mass Storage Options

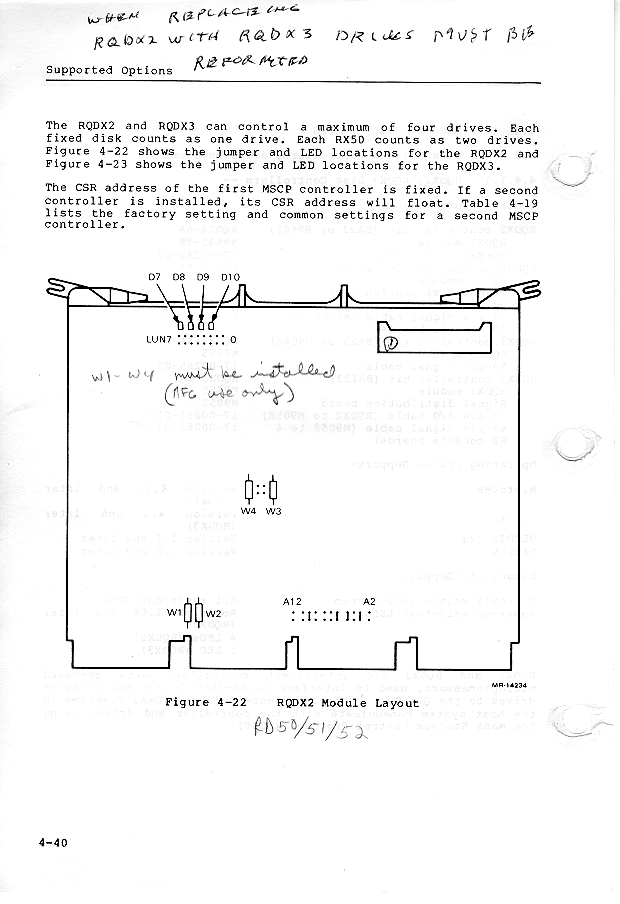

RQDX2 Jumper Locations

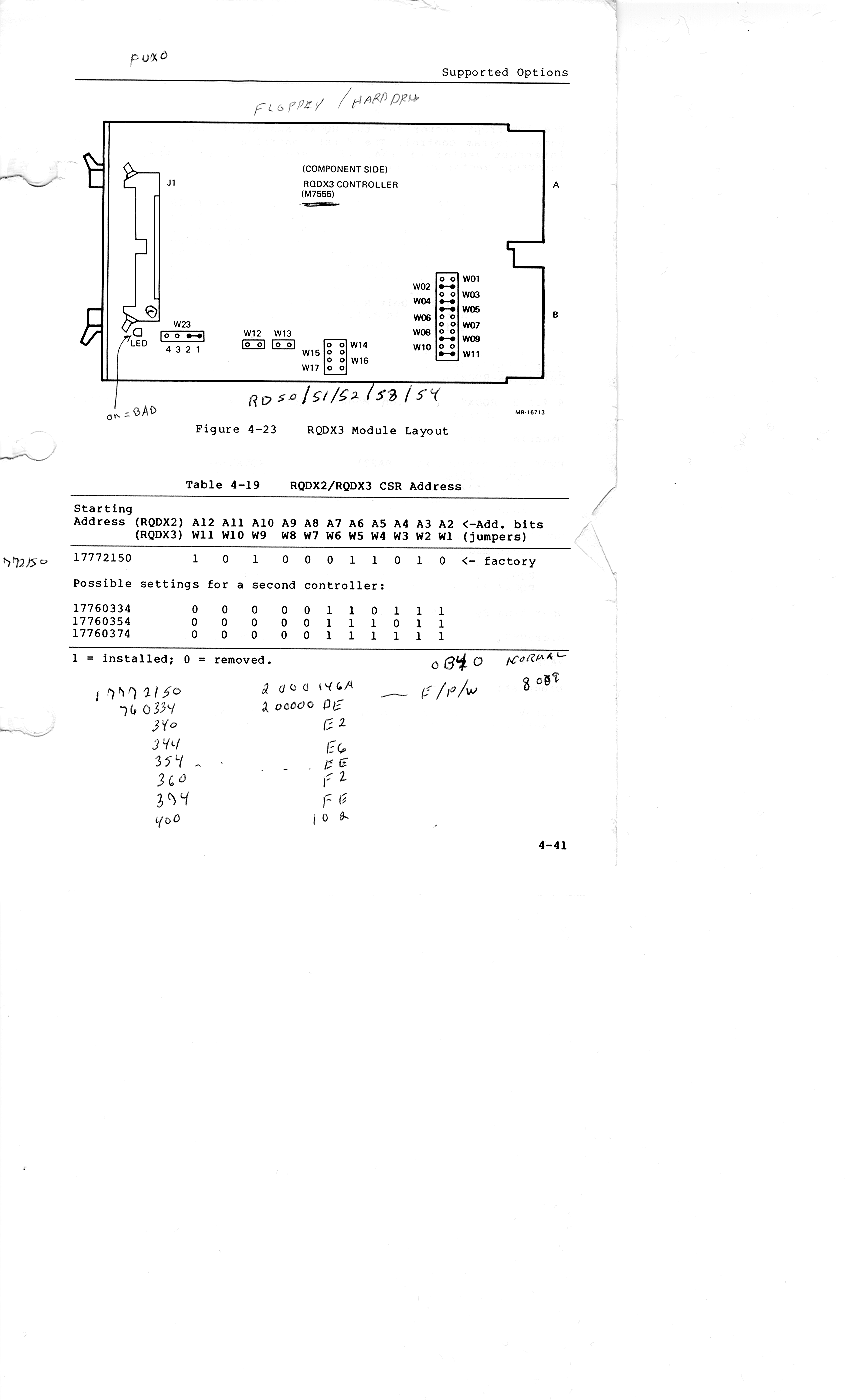

RQDX3 Jumpers and address chart

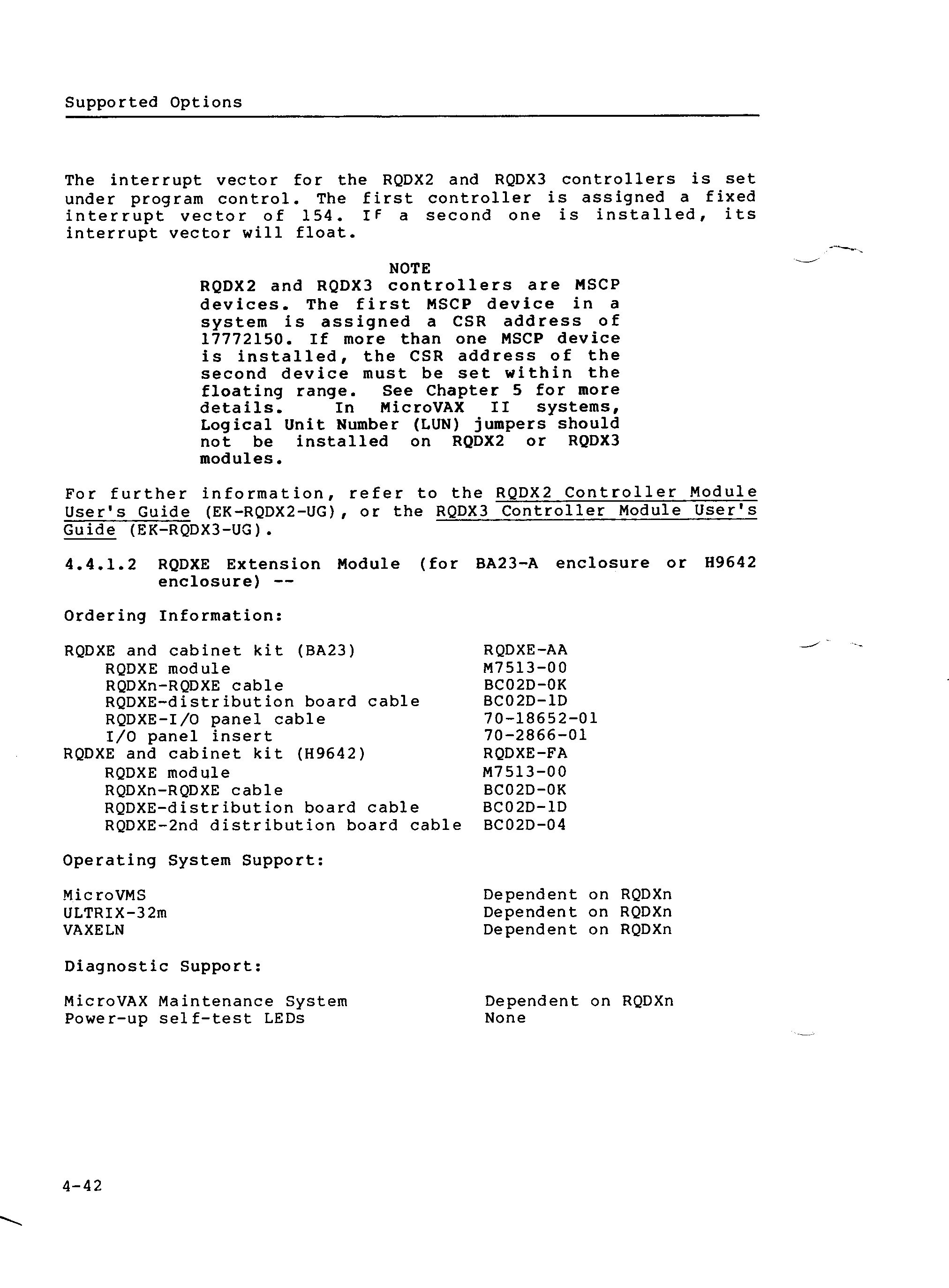

Further info and related reading

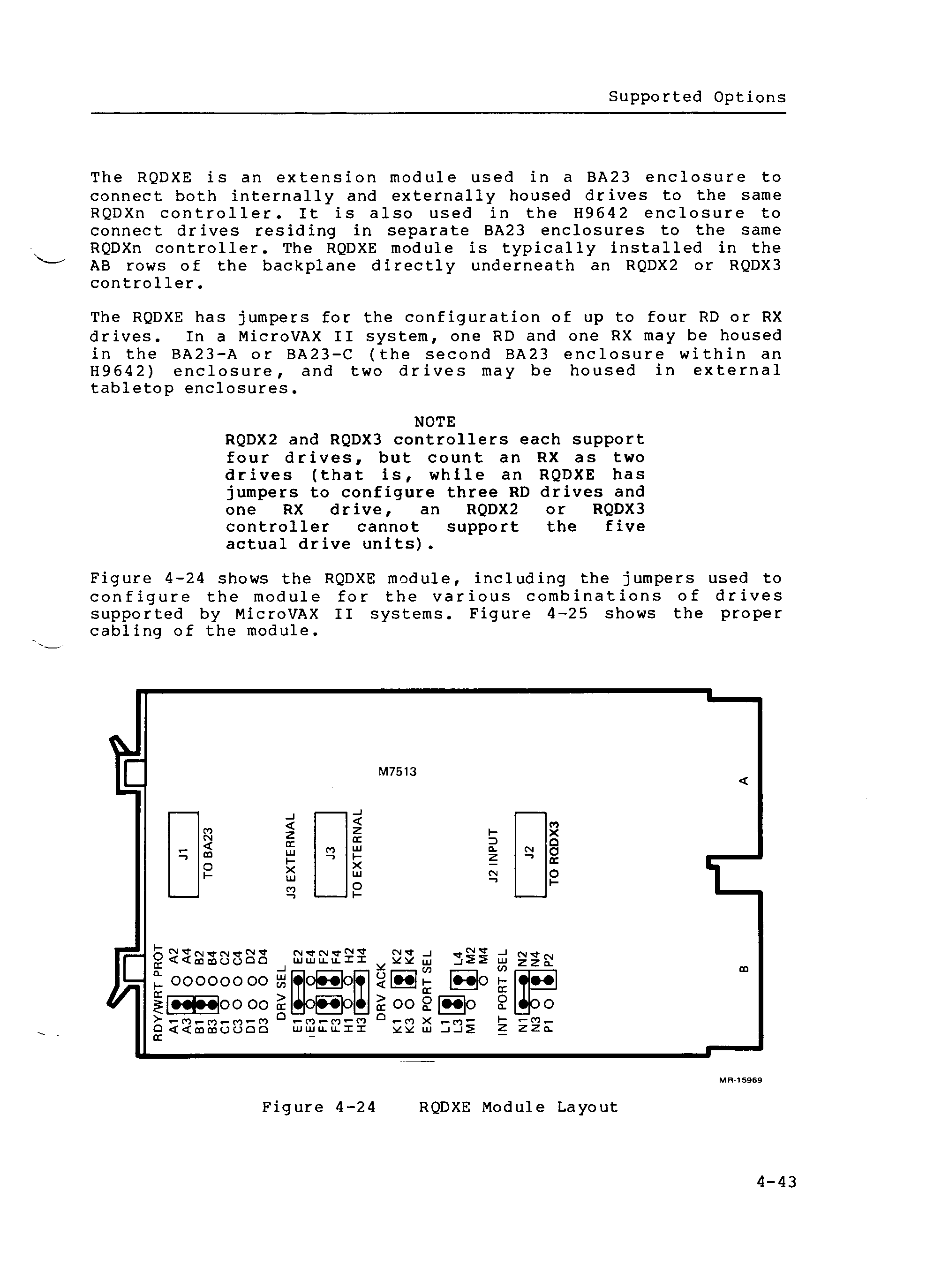

RQDXE Extender Module Layout

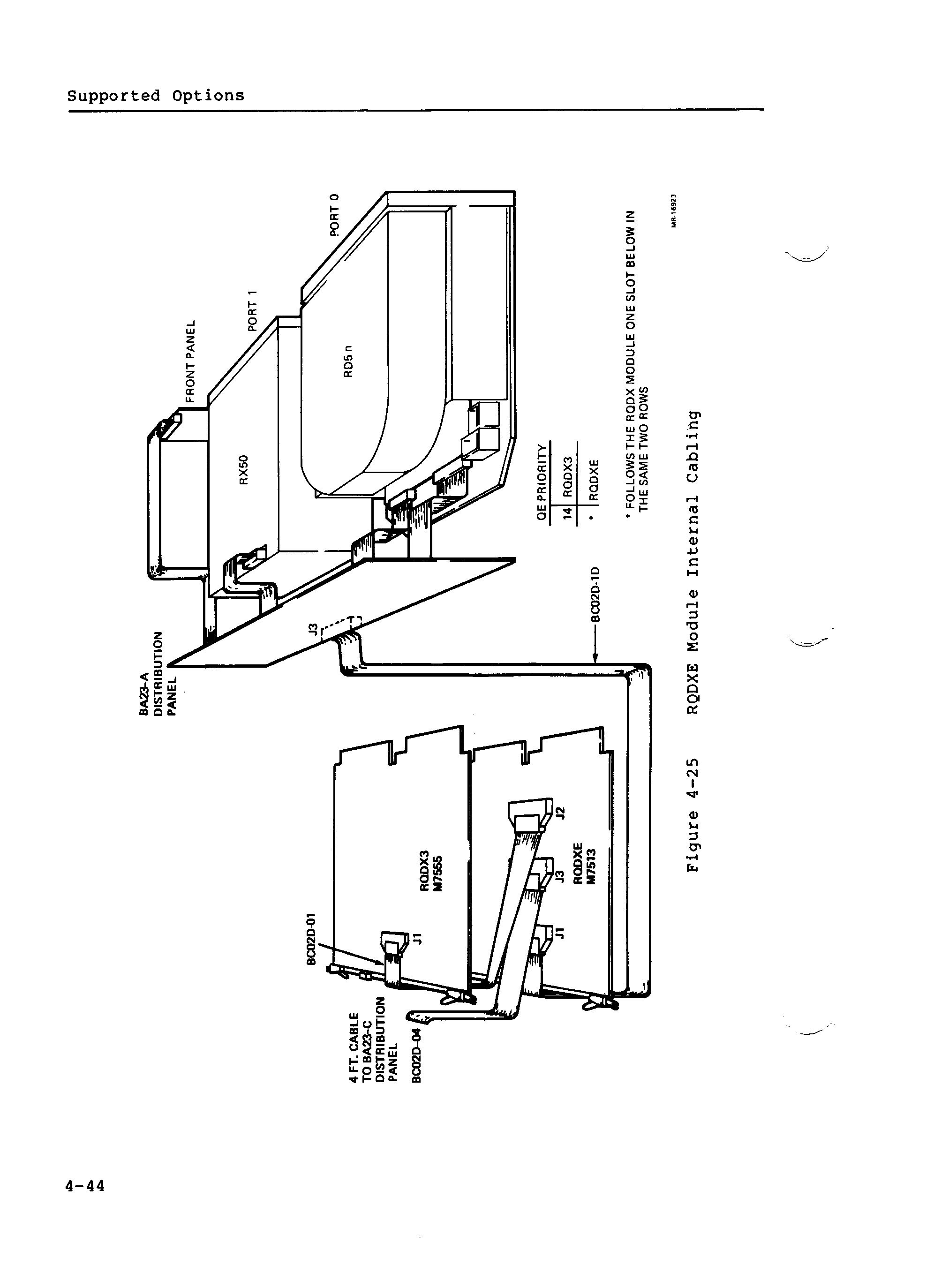

RQDXE Cabling Diagram

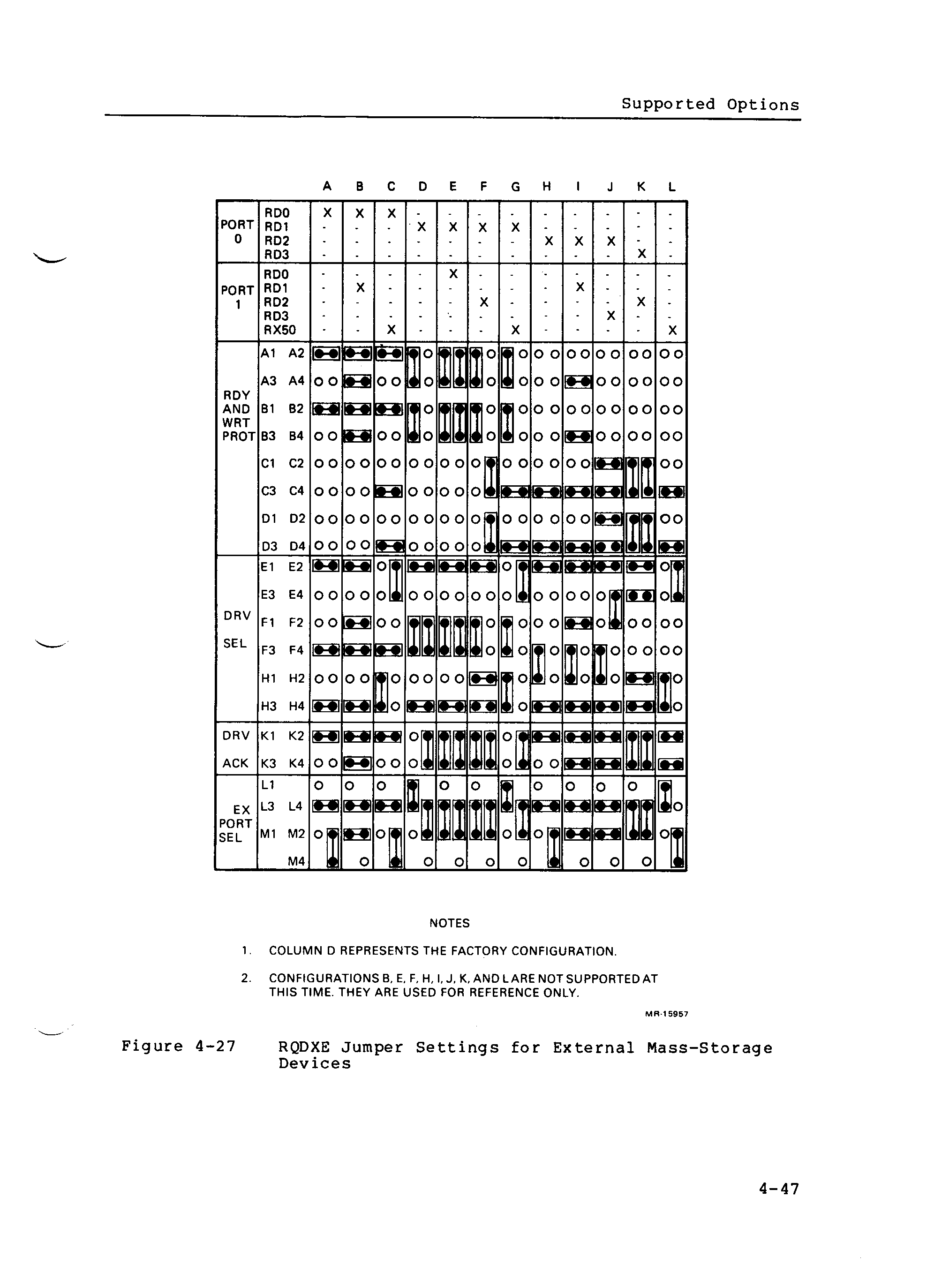

RQDXE Jumper Chart

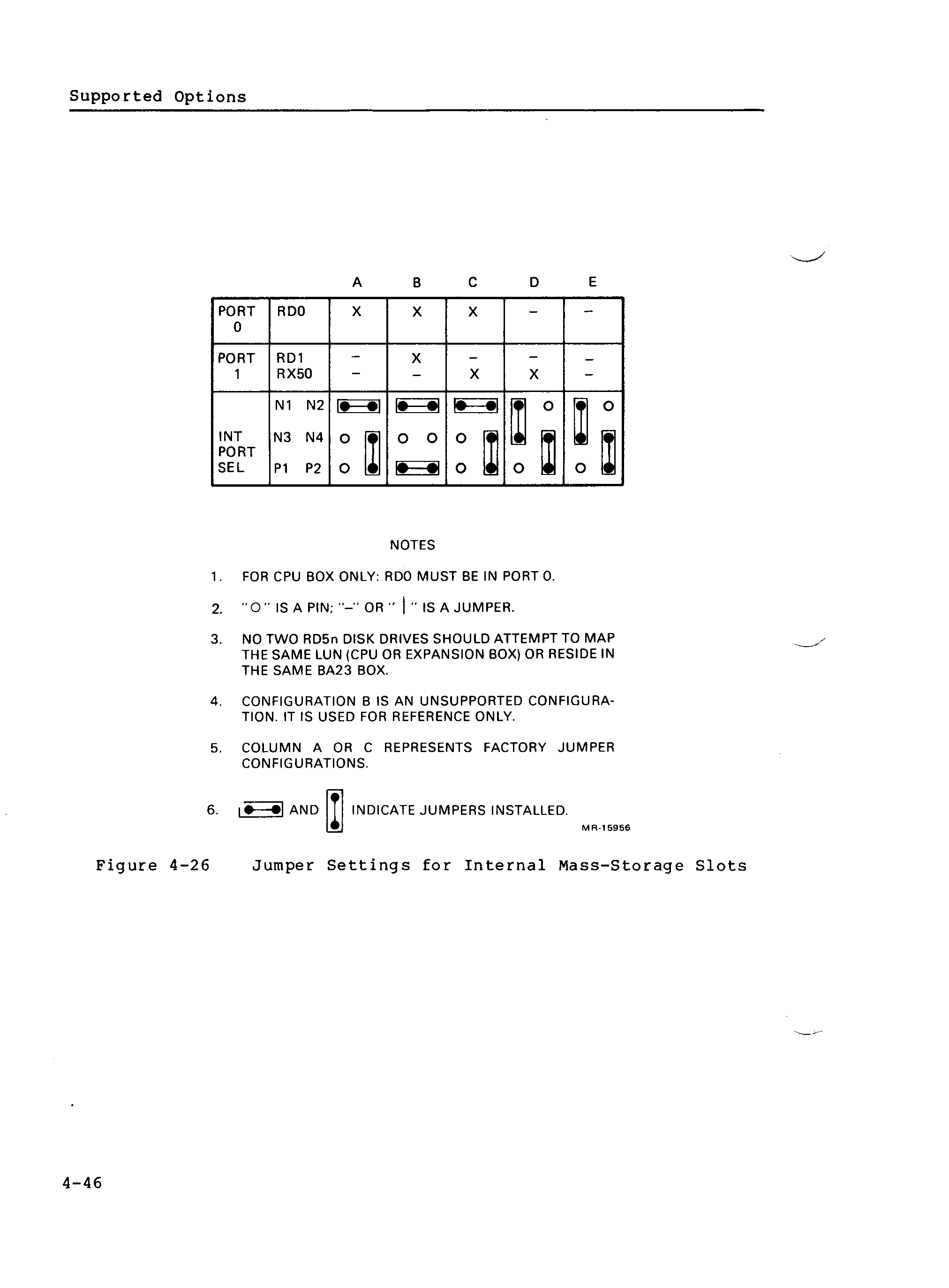

More RQDXE Jumpers
