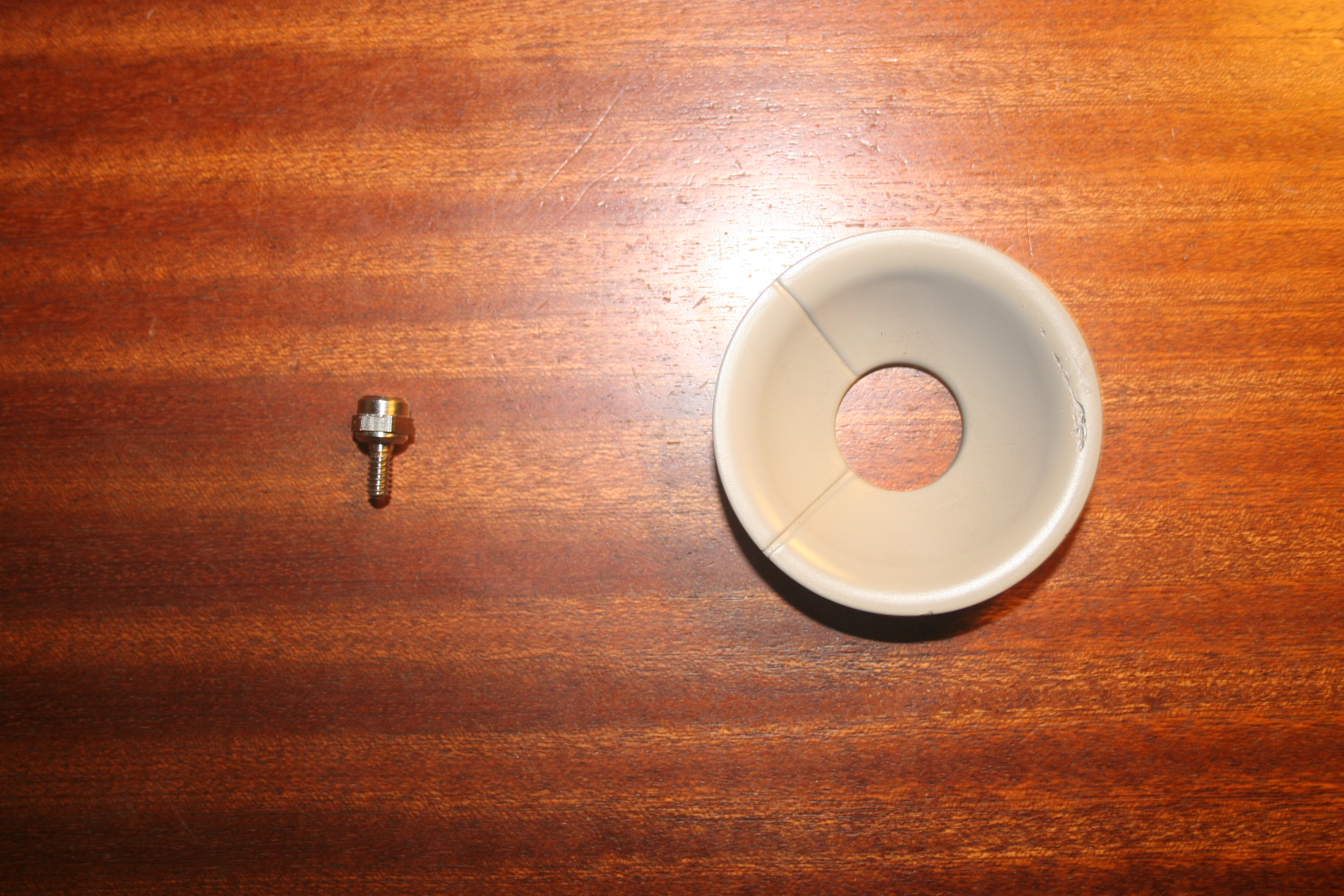

The plastic ring fits around the 10base2 connector on the side. The screw fits into the back to hold the PCB in place.
In album: DECserver 90M
