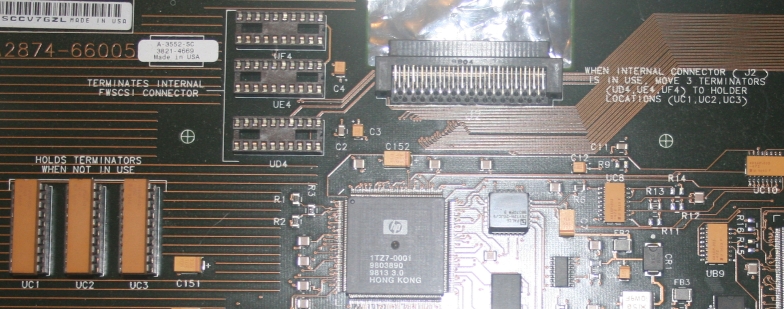

Internal bus termination for the SCSI Board. When the internal bus is not used, the yellow terminators are moved into the sockets at the top of the board.
In album: HP 9000 D380
| Filename | SCSI Internal Terminator.jpg |
|---|---|
| Timestamp | 2008-12-12 23:55:35+13:00 |
| Dimensions | 784 x 309 |
| MIME Type | image/jpeg |
| Size | 251624 bytes |
