Follow these instructions to access the Panel Editor and design a panel:

1. Reenter FDE by issuing the FDE command and your form name:

   $ FDE EMPLOYEE_INFO_FORM


   DECforms displays the FDE Main Menu (see Figure 7-2).

2. Press the down-arrow key to move the cursor to the third line (the Panel line), and press [Select] at the first choice: Choose, Create. DECforms superimposes another panel on the FDE Main Menu (see Figure 7-3).
3. Press [Select] at the menu choice: Create Panel. DECforms displays the Create Panel screen (see Figure 7-4), containing panel attributes and their default values marked by a diamond.

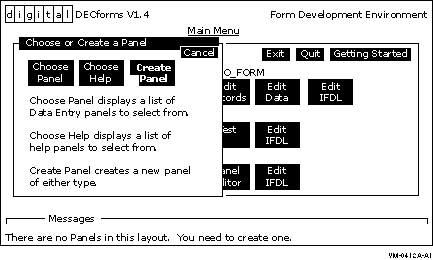

   Figure 7-3 Choose/Create Panel Menu

   ---

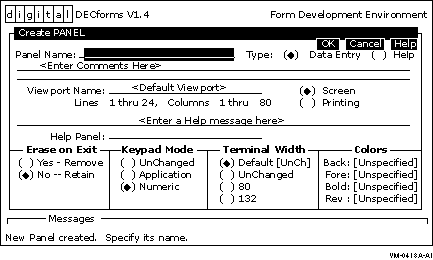

   Figure 7-4 Create Panel Screen

   ---


4. The Panel Name field is highlighted on your screen. Type the name of the panel you are creating:

   Panel Name: EMPLOYEE_INFO_PANEL


   Press [Return]. The cursor moves to the Data Entry field. The panel type specifies whether the panel is for entering data or displaying help. The diamond before Data Entry indicates that the panel is a data entry panel.

5. Press the down-arrow key to move the cursor to Yes-Remove under Erase on Exit. Press [Select]. This has the effect of removing the panel from the screen when the user finishes entering data and exits the panel.
6. Press the up-arrow key to move the cursor to the OK option in the top right-hand corner. Press [Select]. This means that you accept all the values on the screen, including the default viewport size.

   Note DECforms displays a panel within a viewport. To specify a viewport size other than the default 24 X 80 dimension, you must first enter a viewport name on the Create Panel screen and then specify line and column numbers to indicate the size of the viewport in which the panel is to be displayed.


   After you select OK, DECforms redisplays the FDE Main Menu, shown in Figure 7-2.
7. Move to the Panel Editor menu choice and press [Select]. DECforms invokes the Panel Editor and places the cursor in the top left-hand corner of a blank screen. You are now ready to format your panel.

   Note Always use the arrow keys to move the cursor within the panel. Do not use the space bar to position the cursor; the space bar creates literal spaces on the panel.

8. Position the cursor with the arrow keys and type the literals on the screen as shown in Figure 7-5. DECforms displays the panel to users exactly as you format it.
   Figure 7-5 is an example of a data entry panel composed only of literals. The panel includes a message to users indicating how to navigate between fields (using [Return] and [F12] ), how to save the data (using [Ctrl/Z] ), and how to quit the screen (using [PF4] ). You define [PF4] later in this chapter. Because [Return], [F12], and [Ctrl/Z] are predefined in DECforms, you do not need to define them for use in this tutorial application.

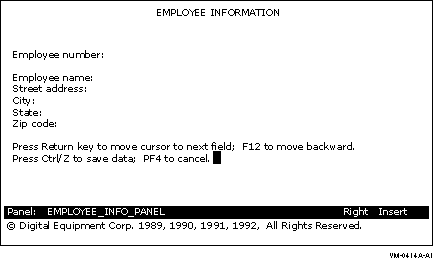

   Figure 7-5 Sample DECforms Panel

   ---


   You must now create the fields that correspond to the literals. A field is that space following the literal in which the user enters the information. For example, a defined space after the Employee name literal is a field in which to enter the employee name.
9. Use the arrow key to position the cursor two spaces after the Employee number literal, and press [Do]. DECforms displays the Command> prompt.
10. Type CREATE FIELD after the Command> prompt and press [Return]:

    Command> CREATE FIELD


    DECforms then displays the Create Field Menu (see Figure 7-6).

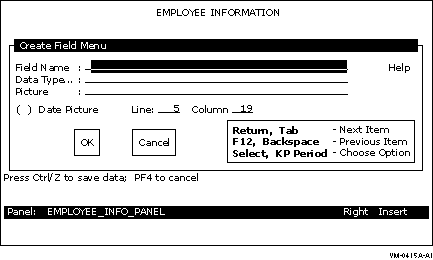

    Figure 7-6 Create Field Menu

    ---


11. Enter the field name and press [Return]:

    Field Name: EMPL_NUMBER

    Note Field names that you specify must correspond to field names that you entered in the CDD record definition. In the menu, the numbers that appear after Line and Column indicate where the cursor was when you began to create the field.

12. Press [Select] at the Data Type prompt (the field is highlighted) to display a list of valid data types: atomic, character, and date/time. In the list of character types, move the cursor to Character and press [Select] to register your choice.
    DECforms then superimposes the Data Type Character window, shown in Figure 7-7, on the menu.

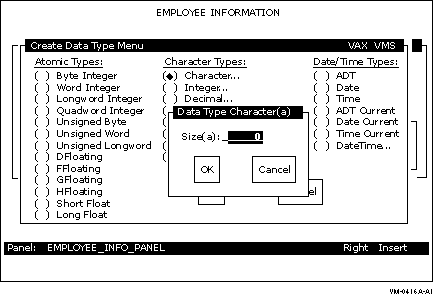

    Figure 7-7 Data Type Character Window

    ---


13. Enter the size of the field:

    Size(a): 10


    Use the arrow keys to move the cursor to OK, and press [Select] to confirm your entry.
    DECforms again displays the Create Field Menu, shown in Figure 7-6.

14. Enter the field picture:

    Picture : X(10)

15. Move the cursor to the OK icon and press [Select].
    DECforms returns you to your panel and displays a success message at the bottom of your screen. It also displays Xs to indicate the length of the character picture for that field, as shown in Figure 7-8.

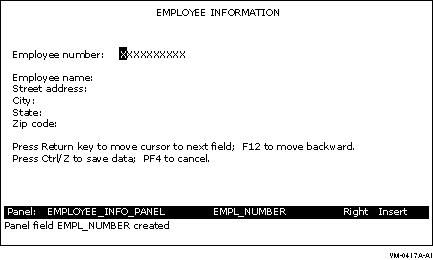

    Figure 7-8 Sample Panel with One Data Field Picture

    ---


16. Create character fields of the following lengths and pictures in the same manner as in steps 9 through 15:

    EMPL_NAME X(30) EMPL_STREET_ADDRESS X(30) EMPL_CITY X(20) EMPL_STATE X(2) EMPL_ZIP_CODE X(10)


    Figure 7-9 shows the results of defining all the fields in the panel.

    Note DECforms can validate a field of data as soon as the user exits that field. For example, you can write DECforms code that checks whether the user entered a valid zip code and, if not, prompts the user to reenter the zip code. This tutorial application, however, does not perform DECforms validation. For advanced DECforms design and programming, see DECforms Guide to Commands and Utilities.

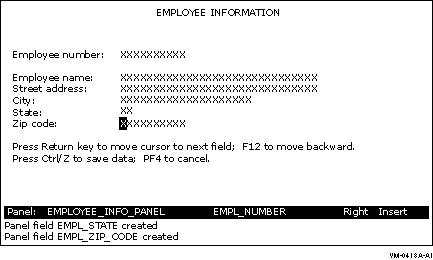

    Figure 7-9 Sample Panel with Data Field Pictures

    ---


17. Press [Ctrl/Z] to exit from the Panel Editor when you finish creating the panel. DECforms displays the following message:

    Panel editing finished.


    DECforms redisplays the FDE Main Menu, shown in Figure 7-2.

18. Test the form by selecting the Test option on the FDE Main Menu. DECforms displays a Testing Menu with three more options.
19. Press [Select] to choose the Test Panel option.
    FDE displays the panel and prompts you to enter a value for the Employee number field.
20. Type a sample entry for each field in the panel, pressing [Return] after you complete each one. Press [Ctrl/Z] when you complete the panel.
    DECforms redisplays the Main Menu, shown in Figure 7-2.
21. Use the arrow keys to move the cursor to the Exit icon. Press [Select]. DECforms displays messages indicating that it has saved the IFDL and FORM files containing your panel.

You now edit the form IFDL source file to include other definitions and special instructions. Note that DECforms automatically added a number of statements to your IFDL file when you exited FDE. For example, the Form Data section and the field descriptions in that file are a result of the data fields that you created interactively with DECforms.

To edit the form IFDL source file, follow these steps:

1. Use a text editor to open your IFDL source file named EMPLOYEE_INFO_FORM.IFDL. When using the LSE editor, for example, enter the following command:

   $ LSEDIT EMPLOYEE_INFO_FORM.IFDL

2. Enter a form record description in the IFDL source file following the declaration of the form data items. Enter the following lines after the line "End Data":

   Form Record EMPLOYEE_INFO_RECORD Copy EMPLOYEE_INFO_RECORD From Dictionary End Copy End Record


   The fields in the form record description here must correspond to the form data items defined above the description in the file. In this tutorial, you create a one-to-one correspondence between the form data items and the fields in EMPLOYEE_INFO_RECORD, which you previously entered in CDD. The COPY...FROM DICTIONARY clause copies that record from CDD.
   This one-to-one correspondence of record fields and data items is not a requirement, however. In more complex applications, the fields in a form record description are usually a subset of the list of form data items.

3. Immediately following this definition, enter another form record definition to correspond to a workspace definition that you enter later in CDD (in Section 7.3.5):

   Form Record CONTROL_WORKSPACE ERROR_STATUS_FIELD Character(4) MESSAGEPANEL Character(80) End Record


   In the data entry task, you need to inform users if they enter an employee number that already exists. A COBOL procedure called from the task checks for this error condition. If the error occurs, the procedure moves the value DUPL into the field ERROR_STATUS_FIELD in the record CONTROL_WORKSPACE.
   In your task, you can test the field ERROR_STATUS_FIELD for the DUPL value. If this value is in the field, you can place an error message in the MESSAGEPANEL field of CONTROL_WORKSPACE. (The processing step in the task definition discusses this error handling in more detail; see Section 7.4.2.)
   A MESSAGEPANEL is a special field in a form record. When you specify a MESSAGEPANEL field in a form record, any data associated with this field is automatically displayed in a message panel, which appears on any panel you have created. If you do not create your own message panel (this tutorial does not), DECforms uses the default message panel, which is the last line (line 24) on a panel display.

4. Enter the following lines after the line "Size 24 Lines by 80 Columns":

   Function QUIT_KEY Is %PF4 End Function


   This declares a function named QUIT_KEY and binds that name to [PF4]. By declaring a function response for QUIT_KEY in the next step, you allow the user to stop the task by pressing [PF4].

5. A function response describes the action you want to occur when a user presses a function key. Enter the following lines after the line "End Function". (Note that there is a space before the F in FQUT.)

   Function Response QUIT_KEY Remove All Return " FQUT" End Response


   If a user presses [PF4] while entering employee information in the panel, the function response directs DECforms to remove all viewports from the screen and return the value " FQUT" to ACMS. Within ACMS, the task definition tests a control-key workspace and performs some action based on receiving that value. The space and the F in " FQUT" conform to a special DECforms format required to return a receive-control text string. The QUT in this 5-character string are arbitrary characters.

6. To describe other actions that you want to occur at certain times while the application is running, enter the following response lines in the IFDL source file after the line "End Response" of the QUIT_KEY function response:

   Disable Response Request Exit Response Remove All End Response End Response Receive Response EMPLOYEE_INFO_RECORD Reset All Display EMPLOYEE_INFO_PANEL Activate Panel EMPLOYEE_INFO_PANEL End Response Transceive Response EMPLOYEE_INFO_RECORD EMPLOYEE_INFO_RECORD Display EMPLOYEE_INFO_PANEL Activate Panel EMPLOYEE_INFO_PANEL Deactivate Field EMPL_NUMBER on EMPLOYEE_INFO_PANEL Position to Field EMPL_NAME on EMPLOYEE_INFO_PANEL End Response Send Response CONTROL_WORKSPACE Activate Wait Signal End Response


   The Disable Response removes the current screen display by removing all viewports when the form is disabled. This prevents old data from appearing on the screen during transitions from one form to another.
   The Receive Response prepares a DECforms panel for user input whenever the data entry task definition ( Section 7.4) executes its RECEIVE FORM RECORD EMPLOYEE_INFO_RECORD statement. The Receive Response resets all data fields to spaces (clearing any old data). It then displays the specified panel in its viewport and activates all the data fields on that panel (allowing user input to every field on the panel).
   The Transceive Response prepares a DECforms panel for user input whenever the Inquiry/Update Task definition ( Section 8.2) executes its TRANSCEIVE FORM RECORD EMPLOYEE_INFO_RECORD statement. The Transceive Response displays the specified panel and activates all the data fields on that panel. Because the employee number is the record's key field, it cannot be modified. The Deactivate statement prevents the user from modifying the EMPL_NUMBER field when that record is displayed. The Position statement places the cursor on the first field, EMPL_NAME, that the user is allowed to modify.
   The Send Response causes DECforms to wait for the user to press a function key whenever ACMS sends DECforms a message via the record CONTROL_WORKSPACE. For example, ACMS sends DECforms an error message if the user tries to add an employee number that already exists. DECforms displays the message, activates a wait, and produces an audible signal. The user can then press [PF4] to cancel the transaction, or [Ctrl/Z] to begin again.

7. Your EMPLOYEE_INFO_FORM.IFDL file is now complete. Save the edits made in the IFDL file, and exit from the text editor.

Whenever you edit your IFDL source file, you must translate that file into an updated binary form file to reflect the edits made in the IFDL file. DECforms stores a form internally in a binary form file (with file type .FORM).

You also need to create an object module and a shareable image of the form to use in your ACMS application.

To create a new binary form file, an object module, and a shareable image of your form, follow these steps:

1. Issue the following command to create a new binary form file:

   $ FORMS TRANSLATE EMPLOYEE_INFO_FORM.IFDL $


   When you issue this command, DECforms uses the most recent version of your IFDL file to create a new binary file.

2. Issue the EXTRACT OBJECT command as the first step in creating a shareable image of a form:

   $ FORMS EXTRACT OBJECT EMPLOYEE_INFO_FORM.FORM $


   This command creates a form object module, or .OBJ file.

3. Issue the LINK/SHARE command to link the form object module into a shareable image:

   $ LINK/SHARE EMPLOYEE_INFO_FORM.OBJ $


   The result of the LINK/SHARE command is an image (.EXE) of the file that can be shared by multiple users.

You must now define the additional fields and records for a control workspace and a quit workspace. The following steps explain how to create the source files and how to enter these definitions in your CDD dictionary.

1. Using a text editor, create a source file called EMPLOYEE_CONTROL_FIELDS.CDO and enter the following lines. Then exit the file:

   DEFINE FIELD ERROR_STATUS_FIELD DATATYPE TEXT SIZE 4 INITIAL_VALUE IS " ". DEFINE FIELD MESSAGEPANEL DATATYPE TEXT SIZE 80.

2. Create a source file called EMPLOYEE_CONTROL_WKSP.CDO, enter the following lines, and exit the file:

   DEFINE RECORD CONTROL_WORKSPACE. ERROR_STATUS_FIELD. MESSAGEPANEL. END RECORD.

3. Create a source file called EMPLOYEE_QUIT_FIELD.CDO, enter the following lines, and exit the file:

   DEFINE FIELD QUIT_KEY DATATYPE TEXT SIZE 5 INITIAL_VALUE IS " ".

4. Create a source file called EMPLOYEE_QUIT_WKSP.CDO, enter the following lines, and exit the file:

   DEFINE RECORD QUIT_WORKSPACE. QUIT_KEY. END RECORD.

5. Execute these four source files by issuing the following commands at the CDO> prompt:

   $ CDO CDO> @EMPLOYEE_CONTROL_FIELDS CDO> @EMPLOYEE_CONTROL_WKSP CDO> @EMPLOYEE_QUIT_FIELD CDO> @EMPLOYEE_QUIT_WKSP CDO>

6. Exit from CDO.

The data entry task definition in this tutorial contains three kinds of steps:

• Exchange steps, during which information is exchanged between the terminal user and the ACMS application.
• A processing step that calls a COBOL procedure to handle the I/O interactions between the application and the database (in this case, an RMS master file). The procedures that you call from processing steps are subroutines that you write and link together with a main program module supplied by ACMS.
• A block step, which groups the exchange steps and processing steps into a unit.

The first exchange step displays a form where the user enters new data. The processing step adds a new record to the RMS file with the information the user supplied in the first exchange step. The second exchange step displays a message, if an error is encountered in the processing step.

To define a task, you use commands and clauses of the ACMS Application Definition Utility (ADU). The easiest way to use ADU is to create a source file of ADU commands with a text editor such as LSE. Then submit the file as a command file to ADU, which compiles the task definition.

7.4.1 Defining the First Exchange Step

You begin an exchange step by identifying it with the ADU keyword EXCHANGE. Following the keyword, you use a SEND, RECEIVE, or TRANSCEIVE call to DECforms, identifying the direction of exchange:

• SEND indicates that you want to send information from the ACMS application to the form.
• RECEIVE indicates that you want to receive information in the ACMS application from the form.
• TRANSCEIVE indicates that you want both to send information to the form and receive information from the form, in that order.

To define the first exchange step in the data entry task definition, follow these steps:

1. Using an editor such as LSE, create a source file for your task definition. Name the source file EMPLOYEE_INFO_ADD_TASK.TDF.

   $ LSEDIT EMPLOYEE_INFO_ADD_TASK.TDF

2. In this file, enter the following lines of this exchange step:

   GET_EMPL_INFO: EXCHANGE RECEIVE FORM RECORD EMPLOYEE_INFO_RECORD RECEIVING EMPLOYEE_INFO_WKSP WITH RECEIVE CONTROL QUIT_WORKSPACE;


   Use label names (such as GET_EMPL_INFO) to mark exchange and processing steps in a task. During debugging, you can then reference each step by its label name rather than by line number.
   The purpose of the first exchange step in the data entry task is to obtain user input---users enter data in response to prompts displayed on the terminal screen. In this case, the ACMS application needs to receive information from the form.
   A form record name or form record list name must appear after a SEND, RECEIVE, or TRANSCEIVE call to DECforms. That name must correspond to a form record defined in the form source IFDL. This tutorial application, for example, uses EMPLOYEE_INFO_RECORD here and in your form source file.
   You must also include one or more workspace names after the keyword RECEIVING. DECforms uses these workspaces to pass user-entered data to ACMS.
   The WITH RECEIVE CONTROL clause specifies the record containing the name of the function key defined in the form source file. In this tutorial, the function QUIT_KEY is a field in the record QUIT_WORKSPACE.

3. Next, enter a CONTROL FIELD statement:

   CONTROL FIELD IS QUIT_WORKSPACE.QUIT_KEY " FQUT" : EXIT TASK; END CONTROL FIELD;


   The CONTROL FIELD clause tests the contents of a workspace field. Here it tests the value of the QUIT_KEY field in the record QUIT_WORKSPACE. The clause lists a value that this field can have: FQUT. If the value is FQUT, the action taken is EXIT TASK, which is the ADU clause that ends the current task.
