Either modify_mask or prev_mask, or both, must be specified as arguments. If modify_mask is specified, then select_mask must be specified as an argument. If modify_mask is not specified, then no modifications are made to the user capability mask for the specified kernel thread. In this case, select_mask is ignored. If prev_mask is not specified, then no previous mask is returned.

No service changes will be allowed if the specified kernel thread will transition from a runnable to blocked state. The CAP$M_FLAG_CHECK_CPU bit in the flags argument requires that the final thread state be runnable regardless of previous state; otherwise, interim changes that maintain a blocked state are allowed if the thread is already in one.

If the symbolic bit constant CAP$M_FLAG_DEFAULT_ONLY is set in the flags argument, the user capability modifications or the mask read requests are made only to the global initialization cell regardless of what process selections values are specified in the pidadr and prcnam arguments.

Required Access or Privileges

The caller must have the ALTPRI privilege to call SYS$PROCESS_CAPABILITIES to modify its own user capability mask. To modify another process' user capability mask, the caller must have:

ALTPRI---To modify any process with a matching UIC
ALTPRI and GROUP---To modify any process in the same UIC group
ALTPRI and WORLD---To modify any process

To call SYS$PROCESS_CAPABILITIES simply to retrieve the specific process or global mask, the caller need only have the following privileges:

None---To retrieve the state of itself or any process with a matching UIC
GROUP---To retrieve the state of any process in the same UIC group
WORLD---To retrieve the state of any process

Related Services

$CPU_CAPABILITIES


Condition Values Returned

SS$_NORMAL The service completed successfully.
SS$_BADPARAM One of more arguments has an invalid value.
SS$_ACCVIO The service cannot access the locations specified by one or more arguments.
SS$_NOSUCHTHREAD The specified kernel thread does not exist.
SS$_NONEXPR The specified process does not exist, or an invalid process identification was specified.
SS$_IVLOGNAM The process name string has a length of 0 or more than 15 characters.
SS$_NOPRIV Insufficient privilege for attempted operation.
SS$_CPUCAP No CPU can run the specified process with new capabilities.
SS$_INSFARG Fewer than the required number of arguments were specified or no operation was specified.

$PROCESS_SCAN

Creates and initializes a process context that is used by $GETJPI to scan processes on the local system or across the nodes in an OpenVMS Cluster system.

On Alpha and Integrity server systems, this service accepts 64-bit addresses.


Format

SYS$PROCESS_SCAN pidctx [,itmlst]


C Prototype

int sys$process_scan (unsigned int *pidctx, void *itmlst);


Arguments

pidctx


OpenVMS usage: process_id
type: longword (unsigned)
access: modify
mechanism: by 32- or 64-bit reference (Alpha and Integrity servers)

Context value supplied by $PROCESS_SCAN to be used as the pidadr argument of $GETJPI. The pidctx argument is the 32- or 64-bit address (on Alpha and Integrity server systems) of a longword that is to receive the process context longword. This longword normally contains 0 or a previous context. If it contains a previous context, the old context is deleted. If it contains a value other than 0 or a previous context, the old value is ignored.

itmlst


OpenVMS usage: 32-bit item_list_3 or 64-bit item_list_64b
type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit
access: read only
mechanism: by 32- or 64-bit reference (Alpha and Integrity servers)

Item list specifying selection criteria to be used by the scan or to control the scan.

The itmlst argument is the 32- or 64-bit address (on Alpha and Integrity server systems) of a list of item descriptors, each of which describes one selection criterion or control option. Within each selection criterion you can include several item entries. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.

The information in the item list is passed to the item descriptor in one of two ways. If the item descriptor can always hold the actual value of the selection criterion, the value is placed in the second longword of the item descriptor and the buffer length is specified as 0. If the item descriptor points to the actual value of the selection criterion, the address of the value is placed in the second longword of the item descriptor and you must specify the buffer length for the selection criterion. Each item code description specifies whether the information is passed by value or by reference.

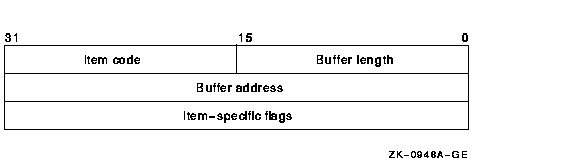

The following diagram depicts the format of a 32-bit item descriptor that passes the selection criterion as a value:

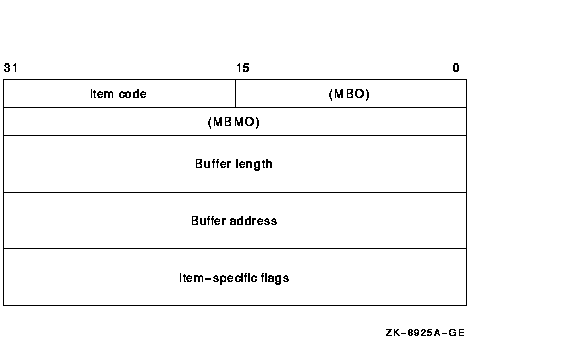

The following diagram depicts the format of a 64-bit item descriptor that passes the selection criterion as a value:

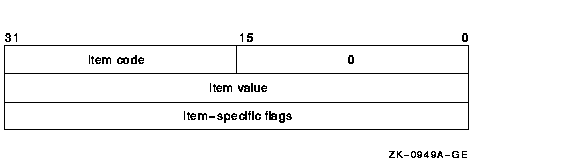

The following diagram depicts the format of a 32-bit item descriptor that passes the selection criterion by reference:

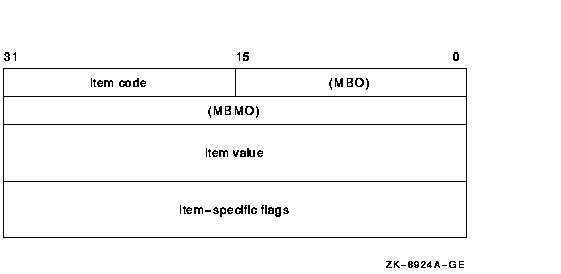

The following diagram depicts the format of a 64-bit item descriptor that passes the selection criterion by reference:


The following table defines the item descriptor fields:
Descriptor Field Definition
Buffer length Buffer length is specified in a different way for the two types of item descriptors.

Character string or reference descriptors: A word containing a user-supplied integer specifying the length (in bytes) of the buffer from which $PROCESS_SCAN retrieves a selection criterion. The length of the buffer needed depends on the item code specified in the item descriptor.
Immediate value descriptors: The length of the buffer is always specified as 0.
Item code A word containing the selection criterion. These codes are defined by the $PSCANDEF macro.

Each item code is described after this list of descriptor fields.

Item value A longword containing the actual value of the selection criterion. When you specify an item code that is passed by value, $PROCESS_SCAN searches for the actual value contained in the item list. See the description of the buffer address field for information about item codes that are passed by reference.
Buffer address A longword containing the user-supplied address of the buffer from which $PROCESS_SCAN retrieves information needed by the scan. When you specify an item code that is passed by reference, $PROCESS_SCAN uses the address as a pointer to the actual value. See the description of the item value field for information about item codes that are passed by value.
Item-specific flags A longword that contains flags to help control selection information. Item-specific flags, for example EQL or NEQ, are used to specify how the value specified in the item descriptor is compared to the process value.

These flags are defined by the $PSCANDEF macro. Some flags are common to multiple item codes; other flags are specific to an individual item code. See the description of each item code to determine which flags are used.

For item codes that describe bit masks or character strings, these flags control how the bit mask or character string is compared with that in the process. By default, they are compared for equality.

For item codes that describe integers, these flags specify an arithmetic comparison of an integer item with the process attribute. For example, a PSCAN$M_GTR selection specifying the value 4 for the item code PSCAN$_PRIB finds only the processes with a base priority above 4. Without one of these flags, the comparison is for equality.

MBO Must be 1.
MBMO Must be --1.


Item Codes

PSCAN$_ACCOUNT

When you specify PSCAN$_ACCOUNT, $GETJPI returns information about processes that match the account field.

If the string supplied in the item descriptor is shorter than the account field, the string is blank-padded for the comparison unless the item-specific flag PSCAN$M_PREFIX_MATCH is present.

Because the information is a character string, the selection value is passed by reference. The length of the buffer is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

Although the current length of the account field is 8 bytes, the PSCAN$_ACCOUNT buffer can be up to 64 bytes in length. If the buffer length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.

PSCAN$_AUTHPRI

When you specify PSCAN$_AUTHPRI, $GETJPI returns information about processes that match the authorized base priority field.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_CURPRIV

When you specify PSCAN$_CURPRIV, $GETJPI returns information about processes that match the current privilege field. Privilege bits are defined by the $PRVDEF macro.

Because the bit mask information is too long to be passed by value, the information is passed by reference. The privilege buffer must be exactly 8 bytes, otherwise the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_GETJPI_BUFFER_SIZE

When you specify PSCAN$_GETJPI_BUFFER_SIZE, you determine the size of a buffer to be used by $GETJPI to process multiple requests in a single message. Using this item code can greatly improve the performance of scans on remote nodes, because fewer messages are needed. This item code is ignored during scans on the local node.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0. The buffer is allocated by $PROCESS_SCAN; you do not have to allocate a buffer.

If you use PSCAN$_GETJPI_BUFFER_SIZE with $PROCESS_SCAN, all calls to $GETJPI using the context established by $PROCESS_SCAN must request the same item code information. Because $GETJPI locates information for more than one process at a time, it is not possible to change the item codes or the length of the buffers used in the $GETJPI item list. $GETJPI checks each call and returns the error SS$_BADPARAM if an attempt is made to change the item list during a buffered process scan; however, the buffer addresses can be changed between $GETJPI calls.

Because the locating and buffering of information by $GETJPI is transparent to a calling program, you are not required to change the way $GETJPI is called when you use this item code.

The $GETJPI buffer uses the process quota BYTLM. If the buffer is too large for the process quota, $GETJPI (not $PROCESS_SCAN) returns the error SS$_EXBYTLM. If the buffer specified is not large enough to contain the data for at least one process, $GETJPI returns the error SS$_BADPARAM.

No item-specific flags are used with PSCAN$_GETJPI_BUFFER_SIZE.

PSCAN$_GRP

When you specify PSCAN$_GRP, $GETJPI returns information about processes that match the UIC group number.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. Because the value of the group number is a word, the high-order word of the value is ignored. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_HW_MODEL

When you specify PSCAN$_HW_MODEL, $GETJPI returns information about processes that match the specified CPU hardware model number.

The hardware model number is an integer, such as VAX$K_V8840. The VAX$ symbols are defined by the $VAXDEF macro.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_HW_NAME

When you specify PSCAN$_HW_NAME, $GETJPI returns information about processes that match the specified CPU hardware name, such as VAX-11/780, VAX 8800, or VAXstation II/GPX.

Because the information is a character string, the selection value is passed by reference. The length of the selection value is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

The PSCAN$_HW_NAME buffer can be up to 128 bytes in length. If the buffer length is 0 or greater than 128, the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_JOBPRCCNT

When you specify PSCAN$_JOBPRCCNT, $GETJPI returns information about processes that match the subprocess count for the job (the count of all subprocesses in the job tree).

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_JOBTYPE

When you specify PSCAN$_JOBTYPE, $GETJPI returns information about processes that match the job type. The job type values include the following:
Value Description
JPI$K_LOCAL Local interactive process
JPI$K_DIALUP Interactive process accessed by a modem line
JPI$K_REMOTE Interactive process accessed by using SET HOST
JPI$K_BATCH Batch process
JPI$K_NETWORK Noninteractive network process
JPI$K_DETACHED Detached process

These values are defined by the $JPIDEF macro. Note that values checked by PSCAN$_JOBTYPE are similar to PSCAN$_MODE values.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_KT_COUNT

When you specify PSCAN$_KT_COUNT, $PROCESS_SCAN uses the current count of kernel threads for the process as a selection criteria.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_MASTER_PID

When you specify PSCAN$_MASTER_PID, $GETJPI returns information about processes that are descendants of the specified parent process. The master process is the first process created in the job tree. The PSCAN$_OWNER item is similar, but the owner process is the process that created the target process (the owner process might itself be a subprocess). Although all jobs in a job tree must have the same master, they can have different owners.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_MEM

When you specify PSCAN$_MEM, $GETJPI returns information about processes that match the UIC member number.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. Because the value of the member number is a word, the high-order word of the value is ignored. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_MODE

When you specify PSCAN$_MODE, $GETJPI returns information about processes that match the specified mode. Mode values include the following:
Value Description
JPI$K_INTERACTIVE Interactive process
JPI$K_BATCH Batch job
JPI$K_NETWORK Noninteractive network job
JPI$K_OTHER Detached and other process

These values are defined by the $JPIDEF macro. Note that values checked by PSCAN$_MODE are similar to PSCAN$_JOBTYPE values.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_MULTITHREAD

When you specify PSCAN$_MULTITHREAD, $PROCESS_SCAN uses the maximum count of kernel threads for the process as a selection criteria.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_NODE_CSID

When you specify PSCAN$_NODE_CSID, $GETJPI returns information about processes on the specified nodes. To scan all nodes in an OpenVMS Cluster system, you specify a CSID of 0 and the item-specific flag PSCAN$M_NEQ.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_NODENAME

When you specify PSCAN$_NODENAME, $GETJPI returns information about processes that match the specified node names.

To scan all of the nodes in an OpenVMS Cluster system, specify the node name using an asterisk wildcard (*) and the PSCAN$M_WILDCARD item-specific flag.

Because the information is a character string, the selection value is passed by reference. The length of the selection value is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

Although the current length of the node name is 6 bytes, the PSCAN$_NODENAME buffer can be up to 64 bytes in length. If the buffer length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_OWNER

When you specify PSCAN$_OWNER, $GETJPI returns information about processes that are immediate descendants of the specified process. The PSCAN$_MASTER_PID item is similar, but the owner process is the process that created the target process (the owner process might itself be a subprocess). Although all jobs in a job tree must have the same master, they can have different owners.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_PRCCNT

When you specify PSCAN$_PRCCNT, $GETJPI returns information about processes that match the subprocess count (the count of all immediate descendants of a given process). The PSCAN$_JOBPRCCNT item code is similar, except that JOBPRCCNT is the count of all subprocesses in a job.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_PRCNAM

When you specify PSCAN$_PRCNAM, $GETJPI returns information about processes that match the specified process names.

The process name string is blank-padded for the comparison unless the item-specific flag PSCAN$M_PREFIX_MATCH is present.

Because the information is a character string, the selection value is passed by reference. The length of the selection value is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

Although the current length of the process name field is 15 bytes, the PSCAN$_PRCNAM buffer can be up to 64 bytes in length. If the buffer length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_PRI

When you specify PSCAN$_PRI, $GETJPI returns information about processes that match current priority. Note that the current priority of a process can be temporarily increased as a result of system events such as the completion of I/O.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_PRIB

When you specify PSCAN$_PRIB, $GETJPI returns information about processes that match base priority.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_STATE

When you specify PSCAN$_STATE, $GETJPI returns information about processes that match the specified process state. State values, for example SCH$C_COM and SCH$C_PFW, are defined by the $STATEDEF macro.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_STS

When you specify PSCAN$_STS, $GETJPI returns information that matches the current status mask. Without any item-specific flags, the match is for a process mask that is equal to the pattern. Status bits, for example PCB$V_ASTPEN or PCB$V_PSWAPM, are defined by the $PCBDEF macro.

This bit mask item code uses an immediate value descriptor; the selection value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_TERMINAL

When you specify PSCAN$_TERMINAL, $GETJPI returns information that matches the specified terminal names. The terminal name string is blank-padded for the comparison unless the item-specific flag PSCAN$M_PREFIX_MATCH is present.

Because the information is a character string, the selection value is passed by reference. The length of the selection value is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

Although the current length of the terminal name field is 8 bytes, the PSCAN$_TERMINAL buffer can be up to 64 bytes in length. If the buffer length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_UIC

When you specify PSCAN$_UIC, $GETJPI returns information about processes that match the UIC identifier. To convert an alphanumeric identifier name to the internal identifier, use the $ASCTOID system service before calling $PROCESS_SCAN.

This integer item code is passed by value; the value is placed in the second longword of the item descriptor. The buffer length must be specified as 0.

The flags that can be used with this item code are listed in Table SYS-48.

PSCAN$_USERNAME

When you specify PSCAN$_USERNAME, $GETJPI returns information about processes that match the specified user name.

The user name string is blank-padded for the comparison unless the item-specific flag PSCAN$M_PREFIX_MATCH is present.

Because the information is a character string, the selection value is passed by reference. The length of the selection value is placed in the first word of the item descriptor and the address of the buffer is placed in the second longword.

Although the current length of the user name field is 12 bytes, the PSCAN$_USERNAME buffer can be up to 64 bytes in length. If the buffer length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.

The flags that can be used with this item code are listed in Table SYS-48.

Item-Specific Flags Table SYS-48 lists the flags and the item codes that can be used together. The flags are described in the section following the table:

Table SYS-48 Flags Used with$PROCESS_SCAN
Item-Specific Flag Description Common to the Following $PROCESS_SCAN Item Codes
PSCAN$M_BIT_ALL All bits set in pattern set in target _CURPRIV
PSCAN$M_BIT_ANY Any bit set in pattern set in target _STS
PSCAN$M_CASE_BLIND Match without regard to case of letters _ACCOUNT
PSCAN$M_EQL Match value exactly (the default) All except
_BUFFER_SIZE
PSCAN$M_GEQ Match if value is greater than or equal to _AUTHPRI
PSCAN$M_GTR Match if value is greater than _GRP
PSCAN$M_LEQ Match if value is less than or equal to _JOBPRCCNT
PSCAN$M_LSS Match if value is less than _PRI
    _PRIB
PSCAN$M_NEQ Match if value is not equal All except
_BUFFER_SIZE
PSCAN$M_OR Match this value or the next value All except
_BUFFER_SIZE
PSCAN$M_PREFIX_MATCH Match on leading substring _HW_NAME
PSCAN$M_WILDCARD Match a wildcard pattern _NODENAME
_PRCNAM
_TERMINAL
_USERNAME

PSCAN$M_BIT_ALL

If the PSCAN$M_BIT_ALL flag is used, all bits set in the pattern mask specified by the item descriptor must also be set in the process mask. Other bits in the process mask can also be set.


Previous Next Contents Index
