HP OpenVMS System Analysis Tools Manual


Previous Contents Index


SHOW HEADER

Displays the header of the dump file.

Format

SHOW HEADER


Parameters

None.

Qualifiers

None.

Description

The SHOW HEADER command produces a 10-column display, each line of which displays both the hexadecimal and ASCII representation of the contents of the dump file header in 32-byte intervals. Thus, the first eight columns, when read right to left, represent the hexadecimal contents of 32 bytes of the header; the ninth column, when read left to right, records the ASCII equivalent of the contents. (The period [.] in this column indicates an ASCII character that cannot be displayed.)

After it displays the contents of the header blocks, the SHOW HEADER command displays the hexadecimal contents of the saved error log buffers.

See the OpenVMS AXP Internals and Data Structures manual for a discussion of the information contained in the dump file header. See also the SHOW DUMP and CLUE ERRLOG commands, which you can use to obtain formatted displays of the dump header and error log buffers.

See also the SHOW DUMP command, which will output a formatted display of the contents of the dump header.


Example

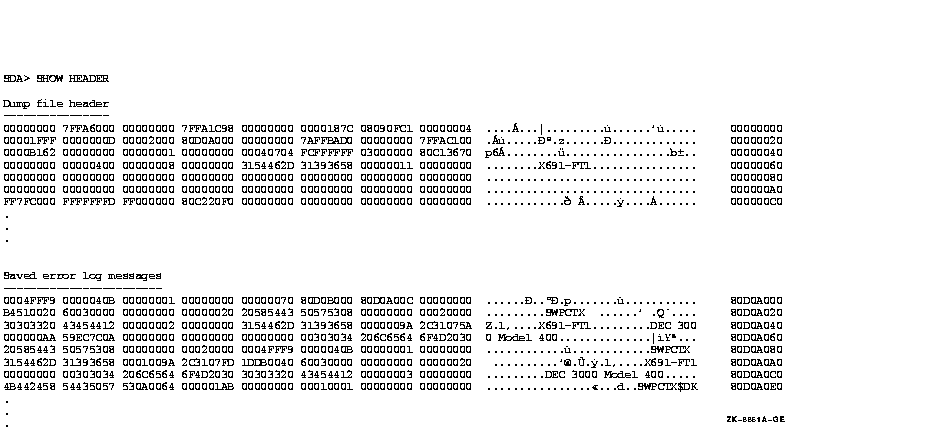

The SHOW HEADER command displays the contents of the dump file's header. Ellipses indicate hexadecimal information omitted from the display.


SHOW IMAGE

Displays information about an image, regardless of the type of image (executive, activated, or installed).

Format

SHOW IMAGE image-name


Parameters

image-name

Name of the image to be displayed. This is a required parameter that may include wildcards.

Qualifiers

None.

Description

Searches the executive image list for the image name, and, if a match is found, displays the loaded image information. Next, searches the activated image list for the process (if SDA has a current process context). If a match is found, displays the activated image information. Finally, searches the installed image lists, directory by directory. If a match is found, displays the installed image (known file entry) information.

SHOW IMAGE x is equivalent to SHOW EXECUTIVE x followed by SHOW PROCESS/IMAGE=x followed by SHOW KFE x .


Example


SDA> show image sys$public_vectors

Image SYS$PUBLIC_VECTORS
------------------------

                            VMS Executive image layout
                            --------------------------

Image                                   Base               End             Length       ImageOff  SymVec
--------------------------------- ----------------- ----------------- ----------------- -------- --------
SYS$PUBLIC_VECTORS                                                                               81804B18
    Nonpaged read only            FFFFFFFF.80000000 FFFFFFFF.800025FF 00000000.00002600 00000000
    Nonpaged read/write           FFFFFFFF.81800000 FFFFFFFF.81807FFF 00000000.00008000 00004000
        Linked 30-AUG-2004 09:36  LDRIMG 81C17480   SeqNum 00000000 --< sliced >--


                            Process activated images
                            ------------------------

   Image Name/Link Time/Section Type     Start     End    Type/File Id
--------------------------------------- -------- -------- ------------
SYS$PUBLIC_VECTORS                      81804B18 818071B7 GLBL

                        IMCB   Sym Vect Maj,Minor ID   Base     End    ImageOff
                      -------- -------- ------------ -------- -------- --------
                      7FF6A250 81804B18 113,16596271


Known File Entries ------------------ KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSLIB>.EXE ----------------------------------------------------------------- KFE Image Name/ KFERES Address/ File ID/ Flags/ Address Section Type Base End ImageOff -------- --------------------------------------- ----------------- ----------------- -------- 82984C50 SYS$PUBLIC_VECTORS;1 (3923,194,0)

This example shows the output from SHOW IMAGE for SYS$PUBLIC_VECTORS. Part of the example has been moved left to stay within page boundaries of the manual.


SHOW KFE

Displays information about known file entries (installed images).

Format

SHOW KFE [image_name | /ADDRESS=kfe_address | /ALL]

SHOW KNOWN_FILE_ENTRY [image_name | /ADDRESS=kfe_address | /ALL]


Parameters

image-name

Name of the image to be displayed. This may include wildcards, but cannot include device or directory information.

Qualifiers

/ADDRESS=kfe_address

Specifies the address of a single KFE of interest. The details are displayed for this KFE with device/directory information from the corresponding KFD (Known File Directory).

/ALL

Displays details for all KFEs, including device/directory information from the corresponding KFDs, with the contents of the Known File Pointer Block (KFPB).

Description

The SHOW KFE command displays information about known files (installed images). By default, a summary line without image-section information is given for each image. Use the /ALL qualifier to obtain detailed information for all images. For a single image, specify the image name or KFE address.

The image_name parameter, the /ADDRESS, and /ALL qualifiers cannot be used together. SHOW KNOWN_FILE_ENTRY is a synonym for SHOW KFE.


Examples


1. SDA> SHOW KFE
Known File Entries
------------------

KFPB address:                 8292D860
Hash table address:           82975360
Hash table size:                  0080
Entry count:                      016F

KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.CDE$DEFAULTS.SYSTEM.BIN>.EXE
----------------------------------------------------------------------------------

  KFD address:                829E8D60
  Reference count:                0002

    KFE                    Image Name                 KFERES Address       File ID       Flags
  --------  --------------------------------------- ----------------- ----------------- --------
  829E8290  DECW$LOGINOUT;1                                           (7204,49,0)       LIM Open HdrRes Shared
  829E8DB0  DTGREET;1                                                 (5651,19,0)       Open HdrRes Shared

KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSEXE>.EXE
-----------------------------------------------------------------

  KFD address:                8299C140
  Reference count:                0066

    KFE                    Image Name                 KFERES Address       File ID       Flags
  --------  --------------------------------------- ----------------- ----------------- --------
  8299C210  AUTHORIZE;1                                               (72,176,0)        ProcPriv AuthPriv
  829ACE10  BACKUP;1                                                  (73,176,0)
  8299C2A0  CDU;1                                                     (75,176,0)        ProcPriv Open HdrRes AuthPriv
  8299C660  CIA;1                                                     (510,176,0)       ProcPriv AuthPriv
  829ACE90  CONVERT;1                                                 (77,176,0)
  829A3AD0  COPY;1                                  829A3E70          (78,176,0)        Open HdrRes Shared
  829ACF10  CREATE;1                                                  (79,176,0)
  .
  .
  .

This example shows the first page of summary output for all known images.



2. SDA> show kfe decc*

Known File Entries
------------------

KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSLIB>.EXE
-----------------------------------------------------------------

    KFE                   Image Name/                KFERES Address/       File ID/      Flags/
  Address                 Section Type                     Base              End        ImageOff
  --------  --------------------------------------- ----------------- ----------------- --------
  829900B0  DECC$SHR;1                              82990960          (2431,189,0)      LIM Open HdrRes
                                                                                                 Shared ResCode

                         Paged read only            FFFFFFFF.80A70000 FFFFFFFF.80C815FF 00000000
                         Initialization             00000000.7BEC0000 00000000.7BF00DFF 00220000
                         Fixup                      00000000.7BF10000 00000000.7BF1B1FF 00270000
                         Nonpaged read/write        00000000.7BF20000 00000000.7BF2FBFF 00280000
                         Nonpaged read/write        00000000.7BF30000 00000000.7BF309FF 00290000

                         Fixup                      00000000.7BF40000 00000000.7BF401FF 002A0000
                         Paged read/write           00000000.7BF50000 00000000.7BF56FFF 002B0000


KFD Device/Directory/Type: $31$DKB100:<SYS0.SYSCOMMON.SYSMSG>.EXE
-----------------------------------------------------------------

    KFE                   Image Name/                KFERES Address/       File ID/      Flags/
  Address                 Section Type                     Base              End        ImageOff
  --------  --------------------------------------- ----------------- ----------------- --------
  829AE4F0  DECC$MSG;1                                                (257,176,0)       LIM Open HdrRes Shared


This example shows the details for all images that match the wildcard DECC*.
