SHOW GALAXY

Displays a brief one-page summary of the state of the Galaxy and all the instances in the Galaxy.

Format

SHOW GALAXY


Parameters

None.

Qualifiers

None.

Example


SDA> SHOW GALAXY
Galaxy summary
--------------
  GMDB address        Creator node ID  Revision       Creation time
-----------------     ---------------  --------  -----------------------  -----
FFFFFFFF.7F234000         00000001        1.0    31-MAR-1999 13:15:08.08      O

Node ID     NODEB address      Name    Version        Join time
--------  -----------------  --------  --------  -----------------------  -----
00000000  FFFFFFFF.7F236000  ANDA1A       1.0    31-MAR-1999 14:11:09.08
00000001  FFFFFFFF.7F236200  ANDA2A       1.0    31-MAR-1999 14:10:49.06
00000002  FFFFFFFF.7F236400  ANDA3A       1.0    31-MAR-1999 14:13:26.16
00000003  FFFFFFFF.7F236600                      - Node block is empty -


This SHOW GALAXY example shows the summary of the state of the Galaxy.


SHOW GCT

Displays the contents of the Galaxy configuration tree either in summary (hierarchical format) or in detail, node by node.

Format

SHOW GCT [/ADDRESS=n | /ALL | /HANDLE | /OWNER=n
| /SUMMARY (D) | /TYPE=type ]


[/CHILDREN] | [/FULL]


Parameters

None.

Qualifiers

/ADDRESS=n

Displays the Galaxy configuration tree (GCT) node at the given address.

/ALL

Provides a detailed display of all nodes in the tree.

/CHILDREN

When used with /ADDRESS=n or /HANDLE=n, the /CHILDREN qualifier causes SDA to display all nodes in the configuration tree that are children of the specified node.

/FULL

When used with /CHILDREN, /OWNER=n, or /TYPE=type, the /FULL qualifier causes SDA to provide a detailed display of each node.

/HANDLE=n

Provides a detailed display of the Galaxy configuration tree (GCT) node with the given handle.

/OWNER=n

Displays all nodes in the tree currently owned by the node with the given handle.

/SUMMARY

Provides a summary display of the Galaxy configuration tree (GCT) in hierarchical form. This qualifier is the default.

/TYPE=type

Displays all nodes in the tree of the given type, which can be one of the following:
BUS CAB COMMUNITY
CORE CPU CPU_MODULE
EXP_CHASSIS FRU_DESC FRU_ROOT
HARD_PARTITION HOSE HW_ROOT
IO_CTRL IOP MEMORY_CTRL
MEMORY_DESC MEMORY_SUB PARTITION
POWER_ENVIR PSEUDO RISER
ROOT SBB SLOT
SMB SOC SOCKET
SW_ROOT SYS_CHASSIS SYS_INTER_SWITCH
TEMPLATE_ROOT THREAD

The type given may be an exact match, in which case just that type is displayed (for example, a CPU); or a partial match, in which case all matching types are displayed (for example, /TYPE=CP displays both CPU and CPU_MODULE nodes).


Examples

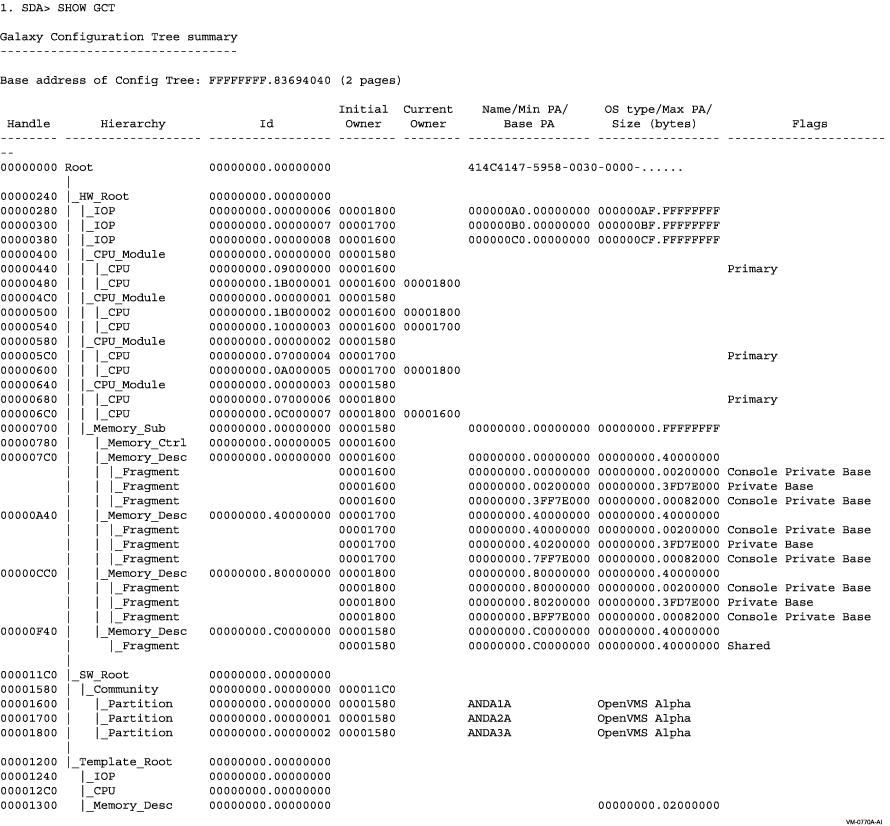

This command shows the summary (hierarchical) display of the configuration tree.



 2. SDA> SHOW GCT/HANDLE=00000700

Galaxy Configuration Tree
-------------------------

Handle:                           00000700   Address:        FFFFFFFF.83694740
Node type:                      Memory_Sub   Size:                        0080
Id:                      00000000.00000000   Flags:          00000000.00000001 Hardware


Related nodes:

    Node relationship     Handle             Type                   Id
  ---------------------  --------    ---------------------   -----------------
  Initial owner          00001580    Community               00000000.00000000
  Current owner          -<Same>-
  Parent                 00000240    HW_Root                 00000000.00000000
  Previous sibling       00000640    CPU_Module              00000000.00000003
  Next sibling           -<None>-
  Child                  00000780    Memory_Ctrl             00000000.00000005
  Configuration binding  00000240    HW_Root                 00000000.00000000
  Affinity binding       00000240    HW_Root                 00000000.00000000

Min. physical address:   00000000.00000000
Max. physical address:   00000000.FFFFFFFF

This command shows the detailed display of the specified node.


SHOW GLOBAL_SECTION_TABLE

Displays information contained in the global section table, including pageable sections of loadable images. Functionally equivalent to SHOW GST.

Format

SHOW GLOBAL_SECTION_TABLE [/SECTION_INDEX=n]

SHOW GST [/SECTION_INDEX=n]


Parameters

None.

Qualifiers

/SECTION_INDEX=n

Displays only the global section table entry for the specified section.

Description

Displays the entire contents of the global section table, unless you specify the qualifier /SECTION_INDEX. This command is equivalent to SHOW PROCESS/PROCESS_SECTION_TABLE/SYSTEM. SDA displays the information in Table 4-5 for each GST entry.

Table 4-5 Global Section Table Entry Information
Part Definition
INDEX Index number of the entry. Entries in the global section table begin at the highest location in the table, and the table expands toward lower addresses.
ADDRESS Address of the global section table entry.
SECT/GPTE Virtual address that marks the beginning of the first page of the section described by this entry, if a loadable image; or the virtual address of the global page table entry for the first page, if a global section.
GSD Address of the corresponding Global Section Descriptor. This field is zero for loadable images.
PAGELETS Length of the global section. This is in units of pagelets, except for a PFN-mapped section in which the units are pages.
VBN Virtual block number. The number of the file's virtual block that is mapped into the section's first page.
WINDOW Address of the window control block on which the section file is open.
REFCNT Number of pages of this section that are currently mapped.
FLINK Forward link. The pointer to the next entry in the GST list.
BLINK Backward link. The pointer to the previous entry in the GST list.
FLAGS Flags that describe the access that the system and processes have to the global section.

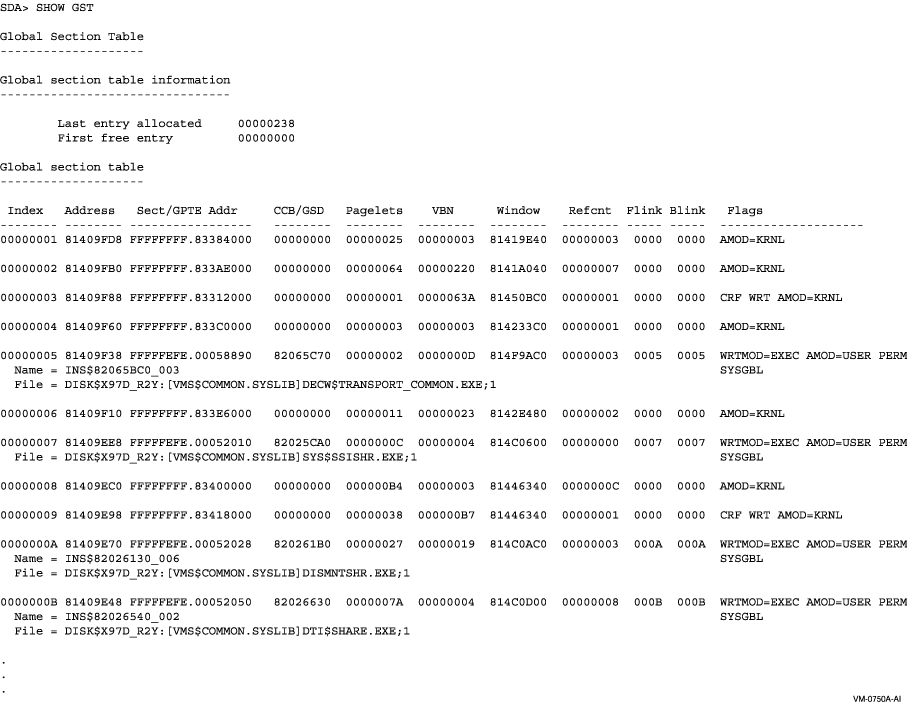

Example



SHOW GLOCK

Displays the Galaxy locks for the Galaxy Management Database (GMDB), process tables, and/or system tables.

Format

SHOW GLOCK [/ADDRESS=n [/PHYSICAL]
| /ALL
| /GMDB_TABLE
| /HANDLE=n [/LINKED]
| /PROCESS_TABLE [=n ]
| /SYSTEM_TABLE [=n ]]
[/BRIEF]


Parameters

None.

Qualifiers

/ALL

Displays information provided by the /GMDB_TABLE, /PROCESS_TABLE, and /SYSTEM_TABLE qualifiers. The /ALL qualifier also displays information from the base GMDB Galaxy lock.

/BRIEF

Displays a single line for each Galaxy lock, regardless of any other qualifiers.

/GMDB_TABLE

Displays the Galaxy lock table for the Galaxy Management Database (GMDB) including the embedded and attached Galaxy locks.

/PROCESS_TABLE [=n]

Displays all the process Galaxy lock tables with the embedded and attached Galaxy locks, as well as a summary table. The /PROCESS_TABLE=n qualifier displays the single Galaxy lock table without a summary page.

/SYSTEM_TABLE [=n]

Displays all the system Galaxy lock tables with the embedded and attached Galaxy locks, as well as a summary table. The /SYSTEM_TABLE=n qualifier displays the single Galaxy lock table without a summary page.

/ADDRESS=n [/PHYSICAL]

Displays the single Galaxy lock at address n. Because process Galaxy locks are located by their physical address, you must use the /PHYSICAL qualifier to enter such an address.

/HANDLE=n [/LINKED]

Displays the single Galaxy lock whose handle is n. The optional qualifier /LINKED causes SDA to display all Galaxy locks linked to the one specified.

Examples

#1

SDA> SHOW GLOCK
Galaxy Lock Database
--------------------

Base address of GLock segment of GMDB:       FFFFFFFF.7F238000
Length:                                      00000000.00082000

  Nodes:                 00000000.00000007   Flags:          00000000.00000000

Process tables:          00000000.00000400   System tables:  00000000.00000400
  First free:                     00000002                            00000001
  First used:                     00000001                            00000000

Embedded GLocks:

GLock address:           FFFFFFFF.7F238020   Handle:         80000000.00000805

  GLock name:            GMDB_GLOCK_LOCK     Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  08   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000

GLock address:           FFFFFFFF.7F238190   Handle:         80000000.00000833

  GLock name:            PRC_LCKTBL_LOCK     Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  08   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000

GLock address:           FFFFFFFF.7F2381D0   Handle:         80000000.0000083B

  GLock name:            SYS_LCKTBL_LOCK     Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  08   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000


This example shows the summary of the Galaxy lock database.

#2

SDA> SHOW GLOCK/PROCESS_TABLE
Galaxy Lock Database: Process Lock Table #0001
----------------------------------------------

Base address of Process Lock Table #0001:    FFFFFFFF.7F23A000

  Lock size:                          0040   Flags:                         01  VALID
  Region Index/Sequence:     0008/00000001   Access mode:                   03
  Region physical size:  00000000.00002000   Virtual size:   00000000.00002000
  Number of locks:       00000000.00000080   Nodes:          00000000.00000007

Per-node reference counts:

    Node   Count
    ----   -----
    0000    0001
    0001    0001
    0002    0001

Embedded GLock:

GLock address:           FFFFFFFF.7F23A040   Handle:         80000000.00000C09

  GLock name:            PLCKTBL_LOCK001     Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  00   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000

Attached GLocks:

GLock address:          P00000000.C05EC7C0   Handle:         00000001.000000F9

  GLock name:            CPU_BAL_LOCK        Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  00   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000

   .
   .
   .

GLock address:          P00000000.C05EC000   Handle:         00000001.00000001

  GLock name:            CPU_BAL_LOCK        Flags:                         00
  Owner count:                          00   Owner node:                    00
  Node sequence:                      0000   Owner:                     000000
  IPL:                                  00   Previous IPL:                  00
  Wait bitmask:          00000000.00000000   Timeout:                 00000000
  Thread ID:             00000000.00000000

Used GLock count = 0020

Free GLock count = 0060

Galaxy Lock Database: Process Lock Table Summary
------------------------------------------------

Total used Process Lock Tables:              00000001
Total free Process Lock Tables:              000003FF


This example shows the Galaxy locks for all processes.


SHOW GMDB

Displays the contents of the Galaxy Management Database (GMDB) and/or the node blocks of the instances in the Galaxy system.

Format

SHOW GMDB [/ALL]
[/NODE [=name | =n | /ADDRESS=n ] [/SUMMARY]


Parameters

None.

Qualifiers

/ADDRESS

Specifies the address of a single node block to be displayed when used with the /NODE qualifier. See the description of the /NODE qualifier.

/ALL

Displays the contents of the Galaxy Management Database and all node blocks that have ever been used (contents nonzero).

/NODE [=name | =n | /ADDRESS=n]

Displays the contents of the specified node block, given by either the name of the instance, the partition number, or the address of the node block. If you specify only the /NODE qualifier, the node block for the current instance is displayed.

/SUMMARY

Displays a one-page summary of the GMDB and all node blocks.

Note

The default action displays the contents of the Galaxy Management Database.

Examples


1.   SDA> SHOW GMDB

Galaxy Management Database
-------------------------

Base address of GMDB:                        FFFFFFFF.7F234000
Base address of NODEB for this instance:     FFFFFFFF.7F236000

  Revision:                            1.0   Maximum node ID:         00000003
  Creation time:   31-MAR-1999 13:15:08.08   Incarnation:    00000000.00000003
  State:                       OPERATIONAL   Creator node:            00000001
  Base size:             00000000.00004000   Total size:     00000000.000A6000
  Last joiner ID:                 00000002   Remover node ID:         FFFFFFFF
  Last leaver ID:                 00000002   Node timeout (msec)          5000.
  Lock owner                      00000002   Lock flags:                  0000
  Break owner:                    FFFFFFFF   Breaker ID:              FFFFFFFF

Version Information:

  Min Version Operational              1.0   Min Version Allowed           1.0
  Max Version Operational              1.0

Membership bitmask:      FFFFFFFF.7F236800

  Valid bits:                     00000004   State:          00000000.0000001E  AUTO_LOCK TIMEOUT_CRASH....
  Unit count:                         0001   Unit size:               QUADWORD
  Lock IPL:                             16   Saved IPL:               00000008
  Count of bits set:              00000003
  Timeout count:                  000186A0
  Summary bitmask:       00000000.00000001

  Unit bitmask:
       ........ ........ ........ .......7   00000000

Remove node bitmask:     FFFFFFFF.7F236880

  Valid bits:                     00000004   State:          00000000.00000018  SUMMARY_BITS SET_COUNT
  Unit count:                         0001   Unit size:               QUADWORD
  Count of bits set:              00000000
  Summary bitmask:       00000000.00000000

  Unit bitmask:
       ........ ........ ........ .......0   00000000

Subfacility validation flags:     00000000

  Galaxy locks segment:  FFFFFFFF.7F238000   Length:         00000000.00082000
  Shared memory segment: FFFFFFFF.7F2BA000   Length:         00000000.0000A000
  CPU comms segment:     FFFFFFFF.7F2C4000   Length:         00000000.00014000
  CPU info segment:      FFFFFFFF.7F2D8000   Length:         00000000.00002000
  Membership segment:    FFFFFFFF.7F2DA000   Length:         (empty)

MMAP address:            FFFFFFFF.7F234200

  Level count:                        0000   Flags:                       0001  VALID
  Top page count:                 00000053   Virtual size:   00000000.000A6000
  PFN list page count:            00000000   First PFN:               00060000
  Data page count:                00000053

This example shows the overall summary of the Galaxy Management Database.


2. SDA> SHOW GMDB/NODE=0

GMDB: Node ID 00000000 (current instance)
-----------------------------------------

Base address of node block:                  FFFFFFFF.7F236000

  Version:                             1.0   Node name:                 ANDA1A
  Join time:       31-MAR-1999 14:11:09.08   Incarnation:    00000000.00000005
  State:                            MEMBER   Crash_all acknowledge:   00000000
  Validation done:                00000000   Reform done:             00000000

  IP interrupt mask:     00000000.00000000

Little brother:                   00000002   Heartbeat:      00000000.0019EAD1
Big brother:                      00000001   Last watched_node:       00000000

  Watched_node #0:       FFFFFFFF.7F236078   Node watched:            00000002
  Last heartbeat:        00000000.0017C1AD   Miss count:              00000000

This example shows Galaxy Management Database information for the specified instance.


SHOW GSD

Displays information contained in the global section descriptors.

Format

SHOW GSD [/ADDRESS=n | /ALL | /DELETED | /GLXGRP
| /GLXSYS | /GROUP | /SYSTEM]


Parameters

None.

Qualifiers

/ADDRESS=n

Displays a specific global section descriptor entry, given its address.

/ALL

Displays information in all the global section descriptors, that is, the system, group, and deleted global section descriptors, plus the Galaxy group and Galaxy system global section descriptors, if the system or dump being analyzed is a member of an OpenVMS Galaxy system. This qualifier is the default.

/DELETED

Displays information in the deleted (that is, delete pending) global section descriptors.

/GLXGRP

Displays information in the group global section descriptors of a Galaxy system.

/GLXSYS

Displays information in the system global section descriptors of a Galaxy system.

/GROUP

Displays information in the group global section descriptors.

/SYSTEM

Displays information in the system global section descriptors.

Description

The SHOW GSD command displays information that resides in the global section descriptors. Table 4-6 shows the fields and their meaning.

Table 4-6 GSD Fields
Field Meaning
ADDRESS Gives the address of the global section descriptor.
NAME Gives the name of the global section.
GSTX Gives the global section table index.
FLAGS Gives the settings of flags for specified global section, as a hexadecimal number; also displays key flag bits by name.
BASEPFN 1 Gives physical page frame number at which the section starts.
PAGES 1 Gives number of pages (not pagelets) in section.
REFCNT 1 Gives number of times this global section is mapped.


1This field applies only to PFN mapped global sections.

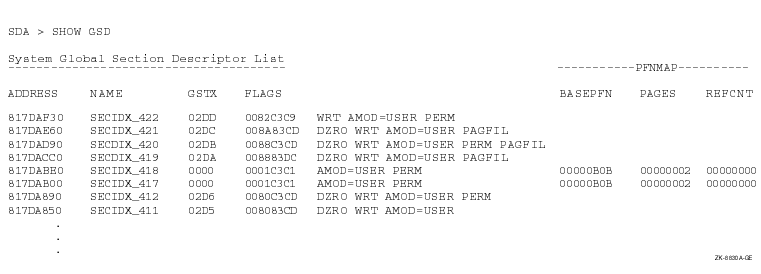

Example



SHOW GST

See SHOW GLOBAL_SECTION_TABLE.


Previous Next Contents Index
