HP OpenVMS System Analysis Tools Manual


Previous Contents Index


SHOW POOL

Displays the contents of the nonpaged dynamic storage pool, the bus-addressable pool, and the paged dynamic storage pool. You can display part or all of each pool. If you do not specify a range or qualifiers, the default is SHOW POOL/ALL. Optionally, you can display the pool history ring buffer and pool statistics.

Format

SHOW POOL [range | /ALL (d)| /BAP | /NONPAGED | /PAGED]
[ /BRIEF | /CHECK | /FREE | /HEADER | /MAXIMUM_BYTES [=n] | /SUMMARY | /TYPE=packet-type | /SUBTYPE=packet-type | /UNUSED ]
[/RING_BUFFER[=address]]
[/STATISTICS [=ALL] [/NONPAGED | /BAP | /PAGED]


Parameter

range

Range of virtual addresses in pool that SDA is to examine. You can express a range using the following syntax:
m:n Range of virtual addresses in pool from m to n
m;n Range of virtual addresses in pool starting at m and continuing for n bytes

Qualifiers

/ALL

Displays the entire contents of the dynamic storage pool, except for those portions that are free (available). This is the default behavior of the SHOW POOL command.

/BAP

Displays the contents of the bus-addressable dynamic storage pool currently in use.

/BRIEF

Displays only general information about the dynamic storage pool and its addresses.

/CHECK

Checks all free packets for POOLCHECK-style corruption, in exactly the same way that the system does when generating a POOLCHECK crash dump.

/FREE

Displays the entire contents, both allocated and free, of the specified region or regions of pool. Use the /FREE qualifier with a range to show all of the used and free pool in the given range.

/HEADER

Displays only the first 16 bytes of each data packet found within the specified region or regions of pool.

/MAXIMUM_BYTES [=n]

Displays only the first n bytes of a pool packet; if you specify /MAXIMUM_BYTES without a value, the default is 64 bytes.

/NONPAGED

Displays the contents of the nonpaged dynamic storage pool currently in use.

/PAGED

Displays the contents of the paged dynamic storage pool currently in use.

/RING_BUFFER [=address]

Displays the contents of the pool history ring buffer if pool checking has been enabled. Entries are displayed in reverse chronological order, that is, most to least recent. If address is specified, the only entries in the ring buffer displayed are for pool blocks that address lies within.

/STATISTICS [= ALL]

Displays usage statistics about each lookaside list and the variable free list. For each lookaside list, its queue header address, packet size, the number of packets, attempts, fails, and deallocations are displayed. (If pool checking is disabled, the attempts, fails, and deallocations are not displayed.) For the variable free list, its queue header address, the number of packets and the size of the smallest and largest packets are displayed. You can further qualify /STATISTICS by using either /NONPAGED, /BAP, or /PAGED to display statistics for a specified pool area. Paged pool only has lookaside lists if the system parameter PAGED_LAL_SIZE has been set to a nonzero value; therefore paged pool lookaside list statistics are only displayed if there has been activity on a list.

If you specify /STATISTICS without the ALL keyword, only active lookaside lists are displayed. Use /STATISTICS = ALL to display all lookaside lists.

/SUBTYPE=packet-type

Displays the packets within the specified region or regions of pool that are of the indicated packet-type. For information on packet-type, see packet-type in the Description section.

/SUMMARY

Displays only an allocation summary for each specified region of pool.

/TYPE=packet-type

Displays the packets within the specified region or regions of pool that are of the indicated packet-type. For information on packet-type, see packet-type in the Description section.

/UNUSED

Displays only variable free packets and lookaside list packets, not used packets.

Description

The SHOW POOL command displays information about the contents of any specified region of dynamic storage pool. There are several distinct display formats, as follows:

The qualifiers used on the SHOW POOL command determine which displays are generated. The default is the pool layout display, followed by the full pool packet display, followed by the pool summary display, these being generated in turn for Nonpaged Pool, Bus-Addressable Pool (if it exists in the system or dump being analyzed), and then Paged Pool.

If you specify a range, type, or subtype, then the pool layout display is not generated, and the pool summary display is a summary only for the range, type, or subtype, and not for the entire pool.

Not all displays are relevant for all pool types. For example, Paged Pool may have no lookaside lists, in which case the Paged Pool statistics display will consist only of variable free pool information. And because there is a single ring buffer for all pools, only one ring buffer display is generated even if all pools are being displayed.

Packet-type

Each packet of pool has a type field (a byte containing a value in the range of 0-255). Many of these type values have names associated that are defined in $DYNDEF in SYS$LIBRARY:LIB.MLB. The packet-type specified in the /TYPE qualifier of the SHOW POOL command can either be the value of the pool type or its associated name.

Some pool packet types have an additional subtype field (also a byte containing a value in the range of 0--255), many of which also have associated names. The packet-type specified in the /SUBTYPE qualifier of the SHOW POOL command can either be the value of the pool type or its associated name. However, if given as a value, a /TYPE qualifier (giving a value or name) must also be specified. Note also that /TYPE and /SUBTYPE are interchangeable if packet-type is given by name. Table 4-19 shows several examples.

Table 4-19 /TYPE and /SUBTYPE Qualifier Examples
/TYPE and /SUBTYPE Qualifiers Meaning
/TYPE = CI All CI packets regardless of subtype
/TYPE = CI_MSG All CI packets with subtype CI_MSG
/TYPE = MISC/SUBTYPE = 120 All MISC packets with subtype 120
/TYPE = 0 or /TYPE = UNKNOWN All packets with an unknown TYPE/SUBTYPE combination


Examples

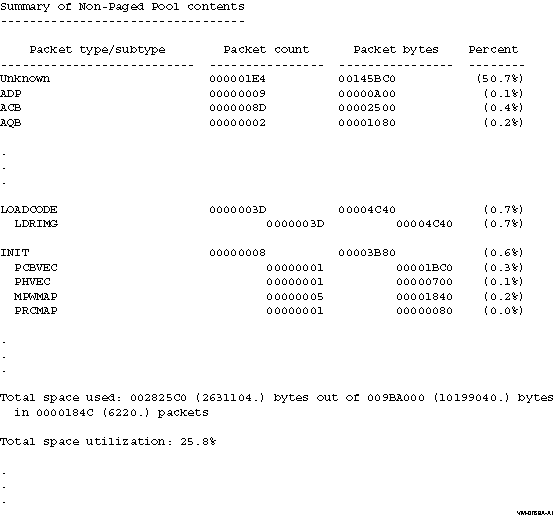

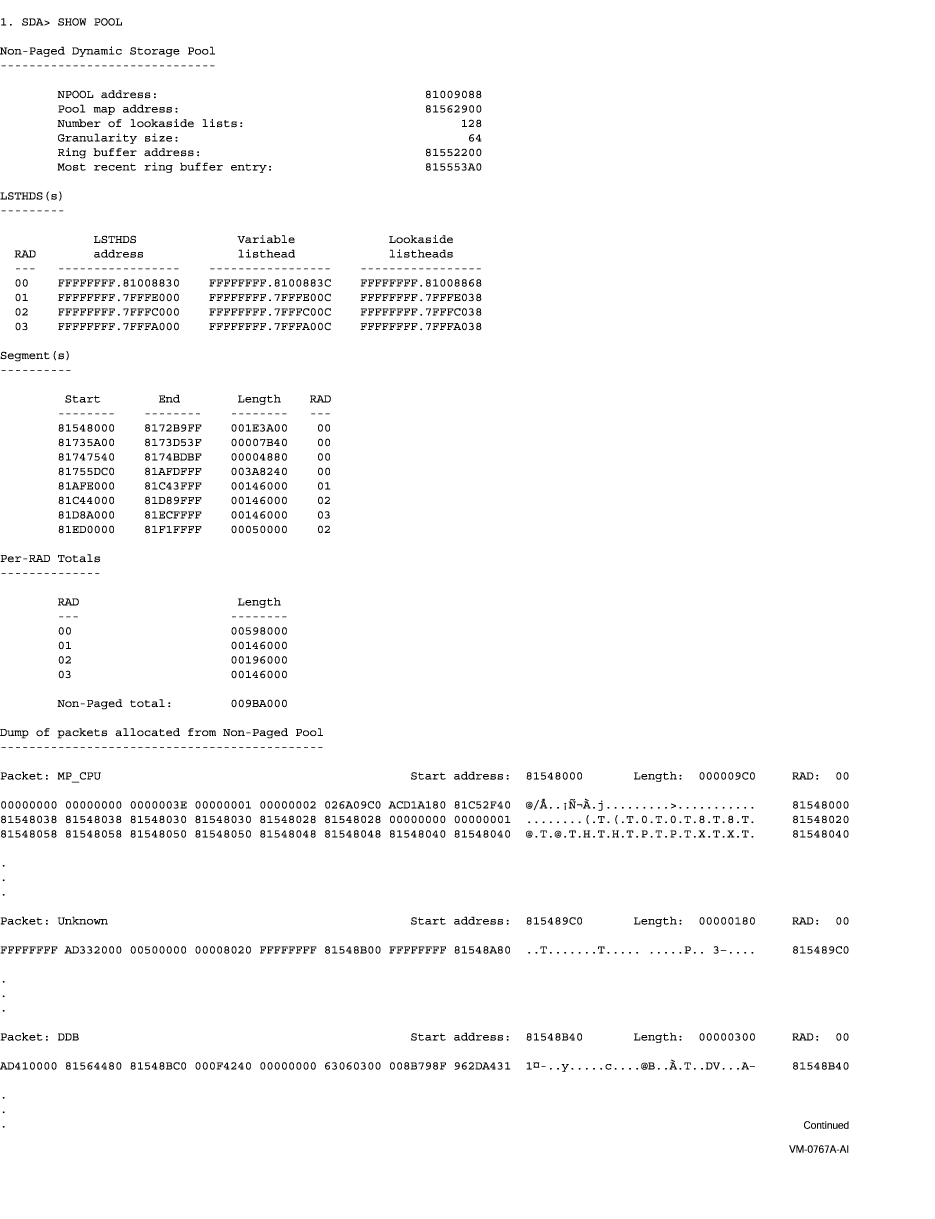

This example shows the Nonpaged Pool portion of the default SHOW POOL display.


2. SDA> SHOW POOL/TYPE=IPC/HEADER 8156E140:815912C0

Non-Paged Dynamic Storage Pool
------------------------------

Dump of packets allocated from Non-Paged Pool
---------------------------------------------

   Packet type/subtype     Start    Length   RAD                    Header contents
-------------------------  -------- -------- ---   -----------------------------------------------------
IPC_TDB                    8156E140 00000040  00   81591180 057B0040 00000040 81591180  ..Y.@...@.{...Y.
IPC_LIST                   815838C0 00009840  00   004C0200 087B9840 0057A740 8158D100  .ÑX.@§W.@.{...L.
IPC_LIST                   8158D100 00001840  00   00040400 087B1840 00570F00 8158E940  @éX...W.@.{.....
IPC_LIST                   8158E940 00002840  00   00140200 087B2840 0056F6C0 81591180  ..Y.ÀöV.@({.....
IPC_TPCB                   81591180 00000080  00   00000000 067B0080 0056CE80 81591200  ..Y..ÎV...{.....
IPC                        81591200 000000C0  00   00000000 007B00C0 0056CE00 815912C0  À.Y..ÎV.À.{.....

Summary of Non-Paged Pool contents
----------------------------------

    Packet type/subtype        Packet count      Packet bytes    Percent
---------------------------  ----------------  ----------------  --------
IPC                          00000006          0000DA40          (100.0%)
  IPC                                00000001          000000C0    (0.3%)
  IPC_TDB                            00000001          00000040    (0.1%)
  IPC_TPCB                           00000001          00000080    (0.2%)
  IPC_LIST                           00000003          0000D8C0   (99.3%)

Total space used: 0000DA40 (55872.) bytes out of 00023180 (143744.) bytes
  in 00000006 (6.) packets

Total space utilization: 38.9%

This example shows how you can specify a pool packet type and a range of addresses.


3. SDA> SHOW POOL/STATISTICS

Non-Paged Pool statistics for RAD 00
------------------------------------

        On-RAD deallocations (all RADs):                    1221036
        Total deallocations (all RADs):                     1347991
        Percentage of on-RAD deallocations:                   90.6%

Variable list statistics
------------------------

        Number of packets on variable list:                       7
        Total bytes on variable list:                       3613376
        Smallest packet on variable list:                       256
        Largest packet on variable list:                    3598016
        Bytes allocated from variable list:                 2140480
        Times pool expanded:                                      0

Lookaside list statistics
-------------------------

                      List   Packets     Packets    Operation   Allocation  Allocation
  Listhead address    size   (approx)    (actual)   sequence #   attempts    failures    Deallocs
  -----------------   ----  ----------  ----------  ----------  ----------  ----------  ----------
  FFFFFFFF.81008870     64           5           5       10057       10549         492       10062
  FFFFFFFF.81008878    128          21          21         366        4881        4515         387
  FFFFFFFF.81008880    192          33          33       27376       27542         166       27409
  FFFFFFFF.81008888    256           4           4        8367        8476         118        8362

   .
   .
   .

This example shows the Nonpaged Pool portion of the SHOW POOL/STATISTICS display.


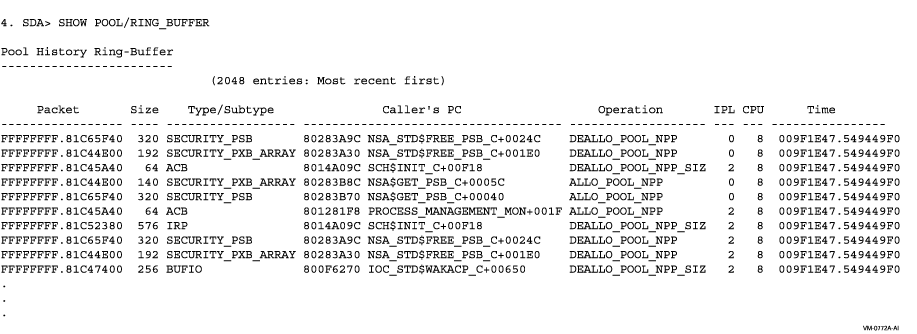

This example shows the output of the SHOW POOL/RING_BUFFER display.


4. SDA> SHOW POOL/PAGED/STATISTICS

Paged Pool statistics
---------------------

Variable list statistics
------------------------
        Number of packets on variable list:                     30
        Total bytes on variable list:                      4778288
        Smallest packet on variable list:                       16
        Largest packet on variable list:                   4777440

Lookaside list statistics
-------------------------
                        List                  Operation
  Listhead address      size     Packets      sequence #
  -----------------     ----    ----------    ----------
         ...
  FFFFFFFF.882119D0       80             0             1
         ...

This example shows the output of paged pool statistics when the system parameter PAGED_LAL_SIZE has been set to a nonzero value.


SHOW PORTS

Displays those portions of the port descriptor table (PDT) that are port independent.

Format

SHOW PORTS [/qualifier[,...]]


Parameters

None.

Qualifiers

/ADDRESS=pdt-address

Displays the specified port descriptor table (PDT). You can find the pdt-address for any active connection on the system in the PDT summary page display of the SHOW PORTS command. This command also defines the symbol PE_PDT. The connection descriptor table (CDT) addresses are also stored in many individual data structures related to System Communications Services (SCS) connections, for instance, in the path block displays of the SHOW CLUSTER/SCS command.

/BUS=bus-address

Displays bus (LAN device) structure data.

/CHANNEL=channel-address

Displays channel (CH) data.

/DEVICE

Displays the network path description for a channel.

/MESSAGE

Displays the message data associated with a virtual circuit (VC).

/NODE=node

Shows only the virtual circuit block associated with the specific node. When you use the /NODE qualifier, you must also specify the address of the PDT using the /ADDRESS qualifier.

/VC=vc-address

Displays the virtual circuit data.

Description

The SHOW PORTS command provides port-independent information from the port descriptor table (PDT) for those CI ports with full System Communications Services (SCS) connections. This information is used by all SCS port drivers.

The SHOW PORTS command also defines symbols for PEDRIVER based on the cluster configuration. These symbols include the following information:

The following symbols are defined automatically:

These symbols equate to system addresses for the corresponding data structures. You can use these symbols, or an address, in SHOW PORTS qualifiers that require an address, as in the following:


SDA >SHOW PORTS/BUS=BUS_ETA

The SHOW PORTS command produces several displays. The initial display, the PDT summary page, lists the PDT address, port type, device name, and driver name for each PDT. Subsequent displays provide information taken from each PDT listed on the summary page.

You can use the /ADDRESS qualifier to the SHOW PORTS command to produce more detailed information about a specific port. The first display of the SHOW PORTS/ADDRESS command duplicates the last display of the SHOW PORTS command, listing information stored in the port's PDT. Subsequent displays list information about the port blocks and virtual circuits associated with the port.


Examples

#1

SDA > SHOW PORTS
OpenVMS Cluster data structures
--------------------------

                  --- PDT Summary Page ---

 PDT Address          Type         Device          Driver Name
 -----------          ----         -------         -----------

  80E2A180             pn          PNA0            SYS$PNDRIVER
  80EC3C70             pe          PEA0            SYS$PEDRIVER

                  --- Port Descriptor Table (PDT) 80E2A180 ---

Type: 09 pn
Characteristics: 0000

Msg Header Size          104  Flags               0000  Message Sends    3648575
Max Xfer Bcnt       00100000  Counter CDRP    00000000  Message Recvs    4026887
Poller Sweep              21  Load Vector     80E2DFCC  Mess Sends NoFP  3020422
Fork Block W.Q.     80E2A270  Load Class            60  Mess Recvs NoFP  3398732
UCB Address         80E23380  Connection W.Q. 80E4BF94  Datagram Sends         0
ADP Address         80E1BF00  Yellow Q.       80E2A2E0  Datagram Recvs         0
Max VC timeout            16  Red Q.          80E2A2E8  Portlock        80E1ED80
SCS Version                2  Disabled Q.     80FABB74  Res Bundle Size      208
                              Port Map        00000001

                  --- Port Descriptor Table (PDT) 80EC3C70 ---

Type: 03 pe
Characteristics: 0000

Msg Header Size           32  Flags               0000  Message Sends     863497
Max Xfer Bcnt       FFFFFFFF  Counter CDRP    00000000  Message Recvs     886284
Poller Sweep              30  Load Vector     80EDBF8C  Mess Sends NoFP   863497
Fork Block W.Q.     80EC3D60  Load Class            10  Mess Recvs NoFP   886284
UCB Address         80EC33C0  Connection W.Q. 80EFF5D4  Datagram Sends         0
ADP Address         00000000  Yellow Q.       80EC3DD0  Datagram Recvs         0
Max VC timeout            16  Red Q.          80EC3DD8  Portlock        00000000
SCS Version                2  Disabled Q.     812E72B4  Res Bundle Size        0
                              Port Map        00000000


This example illustrates the default output of the SHOW PORTS command.

#2

SDA > SHOW PORTS/ADDRESS=80EC3C70
OpenVMS Cluster data structures
--------------------------

                  --- Port Descriptor Table (PDT) 80EC3C70 ---

Type: 03 pe
Characteristics: 0000

Msg Header Size           32  Flags               0000  Message Sends     864796
Max Xfer Bcnt       FFFFFFFF  Counter CDRP    00000000  Message Recvs     887086
Poller Sweep              30  Load Vector     80EDBF8C  Mess Sends NoFP   864796
Fork Block W.Q.     80EC3D60  Load Class            10  Mess Recvs NoFP   887086
UCB Address         80EC33C0  Connection W.Q. 80EFF5D4  Datagram Sends         0
ADP Address         00000000  Yellow Q.       80EC3DD0  Datagram Recvs         0
Max VC timeout            16  Red Q.          80EC3DD8  Portlock        00000000
SCS Version                2  Disabled Q.     812E72B4  Res Bundle Size        0
                              Port Map        00000000
                              Port Map        00000000

                 --- Port Block 80EC4540 ---

Status: 0001 authorize
VC Count: 20
Secs Since Last Zeroed: 77020

SBUF Size             824     LBUF Size         5042     Fork Count     1943885
SBUF Count             28     LBUF Count           1     Refork Count         0
SBUF Max              768     LBUF Max           384     Last Refork   00000000
SBUF Quo               28     LBUF Quo             1     SCS Messages   1154378
SBUF Miss            1871     LBUF Miss         3408     VC Queue Cnt    361349
SBUF Allocs       1676801     LBUF Allocs      28596     TQE Received    770201
SBUFs In Use            2     LBUFs In Use         0     Timer Done      770201
Peak SBUF In Use      101     Peak LBUF In Use    10     RWAITQ Count     30288
SBUF Queue Empty        0     LBUF Queue Empty     0     LDL Buf/Msg      32868
TR SBUF Queue Empty     0     Ticks/Second        10     ACK Delay      1000000
No SBUF for ACK         0     Listen Timeout       8     Hello Interval      30

Bus Addr  Bus     LAN Address    Error Count Last Error   Time of Last Error
--------  ---  ----------------- ----------- ---------- -----------------------
80EC4C00  LCL  00-00-00-00-00-00           0
80EC5400  EXA  08-00-2B-17-CF-92           0
80EC5F40  FXA  08-00-2B-29-E1-40           0

                 --- Virtual Circuit (VC) Summary ---

VC Addr     Node    SCS ID  Lcl ID    Status Summary        Last Event Time
--------  --------  ------  ------  -----------------   -----------------------
80E566C0  ARUSHA     19617  223/DF  open,path            8-FEB-2001 16:01:57.58
80E98840  ETOSHA     19699  222/DE  open,path            8-FEB-2001 16:01:58.41
80E98A80  VMS        19578  221/DD  open,path            8-FEB-2001 16:01:58.11
   .
   .
   .


This example illustrates the output produced by the SHOW PORTS command for the PDT at address 80EC3C70.
