3.3 Magnetic Tape Function Codes

The magnetic tape driver can perform logical, virtual, and physical I/O functions. Foreign-mounted devices do not require privileges to perform logical and virtual I/O requests.

Logical and physical I/O functions to magnetic tape devices allow sequential access to volume storage and require only that the requesting process have direct access to the device. The results of logical and physical I/O operations are unpredictable if an ACP is present.

Virtual I/O functions require intervention by an ACP and must be executed in a prescribed order. The normal order is to create and access a file, write information to that file, and deaccess the file. Subsequently, when you access the file, you read the information and then deaccess the file. You can write over the file when the information it contains is no longer useful and the file has expired.

Any number of bytes (from a minimum of 14 to a maximum of 65,535) can be read from or written into a single block by a single request. The number of bytes itself has no effect on the applicable quotas (direct I/O, buffered I/O, and AST). Reading or writing any number of bytes subtracts the same amount from a quota.

The volume to which a logical or virtual function is directed must be mounted for the function actually to be executed. If it is not, either a “device not mounted” or “invalid volume” status is returned in the I/O status block.

Table 3-4 lists the logical, virtual, and physical magnetic tape I/O functions and their function codes. These functions are described in more detail in the following paragraphs. Chapter 1 describes the QIO level interface to the magnetic tape device ACP. Chapter 10 describes features to improve performance for larger file transfers.

Table 3-4 Magnetic Tape I/O Functions

Function Code

Arguments

Type[1]

Function Modifiers

Function

IO$_ACCESS

P1,[P2],[P3], [P4],[P5]

V

IO$M_CREATE IO$M_ACCESS

Search a tape for a specified file and access the file if found and IO$M_ACCESS is set. If the file is not found and IO$M_CREATE is set, create a file at end-of-tape (EOT) marker.

IO$_ACPCONTROL

P1,[P2],[P3], [P4], [P5]

V

IO$M_DMOUNT

Perform miscellaneous control functions. [2]

IO$_AVAILABLE



P



Clear volume valid bit.

IO$_CREATE

P1,[P2][,[P3], [P4],[P5]

V

IO$M_CREATE IO$M_ACCESS

Create a file.

IO$_DEACCESS

P1,[P2],[P3], [P4],[P5]

V



Deaccess a file and, if the file has been written, write out trailer records.

IO$_DSE[3]



P

IO$M_NOWAIT

Erase a prescribed section of the tape.

IO$_FLUSH



L



Flush the controller cache to tape.

IO$_MODIFY

P1,[P2],[P3], [P4],[P5]

V



Write user labels.

IO$_PACKACK



P



Initialize volume valid bit.

IO$_READLBLK [4]

P1,P2

L

IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_REVERSE[6]

Read logical block.

IO$_READPBLK

P1,P2

P

IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_REVERSE[6]

Read physical block.

IO$_READVBLK

P1,P2

V

IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_REVERSE[6]

Read virtual block.

IO$_REWIND



L

IO$M_INHRETRY IO$M_NOWAIT IO$M_RETENSION

Reposition tape to the beginning-of-tape (BOT) marker.

IO$_REWINDOFF



L

IO$M_INHRETRY IO$M_NOWAIT IO$M_RETENSION

Rewind and unload the tape on the selected drive.

IO$_SENSECHAR

[P1],[P2][7]

P

IO$M_INHRETRY

Sense the tape characteristics and return them in the I/O status block.

IO$_SENSEMODE

[P1],[P2][7]

L

IO$M_INHRETRY

Sense the tape characteristics and return them in the I/O status block.

IO$_SETCHAR

P1,[P2][7]

P



Set tape characteristics for subsequent operations.

IO$_SETMODE

P1,[P2][7]

L



Set tape characteristics for subsequent operations.

IO$_SKIPFILE

P1

L

IO$M_INHRETRY IO$M_NOWAIT[8] IO$M_ALLOWFAST

Skip past a specified number of tape marks in either a forward or reverse direction.

IO$_SKIPRECORD

P1

L

IO$M_INHRETRY IO$M_NOWAIT[8]

Skip past a specified number of blocks in either a forward or reverse direction.

IO$_UNLOAD



L

IO$M_INHRETRY IO$M_NOWAIT

Rewind and unload the tape on the selected drive.

IO$_WRITELBLK

P1,P2

L

IO$M_ERASE[9] IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_INHEXTGAP [10] IO$M_NOWAIT[8]

Write logical block.

IO$_WRITEOF



L

IO$M_INHRETRY IO$M_INHEXTGAP[10] IO$M_NOWAIT

Write an extended interrecord gap followed by a tape mark.

IO$_WRITEPBLK

P1,P2

P

IO$M_ERASE[9] IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_INHEXTGAP [10] IO$M_NOWAIT[8]

Write physical block.

IO$_WRITEVBLK

P1,P2

V

IO$M_DATACHECK[5] IO$M_INHRETRY IO$M_INHEXTGAP [10] IO$M_NOWAIT[8]

Write virtual block.

[1] V = virtual; L = logical; P = physical.

[3] Only for TMSCP and SCSI drives, and TZK50, and TZ30 tape devices.

[4] On OpenVMS Alpha and Integrity systems, P1 supports a 64-bit address.

[5] Not for TS04 and TU80 tape devices.

[6] Not for TUK50 and TQK50 tape devices.

[7] The P1 and P2 arguments for IO$_SENSEMODE and IO$_SENSECHAR and the P2 argument for IO$_SETMODE and IO$_SETCHAR are for TMSCP and SCSI drives only.

[8] Only for RV20, TA90, and TU81-Plus drives.

[9] Takes no arguments; valid only for TMSCP and SCSI drives, and TZK50 and TZ30 tape devices.

[10] Only for TE16, TU45, and TU77 tape devices.



The function-dependent arguments for IO$_CREATE, IO$_ACCESS, IO$_DEACCESS, IO$_MODIFY, IO$_ACPCONTROL are as follows:

  • P1—The address of the file information block (FIB) descriptor.

  • P2—Optional. The address of the file name string descriptor. If specified with IO$_ACCESS, the name identifies the file being sought. If specified with IO$_CREATE, the name is the name of the created file.

  • P3—Optional. The address of the word that is to receive the length of the resultant file name string.

  • P4—Optional. The address of a descriptor for a buffer that is to receive the resultant file name string.

  • P5—Optional. The address of a list of attribute descriptors. If specified with IO$_ACCESS, the attributes of the file are returned to the user. If specified with IO$_CREATE, P5 is the address of the attribute descriptor list for the new file. All file attributes for IO$_MODIFY are ignored.

See Chapter 1 for more information on these functions.

The function-dependent arguments for IO$_READVBLK, IO$_READLBLK, IO$_READPBLK, IO$_WRITEVBLK, IO$_WRITELBLK, and IO$_WRITEPBLK are as follows:

  • P1—The starting virtual address of the buffer that is to receive the data in the case of a read operation; or, in the case of a write operation, the virtual address of the buffer that is to be written on the tape. On OpenVMS Alpha, P1 can be a 64-bit address.

  • P2—The length of the buffer specified by P1.

The function-dependent argument for IO$_SKIPFILE and IO$_SKIPRECORD is:

  • P1—The number of tape marks to skip over in the case of a skip file operation; or, in the case of a skip record operation, the number of blocks to skip over. If a positive number is specified, the tape moves forward; if a negative number is specified, the tape moves in reverse. (The maximum number of tape marks or records that P1 can specify is 32,767.)

Example 3-1 shows the correct method of defining the P1 parameter in an IO$_SKIPRECORD QIO.

Example 3-1 Defining the P1 Parameter in a IO$_SKIPRECORD QIO

.
.
.

TAPE_CHAN:
        .WORD    0
IOSB:   .WORD    0
        .WORD    0
        .LONG    0
DEVICE: .ASCID   /$127$MUA0:/
RECORD: .LONG    2000
;
        .PSECT   CODE,EXE,NOWRT
;
        .ENTRY   MT_IO,^M
;
        $ASSIGN_S    CHAN=TAPE_CHAN,-
                 DEVNAM=DEVICE
        BLBC     R0,EXIT_ERROR
;
        $QIOW_S  CHAN=TAPE_CHAN,-
                 FUNC=#IO$_SKIPRECORD,-
                 IOSB=IOSB,-
                 P1=RECORD
        BLBC     R0,EXIT_ERROR
        $EXIT_S  R0
.
.
.

EXIT_ERROR:
        $EXIT_S  R0
        .END     MT_IO

3.3.1 Read

The read function reads data into a specified buffer in the forward or reverse direction starting at the next block position.

The operating system provides the following read function codes:

  • IO$_READVBLK—Read virtual block

  • IO$_READLBLK—Read logical block

  • IO$_READPBLK—Read physical block

If a read virtual block function is directed to a volume that is mounted foreign, it is converted to a read logical block function. If a read virtual block function is directed to a volume that is mounted structured, the volume is handled the same way as a file-structured device.

Two function-dependent arguments are used with these codes: P1 and P2. These arguments are described in “Magnetic Tape Function Codes”.

If the read function code includes the reverse function modifier (IO$M_REVERSE), the drive reads the tape in the reverse direction instead of the forward direction. IO$M_REVERSE cannot be specified for the TUK50 and TQK50 devices.

The data check function modifier (IO$M_DATACHECK) can be used with all read functions. If this modifier is specified, a data check operation is performed after the read operation completes. (The drive performs a space reverse or space forward between the read and data check operations.) A data check operation is also performed if the volume that was read, or the volume on which the file resides (virtual read), has the characteristic “data check all reads.” Furthermore, a data check is performed after a virtual read if the file has the attribute “data check on read.” The TS04 and TU80 tape drives do not support the data check function.

For read physical block and read logical block functions, the drive returns the status SS$_NORMAL (not end-of-tape status) if either of the following conditions occurs and no other error condition exists:

  • The tape is positioned past the end-of-tape (EOT) position at the start of the read (forward or reverse) operation.

  • The tape enters the EOT region as a result of the read (forward) operation.

The transferred byte count reflects the actual number of bytes read.

If the drive reads a tape mark during a logical or physical read operation in either the forward or reverse direction, any of the following conditions can return an end-of-file (EOF) status:

  • The tape is positioned past the EOT position at the start of the read operation.

  • The tape enters the EOT region as a result of the read operation.

  • The drive reads a tape mark as a result of a read operation but the tape does not enter the EOT region.

An EOF status is also returned if the drive attempts a read operation in the reverse direction when the tape is positioned at the beginning-of-tape (BOT) marker. All conditions that cause an EOF status result in a transferred byte count of zero.

If the drive attempts to read a block that is larger than the specified memory buffer during a logical or physical read operation, a data overrun status is returned. The buffer receives only the first part of the block. On a read in the reverse direction (on drives other than the TK50 and TZ30) the buffer receives only the latter part of the block. The transferred byte count is equal to the actual size of the block. Read reverse starts at the top of the buffer. Therefore, the start of the block is at P1 plus P2 minus the length read. The TUK50 and TZ30 cannot actually perform read reverse operations; they must be simulated by the driver. Therefore, the data returned are those that would have been returned had the block been read in the forward direction.

It is not possible to read a block that is less than 14 bytes in length. Records that contain less than 14 bytes are termed “noise blocks” and are completely ignored by the driver.

3.3.2 Write

The write function writes data from a specified buffer to tape in the forward direction starting at the next block position.

The operating system provides the following write function codes:

  • IO$_WRITEVBLK—Write virtual block

  • IO$_WRITELBLK—Write logical block

  • IO$_WRITEPBLK—Write physical block

If a write virtual block function is directed to a volume that is mounted foreign, the function is converted to a write logical block. If a write virtual block function is directed to a volume that is mounted structured, the volume is handled the same way as a file-structured device.

Two function-dependent arguments are used with these codes: P1 and P2. These arguments are described in “Magnetic Tape Function Codes”.

The IO$M_ERASE function modifier can be used with the IO$_WRITELBLK and IO$_WRITEPBLK function codes to erase a user-selected part of a tape. This modifier propagates an erase pattern of all zeros from the current tape position to 10 feet past the EOT position and then rewinds to the BOT marker.

The data check function modifier (IO$M_DATACHECK) can be used with all write functions. If this modifier is specified, a data check operation is performed after the write operation completes. (The drive performs a space reverse between the write and the data check operations.) The driver forces a data check operation when an error occurs during a write operation. This ensures that the data can be reread. A data check operation is also performed if the volume written, or the volume on which the file resides (virtual write), has the characteristic “data check all writes.” Furthermore, a data check is performed after a virtual write if the file has the attribute “data check on write.” The TS04 and TU80 tape drives do not support the data check function.

If the IO$M_NOWAIT function modifier is specified, write-back caching is enabled on a per-command basis. IO$M_NOWAIT is applicable only to TU81-Plus drives.

If the drive performs a write physical block or a write logical block operation, an EOT status is returned if either of the following conditions occurs and no other error condition exists:

  • The tape is positioned past the EOT position at the start of the write operation.

  • The tape enters the EOT region as a result of the write operation.

The transferred byte count reflects the size of the block written. It is not possible to write a block less than 14 bytes in length. An attempt to do so results in the return of a bad parameter status for the QIO request.

3.3.3 Rewind

The rewind function repositions the tape to the beginning-of-tape (BOT) marker.

If the IO$M_NOWAIT function modifier is specified, the I/O operation is completed when the rewind is initiated. Otherwise, I/O completion does not occur until the tape is positioned at the BOT marker.

If the IO$M_RETENSION function modifier is specified and the device supports the retention operation, the rewind function positions the tape to the physical-end-of-tape (EOT) marker and rewinds the tape to the BOT marker. If the tape does not support the IO$M_RETENSION modifier, a SS$_ILLIOFUNC error is returned.

IO$_REWIND has no function-dependent arguments.

3.3.4 Skip File

The skip file function (IO$_SKIPFILE) skips past a specified number of tape marks in either a forward or reverse direction. A function-dependent argument (P1) is provided to specify the number of tape marks to be skipped, as shown in Figure 3-1. If a positive file count is specified, the tape moves forward; if a negative file count is specified, the tape moves in reverse. (The actual number of files skipped is returned as an unsigned number in the I/O status block.)

Figure 3-1 IO$_SKIPFILE Argument

IO$_SKIPFILE Argument

Only tape marks (when the tape moves in either direction) and the BOT marker (when the tape moves in reverse) are counted during a skip file operation. The BOT marker terminates a skip file function in the reverse direction. The end-of-tape (EOT) marker does not terminate a skip file function in either the forward or reverse direction. A negative skip file function leaves the tape positioned just before a tape mark (at the end of a file) unless the BOT marker is encountered, whereas a positive skip file function leaves the tape positioned just past the tape mark.

A skip file function in the forward direction can also be terminated if two consecutive tape marks are encountered. “Logical End-of-Volume (EOV) Detection” describes this feature.

The IO$M_ALLOWFAST modifier can be used with the IO$_SKIPFILE function to provide better performance on SCSI tape drives that support the SCSI space-by-file-marks command and the SCSI read position command.

When the IO$M_ALLOWFAST modifier is specified, a tape operation skips over consecutive tape marks that are not immediately before the end-of-data position on the medium. However, if two consecutive tape marks are detected immediately before the end-of-data position on the tape, the tape is positioned between these two tape marks and the SS$_ENDOFVOLUME status is returned.

The IO$M_ALLOWFAST modifier allows a SCSI tape subsystem to use the optimized IO$_SKIPFILE if it is capable. If a specific tape device does not adequately support the optimized IO$_SKIPFILE that uses the SCSI space-by-file-marks command, the tape subsystem uses the standard space-by-records algorithm.

3.3.5 Skip Record

The skip record function skips past a specified number of physical tape blocks in either a forward or reverse direction. A device- or function-dependent argument (P1) specifies the number of blocks to skip, as shown in Figure 3-2. If a positive block count is specified, the tape moves forward; if a negative block count is specified, the tape moves in reverse. The actual number of blocks skipped is returned as an unsigned number in the I/O status block. If a tape mark is detected, the count is the number of blocks skipped, plus 1 (forward tape motion) or minus 1 (reverse tape motion).

Figure 3-2 IO$_SKIPRECORD Argument

IO$_SKIPRECORD Argument

A skip record operation is terminated by the end-of-file (EOF) marker when the tape moves in either direction, by the BOT marker when the tape moves in reverse, and by the EOT marker when the tape moves forward.

A skip record function in the forward direction can also be terminated if the tape was originally positioned between two tape marks. “Logical End-of-Volume (EOV) Detection” describes this feature.

3.3.5.1 Logical End-of-Volume (EOV) Detection

A skip file or skip record operation that uses the standard space-by-records algorithm is terminated when two consecutive tape marks are encountered when the tape moves in the forward direction. After the operation terminates, the tape remains positioned between the two tape marks that were detected. The I/O status block (IOSB) returns the status SS$_ENDOFVOLUME and the actual number of files (or records) skipped during the operation prior to the detection of the second tape mark. The skip count is returned in the high-order word of the first longword of the IOSB.

An optimized skip file that uses the IO$M_ALLOWFAST modifier is terminated when the end-of-data position is encountered. If two consecutive tape marks immediately precede the end-of-data position on the tape, the tape is positioned between these two tape marks. The SS$_ENDOFVOLUME status and the skip count are returned in the IOSB.

Subsequent skip record (or skip file) requests terminate immediately when the tape is positioned between the two tape marks, producing no net tape movement and returning the SS$_ENDOFVOLUME status with a skip count of zero.

To move the tape beyond the second tape mark, you must employ another I/O function. For example, the IO$_READLBLK function, if issued after receipt of the SS$_ENDOFVOLUME status return, terminates with an SS$_ENDOFFILE status and with the tape positioned just past the second tape mark. From this new position, other skip functions could be issued to produce forward tape motion (assuming there is additional data on the tape).

If three consecutive tape marks are encountered during a skip file function, you must issue two IO$_READLBLK functions, the first to get the SS$_ENDOFFILE return and the second to position the tape past the third tape mark.

3.3.6 Write End-of-File

The write end-of-file (EOF) function writes an extended interrecord gap (of approximately 3 inches for nonreturn-to-zero-inverted (NRZI) recording and 1.5 inches for phase-encoded (PE) recording) followed by a tape mark. No device- or function-dependent arguments are used with IO$_WRITEOF.

An end-of-tape (EOT) status is returned in the I/O status block if either of the following conditions is present and no other error conditions occur:

  • A write EOF function is executed while the tape is positioned past the EOT marker.

  • A write EOF function causes the tape position to enter the EOT region.

3.3.7 Rewind Offline

The rewind offline function rewinds and unloads the tape on the selected drive.

The I/O operation is completed as soon as the tape movement is initiated. The actual finish of the mechanical rewind or unload operation may occur long after the I/O operation completes.

If the IO$M_RETENSION function modifier is specified and the device supports the retention operation, the rewind offline function positions the tape to the physical end-of-tape (EOT) marker and rewinds the tape to the beginning-of-tape (BOT) marker. If the tape does not support the IO$M_RETENSION modifier, a SS$_ILLIOFUNC error is returned.

No device- or function-dependent arguments are used with IO$_REWINDOFF.

3.3.8 Unload

The unload function rewinds and unloads the tape on the selected drive. The unload function is functionally the same as the rewind offline function. If the IO$M_NOWAIT function modifier is specified, the I/O operation is completed as soon as the rewind operation is initiated. No device- or function-dependent arguments are used with IO$_UNLOAD.

3.3.9 Sense Tape Mode

The sense tape mode function senses the current device-dependent and extended device characteristics (see Tables Table 3-2 and Table 3-4).

The operating system provides the following function codes:

  • IO$_SENSEMODE—Sense mode

  • IO$_SENSECHAR—Sense characteristics

Sense mode requires logical I/O privilege. Sense characteristics requires physical I/O privilege. For TMSCP and SCSI drives, the sense mode function returns magnetic tape information in a user-supplied buffer, which is specified by the following function-dependent arguments:

  • P1—Optional. Address of a user-supplied buffer.

  • P2—Optional. Length of a user-supplied buffer.

If P1 is not zero, the sense mode buffer returns the tape characteristics. (If P2=8, the second longword of the buffer contains the device-dependent characteristics. If P2=12, the second longword contains the device-dependent characteristics and the third longword contains the tape densities that the drive supports and the extended tape characteristics.) The extended characteristics are identical to the information returned by DVI$_DEVDEPEND2 (see Table 3-4). Figure 3-3 shows the contents of the P1 buffer.

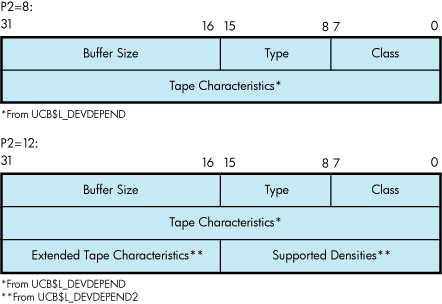

Figure 3-3 Sense Mode P1 Buffer

Sense Mode P1 Buffer

3.3.10 Set Mode

Set mode operations affect the operation and characteristics of the associated magnetic tape device. The operating system defines two types of set mode functions: set mode and set characteristics.

Set mode requires logical I/O privilege. Set characteristics requires physical I/O privilege. The following function codes are provided:

  • IO$_SETMODE—Set mode

  • IO$_SETCHAR—Set characteristics

These functions take the following device- or function-dependent arguments (other arguments are ignored):

  • P1—The address of a characteristics buffer.

  • P2—Optional. The length of the characteristics buffer. The default is 8 bytes. If a length of 12 bytes is specified, the third longword (which is for TMSCP and SCSI drives only) specifies the extended tape characteristics.

Figure 3-4 shows the P1 characteristics buffer for IO$_SETMODE. Figure 3-5 shows the same buffer for IO$_SETCHAR.

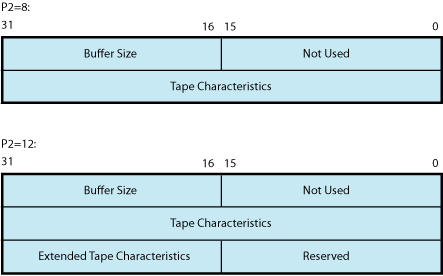

Figure 3-4 Set Mode Characteristics Buffer for IO$_SETMODE

Set Mode Characteristics Buffer for IO$_SETMODE

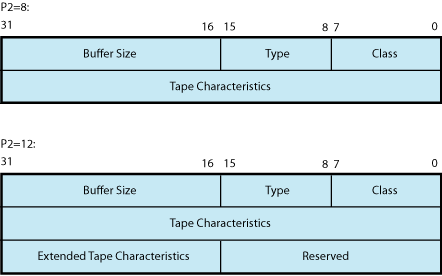

Figure 3-5 Set Mode Characteristics Buffer for IO$_SETCHAR

Set Mode Characteristics Buffer for IO$_SETCHAR

The first longword of the P1 buffer for the set characteristics function contains information on device class and type, and the buffer size. The device class for tapes is DC$_TAPE.

The $DCDEF macro defines the device type and class names. The buffer size is the default to be used for tape transfers (this default is normally 2048 bytes).

The second longword of the P1 buffer for both the set mode and set characteristics functions contains the tape characteristics. Table 3-5 lists the tape characteristics and their meanings. The $MTDEF macro defines the symbols listed. If P2=12, the third longword contains the extended tape characteristics for TMSCP and SCSI drives, which are listed in Table 3-6. The extended tape characteristics are defined by the $MT2DEF macro and are identical to the information returned by DVI$_DEVDEPEND2.

Table 3-5 Set Mode and Set Characteristics Magnetic Tape Characteristics

Characteristic[1]

Meaning



MT$M_PARITY

If set, all data transfers are performed with even parity. If clear (normal case), all data transfers are performed with odd parity. Even parity can be selected only for nonreturn-to-zero-inverted recording at 800 bits/inch. Even parity cannot be selected for phase-encoded recording (tape density is MT$K_PE_1600) or group-coded recording (tape density is MT$K_GCR_6250) and is ignored.

MT$V_DENSITY MT$S_DENSITY

Specifies the density at which all data transfers are performed. Tape density can be set only when the selected drive's tape position is at the BOT marker. Possible density values are as follows:



MT$K_DEFAULT

Default system density.



MT$K_GCR_6250

Group-coded recording, 6250 bits/inch.



MT$K_PE_1600

Phase-encoded recording, 1600 bits/inch.



MT$K_NRZI_800

Nonreturn-to-zero-inverted recording, 800 bits/inch.



MT$K_BLK_833

Cartridge block mode recording.[2]

MT$V_FORMAT MT$S_FORMAT

Specifies the format in which all data transfers are performed. Possible format values are as follows:



MT$K_DEFAULT

Default system format.



MT$K_NORMAL11

Normal PDP-11 format. Data bytes are recorded sequentially on tape with each byte occupying exactly one frame.

[1] Defined by the $MTDEF macro.

[2] Only for the TK50 and TZ30.



Table 3-6 Extended Device Characteristics for Tape Devices

Characteristic[1]

Meaning

MT2$V_WBC_ENABLEEnable write-back caching on a per-unit basis.
MT2$V_RDC_DISABLEDisable read caching on a per-unit basis.

[1] Defined by the $MT2DEF macro. Only for TU81-Plus drives.



Application programs that change specific magnetic tape characteristics should perform the following steps, as shown in “Magnetic Tape Drive Programming Examples”:

  1. Use the IO$_SENSEMODE function to read the current characteristics.

  2. Modify the characteristics.

  3. Use the set mode function to write back the results.

Failure to follow this sequence results in clearing any previously set characteristic.

3.3.11 Multiple Tape Density Support

As of Version 7.2, OpenVMS Alpha permits the selection of any density and any compression supported by a tape drive. You can write to tapes using any density and any compression algorithm supported by the tape drive. Exchanging tapes among tape drives with different default settings for density or compression is much easier with this enhancement.

Multiple tape density support is provided by changes in the QIO interface. These changes are guided by device/density tables in system libraries and the corresponding class drivers. This enhancement functions with tape drives that support multiple tape density switching via the standard MODE_SENSE and MODE_SELECT mechanisms. All density and compression options available for a given drive is accessible by the system. The QIO interface uses MT3DEF to identify the drives, and to match them with their density and compression code options. Some newer drives may not be included in the module.

NOTE: After the media has been initialized to a specific density, it retains that density until the media is initialized to a different density. For example, if an HP media has been initialized with TK86 density, the DCL command MOUNT/DENSITY=TK85 will have no effect because the media is initialized at TK86 density. Likewise, BACKUP/DENSITY=TK85 will have no effect if the media is initialized at TK86 density. However, BACKUP/DENS=TK85/INITIALIZE initializes the media to TK85 density.

These enhancements allow IO$_SETMODE and IO$_SENSEMODE to function with most density values and a wider variety of drives. The system management utilities BACKUP and MOUNT take advantage of this added functionality. For more information about multiple tape density support with these utilities, see the HP OpenVMS System Management Utilities Reference Manual. For more information about enhancements in INITIALIZE, see the HP OpenVMS DCL Dictionary.

3.3.12 Data Security Erase

The data security erase function erases all data from the current position of the volume to 10 feet beyond the EOT reflective strip, and then rewinds the tape to the BOT marker. It is a physical I/O function and requires the access privilege necessary to perform physical I/O functions. The following function code is provided:

  • IO$_DSE

If the function is issued when a tape is positioned at the BOT marker, all data on the tape is erased.

IO$_DSE takes no device- or function-dependent arguments.

3.3.13 Modify

Specifying the ATR$C_USERLABEL or ATR$C_ENDLBLAST attributes with IO$_MODIFY results in a bad attribute error. If any other attributes are specified, the IO$_MODIFY function is treated as a no-operation; that is, the function returns success, but no action is performed.

3.3.14 Pack Acknowledge

The pack acknowledge function sets the volume valid bit for all magnetic tape devices. It is a physical I/O function and requires the access privilege to perform physical I/O. The following function code is provided:

  • IO$_PACKACK

IO$_PACKACK must be the first function issued when a volume is placed in a magnetic tape drive. IO$_PACKACK is issued automatically when the DCL commands INITIALIZE or MOUNT are issued.

3.3.15 Available

The available function clears the volume valid bit for all magnetic tape drives, that is, it reverses the function performed by the pack acknowledge function (see the “Pack Acknowledge”). A rewind of the tape is performed (applicable to all tape drives). No unload function is issued to the drive. The following function code is provided:

  • IO$_AVAILABLE

This function takes no function-dependent arguments.

3.3.16 Flush

The flush function is used to ensure that all previously issued cached commands have fully completed. Normally, hosts use this function to establish or maintain synchronization with write-back cached commands issued to the specified tape unit. The I/O request does not complete until all cached data is written successfully to the media in the exact order that the user specified.

  • IO$_FLUSH

This function code takes no function-dependent arguments.
