Displays information about all lock management locks in the system, or about a specified lock.
SHOW LOCKS [ lock-id
| /ADDRESS=n
| /ALL (d)
| /BRIEF
| /BLOCKING
| /CACHED
| /CONVERT
| /GRANTED
| /NAME=name
| /STATUS=(keyword[,...])
| /WAITING ] or SHOW LOCKS {/POOL | /SUMMARY}
lock-id
Name of a specific lock.
/ADDRESS=n
Displays a specific lock, given the address of the lock block./ALL
Lists all locks that exist in the system. This is the default behavior of the SHOW LOCKS command./BLOCKING
Displays only the locks that have a blocking AST specified or attached./BRIEF
Displays a single line of information for each lock./CACHED
Displays locks that are no longer valid. The memory for these locks is saved so that later requests for locks can use them. Cached locks are not displayed in the other SHOW LOCKS commands./CONVERT
Displays only the locks that are on the conversion queue./GRANTED
Displays only the locks that are on the granted queue./NAME=name
Displays all locks on the specified resource. Name can be the actual name of the resource, if it only contains uppercase letters, numerals, the underscore (_), dollar sign, colon (:), and some other printable characters, as for example, /NAME=MY_LOCK. If it contains other printable characters (including lowercase letters), you may need to enclose the name in quotation marks (""), as for example, /NAME="My_Lock/47". If it contains nonprintable characters, you can specify the name as a comma-separated list comprised of strings and hexadecimal numbers. For example, /NAME=("My_Lock",0C00,"/47") would specify the name "My_Lock<NUL><FF>/47". The hexadecimal number can be no more than 8 digits (4 bytes) in length. Nonprintable sequences of more than 4 bytes must be split into multiple hexadecimal numbers. The maximum length of a resource name is 32 characters./POOL
Displays the lock manager's poolzone information, which contains the lock blocks (LKB) and resource blocks (RSB)./STATUS=(keyword[,...])
Displays only the locks that have the specified status bits set in the LKB$L_STATUS field. If you specify only one keyword, you can omit the parentheses. Status keywords are as follows:
Keyword Meaning 2PC_IP Indicates a two-phase operation in progress 2PC_PEND Indicates a two-phase operation pending ASYNC Completes request asynchronously BLKASTFLG Specifies a blocking AST BLKASTQED Indicates a blocking AST is queued BRL Indicates a byte range lock CACHED Indicates a lock block in cache CVTSUBRNG Indicates a sub-range convert request CVTTOSYS Converts back to system-owned lock DBLKAST Delivers a blocking AST DCPLAST Delivers a completion AST DPC Indicates a delete pending cache lock FLOCK Indicates a fork lock GRSUBRNG Grants sub-range lock IP Indicates operation in process MSTCPY Indicates a lock block is a master copy NEWSUBRNG Indicates a new sub-range request NOQUOTA Does not charge quota PCACHED Indicates lock block needs to be cached PROTECT Indicates a protected lock RESEND Resends during failover RM_RBRQD Requires remaster rebuild RNGBLK Specifies a range block RNGCHG Indicates a changing range TIMOUTQ Indicates lock block is on timeout queue VALBLKRD Indicates read access to lock value block VALBLKWRT Indicates write access to lock value block WASSYSOWN Indicates was system-owned lock /SUMMARY
Displays summary data and performance counters./WAITING
Displays only the waiting locks.
The SHOW LOCKS command displays the information described in Table 4-7 for each lock management lock in the system, or for the lock indicated by lock-id, an address or name. (Use the SHOW SPINLOCKS command to display information about spinlocks.) You can obtain a similar display for the locks owned by a specific process by issuing the appropriate SHOW PROCESS/LOCKS command. See the HP OpenVMS Programming Concepts Manual for additional information.You can display information about the resource to which a lock is queued by issuing the SHOW RESOURCES command specifying the resource's lock-id.
Table 4-7 Contents of the SHOW LOCKS and SHOW PROCESS/LOCKS Displays Display Element Description Process Index 1 Index in the PCB array to a pointer to the process control block (PCB) of the process that owns the lock. Name 1 Name of the process that owns the lock. Extended PID 1 Clusterwide identification of the process that owns the lock. Lock ID Identification of the lock. PID Systemwide identification of the lock. Flags Information specified in the request for the lock. Par. ID Identification of the lock's parent lock. Sublocks Count of the locks that the lock owns. LKB Address of the lock block (LKB). If a blocking AST has been enabled for this lock, the notation "BLKAST" appears next to the LKB address. Priority The lock priority. Granted at Lock mode at which the lock was granted. RSB Address of the resource block. Resource Dump of the resource name. The two leftmost columns of the dump show its contents as hexadecimal values, the least significant byte being represented by the rightmost two digits. The rightmost column represents its contents as ASCII text, the least significant byte being represented by the leftmost character. Status Status of the lock, information used internally by the lock manager. Length Length of the resource name. Mode Processor access mode of the namespace in which the resource block (RSB) associated with the lock resides. Owner Owner of the resource. Certain resources owned by the operating system list "System" as the owner. Resources owned by a group have the number (in octal) of the owning group in this field. Copy Indication of whether the lock is mastered on the local system or is a process copy.
| #1 |
|---|
SDA> SHOW LOCKS
Lock Database
-------------
Lock id: 3E000002 PID: 00000000 Flags: CONVERT NOQUEUE SYNCSTS
Par. id: 00000000 SUBLCKs: 0 NOQUOTA CVTSYS
LKB: FFFFFFFF.7DF48150 BLKAST: 81107278
Priority: 0000
Granted at CR 00000000-FFFFFFFF
RSB: FFFFFFFF.7DF68D50
Resource: 494D6224 42313146 F11B$bMI Status: NOQUOTA VALBLKR VALBLKW
Length 18 4D55445F 5944414C LADY_DUM
Kernel mode 00000000 00005350 PS......
System 00000000 00000000 ........
Local copy
Lock Database
-------------
Lock id: 3F000003 PID: 00000000 Flags: VALBLK CONVERT SYNCSTS
Par. id: 0100007A SUBLCKs: 0 CVTSYS
LKB: FFFFFFFF.7DF48250 BLKAST: 00000000
Priority: 0000
Granted at NL 00000000-FFFFFFFF
RSB: FFFFFFFF.7DF51D50
Resource: 01F77324 42313146 F11B$s÷. Status: NOQUOTA VALBLKR VALBLKW
Length 10 00000000 00000000 ........
Kernel mode 00000000 00000000 ........
System 00000000 00000000 ........
Local copy
Lock Database
-------------
Lock id: 0A000004 PID: 0001000F Flags: VALBLK CONVERT SYNCSTS
Par. id: 00000000 SUBLCKs: 0 SYSTEM NODLCKW NODLCKB
LKB: FFFFFFFF.7DF48350 BLKAST: 81190420 QUECVT
Priority: 0000
Granted at EX 00000000-FFFFFFFF
RSB: FFFFFFFF.7DF50850
Resource: 004F0FDF 24534D52 RMS$ß.O. Status: VALBLKR VALBLKW
Length 26 5F313039 58020000 ...X901_
Exec. mode 00202020 204C354B K5L .
System 00000000 00000000 ........
Local copy
.
.
.
|
| #2 |
|---|
SDA> SHOW RESOURCES/LOCKID=0A000004
Resource Database
-----------------
RSB: FFFFFFFF.7DF50850 GGMODE: EX Status: DIRENTR VALID
Parent RSB: 00000000.00000000 CGMODE: EX
Sub-RSB count: 0 FGMODE: EX
Lock Count: 1 RQSEQNM: 0000
BLKAST count: 1 CSID: 00000000 (MILADY)
Resource: 004F0FDF 24534D52 RMS$ß.O. Valblk: 00000000 00000000
Length 26 5F313039 58020000 ...X901_ 00000000 00000000
Exec. mode 00202020 204C354B K5L .
System 00000000 00000000 ........ Seqnum: 00000000
Granted queue (Lock ID / Gr mode / Range):
0A000004 EX 00000000-FFFFFFFF
Conversion queue (Lock ID / Gr mode / Range -> Rq mode / Range):
*** EMPTY QUEUE ***
Waiting queue (Lock ID / Rq mode / Range):
*** EMPTY QUEUE ***
|
This SDA session shows the output of the SHOW LOCKS command for several locks. The SHOW RESOURCES command, executed for the last displayed lock, verifies that the lock is in the resource's granted queue. (See Table 4-26 for a full explanation of the contents of the display of the SHOW RESOURCES command.)

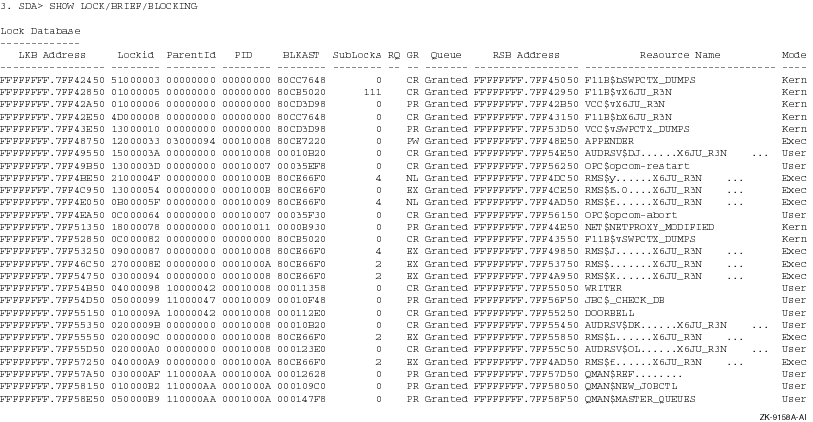

This example shows the brief display for all locks with a blocking AST.
