Common Desktop Environment: Internationalization Programmer's Guide
Contents of Chapter:
- Interchange Concepts
-
- iconv Interface
-
- Stateful and Stateless Conversions
-
- Simple Text Basic Interchange
-
- iconv Conversion Functions
-
- X Interclient (ICCCM) Conversion Functions
-
- Window Titles
-
- Mail Basic Interchange
-
- Encodings and Code Sets
-
- Code Set Strategy
-
- Code Set Structure
-
- ISO EUC Code Sets
-
This chapter discusses tasks related to internationalization and distributed networks.
This section describes the way 8-bit user names and 8-bit data can be
communicated on a network for communications utilities, such as ftp, mail, or interclient communication between the desktop clients.
There are three primary considerations for communicating data:
- Sender's code set and the receiver's code set.
- Whether the communications protocol allows 8-bit data or is limited to 7-bit coded data (for example, the Japanese JUNET passes Japanese Industrial Standard (JIS) coded data over 7-bit protocols).
- Type of interchange encoding available, per protocol rules. The actual conversion needed is dependent on the specific protocol used.
If the remote host uses the same code set as the local host, the following is true:
- If the protocol allows 8-bit data, no conversions are needed.
- If the protocol allows only 7-bit data, a method is needed to map the 8-bit code points to 7-bit ASCII values. This could be accomplished using the iconv
framework and one of the following types of 7-bit encoded methods:
- Map 8-bit data as specified in the POSIX.2 specification for uuencode and uudecode algorithms.
- Optionally, the 8-bit data may be mapped to a 7-bit interchange encoding as defined by the protocol; for example, 7-bit ISO2022 in Xlib or base64 in Multipurpose Internet Message Extensions (MIME).
If the remote host's code set is different from that of the local host, the following two cases may apply. The conversion needed is dependent on the specific protocol used.
- If the protocol allows 8-bit data, the protocol will need to specify which side does the
iconv
conversion and to specify the encoding on the wire. In some protocols, an 8-bit interchange encoding is recommended that is capable of encoding all possible code sets and identifying character repertoire.
- If the protocol allows only 7-bit data, a 7-bit interchange encoding is needed, as is the identifying character repertoire.
In a network environment, the code sets of the communicating systems and the protocols of communication determine the transformation of user-specified data so that it can be sent to the remote system in a meaningful way. The user data (not user names) may need to be transformed from the sender's code set to the receiver's code set, or 8-bit data may need to be transformed into a 7-bit form to conform to protocols. A uniform interface is needed to accomplish this.
In the following examples, using the
iconv
interface is illustrated by explaining how to use iconv_open()
,
iconv(),
and iconv_close()
. To do the conversion,
iconv_open()
must be followed by
iconv()
. The terms 7-bit interchange
and 8-bit interchange
are used to refer to any interchange encoding used for 7-bit and 8-bit data, respectively.
Sender and Receiver Use the Same Code Sets:
- If the protocol allows 8-bit data, use 8-bit data because the same code set is being used. No conversion is needed.
- If the protocol allows only 7-bit data, use
iconv
:
- Sender
cd = iconv_open(locale_codeset, uuencoded );
- Receiver
cd = iconv_open("uucode", locale_codeset );
Sender and Receiver Use Different Code Sets:
- If the protocol allows 8-bit data:
- Sender
cd = iconv_open(locale_codeset,8-bitinterchange );
- Receiver
cd = iconv_open(8-bitinterchange, locale_codeset );
- If the protocol allows only 7-bit data, do the following:
- Sender
cd = iconv_open(locale_codeset, 7-bitinterchange );
- Receiver
cd = iconv_open(7-bitinterchange, locale_codeset );
The locale_codeset
refers to the code set being used locally by the application. Note that while the nl_langinfo(CODESET)
function may be used to obtain the code set associated with the current locale, it is implementation-dependent whether any conversion names match the return from the nl_langinfo(CODESET)
function.

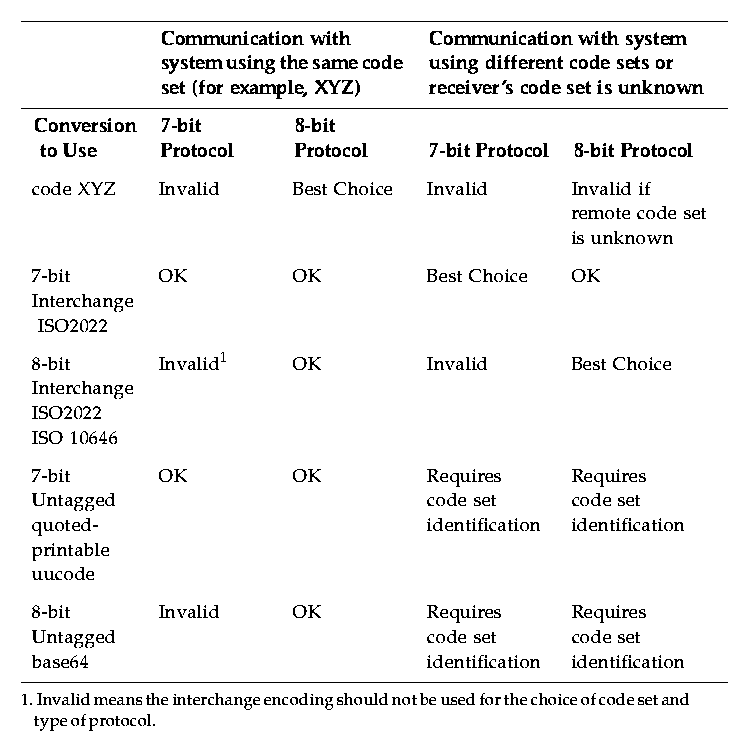

Table 3-1 outlines how iconv can be used to perform conversions for various conditions. Specific protocols may dictate other conversions needed.
Table 3-1 Using iconv to Perform Conversions
![](distributed_Tbl_9.gif)
Stateful and Stateless Conversions
Code sets can be classified into two categories: stateful encodings and stateless encodings.
Stateful encoding uses sequences of control codes, such as shift-in/shift-out, to change character sets associated with specific code values.
For instance, under compound text, the control sequence "ESC$(B" can be used to indicate the start of Japanese 16-bit data in a data stream of characters, and "ESC(B" can be used to indicate the end of this double-byte character data and the start of 8-bit ASCII data. Under this stateful encoding, the bit value 0x43 could not be interpreted without knowing the shift state. The EBCDIC Asian code sets use shift-in/shift-out controls to swap between double- and single-byte encodings, respectively.
Converters that are written to do the conversion of stateful encodings to other code sets tend to be a little complex due to the extra processing needed.
Stateless code sets are those that can be classified as one of two types:
- Single-byte code sets, such as the ISO8859 family
- Multibyte code sets, such as PC codes for Japanese and Shift-JIS (SJIS)
The term multibyte code sets is also used to refer to any code set that needs one or more bytes to encode a character; multibyte code sets are considered stateless.
Note: Conversions are meaningful only if the code sets represent the same character set.
When a
program communicates data to another program residing on a remote host, a need may arise for conversion of data from the code set of the source machine to that of the receiver. For example, this happens when a PC system using PC codes needs to communicate with a workstation using an International Organization for Standardization/Extended UNIX Code (ISO/EUC) encoding. Another example occurs when a program obtains data in one code set but has to display this data in another code set. To support these conversions, a standard program interface is provided based on the XPG4
iconv()
function definitions.
All components doing code set conversion should use the
iconv
functions as their interface to conversions. Systems are expected to provide a wide variety of conversions, as well as a mechanism to customize the default set of conversions.
iconv Conversion Functions
The common method of conversions from one code set to another is through a table-driven method. In some cases, these tables may be too large, hence an algorithmic method may be more desirable. To accommodate such diverse requirements, a framework is defined in XPG4 for code set conversions. In this framework, to convert from one code set to another, open a converter, perform the conversions, and close the converter. The
iconv
functions are iconv_open()
,
iconv()
, and
iconv_close()
.
Code set converters are brought under the framework of the
iconv_open()
, iconv()
, and
iconv_close()
set of functions. With these functions, it is possible to provide and to use several different types of converters. Applications can call these functions to convert characters in one code set into characters in another code set. With the advent of the
iconv
framework, converters can be provided in a uniform manner. The access and use of these converters is being standardized under X/Open XPG4.
X Interclient (ICCCM) Conversion Functions
Xlib provides the following functions for doing conversions.
- X ICCCM Multibyte Functions
- ICCCM Wide Character Functions
- XmbTextPropertyToTextList()
- XwcTextPropertyToTextList()
- XmbTextListToTextProperty()
- XwcTextListToTextProperty()
Note:
The libXm
library does provide the
XmStringConvertToCT()
and XmStringConvertFromCT()
functions; however, these are not recommended because there are some hardcoded assumptions about certain XmString tags. For example, if the tag is bold
,
XmStringConvertToCT()
is implementation-dependent. Across various platforms, the behavior of this function cannot be guaranteed in all international regions.
Refer to "Interclient Communications Conventions for Localized Text" for more information.
Window Titles
The standard way for setting titles is to use resources. But for applications that set the titles of their windows directly, a localized title must be sent to the Window Manager. Use the
XCompoundTextStyle
encoding defined in XICCEncodingStyle
, as well as the following guidelines:
- Compound text can be created either by
XmbTextListToTextProperty()
or XwcTextListToTextProperty()
.
- Localized titles can be displayed using the
XmNtitle
and XmNtitleEncoding
resources of the WMShell
widget. Localized icon names can be displayed using the XmNiconName
and XmNiconNameEncoding
resources of the TopLevelShell
widget.
- Localized titles of dialog boxes can also be displayed using the
XmNdialogTitle
resource of the XmBulletinBoard
widget.
- Window Manager should have an appropriate fontlist for displaying localized strings.
Following is an example of displaying a localized title and icon name. Compound text is made from the compound string in this example.
include <nl_types.h>
Widget toplevel;
Arg al[10];
int ac;
XTextProperty title;
char *localized_string;
nl_catd fd;
XtSetLanguageProc( NULL, NULL, NULL );
fd = catopen( "my_prog", 0 );
localized_string = catgets(fd, set_num, mes_num, "defaulttitle");
XmbTextListToTextProperty( XtDisplay(toplevel), &localized_string,
1, XCompoundTextStyle, &title);
ac = 0;
XtSetArg(al[ac], XmNtitle, title.value); ac++;
XtSetArg(al[ac], XmNtitleEncoding, title.encoding); ac++;
XtSetValues(toplevel, al, ac);
If you are using a window rather than widgets, the XmbSetWMProperties()
function automatically converts a localized string into the proper XICCEncodingStyle
.
In general, electronic mail (email) strategy has been one of turning email into a canonical, labeled format as opposed to optimizing a message given knowledge of the receiver's locale. This means that in the email world, you should always assume that the receiver may
be in a different locale. In the desktop world, the default email transport is Simple Mail Transfer Protocol (SMTP), which only supports 7-bit transmission channels.
With this understanding, the email strategy for the desktop is as follows:
- The sending agents, by default (unless instructed otherwise by the user), converts a body part into a standard
format for the sending transmission channel and labels the body part with the character encoding used.
- The receiving agent looks at the body part to see if it can support the character encoding; if it can, it converts it into the local character set.
In addition, because the MIME format is used for messages, any 8-bit to 7-bit transformations are done using the built-in MIME transport encodings (base64 or quoted-printable). See the Request for Comments (RFC) 1521 MIME standard specification.
To understand code sets, it is necessary to first understand character sets. A
character set
is a collection of predefined characters based on the specific needs of one or more languages without regard to the encoding values used to represent the characters. The choice of which code set to use depends on the user's data processing requirements. A particular character set can be encoded using different encoding schemes. For example, the ASCII character set defines the set of characters found in the English language. The Japanese Industrial Standard (JIS) character set defines the set of characters used in the Japanese language. Both the English and Japanese character sets can be encoded using different code sets.
The ISO2022 standard defines a coded character set as a group of precise rules that defines a character set and the one-to-one relationship between each character and its bit pattern. A code set defines the bit patterns that the system uses to identify characters.
A code page is similar to a code set with the limitation that a code-page specification is based on a 16-column by 16-row matrix. The intersection of each column and row defines a coded character.
The common open software environment code set support is based on International Organization for Standardization (ISO) and industry-standard code sets providing industry-standard code sets that satisfy the data processing needs of users.
Each locale in the system defines which code set it uses and how the characters within the code set are manipulated. Because multiple locales can be installed on the system, multiple code sets can be used by different users on the system. While the system can be configured with locales using different code sets, all system utilities assume that the system is running under a single code set.
Most commands have no knowledge of the underlying code set being used by the locale. The knowledge of code sets is hidden by the code-set-independent library subroutines (Internationalization libraries), which pass information to the code-set-dependent subroutines.
Because many programs rely on ASCII, all code sets include the 7-bit ASCII code set as a proper subset. Because the 7-bit ASCII code set is common to all supported code sets, its characters are sometimes referred to as the portable
character set.
The 7-bit ASCII code set is based on the ISO646 definition and contains the control characters, punctuation characters, digits (0-9), and the English alphabet in uppercase and lowercase.
Each code set is divided into two principle areas:
- Graphic Left (GL) Columns 0-7
- Graphic Right (GR) Columns 8-F
The first two columns of each code set are reserved by ISO standards for control characters. The terms C0 and C1 are used to denote the control characters for the Graphic Left and Graphic Right areas, respectively.
Note: The PC code sets use the C1 control area to encode graphic characters.
The remaining six columns are used to encode graphic characters (see Table 3-2
). Graphic characters are considered to be printable characters, while the control characters are used by devices and applications to indicate some special function

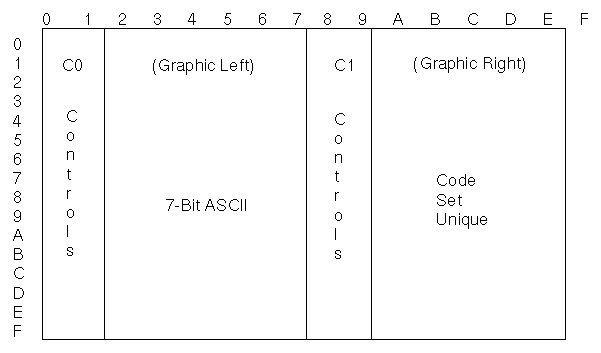

Table 3-2 Code Set Overview
![](distributed_AFrame_8.gif)
Control Characters
Based on the ISO definition, a control character initiates, modifies, or stops a control operation. A control character is not a graphic character, but can have graphic representation in some instances. The control characters in the ISO646-IRV character set are present in all supported code sets,and the encoded values of the C0 control characters are consistent throughout the code sets.
Graphic Characters
Each code set can be considered to be divided into one or more character sets, such that each character is given a unique coded value. The ISO standard reserves six columns for encoding characters and does not allow graphic characters to be encoded in the control character columns.
Single-Byte Code Sets
Code sets that use all 8 bits of a byte can support European, Middle Eastern, and other alphabetic languages. Such code sets are called single-byte code sets. This provides a limit of encoding 191 characters, not including control characters.
Multibyte Code Sets
The term multibyte code sets
is used to refer to all possible code sets regardless of the number of bytes needed to encode any specific character. Because the operating system should be capable of supporting any number of bits to encode a character, a multibyte code set may contain characters that are encoded with 8, 16, 32, or more bits. Even single-byte code sets are considered to be multibyte code sets.
Extended UNIX Code (EUC) Code Set
The EUC code set uses control characters to identify characters in some of the character sets. The encoding rules are based on the ISO2022 definition for the encoding of 7-bit and 8-bit data. The EUC code set uses control characters to separate some of the character sets.
The term EUC denotes these general encoding rules. A code set based on EUC conforms to the EUC encoding rules but also identifies the specific character sets associated with the specific instances. For example, eucJP for Japanese refers to the encoding of the JIS characters according to the EUC encoding rules.
The first set (CS0) always contains an ISO646 character set. All of the other sets must have the most-significant bit (MSB) set to 1, and they can use any number of bytes to encode the characters. In addition, all characters within a set must have:
- Same number of bytes to encode all characters
- Same column display width (number of columns on a fixed-width terminal)
Each character in the third set (CS2) is always preceded with the control character SS2 (single-shift 2, 0x8e). Code sets that conform to EUC do not use the SS2 control character other than to identify the third set.
Each character in the fourth set (CS3) is always preceded with the control character SS3 (single-shift 3, 0x8f). Code sets that conform to EUC do not use the SS3 control character other than to identify the fourth set.
ISO EUC Code Sets
The following code sets are based on definitions set by the International Organization for Standardization (ISO).
- ISO646-IRV
- ISO8859-1
- ISO8859-x
- eucJP
- eucTW
- eucKR
ISO646-IRV
The ISO646-IRV code set
defines the code set used for information processing based on a 7-bit encoding. The character set associated with this code set is derived from the ASCII characters.
ISO8859-1
ISO8859-1
encoding is a single-byte encoding that is based on and is compatible with other ISO, American National Standards Institute (ANSI), and European Computer Manufacturer's Association (ECMA) code extension techniques. The ISO8859 encoding defines a family of code sets with each member containing its own unique character sets. The 7-bit ASCII code set is a proper subset of each of the code sets in the ISO8859 family.
The ISO8859-1 code set is called the ISO Latin-1 code set and consists of two character sets:
- ISO646-IRV Graphic Left, 7-bit ASCII character set
- ISO8859-1 Graphic Right (Latin) character set
These character sets combined include the characters necessary for Western European languages such as Danish, Dutch, English, Finnish, French, German, Icelandic, Italian, Norwegian, Portuguese, Spanish, and Swedish.
While the ASCII code set defines an order for the English alphabet, the Graphic Right (GR) characters are not ordered according to any specific language. The language-specific ordering is defined by the locale.
This section lists the other significant ISO8859 code sets. Each code set includes the ASCII character set plus its own unique characters.
ISO8859-2
Latin alphabet, No. 2, Eastern Europe
- Albanian
- Czechoslovakian
- English
- German
- Hungarian
- Polish
- Rumanian
- Serbo-Croatian
- Slovak
- Slovene
ISO8859-5
Latin/Cyrillic alphabet
- Bulgarian
- Byelorussian
- English
- Macedonian
- Russian
- Ukrainian
ISO8859-6
Latin/Arabic alphabet
ISO8859-7
Latin/Greek alphabet
ISO8859-8
Latin/Hebrew alphabet
ISO8859-9
Latin/Turkish alphabet
- Danish
- Dutch
- English
- Finnish
- French
- German
- Irish
- Italian
- Norwegian
- Portuguese
- Spanish
- Swedish
- Turkish
eucJP
The EUC
for Japanese consists of single-byte and multibyte characters (2 and 3 bytes). The encoding conforms to ISO2022 and is based on JIS and EUC definitions, see

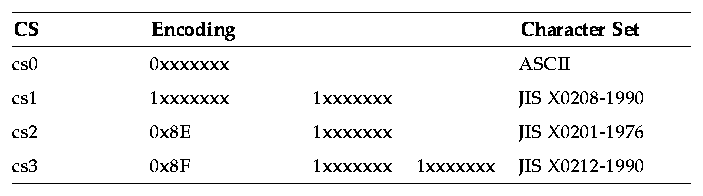

Table 3-3
.
Table 3-3 Encoding for eucJP
![](distributed_Tbl_11.gif)
JIS X0208-1990
A code of the Japanese graphic character set for information interchange (1990 version) that contains 147 special characters, 10 numeric digits, 83 Hiragana characters, 86 Katakana characters, 52 Latin characters, 48 Greek characters, 66 Cyrillic characters, 32 line-drawing elements, and 6355 Kanji characters.
JIS X0201
A code for information interchange that contains 63 Katakana characters.
JIS X0212-1990
A code of the supplementary Japanese graphic character set for information interchange (1990 version) that contains 21 additional special characters, 21 additional Greek characters, 26 additional Cyrillic characters, 27 additional Latin characters, 171 Latin characters with diacritical marks, and 5801 additional Kanji characters.
eucTW
The EUC for
Traditional Chinese is an encoding consisting of characters that contain single-byte and multibyte (2 and 4 bytes) characters. The EUC encoding conforms to ISO2022 and is based on the Chinese National Standard (CNS) as defined by the Republic of China and the EUC definition, see

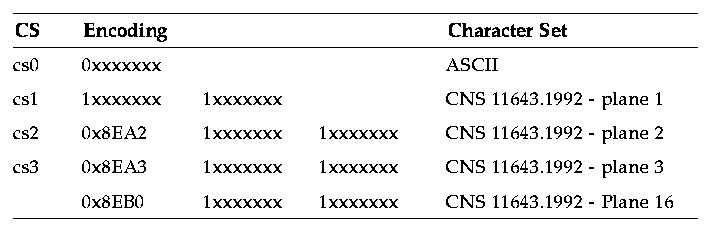

Table 3-4
.
Table 3-4 Encoding for eucTW
![](distributed_Tbl_13.gif)

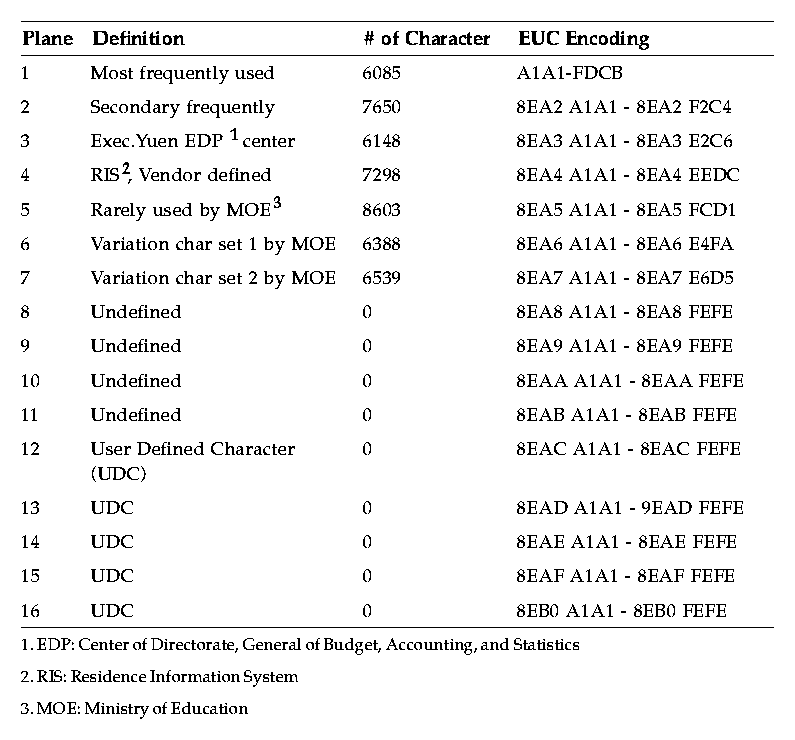

CNS 11643-1992 defines 16 planes for the Chinese Standard Interchange Code, each plane can support up to 8836 characters (94x94). Currently, only planes 1 through 7 have characters assigned. Table 3-5
shows the 16 planes of the CNS 11643-1992 standard.
Table 3-5 16 Planes of the CNS 11643-1992 Standard
![](distributed_Tbl_12.gif)
eucKR
The EUC for Korean is
an encoding consisting of single-byte and multibyte characters (shown in

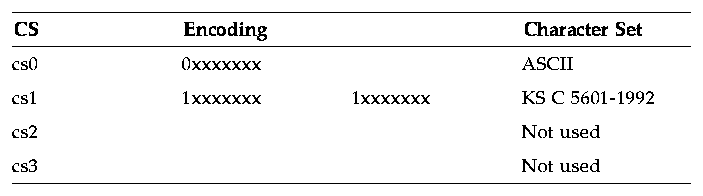

Table 3-6
). The encoding conforms to ISO2022 and is based on Korean Standard Code (KSC) set and EUC definitions.
Table 3-6 Encoding for eucKR.
![](distributed_Tbl_14.gif)
KSC 5601-1992 (code of the Korean character set for information interchange, 1992 version) contains 432 special characters, 30 Arabic and Roman numeral characters, 94 Hangul alphabet characters, 52 Roman characters, 48 Greek characters, 27 Latin characters, 169 Japanese characters, 66 Russian characters, 68 line-drawing elements, 2344 precomposed Hangul characters, and 4888 Hanja characters.
One Hangul character can be comprised of several consonants and vowels. Most Hangul words can be expressed in Hanja words. Hanja is a set of Traditional Chinese characters, which is currently used by Korean people. Each Hanja character has its own meaning and is thus more specific than Hangul most of the time.
Generated with CERN WebMaker
