Common Desktop Environment: Advanced User's and System Administrator's Guide

5 Configuring the Desktop
in a Network


Contents of Chapter:
Overview of Desktop Networking
Types of Networked Desktop Services
Typical Network Situations
Other Networking Situations
Summary--Types of Servers
General Steps for Configuring Desktop Networking
Configuring Base Operating System Networking for the Desktop
Providing Login Accounts to Users
Configuring Distributed File System Access
Configuring Access to Remote Printers
Configuring Electronic Mail
Configuring X Authorization
Configuring Desktop Clients and Servers
Configuring Login and Session Services
Configuring Other Application-Related Services
To Configure Desktop Clients and Servers
Administering Application Services
Search Path Environment Variables
Configuring an Application Server and Its Clients
To Configure an Application Server
To Configure the Client of an Application Server
Configuring Database, Icon, and Help Services
To Create a Database, Help, or Icon Server
To Configure the Session Server to Find a Database, Icon, or Help Server
Special Networked Application Configurations
The desktop is designed to work well in a highly networked environment. The architecture of the desktop lets system administrators distribute computing resources throughout the network, including:


Overview of Desktop Networking

The operating system provides a variety of networking services, including distributed file systems and remote execution. X servers provide additional networking capabilities, including access to remote displays and security services.

The desktop layers a user interface on top of these networking features. The goals of this interface and its underlying architecture are to make networked systems:

Types of Networked Desktop Services

Networking lets a user sitting at a particular display access various computing services distributed among other systems, such as:

Networking terminology uses the term server to describe a system that provides computing services to one or more other systems. When a system receives services from a server, it is called a client of that server.

In a complex network, a system may use services located on a number of systems throughout the network. Furthermore, a system may act as a particular type of server (for example, a session server) and may also be a client (for example, of an application server).

Typical Network Situations

From a desktop perspective, a typical network configuration may contain some combination of these major components:

Displays
Where the X server is running

Login/Session servers
Where the desktop applications (Login Manager, Workspace Manager, etc.) run

Application servers
Where other applications run

File servers
Where data used by applications is located

One of the most common network configurations involves systems accessing an application server. Figure 5-1 illustrates a workstation that uses an application server. The X server and desktop session are running on the workstation.

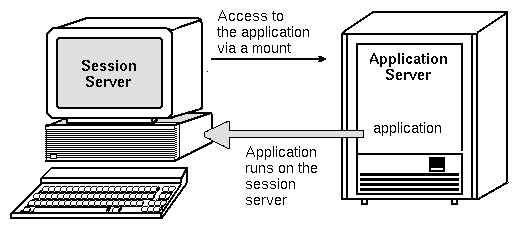

Figure 5-1 Application servers provide services to the desktop session

Networks also frequently use file servers to store large amounts of data. This data may be used by applications running on an application server, or by the desktop applications (for example, File Manager needs access to data files to display them in the File Manager window).

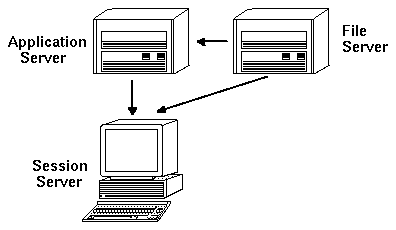

Figure 5-2 Files servers provide data to application servers and session servers

X terminals run the X server and obtain desktop session services from another system.

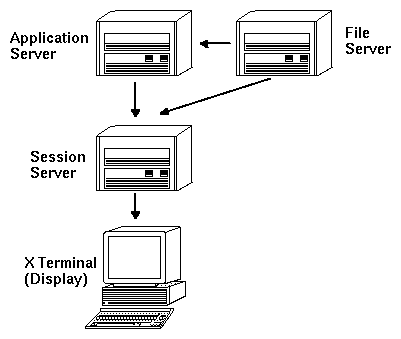

Figure 5-3 X terminals get session services from a session server

Other Networking Situations

The desktop is flexible and can support more complex network configurations. This usually involves making various services, in addition to file servers, available to application servers.

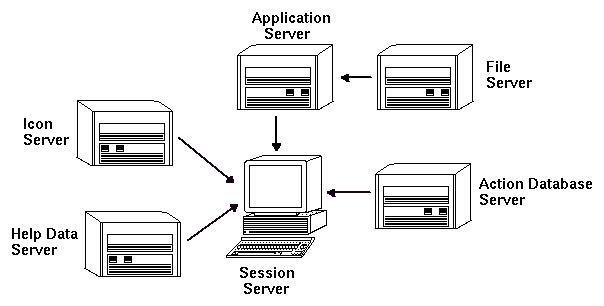

Figure 5-4 Services required by a desktop application server can be distributed

Summary--Types of Servers

Display
The system running the X server.

Login and session server
The system running the desktop session (Login Manager, Session Manager, Window Manager, File Manager, etc.)

Application server
A system on which an application runs. Also called the execution host.

File server
A system on which data files for applications are stored

Help server
A system on which help data files are stored

(Action) database server
A system where files containing action and data type definitions are stored

Icon server
A system on which icon files are stored

The network may include additional servers, such as a password server, mail server, video server, etc.


General Steps for Configuring Desktop Networking

There are three general steps for configuring desktop networking:

  1. Configure base operating system network services.

    These are the networking services provided by your operating system upon which the desktop depends. See "Configuring Base Operating System Networking for the Desktop".

  2. Install and configure desktop networking software and services.

    These are the services required by the desktop, regardless of the type of client or server system being set up. See "Configuring Desktop Clients and Servers".

  3. Configure the particular type of server or client.

    For example, configuring an application server requires different steps than configuring a file server. See "Administering Application Services".


Configuring Base Operating System Networking for the Desktop

The desktop requires the following base networking configuration:

Providing Login Accounts to Users

This section describes the login account requirements for desktop networking.

Providing Login Accounts

Users must have a login account on:

Providing Consistent User and Group IDs

UNIX users are identified by a login name and a numeric user ID (UID). In a desktop network, the user should have the same login name and UID on all client and server systems.

UNIX users are also assigned to one or more login groups. Each group has a group name and a numeric group ID (GID). In a desktop network, all systems should use consistent group names and group IDs.

For more information, see the id(1) or id(1M) man page.

Configuring Distributed File System Access

The desktop uses NFS , , for sharing files between systems. You must identify all the file systems in your network that contain shared files and ensure that they are correctly mounted on all appropriate systems.

Typically, you must provide the following remote file access:

Providing a Networked Home Directory

A desktop network works most effectively when users have a single home directory that is shared among all client and server systems on the network.

A networked home directory lets users use different systems in the network without losing personal customizations and configurations. This is because personal customizations and the information required to restore the previous session are saved in subdirectories of the home directory.

A common home directory is also required by:

File-Name Consistency

You should configure the network so that users can access their data files from all systems using the same name. This is known as providing file-name consistency , and is usually accomplished by creating appropriate symbolic links. For example you can configure every system so that each user's home directory is available as /users/ login_name by creating a symbolic link to the actual mount location of the directory.

Configuring Access to Remote Printers

The desktop uses the lp print spooler for accessing local or remote printers. See the lpadmin(1M) man page for information on configuring the lp spooler.

Before attempting to print using the desktop graphical interface, you should test that you can correctly print to all printers using the lp command.

It is highly recommended that you use consistent printer device names. For example, if a particular printer is known as Postscript1 on the system to which it is directly connected, all other systems accessing the printer remotely should also use the name Postscript1 .

Configuring Electronic Mail

The desktop mailer uses sendmail for delivering mail between systems. See the sendmail(1M) man page for more information on how to configure email connectivity.

Before attempting to send or receive mail from the desktop, you should test that you can correctly send and receive mail using the mailx command.

Configuring X Authorization

The desktop uses the default X mechanism for authorizing remote applications (X clients) to access a local display. The easiest way to configure this is to provide a networked home directory for each user. This ensures that the following requirements are met:

For more information, see the X(1) or xauth(1) man pages.


Configuring Desktop Clients and Servers

This section covers network configuration requirements that are specific to the desktop--that is, these capabilities are provided by the desktop rather than by the base operating system.

The section is divided into two parts:

Configuring Login and Session Services

A login/session server is a system that supplies desktop services (Login Manager, Session Manager, File Manager, Window Manager, etc.) to a display and X server.

Typically, a session server supplies services to X terminals. However, a network configuration can be set up that concentrates session services on one or more servers that are accessed by both X terminals and workstations.

The Login Manager is the desktop component responsible for supplying login services to other displays. Once the user has logged in, the Session Manager is started for the user.

For information about configuring login/session servers and X terminals, see "Displaying a Login Screen on a Network Display".

Configuring Other Application-Related Services

This section covers networking requirements common to the desktop:

To Configure Desktop Clients and Servers

  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Install the desktop or the minimum set of files:

    You must install:


    Note: Installation and file sets may differ among vendors.
  3. Configure the system for the ToolTalk fileame database server daemon rpc.ttdbserver.

    This should happen automatically when the desktop is installed. For more information, see "Configuring the ToolTalk Database Server".

  4. Install and configure the subprocess control daemon (dtspcd).

    This should happen automatically when the desktop is installed. For more information, see "Configuring the Subprocess Control Daemon".

  5. Mount all required remote data.

    Data is considered "remote" when it is located on a system other than the system on which the application using the data is running.

    For example:

    For more information about mount points, see the next section, "Configuring the Mount Point for Remote File Systems".

Configuring the Mount Point for Remote File Systems

When the desktop passes file names from one system to another, it must transform, or map , those file names to names that make sense to the destinition system. This mapping is necessary because a file may be mounted in different locations on the different systems, and therefore must be accessed using different names. For example the file /projects/big on sysA may be accessed as /net/sysA/projects/big on sysB .

Requirements for File-Name Mapping
To correctly perform this file-name mapping, one of the following must be true:

For information about the automounter, see the automount(1M) man page.

Setting a Value for DTMOUNTPOINT
You must set the DTMOUNTPOINT environment variable if both of the following conditions are true:

DTMOUNTPOINT must be set for processes, including:

To set DTMOUNTPOINT for all of these processes"

  1. Edit the file /etc/inetd.conf:

    a. Find the dtspcd entry and add:

    -mount_point mount_point

    b. Find the rpc.ttdbserver entry and add:

    -m mount_point

    For example if the automounter is being used with a mount point of /nfs, the entries in /etc/inetd.conf are:

    dtspc stream tcp nowait root /usr/dt/bin/dtspcd /usr/dt/bin/dtspcd -mount_point /nfs
    rpc stream tcp wait root /usr/dt/bin/rpc.ttdbserver 100083 1 rpc.ttdbserver -m /nfs

  2. Perform the procedure on your system that rereads /etc/inetd.conf. For more information, see the inetd(1M) man page.

  3. Set DTMOUNTPOINT such that its value is inherited by user logins.

    This can be done by setting the variable in /etc/dt/config/Xsession.d . For more information on setting environment variables, see "To Set Environment Variables" .

Configuring the Subprocess Control Daemon

The desktop subprocess control (SPC) service provides client/server command execution.

The desktop subprocess control daemon ( dtspcd ) is used by the desktop to launch remote applications. It is an inet daemon that accepts requests from remote clients to execute commands. For more information on how to configure inet daemons, see the inetd.conf(1M) man page.

The desktop action invocation library uses the SPC service to invoke remote actions.

To Configure dtspcd
  1. Confirm that dtspc is properly registered in both /etc/services and /etc/inetd.conf. See the dtspcd(1M) man page.

  2. HP-UX only: Ensure that /usr/adm/inetd.sec is properly configured. See the inetd.sec(4) man page.

SPC Security
Authentication for the subprocess control service is based on file system authentication. The dtspcd must have access to an authentication directory that is also mounted by all SPC client systems.

By default the dtspcd authentication directory is the user's home directory. However, you can configure the dtspcd to use a different location by setting the -auth_dir option in the /etc/inetd.conf directory. See the dtspcd(1M) man page for more information.

Because SPC authentication is based on file system authentication, the SPC service is only as secure as your distributed file system. If you are using the desktop in a network where you do not trust the distributed file system, you may wish to disable the dtspcd . To disable the dtspcd , comment out the dtspc entry in /etc/services .

Configuring Environment Variables for Remote Execution

When the desktop uses an action to start an application on a remote system, the user's environment variables are copied to the remote system and placed in the environment of the application.

By default, some of the environment variables are altered before they are copied to the remote system. You can configure both the action invocation component and the subprocess control service of the desktop to perform additional environment variable processing before the variables are placed into the application's environment.

For more information on the default configuration and how to modify it, see the dtactionfile(4) and dtspcdenv(4) man pages.

Configuring the ToolTalk Database Server

One component of ToolTalk is the ToolTalk database server, /usr/dt/bin/rpc.ttdbserver.

The ToolTalk database server is used by the ToolTalk messaging service and for file-name mapping. It is usually registered in /etc/inetd.conf when the desktop is installed and needs no additional configuration.

For more information on the ToolTalk database server and its configuration options, see the rpc.ttdbserver(1M) man page.

Configuring the ToolTalk Message Server

The ToolTalk message server is ttsession. By default, it does not require any configuration; it is started by the Xession script during login.

See the ttsession man page for more information on the ToolTalk message server and its configuration options.

Configuring the Calendar Daemon

One component of the Calendar application is the Calendar daemon rpc.cmsd . It is usually registered in /etc/inetd.conf when the desktop is installed and needs no additional configuration.

For more information on the Calendar daemon and its configuration options, see the rpc.cmsd(1) man page.


Administering Application Services

This section covers specific configuration requirements for:

It also covers networking requirements for two special configurations for networked applications:

Search Path Environment Variables

The desktop uses a set of environment variables to specify the search path used to find application desktop configuration files such as the actions and data types database, help files, and icon files.

For information on how to use the search path environment variables, see Chapter 7, "Desktop Search Paths", or the dtenvvar(5) man page.

Configuring an Application Server and Its Clients

In the standard application server configuration, the application server contains all the binary and configuration files associated with the application, including:

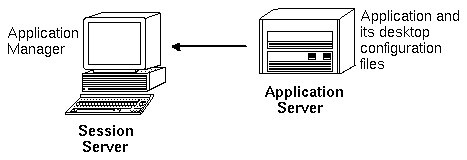

Figure 5-5 Standard application server configuration

To Configure an Application Server

  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for servers.

    See "To Configure Desktop Clients and Servers".

  3. Install the application(s).

  4. If an application does not automatically register itself, you must perform the registration procedure.

    See Chapter 4, "Registering an Application".

To Configure the Client of an Application Server

  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for clients.

    See "To Configure Desktop Clients and Servers".

  3. Add the application server to the application search path on a system-wide or personal basis:

    System-wide
    Set the DTSPSYSAPPHOSTS variable in /etc/dt/config/Xsession.d/0010.dtpaths

    Personal
    Set the DTSPUSERAPPHOSTS variable in HomeDirectory/.dtprofile

For example, the following line in /etc/dt/config/Xsession.d/0010.dtpaths adds a system with hostname SysAAA and SysBBB to the application search path:

DTSPSYSAPPHOSTS=SysAAA:,SysBBB:

For more information about setting the application search path, see:

Configuring Database, Icon, and Help Services

Usually, the action and data type definitions, icons, and help data files associated with an application are installed onto the same system as the application.

For example, consider the typical configuration of help data files:

There may be situations in which you want to place database (actions and data types), help, or icon data elsewhere on the network. For example, if your network uses multiple session servers, you might want to create a help server on which all the help data files for desktop applications (File Manager, Style Manager, etc.) are stored. This conserves disk space because the help files do not need to be duplicated on each session server.

To Create a Database, Help, or Icon Server

  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for clients.

    See "To Configure Desktop Clients and Servers".

  3. Install the database, help, or icon files.

    The files can be located anywhere on the system. However, it may be easier to use the following locations, since these are the directories automatically searched when a system has been designated an application server.

    If you are setting up a database server, the actions must be written to specify where their commands ( EXEC_STRING s) will run. See "Specifying a Remote Execution Host" .

To Configure the Session Server to Find a Database, Icon, or Help Server

  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for clients.

    See "To Configure Desktop Clients and Servers".

  3. Add the database, icon, or help server to the appropriate search path.

    For more information about setting search paths, see:

Special Networked Application Configurations

This section describes how to configure systems to run applications:

Specifying a Remote Execution Host

In the typical application server configuration, the action definition is located on the same system as the application executable. However, actions can be written to execute commands on other systems. In this configuration, the system containing the application is called the execution host .

The action definition may be located on the session server or on a system that provides action and data type services to the session server--called a database server or database host .

Action definitions use the EXEC_HOST field to specify where their commands (EXEC_STRING s) should be run. For example, the following action definition specifies that an xload client be run on a system with host name SysDDD :

ACTION XloadSysDDD
{   TYPE            COMMAND
    EXEC_HOST       SysDDD
    EXEC_STRING     /usr/bin/X11/xload -label SysDDD
}

If the EXEC_HOST field specifies more than one host name, then the desktop tries to execute the EXEC_STRING on each host in order until it finds one that can run the action. For example, the following EXEC_HOST field specifies that the action should first attempt to run the EXEC_STRING on SysDDD , and, failing this, try SysEEE .

   EXEC_HOST        SysDDD,SYSEEE

If the EXEC_HOST field is not set for an action, it defaults to the value %DatabaseHost% . The value of %DatabaseHost% is obtained from the database search path.

For example, suppose the database search path has been modified by adding the following line to /etc/dt/config/Xsession.d/0010.dtpaths:

DTSPSYSDATABASEHOSTS=SysAAA:,/net/SysBBB/etc/dt/appconfig/types/C

SysAAA is specified using the host-qualified syntax--SysAAA: . An action definition found using this element of the search path sets the database host to SysAAA . However, an action found using the /net/SysBBB ... portion of the search path sets the database host to the local system because the syntax does not include the host qualifier.

To Configure the Remote Execution Host
  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for servers.

    See "To Configure Desktop Clients and Servers".

  3. Ensure that the applications are properly installed and configured for local execution.

To Configure the System Containing the Action Definition
  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for servers.

    See "To Configure Desktop Clients and Servers".

  3. Create and install the action definitions and application groups.

    See "Creating Actions that Run Applications on Remote Systems" and "Creating and Administering General Application Groups".

To Configure the Session Server
  1. Provide the operating system network configurations required by the desktop.

    See "Configuring Base Operating System Networking for the Desktop".

  2. Provide the general desktop configuration required for clients.

    See "To Configure Desktop Clients and Servers".

  3. Modify the actions search path to include the database host.

    See "Database (Action/Data Types) Search Path".

  4. Modify the application search path to include the execution host.

    See "Application Search Path".

Running Applications Locally

The standard application server configuration runs applications on the application server. Sometimes it is desirable to have the application installed on a remote system but executed locally on the session server.

Figure 5-6 Execution across mount points

To Configure the Application Server
No special configuration is required.

To Configure the Session Server
Modify the application search path. Use the local absolute path to the application.

For example, you might use the following variable definition to find an application registered on sysAAA:

DTSPSYSAPPHOSTS=/net/SysAAA/etc/dt/appconfig/appmanager/C

The session server must be able to access the application's configuration files, such as app-defaults, message catalogs, and shared libraries.



Generated with CERN WebMaker
