11.2.6 Using Terminal Keys to Define Special Program Functions

Use the CONTROL KEY IN phrase of the ACCEPT statement to tailor your screen-handling programs to give special meanings to any or all of these keys on your terminal:

You can use the CONTROL KEY IN phrase to accept data and to terminate it with a control key or to allow a user to press only a control key (for menu applications).

Table 11-2 lists the characters returned to the data name specified in the CONTROL KEY IN phrase.

Table 11-2 is for VT100 and later series terminals. Depending on your terminal type, certain keys listed in this table are not applicable to your terminal keyboard.

Table 11-2 Compaq COBOL Characters Returned for Cursor Positioning, Program Function, Function, Keypad, and Keyboard Keys
    Characters Returned in the Data Name Specified by CONTROL KEY IN
Key Name Keypad or Keyboard Name First1 Remaining (Notes)
Cursor up up arrow CSI A
Cursor down down arrow CSI B
Cursor right right arrow CSI C
Cursor left left arrow CSI D
Program function PF1 SS3 P
Program function PF2 SS3 Q
Program function PF3 SS3 R
Program function PF4 SS3 S
Keypad left blank SS3 P
Keypad center blank SS3 Q
Keypad right blank SS3 R
Keypad 0 SS3 p
Keypad 1 SS3 q
Keypad 2 SS3 r
Keypad 3 SS3 s
Keypad 4 SS3 t
Keypad 5 SS3 u
Keypad 6 SS3 v
Keypad 7 SS3 w
Keypad 8 SS3 x
Keypad 9 SS3 y
Keypad - SS3 m
Keypad , SS3 l
Keypad . SS3 n
Keypad ENTER SS3 M
Keypad FIND CSI 1~
Keypad INSERT HERE CSI 2~
Keypad REMOVE CSI 3~
Keypad SELECT CSI 4~
Keypad PREV SCREEN CSI 5~
Keypad NEXT SCREEN CSI 6~
Tab Tab 9
Return Return 13
Function key HOLD SCREEN Not Available
Function key PRINT SCREEN Not Available
Function key SET-UP Not Available
Function key DATA/TALK Not Available
Function key BREAK Not Available
Function key F6 2 CSI 17~
Function key F7 CSI 18~
Function key F8 CSI 19~
Function key F9 CSI 20~
Function key F10 CSI 21~
Function key F11 (ESC) CSI 23~
Function key F12 (BS) CSI 24~
Function key F13 (LF) CSI 25~
Function key F14 CSI 26~
Function key F15 (HELP) CSI 28~
Function key F16 (DO) CSI 29~
Function key F17 CSI 31~
Function key F18 CSI 32~
Function key F19 CSI 33~
Function key F20 CSI 34~
Ctrl/A   1
Ctrl/B   2
Ctrl/C   Not Available
Ctrl/D   4 (on OpenVMS Alpha)
Ctrl/D   Results depend on presence or absence of the AT END phrase in the ACCEPT statement (on Tru64 UNIX)
Ctrl/E   5
Ctrl/F   6
Ctrl/G   7
Ctrl/H   8
Ctrl/I (Tab)   9
Ctrl/J   10
Ctrl/K   11
Ctrl/L   12
Ctrl/M (Return)   13
Ctrl/N   14
Ctrl/O   Not Available (on OpenVMS Alpha)
Ctrl/O   15 (on Tru64 UNIX)
Ctrl/P   16
Ctrl/Q   Not Available
Ctrl/R   18
Ctrl/S   Not Available
Ctrl/T   Depends on SET CONTROL Setting (on OpenVMS Alpha)
Ctrl/T   20 (on Tru64 UNIX)
Ctrl/U   21
Ctrl/V   22
Ctrl/W   23
Ctrl/X   24
Ctrl/Y   Not Available (on OpenVMS Alpha)
Ctrl/Y   25 (on Tru64 UNIX)
Ctrl/Z   Results depend on presence or absence of the AT END phrase in the ACCEPT statement (on OpenVMS Alpha)
Ctrl/Z   Not Available (on Tru64 UNIX)


1The CSI and SS3 characters are shown for your information only. You need not check for their presence because the remaining characters are unique and need no qualification.
2For F6, you must have specified $ SET TERMINAL/NOLINE_EDITING before running your program.

The definition and value of the CSI and SS3 characters used in Table 11-2 follow:


01  SS3X                 PIC 9999 COMP VALUE 143.
01  SS3 REDEFINES SS3X   PIC X.
01  CSIX                 PIC 9999 COMP VALUE 155.
01  CSI REDEFINES CSIX   PIC X.

Figure 11_10 and Figure 11-11 show the Compaq COBOL control keys for various terminals. The shaded keys correspond to the keypad names in Table 11-2, which lists the characters returned to the application program.

Note

In Figure 11-11, your keyboard may differ slightly, but the Compaq COBOL control keys are as pictured.

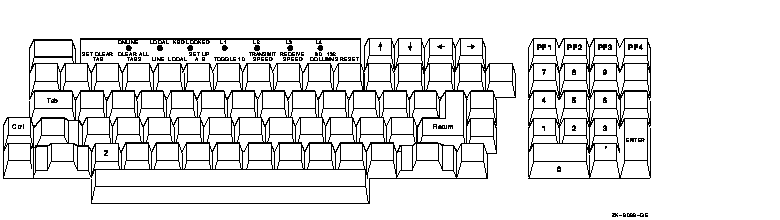

Figure 11-10 Compaq COBOL Control Keys on the Standard VT100 Keypad and Keyboard

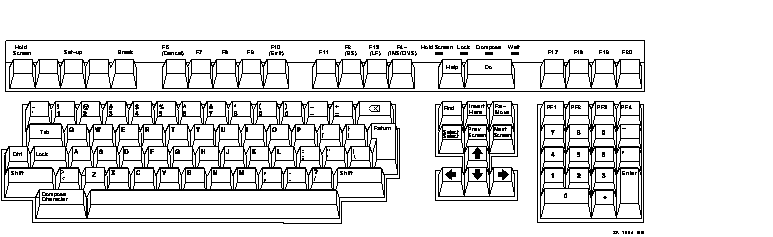

Figure 11-11 Compaq COBOL Control Keys on a Typical VT200 or Later Keypad and Keyboard


Example 11-10 shows you how to use the CONTROL KEY phrase to handle arrow keys, program function keys, keypad keys, Ctrl/Z, Tab, and Return.

When you use this phrase, you allow program function keys and arrow keys, as well as Return and Tab keys, to terminate input. This phrase also permits you to use those keys to move the cursor and to make menu selections without typing any data on the screen.

Note

To activate the auxiliary keypad, your program must execute DISPLAY ESC "=". You must also define ESC as the escape character. Refer to Example 11-10.

In Example 11-10, the terminator key codes are displayed on the screen.

Example 11-10 Using the CONTROL KEY IN Phrase

IDENTIFICATION DIVISION.
PROGRAM-ID.  SPECIAL.
ENVIRONMENT DIVISION.
CONFIGURATION SECTION.
SPECIAL-NAMES.
    SYMBOLIC CHARACTERS
        CR-VAL  CSI-VAL  Ctrl-Z-VAL  SS3-VAL  TAB-VAL  ESC
    ARE 14      156      27          144       10      28.
DATA DIVISION.
WORKING-STORAGE SECTION.
*
*      The code returned will be the same regardless of
*      terminal type.
*
01 CONTROL-KEY.
   02  FIRST-CHAR-CONTROL-KEY  PIC X.
        88 CR             VALUE CR-VAL.
        88 CSI            VALUE CSI-VAL.
        88 Ctrl-Z         VALUE Ctrl-Z-VAL.
        88 SS3            VALUE SS3-VAL.
        88 TAB            VALUE TAB-VAL.
   02  REMAINING-CHAR-CONTROL-KEY PIC XXXX.
        88 UP-ARROW       VALUE "A".
        88 DOWN-ARROW     VALUE "B".
        88 RIGHT-ARROW    VALUE "C".
        88 LEFT-ARROW     VALUE "D".
        88 PF1            VALUE "P".
        88 PF2            VALUE "Q".
        88 PF3            VALUE "R".
        88 PF4            VALUE "S".
        88 AUX0           VALUE "p".
        88 AUX1           VALUE "q".
        88 AUX2           VALUE "r".
        88 AUX3           VALUE "s".
        88 AUX4           VALUE "t".
        88 AUX5           VALUE "u".
        88 AUX6           VALUE "v".
        88 AUX7           VALUE "w".
        88 AUX8           VALUE "x".
        88 AUX9           VALUE "y".
        88 AUXMINUS       VALUE "m".
        88 AUXCOMMA       VALUE "l".
        88 AUXPERIOD      VALUE "n".
        88 AUXENTER       VALUE "M".

PROCEDURE DIVISION.
P0.
*
* DISPLAY ESC "=" puts you in alternate keypad mode
*
    DISPLAY ESC "=".
    DISPLAY " "  ERASE SCREEN.
P1.

    DISPLAY "Press a directional arrow, PF, Return, Tab,  "
             LINE 3 COLUMN 4.
    DISPLAY "or auxiliary keypad key (Ctrl/Z stops loop)"
             LINE 4 COLUMN 4.

    ACCEPT CONTROL KEY IN CONTROL-KEY AT END GO TO P2.
    IF CR DISPLAY "RETURN" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF TAB DISPLAY "\TAB" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF PF1 DISPLAY "PF1" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF PF2 DISPLAY "PF2" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF PF3 DISPLAY "PF3" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF PF4 DISPLAY "PF4" LINE 10 COLUMN 5 ERASE LINE GO TO P1.
    IF UP-ARROW DISPLAY "UP-ARROW" LINE 10 COLUMN 5 ERASE LINE
       GO TO P1.
    IF DOWN-ARROW DISPLAY "DOWN-ARROW" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF LEFT-ARROW DISPLAY "LEFT-ARROW" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF RIGHT-ARROW DISPLAY "RIGHT-ARROW" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX0 DISPLAY "AUXILIARY KEYPAD 0" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX1 DISPLAY "AUXILIARY KEYPAD 1" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX2 DISPLAY "AUXILIARY KEYPAD 2" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX3 DISPLAY "AUXILIARY KEYPAD 3" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX4 DISPLAY "AUXILIARY KEYPAD 4" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX5 DISPLAY "AUXILIARY KEYPAD 5" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX6 DISPLAY "AUXILIARY KEYPAD 6" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX7 DISPLAY "AUXILIARY KEYPAD 7" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX8 DISPLAY "AUXILIARY KEYPAD 8" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUX9 DISPLAY "AUXILIARY KEYPAD 9" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUXMINUS DISPLAY "AUXILIARY KEYPAD -" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUXCOMMA DISPLAY "AUXILIARY KEYPAD ," LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUXPERIOD DISPLAY "AUXILIARY KEYPAD ." LINE 10 COLUMN 5
       ERASE LINE GO TO P1.
    IF AUXENTER DISPLAY "AUXILIARY KEYPAD ENTER" LINE 10 COLUMN 5
       ERASE LINE GO TO P1.

    DISPLAY "Not an allowable control key -"
             "press the Return key to continue"

            LINE 10 COLUMN 5
            WITH BELL ERASE LINE.
    ACCEPT CONTROL-KEY.
    GO TO P1.
P2.
    DISPLAY "Press the Return key to end this job"
            LINE 11 COLUMN 5 ERASE LINE.
    ACCEPT CONTROL KEY IN CONTROL-KEY LINE 12 COLUMN 5 ERASE LINE.
    IF NOT CR GO TO P0
       ELSE
          DISPLAY "END OF JOB" LINE 13 COLUMN 35
                   BOLD BLINKING REVERSED BELL
                   ERASE SCREEN.
P3.
* DISPLAY ESC ">" WITH NO puts you out of alternate keypad mode
*
     DISPLAY ESC ">" WITH NO.
     STOP RUN.

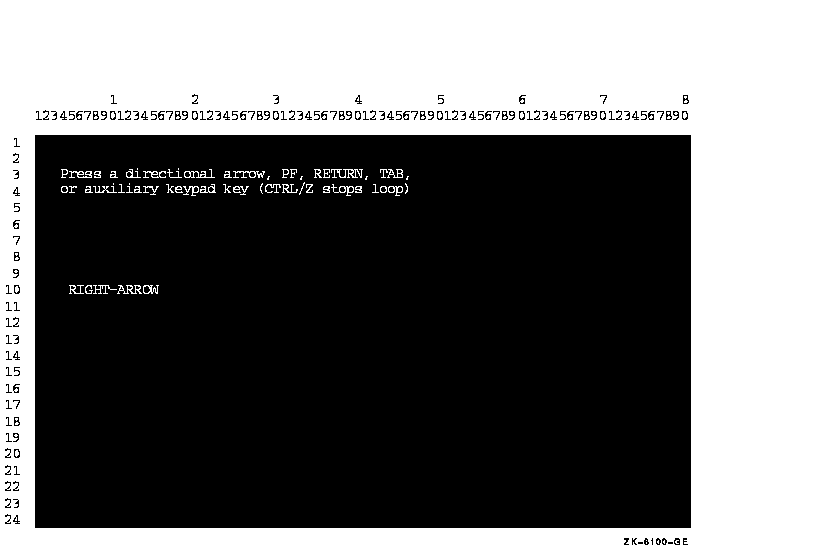

Figure 11_12 shows a sample run of the program in Example 11-10 using the right arrow terminal key.

To expand upon Example 11-10, you can, for example, accept data in addition to specifying the CONTROL KEY phrase. This enables you to accept data and determine what to do next based on the data. You can use the CONTROL KEY phrase to move the cursor around on the screen or take a specific course of action.

Figure 11-12 Screen Display of Program SPECIAL


11.2.7 Using the EDITING Phrase

Specifying the EDITING phrase of the ACCEPT statement enables field editing. Table 11-3 briefly describes the keys that the EDITING phrase enables. Refer to the ACCEPT section of the Compaq COBOL Reference Manual for a complete list of field editing keys.

Table 11-3 Key Functions for the EDITING Phrase
Key Function Description
Left arrow Move-left Moves the cursor one space to the left. If the cursor is at the first character position of the field, the terminal bell rings.
Right arrow Move-right Moves the cursor one space to the right. If the cursor is one space beyond the rightmost character position of the field, the terminal bell rings.
F12 (BS) Beginning-of-field Positions the cursor to the first character position of the field.
Ctrl/E End-of-field Moves the cursor one position beyond the rightmost character position in the field.
Ctrl/U Erase-field Erases the entire field and moves the cursor to the first character position of the field.
F14 Switch-mode Switches the editing mode between insert and overstrike.

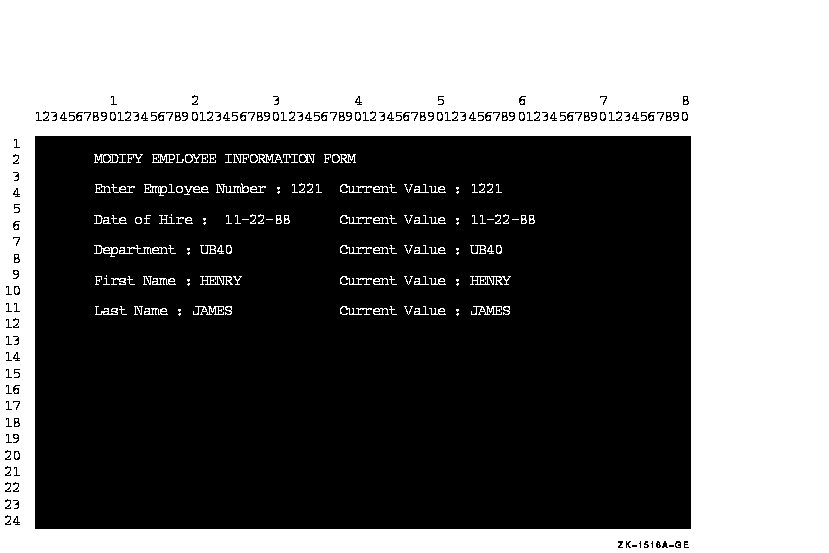

Example 11-11 shows the sample code that produces the form in Figure 11-13. (The Current Value field is provided for example purposes only.)

Example 11-11 EDITING Phrase Sample Code

   .
   .
   .
PROCEDURE DIVISION.
A1000-BEGIN.
    OPEN I-O EMP-FILE.
   .
   .
   .
B1000-MODIFY.
    DISPLAY "MODIFY EMPLOYEE INFORMATION FORM"  ERASE SCREEN
                                        AT LINE 2       COLUMN 8.
    DISPLAY "Enter Employee Number : "  AT LINE PLUS 2  COLUMN 8.

    ACCEPT EMP-KEY
        FROM LINE 4 COLUMN 32
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.
   .
   .
   .
B2000-DISPLAY.

    MOVE EMP-REC TO OUT-REC.

    DISPLAY "Date of Hire : "           AT LINE PLUS 2  COLUMN 8.
    DISPLAY MON-IN                      AT              COLUMN 24.
    DISPLAY "-"                         AT              COLUMN 26.
    DISPLAY DAY-IN                      AT              COLUMN 27.
    DISPLAY "-"                         AT              COLUMN 29.
    DISPLAY YR-IN                       AT              COLUMN 30.
    DISPLAY "Current Value :"           AT COLUMN 38.
    DISPLAY MON-NUM                     AT              COLUMN 54.
    DISPLAY "-"                         AT              COLUMN 56.
    DISPLAY DAY-NUM                     AT              COLUMN 57.
    DISPLAY "-"                         AT              COLUMN 59.
    DISPLAY YR-NUM                      AT              COLUMN 60.

    DISPLAY "Department :"              AT LINE PLUS 2  COLUMN 8.
    DISPLAY DEPT-IN                     AT              COLUMN 21.
    DISPLAY "Current Value :"  AT  COLUMN 38.
    DISPLAY DEPT-NUM                    AT              COLUMN PLUS.


    DISPLAY "First Name :"              AT LINE PLUS 2  COLUMN 8.
    DISPLAY F-NAME-IN                   AT              COLUMN 21.
    DISPLAY "Current Value :"  AT              COLUMN 38.
    DISPLAY F-NAME                      AT              COLUMN PLUS.

    DISPLAY "Last Name :"               AT LINE PLUS 2  COLUMN 8.
    DISPLAY L-NAME-IN                   AT              COLUMN 20.
    DISPLAY "Current Value :"  AT              COLUMN 38.
    DISPLAY L-NAME                      AT              COLUMN PLUS.

    ACCEPT MON-NUM
        FROM LINE 6 COLUMN 24
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.

    DISPLAY MON-NUM                    AT LINE 6       COLUMN 54.

    ACCEPT DAY-NUM
        FROM LINE 6 COLUMN 27
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.

    DISPLAY DAY-NUM                    AT LINE 6       COLUMN 57.

    ACCEPT YR-NUM
        FROM LINE 6 COLUMN 30
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.

    DISPLAY YR-NUM                     AT LINE 6       COLUMN 60.

    ACCEPT DEPT-NUM
        FROM LINE 8 COLUMN 21
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.

    DISPLAY DEPT-NUM                   AT LINE 8       COLUMN 54.

    ACCEPT F-NAME
        FROM LINE 10 COLUMN 21
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END

          STOP RUN.

    DISPLAY F-NAME                     AT LINE 10      COLUMN 54.

    ACCEPT L-NAME
        FROM LINE 12 COLUMN 20
        PROTECTED WITH EDITING REVERSED
        DEFAULT IS CURRENT
        AT END
          STOP RUN.

    DISPLAY L-NAME                     AT LINE 12      COLUMN 54.
   .
   .
   .

Figure 11-13 Form with ACCEPT WITH EDITING Phrase


Because the ACCEPT statements in Example 11-11 contain EDITING phrases, a person using the form in Figure 11-13 can use any of the keys listed in Table 11-3 for field editing purposes to make corrections or modifications.


Previous Next Contents Index
