Chapter 7
Debugging and Testing Compaq COBOL DML Programs

The Database Query utility (DBQ) commands and generic DML statements are the tools you use to debug and test your Compaq COBOL program's DML statements. For example, you can use DBQ commands to display currency indicators, test program loops, or check your program's execution efficiency.

It is important to eliminate any logic errors prior to running a Compaq COBOL DML program against a live database, because poorly written or incorrect logic can corrupt a database. You can resolve some logic errors by desk-checking a program. Desk-checking involves reviewing the logical ordering and proper use of DML statements; for example, to check for executing a FIND when you intend to execute a FETCH, or executing a CONNECT instead of a RECONNECT. You can also use a debugger (refer to the debugging information in the Compaq COBOL User Manual). However, neither method gives you information on currency indicators and the effects DML statements have on them.

Another method of debugging Compaq COBOL DML programs is to test DML statements using the DBQ utility. DBQ is an online interactive utility that uses a split screen to show the results of each execution of a DML statement. It is also an effective database programming learning tool. For a complete description of the DBQ utility, refer to the Oracle CODASYL DBMS documentation on data manipulation and programming.

We recommend that you use all of these tools to design, test, and debug your Compaq COBOL DML programs.

7.1 DBQ Commands and DML Statements

The DBQ utility provides both generic DML statements and DBQ-specific commands. Generic DML statements are similar to the Compaq COBOL DML statements explained in Chapter 4. However, not all Compaq COBOL DML syntax is applicable to the DBQ utility. These statements and entries do not apply:

For a complete discussion of generic DML, refer to the Oracle CODASYL DBMS documentation on data manipulation and programming.

7.2 Sample Debugging and Testing Session

This section shows how to use the DBQ utility for debugging and testing Compaq COBOL DML programs. Because the split screen limits the number of lines that can be displayed at one time, the split screen figures show the Bachman diagram only. Corresponding DBQ prompts, entries, and messages follow each Bachman diagram and are shown in their entirety.

The session tests and finds a logic error in the DML program statements in Example 7-1. The sample COBOL DML program is intended to:

  1. Fetch the first PART in the database with a PART_ID equal to AZ177311
  2. Fetch all SUPPLY records for the found PART
  3. Check the PART's SUPPLY records for SUP_RATINGs equal to 0
  4. Change all SUP_RATINGs equal to 0 to 5, and print SUPPLY records VENDOR_SUPPLY owners
  5. Change PART's PART_STATUS to X if one or more of its SUPPLY records has a SUP_RATING equal to 5

Remember, the database key values displayed on your screen may be different from those in the examples.

Note

If you are currently accessing PARTSS3 with the DBQ utility and have made any changes to the database, use the ROLLBACK statement to cancel your changes. Otherwise, you might change the results of the debugging session.

Example 7-1 Sample Compaq COBOL DML Program Statements

DATA DIVISION.
DB PARTSS3 WITHIN PARTS FOR NEW.
   .
   .
   .
PROCEDURE DIVISION.
000-BEGIN.
    READY PROTECTED UPDATE.
   .
   .
   .
    MOVE "AZ177311" TO PART_ID.
    FETCH FIRST PART USING PART_ID.
    MOVE "N" TO END-OF-COLLECTION.
    PERFORM A100-LOOP THROUGH A100-LOOP-EXIT
            UNTIL END-OF-COLLECTION = "Y".
   .
   .
   .
    STOP RUN.
A100-LOOP.
    FETCH NEXT WITHIN PART_SUPPLY
          AT END MOVE "Y" TO END-OF-COLLECTION
                 GO TO A100-LOOP-EXIT.
    IF SUP_RATING = "0"
          MOVE "5" TO SUP_RATING
          MODIFY SUP_RATING
          MOVE 1 TO MODIFY-COUNT
          FETCH OWNER WITHIN VENDOR_SUPPLY
          PERFORM PRINT-VENDOR.
    IF MODIFY-COUNT = 1
          MOVE "X" TO PART_STATUS
          MODIFY PART_STATUS.
A100-LOOP-EXIT.
    EXIT.

The following DBQ session tests and debugs the sample DML program statements in Example 7-1:


$ DBQ
dbq> BIND PARTSS3 FOR NEW
dbq> READY PROTECTED UPDATE
dbq> SET CURSIG
dbq> FETCH FIRST PART USING PART_ID

DBQ prompts you for a PART_ID value:


PART_ID [CHARACTER(8)] =AZ177311

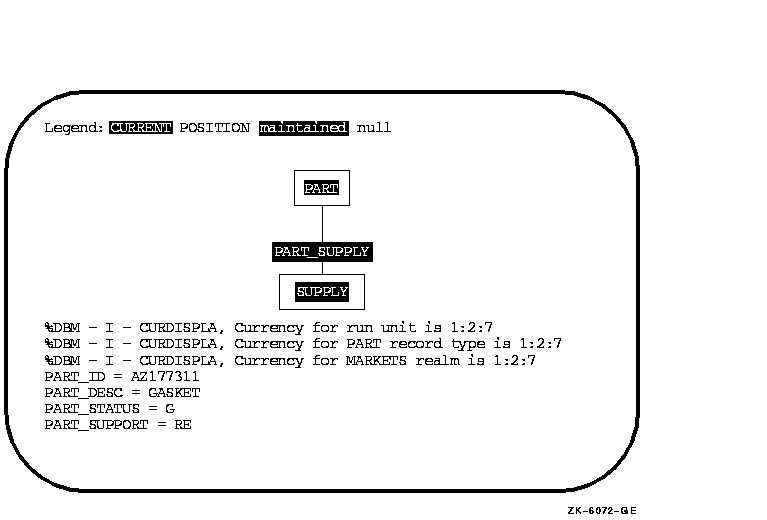

Entering AZ177311 as the PART_ID value causes the Bachman diagram in Figure 7-1 to appear on your screen.

Figure 7-1 Split Screen After FETCH FIRST PART USING PART_ID

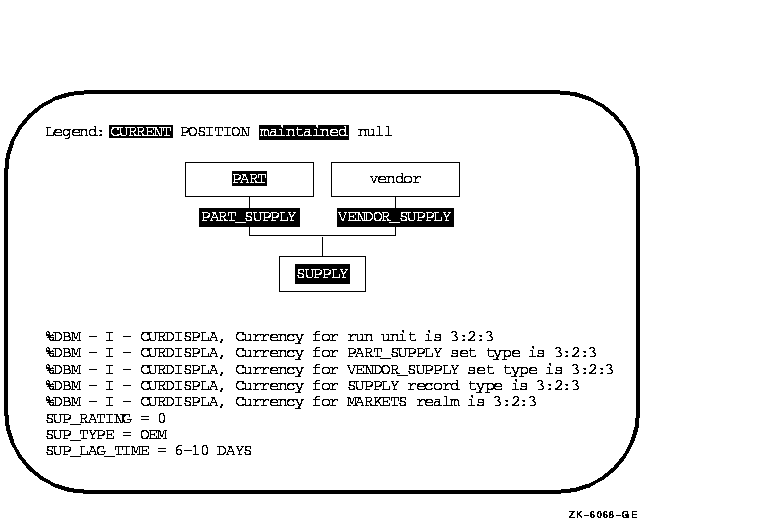

The next DML statement in Figure 7-2 is FETCH NEXT WITHIN PART_SUPPLY. Although this statement is in a performed loop, you can still test its logic by executing a series of FETCH NEXT WITHIN PART_SUPPLY until you find a SUP_RATING equal to 0.


dbq> FETCH NEXT WITHIN PART_SUPPLY

Figure 7-2 Split Screen After FETCH NEXT WITHIN PART_SUPPLY


Because SUPPLY participates in two sets, the Bachman diagram in Figure 7-2 shows the set relationships for SUPPLY. Notice the SUPPLY record has a SUP_RATING equal to 0. Therefore, you can test the next DML statement.


dbq> MODIFY SUP_RATING
SUP_RATING [CHARACTER(1)]= 5

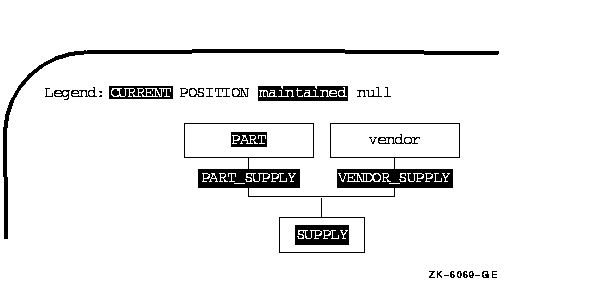

Notice how the MODIFY statement causes DBQ to issue a prompt, as shown in the preceding statement. When you MODIFY or STORE a record, DBQ prompts you for data entry by displaying the data name and its attributes. After entering the new SUP_RATING, use the RETURN key to execute the MODIFY statement.

Because this MODIFY statement does not change currency, the Bachman diagram in Figure 7_3 is the same as the one in Figure 7-2. Also, DBQ does not display currency update messages.

Figure 7-3 Split Screen After MODIFY SUP_RATING


The next statement to test is the FETCH for SUPPLY record's owner in the VENDOR_SUPPLY set.


dbq> FETCH OWNER WITHIN VENDOR_SUPPLY

Figure 7-4 Split Screen After FETCH OWNER WITHIN VENDOR_SUPPLY


Assuming the data item MODIFY-COUNT has a value 1, you can test the last (MODIFY PART) DML statement.


dbq> MODIFY PART_STATUS
PART_STATUS [CHARACTER(1)]= X
dbq>  DBM-F-WRONGRTYP, Specified record type not current record type

DBQ generates an error message indicating the MODIFY statement did not execute because the current of run unit is not a PART record. Comparing the shading and intensities of the Bachman diagram in Figure 7-4 with the legend shows the current record is a VENDOR record. Therefore, the diagram indicates that a MODIFY to the PART record will not work even before you attempt the MODIFY statement.

To correct the logic error, PART must be the current record type prior to execution of the MODIFY PART_STATUS statement. One way to correct the logic error is to execute a FETCH CURRENT PART statement before the MODIFY PART_STATUS statement. Example 7-2 shows a corrected version of the sample COBOL DML program statements in Example 7-1.

Example 7-2 Sample DML Program Statements

DATA DIVISION.
DB PARTSS3 WITHIN PARTS FOR NEW.
   .
   .
   .
PROCEDURE DIVISION.
000-BEGIN.
    READY PROTECTED UPDATE.
   .
   .
   .
    MOVE "AZ177311" TO PART_ID.
    FETCH FIRST PART USING PART_ID.
    MOVE "N" TO END-OF-COLLECTION.
    PERFORM A100-LOOP THROUGH A100-LOOP-EXIT
            UNTIL END-OF-COLLECTION = "Y".
   .
   .
   .
    STOP RUN.
A100-LOOP.
    FETCH NEXT WITHIN PART_SUPPLY
          AT END MOVE "Y" TO END-OF-COLLECTION
                 GO TO A100-LOOP-EXIT.
    IF SUP_RATING = "0"
          MOVE "5" TO SUP_RATING
          MODIFY SUP_RATING
          MOVE 1 TO MODIFY-COUNT
          FETCH OWNER WITHIN VENDOR_SUPPLY
          PERFORM PRINT-VENDOR.
    IF MODIFY-COUNT = 1
          MOVE "X" TO PART_STATUS
          FETCH CURRENT PART RETAINING PART_SUPPLY
          MODIFY PART_STATUS.
A100-LOOP-EXIT.
    EXIT.

The FETCH CURRENT PART statement uses the RETAINING clause to keep the current SUPPLY record as current of PART_SUPPLY.

Continue testing, starting with the new FETCH statement.


dbq> FETCH CURRENT PART RETAINING PART_SUPPLY

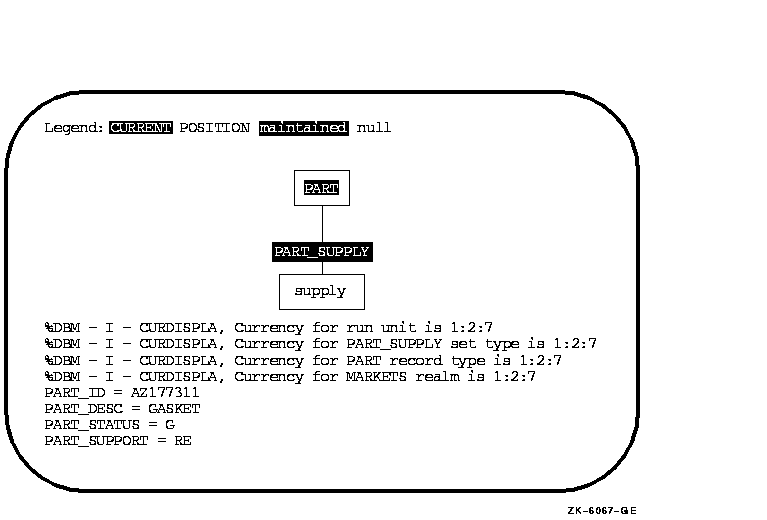

Figure 7-5 shows that executing FETCH CURRENT PART RETAINING PART_SUPPLY makes PART the current record type, while the RETAINING clause keeps SUPPLY current of PART_SUPPLY set. Retaining the current supply record as current of PART_SUPPLY means the next execution of FETCH NEXT WITHIN PART_SUPPLY uses the current SUPPLY record's currency to locate the next SUPPLY record. If you executed a FETCH CURRENT PART without the RETAINING clause, a FETCH NEXT WITHIN PART_SUPPLY would use PART's currency and FETCH the first SUPPLY record belonging to PART.

Figure 7-5 Split Screen After FETCH CURRENT PART RETAINING PART_SUPPLY


Now you can retest the MODIFY PART_STATUS.


dbq> MODIFY PART_STATUS
PART_STATUS [CHARACTER(1)]= X
dbq>

The DBQ prompt indicates the MODIFY was successful.

With the logic error found and fixed, you can test to see if the next execution of the FETCH NEXT WITHIN PART_SUPPLY fetches the next SUPPLY record belonging to the first PART record.


dbq> FETCH NEXT WITHIN PART_SUPPLY

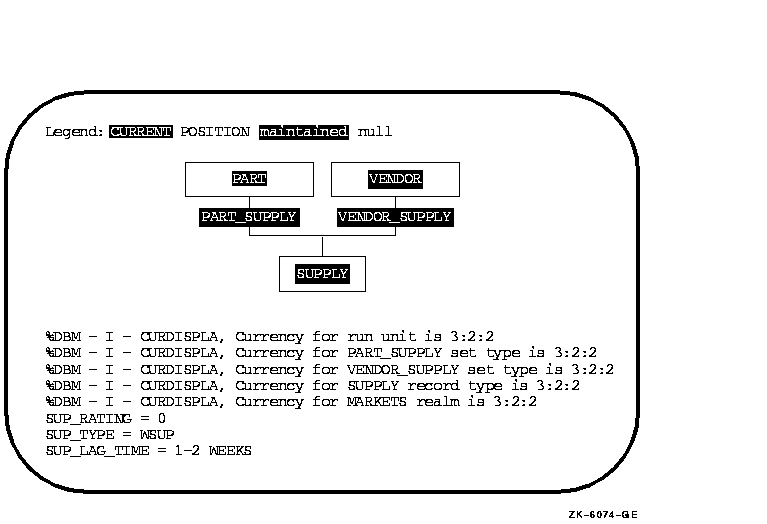

The database keys displayed by the currency update messages in Figure 7_6 and Figure 7-7 are the same, thereby showing the A100-LOOP paragraph will fetch the next SUPPLY record owned by the first PART record.

Notice the data items also have the same value. Comparing data item contents instead of database key values is not a good practice because duplicate records may be allowed. For example, a PART may have two or more SUPPLY records containing the same data. Also, each SUPPLY record could point to a different owner in the VENDOR_SUPPLY set type.

Figure 7-6 Split Screen After FETCH NEXT WITHIN PART_SUPPLY


To show that the record is indeed the second SUPPLY record belonging to the first PART record, execute the following statement:


dbq> FETCH 2 WITHIN PART_SUPPLY

Figure 7-7 Split Screen After FETCH 2 WITHIN PART_SUPPLY


7.3 Program Map Listings on Alpha or VAX

Listings are different on OpenVMS Alpha and OpenVMS VAX systems. This section shows two listings on Alpha and two on VAX.

7.3.1 Listings on Alpha

This section shows two compiler listing examples on OpenVMS Alpha.

PARTSS1 Program Map Listing (Alpha)

PARTSS1-PROGRAM in Example 7-3 includes the Oracle CODASYL DBMS data-names of the PARTSS1 subschema. The complete subschema can be obtained from the Oracle CDD/Repository DICTIONARY utility, using the following commands (refer to the Oracle CDD/Repository documentation):


$  DICTIONARY OPERATOR
CDO> SET OUTPUT filename.extension
CDO> SHO GENERIC CDD$DATABASE/FULL database-name

(The logical CDD$DEFAULT must have been previously defined.)

Example 7-3 PARTSS1-PROGRAM Compiler Listing (Alpha)

PARTSS1-PROGRAM          Source Listing          18-JUN-2001 08:20:37  Compaq COBOL V2.7             Page 1
0                        Source Listing          18-JUN-2001 08:17:19  DEVICE:[COBOL.EXAMPLES]PARTSS1.COB;1

       1 IDENTIFICATION DIVISION.
       2 PROGRAM-ID.  PARTSS1-PROGRAM.
       3
       4 DATA DIVISION.
       5 SUB-SCHEMA SECTION.
       6 DB      PARTSS5 WITHIN PARTS FOR "DBM$IVP_OUTPUT:DBMPARTS".
       7
       8 PROCEDURE DIVISION.
       9 END PROGRAM PARTSS1-PROGRAM.

PARTSS1-PROGRAM          Source Listing          18-JUN-2001 08:20:37  Compaq COBOL V2.7             Page 2
0                        Program Section Summary 18-JUN-2001 08:17:19  DEVICE:[COBOL.EXAMPLES]PARTSS1.COB;1



PROGRAM SECTION INDEX

   Index  Name                Bytes     Alignment  Attributes
   -----  ----------------  ----------  ---------  -------------------------------------------------------------
      11  DBM$UWA_B                576  OCTA    4    PIC    OVR    REL    GBL    SHR  NOEXE     RD    WRT  NOVEC
      12  DBM$SSC_B                 48  OCTA    4    PIC    CON    REL    GBL  NOSHR  NOEXE     RD  NOWRT  NOVEC



DIAGNOSTICS SUMMARY

       Informationals       1 (suppressed)
       ----------------------
       Total                1

PARTSS1_PROGRAM\PARTSS1_PROGRAM Source Listing   18-JUN-2001 08:20:37  Compaq COBOL V2.7             Page 3
0                Data Names in Alphabetic Order  18-JUN-2001 08:17:19  DEVICE:[COBOL.EXAMPLES]PARTSS1.COB;1


Line    Level   Name              Location         Size        Bytes       Usage    Category   Subs   Attribute
-----   -----   -------------   -------------   ----------   ----------   --------  --------   ----   ---------
    6     01    CATEGORY         11  000000C8           23           23   DISPLAY   Group               Glo
    6     02    CLASS_CODE       11  000000C8            2            2   DISPLAY   AN                  Glo
    6     02    CLASS_DESC       11  000000CA           20           20   DISPLAY   AN                  Glo
    6     02    CLASS_STATUS     11  000000DE            1            1   DISPLAY   AN                  Glo
    6     02    COMP_MEASURE     11  000000F0            1            1   DISPLAY   AN                  Glo
    6     02    COMP_OWNER_PART  11  000000E8            8            8   DISPLAY   AN                  Glo
    6     02    COMP_QUANTITY    11  000000F1            5            3   COMP-3    N                   Glo
    6     02    COMP_SUB_PART    11  000000E0            8            8   DISPLAY   AN                  Glo
    6     01    COMPONENT        11  000000E0           20           20   DISPLAY   Group               Glo
    6     01    DB-CONDITION     11  0000003C            9            4   COMP      N                   Glo
    6     01    DB-CURRENT-RECORD-ID
                                 11  00000000            4            2   COMP      N                   Glo
    6     01    DB-CURRENT-RECORD-NAME
                                 11  00000019           31           31   DISPLAY   AN                  Glo
    6     01    DB-KEY           11  0000007A           18            8   COMP      N                   Glo
    6     01    DB-UWA           11  00000000          108          108   DISPLAY   AN                  Glo
    6     02    EMP_FIRST_NAME   11  0000010F           10           10   DISPLAY   AN                  Glo
    6     02    EMP_ID           11  000000F8            5            3   COMP-3    N                   Glo
    6     02    EMP_LAST_NAME    11  000000FB           20           20   DISPLAY   AN                  Glo
    6     02    EMP_LOC          11  00000120            5            5   DISPLAY   AN                  Glo
    6     02    EMP_PHONE        11  00000119            7            7   DISPLAY   AN                  Glo
    6     01    EMPLOYEE         11  000000F8           45           45   DISPLAY   Group               Glo
    6     02    GROUP_NAME       11  00000128           20           20   DISPLAY   AN                  Glo
    6     01    PART             11  00000140           71           71   DISPLAY   Group               Glo
    6     02    PART_COST        11  00000180            9            5   COMP-3    N                   Glo
    6     02    PART_DESC        11  00000148           50           50   DISPLAY   AN                  Glo
    6     02    PART_ID          11  00000140            8            8   DISPLAY   AN                  Glo
    6     02    PART_PRICE       11  0000017B            9            5   COMP-3    N                   Glo
    6     02    PART_STATUS      11  0000017A            1            1   DISPLAY   AN                  Glo
    6     02    PART_SUPPORT     11  00000185            2            2   DISPLAY   AN                  Glo
    6     01    PR_QUOTE         11  00000188           26           26   DISPLAY   Group               Glo
    6     02    QUOTE_DATE       11  0000018F            6            6   DISPLAY   AN                  Glo
    6     02    QUOTE_ID         11  00000188            7            7   DISPLAY   AN                  Glo
    6     02    QUOTE_MIN_ORDER  11  00000195            5            3   COMP-3    N                   Glo
    6     02    QUOTE_QTY_PRICE  11  0000019D            9            5   COMP-3    N                   Glo
    6     02    QUOTE_UNIT_PRIC  11  00000198            9            5   COMP-3    N                   Glo
    6     02    SUP_LAG_TIME     11  000001AD           10           10   DISPLAY   AN                  Glo
    6     02    SUP_RATING       11  000001A8            1            1   DISPLAY   AN                  Glo
    6     02    SUP_TYPE         11  000001A9            4            4   DISPLAY   AN                  Glo
    6     01    SUPPLY           11  000001A8           15           15   DISPLAY   Group               Glo
    6     02    VEND_ADDRESS     11  00000206           15           15   DISPLAY   AN            1     Glo
    6     02    VEND_CONTACT     11  000001E8           30           30   DISPLAY   AN                  Glo
    6     02    VEND_ID          11  000001B8            8            8   DISPLAY   AN                  Glo
    6     02    VEND_NAME        11  000001C0           40           40   DISPLAY   AN                  Glo
    6     02    VEND_PHONE       11  00000233           10           10   DISPLAY   AN                  Glo
    6     01    VENDOR           11  000001B8          133          133   DISPLAY   Group               Glo
    6     01    WK_GROUP         11  00000128           20           20   DISPLAY   Group               Glo

PARTSS1_PROGRAM\PARTSS1_PROGRAM Source Listing                  18-JUN-2001 08:20:37  Compaq COBOL       Page 4
0                    Procedure Names in Alpha Order  18-JUN-2001 08:17:19  DEVICE:[COBOL.EXAMPLES]PARTSS1.COB;1


Line    Name                                Location      Type
-----   -------------------------------   -------------   -----------------------------------------------------
    2   PARTSS1-PROGRAM                           **      Program

PARTSS1_PROGRAM\PARTSS1_PROGRAM Source Listing                  18-JUN-2001 08:20:37  Compaq COBOL V     Page 5
0                               Compilation Summary  18-JUN-2001 08:17:19  DEVICE:[COBOL.EXAMPLES]PARTSS1.COB;1



COMMAND QUALIFIERS

   COBOL

      /NOALIGNMENT                                                   /GRANULARITY = QUAD
      /NOANALYSIS_DATA                                               /NOINCLUDE
      /NOANSI_FORMAT                                                 /LIST
      /ARCHITECTURE = GENERIC                                        /NOMACHINE_CODE
      /ARITHMETIC = NATIVE                                           /MAP = ALPHABETICAL
      /NOAUDIT                                                       /MATH_INTERMEDIATE = FLOAT
      /CHECK = (NOPERFORM, NOBOUNDS, NODECIMAL, NODUPLICATE_KEYS)    /NATIONALITY = US
      /NOCONDITIONALS                                                /NOOBJECT
      /NOCONVERT = LEADING_BLANKS                                    /OPTIMIZE = (LEVEL=4,TUNE=GENERIC)
      /NOCOPY_LIST                                                   /RESERVED_WORDS = (XOPEN,
                                                                       NOFOREIGN_EXTENSIONS, NO200X)
      /NOCROSS_REFERENCE                                             /NOSEPARATE_COMPILATION
      /DEBUG = (NOSYMBOLS, TRACEBACK)                                /NOSEQUENCE_CHECK
      /NODEPENDENCY_DATA                                             /STANDARD = (NOXOPEN, NOSYNTAX,
                                                                       NOV3, 85, NOMIA)
      /NODIAGNOSTICS                                                 /NOTIE
      /NODISPLAY_FORMATTED                                           /NOTRUNCATE
      /NOFIPS                                                        /VFC
      /NOFLAGGER                                                     /WARNINGS = (NOINFORMATION, OTHER)
      /FLOAT = D_FLOAT


COMPILATION STATISTICS

  CPU time:          1.59 seconds
  Elapsed time:      7.59 seconds
  Pagefaults:        1014
  I/O Count:          343
  Source lines:         9

  339 lines per CPU minute.

PARTSS3 Program Map Listing (Alpha)

PARTSS3-PROGRAM in Example 7-4 includes the Oracle CODASYL DBMS data-names of the PARTSS3 subschema.

Example 7-4 PARTSS3-PROGRAM Compiler Listing (Alpha)

PARTSS3-PROGRAM          Source Listing          18-JUN-2001 08:33:40  Compaq COBOL V2.7             Page 1
0                        Source Listing          18-JUN-2001 08:30:39  DEVICE:[COBOL.EXAMPLES]PARTSSE.COB;1

       1 IDENTIFICATION DIVISION.
       2 PROGRAM-ID.  PARTSS3-PROGRAM.
       3
       4 DATA DIVISION.
       5 SUB-SCHEMA SECTION.
       6 DB      PARTSS3 WITHIN PARTS FOR "DBM$IVP_OUTPUT:DBMPARTS".
       7
       8 PROCEDURE DIVISION.
       9 END PROGRAM PARTSS3-PROGRAM.

PARTSS3-PROGRAM          Source Listing          18-JUN-2001 08:33:40  Compaq COBOL V2.7             Page 2
0                        Program Section Summary 18-JUN-2001 08:30:39  DEVICE:[COBOL.EXAMPLES]PARTSSE.COB;1



PROGRAM SECTION INDEX

   Index  Name          Bytes     Alignment  Attributes
   -----  ----------- ----------  ---------  -------------------------------------------------------------
      11  DBM$UWA_B          376  OCTA    4    PIC    OVR    REL    GBL    SHR  NOEXE     RD    WRT  NOVEC
      12  DBM$SSC_B           48  OCTA    4    PIC    CON    REL    GBL  NOSHR  NOEXE     RD  NOWRT  NOVEC



DIAGNOSTICS SUMMARY

       Informationals       1 (suppressed)
       ----------------------
       Total                1

PARTSS3_PROGRAM\PARTSS3_PROGRAM Source Listing   18-JUN-2001 08:33:40  Compaq COBOL V2.7             Page 3
0                Data Names in Alphabetic Order  18-JUN-2001 08:30:39  DEVICE:[COBOL.EXAMPLES]PARTSSE.COB;1


Line    Level   Name               Location         Size        Bytes       Usage    Category   Subs   Attribute
-----   -----   --------------   -------------   ----------   ----------   --------  --------   ----   ---------
    6     01    DB-CONDITION      11  0000003C            9            4   COMP      N                   Glo
    6     01    DB-CURRENT-RECORD-ID
                                  11  00000000            4            2   COMP      N                   Glo
    6     01    DB-CURRENT-RECORD-NAME
                                  11  00000019           31           31   DISPLAY   AN                  Glo
    6     01    DB-KEY            11  0000007A           18            8   COMP      N                   Glo
    6     01    DB-UWA            11  00000000          108          108   DISPLAY   AN                  Glo
    6     01    PART              11  000000A0           61           61   DISPLAY   Group               Glo
    6     02    PART_DESC         11  000000A8           50           50   DISPLAY   AN                  Glo
    6     02    PART_ID           11  000000A0            8            8   DISPLAY   AN                  Glo
    6     02    PART_STATUS       11  000000DA            1            1   DISPLAY   AN                  Glo
    6     02    PART_SUPPORT      11  000000DB            2            2   DISPLAY   AN                  Glo
    6     02    SUP_LAG_TIME      11  000000E5           10           10   DISPLAY   AN                  Glo
    6     02    SUP_RATING        11  000000E0            1            1   DISPLAY   AN                  Glo
    6     02    SUP_TYPE          11  000000E1            4            4   DISPLAY   AN                  Glo
    6     01    SUPPLY            11  000000E0           15           15   DISPLAY   Group               Glo
    6     02    VEND_ADDRESS      11  0000013E           15           15   DISPLAY   AN            1     Glo
    6     02    VEND_CONTACT      11  00000120           30           30   DISPLAY   AN                  Glo
    6     02    VEND_ID           11  000000F0            8            8   DISPLAY   AN                  Glo
    6     02    VEND_NAME         11  000000F8           40           40   DISPLAY   AN                  Glo
    6     02    VEND_PHONE        11  0000016B           10           10   DISPLAY   N                   Glo
    6     01    VENDOR            11  000000F0          133          133   DISPLAY   Group               Glo

PARTSS3_PROGRAM\PARTSS3_PROGRAM Source Listing     18-JUN-2001 08:33:40  Compaq COBOL V2.7             Page 4
0                  Procedure Names in Alpha Order  18-JUN-2001 08:30:39  DEVICE:[COBOL.EXAMPLES]PARTSSE.COB;1


Line    Name           Location      Type
-----   ----------   -------------   -------------------------------------------------------------------------
    2   PARTSS3-PROGRAM      **      Program

PARTSS3_PROGRAM\PARTSS3_PROGRAM Source Listing      18-JUN-2001 08:33:40  Compaq COBOL V2.7             Page 5
0                           Compilation Summary     18-JUN-2001 08:30:39  DEVICE:[COBOL.EXAMPLES]PARTSSE.COB;1



COMMAND QUALIFIERS

   COBOL

      /NOALIGNMENT                                                   /GRANULARITY = QUAD
      /NOANALYSIS_DATA                                               /NOINCLUDE
      /NOANSI_FORMAT                                                 /LIST
      /ARCHITECTURE = GENERIC                                        /NOMACHINE_CODE
      /ARITHMETIC = NATIVE                                           /MAP = ALPHABETICAL
      /NOAUDIT                                                       /MATH_INTERMEDIATE = FLOAT
      /CHECK = (NOPERFORM, NOBOUNDS, NODECIMAL, NODUPLICATE_KEYS)    /NATIONALITY = US
      /NOCONDITIONALS                                                /NOOBJECT
      /NOCONVERT = LEADING_BLANKS                                    /OPTIMIZE = (LEVEL=4,TUNE=GENERIC)
      /NOCOPY_LIST                                                   /RESERVED_WORDS = (XOPEN,
                                                                       NOFOREIGN_EXTENSIONS, NO200X)
      /NOCROSS_REFERENCE                                             /NOSEPARATE_COMPILATION
      /DEBUG = (NOSYMBOLS, TRACEBACK)                                /NOSEQUENCE_CHECK
      /NODEPENDENCY_DATA                                             /STANDARD = (NOXOPEN, NOSYNTAX,
                                                                       NOV3, 85, NOMIA)
      /NODIAGNOSTICS                                                 /NOTIE
      /NODISPLAY_FORMATTED                                           /NOTRUNCATE
      /NOFIPS                                                        /VFC
      /NOFLAGGER                                                     /WARNINGS = (NOINFORMATION, OTHER)
      /FLOAT = D_FLOAT


COMPILATION STATISTICS

  CPU time:          1.59 seconds
  Elapsed time:      7.63 seconds
  Pagefaults:        1053
  I/O Count:          340
  Source lines:         9

  339 lines per CPU minute.    <>


Previous Next Contents Index
