6.5 Predefined Variables and Constants

The <curses.h> header file defines variables and constants useful for implementing Curses (see Table 6-2).

Table 6-2 Curses Predefined Variables and#define Constants
Name Type Description
curscr WINDOW * Window of current screen
stdscr WINDOW * Default window
LINES int Number of lines on the terminal screen
COLS int Number of columns on the terminal screen
ERR --- Flag (0) for failed routines
OK --- Flag (1) for successful routines
TRUE --- Boolean true flag (1)
FALSE --- Boolean false flag (0)
_BLINK --- Parameter for setattr and clrattr
_BOLD --- Parameter for setattr and clrattr
_REVERSE --- Parameter for setattr and clrattr
_UNDERLINE --- Parameter for setattr and clrattr

For example, you can use the predefined macro ERR to test the success or failure of a Curses function. Example 6-4 shows how to perform such a test.

Example 6-4 Curses Predefined Variables

#include <curses.h>

WINDOW  *win1, *win2, *win3;

main()
{
   initscr();
   win1 = newwin(10, 10, 1, 5);
      .
      .
      .
   if (mvwin(win1, 1, 10) == ERR)
      addstr("The MVWIN function failed.");
      .
      .
      .
   endwin();
}

In Example 6-4, if the mvwin function fails, the program adds a string to stdscr that explains the outcome. The Curses mvwin function moves the starting position of a window.

6.6 Cursor Movement

In the UNIX system environment, you can use Curses functions to move the cursor across the terminal screen. With other implementations, you can either allow Curses to move the cursor using the move function, or you can specify the origin and the destination of the cursor to the mvcur function, which moves the cursor in a more efficient manner.

In Compaq C for OpenVMS Systems, the two functions are functionally equivalent and move the cursor with the same efficiency.

Example 6-5 shows how to use the move and mvcur functions.

Example 6-5 The Cursor Movement Functions

#include <curses.h>

main()
{
   initscr();
      .
      .
      .
(1)   clear();
(2)   move(10, 10);
(3)   move(LINES/2, COLS/2);
(4)   mvcur(0, COLS-1, LINES-1, 0);
      .
      .
      .
   endwin();
}


Key to Example 6-5:

  1. The clear macro erases stdscr and positions the cursor at coordinates (0,0).
  2. The first occurrence of move moves the cursor to coordinates (10,10).
  3. The second occurrence of move uses the predefined variables LINES and COLS to calculate the center of the screen (by calculating the value of half the number of LINES and COLS on the screen).
  4. The mvcur function forces absolute addressing. This function can address the lower left corner of the screen by claiming that the cursor is presently in the upper right corner. You can use this method if you are unsure of the current position of the cursor, but move works just as well.

6.7 Program Example

The following program example shows the effects of many of the Curses macros and functions. You can find explanations of the individual lines of code, if not self-explanatory, in the comments to the right of the particular line. Detailed discussions of the functions follow the source code listing.

Example 6-6 shows the definition and manipulation of one user-defined window and stdscr .

Example 6-6 stdscr and Occluding Windows

/*        CHAP_6_STDSCR_OCCLUDE.C                       */

/* This program defines one window: win1.  win1 is      */
/* located towards the center of the default window     */
/* stdscr.  When writing to an occluding window (win1)  */
/* that is later erased, the writing is erased as well. */

#include <curses.h>     /* Include header file.         */

WINDOW *win1;                   /* Define windows.      */

main()
{
    char str[80];               /* Variable declaration.*/

    initscr();  /* Set up Curses.   */
    noecho();   /* Turn off echo.   */

    /* Create window.             */
    win1 = newwin(10, 20, 10, 10);

    box(stdscr, '|', '-');  /* Draw a box around stdscr. */
    box(win1, '|', '-');    /* Draw a box around win1.   */

    refresh();  /* Display stdscr on screen.  */

    wrefresh(win1);     /* Display win1 on screen.  */

(1)   getstr(str);      /* Pause. Type a few words!   */

   mvaddstr(22, 1, str);
(2)   getch();
     /* Add string to win1.        */

    mvwaddstr(win1, 5, 5, "Hello");
    wrefresh(win1);     /* Add win1 to terminal scr.  */

    getch();    /* Pause.  Press Return.      */

    delwin(win1);       /* Delete win1.           */

(3)   touchwin(stdscr); /* Refresh all of stdscr.     */

   getch();                   /* Pause.  Press Return.      */
   endwin();                  /* Ends session.              */
}

Key to Example 6-6:

  1. The program waits for input. The echo was disabled using the noecho macro, so the words that you type do not appear on stdscr . However, the macro stores the words in the variable str for use elsewhere in the program.
  2. The getch macro causes the program to pause. When you are finished viewing the screen, press Return so the program can resume. The getch macro refreshes stdscr on the terminal screen without calling refresh . The screen appears like Figure 6-4.

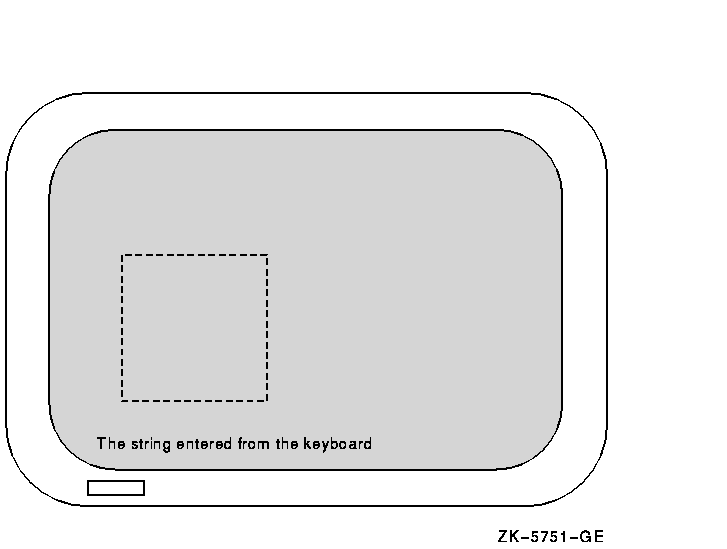

Figure 6-4 An Example of the getch Macro


  1. The touchwin function refreshes the screen so that all of stdscr is visible and the deleted occluding window no longer appears on the screen.


Chapter 7
Math Functions

Table 7-1 lists and describes the math functions in the Compaq C Run-Time Library (RTL). For more detailed information on each function, see the Reference Section.

Table 7-1 Math Functions
Function Description
abs Returns the absolute value of an integer.
acos Returns a value in the range 0 to Pi sign, which is the arc cosine of its radian argument.
asin Returns a value in the range --Pi sign/2 to Pi sign/2, which is the arc sine of its radian argument.
atan Returns a value in the range - pi /2 to Pi sign/2, which is the arc tangent of its radian argument.
atan2 Returns a value in the range - pi to Pi sign, which is the arc tangent of y/x where y and x are the two arguments.
cabs Returns: sqrt ( x * x + y * y ).
ceil Returns (as a double ) the smallest integer that is greater than or equal to its argument.
cos Returns the cosine of its radian argument.
cot Returns the cotangent of its radian argument.
cosh Returns the hyperbolic cosine of its argument.
drand48 , erand48 , jrand48 , lrand48 , mrand48 , nrand48 Generates uniformly distributed pseudorandom number sequences. Returns 48-bit, nonnegative, double-precision floating-point values.
exp Returns the base e raised to the power of the argument.
fabs Returns the absolute value of a floating-point value.
floor Returns (as a double ) the largest integer that is less than or equal to its argument.
fmod Computes the floating-point remainder of the first argument to fmod divided by the second.
frexp Calculates the fractional and exponent parts of a double value.
hypot Returns the square root of the sum of the squares of two arguments.
initstate Initializes random number generators.
labs Returns the absolute value of an integer as a long int .
lcong48 Initializes a 48-bit uniformly distributed pseudorandom number sequence.
llabs, qabs (ALPHA ONLY) Returns the absolute value of an __int64 integer.
ldexp Returns its first argument multiplied by 2 raised to the power of its second argument.
ldiv, div Returns the quotient and remainder after the division of their arguments.
lldiv, qdiv (ALPHA ONLY) Returns the quotient and remainder after the division of their arguments.
log, log 10 Returns the logarithm of their arguments.
modf Returns the positive fractional part of its first argument and assigns the integral part, expressed as a double , to the object whose address is specified by the second argument.
pow Returns the first argument raised to the power of the second argument.
rand, srand Returns pseudorandom numbers in the range 0 to 2 31-1 .
random , srandom Generates pseudorandom numbers in a more random sequence.
seed48 , srand48 Initializes a 48-bit random number generator.
setstate Restarts, and changes random number generators.
sin Returns the sine of its radian argument.
sinh Returns the hyperbolic sine of its argument.
sqrt Returns the square root of its argument.
tan Returns a double value that is the tangent of its radian argument.
tanh Returns a double value that is the hyperbolic tangent of its double argument.

7.1 Math Function Variants---float, double, long double

The following additional Compaq C RTL math routines are supported for Compaq C on OpenVMS Alpha systems only. They are defined in <math.h> . Many of them are float , double , and long double variants of the routines listed in the preceding table. See the Compaq Portable Mathematics Library (DPML) manual for descriptions of these routines.

Note that for programs compiled without /L_DOUBLE=64 (that is, compiled with the default /L_DOUBLE=128), the long double variants of these Compaq C RTL math routines map to the X_FLOAT entry points documented in the DPML manual.


acosd      cbrt        expm1l      ldexpl       scalbf
acosdf     cbrtf       fabsf       lgamma       scalbl
acosdl     cbrtl       fabsl       lgammaf      sind
acosf      ceilf       fabsl       lgammal      sindf
acosl      ceill       finite      log10f       sindl
acosh      copysign    finitef     log10l       sinf
acoshf     copysignf   finitel     log1p        sinl
acoshl     copysignl   floorf      log1pf       sinhf
asind      cosd        floorl      log1pl       sinhl
asindf     cosdf       fmodf       log2         sqrtf
asindl     cosdl       fmodl       log2f        sqrtl
asinf      cosf        fp_class    log2l        tand
asinl      cosl        fp_classf   logb         tandf
asinh      coshf       fp_classl   logbf        tandl
asinhf     coshl       frexpf      logbl        tanf
asinhl     cot         frexpl      logf         tanl

atan2f     cotd        hypotf      logl         tanhf
atan2l     cotdf       hypotl      modff        tanhl
atand      cotdl       isnan       modfl        trunc
atand2     cotf        isnanf      nextafter    truncf
atand2f    cotl        isnanl      nextafterf   truncl
atand2l    erf         j0          nextafterl   unordered
atandf     erfc        j0f         nint         unorderedf
atandl     erfcf       j0l         nintf        unorderedl
atanf      erfcl       j1          nintl        y0
atanl      erff        j1f         powf         y0f
atanh      erfl        j1l         powl         y0l
atanhf     expf        jn          rint         y1
atanhl     expl        jnf         rintf        y1f
cabsf      expm1       jnl         rintl        y1l
cabsl      expm1f      ldexpf      scalb        yn
                                                ynf
                                                ynl

7.2 Error Detection

To help you detect run-time errors, the <errno.h> header file defines the following two symbolic values that are returned by many (but not all) of the mathematical functions:

When using the math functions, you can check the external variable errno for either or both of these values and take the appropriate action if an error occurs.

The following program example checks the variable errno for the value EDOM, which indicates that a negative number was specified as input to the function sqrt :


#include <errno.h>
#include <math.h>
#include <stdio.h>

main()
{
   double input, square_root;

   printf("Enter a number: ");
   scanf("%le", &input);
   errno = 0;
   square_root = sqrt(input);

   if (errno == EDOM)
      perror("Input was negative");
   else
      printf("Square root of %e = %e\n",
              input, square_root);
}

If you did not check errno for this symbolic value, the sqrt function returns 0 when a negative number is entered. For more information about the <errno.h> header file, see Chapter 4.

7.3 The <fp.h> Header File

The <fp.h> header file implements some of the features defined by the Numerical C Extensions Group of the ANSI X3J11 committee. You might find this useful for applications that make extensive use of floating-point functions.

Some of the double-precision functions listed in this chapter return the value ±HUGE_VAL (defined in either <math.h> or <fp.h> ) if the result is out of range. The float version of those functions return the value HUGE_VALF (defined only in <fp.h> ) for the same conditions. The long double version returns the value HUGE_VALL (also defined in <fp.h> ).

For programs compiled to enable IEEE infinity and NaN values, the values HUGE_VAL, HUGE_VALF, and HUGE_VALL are expressions, not compile-time constants. Initializations such as the following cause a compile-time error:


$ CREATE IEEE_INFINITY.C
#include <fp.h>

double my_huge_val = HUGE_VAL
^Z
$ CC /FLOAT=IEEE/IEEE=DENORM IEEE_INFINITY

double my_huge_val = HUGE_VAL;
.....................^
%CC-E-NEEDCONSTEXPR, In the initializer for my_huge_val, "decc$gt_dbl_infinity"
is not constant, but occurs in a context that requires a constant expression.
at line number 3 in file WORK1$:[RTL]IEEE_INFINITY.C;1
$

When using both <math.h> and <fp.h> , be aware that <math.h> defines a function isnan and <fp.h> defines a macro by the same name. Whichever header is included first in the application will resolve a reference to isnan .

7.4 Example

Example 7-1 shows how the tan , sin , and cos functions operate.

Example 7-1 Calculating and Verifying a Tangent Value

/*        CHAP_7_MATH_EXAMPLE.C                                 */

/* This example uses two functions --- mytan and main ---       */
/* to calculate the tangent value of a number, and to check     */
/* the calculation using the sin and cos functions.             */

#include <math.h>
#include <stdio.h>

/* This function calculates the tangent using the sin and       */
/* cos functions.                                               */

double mytan(x)
    double x;
{
    double y,
           y1,
           y2;

    y1 = sin(x);
    y2 = cos(x);

    if (y2 == 0)
        y = 0;
    else
        y = y1 / y2;

    return y;
}
main()
{
    double x;

    /*  Print values: compare   */
    for (x = 0.0; x < 1.5; x += 0.1)
        printf("tan of %4.1f = %6.2f\t%6.2f\n", x, mytan(x), tan(x));
}

Example 7-1 produces the following output:


$ RUN  EXAMPLE
tan of  0.0 =   0.00      0.00
tan of  0.1 =   0.10      0.10
tan of  0.2 =   0.20      0.20
tan of  0.3 =   0.31      0.31
tan of  0.4 =   0.42      0.42
tan of  0.5 =   0.55      0.55
tan of  0.6 =   0.68      0.68
tan of  0.7 =   0.84      0.84
tan of  0.8 =   1.03      1.03
tan of  0.9 =   1.26      1.26
tan of  1.0 =   1.56      1.56
tan of  1.1 =   1.96      1.96
tan of  1.2 =   2.57      2.57
tan of  1.3 =   3.60      3.60
tan of  1.4 =   5.80      5.80
$
