The SDA command PE LAN_DEVICE is useful for displaying PEDRIVER LAN device data. Each LAN device is a local LAN device on the system being used for NISCACP communications.

SDA> PE LAN_DEVICE

In the following example PE LAN_DEVICE displays the LAN device summary of I64MOZ

Example F-3 SDA Command PE LAN_DEVICE

SDA> PE LAN_DEVICE PE$SDA Extension on I64MOZ (HP rx4640 (1.50GHz/6.0MB)) at 21-NOV-2008 15:43:12.53 ---------------------------------------------------------------------------------- I64MOZ Device Summary 21-NOV-2008 15:43:12.53: Device Line Buffer MgtBuf Load Mgt Current Total Errors & Device Type Speed Size SizeCap Class Priority LAN Address Bytes Events Status ------ ---- ----- ---- ------- ----- -------- ----------- ----- ------ ------ LCL 0 1426 0 0 0 00-00-00-00-00-00 31126556 0 Run Online Local Restart EIA 100 1426 0 1000 0 00-30-6E-5D-97-AE 5086238 2 Run Online Restart EIB 1000 1426 0 1000 0 00-30-6E-5D-97-AF 0 229120 Run Online Restart

F.3.5 Monitoring PEDRIVER Buses for LAN Devices

Example F-4 SDA Command SHOW PORT/BUS Display

SDA> SHOW PORT/BUS=BUS_EXA VAXcluster data structures -------------------------- --- BUS: 817E02C0 (EXA) Device: EX_DEMNA LAN Address: AA-00-04-00-64-4F --- LAN Hardware Address: 08-00-2B-2C-20-B5 Status: 00000803 run,online(1),restart ------- Transmit ------ ------- Receive ------- ---- Structure Addresses --- Msg Xmt 20290620 Msg Rcv 67321527 PORT Address 817E1140 Mcast Msgs 1318437 Mcast Msgs 39773666 VCIB Addr 817E0478 Mcast Bytes 168759936 Mcast Bytes 159660184 HELLO Message Addr 817E0508 Bytes Xmt 2821823510 Bytes Rcv 3313602089 BYE Message Addr 817E0698 Outstand I/Os 0 Buffer Size 1424 Delete BUS Rtn Adr 80C6DA46 Xmt Errors(2) 15896 Rcv Ring Size 31 Last Xmt Error 0000005C Time of Last Xmt Error(3)21-JAN-1994 15:33:38.96 --- Receive Errors ---- ------ BUS Timer ------ ----- Datalink Events ------ TR Mcast Rcv 0 Handshake TMO 80C6F070 Last 7-DEC-1992 17:15:42.18 Rcv Bad SCSID 0 Listen TMO 80C6F074 Last Event 00001202 Rcv Short Msg 0 HELLO timer 3 Port Usable 1 Fail CH Alloc 0 HELLO Xmt err(4) 1623 Port Unusable 0 Fail VC Alloc 0 Address Change 1 Wrong PORT 0 Port Restart Fail 0

Field	Description
(1) Status:	The Status line should always display a status of "online" to indicate that PEDRIVER can access its LAN adapter.
(2) Xmt Errors (transmission errors)	Indicates the number of times PEDRIVER has been unable to transmit a packet using this LAN adapter.
(3) Time of Last Xmt Error	You can compare the time shown in this field with the Open and Cls times shown in the VC display in Example F-2 to determine whether the time of the LAN adapter failure is close to the time of a virtual circuit failure. Note: Transmission errors at the LAN adapter bus level cause a virtual circuit breakage.
(4) HELLO Xmt err (HELLO transmission error)	Indicates how many times a message transmission failure has "dropped" a PEDRIVER HELLO datagram message. (The Channel Control [CC] level description in Section F.1 briefly describes the purpose of HELLO datagram messages.) If many HELLO transmission errors occur, PEDRIVER on other nodes probably is timing out a channel, which could eventually result in closure of the virtual circuit. The 1623 HELLO transmission failures shown in Example F-4 contributed to the high number of transmission errors (15896). Note that it is impossible to have a low number of transmission errors and a high number of HELLO transmission errors.

F.3.6 Monitoring LAN Adapters

Example F-5 SDA Command SHOW LAN/COUNTERS Display

$ ANALYZE/SYSTEM SDA> SHOW LAN/COUNTERS LAN Data Structures ------------------- -- EXA Counters Information 22-JAN-1994 11:21:19 -- Seconds since zeroed 3953329 Station failures 0 Octets received 13962888501 Octets sent 11978817384 PDUs received 121899287 PDUs sent 76872280 Mcast octets received 7494809802 Mcast octets sent 183142023 Mcast PDUs received 58046934 Mcast PDUs sent 1658028 Unrec indiv dest PDUs 0 PDUs sent, deferred 4608431 Unrec mcast dest PDUs 0 PDUs sent, one coll 3099649 Data overruns 2 PDUs sent, mul coll 2439257 Unavail station buffs(1) 0 Excessive collisions(2) 5059 Unavail user buffers 0 Carrier check failure 0 Frame check errors 483 Short circuit failure 0 Alignment errors 10215 Open circuit failure 0 Frames too long 142 Transmits too long 0 Rcv data length error 0 Late collisions 14931 802E PDUs received 28546 Coll detect chk fail 0 802 PDUs received 0 Send data length err 0 Eth PDUs received 122691742 Frame size errors 0 LAN Data Structures ------------------- -- EXA Internal Counters Information 22-JAN-1994 11:22:28 -- Internal counters address 80C58257 Internal counters size 24 Number of ports 0 Global page transmits 0 No work transmits 3303771 SVAPTE/BOFF transmits 0 Bad PTE transmits 0 Buffer_Adr transmits 0 Fatal error count 0 RDL errors 0 Transmit timeouts 0 Last fatal error None Restart failures 0 Prev fatal error None Power failures 0 Last error CSR 00000000 Hardware errors 0 Fatal error code None Control timeouts 0 Prev fatal error None Loopback sent 0 Loopback failures 0 System ID sent 0 System ID failures 0 ReqCounters sent 0 ReqCounters failures 0 -- EXA1 60-07 (SCA) Counters Information 22-JAN-1994 11:22:31 -- Last receive(3) 22-JAN 11:22:31 Last transmit(3) 22-JAN 11:22:31 Octets received 7616615830 Octets sent 2828248622 PDUs received 67375315 PDUs sent 20331888 Mcast octets received 0 Mcast octets sent 0 Mcast PDUs received 0 Mcast PDUs sent 0 Unavail user buffer 0 Last start attempt None Last start done 7-DEC 17:12:29 Last start failed None . . .

The SHOW LAN/COUNTERS display usually includes device counter information about several LAN adapters. However, for purposes of example, only one device is shown in Example F-5.

Field	Description
(1) Unavail station buffs (unavailable station buffers)	Records the number of times that fixed station buffers in the LAN driver were unavailable for incoming packets. The node receiving a message can lose packets when the node does not have enough LAN station buffers. (LAN buffers are used by a number of consumers other than PEDRIVER, such as DECnet, TCP/IP, and LAT.) Packet loss because of insufficient LAN station buffers is a symptom of either LAN adapter congestion or the system's inability to reuse the existing buffers fast enough.
(2) Excessive collisions	Indicates the number of unsuccessful attempts to transmit messages on the adapter. This problem is often caused by: A LAN loading problem resulting from heavy traffic (70% to 80% utilization) on the specific LAN segment. A component called a screamer. A screamer is an adapter whose protocol does not adhere to Ethernet or FDDI hardware protocols. A screamer does not wait for permission to transmit packets on the adapter, thereby causing collision errors to register in this field. If a significant number of transmissions with multiple collisions have occurred, then OpenVMS Cluster performance is degraded. You might be able to improve performance either by removing some nodes from the LAN segment or by adding another LAN segment to the cluster. The overall goal is to reduce traffic on the existing LAN segment, thereby making more bandwidth available to the OpenVMS Cluster system.
(3) Last receive and Last transmit	The difference in the times shown in the Last receive and Last transmit message fields should not be large. Minimally, the timestamps in these fields should reflect that HELLO datagram messages are being sent across channels every 3 seconds. Large time differences might indicate: A hardware failure Whether or not the LAN driver sees the NISCA protocol as being active on a specific LAN adapter

F.3.7 Monitoring PEDRIVER Buses for IP interfaces

The SDA command SHOW PORT/BUS=BUS_IP_interface command is useful for displaying the PEDRIVER representation of an IP interface. To PEDRIVER, a bus is the logical representation of the IP interface. (To list the names and addresses of buses, enter the SDA command SHOW PORT/ADDR=PE_PDT and then press the Return key twice.) The following example shows a display for the IP interface named IE0. command.

Example F-6 SDA Command SHOW PORT/BUS =BUS_IP_interface

$ ANALYZE/SYSTEM SDA> SHOW PORT/BUS=886C0010 VMScluster data structures -------------------------- --- BUS: 886C0010 (IE0) Device: IP IP Address: 16.138.182.6 (1) Status: 00004203 run,online,xmt_chaining_disabled (2) ------- Transmit ------ ------- Receive ------- ---- Structure Addresses --- Msg Xmt 2345987277 (3) Msg Rcv 2452130165 (4) PORT Address 8850B9B8 Mcast Msgs 0 Mcast Msgs 0 VCIB Addr 886C02A0 Mcast Bytes 0 Mcast Bytes 0 HELLO Message Addr 886C02A0 Bytes Xmt 3055474713 Bytes Rcv 3545255112 BYE Message Addr 886C05CC Outstand I/Os 0 Buffer Size 1394 Delete BUS Rtn Adr 90AA2EC8 Xmt Errors (5) 0 Rcv Ring Size 0 --- Receive Errors ---- ------ BUS Timer ------ ----- Datalink Events ------ TR Mcast Rcv 0 Handshake TMO 00000000 Last 22-SEP-2008 12:20:50.06 Rcv Bad SCSID 0 Listen TMO 00000000 Last Event 00004002 Rcv Short Msgs 0 HELLO timer 6 Port Usable 1 Fail CH Alloc 0 HELLO Xmt err 0 Port Unusable 0 Fail VC Alloc 0 Address Change 0 Wrong PORT 0 Port Restart Fail 0

Field	Description
(1) IP Address	Displays the IP address of the interface.
(2) Status	The Status line should always display a status of "online" to indicate that PEDRIVER can access its IP interface.
(3) Msg Xmt (messages transmitted)	Shows the total number of packets transmitted over the virtual circuit to the remote node. It provides the Multicast (mcast) and Multicast bytes transmitted.
(4) Msg Rcv (messages received)	Shows the total number of packets received over the virtual circuit from the remote node. It provides the Multicast (mcast) and Multicast bytes transmitted.
(5) Xmt Errors (transmission errors)	Indicates the number of times PEDRIVER has been unable to transmit a packet using this IP interface.

F.3.8 Monitoring PEDRIVER Channels for IP Interfaces

The SDA command SHOW PORT/Channel=Channel_IP_interface command is useful for displaying the PEDRIVER representation of an IP interface. To the PEDRIVER, a channel is the logical communication path between two IP interfaces located on different nodes. (To list the names and addresses of channels created, enter the SDA command SHOW SYMBOL CH_* and then press the Return key.) The following example shows a display for the IP interface named IE0.

Example F-7 SDA Command SHOW PORT/CHANNEL Display

$ ANALYZE/SYSTEM SDA> show port/channel=CH_OOTY_IE0_WE0 VMScluster data structures -------------------------- -- PEDRIVER Channel (CH:886C5A40) for Virtual Circuit (VC:88161A80) OOTY -- State: 0004 open Status: 6F path,open,xchndis,rmhwavld,tight,fast ECS Status: Tight,Fast BUS: 886BC010 (IE0) Lcl Device: IP Lcl IP Address: 16.138.182.6 1 (1) Rmt BUS Name: WE0 Rmt Device: IP Rmt IP Address: 15.146.235.10 2 (2) Rmt Seq #: 0004 Open: 4-OCT-2008 00:18:58.94 Close: 4-OCT-2008 00:18:24.53 - Transmit Counters --- - Receive Counters ---- - Channel Characteristics -- Bytes Xmt 745486312 Bytes Rcv 2638847244 Protocol Version 1.6.0 Msg Xmt 63803681 Msg Rcv 126279729 Supported Services 00000000 Ctrl Msgs 569 Ctrl Msgs 565 Local CH Sequence # 0003 Ctrl Bytes 63220 Ctrl Bytes 62804 Average RTT (usec) 5780.8 Mcast Msgs 106871 Buffer Size: Mcast Bytes 11114584 Current 1394 - Errors --------------------------------------- Remote 1394 Listen TMO 2 Short CC Msgs 0 Local 1394 TR ReXmt 605 Incompat Chan 0 Negotiated 1394 DL Xmt Errors 0 No MSCP Srvr 0 Priority 0 CC HS TMO 0 Disk Not Srvd 0 Hops 2 Bad Authorize 0 Old Rmt Seq# 0 Load Class 100 Bad ECO 0 Rmt TR Rcv Cache Size 64 Bad Multicast 0 Rmt DL Rcv Buffers 8 Losses 0 - Miscellaneous ------- - Buf Size Probing----- - Delay Probing ------------ Prv Lstn Timer 5 SP Schd Timeout 6 DP Schd Timeouts 0 Next ECS Chan 886C5A40 SP Starts 1 DP Starts 0 SP Complete 1 DP Complete 0 - Management ---------- SP HS TMO 0 DP HS TMO 1 Mgt Priority 0 HS Remaining Retries 4 Mgt Hops 0 Last Probe Size 1395 Mgt Max Buf Siz 8110

Field	Description
(1) Lcl IP Address (Local IP Address)	Displays the IP address of the local interface.
(2) Rmt IP Address (Remote IP Address)	Displays the IP address of the remote interface.

F.4 Using SCACP to Monitor Cluster Communications

The SCA Control Program (SCACP) utility is designed to monitor and manage cluster communications. It is derived from the Systems Communications Architecture (SCA), which defines the communications mechanisms that allow nodes in an OpenVMS Cluster system to cooperate.

SCA does the following:

• Governs the sharing of data between resources at the nodes.
• Binds together System Applications (SYSAPs) that run on different OpenVMS Alpha and Integrity server systems.

To invoke SCACP, enter the following command at the DCL prompt:

$ RUN SYS$SYSTEM:SCACP

SCACP displays the following prompt, at which you can enter SCACP commands using the standard rules of DCL syntax:

SCACP>

For more information about SCACP, see HP OpenVMS System Management Utilities Reference Manual.

F.5 Troubleshooting NISCA Communications

Sections F.6 and F.7 describe two likely areas of trouble for LAN networks: channel formation and retransmission. The discussions of these two problems often include references to the use of a LAN analyzer tool to isolate information in the NISCA protocol.

Reference: As you read about how to diagnose NISCA problems, you may also find it helpful to refer to Section F.8, which describes the NISCA protocol packet, and Section F.9, which describes how to choose and use a LAN network failure analyzer.

F.6 Channel Formation

Channel-formation problems occur when two nodes cannot communicate properly between LAN adapters.

F.6.1 How Channels Are Formed

Table F-7 provides a step-by-step description of channel formation.

Table F-7 Channel Formation

Step	Action
1	Channels are formed when a node sends a HELLO datagram from its LAN adapter to a LAN adapter on another cluster node. If this is a new remote LAN adapter address, or if the corresponding channel is closed, the remote node receiving the HELLO datagram sends a CCSTART datagram to the originating node after a delay of up to 2 seconds.
2	Upon receiving a CCSTART datagram, the originating node verifies the cluster password and, if the password is correct, the node responds with a VERF datagram and waits for up to 5 seconds for the remote node to send a VACK datagram. (VERF, VACK, CCSTART, and HELLO datagrams are described in Section F.8.5.)
3	Upon receiving a VERF datagram, the remote node verifies the cluster password; if the password is correct, the node responds with a VACK datagram and marks the channel as open. (See Figure F-3.)
4	WHEN the local node... THEN... Does not receive the VACK datagram within 5 seconds The channel state goes back to closed and the handshake timeout counter is incremented. Receives the VACK datagram within 5 seconds and the cluster password is correct The channel is opened.
5	Once a channel has been formed, it is maintained (kept open) by the regular multicast of HELLO datagram messages. Each node multicasts a HELLO datagram message at least once every 3.0 seconds over each LAN adapter. Either of the nodes sharing a channel closes the channel with a listen timeout if it does not receive a HELLO datagram or a sequence message from the other node within 8 to 9 seconds. If you receive a "Port closed virtual circuit" message, it indicates a channel was formed but there is a problem receiving traffic on time. When this happens, look for HELLO datagram messages getting lost.

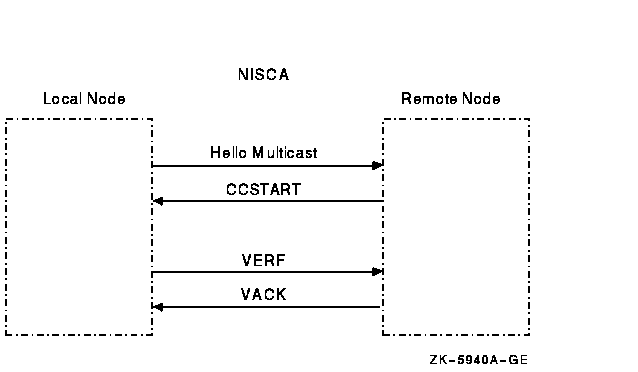

Figure F-3 shows a message exchange during a successful channel-formation handshake.

Figure F-3 Channel-Formation Handshake
