HP OpenVMS System Services Reference Manual
The size of the returned bitmap is determined by the number of
supported CPUs on the system. You can compute the number of bytes
needed for the bitmap as follows: Use the $GETSYI system service with
an item code of SYI$_MAX_CPUS to find the minimum number of bits
needed, round this number up to a multiple of 64, and divide the result
by 8.
SYI$_AVAIL_CPU_MASK
Note that this item code is becoming obsolete; HP recommends that you
not use it because it represents only up to 64 CPUs. The service
continues to return the correct data for systems with up to 64 CPUs but
fails for systems with more than 64 CPUs. For greater flexibility, use
item code SYI$_AVAIL_CPU_BITMAP instead.
On Alpha and Integrity server systems, returns a value that represents
a CPU-indexed bitvector. When a particular bit position is set, the
processor with that CPU ID value is a member of the instance's
configure set---those owned by the partition and controlled by the
issuing instance.
SYI$_AVAILCPU_CNT
Returns the number of CPUs available in the current boot of the
symmetric multiprocessing (SMP) system.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_BOOT_DEVICE
Returns the name of the device from which the system was booted as a
character string. For a system with a shadowed system disk,
SYI$_BOOT_DEVICE returns the name of the member device from which the
shadow set was formed.
SYI$_BOOTTIME
Returns the time when the node was booted.
Because the returned time is in the standard 64-bit absolute time
format, the buffer length field in the item descriptor should specify 8
(bytes).
SYI$_CHARACTER_EMULATED
Returns the number 1 if the character string instructions are emulated
on the CPU and the value 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_CLUSTER_EVOTES
Returns the number of votes expected to be found in the OpenVMS Cluster
system. The cluster determines this value by selecting the highest
number from all of the following: each node's system parameter
EXPECTED_VOTES, the sum of the votes currently in the cluster, and the
previous value for the number of expected votes.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_CLUSTER_FSYSID
Returns the system identification of the founding node, which is the
first node in the OpenVMS Cluster system to boot.
The cluster management software assigns this system identification to
the node. You can obtain this information by using the DCL command SHOW
CLUSTER. Because the system identification is a 6-byte hexadecimal
number, the buffer length field in the item descriptor should specify 6
(bytes).
SYI$_CLUSTER_FTIME
Returns the time when the founding node is booted. The founding node is
the first node in the OpenVMS Cluster system to boot.
Because the returned time is in the standard 64-bit absolute time
format, the buffer length field in the item descriptor should specify 8
(bytes).
SYI$_CLUSTER_MEMBER
Returns the membership status of the node in the OpenVMS Cluster
system. The membership status specifies whether the node is currently a
member of the cluster.
Because the membership status of a node is described in a 1-byte bit
field, the buffer length field in the item descriptor should specify 1
(byte). If bit 0 in the bit field is set, the node is a member of the
cluster; if it is clear, then it is not a member of the cluster.
SYI$_CLUSTER_NODES
Returns the number (in decimal) of nodes currently in the OpenVMS
Cluster system.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_CLUSTER_QUORUM
Returns the number (in decimal) that is the total of the quorum values
held by all nodes in the OpenVMS Cluster system. Each node's quorum
value is derived from its system parameter EXPECTED_VOTES.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_CLUSTER_VOTES
Returns the total number of votes held by all nodes in the OpenVMS
Cluster system. The number of votes held by any one node is determined
by that node's system parameter VOTES.
Because this decimal number is a word in length, the buffer length
field in the item descriptor should specify 2 (bytes).
SYI$_COMMUNITY_ID
On Alpha and Integrity server systems, returns the hardware community
ID for the issuing instance within the hard partition. Supported only
on AlphaServer systems that support partitioning.
SYI$_CONTIG_GBLPAGES
Returns the maximum number of free, contiguous global CPU-specific
pages. This number is the largest size global section that can be
created.
Because this number is a longword, the buffer length in the item
descriptor should specify 4 (bytes).
SYI$_CPU
As the processor type is a longword decimal number, the buffer length
field in the item descriptor should specify 4 (bytes). On Alpha and
Integrity server systems, $GETSYI returns PR$_SID_TYP_NOTAVAX.
For information about extended processor type codes, see the
description for the SYI$_XCPU item code.
SYI$_CPU_AUTOSTART
On Alpha and Integrity server systems, returns a list of zeroes and
ones, separated by commas and indexed by CPU ID. Any entry with a value
of one indicates that specific CPU will be brought into the OpenVMS
active set if it transitions into the current instance from outside, or
is powered up while already owned.
SYI$_CPU_FAILOVER
Returns list of numeric partition IDs, separated by commas and indexed
by CPU ID, that define the destination of the processor if the current
instance should crash. Supported only on AlphaServer systems that
support partitioning.
SYI$_CPUCAP_MASK
On Alpha and Integrity server systems, returns an array of quadword
user capability masks for all CPUs in the system. This array is indexed
by CPU ID and contains as many elements as the amount of space
specified by the buffer length field in the item descriptor.
To minimize wasted space, a prior call to $GETSYI with SYI$_MAX_CPUS
will provide the number of CPUs that need to be retrieved. Multiplying
that value by 8 bytes for each quadword provides the value to be
written in the buffer length field of the item descriptor.
SYI$_CPUCONF
Note that this item code is becoming obsolete; HP recommends that you
not use it because it represents only up to 64 CPUs. The service
continues to return the correct data for systems with up to 64 CPUs but
fails for systems with more than 64 CPUs. For greater flexibility, use
item code SYI$_AVAIL_CPU_BITMAP instead.
On Alpha and Integrity server systems, returns a value that represents
a CPU-indexed bitvector. When a particular bit position is set, the
processor with that CPU ID value is a member of the instance's
configure set---those owned by the partition and controlled by the
issuing instance.
SYI$_CPUTYPE
On Alpha and Integrity server systems, returns the processor type, as
stored in the hardware restart parameter block (HWRPB).
For example, the value of 2 represents a DECchip 21064 processor.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
The following table shows the processor codes and processors:
| Processor Code |
Processor |
|
2
|
21064
|
|
4
|
21066, 21068, 21066A, 21068A
|
|
5
|
21164
|
|
6
|
21064A
|
|
7
|
21164A
|
|
8
|
21264
|
|
11
|
21264A
|
|
12
|
21264C
|
|
13
|
21264B
|
|
14
|
21264D
|
|
15
|
21364
|
|
16
|
21364
.
.
.
|
|
31
|
Itanium 2
|
|
32
|
Itanium 3
|
SYI$_CWLOGICALS
Returns the number 1 if the clusterwide logical name database has been
initialized on the CPU, or the value 0 if it has not been initialized.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_DAY_OVERRIDE
Returns the number 1 if the SET DAY command has been used to override
the default primary and secondary day types in the user authorization
file that are used to control user logins. $GETSYI returns the number 0
if no override is currently in effect, and the contents of user
authorization file records for each user are being honored.
SYI$_DAY_SECONDARY
Returns the number 1 if any override with the SET DAY command has been
used to specify that the current day is to be considered a Secondary
day for user login purposes. $GETSYI returns the number 0 if any
override with the SET DAY command has been used to specify that the
current day is to be considered a Primary day for user login purposes.

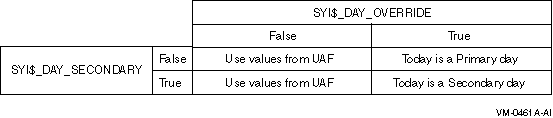

If $GETSYI returns the number 0 for SYI$_DAY_OVERRIDE, the number
returned for SYI$_DAY_SECONDARY is meaningless.
SYI$_DECIMAL_EMULATED
Returns the number 1 if the decimal string instructions are emulated on
the CPU and the value 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_DECNET_FULLNAME
Returns, as a character string, the DECnet for OpenVMS full name of the
node.
Because the DECnet for OpenVMS full name of a node can contain up to
255 characters, the buffer length field in the item descriptor should
specify 255 (bytes).
SYI$_D_FLOAT_EMULATED
Returns the number 1 if the D_floating instructions are emulated on the
CPU and 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_DEF_PRIO_MAX
On Alpha and Integrity server systems, returns the maximum priority for
the default scheduling policy.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_DEF_PRIO_MIN
On Alpha and Integrity server systems, returns the minimum priority for
the default scheduling policy.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_ERLBUFFERPAGES
Returns the number of pagelets in an error log buffer.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_ERRORLOGBUFFERS
Returns the number of system pagelets in use as buffers for the error
logger.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_F_FLOAT_EMULATED
Returns the number 1 if the F_floating instructions are emulated on the
CPU and 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_FREE_GBLPAGES
Returns the current number of free global pages. The system parameter
GBLPAGES sets the number of global pages that can exist systemwide.
Because the current number is a longword, the buffer length in the item
descriptor should specify 4 (bytes).
SYI$_FREE_GBLSECTS
Returns the current number of free global section table entries. The
system parameter GBLSECTIONS sets the maximum number of global sections
that can exist systemwide.
Because the current number is a longword, the buffer length in the item
descriptor should specify 4 (bytes).
SYI$_G_FLOAT_EMULATED
Returns the number 1 if the G_floating instructions are emulated on the
CPU and the value 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_GALAXY_ID
On Alpha systems, returns the 128-bit Galaxy ID. Supported only on AlphaServer GS series systems.
SYI$_GALAXY_MEMBER
On Alpha systems, returns 1 if you are member of a Galaxy sharing
community, 0 if you are not a member. Supported only on AlphaServer GS series systems.
SYI$_GALAXY_PLATFORM
On Alpha systems, returns 1 if you are running on a Galaxy platform, 0
if you are not running on a Galaxy platform. Supported only on AlphaServer GS series systems.
SYI$_GALAXY_SHMEMSIZE
On Alpha systems, returns the number of shared memory pages. If the
current instance is not a member of a Galaxy, no shared memory is
reported. Supported only on AlphaServer GS series systems.
SYI$_GH_RSRVPGCNT
On Alpha and Integrity server systems, returns the number of pages
covered by granularity hints to reserve for use by the Install utility
after system startup has completed.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_GLX_FORMATION
On Alpha systems, returns the a time-stamp string when the Galaxy
configuration, of which this instance is a member, was created.
Supported only on AlphaServer GS series systems.
SYI$_GLX_MAX_MEMBERS
On Alpha systems, returns the maximum count of instances that may join
the current Galaxy configuration. Supported only on AlphaServer GS series systems.
SYI$_GLX_MBR_MEMBER
On Alpha systems, returns the 64-byte integer. Each 8 bytes represents
a Galaxy member number, listed from 7 to 0. The value is 1 if the
instance is currently a member, 0 if not a member. Supported only on AlphaServer GS series systems.
SYI$_GLX_MBR_NAME
On Alpha systems, returns a string indicating the names that are known
in the Galaxy membership. Returned names are separated by two spaces,
with an additional two spaces following the last name in the list.
Supported only on AlphaServer GS series systems.
SYI$_GLX_TERMINATION
On Alpha systems, returns a time-stamp string when the Galaxy
configuration, of which this instance last was a member, was
terminated. Supported only on AlphaServer GS series systems.
SYI$_H_FLOAT_EMULATED
Returns the number 1 if the H_floating instructions are emulated on the
CPU and the value 0 if they are not.
Because this number is a Boolean value (1 or 0), the buffer length
field in the item descriptor should specify 1 (byte).
SYI$_HP_ACTIVE_CPU_CNT
Returns the number of active CPUs in this hard partition that are not
currently in firmware console mode. For OpenVMS, this implies that the
CPU is in, or in the process of joining, the active set in one of the
instances in the hard partition. Supported only on AlphaServer systems that support partitioning.
SYI$_HP_ACTIVE_SP_CNT
Returns the count of active operating system instances currently
executing within the hard partition. Supported only on AlphaServer systems that support partitioning.
SYI$_HP_CONFIG_SBB_CNT
Returns a count of the existing system building blocks within the
current hard partition. Supported only on AlphaServer systems that support partitioning.
SYI$_HP_CONFIG_SP_CNT
Returns the maximum count of soft partitions within the current hard
partition. This count does not imply that an operating system instance
is currently running within any given soft partition. Supported only on AlphaServer systems that support partitioning.
SYI$_HW_MODEL
Returns a small integer that can be used to identify the model type of
the node.
An integer greater than 1023 indicates an Alpha and Integrity servers
node.
An integer less than or equal to 1023 indicates a VAX node.
The $ALPHADEF and $VAXDEF macros in SYS$LIBRARY:STARLET define the
model type integers.
Because SYI$_HW_MODEL is a word, the buffer length field in the item
descriptor should specify 2 (bytes).
SYI$_HW_NAME
Returns the model name string of the node. The model name is a
character string that describes the model of the node . The model name
usually corresponds to the nameplate that appears on the outside of the
CPU cabinet.
Because SYI$_HW_NAME can include up to 60 characters plus one for the
byte count, the buffer length field in the item descriptor should
specify 61 (bytes). An example of an Integrity servers processor
follows:
HP rx4640 (1.10GHz/4.0MB)
|
The following table lists the Alpha model processor names and the
corresponding model types:
| Alpha Model Processor Name |
Alpha Model Type |
|
DEC 3000 400
|
ALPHA$K_A3000_400W
|
|
DEC 3000 400S
|
ALPHA$K_A3000_400S
|
|
DEC 3000 500
|
ALPHA$K_A3000_500W
|
|
DEC 3000 500S
|
ALPHA$K_A3000_500S
|
|
DEC 4000 610
|
ALPHA$K_A4000_610
|
|
DEC 4000 620
|
ALPHA$K_A4000_620
|
|
DEC 4000 630
|
ALPHA$K_A4000_630
|
|
DEC 4000 640
|
ALPHA$K_A4000_640
|
|
DEC 7000 Model 610
|
ALPHA$K_A7000_610
|
|
DEC 7000 Model 620
|
ALPHA$K_A7000_620
|
|
DEC 7000 Model 630
|
ALPHA$K_A7000_630
|
|
DEC 7000 Model 640
|
ALPHA$K_A7000_640
|
|
DEC 10000 Model 610
|
ALPHA$K_A10000_610
|
|
DEC 10000 Model 620
|
ALPHA$K_A10000_620
|
|
DEC 10000 Model 630
|
ALPHA$K_A10000_630
|
|
DEC 10000 Model 640
|
ALPHA$K_A10000_640
|
SYI$_IO_PRCPU_BITMAP
The return argument is a bitmap with a bit indicating a preferred CPU
-- one available for Fast Path operations.
The size of the returned bitmap is determined by the number of
supported CPUs on the system. You can compute the number of bytes
needed for the bitmap as follows:
Use the $GETSYI system service with an item code of SYI$_MAX_CPUS to
find the minimum number of bits needed, round this number up to a
multiple of 64, and divide the result by 8.
SYI$_IO_PREFER_CPU
Note that this item code is becoming obsolete; HP recommends that you
not use it because it represents only up to 64 CPUs. The service
continues to return the correct data for systems with up to 64 CPUs but
fails for systems with more than 64 CPUs. For greater flexibility, use
item code SYI$_IO_PRCPU_BITMAP instead.
On Alpha and Integrity server systems, returns the bit mask of CPUs
available to be Fast Path preferred CPUs. The service continues to
return the correct data for systems with up to 64 CPUs but fails for
systems with more than 64 CPUs.
SYI$_ITB_ENTRIES
On Alpha and Integrity server systems, returns the number of
instruction stream translation buffer entries that support granularity
hints to be allocated for resident code.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_MAX_CPUS
On Alpha and Integrity server systems, returns the maximum number of
CPUs that could be recognized by this instance.
SYI$_MAX_PFN
Returns the highest numbered PFN in use by the operating system. The
highest numbered PFN used by OpenVMS is influenced by the
PHYSICAL_MEMORY system parameter.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_MEMSIZE
Returns the total number of pages of physical memory in the system
configuration.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_NODE_AREA
Returns the DECnet area of the node.
Because the DECnet area is a longword decimal number, the buffer length
field in the item descriptor should specify 4 (bytes).
SYI$_NODE_CSID
Returns the OpenVMS Cluster system ID (CSID) of the node. The CSID is a
longword hexadecimal number assigned to the node by the cluster
management software.
Because the CSID is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_NODE_EVOTES
Returns the number of votes the node expects to find in the OpenVMS
Cluster system. This number is determined by the system parameter
EXPECTED_VOTES.
Because the number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_NODE_HWVERS
Returns the platform-specific hardware version information associated
with the node. The high word of the buffer contains the CPU type. The
$VAXDEF and $ALPHADEF macros define the CPU model types for VAX and
Alpha systems, respectively. (HP recommends acquiring the model type
using the SYI$_HW_MODEL item code.)
Because the hardware version is a 12-byte hexadecimal number, the
buffer length field in the item descriptor should specify 12 (bytes).
SYI$_NODE_NUMBER
Returns the DECnet for OpenVMS number of the node.
Because the DECnet for OpenVMS number is a longword decimal number, the
buffer length field in the item descriptor should specify 4 (bytes).
SYI$_NODE_QUORUM
Returns the value (in decimal) of the quorum held by the node. This
number is derived from the node's system parameter EXPECTED_VOTES.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_NODE_SWINCARN
Returns the software incarnation of the node.
Because the software incarnation of the node is an 8-byte hexadecimal
number, the buffer length field in the item descriptor should specify 8
(bytes).
SYI$_NODE_SWTYPE
Returns the software type of the node. The software type indicates
whether the node is an Alpha or Integrity servers system, or an HSC
storage controller.
Because the software type is a 4-byte ASCII string, the buffer length
field in the item descriptor should specify 4 (bytes).
SYI$_NODE_SWVERS
Returns the software version of the node.
Because the software version is a 4-byte ASCII string, the buffer
length field in the item descriptor should specify 4 (bytes).
SYI$_NODE_SYSTEMID
Returns the system identification of the node.
The OpenVMS Cluster management software assigns this system
identification to the node. You can obtain this information by using
the DCL command SHOW CLUSTER. Because the system identification is a
6-byte hexadecimal number, the buffer length field in the item
descriptor should specify 6 (bytes).
SYI$_NODE_VOTES
Returns the number (in decimal) of votes held by the node. This number
is determined by the node's system parameter VOTES.
Because this number is a word in length, the buffer length field in the
item descriptor should specify 2 (bytes).
SYI$_NODENAME
Returns, as a character string, the name of the node in the buffer
specified in the item list.
Because this name can include up to 15 characters, the buffer length
field in the item descriptor should specify 15 (bytes).
SYI$_PAGEFILE_FREE
Returns the number of free pages in the currently installed page files.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_PAGEFILE_PAGE
Returns the number of pages in the currently installed page files.
Because this number is a longword, the buffer length field in the item
descriptor should specify 4 (bytes).
SYI$_PAGE_SIZE
Returns the number of CPU-specific bytes per page in the system.
On Alpha and Integrity server systems, CPU page size varies from system
to system.
On Alpha, and Integrity servers, because this number is a longword, the
buffer length field in the item descriptor should specify 4 (bytes).
SYI$_PARTITION_ID
On Alpha and Integrity server systems, returns the soft partition ID.
Supported only on AlphaServer systems that support partitioning.
SYI$_PFN_MEMORY_MAP---Alpha Only
Returns a map describing the system's use of physical memory.

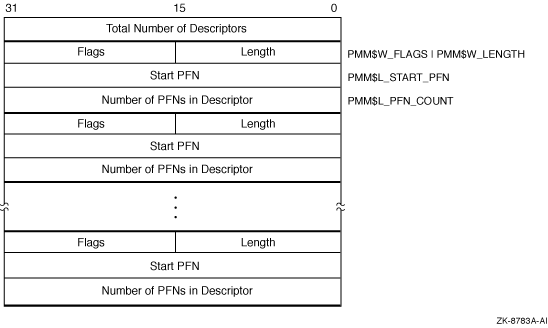

Figure SYS-1 shows an example of a physical memory map.
Figure SYS-1 SYI$_PFN_MEMORY_MAP---Alpha Only
The first longword of the physical memory contains a count of
descriptors. This number is equal to the value returned when the
SYI$_PMD_COUNT item code is specified.
Each descriptor contains at least 3 longwords: a word containing the
length of the descriptor (always use PMM$C_LENGTH when determining
descriptor size); a flags word (whose bits are defined in the following
table); and the starting PFN for that physical memory cluster and the
number of PFNs in that cluster.
| Bit |
Meaning When Set |
|
PMM$V_CONSOLE
|
The physical memory descriptor is in use by the console (hardware).
|
|
PMM$V_OPENVMS
|
The physical memory descriptor is in use by OpenVMS.
|
|
PMM$V_AVAILABLE
|
The physical descriptor is not in use by either the console (hardware)
or OpenVMS.
|
|
Remaining bits
|
The remaining bits in the PMM$W_FLAGS word are reserved for HP.
|
The structure definition for the physical memory descriptor resides in
PMMDEF.H.
Because the size of the physical memory map returned by $GETSYI can
vary from system to system, HP recommends using the following steps
when using this item code:
- Call $GETSYI first using the SYI$_PMD_COUNT to obtain the number of
physical memory descriptors.
- Dynamically create a buffer to which $GETSYI can copy the physical
memory map. The size of the buffer can be computed with the following
formula:
map_buffer_size = (PMM$C_LENGTH * ret-val) + 4
|
where:
- PMM$C_LENGTH is the size of an individual physical memory
descriptor.
- ret-val is the return value from a call to $GETSYI specifying the
SYI$_PMD_COUNT item code.
- 4 is the number of bytes occupied by the descriptor count in the
physical memory map.
SYI$_PFN_MEMORY_MAP_64---on Alpha and Integrity servers
Returns a map describing the system's use of physical memory on Alpha
and Integrity servers only. Figure SYS-2 shows an example of a
physical memory map.

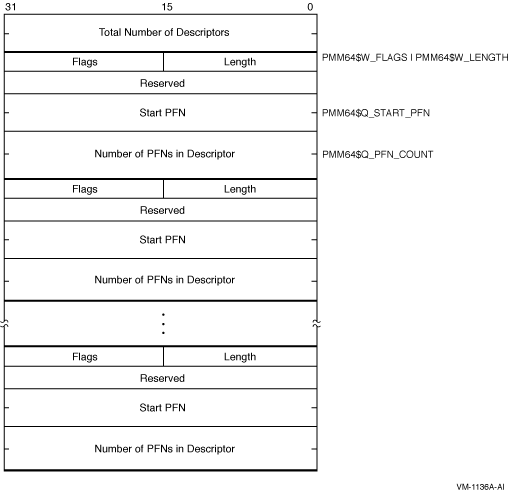

Figure SYS-2 SYI$_PFN_MEMORY_MAP---Alpha and Integrity
servers
The first longword of the physical memory contains a count of
descriptors. This number is equal to the value returned when the
SYI$_PMD_COUNT item code is specified.
Each descriptor contains at least 3 longwords: a word containing the
length of the descriptor (always use PMM64$C_LENGTH when determining
descriptor size); a flags word (whose bits are defined in the following
table); and the starting PFN for that physical memory cluster and the
number of PFNs in that cluster.
| Bit |
Meaning When Set |
|
PMM64$V_CONSOLE
|
The physical memory descriptor is in use by the console (hardware).
|
|
PMM64$V_OPENVMS
|
The physical memory descriptor is in use by OpenVMS.
|
|
PMM64$V_AVAILABLE
|
The physical descriptor is not in use by either the console (hardware)
or OpenVMS.
|
|
Remaining bits
|
The remaining bits in the PMM64$W_FLAGS word are reserved for HP.
|
