B.3.6 Specifying Program Locations and the Current Value of an Entity

The following built-in symbols enable you to specify program locations and the current value of an entity:
Symbol Description
%CURLOC
. (period)
Current logical entity---the program location last referenced by an EXAMINE, DEPOSIT, or EVALUATE/ADDRESS command.
%NEXTLOC
Return key
Logical successor of the current entity---the program location that logically follows the location last referenced by an EXAMINE, DEPOSIT, or EVALUATE/ADDRESS command. Because the Return key is a command terminator, it can be used only where a command terminator is appropriate (for example, immediately after EXAMINE, but not immediately after DEPOSIT or EVALUATE/ADDRESS).
%PREVLOC
^ (circumflex)
Logical predecessor of current entity---the program location that logically precedes the location last referenced by an EXAMINE, DEPOSIT, or EVALUATE/ADDRESS command.
%CURVAL
\ (backslash)
Value last displayed by an EVALUATE or EXAMINE command, or deposited by a DEPOSIT command. These two symbols are not affected by an EVALUATE/ADDRESS command.

In the following example, the variable WIDTH is examined; the value 12 is then deposited into the current location (WIDTH); this is verified by examining the current location:


DBG> EXAMINE WIDTH
MOD\WIDTH: 7
DBG> DEPOSIT . = 12
DBG> EXAMINE .
MOD\WIDTH: 12
DBG> EXAMINE %CURLOC
MOD\WIDTH: 12
DBG>

In the next example, the next and previous locations in an array are examined:


DBG> EXAMINE PRIMES(4)
MOD\PRIMES(4): 7
DBG> EXAMINE %NEXTLOC
MOD\PRIMES(5): 11
DBG> EXAMINE [Return]    ! Examine next location
MOD\PRIMES(6): 13
DBG> EXAMINE %PREVLOC
MOD\PRIMES(5): 11
DBG> EXAMINE ^
MOD\PRIMES(4): 7
DBG>

Note that using the Return key to signify the logical successor does not apply to all contexts. For example, you cannot press the Return key after typing the command DEPOSIT to indicate the next location, but you can always use the symbol %NEXTLOC for that purpose.

B.3.7 Using Symbols and Operators in Address Expressions

The following list describes the symbols and operators that you can use in address expressions. A unary operator has one operand. A binary operator has two operands.
Symbol Description
%LABEL Specifies that the numeric literal that follows is a program label (for languages like Fortran that have numeric program labels). You can qualify the label with a pathname prefix that specifies the containing module.
%LINE Specifies that the numeric literal that follows is a line number in your program. You can qualify the line number with a pathname prefix that specifies the containing module.
Backslash (\) When used within a path name, delimits each element of the path name. In this context, the backslash cannot be the leftmost element of the complete path name.

When used as the prefix to a symbol, specifies that the symbol is to be interpreted as a global symbol. In this context, the backslash must be the leftmost element of the symbol's complete path name.

At sign (@)
Period (.)
Unary operators. In an address expression, the at sign (@) and period (.) each function as a contents-of operator. The contents-of operator causes its operand to be interpreted as a memory address and thus requests the contents of (or value residing at) that address.
Bit field <p,s,e> Unary operator. You can apply bit field selection to an address-expression. To select a bit field, you supply a bit offset (p), a bit length (s), and a sign extension bit (e), which is optional.
Plus sign (+) Unary or binary operator. As a unary operator, indicates the unchanged value of its operand. As a binary operator, adds the preceding operand and succeeding operand together.
Minus sign (-) Unary or binary operator. As a unary operator, indicates the negation of the value of its operand. As a binary operator, subtracts the succeeding operand from the preceding operand.
Multiplication sign (*) Binary operator. Multiplies the preceding operand by the succeeding operand.
Division sign (/) Binary operator. Divides the preceding operand by the succeeding operand.

The following examples show the use of built-in symbols and operators in address expressions.

%LINE and %LABEL Operators

The following command sets a tracepoint at line 26 of the module in which execution is currently suspended:


DBG> SET TRACE %LINE 26

The next command displays the source line associated with line 47:


DBG> EXAMINE/SOURCE %LINE 47
module MAIN
    47:  procedure SWAP(X,Y: in out INTEGER) is
DBG>

The next command sets a breakpoint at label 10 of module MOD4:


DBG> SET BREAK MOD4\%LABEL 10

Path-Name Operators

The following command displays the value of the variable COUNT that is declared in routine ROUT2 of module MOD4. The backslash (\) pathname delimiter separates the pathname elements:


DBG> EXAMINE MOD4\ROUT2\COUNT
MOD4\ROUT2\COUNT: 12
DBG>

The following command sets a breakpoint on line 26 of the module QUEUMAN:


DBG> SET BREAK QUEUMAN\%LINE 26

The following command displays the value of the global symbol X:


DBG> EXAMINE \X

Arithmetic Operators

The order in which the debugger evaluates the elements of an address expression is similar to that used by most programming languages. The order is determined by the following three factors, listed in decreasing order of precedence (first listed have higher precedence):

  1. The use of delimiters (usually parentheses or brackets) to group operands with particular operators
  2. The assignment of relative priority to each operator
  3. Left-to-right priority of operators

The debugger operators are listed in decreasing order of precedence as follows:

  1. Unary operators (., @, +, -)
  2. Multiplication and division operators (*, /)
  3. Addition and subtraction operators (+, -)

For example, when evaluating the following expression, the debugger first adds the operands within parentheses, then divides the result by 4, then subtracts the result from 5:


5-(T+5)/4

The following command displays the value contained in the memory location
X + 4 bytes:


DBG> EXAMINE X + 4

Contents-of Operator

The following examples show the use of the contents-of operator. In the first example, the instruction at the current PC value is obtained (the instruction whose address is contained in the PC and which is about to execute):


DBG> EXAMINE .%PC
MOD\%LINE 5: PUSHL   S^#8
DBG>

In the next example, the source line at the PC value one level down the call stack is obtained (at the call to routine SWAP):


DBG> EXAMINE/SOURCE .1\%PC
module MAIN
MAIN\%LINE 134:     SWAP(X,Y);
DBG>

For the next example, the value of the pointer variable PTR is 7FF00000 hexadecimal, the address of an entity that you want to examine. The value of this entity is 3FF00000 hexadecimal. The following command shows how to examine the entity:


DBG> EXAMINE/LONG .PTR
7FF00000: 3FF00000
DBG>

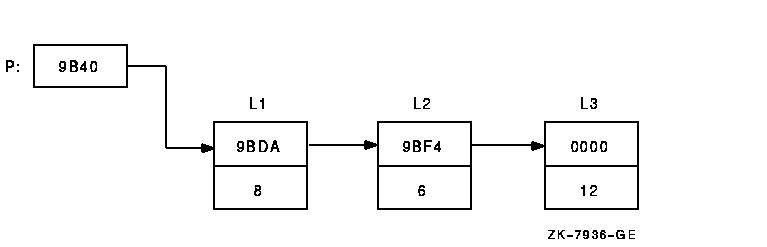

In the next example, the contents-of operator (at sign or period) is used with the current location operator (period) to examine a linked list of three quadword-integer pointer variables (identified as L1, L2, and L3 in the following figure). P is a pointer to the start of the list. The low longword of each pointer variable contains the address of the next variable; the high longword of each variable contains its integer value (8, 6, and 12, respectively).



DBG> SET TYPE QUADWORD; SET RADIX HEX
DBG> EXAMINE .P             ! Examine the entity whose address
                             ! is contained in P.
00009BC2: 00000008 00009BDA  ! High word has value 8, low word
                             ! has address of next entity (9BDA).
DBG> EXAMINE @.             ! Examine the entity whose address
                             ! is contained in the current entity.
00009BDA: 00000006 00009BF4  ! High word has value 6, low word
                             ! has address of next entity (9BF4).
DBG> EXAMINE ..             ! Examine the entity whose address
                             ! is contained in the current entity.
00009BF4: 0000000C 00000000  ! High word has value 12 (dec.), low word
                             ! has address 0 (end of list).

Bit-Field Operator

The following example shows how to use the bit-field operator. For example, to examine the address expression X_NAME starting at bit 3 with a length of 4 bits and no sign extension, enter the following command:


DBG> EXAMINE X_NAME <3,4,0>

B.3.8 Obtaining Information About Exceptions

The following built-in symbols enable you to obtain information about the current exception and use that information to qualify breakpoints or tracepoints:
Symbol Description
%EXC_FACILITY Name of facility that issued the current exception
%EXC_NAME Name of current exception
%ADAEXC_NAME Ada exception name of current exception (for Ada programs only)
%EXC_NUMBER Number of current exception
%EXC_SEVERITY Severity code of current exception

For example:


DBG> EVALUATE %EXC_NAME
"FLTDIV_F"
DBG> SET BREAK/EXCEPTION WHEN (%EXC_NAME = "FLTDIV_F")
   .
   .
   .
DBG> EVALUATE %EXC_NUMBER
12
DBG> EVALUATE/CONDITION_VALUE %EXC_NUMBER
%SYSTEM-F-ACCVIO, access violation at PC !XL, virtual address !XL
DBG> SET BREAK/EXCEPTION WHEN (%EXC_NUMBER = 12)

The conditional expressions in the WHEN clauses are language-specific.

B.3.9 Specifying the Current, Next, and Previous Scope on the Call Stack

You can use the following built-in symbols to obtain and manipulate the scope for symbol lookup and for source or instruction display relative to the routine call stack:
Built-in Symbol Description
%CURRENT_SCOPE_ENTRY The call frame that the debugger is currently using as reference when displaying source code or decoded instructions, or when searching for symbols. By default, this is call frame 0.
%NEXT_SCOPE_ENTRY The next call frame down the call stack from the call frame denoted by %CURRENT_SCOPE_ENTRY.
%PREVIOUS_SCOPE_ENTRY The next call frame up the call stack from the call frame denoted by %CURRENT_SCOPE_ENTRY.

These symbols return integer values that denote a call frame on the call stack. Call frame 0 denotes the routine at the top of the stack, where execution is suspended. Call frame 1 denotes the calling routine, and so on.

For example, the following command specifies that the debugger search for symbols starting with the scope denoted by the next routine down the call stack (rather than starting with the routine at the top of the call stack):


DBG> SET SCOPE/CURRENT %NEXT_SCOPE_ENTRY


Appendix C
Summary of Debugger Support for Languages

The OpenVMS Debugger supports languages on Integrity servers and Alpha systems.

On Integrity server systems, you can use the debugger with programs written in the following HP languages:
Ada 1 Assembler (IAS) BASIC BLISS
C C++ COBOL Fortran
MACRO-32 2 IMACRO Pascal


1Integrity servers support the GNAT Pro Ada 95 compiler from AdaCore.
2MACRO-32 must be compiled with the AMACRO compiler.

HP-Ada BASIC BLISS C
C++ COBOL Fortran MACRO-32 1
MACRO-64 Pascal PL/I

1MACRO-32 must be compiled with the AMACRO compiler.

C.1 Overview

The debugger recognizes the syntax, data typing, and scoping rules of each language. It also recognizes each language's operators and expression syntax. Therefore, when using debugger commands you can specify variables and other program entities as you might in the source code of the program. You can also compute the value of a source-language expression using the syntax of that language.

This appendix describes debugging techniques that are common to most of the supported languages. The help topics provide further information specific to each language:

For more information about language-specific debugger support, refer to the documentation furnished with a particular language.

If your program is written in more than one language, you can change the debugging context from one language to another during a debugging session. Use the SET LANGUAGE command with the keyword corresponding to your language choice.

On Integrity servers, you can specify one of the following keywords:
AMACRO BASIC BLISS C
C++ COBOL Fortran PASCAL
UNKNOWN

On Alpha systems, you can specify one of the following keywords:
ADA AMACRO BASIC BLISS
C C++ COBOL FORTRAN
MACRO MACRO64 PASCAL UNKNOWN

When you are debugging a program written in an unsupported language, enter the SET LANGUAGE UNKNOWN command. To maximize the usability of the debugger with unsupported languages, this setting causes the debugger to accept a large set of data formats and operators, including some that might be specific to only a few supported languages. For information about the operators and constructs that are recognized when the language is set to UNKNOWN, type Help Language_UNKNOWN.

C.2 GNAT Ada (Integrity servers only)

The GNAT Pro (Ada 95) compiler is supported on OpenVMS for Integrity server systems. For information on this product, contact Adacore directly.

Note

HP is not porting the HP Ada (Ada 83) compiler from OpenVMS Alpha to OpenVMS for Integrity servers.

Integrity servers use GNAT Pro Ada 95 from AdaCore Technologies, Inc. For information about this product, see the following online documents from AdaCore:

For information about HP Ada on OpenVMS Alpha, see Section C.3.

C.3 HP Ada (Alpha)

The following subtopics describe debugger support for HP Ada on Alpha systems. For information specific to Ada tasking programs, see also Chapter 16.

C.3.1 Ada Names and Symbols

The following subtopics describe debugger support for Ada names and symbols, including predefined attributes.

Note that parts of names may be language expressions---for example, attributes such as 'FIRST or 'POS. This affects how you use the EXAMINE, EVALUATE, and DEPOSIT commands with such names. For examples of enumeration types, type Help Specifying_Attributes_with_Enumeration_Types.

C.3.1.1 Ada Names

Supported Ada names follow:
Kind of Name Debugger Support
Lexical elements Full support for Ada rules for the syntax of identifiers.

Function designators that are operator symbols (for example, + and *) rather than identifiers must be prefixed with %NAME. Also, the operator symbol must be enclosed in quotation marks.

Full support for Ada rules for numeric literals, character literals, string literals, and reserved words.

The debugger accepts signed integer literals in the range --2147483648 to 2147483647.

Depending on context and architecture, the debugger interprets floating-point types as F_floating, D_floating, G_floating, H_floating, S_floating, or T_floating.

Indexed components Full support.
Slices You can examine and evaluate an entire slice or an indexed component of a slice.

You can deposit only to an indexed component of a slice. You cannot deposit an entire slice.

Selected components Full support, including use of the keyword all in .all.
Literals Full support, including the keyword null.
Boolean symbols Full support (TRUE, FALSE).
Aggregates You can examine the entire record and array objects with the EXAMINE command. You can deposit a value in a component of an array or record. You cannot use the DEPOSIT command with aggregates, except to deposit character string values.
