MEMORY CHANNEL requires a central hub in configurations of three or more nodes. The MEMORY CHANNEL hub contains active, powered electronic components. In the event of a hub failure, resulting from either a power shutdown or component failure, the MEMORY CHANNEL interconnect ceases operation. This type of failure does not occur with the other cluster interconnects, such as CI, DSSI, and most LAN configurations.

HP therefore recommends that customers with MEMORY CHANNEL configurations who have high availability requirements consider using one of the following configurations to provide a second backup interconnect:

• In most cases a second interconnect can easily be configured by enabling the LAN (Ethernet or FDDI) for clustering. FDDI and 100 Mb/s Ethernet usually provide acceptable interconnect performance in the event of MEMORY CHANNEL failure. (See HP OpenVMS Cluster Systems and Guidelines for OpenVMS Cluster Configurations for details about how to enable the LAN for clustering.)
• CI and DSSI interconnects automatically act as a backup for MEMORY CHANNEL.
• A configuration with two MEMORY CHANNEL interconnects provides the highest possible performance as well as continued operation if one MEMORY CHANNEL interconnect fails.

The use of MEMORY CHANNEL imposes certain requirements on memory and on your choice of diagnostic tools.

B.1.5.1 Memory Requirements

MEMORY CHANNEL consumes memory during normal operations. Each system in your MEMORY CHANNEL cluster must have at least 128 MB of memory.

B.1.5.2 Large-Memory Systems' Use of NPAGEVIR Parameter

On systems containing very large amounts of nonpaged pool memory, MEMORY CHANNEL may be unable to complete initialization. If this happens, the console displays the following message repeatedly:

Hub timeout - reinitializing adapter

To fix this problem, examine the value of the SYSGEN parameter NPAGEVIR. If its value is greater than 1 gigabyte, consider lowering it to about half of that. Thereafter, a reboot of your system should allow the MEMORY CHANNEL to complete initialization.

B.1.6 Configurations

Figure B-4 shows a basic MEMORY CHANNEL cluster that uses the SCSI interconnect for storage. This configuration provides two advantages: high performance on the MEMORY CHANNEL interconnect and low cost on the SCSI interconnect.

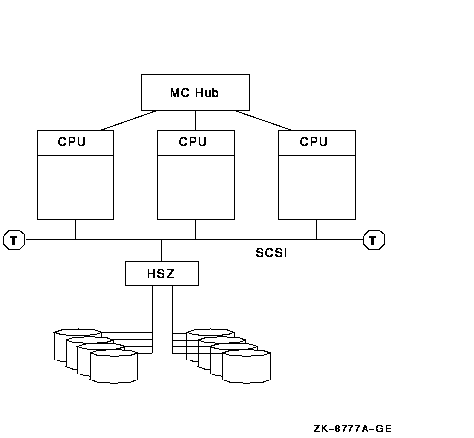

Figure B-4 MEMORY CHANNEL- and SCSI-Based Cluster

In a configuration like the one shown in Figure B-4, the MEMORY CHANNEL interconnect handles internode communication while the SCSI bus handles storage communication.

You can integrate MEMORY CHANNEL with your current systems. Figure B-5 shows an example of how to add MEMORY CHANNEL to a mixed-architecture CI- and SCSI-based cluster. In this example, the BI- and XMI-based VAX systems are joined in the same CI cluster with the PCI-based Alpha MEMORY CHANNEL systems.

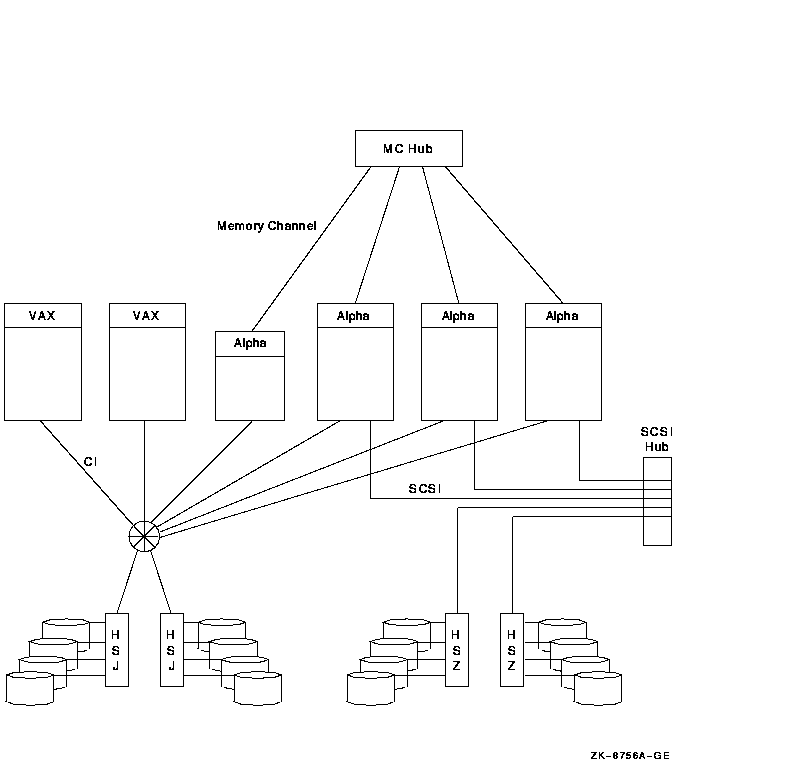

Figure B-5 MEMORY CHANNEL CI- and SCSI-Based Cluster

Because the MEMORY CHANNEL interconnect is not used for storage and booting, you must provide access to a boot device through one of the other interconnects. To use Figure B-5 as an example, one of the CI-based disks would be a good choice for a boot device because all nodes have direct access to it over the CI.

MEMORY CHANNEL can also be integrated into an existing DSSI cluster, as shown in Figure B-6.

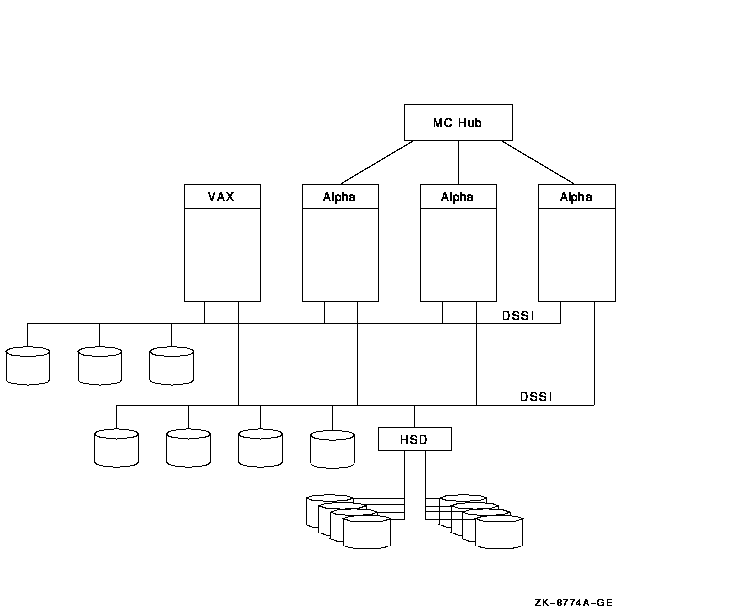

Figure B-6 MEMORY CHANNEL DSSI-Based Cluster

As Figure B-6 shows, the three MEMORY CHANNEL systems and the VAX system have access to the storage that is directly connected to the DSSI interconnect as well as to the SCSI storage attached to the HSD controller. In this configuration, MEMORY CHANNEL handles the Alpha internode traffic, while the DSSI handles the storage traffic.

B.1.6.1 Configuration Support

MEMORY CHANNEL supports the platforms and configurations shown in Table B-1.

Table B-1 MEMORY CHANNEL Configuration Support

Requirement	Description
Configuration	MEMORY CHANNEL supports the following configurations: Up to eight nodes per MEMORY CHANNEL hub. For two-hub configurations, up to two PCI adapters per node; each adapter must be connected to a different hub. For two-node configurations, no hub is required.
Cables	MEMORY CHANNEL supports the following cables: Copper cables up to a 10-m (32.8 ft) radial topology Fiber-optic cables from HP up to a 30-m (98.4 ft) radial topology; fiber-optic cables from other vendors, up to a 3-km (1.8 miles) radial topology
Host systems	MEMORY CHANNEL supports the following systems: AlphaServer 8400 AlphaServer 8200 AlphaServer 4100 AlphaServer 2100A AlphaServer 1200 AlphaServer 800

This section describes in more technical detail how MEMORY CHANNEL works.

B.2.1 Comparison With Traditional Networks and SMP

You can think of MEMORY CHANNEL as a form of "stretched SMP bus" that supports enough physical distance to interconnect up to eight systems. However, MEMORY CHANNEL differs from an SMP environment where multiple CPUs can directly access the same physical memory. MEMORY CHANNEL requires each node to maintain its own physical memory, even though the nodes share MEMORY CHANNEL global address space.

MEMORY CHANNEL fills a price/performance gap between the high performance of SMP systems and traditional packet-based networks. Table B-2 shows a comparison among the characteristics of SMP, MEMORY CHANNEL, and standard networks.

Table B-2 Comparison of SMP, MEMORY CHANNEL, and Standard Networks

Characteristics	SMP	MEMORY CHANNEL	Standard Networking
Bandwidth (MB/s)	1000+	100+	10+
Latency (ms/simplest message)	0.5	Less than 5	About 300
Overhead (ms/simplest message)	0.5	Less than 5	About 250
Hardware communication model	Shared memory	Memory-mapped	Message passing
Hardware communication primitive	Store to memory	Store to memory	Network packet
Hardware support for broadcast	n/a	Yes	Sometimes
Hardware support for synchronization	Yes	Yes	No
Hardware support for node hot swap	No	Yes	Yes
Software communication model	Shared memory	Fast messages, shared memory	Messages
Communication model for errors	Not recoverable	Recoverable	Recoverable
Supports direct user mode communication	Yes	Yes	No
Typical physical interconnect technology	Backplane etch	Parallel copper cables	Serial fiber optics
Physical interconnect error rate	Extremely low order: less than one per year	Extremely low order: less than one per year	Low order: several per day
Hardware interconnect method	Special purpose connector and logic	Standard I/O bus adapter (PCI)	Standard I/O bus adapter (PCI and others)
Distance between nodes (m)	0.3	20 (copper) or 60 (fiber-optic) in a hub configuration and 10 (copper) or 30 (fiber-optic) in a two-node configuration	50-1000
Number of nodes	1	8	Hundreds
Number of processors	6--12	8 times the maximum number of CPUs in an SMP system	Thousands
Failure model	Fail together	Fail separately	Fail separately

B.2.2 MEMORY CHANNEL in the OpenVMS Cluster Architecture

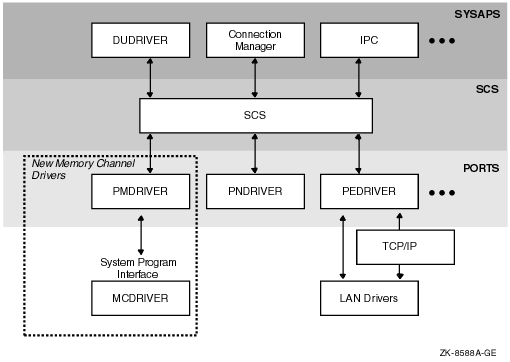

Figure B-7 OpenVMS Cluster Architecture and MEMORY CHANNEL

MEMORY CHANNEL software consists of two new drivers:

Driver	Description
PMDRIVER	Emulates a cluster port driver.
MCDRIVER	Provides MEMORY CHANNEL services and an interface to MEMORY CHANNEL hardware.

B.2.3 MEMORY CHANNEL Addressing

In a MEMORY CHANNEL configuration, a section of system physical address space is shared among all nodes. When a system writes data to this address space, the MEMORY CHANNEL hardware also performs a global write so that this data is stored in the memories of other systems. In other words, when a node's CPU writes data to the PCI address space occupied by the MEMORY CHANNEL adapter, the data is sent across the MEMORY CHANNEL interconnect to the other nodes. The other nodes' PCI adapters map this data into their own memory. This infrastructure enables a write to an I/O address on one system to get mapped to a physical address on the other system. The next two figures explain this in more detail.

Figure B-8 shows how MEMORY CHANNEL global address space is addressed in physical memory.

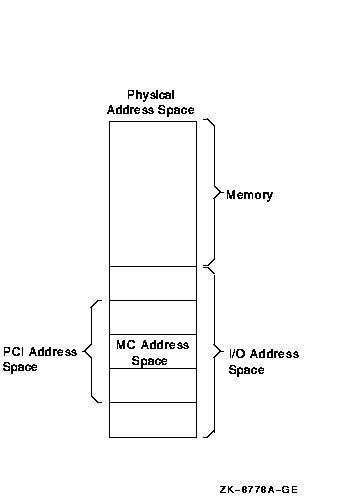

Figure B-8 Physical Memory and I/O Address Space

Figure B-8 shows the typical address space of a system, divided into physical memory and I/O address space. Within the PCI I/O address space, MEMORY CHANNEL consumes 128 to 512 MB of address space. Therefore, the MEMORY CHANNEL PCI adapter can be addressed within this space, and the CPU can write data to it.

Every system in a MEMORY CHANNEL cluster allocates this address space for MEMORY CHANNEL data and communication. By using this address space, a CPU can perform global writes to the memories of other nodes.

To explain global writes more fully, Figure B-9 shows the internal bus architecture of two nodes, node A and node B.

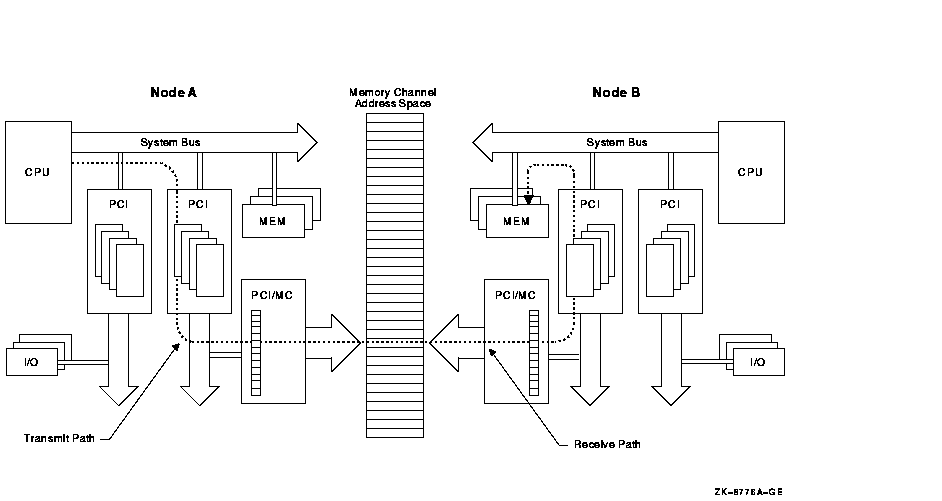

Figure B-9 MEMORY CHANNEL Bus Architecture

In the example shown in Figure B-9, node A is performing a global write to node B's memory, in the following sequence:

1. Node A's CPU performs a write to MEMORY CHANNEL address space, which is part of PCI address space. The write makes its way through the PCI bus to the PCI/MEMORY CHANNEL adapter and out on the MEMORY CHANNEL interconnect.
2. Node B's PCI adapter receives the data, which is picked up by its PCI bus and DMA-mapped to memory.

If all nodes in the cluster agree to address MEMORY CHANNEL global address space in the same way, they can virtually "share" the same address space and the same data. This is why MEMORY CHANNEL address space is depicted as a common, central address space in Figure B-9.

MEMORY CHANNEL global address space is divided into pages of 8 KB (8,192 bytes). These are called MC pages. These 8 KB pages can be mapped similarly among systems.

The "shared" aspect of MEMORY CHANNEL global address space is set up using the page control table, or PCT, in the PCI adapter. The PCT has attributes that can be set for each MC page. Table B-3 explains these attributes.

Table B-3 MEMORY CHANNEL Page Attributes

Attribute	Description
Broadcast	Data is sent to all systems or, with a node ID, data is sent to only the specified system.
Loopback	Data that is sent to the other nodes in a cluster is also written to memory by the PCI adapter in the transmitting node. This provides message order guarantees and a greater ability to detect errors.
Interrupt	Specifies that if a location is written in this MC page, it generates an interrupt to the CPU. This can be used for notifying other nodes.
Suppress transmit/receive after error	Specifies that if an error occurs on this page, transmit and receive operations are not allowed until the error condition is cleared.
ACK	A write to a page causes each receiving system's adapter to respond with an ACK (acknowledge), ensuring that a write (or other operation) has occurred on remote nodes without interrupting their hosts. This is used for error checking and error recovery.

B.2.4 MEMORY CHANNEL Implementation

MEMORY CHANNEL software comes bundled with the OpenVMS Cluster software. After setting up the hardware, you configure the MEMORY CHANNEL software by responding to prompts in the CLUSTER_CONFIG.COM procedure. A prompt asks whether you want to enable MEMORY CHANNEL for node-to-node communications for the local computer. By responding "Yes", MC_SERVICES_P2, the system parameter that controls whether MEMORY CHANNEL is in effect, is set to 1. This setting causes the driver, PMDRIVER, to be loaded and the default values for the other MEMORY CHANNEL system parameters to take effect.

For a description of all the MEMORY CHANNEL system parameters, refer to the HP OpenVMS Cluster Systems manual.

For more detailed information about setting up the MEMORY CHANNEL hub, link cables, and PCI adapters, see the MEMORY CHANNEL User's Guide, order number EK-PCIMC-UG.A01.

This appendix describes multiple-site OpenVMS Cluster configurations in which multiple nodes are located at sites separated by relatively long distances, from approximately 25 to 125 miles, depending on the technology used. This configuration was introduced in OpenVMS Version 6.2. General configuration guidelines are provided and the three technologies for connecting multiple sites are discussed. The benefits of multiple site clusters are cited and pointers to additional documentation are provided.

The information in this appendix supersedes the Multiple-Site VMScluster Systems addendum manual.

C.1 What is a Multiple-Site OpenVMS Cluster System?

A multiple-site OpenVMS Cluster system is an OpenVMS Cluster system in which the member nodes are located in geographically separate sites. Depending on the technology used, the distances can be as great as 500 miles.

When an organization has geographically dispersed sites, a multiple-site OpenVMS Cluster system allows the organization to realize the benefits of OpenVMS Cluster systems (for example, sharing data among sites while managing data center operations at a single, centralized location).

Figure C-1 illustrates the concept of a multiple-site OpenVMS Cluster system for a company with a manufacturing site located in Washington, D.C., and corporate headquarters in Philadelphia. This configuration spans a geographical distance of approximately 130 miles (210 km).

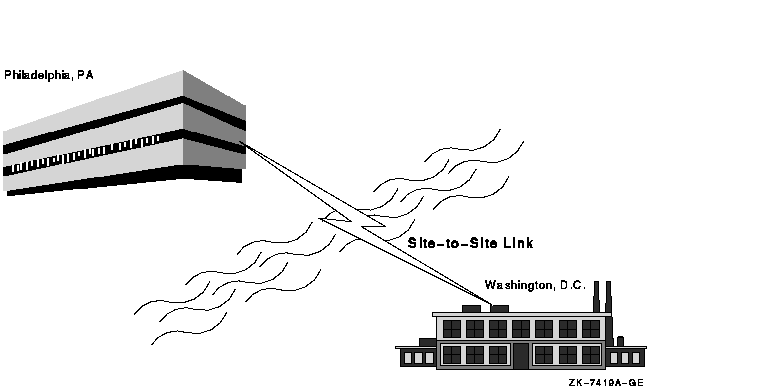

Figure C-1 Site-to-Site Link Between Philadelphia and Washington

The following link technologies between sites are approved for OpenVMS VAX and OpenVMS Alpha systems:

• Asynchronous transfer mode (ATM)
• DS3
• FDDI
• [D]WDM

High-performance local area network (LAN) technology combined with the ATM, DS3, FDDI, and [D]WDM interconnects allows you to utilize wide area network (WAN) communication services in your OpenVMS Cluster configuration. OpenVMS Cluster systems configured with the GIGAswitch crossbar switch and ATM, DS3, or FDDI interconnects approve the use of nodes located miles apart. (The actual distance between any two sites is determined by the physical intersite cable-route distance, and not the straight-line distance between the sites.) Section C.4 describes OpenVMS Cluster systems and the WAN communications services in more detail.

Some of the benefits you can realize with a multiple-site OpenVMS Cluster system include the following:

Benefit	Description
Remote satellites and nodes	A few systems can be remotely located at a secondary site and can benefit from centralized system management and other resources at the primary site, as shown in Figure C-2. For example, a main office data center could be linked to a warehouse or a small manufacturing site that could have a few local nodes with directly attached site-specific devices. Alternatively, some engineering workstations could be installed in an office park across the city from the primary business site.
Data center management consolidation	A single management team can manage nodes located in data centers at multiple sites.
Physical resource sharing	Multiple sites can readily share devices such as high-capacity computers, tape libraries, disk archives, or phototypesetters.
Remote archiving	Backups can be made to archival media at any site in the cluster. A common example would be to use disk or tape at a single site to back up the data for all sites in the multiple-site OpenVMS Cluster. Backups of data from remote sites can be made transparently (that is, without any intervention required at the remote site).
Increased availability	In general, a multiple-site OpenVMS Cluster provides all of the availability advantages of a LAN OpenVMS Cluster. Additionally, by connecting multiple, geographically separate sites, multiple-site OpenVMS Cluster configurations can increase the availability of a system or elements of a system in a variety of ways: Logical volume/data availability---Volume shadowing or redundant arrays of independent disks (RAID) can be used to create logical volumes with members at both sites. If one of the sites becomes unavailable, data can remain available at the other site. Site failover---By adjusting the VOTES system parameter, you can select a preferred site to continue automatically if the other site fails or if communications with the other site are lost. Disaster tolerance---When combined with the software, services, and management procedures provided by the Disaster Tolerant Cluster Services for OpenVMS, you can achieve a high level of disaster tolerance. Consult your HP Services representative for further information.

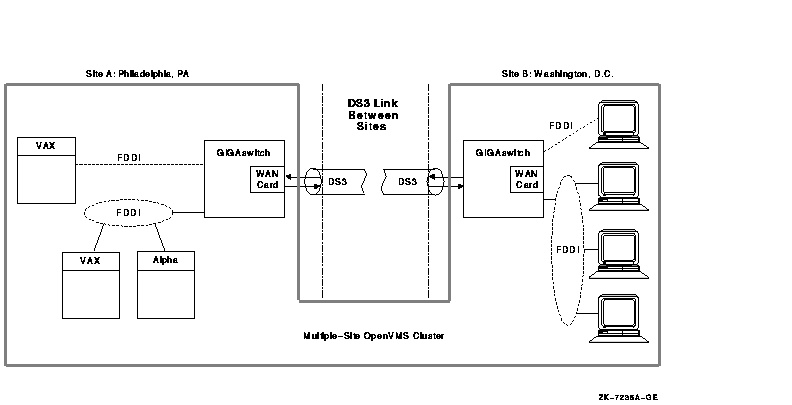

Figure C-2 shows an OpenVMS Cluster system with satellites accessible from a remote site.

Figure C-2 Multiple-Site OpenVMS Cluster Configuration with Remote Satellites
