Displays a brief one-page summary of the state of the Galaxy and all the instances in the Galaxy.
SHOW GALAXY
None.
None.
SDA> SHOW GALAXY
Galaxy summary
--------------
GMDB address Creator node ID Revision Creation time
----------------- --------------- -------- ----------------------- -----
FFFFFFFF.7F234000 00000001 1.0 31-MAR-1999 13:15:08.08 O
Node ID NODEB address Name Version Join time
-------- ----------------- -------- -------- ----------------------- -----
00000000 FFFFFFFF.7F236000 ANDA1A 1.0 31-MAR-1999 14:11:09.08
00000001 FFFFFFFF.7F236200 ANDA2A 1.0 31-MAR-1999 14:10:49.06
00000002 FFFFFFFF.7F236400 ANDA3A 1.0 31-MAR-1999 14:13:26.16
00000003 FFFFFFFF.7F236600 - Node block is empty -
|
This SHOW GALAXY example shows the summary of the state of the Galaxy.
Displays the contents of the Galaxy configuration tree either in summary (hierarchical format) or in detail, node by node.
SHOW GCT [/ADDRESS=n | /ALL | /HANDLE | /OWNER=n
| /SUMMARY (D) | /TYPE=type ]
[/CHILDREN] | [/FULL]
None.
/ADDRESS=n
Displays the Galaxy configuration tree (GCT) node at the given address./ALL
Provides a detailed display of all nodes in the tree./CHILDREN
When used with /ADDRESS=n or /HANDLE=n, the /CHILDREN qualifier causes SDA to display all nodes in the configuration tree that are children of the specified node./FULL
When used with /CHILDREN, /OWNER=n, or /TYPE=type, the /FULL qualifier causes SDA to provide a detailed display of each node./HANDLE=n
Provides a detailed display of the Galaxy configuration tree (GCT) node with the given handle./OWNER=n
Displays all nodes in the tree currently owned by the node with the given handle./SUMMARY
Provides a summary display of the Galaxy configuration tree (GCT) in hierarchical form. This qualifier is the default.
/TYPE=type
Displays all nodes in the tree of the given type, which can be one of the following:
BUS CAB COMMUNITY CORE CPU CPU_MODULE EXP_CHASSIS FRU_DESC FRU_ROOT HARD_PARTITION HOSE HW_ROOT IO_CTRL IOP MEMORY_CTRL MEMORY_DESC MEMORY_SUB PARTITION POWER_ENVIR PSEUDO RISER ROOT SBB SLOT SMB SOC SOCKET SW_ROOT SYS_CHASSIS SYS_INTER_SWITCH TEMPLATE_ROOT THREAD The type given may be an exact match, in which case just that type is displayed (for example, a CPU); or a partial match, in which case all matching types are displayed (for example, /TYPE=CP displays both CPU and CPU_MODULE nodes).

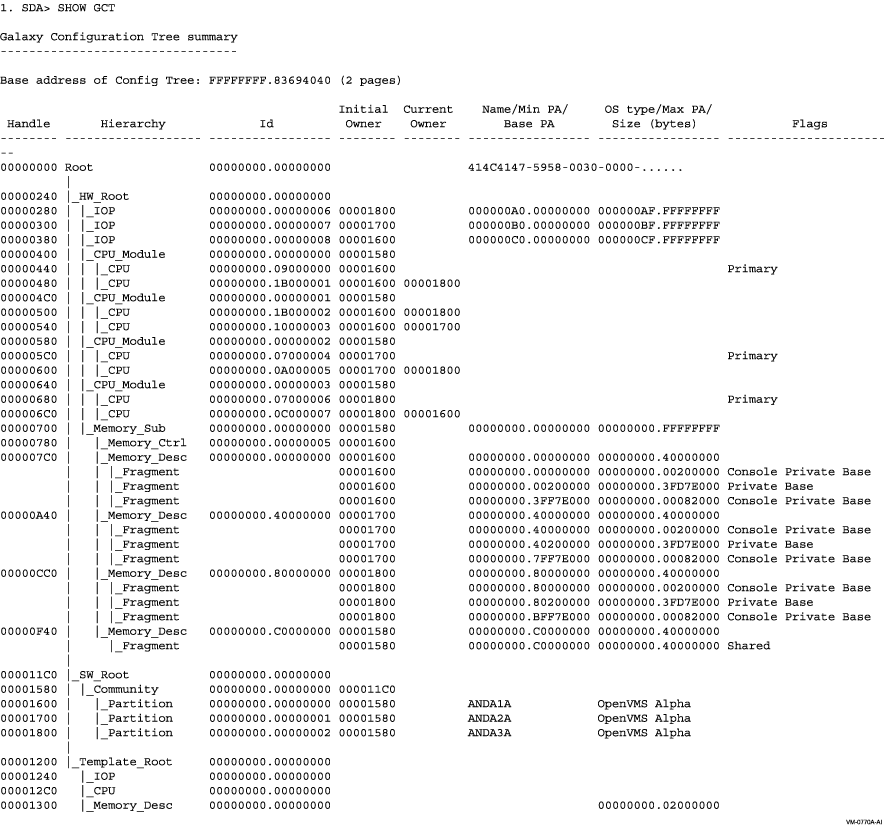

This command shows the summary (hierarchical) display of the configuration tree.
2. SDA> SHOW GCT/HANDLE=00000700
Galaxy Configuration Tree
-------------------------
Handle: 00000700 Address: FFFFFFFF.83694740
Node type: Memory_Sub Size: 0080
Id: 00000000.00000000 Flags: 00000000.00000001 Hardware
Related nodes:
Node relationship Handle Type Id
--------------------- -------- --------------------- -----------------
Initial owner 00001580 Community 00000000.00000000
Current owner -<Same>-
Parent 00000240 HW_Root 00000000.00000000
Previous sibling 00000640 CPU_Module 00000000.00000003
Next sibling -<None>-
Child 00000780 Memory_Ctrl 00000000.00000005
Configuration binding 00000240 HW_Root 00000000.00000000
Affinity binding 00000240 HW_Root 00000000.00000000
Min. physical address: 00000000.00000000
Max. physical address: 00000000.FFFFFFFF
|
This command shows the detailed display of the specified node.

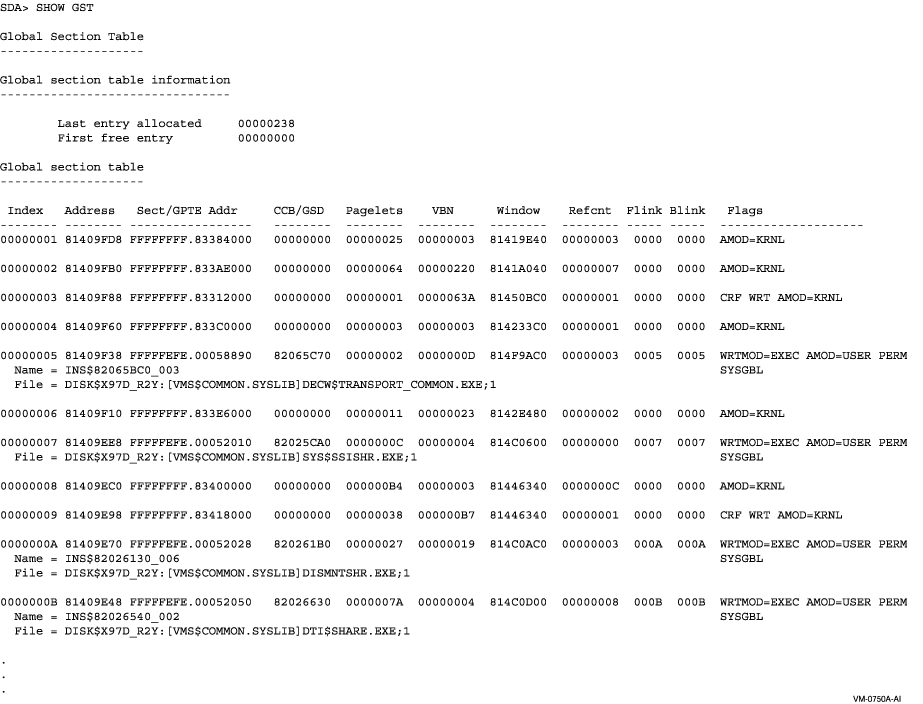

Displays information contained in the global section table, including pageable sections of loadable images. Functionally equivalent to SHOW GST.
SHOW GLOBAL_SECTION_TABLE [/SECTION_INDEX=n]SHOW GST [/SECTION_INDEX=n]
None.
/SECTION_INDEX=n
Displays only the global section table entry for the specified section.
Displays the entire contents of the global section table, unless you specify the qualifier /SECTION_INDEX. This command is equivalent to SHOW PROCESS/PROCESS_SECTION_TABLE/SYSTEM. SDA displays the information in Table 4-5 for each GST entry.
Table 4-5 Global Section Table Entry Information Part Definition INDEX Index number of the entry. Entries in the global section table begin at the highest location in the table, and the table expands toward lower addresses. ADDRESS Address of the global section table entry. SECT/GPTE Virtual address that marks the beginning of the first page of the section described by this entry, if a loadable image; or the virtual address of the global page table entry for the first page, if a global section. GSD Address of the corresponding Global Section Descriptor. This field is zero for loadable images. PAGELETS Length of the global section. This is in units of pagelets, except for a PFN-mapped section in which the units are pages. VBN Virtual block number. The number of the file's virtual block that is mapped into the section's first page. WINDOW Address of the window control block on which the section file is open. REFCNT Number of pages of this section that are currently mapped. FLINK Forward link. The pointer to the next entry in the GST list. BLINK Backward link. The pointer to the previous entry in the GST list. FLAGS Flags that describe the access that the system and processes have to the global section.
Displays the Galaxy locks for the Galaxy Management Database (GMDB), process tables, and/or system tables.
SHOW GLOCK [/ADDRESS=n [/PHYSICAL]
| /ALL
| /GMDB_TABLE
| /HANDLE=n [/LINKED]
| /PROCESS_TABLE [=n ]
| /SYSTEM_TABLE [=n ]]
[/BRIEF]
None.
/ALL
Displays information provided by the /GMDB_TABLE, /PROCESS_TABLE, and /SYSTEM_TABLE qualifiers. The /ALL qualifier also displays information from the base GMDB Galaxy lock./BRIEF
Displays a single line for each Galaxy lock, regardless of any other qualifiers./GMDB_TABLE
Displays the Galaxy lock table for the Galaxy Management Database (GMDB) including the embedded and attached Galaxy locks./PROCESS_TABLE [=n]
Displays all the process Galaxy lock tables with the embedded and attached Galaxy locks, as well as a summary table. The /PROCESS_TABLE=n qualifier displays the single Galaxy lock table without a summary page./SYSTEM_TABLE [=n]
Displays all the system Galaxy lock tables with the embedded and attached Galaxy locks, as well as a summary table. The /SYSTEM_TABLE=n qualifier displays the single Galaxy lock table without a summary page./ADDRESS=n [/PHYSICAL]
Displays the single Galaxy lock at address n. Because process Galaxy locks are located by their physical address, you must use the /PHYSICAL qualifier to enter such an address./HANDLE=n [/LINKED]
Displays the single Galaxy lock whose handle is n. The optional qualifier /LINKED causes SDA to display all Galaxy locks linked to the one specified.
| #1 |
|---|
SDA> SHOW GLOCK
Galaxy Lock Database
--------------------
Base address of GLock segment of GMDB: FFFFFFFF.7F238000
Length: 00000000.00082000
Nodes: 00000000.00000007 Flags: 00000000.00000000
Process tables: 00000000.00000400 System tables: 00000000.00000400
First free: 00000002 00000001
First used: 00000001 00000000
Embedded GLocks:
GLock address: FFFFFFFF.7F238020 Handle: 80000000.00000805
GLock name: GMDB_GLOCK_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
GLock address: FFFFFFFF.7F238190 Handle: 80000000.00000833
GLock name: PRC_LCKTBL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
GLock address: FFFFFFFF.7F2381D0 Handle: 80000000.0000083B
GLock name: SYS_LCKTBL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
|
This example shows the summary of the Galaxy lock database.
| #2 |
|---|
SDA> SHOW GLOCK/PROCESS_TABLE
Galaxy Lock Database: Process Lock Table #0001
----------------------------------------------
Base address of Process Lock Table #0001: FFFFFFFF.7F23A000
Lock size: 0040 Flags: 01 VALID
Region Index/Sequence: 0008/00000001 Access mode: 03
Region physical size: 00000000.00002000 Virtual size: 00000000.00002000
Number of locks: 00000000.00000080 Nodes: 00000000.00000007
Per-node reference counts:
Node Count
---- -----
0000 0001
0001 0001
0002 0001
Embedded GLock:
GLock address: FFFFFFFF.7F23A040 Handle: 80000000.00000C09
GLock name: PLCKTBL_LOCK001 Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
Attached GLocks:
GLock address: P00000000.C05EC7C0 Handle: 00000001.000000F9
GLock name: CPU_BAL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
.
.
.
GLock address: P00000000.C05EC000 Handle: 00000001.00000001
GLock name: CPU_BAL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
Used GLock count = 0020
Free GLock count = 0060
Galaxy Lock Database: Process Lock Table Summary
------------------------------------------------
Total used Process Lock Tables: 00000001
Total free Process Lock Tables: 000003FF
|
This example shows the Galaxy locks for all processes.
Displays the contents of the Galaxy Management Database (GMDB) and/or the node blocks of the instances in the Galaxy system.
SHOW GMDB [/ALL]
[/NODE [=name | =n | /ADDRESS=n ] [/SUMMARY]
None.
/ADDRESS
Specifies the address of a single node block to be displayed when used with the /NODE qualifier. See the description of the /NODE qualifier./ALL
Displays the contents of the Galaxy Management Database and all node blocks that have ever been used (contents nonzero)./NODE [=name | =n | /ADDRESS=n]
Displays the contents of the specified node block, given by either the name of the instance, the partition number, or the address of the node block. If you specify only the /NODE qualifier, the node block for the current instance is displayed./SUMMARY
Displays a one-page summary of the GMDB and all node blocks.
The default action displays the contents of the Galaxy Management Database. |
Examples
1. SDA> SHOW GMDB
Galaxy Management Database
-------------------------
Base address of GMDB: FFFFFFFF.7F234000
Base address of NODEB for this instance: FFFFFFFF.7F236000
Revision: 1.0 Maximum node ID: 00000003
Creation time: 31-MAR-1999 13:15:08.08 Incarnation: 00000000.00000003
State: OPERATIONAL Creator node: 00000001
Base size: 00000000.00004000 Total size: 00000000.000A6000
Last joiner ID: 00000002 Remover node ID: FFFFFFFF
Last leaver ID: 00000002 Node timeout (msec) 5000.
Lock owner 00000002 Lock flags: 0000
Break owner: FFFFFFFF Breaker ID: FFFFFFFF
Version Information:
Min Version Operational 1.0 Min Version Allowed 1.0
Max Version Operational 1.0
Membership bitmask: FFFFFFFF.7F236800
Valid bits: 00000004 State: 00000000.0000001E AUTO_LOCK TIMEOUT_CRASH....
Unit count: 0001 Unit size: QUADWORD
Lock IPL: 16 Saved IPL: 00000008
Count of bits set: 00000003
Timeout count: 000186A0
Summary bitmask: 00000000.00000001
Unit bitmask:
........ ........ ........ .......7 00000000
Remove node bitmask: FFFFFFFF.7F236880
Valid bits: 00000004 State: 00000000.00000018 SUMMARY_BITS SET_COUNT
Unit count: 0001 Unit size: QUADWORD
Count of bits set: 00000000
Summary bitmask: 00000000.00000000
Unit bitmask:
........ ........ ........ .......0 00000000
Subfacility validation flags: 00000000
Galaxy locks segment: FFFFFFFF.7F238000 Length: 00000000.00082000
Shared memory segment: FFFFFFFF.7F2BA000 Length: 00000000.0000A000
CPU comms segment: FFFFFFFF.7F2C4000 Length: 00000000.00014000
CPU info segment: FFFFFFFF.7F2D8000 Length: 00000000.00002000
Membership segment: FFFFFFFF.7F2DA000 Length: (empty)
MMAP address: FFFFFFFF.7F234200
Level count: 0000 Flags: 0001 VALID
Top page count: 00000053 Virtual size: 00000000.000A6000
PFN list page count: 00000000 First PFN: 00060000
Data page count: 00000053
|
This example shows the overall summary of the Galaxy Management Database.
2. SDA> SHOW GMDB/NODE=0 GMDB: Node ID 00000000 (current instance) ----------------------------------------- Base address of node block: FFFFFFFF.7F236000 Version: 1.0 Node name: ANDA1A Join time: 31-MAR-1999 14:11:09.08 Incarnation: 00000000.00000005 State: MEMBER Crash_all acknowledge: 00000000 Validation done: 00000000 Reform done: 00000000 IP interrupt mask: 00000000.00000000 Little brother: 00000002 Heartbeat: 00000000.0019EAD1 Big brother: 00000001 Last watched_node: 00000000 Watched_node #0: FFFFFFFF.7F236078 Node watched: 00000002 Last heartbeat: 00000000.0017C1AD Miss count: 00000000 |
This example shows Galaxy Management Database information for the specified instance.
Displays information contained in the global section descriptors.
SHOW GSD [/ADDRESS=n | /ALL | /DELETED | /GLXGRP
| /GLXSYS | /GROUP | /SYSTEM]
None.
/ADDRESS=n
Displays a specific global section descriptor entry, given its address./ALL
Displays information in all the global section descriptors, that is, the system, group, and deleted global section descriptors, plus the Galaxy group and Galaxy system global section descriptors, if the system or dump being analyzed is a member of an OpenVMS Galaxy system. This qualifier is the default./DELETED
Displays information in the deleted (that is, delete pending) global section descriptors./GLXGRP
Displays information in the group global section descriptors of a Galaxy system./GLXSYS
Displays information in the system global section descriptors of a Galaxy system./GROUP
Displays information in the group global section descriptors./SYSTEM
Displays information in the system global section descriptors.

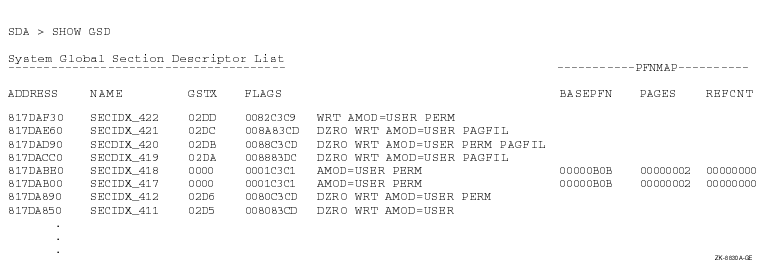

The SHOW GSD command displays information that resides in the global section descriptors. Table 4-6 shows the fields and their meaning.
Table 4-6 GSD Fields Field Meaning ADDRESS Gives the address of the global section descriptor. NAME Gives the name of the global section. GSTX Gives the global section table index. FLAGS Gives the settings of flags for specified global section, as a hexadecimal number; also displays key flag bits by name. BASEPFN 1 Gives physical page frame number at which the section starts. PAGES 1 Gives number of pages (not pagelets) in section. REFCNT 1 Gives number of times this global section is mapped.
See SHOW GLOBAL_SECTION_TABLE.
