HP C

HP C
User's Guide for OpenVMS Systems


Previous Contents Index

3.2 Specifying Parameter-Passing Mechanisms

When you pass data between routines that are not written in the same OpenVMS language, you have to specify how you want that data to be represented and interpreted. You do this by specifying a parameter-passing mechanism.

The calling standard defines three ways to pass data in an argument list. When you code a reference to a non-HP C procedure, you must know how to pass each argument and write the function reference accordingly.

The following list describes the three argument-passing mechanisms:

  • By immediate value
    When an argument is passed by immediate value, the actual value of the argument is present in the argument list. This is the default argument-passing mechanism for all function references written in HP C.
  • By reference
    When an argument is passed by reference, the address of the argument is present in the argument list. Use the C ampersand operator (&) to pass the address of an argument, or pass a pointer to the argument by value.
  • By descriptor
    When an argument is passed by descriptor, the address of a data structure describing the argument is present in the argument list. From a HP C program, you pass a descriptor first by creating a structure ( struct ) that meets the descriptor requirements of the called procedure and then by passing the structure's address with the ampersand operator or by passing a pointer to that structure by value.

The following sections outline each of these parameter-passing mechanisms in more detail.

3.2.1 Passing Arguments by Immediate Value

By default, all values or expressions in a HP C function's argument list are passed by immediate value (except for X_FLOATING on OpenVMS Alpha systems, which is passed by reference). The expressions are evaluated and the results placed directly in the argument list of the CALL machine instruction.

The following statement declares the entry point of the Set Event Flag SYS$SETEF system service, which is used to set a specific event flag to 1:


/*  Declare the function as a function returning type int.      */

int  SYS$SETEF();

The SYS$SETEF system service call requires one argument---the number of the event flag to be set---to be passed by immediate value. HP C for OpenVMS Systems converts linker-resolved variable names (such as the entry-point names of system service calls) to uppercase. You do not have to declare them in uppercase in your program (unless you compile your module with /NAMES=AS_IS). However, linker-resolved variable names must be declared and used with identical cases in each module. The documentation uses uppercase as a convention for referring to system service calls to highlight them in the text and examples.

HP C does not require you to declare a function or to specify the number or types of the function's arguments. However, if you call a function without declaring it or without providing argument information in the declaration, HP C does not check the types of the arguments in a call to that function. If you declare a function prototype, the compiler does check the arguments in a call to make sure that they have the same type. (See the HP C Language Reference Manual for more information on function prototypes.)

Like all system services, SYS$SETEF returns an integer value (the return status of the service) in register 0. Most system services return an integer completion status; therefore, the system service does not always have to be declared before it is used. The examples in this chapter declare system services for completeness.

In the HP OpenVMS System Services Reference Manual, you can find the specification of each service's arguments. SYS$SETEF, for example, takes one argument, an event flag number. It returns one of four status values, which are represented by the symbolic constants shown in Table 3-3.

Table 3-3 Status Values of SYS$SETEF
Returned Status Description
SS$_WASCLR Success Flag was previously clear
SS$_WASSET Success Flag was previously set
SS$_ILLEFC Failure Illegal event flag number
SS$_UNASEFC Failure Event flag not in associated cluster

The system services manual also defines event flags as integers in the range 0 to 127, grouped in clusters of 32. Clusters 0 and 1, comprising flags 0 to 31 and 32 to 63, respectively, are local clusters available to any process, with the restriction that flags 24 to 31 are reserved for use by the OpenVMS system. There are many ways of passing valid event flag numbers from your HP C program to SYS$SETEF. One way is to use enum to define a subset of integers, as follows:


enum  cluster0  {completion, breakdown, beginning}  event;

After the flag numbers are defined, call the SYS$SETEF service with the following code:


   .
   .
   .
int  status;
event = completion;
   .
   .
   .
status = SYS$SETEF(event);         /* Set event flag.          */
   .
   .
   .

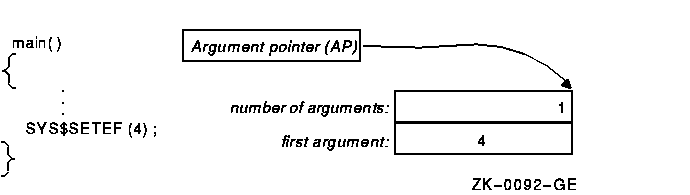

Figure 3-4 shows an argument being passed by immediate value; in this case, the event flag number passed to SYS$SETEF.

Figure 3-4 Passing Arguments by Immediate Value


Since argument lists consist of longwords, the calling standard dictates that immediate-value arguments be expressed in 32 bits. A single-precision, floating-point (F_floating) value is only 32 bits long, but the compiler promotes all arguments of type float to double (64 bits on a VAX processor) unless a function prototype declaration is used for the called function. This double-precision value is passed as two immediate values (two longwords).

Note

The passing of double-precision immediate values is a violation of the calling standard for OpenVMS VAX systems, but is an allowed exception for HP C.

On rare occasions, the float -to- double promotion requires some additional programming. For instance, the function OTS$POWRJ, in the VAX Common Run-Time Procedure Library, computes the value of a floating-point number raised to the power of a signed longword (in C terms, a float to the power of an int ). This function (and others like it) is called implicitly by high-level OpenVMS languages that have an exponentiation operator as part of the language. It requires that both its arguments be passed as immediate values, and it returns a single-precision ( float ) result. To pass a floating-point base to the procedure, you must use some method to avoid promoting float arguments. The recommended method is to declare the procedure using a function prototype declaration, as shown in Example 3-1.

Example 3-1 Passing Floating-Point Arguments by Immediate Value

/*  This program shows how to pass a floating-point value,     *
 *  using prototypes to avoid promoting floating               *
 *  arguments to arguments of type double.                     */

#include <stdio.h>

/*  This declared function returns a value of type float.  It  *
 *  should be called as follows:  OTS$POWRJ(base, power),      *
 *  where base is of type float and power is of type int.      */

float OTS$POWRJ(float, int);

main(void)
{
                                   /*  To hold result of       *
                                    *   OTS$POWRJ              */
   float  result;
   int    power;                   /*  Power argument          */

   float base;

   base =  3.145;                  /*  Assign constant to base */
   power  =  2;
   result =  OTS$POWRJ(base, power);

   printf("Result= %f\n", result);
}

Note

To get the correct results on I64 systems, compile the preceding example with /FLOAT=G_FLOAT.

The example does not show the methods for handling arithmetic errors that result from the operation performed. For more information on error handling in this context, and on the run-time library in general, see the VMS Run-Time Library Routines Volume.

When you pass a parameter by value, you pass a copy of the parameter value to the routine instead of passing its address. Because the actual value of the parameter is passed, the routine does not have access to the storage location of the parameter; therefore, any changes that you make to the parameter value in the routine do not affect the value of that parameter in the calling routine.

3.2.2 Passing Arguments by Reference

Some system services and run-time library procedures expect arguments passed by reference. This means that the argument list contains the address of the argument rather than its value. This mechanism is also used by default by some programming languages, such as PL/I, and is available as an option in others, such as Pascal.

In C, you can use the ampersand operator (&) to pass an argument by reference; that is, the ampersand operator causes the argument's address to be passed. Note that an array name without brackets or a function name without parentheses in an argument list always results in passing the address of the array or function; the ampersand is unnecessary. You can also pass a pointer by value, which is the same as passing the item it points to by reference.

In the special case of argument lists, HP C in VAX C mode allows the ampersand operator to be used on constants as well. You should limit this use of the ampersand solely to calls to OpenVMS system functions to ensure portability of your HP C programs to other C compilers.

For example, the Read Event Flags (SYS$READEF) system service requires that its first argument be passed by immediate value and its second argument be passed by reference. SYS$READEF returns the status of all the event flags in a particular cluster. (Event flags are numbered from 0 to 127 and arranged in clusters of 32, such that flags 0 to 31 comprise cluster 0, flags 32 to 63, cluster 1, and so forth.)

The first SYS$READEF argument is any event flag number in the cluster of interest. The second argument is the address of a longword that receives the status of all 32 event flags in that cluster. In addition to the event-flag status value, the system service returns one of the status values shown in Table 3-4 expressed as a global symbol.

Table 3-4 Status Values of SYS$READEF
Returned Status Description
SS$_WASCLR Success Specified event flag was clear
SS$_WASSET Success Specified event flag was set
SS$_ACCVIO Failure Could not write to status longword
SS$_ILLEFC Failure Event flag number was illegal
SS$_UNASEFC Failure Cluster of interest not accessible

Example 3-2 shows a call to the SYS$READEF system service from a HP C program.

Example 3-2 Passing Arguments by Reference

/*  This program shows how to call system service SYS$READEF.  */

#include <ssdef.h>
#include <stdio.h>

int  SYS$READEF();

main(void)
{
                                   /*  Longword that receives   *
                                    *   the status of the       *
                                    *   event flag cluster.     */
   unsigned cluster_status;

   int return_status;              /* Status: SYS$READEF.       */

                                   /*  Argument values for      *
                                    *   SYS$READEF.             */
   enum  cluster0
      {
         completion, breakdown, beginning
      }  event;
      .
      .
      .
   event = completion;             /*  Event flag in cluster 0. */

                                   /*  Obtain status of         *
                                    *   cluster 0.  Pass value  *
                                    *   of event and address    *
                                    *   of cluster_status.      */

   return_status =  SYS$READEF(event, &cluster_status);

                                   /*  Check for successful    *
                                    *   call                   */
   if (return_status != SS$WASCLR && return_status != SS$WASSSET)
      {
         /* Handle the error here.                             */
            .
            .
            .
      }
   else
      {
         /*  Check bits of interest in cluster_status here.    */
            .
            .
            .
      }
}

3.2.3 Passing Arguments by Descriptor

A descriptor is a structure that describes the data type, size, and address of a data structure. According to the HP OpenVMS Calling Standard, you must pass a descriptor by placing its address in the argument list. To pass an argument by descriptor from a HP C program, perform the following steps:

  1. Write a structure declaration that models the required descriptor. This involves including the <descrip.h> header file to define struct tags for all the forms of descriptors.
  2. Assign appropriate values to the structure members.
  3. Use the structure name, with an ampersand operator (&) in the function reference, to put the structure's address in the argument list.

HP C never passes arguments by descriptor by default; you must take explicit action to pass an argument by descriptor. Also, if you write structure or union names in a function's argument list without the ampersand operator, the structure or union is passed by immediate value to the called function. You pass arguments by descriptor only when the called function is written in another language and explicitly requires this mechanism.

Note

The passing of structures as immediate values can be a violation of the OpenVMS calling standard if the entire structure is larger than one longword of memory. This type of argument passing is an allowed exception for HP C.

There are several classes of descriptor. Each class requires that certain bits be set in the first longword of the descriptor. For more information about the descriptors and their formats, see the OpenVMS Programming Interfaces: Calling a System Routine. You can model descriptors in HP C as follows:


struct  dsc$descriptor
   {
      unsigned  short  dsc$w_length; /*  Length of data         */
      char  dsc$b_dtype              /*  Data type code         */
      char  dsc$b_class              /*  Descriptor class code  */
      char  *dsc$a_pointer           /*  Address of first byte  */
   };

In this model, the variable dsc$w_length is a 16-bit word containing the length of the entire data; the unit (for example, bit or byte) in which the length is measured depends on the descriptor class. The member dsc$b_dtype is a byte containing a numeric code; the code denotes the data type of the data. The class member dsc$b_class is another byte code giving the descriptor class. Table 3-5 shows the valid class codes.

Table 3-5 Valid Class Codes
Class Code Symbolic Name Descriptor Class
1 DSC$K_CLASS_S Scalar, string
2 DSC$K_CLASS_D Dynamic string descriptor
3 --- Reserved by HP
4 DSC$K_CLASS_A Array
5 DSC$K_CLASS_P Procedure
6 DSC$K_CLASS_PI Procedure incarnation
7 DSC$K_CLASS_J Reserved by HP
8 DSK$K_CLASS_JI This is obsolete
9 DSC$K_CLASS_SD Decimal scalar string
10 DSC$K_CLASS_NCA Noncontiguous array
11 DSC$K_CLASS_VS Varying string
12 DSC$K_CLASS_VSA Varying string array
13 DSC$K_CLASS_UBS Unaligned bit string
14 DSC$K_CLASS_UBA Unaligned bit array
15 DSC$K_CLASS_SB String with bounds descriptor
16 DSC$K_CLASS_UBSB Unaligned bit string with bounds descriptor
17-190 --- Reserved by HP
191 DSC$K_CLASS_BFA Basic file array
192-255 --- Reserved for customer applications

The atomic data types shown in Table 3-6 are supported by HP C; all others are not directly supported by the language. See the OpenVMS Programming Interfaces: Calling a System Routine manual for a complete list of atomic class codes.

Table 3-6 Atomic Data Types
Class Code Symbolic Name Descriptor Class
2 DSC$K_DTYPE_BU Byte (unsigned)
3 DSC$K_DTYPE_WU Word (unsigned)
4 DSC$K_DTYPE_LU Longword (unsigned)
6 DSC$K_DTYPE_B Byte integer (signed)
7 DSC$K_DTYPE_W Word integer (signed)
8 DSC$K_DTYPE_L Longword integer (signed)
10 DSC$K_DTYPE_F F_floating
11 DSC$K_DTYPE_D D_floating
14 DSC$K_DTYPE_T Character string
27 DSC$K_DTYPE_G G_floating
52 DSC$K_DTYPE_FS IEEE S_floating
53 DSC$K_DTYPE_FT IEEE T_floating

The last member of the structure model, dsc$a_pointer , points to the first byte of the data.

To pass an argument by descriptor, you define and assign values to the data following normal C programming practices. You must define a dsc$descriptor structure and assign the data's address to the dsc$a_pointer member. You must also assign appropriate values to the members dsc$w_length , dsc$b_dtype , and dsc$b_class . For the specific requirements of each descriptor class, see the OpenVMS Programming Interfaces: Calling a System Routine manual.

For example, the Set Process Name (SYS$SETPRN) system service, which enables a process to establish or change its process name, accepts a process name as a fixed-length character string passed by descriptor. The character string can have from 1 to 15 characters. The system service returns status values that are represented by the symbolic constants shown in Table 3-7.

Table 3-7 Status Values of SYS$SETPRN
Returned Status Description
SS$_NORMAL Success Normal completion
SS$_ACCVIO Failure Inaccessible descriptor
SS$_DUPLNAM Failure Duplicate process name
SS$_IVLOGNAM Failure Invalid length

Example 3-3 shows a call to this system service from a HP C program.

Example 3-3 Passing Arguments by Descriptor

/*  This program shows a call to system service SYS$SETPRN.    */

#include <ssdef.h>
#include <stdio.h>
                                   /*  Define structures for   *
                                    *   descriptors            */
#include <descrip.h>

int SYS$SETPRN();

int main(void)
{
   int  ret;                       /*  Define return status of *
                                    *   SYS$SETPRN             */

                                   /*  Name the descriptor     */
   struct  dsc$descriptor_s  name_desc;

   char  *name =  "NEWPROC";       /*  Define new process name */
      .
      .
      .
                                   /*  Length of name WITHOUT  *
                                    *   null terminator        */
   name_desc.dsc$w_length = strlen(name);

                                   /*  Put address of          *
                                    *   shortened string in    *
                                    *   descriptor             */
   name_desc.dsc$a_pointer =  name;

                                   /*  String descriptor class */
   name_desc.dsc$b_class =  DSC$K_CLASS_S;

                                   /*  Data type: ASCII string */
   name_desc.dsc$b_dtype =  DSC$K_DTYPE_T;
      .
      .
      .
   ret =  SYS$SETPRN(&name_desc);

   if (ret != SS$_NORMAL)          /*  Test return status      */
      fprintf(stderr, "Failed to set process name\n"),
      exit(ret);
      .
      .
      .
}

In Example 3-3, the call to SYS$SETPRN must use the ampersand operator; otherwise, name_desc , rather than its address, is passed.

Although this example explicitly sets individual fields in its name_desc string descriptor, in practice, the run-time initialization of compile-time constant string descriptors is not performed in this manner. Instead, the fields of compile-time constant descriptors are usually initialized with initialized structures of storage class static .

For the purpose of string descriptor initialization, HP C provides a simple preprocessor macro in the <descrip.h> header file. This macro is named $DESCRIPTOR. It takes two arguments, which it uses in a standard HP C structure declaration. The first argument is an identifier specifying the name of the descriptor to be declared and initialized. The second argument is a pointer to the data byte to be used as the value of the descriptor. Since a character-string constant is interpreted as an initialized pointer to char , you may specify the second argument as a simple string constant. You may use the $DESCRIPTOR macro in any context where a declaration may be used. The scope of the declared string descriptor identifier name is identical to the scope of a simple struct definition as expanded by the macro.
