Chapter 1
Overview

This overview introduces the OpenVMS License Management Facility (LMF) and outlines the tasks required to manage software licenses for software products.

A product license protects the intellectual property of the software vendor and provides customers with access to the product. Product authorization is usually defined in a contract with specific terms and conditions agreed upon by the software license issuer and the software user.

HP and other software vendors provide software to their customers under an agreement called a license. In this document the term refers to the authorization you have to run a software product on the OpenVMS operating system.

License Management Facility and License Agreements

The terms and conditions of your license agreement determine your legal use of software.

LMF is a management tool that can help you comply with your license agreement, but use of LMF does not indemnify you against noncompliance with the terms and conditions of your software license agreements. That is, LMF offers options for many kinds of license agreements, but use of some of these options might not authorize by your specific license agreement. Read your license carefully to determine which LMF options you can use legally.

1.1 License Management

To use a software product that requires a license, you must perform the following steps:

Obtain a Product Authorization Key (PAK), which provides information required to register the license.
Use LMF to register the license in the License Database.
Use LMF to load the license from the License Database into memory.
Install the product specified by the PAK.

LMF provides additional features to modify licenses to satisfy specific requirements of individual sites.

To manage software product licenses for OpenVMS layered software, you need to understand the following information about licenses and the tool to manage them on OpenVMS systems:

License Management utility (LICENSE) ( Section 1.2)
License Database ( Section 1.3)

1.2 License Management Utility (LICENSE)

The License Management utility (LICENSE) is the command line interface of the License Management Facility (LMF). Use LICENSE commands to interactively manage the licenses of OpenVMS layered software products and, in many cases, by third-party vendors.

LICENSE is a system-level tool that you use at the DCL prompt. LICENSE commands allow you to register licenses, load them into the License Database, and manage the licenses on your system.

For information on using LICENSE commands, see Chapter 5.

For reference information on commands, qualifiers, and examples, see Appendix A.

1.3 License Database

The License Database is a collection of information stored in a file called the License Database on a disk that contains information about each license on your system. The default database file is SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB, which is created by LMF when you install the OpenVMS software.

The terms of each license are stored in a collection of data fields in the database. You enter data by:

Issuing LICENSE commands
Executing the VMSLICENSE.COM command procedure

In addition, LMF enters data and keeps records. The collection of data fields representing a license at any one time is called a record. When you first register a license, you create the first record with data specified in your PAK. If you later modify the license, LMF creates a new record to define the modified terms of the license, and includes a notation that the license was modified.

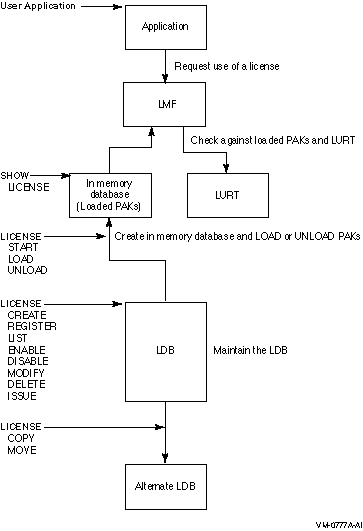

Figure 1-1 illustrates the relationship between LMF, the license units required for your system, and the License Database.

Figure 1-1 The Licensing Model

1.3.1 History Records

LMF keeps track of the licensing activity on your system by writing a history record to the License Database every time you modify a PAK. Each history record contains an exact copy of the following:

License record before modification
LICENSE command you used to modify the record
Date and time that you made the changes

The history record also logs the username of the person who made the changes to the PAK. For information about viewing and purging these records, see Section 5.2.2.

1.4 Licensing Differences on Alpha/VAX and Integrity servers

While the basic LMF management functions remain the same, new licensing practices for OpenVMS Integrity servers differ from what is available for OpenVMS Alpha and OpenVMS VAX. The primary differences involve:

The way license units are assigned and counted
The types of licenses offered

See Chapter 2 for Alpha and VAX licensing.

See Chapter 3 for Integrity server systems licensing.

See Chapter 4 for OpenVMS guest licensing.

Chapter 2
Licensing on OpenVMS Alpha and OpenVMS VAX

This chapter describes licensing on OpenVMS Alpha and OpenVMS VAX systems.

On OpenVMS Alpha and VAX systems, the number of license units required are based on the rating of the system. LMF gets information about the units requirements from the console firmware. This information is contained in a License Unit Requirement Table (LURT).

Several different types of licenses are available on OpenVMS Alpha and VAX systems. In a cluster, these can be combined.

Section 2.1 describes how license unit requirements are computed.
Section 2.2 describes the types of licenses available.
Section 2.3 describes how licenses can be combined.

2.1 License Units and License Unit Requirement Tables

A license unit is a measurement of the authorization granted for use of a product. License units define the size of each license. Each license has a size, specified in license units. Each hardware system has a series of license unit requirements, also specified in license units.

The license unit requirements of a system are expressed in a rating. LMF stores ratings (in license units) for all available and appropriate Alpha and VAX systems in a called the License Unit Requirement Table (LURT). A LURT is associated with each category of software products as identified on the PAK. The PAK contains two fields, the Activity Table Code and the Availability Table Code, that include information to identify the category of the software product. Typically, systems that provide more performance have greater license unit requirements, but ratings can be unrelated to performance.

Alpha and VAX systems are classified into three levels by system class:

Enterprise system class
Department system class
Workgroup system class

Generally, the higher the system class, the larger the license must be to support the system.

The size of a software product license must be large enough to support the number of either users or processes using the product and the system on which the product is to run. LMF compares the size of a registered license to the rating of the current system and authorizes product use when a license supplies sufficient license units.

For license ratings for Alpha and VAX systems, see the Software License Management website:

http://licensing.hp.com/swl/view.slm?page=refmat

To locate the number of units required for your system, first find the system model number in the rating table. On Alpha systems, find the particular system configuration, which lists the number of processor cores. Then you can see the number of operating system units and layered product units required by your Alpha system. On VAX systems, only a single unit rating is used for both the operating system and layered products.

Once your system is up, either booted fully or minimally,you can determine its license unit requirements by using the following command:

$ SHOW LICENSE/UNIT_REQUIREMENTS

LMF compares the size of a registered license to the license unit requirement for the system and authorizes product use when a license supplies sufficient license units.

To check whether your license has an appropriate license unit value (size) for your system, LMF performs the following process:

It looks for a code (A, B, C, D, E, F, G, H or I) or a keyword (CONSTANT integer) next to either the Availability Table Code: field or the Activity Table Code: field in the registered license.

If the license specifies CONSTANT and an integer value, LMF stops and defines the license unit requirement as equal to the stated integer value. This value could be the decimal value 0, which means the license has no unit limitations.

If the license does not specify a constant unit requirement, LMF looks for a code that specifies license type and corresponds to a LURT.
The codes and the types of licenses they represent as shown in Table 2-1.

Table 2-1 License Codes
License Code License Type

A VAX/VMS Capacity of OpenVMS Unlimited or Base

B VAX/VMS F&A Server

C VAX/VMS Concurrent User

D VAX/VMS Workstation

E VAX/VMS System Integrated Products

F VAX Layered Products

G Reserved

H Alpha Layered Products

I Layered Products

These codes and the units associated with them are shown when you issue a SHOW/LICENSE/CHARGE command.

**Table 2-1 License Codes**
License Code	License Type
A	VAX/VMS Capacity of OpenVMS Unlimited or Base
B	VAX/VMS F&A Server
C	VAX/VMS Concurrent User
D	VAX/VMS Workstation
E	VAX/VMS System Integrated Products
F	VAX Layered Products
G	Reserved
H	Alpha Layered Products
I	Layered Products

Each LURT has a rating, in license units, for all available (and appropriate) hardware systems. For example, the LURT for layered products includes the name of every hardware model that can run OpenVMS and associates a number of license units with each. The LURT for OpenVMS workstations includes the names of all OpenVMS workstations and their ratings. When HP releases new hardware systems, OpenVMS updates the tables as part of the new system support.

LMF determines the model name of your system by its System Marketing Model (SMM) name, which is the model name of a computer system used in marketing and pricing. The SMM is generally the name on the front panel of the system cabinet.
LMF locates the SMM in the appropriate LURT and selects the value that specifies the number of units required for the named SMM and type of license.
LMF compares the number selected from the LURT to the number of units registered for your product license. If you have registered a value sufficient for your license and system, the license is loaded successfully with the LICENSE LOAD command.

Table 2-2 shows an example of a License Unit Requirement Table.

Table 2-2 Sample License Unit Requirements for Alpha Systems
System Model Operating System Units Layered Product Units

AlphaServer GS160 with 2 CPUs 3000 1300

AlphaServer GS80 with 1 CPU 1000 1100

AlphaServer ES45 with 2 CPUs 100 1050

**Table 2-2 Sample License Unit Requirements for Alpha Systems**
System Model	Operating System Units	Layered Product Units
AlphaServer GS160 with 2 CPUs	3000	1300
AlphaServer GS80 with 1 CPU	1000	1100
AlphaServer ES45 with 2 CPUs	100	1050

The number of license units registered with any license should match or exceed the number of license units required for the specified product to run on the specified system. For example, when you obtain a license for HP Pascal to run on an AlphaServer ES45 system with 2 CPUs, that Pascal license must specify at least the same number of license units as the LURT requires for layered products on that system (1050 shown in Table 2-2). The same Pascal license may not provide enough license units to authorize use of Pascal on an AlphaServer GS160 system with 2 processors (1300 shown in Table 2-2). The size of the license to run a software product on an OpenVMS Cluster environment must reflect the total number of concurrent users or processes and the systems on which the product will run.

Not all licenses have a specific number of units. Some licenses specify zero units, which is equivalent to unlimited units.
