The Availability Manager Data Analyzer displays a great deal of OpenVMS Cluster data. The amount of cluster information has increased in each successive version of the product and will probably continue to do so. To accommodate future growth in this area, beginning with Availability Manager Version 2.2, OpenVMS Cluster information is documented in a separate chapter of this manual.

By clicking a series of "handles" on the cluster node tree in the Cluster Members pane of the Cluster Summary page (Figure 4-1), you can open lines of data to display progressively more detailed cluster data. This chapter describes the data you can display.

Support for Managed Objects

New support has been added to the OpenVMS Data Collector, RMDRIVER, for OpenVMS managed objects, which are operating system components with characteristics that allow the Availability Manager to manage them. Managed objects, which register themselves with the Data Collector at system startup, not only provide data but also implement fixes in response to client requests.

In OpenVMS Version 7.3 and later versions, cluster data and fixes are available for LAN virtual circuits through the managed object interface. When the Data Analyzer connects to a Data Collector node, it retrieves a list of the managed objects on that node, if any. For such a node, the Data Analyzer can provide additional details and any new data that would otherwise be unavailable.

LAN Displays

When you monitor OpenVMS Version 7.3 and later nodes with managed objects enabled, additional cluster data and fixes are available for LAN virtual circuits. This data includes enhanced LAN virtual circuit summary data in the Cluster Summary window and the LAN Virtual Circuit Details (NISCA) window. In addition, the Cluster Summary includes virtual circuit, channel, and device fixes. If managed object support is not enabled for a Data Collector node, then only basic virtual circuit data is available.

4.1 OpenVMS Cluster Summary Page

To display the OpenVMS Cluster Summary page (Figure 4-1), click the Cluster Summary tab on an OpenVMS Node Summary page (Figure 1-7).

The Cluster Summary page contains cluster interconnect information for an entire cluster as well as detailed information about each node in the cluster, including System Communications Services (SCS) circuits and connections for individual nodes.

The data items shown on this page correspond to data that the Show Cluster utility (SHOW CLUSTER) displays for the SYSTEMS, MEMBERS, CONNECTIONS, and CIRCUITS classes. No SHOW CLUSTER counterpart exists for the PEDRIVER LAN virtual circuit, channel, and device detail displays. The data items shown on the page also correspond to data that the SCACP utility displays for SHOW commands that display PORT, CIRCUIT, VC, CHANNEL, and LAN DEVICE information.

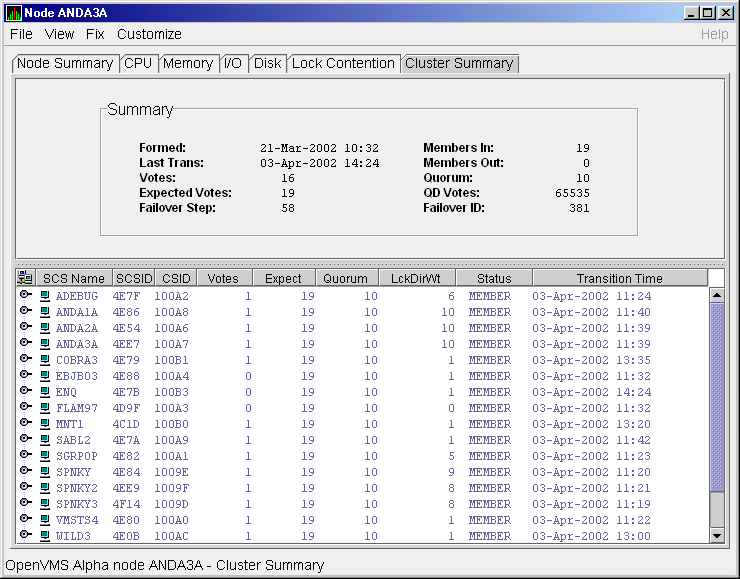

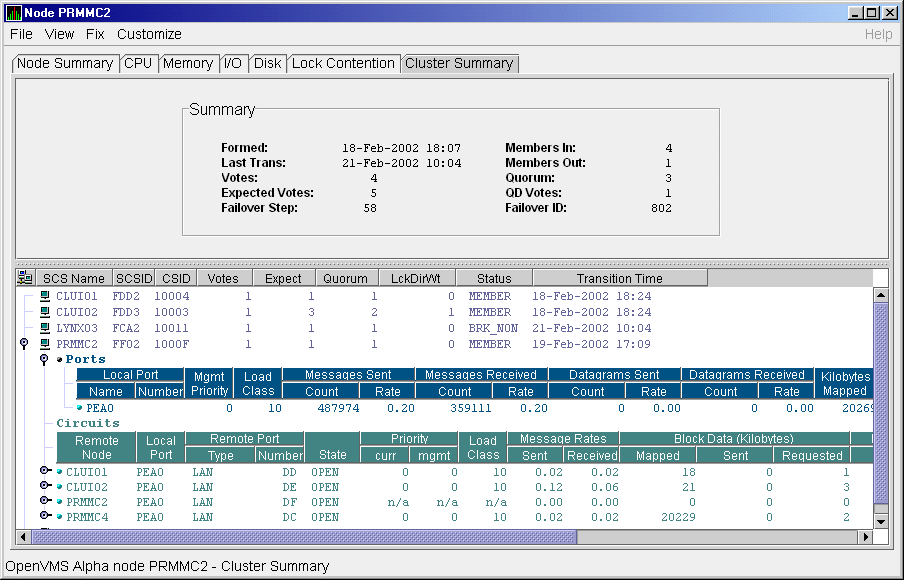

Figure 4-1 OpenVMS Cluster Summary

The two panes in the Cluster Summary page display the following information:

• The Summary pane (top) displays summary information about the entire cluster.
• The Cluster Members pane (bottom) displays detailed information about each node in the cluster, including its System Communication Architecture (SCA) connections with other nodes.

The Data Analyzer signals the LOVOTE event when cluster votes minus cluster quorum is less than the threshold value for the event. (The default threshold for the LOVOTE event is 1.)

LOVOTE, 'node' VOTES count is close to or below QUORUM

4.1.2 OpenVMS Cluster Summary Pane

Table 4-1 describes the data in the OpenVMS Cluster Summary pane (Figure 4-1).

Table 4-1 Summary Pane Data

Data	Description
Formed	Date and time the cluster was formed.
Last Trans	Date and time of the most recent cluster state transition.
Votes	Total number of quorum votes being contributed by all cluster members and by the quorum disk.
Expected Votes	The expected votes contribution by all members of the cluster. This value is calculated from the maximum EXPECTED_VOTES system parameter and the maximized value of the VOTES system parameter.
Failover Step	Current failover step index. Shows which step in the sequence of failover steps the failover is currently executing.
Members In	Number of cluster members to which the Data Analyzer has a connection.
Members Out	Number of cluster members to which the Data Analyzer either has no connection or has lost its connection.
Quorum 1	Number of votes that must be present for the cluster to function and to permit user activity, that is, to "maintain cluster quorum."
QD Votes	Number of votes given to the quorum disk. A value of 65535 means no quorum disk exists.
Failover ID	Failover instance identification. Unique ID of a failover sequence that indicates to system managers whether a failover has occurred since the last time they checked.

The Cluster Members pane (the lower pane on the Cluster Summary page (Figure 4-1) lists all the nodes in the cluster and provides detailed information about each one. Figure 4-2 shows only the Cluster Members pane.

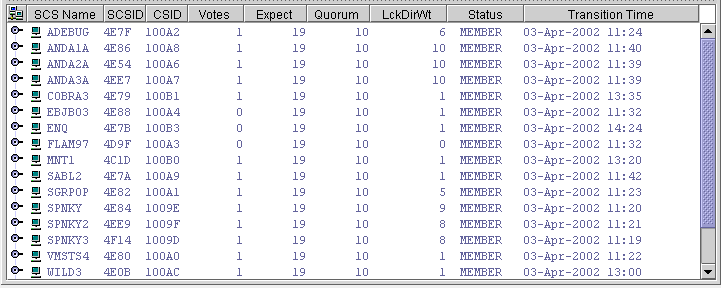

Figure 4-2 OpenVMS Cluster Members Pane

The first level of information in the Cluster Members pane is cluster member data, which is described in Table 4-2.

Table 4-2 Cluster Member Data

Data	Description
SCS Name	System Communications Services (SCS) name for the node (system parameter SCSNODE).
SCSID	SCS identification for the node (system parameter SCSYSTEMID).
CSID	Cluster system identification.
Votes	Number of votes the member contributes.
Expect	Member's expected votes as set by the EXPECTED_VOTES system parameter.
Quorum	Number of votes that must be present for the cluster to function and permit user activity, that is, to "maintain cluster quorum."
LckDirWt	Lock manager distributed directory weight as determined by the LCKDIRWT system parameter.
Status	Current cluster member status: Status Value Description NEW New system in cluster. BRK_NEW New system; there has been a break in the connection. MEMBER System is a member of the cluster. BRK_MEM Member; there has been a break in the connection. NON System is not a member of the cluster. BRK_NON Nonmember; there has been a break in the connection. REMOVED System has been removed from the cluster. BRK_REM System has been removed from the cluster, and there has also been a break in the connection.
Transition Time	The time of the system's last change in cluster membership status.

4.2 Summary Data in the Cluster Members Pane

The following sections contain descriptions of the categories of summary data displayed in the Cluster Members pane (Figure 4-2).

When you click the handle before an SCS (System Communications Services) Name, the Data Analyzer first displays a Ports heading, if managed object data collection is enabled on this SCS node.

A port is an OpenVMS device that provide SCA (System Communications Architecture) services. Port summary data is discussed in Section 4.2.1. Below the Ports heading is the Circuits heading, which precedes a line of SCA headings. (SCA data is discussed in Section 4.2.2.)

4.2.1 Port Summary Data

When you initially click the handle in front of Ports in the Cluster Members pane (Figure 4-1) to a vertical position, Ports headings are displayed, with information about port interfaces on the local system, as shown in Figure 4-3.

Figure 4-3 Port Summary Data

The port summary data shown in Figure 4-3 is described in Table 4-3. Data items in this table are related to the SCACP utility SHOW PORTS display and the SHOW CLUSTER utility LOCAL_PORT CLASS display.

Table 4-3 Local Port Data

Data		Description
Local Port:
	Name	Device name of the port.
	Number	The local port's interconnect address or other interconnect-specific identifier.
Mgmt Priority		Management priority assigned to the port.
Load Class		Capacity value of the port, based on the rate (in megabits/second) of the interconnect of the port.
Messages Sent:
	Count	Total number of messages sent since the port was initialized.
	Rate	Rate at which messages are sent (per second).
Messages Received:
	Count	Total number of messages sent since the port was initialized.
	Rate	Rate at which SCS messages are received (per second).
Datagrams Sent:
	Count	Total number of SCS datagrams sent since the port was initialized.
	Rate	Rate at which SCS datagrams are sent (per second).
Datagrams Received:
	Count	Total number of SCS datagrams sent since the port was initialized.
	Rate	Rate at which SCS datagrams are sent (per second).
Kilobytes Mapped		Number of kilobytes mapped for block transfer.

4.2.2 SCA (System Communications Architecture) Summary Data

Below the Circuits heading in Figure 4-4 is a line of SCA summary headings that include information about a node's SCS circuits between local SCA ports and remote SCA ports on other nodes in the cluster. More than one circuit indicates more than one communications path to the other node.

The data displayed in Figure 4-4 is similar to the information that the Show Cluster utility (SHOW CLUSTER) displays for the CIRCUITS, CONNECTIONS, and COUNTERS classes and that the SCACP utility's SHOW CIRCUITS command displays. Note that circuit count is the total number of events since the the state of the circuit changed to OPEN.

Starting with Availability Manager Version 2.2, the circuits display shows circuits to non-OpenVMS nodes, such as storage controllers.

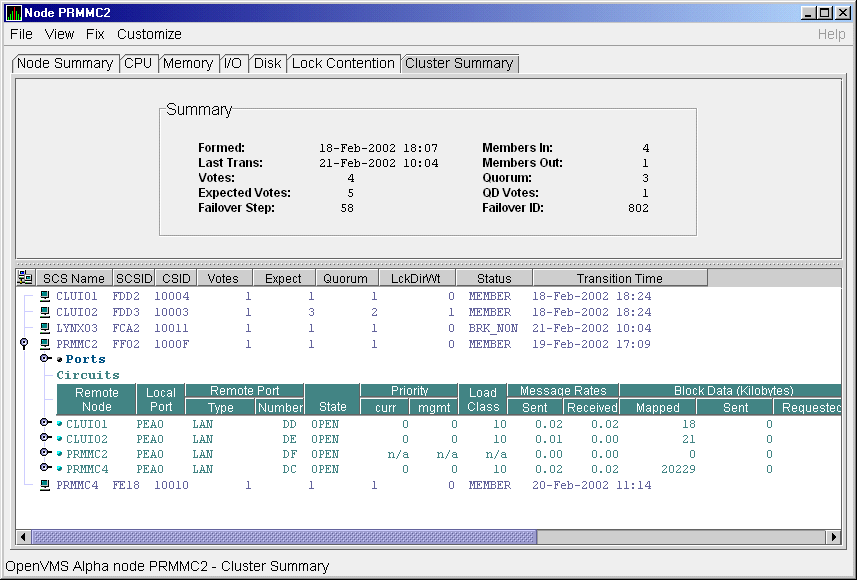

Figure 4-4 SCA Summary Data

Table 4-4 describes the SCA summary data displayed under the Circuits heading in Figure 4-4. Each line of data shows either a summary of an SCS connection between a local system connection of an application (or SYSAP) to a remote SYSAP that uses the circuit, or a summary of interconnect-specific information about the operation of the circuit.

Some of the data described in Table 4-4 is not displayed in Figure 4-4 because the screen display is wider than shown. You can scroll to the right on your terminal screen to display the remaining fields described in the table.

Table 4-4 SCA Summary Data

Data		Description
Remote Node		SCS name of the remote node containing the remote port of the circuit.
Local Port		The device name of the local port associated with the circuit.
Remote Port:
	Type	The remote port's device or interconnect type associated with the circuit (for example, LAN, CIPCA, DSSI).
	Number	The remote port's interconnect address, or another other interconnect-specific unique identifier.
State		The state of the virtual circuit connection.
Priority:
	Curr	Circuit's current priority, which is the sum of the management priorities assigned to the circuit and associated local port.
	Mgmt	Priority value assigned to the circuit by management action.
Load Class		The circuit's current capacity rating, derived from the current ECS member's load class values.
Message Rates:
	Sent	Count/rate of SCS messages sent over the circuit.
	Received	Count/rate that SCS messages are received on the circuit.
Block Data (Kilobytes):
	Mapped	Count/rate of kilobytes mapped for block data transfers over the circuit.
	Sent	Count/rate of kilobytes sent over the circuit using transfers.
	Requested	Count/rate of kilobytes requested from the remote port over the circuit using request block data transfers.
Block Data (Count):
	Sent	Count/rate of send block data transfers over the circuit.
	Requested	Count/rate of block data transfer requests sent over the circuit.
Datagrams:
	Sent	Count/rate of SCS datagrams sent over the circuit.
	Received	Count/rate of SCS datagrams received on the circuit.
Credit Wait		Count/rate any connection on the circuit had to wait for a send credit.
Buff Desc Wait		Count/rate any connection over the circuit had to wait for a buffer descriptor.

4.2.3 SCS (System Communications Services) Connections Summary Data

You can click the handle at the beginning of an SCA data row to display the following headings when they apply to a particular node:

• SCS Connections
• LAN Virtual Circuit Summary

To display SCS connections summary data, click the handle at the beginning of the "SCS Connections" row on the Cluster Summary pane (Figure 4-1). Figure 4-5 displays SCS Connections data information.

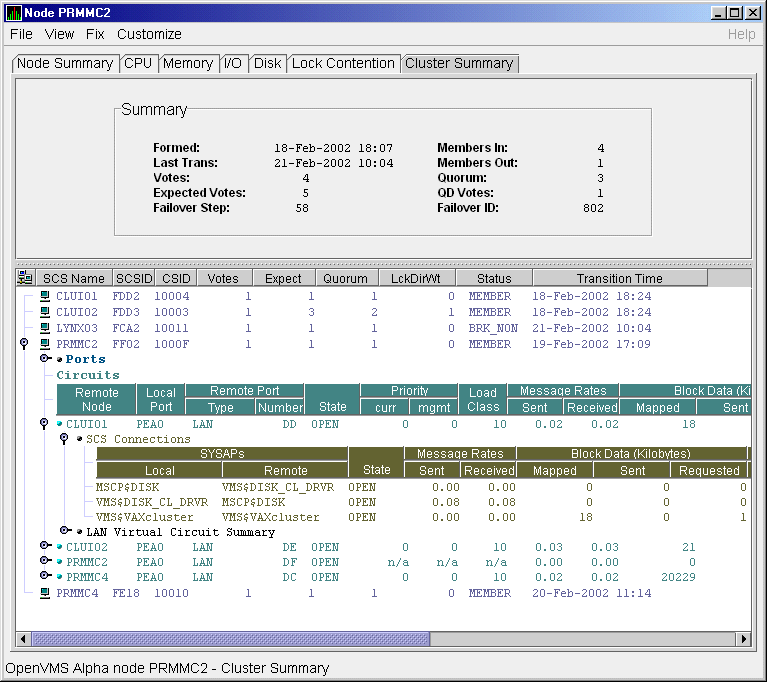

Figure 4-5 SCS Connections Data

Table 4-5 describes the SCS connections data shown in Figure 4-5. Some of the data described in Table 4-5 is not displayed in Figure 4-5 because the screen display is wider than shown. You can scroll to the right on your terminal screen to display the remaining fields described in the table.

Note that connection count is the total number of events since the state of the connection changed to OPEN.

Table 4-5 SCS Connections Data

Data		Description
SYSAPs:
	Local	Name of the SYSAP (system application) on the local system associated with the connection.
	Remote	Name of the SYSAP on the remote system associated with the connection.
State		The connection's current state. The possible items displayed are: ACCP_SENT---An accept request has been sent. CLOSED---The connection is closed. CON_ACK---A connect request has been sent and acknowledged. CON_REC--- A connect request has been received. CON_SENT--- A connect request has been sent. DISC_ACK---A disconnect is acknowledged. DISC_MTCH---A disconnect request has matched. DISC_REC--- A disconnect request has been received. DISC_SENT---A disconnect request has been sent. LISTEN--- The connection is in the listen state. OPEN---The connection is open. REJ_SENT--- A rejection has been sent. VC_FAI---The virtual circuit has failed.
Message Rates:
	Sent	Count/rate that SCS messages are sent over the connection.
	Received	Count/rate that SCS messages are being received on the connection.
Block Data (Kilobytes):
	Mapped	Count/rate of kilobytes mapped for block data transfers by the local SYSAP using the connection. Note: This field is available only in raw data format.
	Sent	Number of kilobytes sent over the SCS connection by the local SYSAP using send block data transfers.
	Requested	Number of kilobytes requested over the SCS connection by the local SYSAP using request block data transfers.
Block Data (Number):
	Sent	Count/Rate of send block data transfers by this node over the SCS connection.
	Requested	Count/Rate of request block data transfers sent to the remote port over the SCS connection.
Datagrams:
	Sent	Count/Rate of datagrams sent on the SCS connection.
	Received	Count/Rate of datagrams received on the SCS connection.
Credit Wait		Count/Rate of times the connection had to wait for a send credit.
Buff Desc Wait		Count/Rate of times the connection had to wait for a buffer descriptor.

4.2.4 LAN Virtual Circuit Summary Data

You can display interconnect-specific LAN virtual circuit summary data by clicking the handle at the beginning of a "LAN Virtual Circuit Summary" row to a vertical position. The screen expands to display the interconnect-specific VC summary data shown in Figure 4-6.

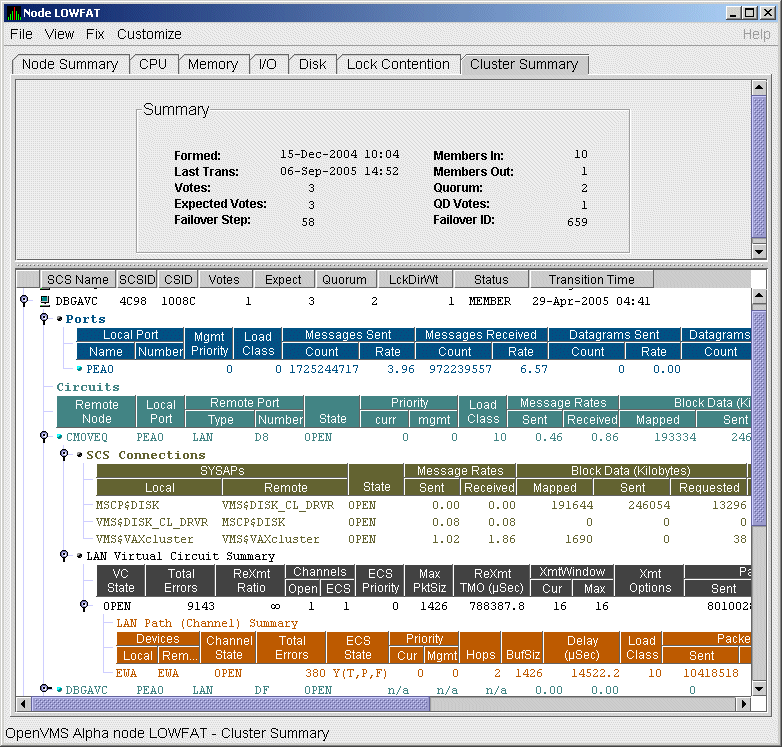

Figure 4-6 LAN Virtual Circuit Summary Data

Much of the data in this display corresponds to the information displayed by the SCACP command SHOW VC. The SHOW CLUSTER command does not provide a corresponding display. Which data items are displayed depends on the type of interconnect the virtual circuit is using.

Currently, this feature is available only for LAN virtual circuits. VC Summary displays for other cluster interconnects such as CI might be available in the future. When other interconnects are supported, the interconnect type will be displayed at the beginning of the line---for example, CI Virtual Circuit Summary---and the associated heading will have interconnect-specific data items.

Note that LAN Virtual Circuit counters are initialized when PEDRIVER detects the existence of a PEDRIVER on a remote system. All of a LAN VC's counters are cumulative from that time.

Some of the data described in Table 4-6 is not displayed in Figure 4-6 because the screen display is wider than shown. You can scroll to the right on your terminal screen to display the remaining fields described in the table.

Table 4-6 describes the LAN Virtual Circuit Summary data items shown in Figure 4-6.

Table 4-6 LAN Virtual Circuit Summary Data

Data		Description
VC State		Current internal state of the virtual circuit: OPEN---Virtual Circuit is open and usable. PATH---At least one open channel has been established, but the Virtual Circuit has not yet transitioned to OPEN. CLOSED---The Virtual Circuit has been closed or has become unusable.
Total Errors		Number of times the virtual circuit has been closed or has had other errors.
ReXmt Ratio		Ratio of total numbers of transmitted to retransmitted packets during the most recent data collection interval.
Channels:
	Open	Number of currently open channels available to the virtual circuit.
	ECS	Number of equivalent channel set (ECS) channels currently in use by the LAN virtual circuit.
ECS Priority		Priority a channel must have in order to be included in the Equivalent channel set (ECS). It is the highest priority any open and tight channel has.
MaxPktSiz		Maximum data buffer size in use by this LAN virtual circuit.
ReXmt TMO (µsec)		Retransmission timeout, in microseconds. The length of time the virtual circuit is currently using to wait for an acknowledgment of the receipt of a packet before retransmitting that packet.
XmtWindow:
	Cur	Current value of the transmit window (or pipe quota). Maximum number of packets that are sent before stopping to await an acknowledgment. After a timeout, the transmit window is reset to 1 to decrease congestion; it is allowed to increase as acknowledgments are received.
	Max	Maximum transmit window size currently allowed for the virtual circuit.
Xmt Options		Transmit options enabled: CKSM---packet checksumming CMPR---compression
Packets:
	Sent	Number of packets sent over this virtual circuit.
	Received	Number of packets received over this virtual circuit.
Most recent:
	Time Opened	Most recent time the virtual circuit was opened.
	Time Closed	Most recent time the virtual circuit was closed.

4.2.5 LAN Path (Channel) Summary Data

A LAN path or channel is a logical communication path between two LAN devices. Channels between nodes are determined by a local device, a remote device, and the connecting network. For example, two nodes, each having two devices, might establish four channels between the nodes. The packets that a particular LAN virtual circuit carries can be sent over any open channel connecting the two nodes.

The difference between channels and virtual circuits is that channels provide datagram service. Virtual circuits, layered on channels, provide error-free paths between nodes. Multiple channels can exist between nodes in an OpenVMS Cluster system, but only one LAN-based virtual circuit can exist between any two nodes at a time.

LAN channel counters are initialized when PEDRIVER detects the existence of a LAN device on a remote system. All of a LAN channel counters are cumulative from that time. For more information about channels and virtual circuits, see the HP OpenVMS Cluster Systems manual.

Displaying Data

You can display LAN channel summary data by clicking the handle at the beginning of a "LAN Virtual Circuit Summary Data" row (Figure 4-6), or by right-clicking a data item and choosing the Channel Summary item from the shortcut menu. The screen expands to display the LAN channel summary data shown in Figure 4-6. If there is no handle at the beginning of a "LAN Virtual Circuit Summary" data row, then managed object data collection is not enabled for this SCS node.

The data items displayed depend on the type of virtual circuit. Currently, this feature is available only for LAN virtual circuits.

Some of the data described in Table 4-7 is not displayed in Figure 4-6 because the screen display is wider than shown. You can scroll to the right on your terminal screen to display the remaining fields described in the table.

Table 4-7 LAN Path (Channel) Data

Data		Description
Devices:
	Local	Local LAN device associated with the channel.
	Remote	Remote LAN device associated with the channel.
Channel State		One of the following states: OPEN---Channel is usable. PATH---Channel handshake has been completed and, if usable, will transition to OPEN. CLOSED---Channel has been shut down or is unusable.
Total Errors		Total of various error counters for this channel (see channel details for breakdown).

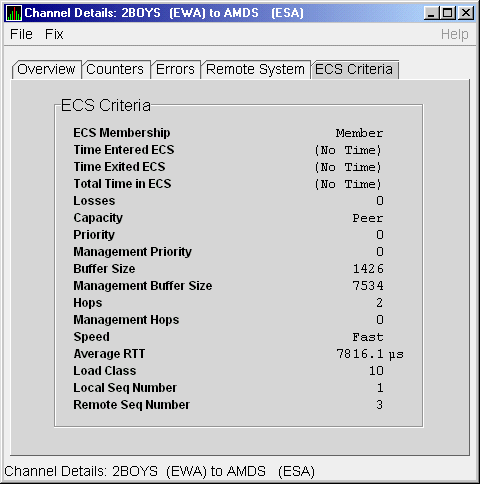

ECS State		Channel ECS membership information: Y---Member N---Nonmember Losses---one of the following: T (tight)---Packet loss history is acceptable. L (lossy)---Recent history of packet losses makes channel unusable. Capacity---one of the following: P (peer)---Priority and Buffer size both match the highest corresponding values of the set of tight channels, entitling the channel to be an ECS member. I (inferior)---Priority or buffer size does not match the corresponding values of the set of tight channels. S (superior)---Priority or buffer size is better than those of the current corresponding values of the set ECS member channels. This is a short-lived, transient state because it exists only while the ECS membership criteria are being re-evaluated. U (unevaluated)---Priority or buffer size, or both, have not been evaluated against the ECS criteria, usually because the channel is lossy. Speed---one of the following: F (fast)---Channel delay is among the best for tight and peer channels. S (slow)---Channel delay makes channel too slow to be usable because it would limit the virtual circuit's average delay. Note: If a channel is lossy, its capacity and speed are not always kept current. Therefore, displayed values might be those that the channel had at the time it become lossy.
Priority:
	Cur	Current priority used to evaluate the channel for ECS membership. This is the sum of management priority values assigned to the LAN device.
	Mgmt	Dynamic management-assigned priority.
Hops		Number of switches or bridges in this channel's network path to the remote LAN device.
BufSiz		Current maximum amount of SCS data that can be contained in a packet sent over the channel. It is the smallest of the following values: Local LAN device buffer sizes Remote LAN device buffer sizes Local NISCS_MAX_PKTSZ system (SYSGEN) parameter values Remote NISCS_MAX_PKTSZ system (SYSGEN) parameter values Largest packet size determined by the NISCA Channel Packet Size probing algorithm that the intervening network can deliver
Delay (µsec)		Running average of measured round-trip time, in microseconds, for packets sent over the channel.
Load Class		Load class initialized from local and remote LAN device bit rates.
Packets:
	Sent	Number of packets sent on this channel, including control packets.
	Received	Number of packets received by this channel.
Most recent:
	Time Opened	Last time this channel had a verified usable path to a remote system.
	Time Closed	Time that this channel was last closed.

4.3 Detailed Data Accessed Through the Cluster Members Pane

The following sections describe data that appears on lines that you can open in the Cluster Members pane (Figure 4-2).

4.3.1 LAN Device Summary Data

You can display LAN device summary data by first right-clicking a node name on the Cluster Members pane. On Version 7.3 or later nodes on which managed objects are enabled, the Data Analyzer displays a menu with the following choices:

• SCA Summary
• LAN Device Summary...

Click LAN Device Summary... to display the Device Summary Data page (Figure 4-7).

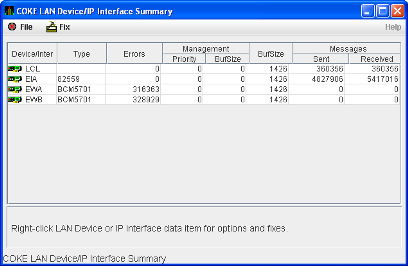

Figure 4-7 LAN Device Summary Data

You can right-click any data item on the page to display a menu with LAN Device Fixes... on it. These fixes are explained in Chapter 6.

Table 4-8 describes the LAN device summary data displayed in Figure 4-7. This data is also displayed with SCACP command SHOW LAN_DEVICE.

Table 4-8 LAN Device Summary Data

Data		Description
LAN Device		Name of the LAN device used for cluster communications between local and remote nodes. The icon preceding each LAN device can be one of the following colors: Black---not enabled ("Not in use by SCA") Yellow---"Run" not set Red---"Run" and anything other than Online, Local, or Restart Green---"Run" and a combination of Online, Local, and Restart only A tooltip indicates the possible states a device can be in. This can be a combination of the following: Run, Online, Local, Hello _Busy, Build_Hello, Init, Wait_Mgmt, Wait_Evnt, Broken, XChain_Disabled, Delete_pend, Restart, or Restart_Delay. Alternatively, a tooltip might display "Not in use by SCA."
Type		Type of LAN device used for the cluster.
Errors		Number of errors reported by the device since cluster communications began using it.
Management:
	Priority	Current management-assigned priority of the device.
	BufSize	Current management-assigned maximum buffer size of the device
BufSize		Smaller of interconnect specific buffer size of the device and its current management-assigned buffer size.
Messages:
	Sent	Number of LAN packets sent by the device.
	Received	Number of packets received from remote LAN device.

4.3.2 LAN Device Detail Data

To display LAN device detail data, right-click a LAN Path (Channel) Summary data item on the LAN Virtual Circuit Summary data page (Figure 4-6). The Data Analyzer then displays the shortcut menu shown in Figure 4-8.

Figure 4-8 LAN Path (Channel) Details Menu

To display device details, select the LAN Device Details... item on the menu. After a brief delay, a LAN Device Overview Data page (Figure 4-9) is displayed.

A series of tabs at the top of the LAN Device Overview Data page indicate additional LAN device pages that you can display. Much of the LAN device detail data corresponds to data displayed by the SCACP command SHOW LAN_DEVICE.

4.3.2.1 LAN Device Overview Data

The LAN Device Overview Data page (Figure 4-9 displays LAN device summary data.

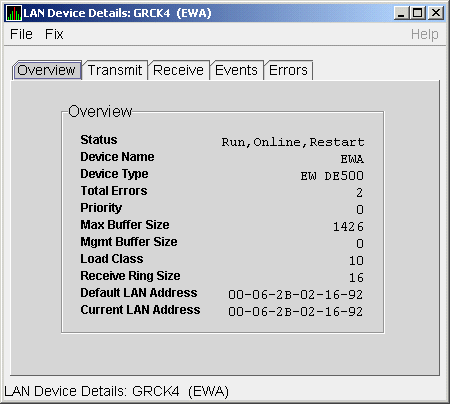

Figure 4-9 LAN Device Overview Data

Table 4-9 describes the data displayed in Figure 4-9.

Table 4-9 LAN Device Overview Data

Data	Description
Status	Device status: Run, Online, Local, Hello _Busy, Build_Hello, Init, Wait_Mgmt, Wait_Evnt, Broken, XChain_Disabled, Delete_pend, Restart, or Restart_Delay. Alternatively, "Not in use by SCA" can be displayed.
Device Name	Name of the LAN device.
Device Type	OpenVMS device type value.
Total Errors	Total number of errors listed on the Errors page.
Priority	Dynamic management-assigned priority.
Max Buffer Size	Maximum data buffer size for this LAN device.
Mgmt Buffer Size	Dynamic management-assigned maximum block data field size.
Load Class	Load class. The rate in MBs currently being reported by the LAN device.
Receive Ring Size	Number of packets the LAN device can buffer before it discards incoming packets.
Default LAN Address	LAN device's hardware LAN address.
Current LAN Address	Current LAN address being used by this LAN device.

4.3.2.2 LAN Device Transmit Data

The LAN Device Transmit Data page (Figure 4-10) displays LAN device transmit data.

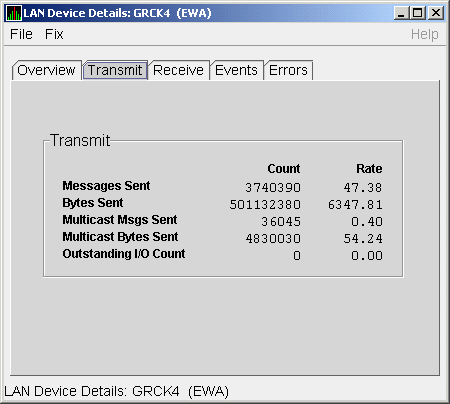

Figure 4-10 LAN Device Transmit Data

Table 4-10 describes the data displayed in Figure 4-10.

Table 4-10 LAN Device Transmit Data

Data	Description
Messages Sent	Number of packets sent by this bus, including multicast "Hello" packets.
Bytes Sent	Number of bytes in packets sent by this LAN device, including multicast "Hello" packets.
Multicast Msgs Sent	Number of multicast "Hello" packets sent by this LAN device.
Multicast Bytes Sent	Number of multicast bytes in "Hello" packets sent by this LAN device.
Outstanding I/O Count	Number of transmit requests being processed by LAN driver.

4.3.2.3 LAN Device Receive Data

The LAN Device Receive Data page (Figure 4-11) displays LAN device receive data.

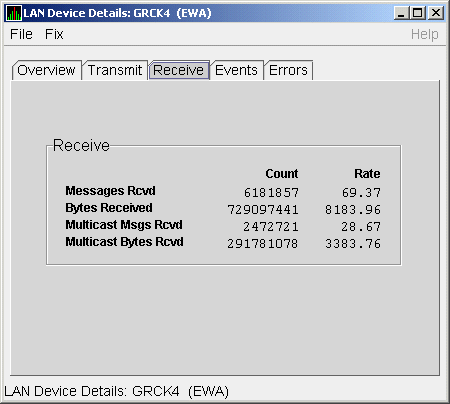

Figure 4-11 LAN Device Receive Data

Table 4-11 describes the data displayed in Figure 4-11.

Table 4-11 LAN Device Receive Data

Data	Description
Messages Rcvd	Number of packets received by this LAN device, including multicast packets.
Bytes Received	Number of bytes in packets received by this LAN device, including multicast packets.
Multicast Msgs Rcvd	Number of multicast NISCA packets received by this LAN device.
Multicast Bytes Rcvd	Number of multicast bytes received by this LAN device.

4.3.2.4 LAN Device Events Data

The LAN Device Events Data page (Figure 4-12) displays LAN device events data.

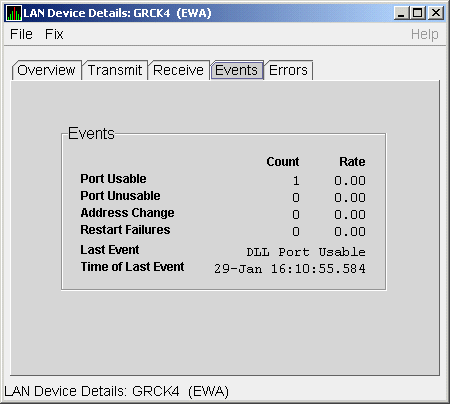

Figure 4-12 LAN Device Events Data

Table 4-12 describes the data displayed in Figure 4-12.

Table 4-12 LAN Device Events Data

Data	Description
Port Usable	Number of times the LAN device became usable.
Port Unusable	Number of times the LAN device became unusable.
Address Change	Number of times the LAN device's LAN address changed.
Restart Failures	Number of times the LAN device failed to restart.
Last Event	Event type of the last LAN device event (for example, LAN address change, an error, and so on).
Time of Last Event	Time the last event occurred.

4.3.2.5 LAN Device Errors Data

The LAN Device Errors Data page (Figure 4-13) displays LAN device errors data.

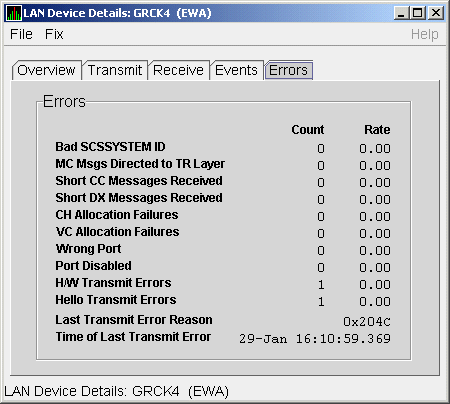

Figure 4-13 LAN Device Errors Data

Table 4-13 describes the data displayed in Figure 4-13.

Table 4-13 LAN Device Errors Data

Data	Description
Bad SCSSYSTEM ID	Received a packet with the wrong SCSSYSTEM ID in it.
MC Msgs Directed to TR Layer	Number of multicast packets directed to the NISCA Transport layer.
Short CC Messages Received	Number of packets received that were too short to contain a NISCA channel control header.
Short DX Messages Received	Number of packets received that were too short to contain a NISCA DX header.
CH Allocation Failures	Number of times the system failed to allocate memory for use as a channel structure in response to a packet received by this LAN device.
VC Allocation Failures	Number of times the system failed to allocate memory for use as a VC structure in response to a packet received by this LAN device.
Wrong Port	Number of packets addressed to the wrong NISCA address.
Port Disabled	Number of packets discarded because the LAN device was disabled.
H/W Transmit Errors	Number of local hardware transmit errors.
Hello Transmit Errors	Number of transmit errors during HELLOs.
Last Transmit Error Reason	Reason for last transmit error.
Time of Last Transmit Error	Time of last transmit error: date and time.

4.3.3 LAN Path (Channel) Detail Data

To display LAN path (channel) detail data, right-click a LAN channel summary data item on the Cluster Summary page (Figure 4-6). The Data Analyzer displays a shortcut menu with the options shown in Figure 4-8.

To display LAN channel details, select the Channel Details... item on the menu. After a brief delay, a LAN Channel Overview Data page (Figure 4-14) is displayed. A series of tabs at the top of this page indicate additional channel pages that you can display.

4.3.3.1 LAN Channel Overview Data

The LAN Channel Overview Data page (Figure 4-14) displays general channel data, including the state, status, and total errors of the channel.

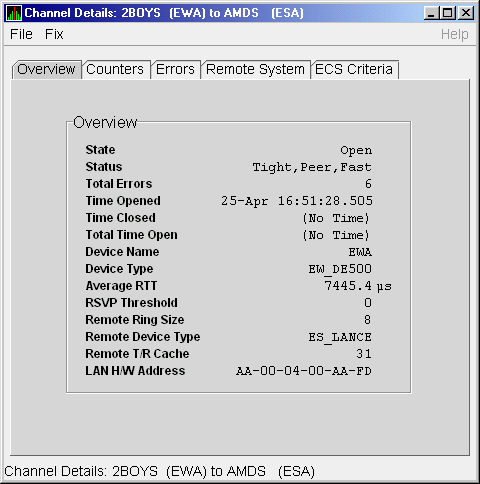

Figure 4-14 LAN Channel Overview Data

Table 4-14 describes the data displayed in Figure 4-14.

Table 4-14 LAN Channel Overview Data

Data	Description
State	Channel's current state: OPEN, PATH, or CLOSED.
Status	Channel status.
Total Errors	Sum of channel's error counters.
Time Opened	Last time that this channel had a path to a remote system.
Time Closed	Last time that this channel was closed.
Total Time Open	Total time that this channel has been open.
Device Name	Local LAN device name.
Device Type	Local LAN device type.
Average RTT	Average of measured round-trip time.
RSVP Threshold	Number of packets before requesting that the remote node immediately return an acknowledgment.
Remote Ring Size	Number of entries in the remote LAN device.
Remote Device Type	Remote LAN device type.
Remote T/R Cache	Number of out-of-order packets that the remote transmit/receive resequencing cache can buffer.
LAN H/W Address	LAN device's hardware address.

4.3.3.2 LAN Channel Counters Data

The LAN Channel Counters Data page (Figure 4-15) displays path counters data, including ECS transitions as well as messages and bytes sent.

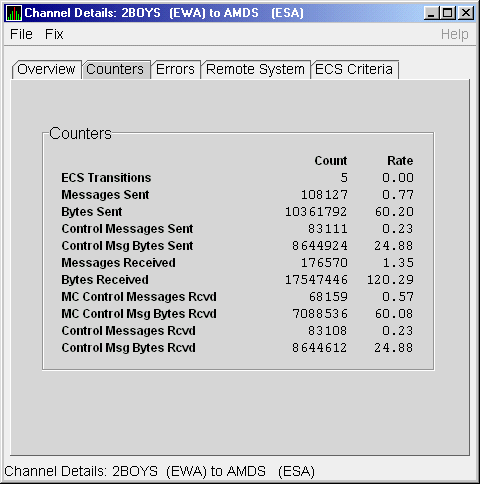

Figure 4-15 LAN Channel Counters Data

Table 4-15 describes the data displayed in Figure 4-15.

Table 4-15 LAN Channel Counters Data

Data	Description
ECS Transitions	Number of times this channel has been in and out of the equivalent channel set (ECS).
Messages Sent	Number of packets sent over this channel, including control packets.
Bytes Sent	Number of bytes transmitted on this channel, including control packets.
Control Messages Sent	Number of control packets sent, not including multicast packets.
Control Msg Bytes Sent	Number of control packet bytes sent, not including multicast packets.
Messages Received	Number of packets received by this channel.
Bytes Received	Number of bytes in packets received by this channel.
MC Control Messages Rcvd	Number of multicast control packets received.
MC Control Msg Bytes Rcvd	Number of multicast control packets bytes received.
Control Messages Rcvd	Number of control packets received.
Control Msg Bytes Rcvd	Number of control packet bytes received.

4.3.3.3 LAN Channel Errors Data

The LAN Channel Errors Data page (Figure 4-16) displays LAN channel errors data.

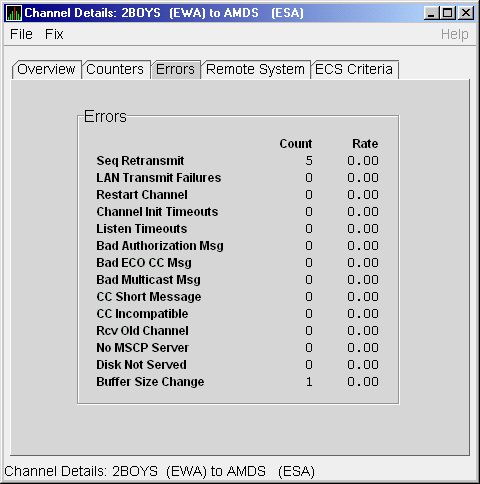

Figure 4-16 LAN Channel Errors Data

Table 4-16 describes the data displayed in Figure 4-16.

Table 4-16 LAN Channel Errors Data

Data	Description
Seq Retransmit	Number of times a sequenced VC packet sent on this channel was retransmitted, and the channel was penalized for the lost packet.
LAN Transmit Failures	Number of times the local LAN device reported a failure to transmit a packet, and channel was penalized for the lost packet.
Restart Channel	Close/restart because of channel control packet was received indicating the other end closed the channel and is restarting the channel handshake.
Channel Init Timeouts	Channel initialization handshake timeout.
Listen Timeouts	No packets of any kind, including HELLOs, were received in LISTEN_TIMEOUT seconds.
Bad Authorization Msg	Received a CC (channel control) packet with a bad authorization field.
Bad ECO CC Msg	Received a CC packet with an incompatible NISCA protocol ECO rev. field value.
Bad Multicast Msg	Received a bad multicast CC packet.
CC Short Packet	Received a CC packet that was too short.
CC Incompatible	Received a CC packet that was incompatible with existing channels for this virtual circuit.
Rcv Old Channel	Received a packet from an old instance of a channel.
No MSCP Server	No MSCP server available to respond to a received channel control solicit service packet asking this node to boot serve another node.
Disk Not Served	Disk is not served by this system.
Buffer Size Change	Change in buffer size.

4.3.3.4 LAN Channel Remote System Data

The LAN Channel Remote System Data page (Figure 4-17) displays LAN path remote system data.

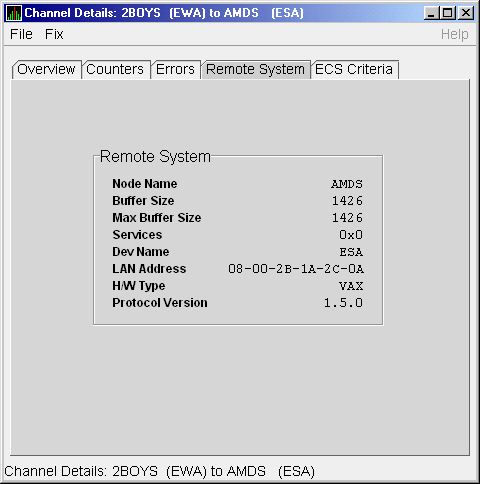

Figure 4-17 LAN Channel Remote System Data

Table 4-17 describes the data displayed in Figure 4-17.

Table 4-17 LAN Channel Remote System Data

Data	Description
Node Name	Node name of remote system.
Buffer Size	Buffer size (largest possible buffer size) of remote system.
Max Buffer Size	Current upper bound on buffer size usable on this channel.
Services	NISCA services supported on this channel.
Dev Name	Name of the remote LAN device.
LAN Address	Remote hardware address.
H/W Type	Hardware type of remote node.
Protocol Version	NISCA protocol version of remote system.

4.3.3.5 LAN Channel ECS (Equivalent Channel Set) Criteria Data

The LAN Channel ECS Criteria Data page (Figure 4-18) displays equivalent channel set criteria data.

Figure 4-18 LAN Channel ECS Criteria Data

Table 4-18 describes the data displayed in Figure 4-18.

Table 4-18 LAN Channel ECS Criteria Data

Data	Description
ECS Membership	ECS membership status; that is, Member or Nonmember.
Time Entered ECS	Last time this channel entered the ECS.
Time Exited ECS	Last time this channel exited the ECS.
Total Time in ECS	Total time this channel was in the ECS.
Losses	Value representing channel's recent packet loss history.
Capacity	Channel's capacity rating based on evaluating its priority, buffer size, and hops values relative to the current ECS criteria. Values are: Ungraded, Peer, Inferior, Superior.
Priority	Channel's current priority for ECS calculations; it is the sum of the management priorities assigned to the local LAN device and to the channel.
Management Priority	Dynamic management-assigned priority.
Buffer Size	Negotiated maximum common buffer size: the smaller of local and remote BUS$ limits on block data field sizes.
Management Buffer Size	Maximum block data field size assigned by dynamic management.
Hops	Number of switches or bridges for this channel.
Management Hops	Management-supplied hops or media packet storage equivalent.
Speed	Classification of channel's delay relative to that of the lowest delay of any ECS member.
Average RTT	Average measured round-trip time.
Load Class	Lesser of the local and remote LAN device load class values.
Local Seq Number	Sequence number of the local channel.
Remote Seq Number	Sequence number of the remote channel.

4.3.4 LAN Virtual Circuit Detail Data

The Network Interconnect for System Communications Architecture (NISCA) is the transport protocol responsible for carrying packets such as disk I/Os and lock packets across Ethernet and FDDI LANs to other nodes in the cluster.

The LAN virtual circuit details (NISCA) pages show detailed information about the LAN Ethernet or FDDI connection between two nodes. The Data Analyzer displays one window for each LAN virtual circuit. This page is intended primarily to provide real-time aids for diagnosing LAN-related cluster communications problems. HP OpenVMS Cluster Systems describes the parameters shown on these pages and tells how to diagnose LAN-related cluster problems.

The LAN Virtual Circuit Details pages provide the same information as the SCACP command SHOW VC and as the following OpenVMS System Dump Analyzer (SDA) commands: PE VC and SHOW PORTS/VC=VC_ remote-node-name. In these commands, remote-node-name is the SCS name of another node in the cluster.

SDA defines VC_remote-node-name and performs the first SHOW PORTS action after SDA is started. Thus, the /CH and /VC options are valid only with the second and subsequent SHOW PORT commands.

You can display LAN virtual circuit details data by double-clicking a "LAN Virtual Circuit Summary" data row or by right-clicking a menu on the Cluster Summary page (Figure 4-6). After a brief delay, a LAN VC Transmit Data page (Figure 4-19) is displayed. The tabs at the top of the page indicate additional pages that you can display.

The data items displayed depend on the type of virtual circuit. Currently, this feature is available only for LAN virtual circuits.

4.3.4.1 LAN VC Transmit Data

Transmit data is information about the transmission of data packets, including the numbers of packets and bytes sent. Figure 4-19 is an example of a LAN VC Transmit Data page.

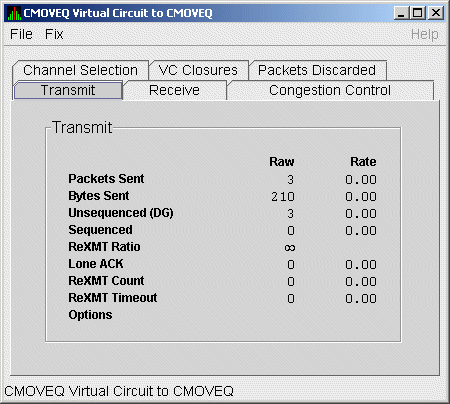

Figure 4-19 LAN VC Transmit Data

Table 4-19 describes the data displayed in Figure 4-19.

Table 4-19 LAN VC Transmit Data

Data	Description
Packets Sent	(Raw) count and rate of packets transmitted through the virtual circuit to the remote node, including both sequenced and unsequenced (channel control) packets and lone acknowledgments.
Bytes Sent	(Raw) count and rate of bytes transmitted through the virtual circuit.
Unsequenced (DG)	(Raw) count and rate of the number of unsequenced packets that are transmitted.
Sequenced	(Raw) count and rate of sequenced packets transmitted. Sequenced packets are guaranteed to be delivered.
ReXMT Ratio	Ratio of the total number of sequenced packets sent to the current retransmission count.
Lone ACK	(Raw) count and rate of packets sent solely for the purpose of acknowledging receipt of one or more packets.
ReXMT Count	Number of packets retransmitted. Retransmission occurs when the local node does not receive an acknowledgment for a transmitted packet within a predetermined timeout interval.
ReXMT Timeout	Number of retransmission timeouts that have occurred.
Options	Transmit options enabled: CKSM---packet checksumming CMPR---compression

4.3.4.2 LAN VC Receive Data

Receive data is information about the receipt of data packets. Figure 4-20 is an example of a LAN VC Receive Data page.

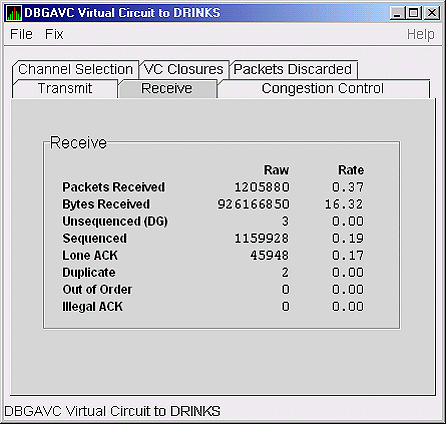

Figure 4-20 LAN VC Receive Data

Table 4-20 describes the data displayed in Figure 4-20.

Table 4-20 LAN VC Receive Data

Data	Description
Packets Received	(Raw) count and rate of packets received on the virtual circuit from the remote node, including both sequenced and unsequenced---that is, datagram packets and lone acknowledgments.
Bytes Received	(Raw) count and rate of bytes received in packets over the virtual circuit.
Unsequenced (DG)	(Raw) count and rate of unsequenced---datagram---packets received.
Sequenced	(Raw) count and rate of sequenced packets received.
Lone ACK	(Raw) count and rate of lone acknowledgments received.
Duplicate	Number of duplicated packets received by this system. Duplicates occur when the sending node retransmits a packet, and both the original and the retransmitted packets are received.
Out of Order	Number of packets received out of order by this system.
Illegal ACK	Number of illegal acknowledgments received---that is, acknowledgments of an out-of-range sequence number.

4.3.4.3 LAN VC Congestion Control Data

LAN VC congestion control data is information about LAN traffic. The values indicate the number of packets that can be sent to the remote node before receiving an acknowledgment and the retransmission timeout.

Figure 4-21 is an example of a LAN VC Congestion Control Data page. An item that is dimmed indicates that the current version of OpenVMS does not support that item.

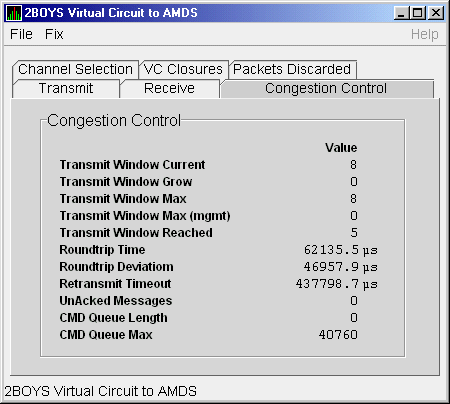

Figure 4-21 LAN VC Congestion Control Data

Table 4-21 describes the data displayed in Figure 4-21.

Table 4-21 LAN VC Congestion Control Data

Data	Description
Transmit Window Current	Current value of the transmit window (or pipe quota). After a timeout, the pipe quota is reset to 1 to decrease network path congestion. The pipe quota is allowed to increase as quickly as acknowledgments are received.
Transmit Window Grow	The slow growth threshold. The size at which the increase rate of the window is slowed to avoid congestion on the network again.
Transmit Window Max	Maximum transmit window size currently allowed for the virtual circuit based on channel and remote PEDRIVER receive cache limitations.
Transmit Window Max (mgmt)	Management override to calculated value for Maximum Transmit Window size. N/A on systems prior to Version 2.0.
Transmit Window Reached	Number of times the entire transmit window was full. If this number is small compared with the number of sequenced packets transmitted, then either the local node is not sending large bursts of data to the remote node, or acknowledging packets are being received so promptly that the window limit is never reached.
Roundtrip Time	Average round-trip time, in microseconds, for a packet to be sent and acknowledged. VC round trip time values are dependent on the delayed ACK or the ACKholdoff delay, that is, 100 ms. The VC trip time is also dependent on the network traffic. If there is sufficient cluster traffic, the receive window at the remote node gets filled and the ACK is delivered sooner. If the cluster is idle with no traffic, there may be a delay of 100ms to send the ACK. Hence, in an idle cluster with less traffic, the VC round trip delay value is normally high. As the traffic increases, the VC round trip time delay value drops.
Roundtrip Deviation	Average deviation, in microseconds, of the round-trip time. Deviation/Variance: Whenever a new ACK delay is measured, it is compared with the current estimate of the ACK delay. The difference is a measure of the error in the delay estimate (delayError). This delayError is used as a correction to update the current estimate of ACK delay. To prevent a "bad" measurement from estimate, the correction due to a single measurement is limited to a fraction. The average of the absolute value of the delayError from the mean is used as estimation for the delays variance.
Retransmit Timeout	Value, in microseconds, used to determine packet retransmission timeout. If a packet does not receive either an acknowledging or a responding packet, the packet is assumed to be lost and will be resent.
UnAcked Packets	Current number of unacknowledged packets.
CMD Queue Length	Current length of the virtual circuit's command queue.
CMD Queue Max	Maximum number of commands in the virtual circuit's command queue so far.

4.3.4.4 LAN VC Channel Selection Data (Nonmanaged Objects)

The display of information about LAN VC channel selection depends on the version of OpenVMS and whether managed objects have been enabled. (For more information about managed objects, see the introduction to this chapter.)

Figure 4-22 is an example of a Nonmanaged Object LAN VC Channel Selection Data page.

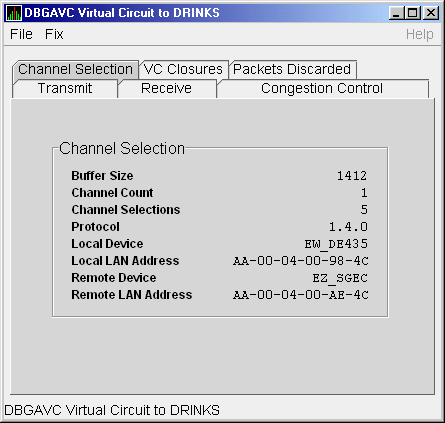

Figure 4-22 LAN VC Channel Selection Data (Nonmanaged Objects)

Table 4-22 describes the data displayed in Figure 4-22.

Table 4-22 LAN VC Channel Selection Data (Nonmanaged Objects)

Data	Description
Buffer Size	Maximum data buffer size for this virtual circuit.
Channel Count	Number of channels available for use by this virtual circuit.
Channel Selections	Number of channel selections performed.
Protocol	NISCA protocol version.
Local Device	Name of the local LAN device that the channel uses to send and receive packets.
Local LAN Address	Address of the local LAN device that performs sends and receives.
Remote Device	Name of the remote LAN device that the channel uses to send and receive packets.
Remote LAN Address	Address of the remote LAN device performing the sends and receives.

4.3.4.5 LAN VC Channel Selection Data (Managed Objects Enabled)

Systems running the Data Collector with managed objects enabled collect and display the following information about LAN VC Channel Selection Data. (For more information about managed objects, see the introduction to this chapter.)

Figure 4-23 is an example of a LAN VC Channel Selection Data page with managed objects enabled.

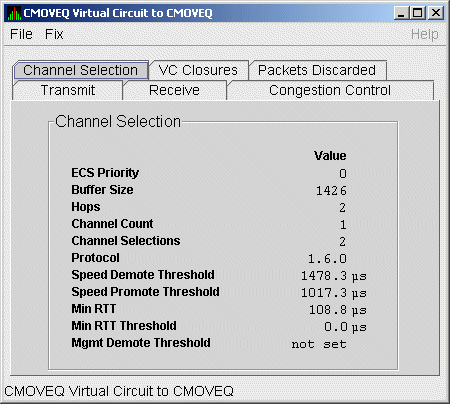

Figure 4-23 LAN VC Channel Selection Data (Managed Objects Enabled)

Table 4-23 describes the data displayed in Figure 4-23.

Table 4-23 Channel Selection Data (Managed Objects Enabled)

Data	Description
ECS Priority	Current minimum priority a tight channel must have in order to be an ECS member.
Buffer Size	Maximum data buffer size for this virtual circuit. A channel must have this buffer size in order to be an ECS member.
Hops	Current minimum management hops a channel must have in order to be included in the ECS.
Channel Count	Number of channels currently available for use by this virtual circuit.
Channel Selections	Number of channel selections performed.
Protocol	Remote node's NISCA protocol version.
Speed Demote Threshold	Current threshold for reclassifying a FAST channel to SLOW.
Speed Promote Threshold	Current threshold for reclassifying a SLOW channel to FAST.
Min RTT	Current minimum average delay of any current ECS members.
Min RTT Threshold	Current threshold for reclassifying a channel as FASTER than the current set of ECS channels.
Mgmt Demote Threshold	A management-specified lower limit on the maximum delay (in microseconds) an ECS member channel can have. Whenever at least one tight peer channel has a delay of less than the management-supplied value, all tight peer channels with delays less than the management-supplied value are automatically included in the ECS. When all tight peer channels have delays equal to or greater than the management setting, the ECS membership delay thresholds are automatically calculated and used.

4.3.4.6 LAN VC Closures Data

LAN VC closures data is information about the number of times a virtual circuit has closed for a particular reason. Figure 4-24 is an example of a LAN VC Closures Data page.

An entry that is dimmed indicates that the current version of OpenVMS does not support that item.

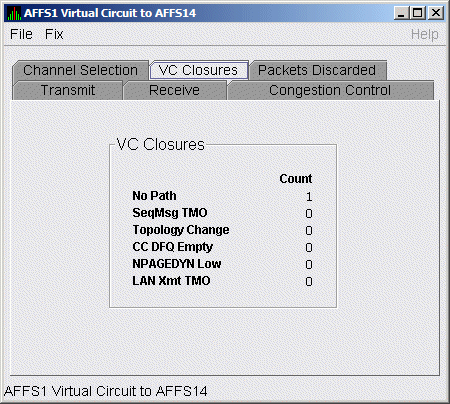

Figure 4-24 LAN VC Closures Data

Table 4-24 describes the data displayed in Figure 4-24.

Table 4-24 LAN VC Closures Data

Data	Description
No Path	Number of times the VC was closed because no usable LAN path was available.
SeqMsg TMO	Number of times the VC was closed because a sequenced packet's retransmit timeout count limit was exceeded.
Topology Change	Number of times the VC was closed because PEDRIVER performed a failover from a LAN path (or paths) with a large packet size to a LAN path with a smaller packet size.
CC DFQ Empty	Number of times the VC was closed because the channel control data-free queue (DFQ) was empty.
NPAGEDYN Low	Number of times the VC was closed because of a nonpaged pool allocation failure in the local node.
LAN Xmt TMO	Number of times the VC was closed because the LAN device used to send the packet did not report transmit completion before the packet's transmit timeout limit was exceeded.

4.3.4.7 LAN VC Packets Discarded Data

LAN VC packets discarded data is information about the number of times packets were discarded for a particular reason. Figure 4-25 is an example of a LAN VC Packets Discarded Data page.

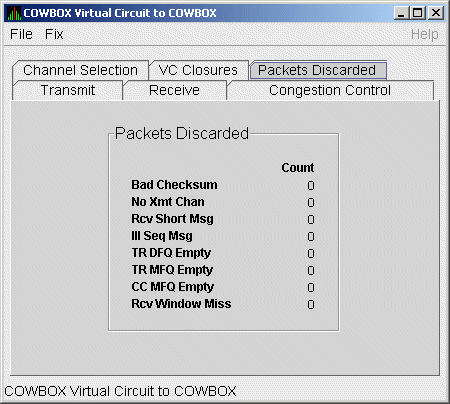

Figure 4-25 LAN VC Packets Discarded Data

Table 4-25 describes the data displayed in Figure 4-25.

Table 4-25 LAN VC Packets Discarded Data

Data	Description
Bad Checksum	Number of times there was a checksum failure on a received packet.
No Xmt Chan	Number of times no transmit channel was available.
Rcv Short Msg	Number of times an undersized transport packet was received.
Ill Seq Msg	Number of times an out-of-range sequence numbered packet was received.
TR DFQ Empty	Number of times the transmit data-free queue (DFQ) was empty.
TR MFQ Empty	Number of times the TR layer message-free queue (MFQ) was empty.
CC MFQ Empty	Number of times the channel control MFQ was empty.
Rcv Window Miss	Number of packets that could not be placed in the virtual circuit's receive cache because the cache was full.

The Availability Manager Data Analyzer indicates resource availability problems in the Event pane (Figure 5-1) of the main System Overview window (Figure 1-1).

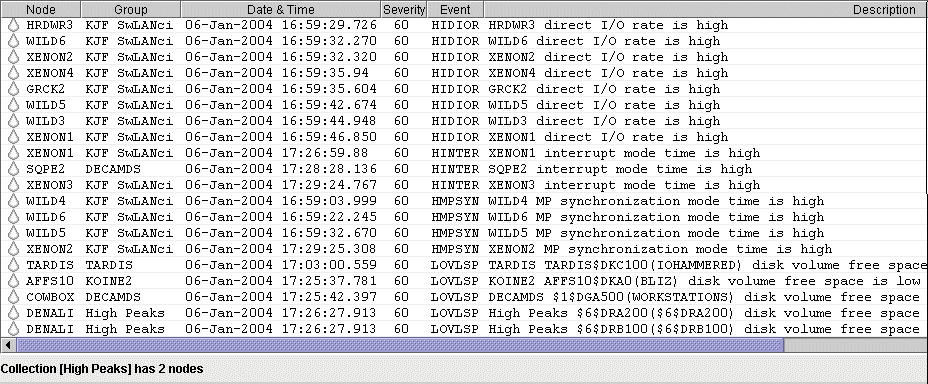

Figure 5-1 OpenVMS Event Pane

The Event pane helps you identify system problems. In many cases, you can apply fixes to correct these problems as well, as explained in Chapter 6.

The Data Analyzer displays a warning message in the Event pane whenever it detects a resource availability problem. If logging is enabled (the default), the Data Analyzer also logs each event in the Event Log file, which you can display or print. (For the location of this file and a cautionary note about it, see Section 5.2.)

5.1 Event Information Displayed in the Event Pane

The Data Analyzer can display events for all nodes that are currently in communication with the Data Analyzer. When an event of a certain severity occurs, the Data Analyzer adds the event to a list in the Event pane.

The length of time an event is displayed depends on the severity of the event. Less severe events are displayed for a short period of time (30 seconds); more severe events are displayed until you explicitly remove the event from the Event pane (explained in Event Pane Menu Options).

Data in the Event Pane

Table 5-1 provides additional information about the data items that are displayed in the Event pane.

Table 5-1 Event Pane Data

Data Item	Description
Node	Name of the node causing the event
Group	Group of the node causing the event
Date	Date the event occurred
Time	Time that an event was detected
Sev	Severity: a value from 0 to 100. (You can customize this value to indicate the importance of the event, with 100 as the most important.)
Event	Alphanumeric identifier of the type of event
Description	Short description of the resource availability problem

Appendix B contains tables of events that are displayed in the Event pane. In addition, these tables contain an explanation of each event and the recommended remedial action.

Event Pane Menu Options

When you right-click a node name or data item in the Event pane, the Data Analyzer displays a shortcut menu with the following options:

Menu Option	Description
Display	Displays the Node Summary page associated with that event.
Remove	Removes an event from the display.
Freeze/Unfreeze	Freezes a value in the display until you "unfreeze" it; a snowflake icon is displayed to the left of an event that is frozen.
Customize	Allows you to customize events.

5.2 Criteria for Evaluating an Event

During data collection, any time data meets or exceeds the threshold for an event, an occurrence counter is incremented. When the incremented value matches the value in the Occurrence box on the Event Customization page (Figure 5-2), the event is posted in the Event pane of the System Overview window (Figure 1-1).

Figure 5-2 Sample Event Customization

The sample Event Customization page indicates a threshold of 15 errors and an occurrence value of 2. This means that if the DSKERR event exceeds its threshold of 15 for two consecutive data collections, the DSKERR event is posted in the Event pane.

Note that some events are triggered when data is lower than the threshold; other events are triggered when data is higher than the threshold.

If, at any time during data collection, the data does not meet or exceed the threshold, the occurrence counter is set to zero, and the event is removed from the Event pane. Figure 5-3 depicts this sequence.

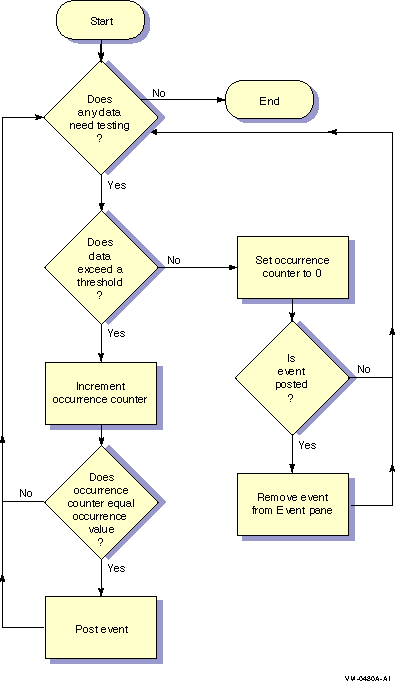

Figure 5-3 Testing for Events

When an event is posted, the following actions occur:

• The event is displayed in the Event pane.
• The data associated with the event is collected at the Event interval shown on the Data Collection Customization page (Figure 5-4). In this example, the event is associated with the Disk Status data collection.

  Figure 5-4 OpenVMS Data Collection Customization

  ---


  On the Data Collection Customization page, for example, the Event interval for Disk Status data collection is every 15 seconds.

Figure 5-5 OpenVMS Group/Node Pane

When an event is posted, the following actions also occur:

• The Events field in the Group/Node pane is incremented, and the node icon in the Node Name field turns red (see Figure 5-5). You can see the events posted for this node in a tooltip by placing the mouse over the Node Name.
• When an event is posted, it is added to the Event Log file by default:
  • On OpenVMS systems, the Event Log file is:

    AMDS$AM_LOG:ANALYZEREVENTS_CONNi_yyyymmdd-hhmm.LOG


    The i in the file is an integer indicating the connection in the Data Analyzer. The other small letters indicate the date and time the log file was created.

  • On Windows systems, the Event Log file name has the same format, and is located in the installation directory.

  The Event Log consists of the following fields:

  Table 5-2 Event Columns

  Event Column	Description
  Group name	AMDS Group name
  Node	Node name for the OpenVMS system
  Date/Time	The date and time for the Event Log entry
  Severity	Severity of the event
  Event	Alphanumeric event identifier
  EventKey	A hex value identifying an event for a node. For instance, all HINTER events for a node have the same value. Each time the HINTER event is signaled for a node, the value will be the same, making it easy to search for all the HINTER events for a node.
  EventID	A hex value identifying an individual event. For instance, if the HICOMQ event on node SAM is signaled, the BEGIN and END/CANCELD/EXPIRED entries that mark when the event was signaled and cancelled will have the same value. The next time the HICOMQ event is signaled on node SAM, the hex value will be different. This value makes it easy to find the entry that signals when the event has been cancelled.
  Status	The value describes the status of the event. Values are as follows: Status Value Description INFO This event is informational. BEGIN The event entry marks the beginning of the interval when the values for an event have exceeded the threshold. END The event entry marks the end of the interval when the values for an event have exceeded the threshold. CANCELD The event entry marks when the event was removed because the data used to evaluate the event is now longer being collected. EXPIRED The event entry marks when the event has exprired.
  Description	Event description

For more detailed information about a specific event, double-click any event data item in the Event pane. The Data Analyzer first displays a data page that most closely corresponds to the cause of the event. You can choose other tabs for additional detailed information.

For a description of data pages and the information they contain, see Chapter 3.
