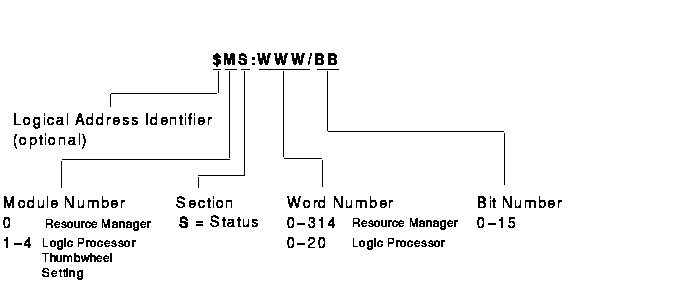

Figure 3-31 shows the structure of a legal Status data table address for the PLC-5/250.

Table 3-19 shows examples of legal Status data table addresses for the PLC-5/250.

Figure 3-31 PLC-5 / 250 Status Address Format

Table 3-19 Example PLC-5 / 250 Status Addresses

Example Address	MMS Type1	Description
0S:20	UNSIGNED_16	Word 20 of the status file in the resource manager
1S:12	INTEGER_16	Word 12 of the status file in logic processor 1
$0S:125/1	BIT_STRING	Bit 1 of word 125 of the status file in the resource manager
0S:0	Array of 10 UNSIGNED_16	Ten words beginning at word 0
