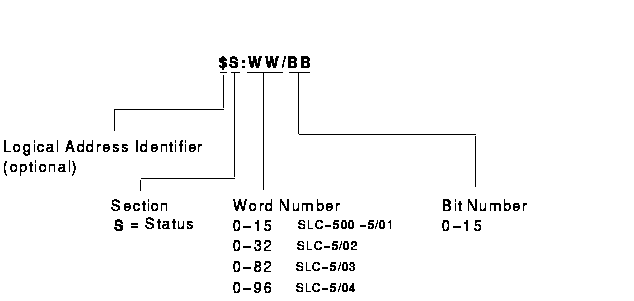

Figure 3-41 shows the structure of a legal Status data table address for the SLC.

Table 3-27 shows examples of legal Status data table addresses for the SLC.

Figure 3-41 SLC Status Data Table Address Format


Table 3-27 Example SLC Status Data Table Addresses
Example Address MMS Type1 Description
S:20 UNSIGNED_16 Word 20 of the status file
S:12 INTEGER_16 Word 12 of the status file
$S:5/1 BIT_STRING Bit 1 of word 5 of the status file
S:0 Array of 10 UNSIGNED_16 Ten words beginning at word 0


1Arrays are supported. Structures are not supported. Variable size arrays are not supported.
