Figure 3-43 shows the structure of a legal Timer, Counter, Control or ASCII String data table address for the SLC.

Figure 3-44 shows a SLC Timer structure.
Figure 3-45 shows a SLC Counter structure.
Figure 3-46 shows a SLC Control structure.
Figure 3-47 shows a SLC ASCII String structure.

Table 3-29 shows examples of legal Timer, Counter, Control and ASCII String table addresses for the SLC.

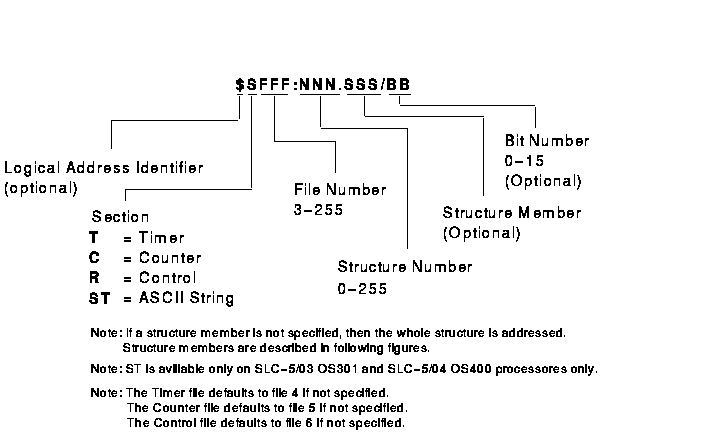

Figure 3-43 SLC Timer, Counter, Control and ASCII String Data Table Address Format

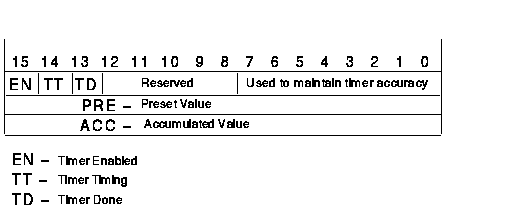

Figure 3-44 SLC Timer Structure

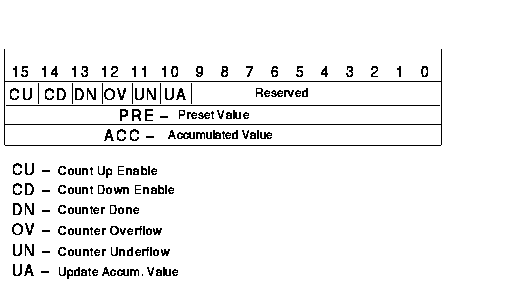

Figure 3-45 SLC Counter Structure

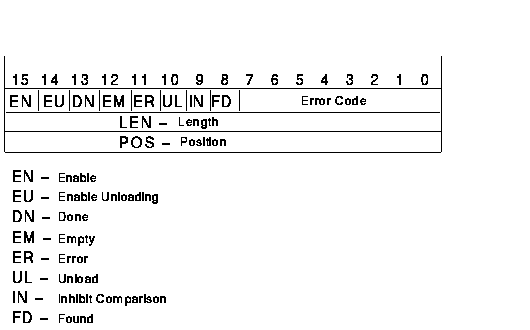

Figure 3-46 SLC Control Structure

Figure 3-47 SLC ASCII String Structure

Table 3-29 Example SLC Timer, Counter, Control and ASCII String Data Table Address Formats

Example Address	MMS Type1	Description
$T20:0.ACC	UNSIGNED_16	Timer 0 in file 20 accumulated value
C91:3.PRE	INTEGER_16	Counter 91 in file 3 preset value
T:20.CTL/15	BIT_STRING	Timer 20 in the default timer file (4) Enable bit 2
R6:0.UL	BIT_STRING	Control 0 in file 6 Unload bit 2
T4:20.TD	BIT_STRING	Timer 20 in file 4 Timer Done bit 2
R:1.LEN	INTEGER_16	Control 1 in the default control file (6) Length value
ST16:0.LEN	INTEGER_16	String 0 in file 16 Length value
ST16:2	VISIBLE_STRING 3	String 2 in file 16
ST16:3	OCTET_STRING 3	String 3 in file 16
T:5	Structure 4 UNSIGNED_16 UNSIGNED_16 UNSIGNED_16	All of timer 5 in file 4 Control Preset value Accumulated value
R8:10	Structure 4 UNSIGNED_16 INTEGER_16 INTEGER_16	All of control 10 in file 8 Control Length Position
