This appendix provides compatibility information for those porting Compaq Fortran 77 and Compaq Fortran applications from other Compaq systems and for those designing applications for portability to multiple platforms.

This appendix contains the following topics:

• Section A.1, Compaq Fortran and Compaq Fortran 77 Compatibility on Various Platforms
• Section A.2, Compatibility with Compaq Fortran 77 for Compaq Tru64 UNIX Systems
• Section A.3, Language Compatibility with Compaq Visual Fortran
• Section A.4, Compatibility with Compaq Fortran 77 and Compaq Fortran for OpenVMS Systems
• Section A.5, Calling Between Compaq Fortran 77 and Compaq Fortran

Table A-1 summarizes the compatibility of Compaq Fortran for Compaq Tru64 UNIX and Linux Alpha systems with Compaq Fortran on OpenVMS Alpha Systems, Compaq Fortran 77 on other platforms (architecture/operating system pairs), and Compaq Visual Fortran for Windows systems.

Table A-1 Summary of Language Compatibility

	Compaq Fortran 77 (CF77) or Compaq Fortran (CF95) for ... Systems
Language Feature	CF95 UNIX Alpha	CF95 Linux Alpha	CF77 UNIX Alpha	CF95 Windows	CF95 OpenVMS Alpha	CF77 OpenVMS Alpha	CF77 OpenVMS VAX
Linking against static and shared libraries	X	X	X	X	X	X	X
Create code for shared libraries	X	X	X	X	X	X	X
Recursive code support	X	X	X	X	X	X	X
AUTOMATIC and STATIC statements	X	X	X	X	X	X	X
STRUCTURE and RECORD declarations	X	X	X	X	X	X	X
INTEGER*1, *2, *4	X	X	X	X	X	X	X
LOGICAL*1, *2, *4	X	X	X	X	X	X	X
INTEGER*8 and LOGICAL*8	X	X	X	X 1	X	X
REAL*4, *8	X	X	X	X	X	X	X
REAL*16 2	X	X	X		X	X	X
COMPLEX*8, *16	X	X	X	X	X	X	X
COMPLEX*32 3	X	X			X
POINTER (CRAY-style)	X	X	X	X	X	X	X
INCLUDE statements	X	X	X	X	X	X	X
IMPLICIT NONE statements	X	X	X	X	X	X	X
Data initialization in type declarations	X	X	X	X	X	X	X
Automatic arrays	X	X	X	X	X	X
VOLATILE statements	X	X	X	X	X	X	X
NAMELIST-directed I/O	X	X	X	X	X	X	X
31-character names including $ and _	X	X	X	X	X	X	X
Source listing with machine code	X	X	X	X	X	X	X
Debug statements in source	X	X	X	X	X	X	X
Bit constants to initialize data and use in arithmetic	X	X	X	X	X	X	X
DO WHILE and END DO statements	X	X	X	X	X	X	X
Built-in functions %LOC, %REF, %VAL	X	X	X	X	X	X	X
SELECT CASE construct	X	X	X	X	X	X
EXIT and CYCLE statements	X	X	X	X	X	X
Variable FORMAT expressions (VFEs)	X	X	X	X	X	X	X
! marks end-of-line comment	X	X	X	X	X	X	X
Optional run-time bounds checking for arrays and substrings	X	X	X	X	X	X	X
Binary (unformatted) I/O in IEEE big endian, IEEE little endian, VAX, IBM, and CRAY floating-point formats	X	X	X	X	X	X	X
Fortran 95/90 standards checking	X	X		X	X
FORTRAN-77 standards checking			X	X		X	X
IEEE exception handling	X	X	X	X	X	X
VAX floating data type in memory					X	X	X
IEEE floating data type in memory	X	X	X	X	X	X
CDD/Repository DICTIONARY support						X	X
KEYED access and INDEXED files					X	X	X
Parallel decomposition	X 5		5	5	5	5	X
OpenMP parallel directives	X
Conditional compilation using IF...DEF constructs	X	X		X	X
Vector code support							X
Direct inlining of Basic Linear Algebra Subroutines (BLAS)	6	6	6	6	6	6	X
DATE_AND_TIME returns 4-digit year	X	X	X	X	X	X	X
FORALL statement and construct	X	X		X	X
Automatic deallocation of ALLOCATABLE arrays	X	X		X	X
Dim argument to MAXLOC and MINLOC	X	X		X	X
PURE user-defined subprograms	X	X		X	X
ELEMENTAL user-defined subprograms	X	X		X	X
Pointer initialization (initial value)	X	X		X	X
The NULL intrinsic to nullify a pointer	X	X		X	X
Derived-type structure initialization	X	X		X	X
CPU_TIME intrinsic subroutine	X	X		X	X
Kind argument to CEILING and FLOOR intrinsics	X	X		X	X
Nested WHERE constructs, masked ELSEWHERE statement, and named WHERE constructs	X	X		X	X
Comments allowed in namelist input	X	X		X	X
Generic identifier in END INTERFACE statements	X	X		X	X
Minimal FORMAT edit descriptor field width	X	X		X	X
Detection of Obsolescent and/or Deleted features 7	X	X		X	X

This section provides compatibility information for those porting Compaq Fortran 77 applications from Compaq Tru64 UNIX systems. It discusses the following topics:

• Major language features for compatibility with Compaq Fortran 77 for Compaq Tru64 UNIX systems ( Section A.2.1)
• Language differences between Compaq Fortran and Compaq Fortran 77, including Compaq Fortran 77 extensions on Compaq Tru64 UNIX Systems that are not supported by this version of Compaq Fortran on Compaq Tru64 UNIX Systems ( Section A.2.2)
• Language features detected during compilation differently by Compaq Fortran than Compaq Fortran 77 for Compaq Tru64 UNIX Systems ( Section A.2.3)

To simplify porting applications from Compaq Fortran 77 to Compaq Fortran on Tru64 UNIX systems, Compaq Fortran supports the following Compaq Fortran 77 extensions that are not part of the Fortran 95/90 standards:

• Record structures (STRUCTURE and RECORD statements)
• I/O statements, including PRINT, ACCEPT, TYPE, DELETE, and UNLOCK
• I/O statement specifiers, such as the INQUIRE statement specifiers CARRIAGECONTROL, CONVERT, ORGANIZATION, and RECORDTYPE
• Certain data types, including 8-byte INTEGER and LOGICAL variables and 16-byte REAL variables (available on Alpha systems)
• Size specifiers for data declaration statements, such as INTEGER*4, in addition to the KIND type parameter
• IEEE floating-point data type in memory
• The POINTER statement and its associated data type (CRAY pointers).
• The typeless PARAMETER statement
• The VOLATILE statement
• The AUTOMATIC and STATIC statements
• Built-in functions used in argument lists, such as %VAL and %LOC
• Hollerith constants
• Variable-format expressions (VFEs)
• Certain intrinsic functions
• The tab source form (resembles fixed-source form)
• I/O formatting descriptors
• USEROPEN routines for user-defined open routines
• Additional language features, including the DEFINE FILE, ENCODE, DECODE, and VIRTUAL statements

In addition to language extensions, Compaq Fortran also supports the following Compaq Fortran 77 features:

• Compaq Fortran 77 compilation control statements and directives (see the Compaq Fortran Language Reference Manual), including:
  • INCLUDE statement forms using /LIST and /NOLIST (requires compiling with -vms )
  • OPTIONS statement to override or set compiler command-line options
  • General cDEC$ directives, including:

    cDEC$ ALIAS
    cDEC$ IDENT
    cDEC$ OPTIONS
    cDEC$ PSECT
    cDEC$ TITLE
    cDEC$ SUBTITLE

• A nearly identical set of command-line options and their associated features (see Section A.2.4).
• The ability to call between Compaq Fortran 77 and Compaq Fortran routines and a common run-time environment. For example, a Compaq Fortran 77 procedure and a Compaq Fortran procedure can perform I/O to the same unit number (see Section A.5).
• foriosdef.for symbolic parameter definitions for use with run-time (IOSTAT) error handling (see Chapter 8).

For More Information:

On the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

A.2.2 Language Features Provided Only by Compaq Fortran 77 for Compaq Tru64 UNIX Systems

Compaq Fortran conforms to the Fortran 95/90 standard, which is a superset of the FORTRAN-77 standard. Compaq Fortran provides many but not all of the FORTRAN-77 extensions provided by Compaq Fortran 77.

The following list shows FORTRAN-77 extensions provided by Compaq Fortran 77 on Compaq Tru64 UNIX systems are not provided by Compaq Fortran. Where appropriate, this list indicates equivalent Compaq Fortran language features:

• Octal notation for integer constants is not part of the Compaq Fortran Language. Compaq Fortran 77 ( f77 command) only supports this feature when the -vms option is specified. For example:

  I = "0014 ! Assigns 12 to I, not supported by Compaq Fortran

• The Compaq Fortran compiler discards leading zeros for "disp" in the STOP statement. For example:

  STOP 001 ! Prints 1 instead of 001

• When a single-precision constant is assigned to a double-precision variable, Compaq Fortran 77 evaluates the constant in double precision. The Fortran 95/90 standards require that the constant be evaluated in single precision.
  When a single-precision constant is assigned to a double-precision variable with Compaq Fortran, it is evaluated in single precision. You can, however, specify the f90 -fpconstant option to request that a single-precision constant assigned to a double-precision variable be evaluated in double precision.
  In the example below, Compaq Fortran 77 assigns identical values to D1 and D2, whereas Compaq Fortran obeys the standard and assigns a less precise value to D1.
  For example:

  REAL*8 D1,D2 DATA D1 /2.71828182846182/ ! Incorrect - only REAL*4 value DATA D2 /2.71828182846182D0/ ! Correct - REAL*8 value

• The names of intrinsics introduced by Compaq Fortran may conflict with the names of existing external procedures if the procedures were not specified in an EXTERNAL declaration. For example:

  EXTERNAL SUM REAL A(10),B(10) S = SUM(A) ! Correct - invokes external function T = DOT_PRODUCT(A,B) ! Incorrect - invokes intrinsic function

• When writing namelist external records, Compaq Fortran uses the syntax for namelist external records specified by the Fortran 95/90 standards, rather than the Compaq Fortran 77 syntax (an extension to the FORTRAN-77 and Fortran 95/90 standards).
  Consider the following program:

  % cat test.f INTEGER I NAMELIST /N/ I I = 5 PRINT N END


  When this program is compiled by the f90 command and run, the following output appears:

  % f90 test.f % a.out &N I = 5 /


  When this program is compiled by the f77 command and run, the following output appears:

  % f77 test.f % a.out $N I = 5 $END


  Use the -f77rtl option to tell Compaq Fortran to generate NAMELIST output in Compaq Fortran 77 format.
  Compaq Fortran accepts Fortran 95/90 namelist syntax and Compaq Fortran 77 namelist syntax for reading records.

• The Compaq Fortran language does not include C-style escape sequences in standard char constants. For example:

  CHARACTER NL NL = '\n' ! Incorrect NL = CHAR(10) ! Correct


  The Compaq Fortran extension C-string allows certain C-style escape sequences in char constants that end with a C. For example:

  CHAR NL NL = '\n'C

• Compaq Fortran inserts a leading blank when doing list-directed I/O to an internal file. For example:

  CHARACTER*10 C WRITE(C,*) 'FOO' ! C = ' FOO'

• Compaq Fortran 77 and Compaq Fortran produce different output a real value whose data magnitude is 0 with a G field descriptor. For example:

  X = 0.0 WRITE(*,100) X ! Compaq Fortran 77 prints 0.0000E+00 100 FORMAT(G12.4) ! Compaq Fortran prints 0.000

• Compaq Fortran does not allow certain intrinsics (such as SQRT) in constant expressions for array bounds. For example:

  REAL A(SQRT(31.5)) END

• Compaq Fortran 77 returns UNKNOWN while Compaq Fortran returns UNDEFINED when the ACCESS, BLANK, and FORM characteristics can not be determined. For example:

  INQUIRE(20,ACCESS=acc,BLANK=blk,FORM=form)

• Compaq Fortran does not allow an extraneous parenthesis in I/O lists. For example:

  write(*,*) ((i,i=1,1),(j,j=1,2))

• Compaq Fortran does not allow control characters within quoted strings. For example, the assignment statement in the following program is incorrect because it contains the character Ctrl/C.

  character*5 c c = 'ab^cef' end

• Compaq Fortran does not recognize certain hexadecimal and octal constants in DATA statements, such as those used in the following program:

  INTEGER I, J DATA I/O20101/, J/Z20/ TYPE *, I, J END

• Compaq Fortran, like Compaq Fortran 77, supports the use of character literal constants (such as 'ABC' or "ABC") in numeric contexts, where they are treated as Hollerith constants.
  Compaq Fortran 77 also allows character PARAMETER constants (typed and untyped) and character constant expressions (using the // operator) in numeric constants as an undocumented extension.
  Compaq Fortran does allow character PARAMETER constants in numeric contexts, but does not allow character expressions. For example, the following is valid for Compaq Fortran 77, but will result in an error message from Compaq Fortran:

  REAL*8 R R = 'abc' // 'def' WRITE (5,*) R END


  Compaq Fortran does allow PARAMETER constants:

  PARAMETER abcdef = 'abc' // 'def' REAL*8 R R = abcdef WRITE (5,*) R END

• Compaq Fortran 77 namelist output formats character data delimited with apostrophes. For example, consider:

  CHARACTER CHAR4*4 NAMELIST /CN100/ CHAR4 CHAR4 = 'ABCD' WRITE(20,CN100) CLOSE (20)


  This produces the following output file:

  $CN100 CHAR4 = 'ABCD' $END


  This file is read by:

  READ (20, CN100)


  In contrast, Compaq Fortran produces the following output file by default:

  &CN100 CHAR4 = ABCD /


  When read, this generates a syntax error in NAMELIST input error. To produce delimited strings from namelist output that can be read by namelist input, use DELIM="'" in the OPEN statement of a Compaq Fortran program.

For More Information:

• On argument passing between Compaq Fortran and Compaq Fortran 77 for Compaq Tru64 UNIX systems, see Section A.5.
• On compatibility between Compaq Fortran for Compaq Tru64 UNIX or Linux Alpha systems and Compaq Fortran on OpenVMS systems, see Section A.4.
• On the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

The following language features are detected or interpreted differently by Compaq Fortran and Compaq Fortran 77:

• The Compaq Fortran compiler enforces the constraint that the "nlist" in an EQUIVALENCE statement must contain at least two variables. For example:

  EQUIVALENCE (X) ! Incorrect EQUIVALENCE (Y,Z) ! Correct

• The Compaq Fortran compiler enforces the constraint that entry points in a SUBROUTINE must not be typed. For example:

  SUBROUTINE ABCXYZ(I) REAL ABC I = I + 1 RETURN ENTRY ABC ! Incorrect BAR = I + 1 RETURN ENTRY XYZ ! Correct I = I + 2 RETURN END SUBROUTINE

• The Compaq Fortran compiler enforces the constraint that a type must appear before each list in an IMPLICIT statement. For example:

  IMPLICIT REAL (A-C), (D-H) ! Incorrect IMPLICIT REAL (O-S), REAL (T-Z) ! Correct

• The Compaq Fortran language disallows passing mismatched actual arguments to intrinsics with corresponding integer formal arguments. For example:

  R = REAL(.TRUE.) ! Incorrect R = REAL(1) ! Correct

• The Compaq Fortran compiler enforces the constraint that a simple list element in an I/O list must be a variable or an expression. For example:

  READ (10,100) (I,J,K) ! Incorrect READ (10,100) I,J,K ! Correct

• The Compaq Fortran compiler enforces the constraint that if two operators are consecutive, the second operator must be a plus or a minus. For example:

  I = J -.NOT.K ! Incorrect I = J - (.NOT.K) ! Correct

• The Compaq Fortran compiler enforces the constraint that character entities with a length greater than 1 cannot be initialized with a bit constant in a DATA statement. For example:

  CHARACTER*1 C1 CHARACTER*4 C4 DATA C1/'FF'X/ ! Correct DATA C4/'FFFFFFFF'X/ ! Incorrect

• The Compaq Fortran compiler enforces the requirement that edit descriptors in the FORMAT statement must be followed by a comma or slash separator. For example:

  1 FORMAT (SSF4.1) ! Incorrect 2 FORMAT (SS,F4.1) ! Correct

• The Compaq Fortran compiler enforces the constraint that the number and types of actual and formal statement function arguments must match (such as incorrect number of arguments). For example:

  CHARACTER*4 C,C4,FUNC FUNC()=C4 C=FUNC(1) ! Incorrect C=FUNC() ! Correct

• The Compaq Fortran compiler detects the use of a format of the form Ew.dE0 at compile time. For example:

  1 format(e16.8e0) ! Compaq Fortran detects error at compile time write(*,1) 5.0 ! Compaq Fortran 77 compiles but an output ! conversion error occurs at run time

• Compaq Fortran detects passing of a statement function to a routine. For example:

  foo(x) = x * 2 call bar(foo) end

• The Compaq Fortran compiler enforces the constraint that a branch to a statement shared by more than one DO statements must occur from within the innermost loop. For example:

  DO 10 I = 1,10 IF (L1) GO TO 10 ! Incorrect DO 10 J = 1,10 IF (L2) GO TO 10 ! Correct 10 CONTINUE

• The Compaq Fortran compiler enforces the constraint that a file must contain at least one program unit. For example, a source file containing only comment lines results in an error at the last line (end-of-file).
  The Compaq Fortran 77 compiler compiles files containing less than one program unit.
• The Compaq Fortran compiler correctly detects misspellings of the ASSOCIATEVARIABLE keyword to the OPEN statement. For example:

  OPEN(1,ASSOCIATEVARIABLE = I) ! Correct OPEN(2,ASSOCIATEDVARIABLE = J) ! Incorrect (extra D)

• The Compaq Fortran language enforces the constraint that the result of an operation is determined by the data types of its operands. For example:

  INTEGER*8 I8 I8 = 2147483647 + 1 ! Incorrect. Produces less accurate ! INTEGER*4 result I8 = 2147483647_8 + 1_8 ! Correct

• The Compaq Fortran compiler enforces the constraint that an object can be typed only once. Compaq Fortran 77 issues a warning message and uses the first type. For example:

  LOGICAL B,B ! Incorrect (B multiply declared)

• The Compaq Fortran compiler enforces the constraint that certain intrinsic procedures defined by the Fortran 95/90 standards cannot be passed as actual arguments. For example, Compaq Fortran 77 allows most intrinsic procedures to be passed as actual arguments, but the Compaq Fortran compiler only allows those defined by the Fortran 95/90 standards (issues an error message).
  Consider the following program:

  program tstifx intrinsic ifix,int,sin call a(ifix) call a(int) call a(sin) stop end subroutine a(f) external f integer f print *, f(4.9) return end


  The IFIX and INT intrinsic procedures cannot be passed as actual arguments (the compiler issues an error message). However, the SIN intrinsic is allowed to be passed as an actual argument by the Fortran 95/90 standards.

• Compaq Fortran reports character truncation with an error-level message, not as a warning.
  The following program produces an error message during compilation with Compaq Fortran, whereas Compaq Fortran 77 produces a warning message:

  INIT5 = 'ABCDE' INIT4 = 'ABCD' INITLONG = 'ABCDEFGHIJKLMNOP' PRINT 10, INIT5, INIT4, INITLONG 10 FORMAT (' ALL 3 VALUES SHOULD BE THE SAME: ' 3I) END

• If your code invokes Compaq Fortran intrinsic procedures with the wrong number of arguments or an incorrect argument type, Compaq Fortran reports this with an error-level message, not with a warning. Possible causes include:
  • A Compaq Fortran intrinsic has been added with the same name as a user-defined subprogram and the user-defined subprogram needs to be declared as EXTERNAL.
  • An intrinsic that is an extension to an older Fortran standard is incompatible with a newer standard-conforming intrinsic (for example, the older RAN function that accepted two arguments).

  The following program produces an error message during compilation with Compaq Fortran, whereas Compaq Fortran 77 produces a warning message:

  INTEGER ANOTHERCOUNT ICOUNT=0 100 write(6,105) (ANOTHERCOUNT(ICOUNT), INT1=1,10) 105 FORMAT(' correct if print integer values 1 through 10' /10I7) Q = 1. R = .23 S = SIN(Q,R) WRITE (6,110) S 110 FORMAT(' CORRECT = 1.23 RESULT = ',f8.2) END ! INTEGER FUNCTION ANOTHERCOUNT(ICOUNT) ICOUNT=ICOUNT+1 ANOTHERCOUNT=ICOUNT RETURN END REAL FUNCTION SIN(FIRST, SECOND) SIN = FIRST + SECOND RETURN END

• Compaq Fortran reports missing commas in FORMAT descriptors with an error-level message, not as a warning.
  The following program produces an error message during compilation with Compaq Fortran, whereas Compaq Fortran 77 produces a warning message:

  LOGICAL LOG/111/ TYPE 1,LOG 1 FORMAT(' '23X,'LOG='O12) END


  In the preceding example, the correct coding (adding the missing comma) for the FORMAT statement is:

  1 FORMAT(' ',23X,'LOG='O12)

• Compaq Fortran generates an error when it encounters a 1-character source line containing a Ctrl/Z character, whereas Compaq Fortran 77 allows such a line (which is treated as a blank line).
• Compaq Fortran detects the use of a character variable within parentheses in an I/O statement. For example:

  CHARACTER*10 CH/'(I5)'/ INTEGER I READ CH,I ! Acceptable READ (CH),I ! Generates error message, interpreted as an internal READ END

• Compaq Fortran evaluates the exponentiation operator at compile time only if the exponent has an integer data type. Compaq Fortran 77 evaluates the exponentiation operator even when the exponent does not have an integer data type. For example:

  PARAMETER ( X = 4.0 ** 1.1)

• Compaq Fortran detects an error when evaluating constants expressions that result in an NaN or Infinity exceptional value, while Compaq Fortran 77 allows such expressions. For example:

  PARAMETER ( X = 4.0 / 0.0 )

• Compaq Fortran reports a warning error message when the same variable is initialized more than once. Compaq Fortran 77 allows multiple initializations of the same variable without a warning. For example:

  integer i data i /1/ data i /2/ write (*,*) i stop end

For More Information:

• On passing arguments and returning function values between Compaq Fortran and Compaq Fortran 77, see Section A.5.
• On Compaq Fortran procedure calling and argument passing, see Section 11.1.
• On compatibility between Compaq Fortran for Compaq Tru64 UNIX systems and Compaq Fortran 77 on OpenVMS systems, see Section A.4.
• On the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

Compaq Fortran 77 ( f77 command) and Compaq Fortran ( f90 command) share most of the same command-line options. The following options are provided only by Compaq Fortran 77 (not by Compaq Fortran):

• -assume backslash
• -f77
• -ident
• -show xref (same as -cross_reference )
• -stand keyword
• -warn informational
• -warn nounreachable

The following options are provided only by Compaq Fortran (not by Compaq Fortran 77):

• -align recnbyte
• -annotations
• -assume buffered_io
• -assume gfullpath
• -assume minus0
• -f77rtl
• -fixed
• -free
• -fpconstant
• -fuse_xref (TU*X ONLY)
• -hpf (TU*X ONLY) and associated HPF parallel options, including -assume bigarrays , -assume nozsize , -nearest_neighbor , -nohpf_main , -show hpf , and -warn hpf
• -intconstant
• -ladebug
• -module
• -mp (TU*X ONLY)
• -omp (TU*X ONLY) and assorted OpenMP parallel options including -assume pthreads_lock and -check omp_bindings
• -std (performs Fortran 95/90 standards checking, whereas the Compaq Fortran 77 -stand keyword performs FORTRAN 77 and NTT MIA standards checking)
• -warn granularity

The f77 command by default executes the Compaq Fortran 90 compiler and uses the various DECF90_ environment variables. To execute the Compaq Fortran 77 compiler, use the f77 command with the -old_f77 option. This option must be the first text on the command line after f77 .

A.3 Language Compatibility with Compaq Visual Fortran

The following language features found in Compaq Visual Fortran (and Microsoft Fortran Powerstation Version 4) are now supported by Compaq Fortran:

• # Constants. Constants using a base other than 10.
• C Strings. NULL terminated strings contain C-style escape sequences.
• Conditional Compilation And Metacommand Expressions ($define, $undefine, $if, $elseif, $else, $endif).
• $FREEFORM, $NOFREEFORM, $FIXEDFORM. Source file format.
• $INTEGER, $REAL. Selects size.
• $FIXEDFORMLINESIZE. Line length for fixed form source.
• $STRICT, $NOSTRICT. F90 conformance.
• $PACK. Structure packing.
• $ATTRIBUTES ALIAS. External name for a subprogram or common block.
• $ATTRIBUTES C, STDCALL. Calling and naming conventions.
• $ATTRIBUTES VALUE, REFERENCE. Calling conventions.
• \ Descriptor. Prevents writing an end-of-record mark.
• Ew.dDe and Gw.dDe Edit Descriptors. Similar to Ew.dEe and Gw.dEe.
• 7200 Character Statement Length.
• Free form infinite line length.
• $DECLARE and $NODECLARE == IMPLICIT NONE.
• $ATTRIBUTES EXTERN. Variable allocated in another source file.
• $ATTRIBUTES VARYING. Variable number of arguments.
• $ATTRIBUTES ALLOCATABLE. Allocatable array.
• Mixing Subroutines/Functions in Generic Interfaces.
• $MESSAGE. Output message during compilation.
• $LINE == C's #line.
• INT1. Converts to one byte integer by truncating.
• INT2. Converts to two byte integer by truncating.
• INT4. Converts to four byte integer by truncating.
• COTAN. Returns cotangent.
• DCOTAN. Returns double precision cotangent.
• IMAG. Returns the imaginary part of complex number.
• IBCHNG. Reverses value of bit.
• ISHA. Shifts arithmetically left or right.
• ISHC. Performs a circular shift.
• ISHL. Shifts logically left or right.

This section provides compatibility information for those who:

• Port Compaq Fortran 77 and Compaq Fortran applications from OpenVMS systems to Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha Systems
• Design Compaq Fortran applications to run on multiple platforms, including OpenVMS and Compaq Tru64 UNIX or Linux Alpha systems

If your primary concern is the design and development of Compaq Fortran applications for only Compaq Tru64 UNIX (or other U*X) systems, consider skipping this section.

This section discusses the following topics:

• Compaq Fortran 77 extensions for OpenVMS systems that are not supported by this version of Compaq Fortran 77 or Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha Systems ( Section A.4.1)
• Porting Compaq Fortran data files from an OpenVMS system to a Compaq Tru64 UNIX or Linux Alpha system ( Section A.4.2)
• Nonnative VAX floating-point representations, provided for those converting unformatted OpenVMS floating-point data ( Section A.4.3)

Some extensions to the FORTRAN-77 standard provided by Compaq Fortran 77 and Compaq Fortran for OpenVMS Systems are specific to the OpenVMS operating system, VAX architecture, or certain products on OpenVMS systems. Such extensions are not included in Compaq Fortran 77 or Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha Systems.

For information on language compatibility between Compaq Fortran and Compaq Fortran 77 without regard to operating system or architecture differences, see Section A.2.

Compaq Fortran 77 and Compaq Fortran products for OpenVMS systems include:

• Compaq Fortran Version 7.4 for OpenVMS Alpha Systems
• Compaq Fortran 77 Version 7.4 for OpenVMS Alpha Systems
• Compaq Fortran 77 Version 6.6 for OpenVMS VAX Systems (previously called VAX FORTRAN)

Unless otherwise noted, the following list describes the Compaq Fortran 77 extensions in Compaq Fortran 77 and/or Compaq Fortran for OpenVMS systems that are not supported by Compaq Fortran for Compaq Tru64 UNIX Systems:

• DICTIONARY statement
  The DICTIONARY and related support for the CDD/Repository (common data dictionary) product are not provided by Compaq Fortran or Compaq Fortran 77 for Compaq Tru64 UNIX Systems.
• Support for indexed sequential files
  I/O statement specifiers for indexed file (keyed access) record I/O using OpenVMS OPEN and INQUIRE statement specifiers are not provided by Compaq Fortran or Compaq Fortran 77 for Compaq Tru64 UNIX or Linux Systems, as follows:

  ACCESS= ' KEYED '	EXTENDSIZE
  INITIALSIZE	KEY
  NOSPANBLOCKS	ORGANIZATION= ' INDEXED '
  SHARED

• FORSYSDEF symbol definitions for OpenVMS systems
  The parameter definitions of run-time messages found in FORSYSDEF.TLB library module FORIOSDEF on OpenVMS systems are provided in the file /usr/include/foriosdef.f (see Section 8.2.2) on Compaq Tru64 UNIX Systems. On Compaq Tru64 UNIX and Linux Alpha systems, Compaq Fortran and Compaq Fortran 77 provides jacket routines to simplify calling system calls and library routines (see Chapter 12).
• The INCLUDE statement option of including text from text libraries.
  On Compaq Tru64 UNIX and Linux Alpha systems, OpenVMS text libraries are not supported.
• The %DESCR built-in function (for OpenVMS character descriptors).
  On Compaq Tru64 UNIX and Linux Alpha systems, character data is passed by address and hidden length. For information about calling or being called by procedures written in other languages, see Chapter 11.
• Run-time default I/O units spelled as FOR0nn.dat, SYS$INPUT, and so on
  In Compaq Fortran and Compaq Fortran 77 on Compaq Tru64 UNIX and Linux Alpha systems, these are environment variables FORTn, stdin , stdout , and so forth (see Section 7.5).
• VAX floating-point formats and related selection of the floating-point format in memory
  Only IEEE floating-point formats are supported in memory on Compaq Tru64 UNIX Alpha systems. (Compaq proprietary VAX floating-point formats are not supported in memory.) You can request conversion of unformatted files containing VAX floating-point formats into the appropriate IEEE memory format during record I/O (see Chapter 10).
  On OpenVMS VAX systems, you specify the floating-point format to be used in memory with either the option [NO]G_FLOATING in the OPTIONS statement or the qualifier /[NO]G_FLOATING on the FORTRAN command line.
  On OpenVMS Alpha systems, you specify the floating-point format to be used in memory using the /FLOAT qualifier on the FORTRAN command line.
• Stream record format differences
  With Compaq Fortran 77 and Compaq Fortran for OpenVMS systems, the Stream record type is delimited by CR-LF character sequence (carriage control and line feed characters). In Compaq Fortran for Compaq Tru64 UNIX systems, the Stream record type uses no delimiters.
  For more information on compatible record types, see Section A.4.2.
• Other differences related to the OpenVMS operating system and the Compaq Tru64 UNIX and Linux operating systems
  When parsing file specifications for the OPEN, INQUIRE, and INCLUDE statements, keep in mind that file names are case-sensitive on Compaq Tru64 UNIX and Linux systems and that OpenVMS file specification syntax differs from pathname syntax.
  For the INCLUDE statement, the network node names (terminated by "::"), logical names (usually terminated by ":"), and other OpenVMS file specification components are not recognized. Instead, the INCLUDE statement should specify a pathname, possibly with an absolute directory path.
• The OpenVMS operating system provides various system services (SYS$ prefix) and run-time library routines (LIB$, SMG$, and other prefixes) that are not supported on Compaq Tru64 UNIX and Linux systems. Compaq Tru64 UNIX systems support system calls and library routines with similar functions (but different names).
  To make programs more portable to other operating systems, wherever possible you should use standard-conforming Compaq Fortran intrinsic routines in place of routines specific to a particular operating system.
  For more information on specifying files, see Section 7.5.3.

The following language and VAX architecture features are associated only with Compaq Fortran 77 on OpenVMS VAX Systems (previously called VAX FORTRAN) and are not supported by Compaq Fortran for Compaq Tru64 UNIX and Compaq Fortran for Linux Alpha systems:

• Directed decomposition features and CPAR$ directives for parallel processing
  CPAR$ directives are treated as comments (ignored). Parallel processing capabilities (appropriate f90 options, OpenMP, Compaq Fortran parallel, and HPF data mapping directives) are provided by Compaq Fortran.
• OPTIONS statement options /BLAS, /NOBLAS, /CHECK=ALIGNMENT, /CHECK=NOALIGNMENT, /CHECK=ASSERTION, /CHECK=NOASSERTION, /G_FLOAT, and /NOG_FLOAT
  You can specify some of these options by using the corresponding f90 command-line options. The OPTIONS statement is treated as a comment (ignored).
• CDEC$ performance directives ASSERT and NOVECTOR are treated as comments (ignored).
• The REAL*16 floating-point data type
  On VAX systems, REAL*16 data is in H_float format. On Alpha systems, REAL*16 data is in the native IEEE style X_float; so are both halves (real and imaginary) of COMPLEX*32 data.
• The following subroutines for PDP-11 compatibility:

  ASSIGN CLOSE ERRSET

  ERRTST FDBSET IRAD50

  RAD50 R50ASC USEREX

• Radix-50 constants and character set
• The BLAS routines
  Similar basic linear algebra routines are provided in the Compaq Extended Mathematical Library (CXML) product (see Section 5.1.1).

The following language and VAX architecture features are interpretation differences between Compaq Fortran and Compaq Fortran 77 on Alpha systems and Compaq Fortran 77 on OpenVMS VAX Systems (previously called VAX FORTRAN):

• Random number generator (RAN)
  The RAN function (one argument) generates a different pattern of numbers in Compaq Fortran than in Compaq Fortran 77 on OpenVMS VAX Systems for the same random seed. Compaq Fortran and Compaq Fortran 77 use the same random seed. (The RAN and RANDU functions are provided for Compaq Fortran 77 on OpenVMS VAX Systems compatibility. See Compaq Fortran Language Reference Manual.)
• Hollerith constants in formatted I/O statements
  Compaq Fortran 77 on OpenVMS VAX Systems and Compaq Fortran behave differently if either of the following occurs:
  • Two different I/O statements refer to the same CHARACTER PARAMETER constant as their format specifier. For example:

    CHARACTER*(*) FMT2 PARAMETER (FMT2='(10Habcdefghij)') READ (5, FMT2) WRITE (6, FMT2)

  • Two different I/O statements use the identical character constant as their format specifier. For example:

    READ (5, '(10Habcdefghij)') WRITE (6, '(10Habcdefghij)')


  In Compaq Fortran 77 for OpenVMS VAX Systems, the parameter value obtained by the READ statement is modified. The parameter value modified by the READ statement is used as the output of the WRITE statement (FMT2 is ignored). However, in Compaq Fortran, the parameter value is not modified (the parameter value read by the READ statement has no effect on the parameter value written by the WRITE statement.)

For More Information:

• On language compatibility information about Compaq Fortran for Compaq Tru64 UNIX systems and Compaq Fortran 77, see Section A.2.2.
• On language interpretation differences between Compaq Fortran for Compaq Tru64 UNIX systems and Compaq Fortran 77, see Section A.2.3.
• About the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

When porting data between systems running the Compaq Tru64 UNIX and Linux Alpha operating systems and systems running the OpenVMS operating system, the file formats and the floating-point representations may differ.

The file and record formats of Compaq Fortran 77 on Compaq Tru64 UNIX systems are compatible with Compaq Fortran on Compaq Tru64 UNIX and Linux Alpha systems; they share the same language run-time I/O environment (see Chapter 7).

OpenVMS Fortran¹ files containing only character, integer, or logical data do not need field-by-field conversion, but the record types must match. The segmented record type is the same on OpenVMS Fortran systems and Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha systems. Certain other record types, such as variable-length records, differ between OpenVMS systems and Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha systems.

Table A-2 summarizes the OpenVMS Fortran record types and their equivalent record types in Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha systems.

Table A-2 Equivalent Record Types for OpenVMS Fortran and Compaq Fortran on Compaq Tru64 UNIX or Linux Alpha Systems

OpenVMS Fortran Record Type	Compaq Tru64 UNIX Fortran Record Type	Comments
Fixed-length	None	Equivalent (must be copied correctly) if you use sequential access and you specify the -vms option when compiling the Compaq Fortran file. Otherwise, convert the file to a different record type.
Variable-length	None	Not equivalent. Convert the file to a different record type.
Segmented	Segmented	Equivalent (must be copied correctly). Segmented data files can contain formatted or unformatted data.
Stream	None	Not equivalent. Convert the file to a different record type.
Stream_CR	Stream_CR	Equivalent (must be copied correctly).
Stream_LF	Stream_LF	Equivalent (must be copied correctly).

A.4.2.1 Matching Record Types

To match record types, there are several options:

• For the Segmented, Stream_CR, and Stream_LF record types, you do not need to convert the files.
• For fixed-length records where you will only use sequential access, use the -vms option when compiling the Compaq Fortran program that will access the OpenVMS Fortran files. For fixed-length records where you will use direct access, convert the files to a different record format.
• For incompatible record types, convert the files by writing a OpenVMS Fortran or C conversion program or by using the ANALYZE/RMS/FDL and CONVERT/FDL (or EXCHANGE/FDL) commands for an appropriate file. For instance, convert the OpenVMS Fortran file to the segmented record type.

Equivalent record types must be copied carefully to preserve control information and record characteristics. For example:

• Do not use the ASCII transfer mode for binary files.
• Segmented files must be copied in a manner that preserves record length information.

To transfer (copy) the files, choose one of the following methods:

• From an NFS mounted disk, use the cp command (see cp(1)).
• Perform a DECnet copy from a Compaq Tru64 UNIX or Linux Alpha system running the appropriate optional network software using dcp (see dcp(8)). Use the dcp -i option when you want to preserve record format information.
• Perform a copy from a Compaq Tru64 UNIX or Linux Alpha system with rcp , possibly by using an intermediate node running the appropriate optional network software when using a version of the OpenVMS operating system that does not support a compatible network protocol (optional product).
• Use ftp from a Compaq Tru64 UNIX or Linux Alpha system to copy a file between a Compaq Tru64 UNIX or Linux Alpha system and an OpenVMS system. Use the binary or ascii command to set the mode before you copy (get or put) the file. For example, use the ftp binary command before copying an unformatted file (such as the segmented record type).
• Perform a DECnet copy from an OpenVMS system with the EXCHANGE command with the /NETWORK and /TRANSFER=BLOCK qualifiers with a Compaq Tru64 UNIX system. To convert the file to Stream_LF format during the copy operation, use /TRANSFER=(BLOCK,RECORD_SEPARATOR=LF) instead of /TRANSFER=BLOCK, or specify the /FDL qualifier to the EXCHANGE command to specify the record type.

In addition to using the correct record type and carefully transferring the files, the data inside unformatted records may need to be converted. OpenVMS Fortran data files that contain VAX binary floating-point data must be converted before they can be accessed by a Compaq Fortran program. There are several methods:

• On an OpenVMS system, a Fortran program can convert files containing unformatted data to files containing formatted data. Once the files contain formatted data, they can be read by the appropriate Compaq Fortran programs. However, converting unformatted data to formatted data may result in a loss of accuracy for unformatted floating-point data.
• On an OpenVMS VAX system, a Compaq Fortran 77 program can read and write files containing unformatted data by using the Compaq Fortran conversion capabilities described in DEC Fortran User Manual for OpenVMS VAX Systems.
• On an OpenVMS Alpha system, a Fortran program can read and write files containing unformatted data by using the Compaq Fortran conversion capabilities described in the Compaq Fortran User Manual for OpenVMS Alpha Systems.
  A Compaq Fortran 77 for OpenVMS Alpha Systems program can also use the CVT$CONVERT_FLOAT routine to convert individual floating-point fields.
• On a Compaq Tru64 UNIX or Linux Alpha system, a Compaq Fortran program can read and write files containing unformatted data using the Compaq Fortran conversion capabilities described in Section 10.3. A program using the Compaq Fortran conversion capabilities can also convert such data to other formats.

If you need to convert unformatted floating-point data, keep in mind that Compaq Fortran 77 for OpenVMS VAX programs (VAX hardware) store the following:

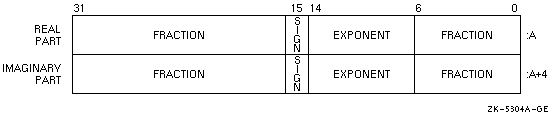

• REAL*4 or COMPLEX*8 data in VAX F_float format

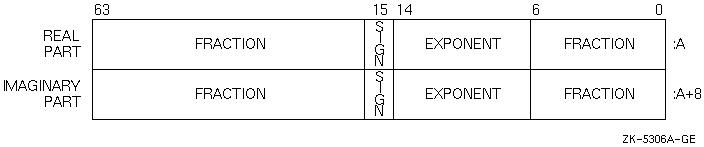

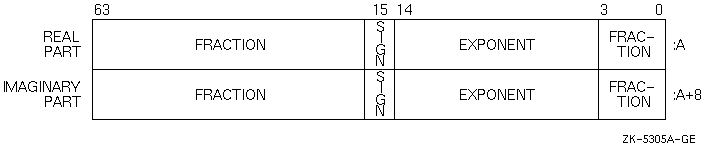

• REAL*8 or COMPLEX*16 data in either VAX D_float or G_float format

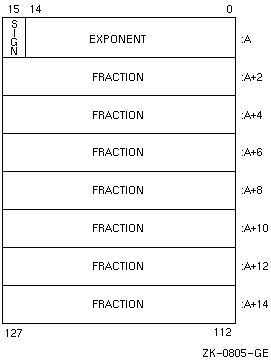

• REAL*16 data in VAX H_float format

In contrast, Compaq Fortran programs running on the Compaq Tru64 UNIX or Linux Alpha operating system on Alpha hardware store the following:

• REAL*4 or COMPLEX*8 data in IEEE S_float format
• REAL*8 or COMPLEX*16 data in IEEE T_float format
• REAL*16 data or COMPLEX*32 data in native (IEEE style) X_float format

Compaq Fortran 77 and Compaq Fortran for OpenVMS Alpha programs store floating-point data in the format specified by the /FLOAT qualifier:

• REAL*4 or COMPLEX*8 data in VAX F_float or IEEE S_float format
• REAL*8 or COMPLEX*16 data in VAX D_float, VAX G_float, or IEEE T_float format
• REAL*16 data or COMPLEX*32 data in native (IEEE style) X_float format

For information on Compaq Fortran data types, see Chapter 9.

For More Information:

• On Compaq Fortran I/O, see Chapter 7.
• About the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

This section provides information about VAX floating-point data formats. You can convert unformatted files from OpenVMS systems by using the methods described in Chapter 10.

On OpenVMS VAX systems, single-precision data (such as REAL*4) is stored in VAX F_float format and double-precision data (such as REAL*8) data can be stored in either VAX D_float or VAX G_float formats, depending on whether the /G_FLOATING qualifier was specified on the FORTRAN command line (see the DEC Fortran User Manual for OpenVMS VAX Systems).

On OpenVMS Alpha systems, you can specify the floating-point format in memory by using the /FLOAT qualifier (see the DEC Fortran User Manual for OpenVMS AXP Systems). Single-precision data on OpenVMS Alpha systems is stored in either VAX F_float or IEEE S_float formats; double-precision data can be stored in VAX D_float, VAX G_float, or IEEE T_float formats.

REAL*16 (extended precision) data is always stored in IEEE style X_float format on Alpha systems.

With VAX floating-point data types, the binary radix point is to the left of the most-significant bit.

A.4.3.1 VAX F_float REAL (KIND=4) or REAL*4

Intrinsic REAL (KIND=4) or REAL*4 F_float data occupies four contiguous bytes. Bits are labeled from the right, 0 through 31, as shown in Figure A-1.

Figure A-1 VAX F_float REAL (KIND=4) or REAL*4 Representation

The form of REAL (KIND=4) or REAL*4 F_float data is sign magnitude, where:

• Bit 15 is the sign bit (0 for positive numbers, 1 for negative numbers).
• Bits 14:7 are a binary exponent in excess 128 notation (binary exponents from --127 to 127 are represented by binary 1 to 255).
• Bits 6:0 and 31:16 are a normalized 24-bit fraction with the redundant most significant fraction bit not represented.

When converting unformatted F_float data from an OpenVMS system, the approximate range is 0.293873588E--38 to 1.7014117E38. The precision is approximately one part in 2**23, typically seven decimal digits.

A.4.3.2 VAX G_float REAL (KIND=8) or REAL*8

Intrinsic REAL (KIND=8) or REAL*8 (same as DOUBLE PRECISION) G_float data occupies eight contiguous bytes. The bits are labeled from the right, 0 through 63, as shown in Figure A-2.

Figure A-2 VAX G_float REAL (KIND=8) or REAL*8 Representation

The form of REAL (KIND=8) or REAL*8 G_float data is sign magnitude, where:

• Bit 15 is the sign bit (0 for positive numbers, 1 for negative numbers).
• Bits 14:4 are a binary exponent in excess 1024 notation (binary exponents from --1023 to 1023 are represented by the binary 1 to 2047).
• Bits 3:0 and 63:16 are a normalized 53-bit fraction with the redundant most significant fraction bit not represented.

When converting unformatted G_float data from an OpenVMS system, the approximate range is 0.5562684646268004D--308 to 0.89884656743115785407D308. The precision of G_float data is approximately one part in 2**52, typically 15 decimal digits.

A.4.3.3 VAX D_float REAL (KIND=8) or REAL*8

Intrinsic REAL (KIND=8) or REAL*8 (same as DOUBLE PRECISION) D_float data occupies eight contiguous bytes. Bits are labeled from the right, 0 through 63, as shown in Figure A-3.

Figure A-3 VAX D_float REAL (KIND=8) or REAL*8 Representation

The form of REAL (KIND=8) or REAL*8 D_float data is identical to an F_float real number, except for an additional 32 low-significance fraction bits. The exponent conventions and approximate range of values are the similar to those for F_float.

When converting unformatted D_float data from an OpenVMS system, the approximate range is 0.2938735877055719D--38 to 1.70141183460469229D38. The precision is approximately one part in 2**55, typically 16 decimal digits.

A.4.3.4 VAX F_float COMPLEX (KIND=4) or COMPLEX*8

Intrinsic COMPLEX (KIND=4) or COMPLEX*8 (single-precision COMPLEX) data in VAX F_float format occupies eight contiguous bytes containing a pair of REAL*4 values. The low-order four bytes contain REAL*4 data that represents the real part of the complex number. The high-order four bytes contain REAL (KIND=4) or REAL*4 data that represents the imaginary part of the complex number. Figure A-4 shows a COMPLEX*8 number in F_float format.

Figure A-4 VAX F_float COMPLEX (KIND=4) or COMPLEX*8 Representation

The limits for REAL (KIND=4) or REAL*4 apply to the two separate real and imaginary parts of a COMPLEX (KIND=4) or COMPLEX*8 number. Like REAL (KIND=4) or REAL*4 numbers, the sign bit representation is 0 (zero) for positive numbers and 1 for negative numbers.

A.4.3.5 VAX G_float and D_float COMPLEX (KIND=8) or COMPLEX*16

Intrinsic COMPLEX (KIND=8) or COMPLEX*16 (same as DOUBLE COMPLEX) data occupies 16 contiguous bytes containing a pair of REAL*8 or REAL (KIND=8) values. COMPLEX (KIND=8) or COMPLEX*16 data from an OpenVMS system is in one of the following REAL*8 or REAL (KIND=8) formats:

• VAX G_float format
• VAX D_float format

The low-order eight bytes contain REAL (KIND=8) or REAL*8 data that represents the real part of the complex data. The high-order eight bytes contain REAL (KIND=8) or REAL*8 data that represents the imaginary part of the complex data, as shown in Figure A-5 (for G_float) and Figure A-6 (for D_float).

Figure A-5 VAX G_float COMPLEX (KIND=8) or COMPLEX*16 Representation

Figure A-6 VAX D_float COMPLEX (KIND=8) or COMPLEX*16 Representation

The limits for REAL (KIND=8) or REAL*8 apply to the two separate real and imaginary parts of a COMPLEX (KIND=8) or COMPLEX*16 number. Like REAL (KIND=8) or REAL*8 numbers, the sign bit representation is 0 (zero) for positive numbers and 1 for negative numbers.

A.4.3.6 VAX H_float Representation

The REAL (KIND=16) or REAL*16 VAX H_float data format is used only on OpenVMS VAX systems. On Alpha systems, REAL (KIND=16) extended precision data is always stored in Alpha X_float format.

With VAX floating-point data types, the binary radix point is to the left of the most-significant bit.

As shown in Figure A-7, REAL*16 H_float data is 16 contiguous bytes starting on an arbitrary byte boundary. The bits are labeled from the right, 0 through 127.

Figure A-7 VAX H_float REAL*16 Representation (VAX Systems)

The form of an H_float REAL*16 data is sign magnitude with bit 15 the sign bit, bits 14:0 an excess 16384 binary exponent, and bits 127:16 a normalized 113-bit fraction with the redundant most significant fraction bit not represented.

The value of H_float data is in the approximate range 0.84*10**--4932 through 0.59*10**4932. The precision of H_float data is approximately one part in 2**112 or typically 33 decimal digits.

For More Information:

• On converting unformatted data files, see Chapter 10.
• On native floating-point ranges, see Table 9-1.

A.5 Calling Between Compaq Fortran 77 and Compaq Fortran

On Compaq Tru64 UNIX systems, you can call a Compaq Fortran 77 subprogram from Compaq Fortran or call a Compaq Fortran subprogram from Compaq Fortran 77 (with a few exceptions). A Compaq Fortran 77 procedure and a Compaq Fortran procedure can also perform I/O to the same unit number.

A.5.1 Argument Passing and Function Return Values

The recommended rules for passing arguments and function return values between Compaq Fortran 77 and Compaq Fortran procedures are as follows:

• If possible, express the following Compaq Fortran features with the Compaq Fortran 77 language:
  • Function references
  • CALL statements
  • Function definitions
  • Subroutine definitions

  Avoid using Compaq Fortran language features not available in Compaq Fortran 77. Since Compaq Fortran is a superset of Compaq Fortran 77, specifying the procedure interface using the Compaq Fortran 77 language helps ensure that calls between the two languages will succeed.
• Not all data types in Compaq Fortran have equivalent Compaq Fortran 77 data types. The following Compaq Fortran features should not be used between Compaq Fortran and Compaq Fortran 77 procedures, because they are not supported by Compaq Fortran 77:
  • COMPLEX*32 data
  • Derived-type (user-defined) data, which has no equivalent in Compaq Fortran 77.
  • Compaq Fortran data with the POINTER attribute, which has no equivalent in Compaq Fortran 77. The pointer data type supported by Compaq Fortran 77 is not equivalent to Compaq Fortran pointer data.
    Because Compaq Fortran supports the pointer data type supported by Compaq Fortran 77, you can use Compaq Fortran 77 pointer data types in both Compaq Fortran and Compaq Fortran 77. (In some cases, you can create Compaq Fortran 77 pointer data in a Compaq Fortran procedure using the %LOC function.)
    Compaq Fortran arrays with the POINTER attribute are passed by array descriptor. A program written in Compaq Fortran 77 needs to interpret the array descriptor format generated by a Compaq Fortran 90 array with the POINTER attribute (see Section 11.1.7).
  • Compaq Fortran assumed-shape arrays.
    Compaq Fortran assumed-shape arrays are passed by array descriptor. A program written in Compaq Fortran 77 needs to interpret the array descriptor format generated by a Compaq Fortran assumed-shape array (see Section 11.1.7).

  You can use Compaq Fortran record structures, which are supported by Compaq Fortran 77 and Compaq Fortran as an extension to the Fortran 95/90 standards.
  For more information on how Compaq Fortran handles arguments and function return values, see Section 11.1.4.
• Make sure the sizes of INTEGER, LOGICAL, REAL, and COMPLEX declarations match.
  For example, Compaq Fortran declarations of REAL (KIND=4) and INTEGER (KIND=4) match Compaq Fortran 77 declarations of REAL*4 and INTEGER*4. For COMPLEX values, a Compaq Fortran declaration of COMPLEX (KIND=4) matches a Compaq Fortran 77 declaration of COMPLEX*8; COMPLEX (KIND=8) matches COMPLEX*16. Compaq Fortran 77 does not have COMPLEX*32 declarations.
  Your source programs may contain INTEGER, LOGICAL, REAL, or COMPLEX declarations without a kind parameter (or size specifier). In this case, when compiling the Compaq Fortran procedures ( f90 command) and Compaq Fortran 77 procedures ( f77 command), either omit the options or specify the equivalent options for controlling the sizes of these declarations.
  For more information on these options (the same for f90 and f77 ), see Section 3.53 for INTEGER and LOGICAL declarations, Section 3.78 for REAL and COMPLEX declarations, and Section 3.34 for DOUBLE PRECISION declarations.
• Compaq Fortran uses the same argument-passing conventions as Compaq Fortran 77 on Compaq Tru64 UNIX systems (see Section 11.1.4).
• You can return nearly all function return values from a Compaq Fortran function to a calling Compaq Fortran 77 routine, with the following exceptions:
  • You cannot return Compaq Fortran pointer data from Compaq Fortran to a Compaq Fortran 77 calling routine.
  • You cannot return Compaq Fortran user-defined data types from a Compaq Fortran function to a Compaq Fortran 77 calling routine.

Example A-1 and Example A-2 show passing an array from a Compaq Fortran program to a Compaq Fortran 77 subroutine that prints its value.

Example A-1 shows the Compaq Fortran program (file array_to_f77.f90 ). It passes the same argument as a target and a pointer. In both cases, it is received by reference by the Compaq Fortran 77 subroutine as a target (regular) argument. The interface block in Example A-1 is not needed, but does allow data type checking.

Example A-1 Compaq Fortran Program Calling a Compaq Fortran 77 Subroutine

! Pass arrays to f77 routine. File: array_to_f77.f90 ! this interface block is not required, but must agree ! with actual procedure. It can be used for type checking. interface ! Procedure interface block subroutine meg(a) integer :: a(3) end subroutine end interface integer, target :: x(3) integer, pointer :: xp(:) x = (/ 1,2,3 /) xp => x call meg(x) ! Call f77 subroutine twice. call meg(xp) end

Example A-2 shows the Compaq Fortran 77 subprogram called by the Compaq Fortran program (file array_f77.f ).

Example A-2 Compaq Fortran 77 Subroutine Called by a Compaq Fortran Program

! Get array argument from F90. File: array_f77.f subroutine meg(a) integer a(3) print *,a end

These files (shown in Example A-1 and Example A-2) might be compiled, linked, and run as follows:

% f77 -c array_f77.f % f90 -o array_to_f77 array_to_f77.f90 array_f77.o % array_to_f77 1 2 3 1 2 3

In Example A-1, because array a is not defined as a pointer in the interface block, the Compaq Fortran pointer variable xp is passed as target data by reference (address of the target data).

However, if the interface to the dummy argument had the POINTER attribute, the variable xp would be passed by descriptor. This descriptor would not work with the Compaq Fortran 77 program shown in Example A-2.

For More Information:

• On how Compaq Fortran handles arguments and function return values, see Section 11.1.4.
• On explicit interfaces, see the Compaq Fortran Language Reference Manual.
• On compatibility between the Compaq Fortran and Compaq Fortran 77 languages, see Appendix A.
• On other aspects of the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.

To make global data available across Compaq Fortran and Compaq Fortran 77 procedures, use common blocks.

Common blocks are supported by both Compaq Fortran 77 and Compaq Fortran, but modules are not supported by Compaq Fortran 77. Some suggestions about using common blocks follow:

• Use the same COMMON statement to ensure that the data items match in order, type, and size.
  If multiple Compaq Fortran procedures will use the same common block, declare the data in a module and reference that module with a USE statement where needed.
  If Compaq Fortran 77 procedures use the same common block as the Compaq Fortran procedures and the common block is declared in a module, consider modifying the Compaq Fortran 77 source code as follows:
  • Replace the common block declaration with the appropriate USE statement.
  • Recompile the Compaq Fortran 77 source code with the f90 command.
• Specify the same alignment characteristics with the -align option when compiling both Compaq Fortran procedures ( f90 command) and Compaq Fortran 77 procedures ( f77 command).
  When compiling the source files with more than one f90 or f77 command, consistently use the -align dcommons or -align commons option. This naturally aligns data items in a common block and ensures consistent format of the common block.
• Make sure the sizes of INTEGER, LOGICAL, REAL, and COMPLEX declarations match.
  For example, Compaq Fortran declarations of REAL (KIND=4) and INTEGER (KIND=4) match Compaq Fortran 77 declarations of REAL*4 and INTEGER*4. For COMPLEX values, a Compaq Fortran declaration of COMPLEX (KIND=4) matches a Compaq Fortran 77 declaration of COMPLEX*8; COMPLEX (KIND=8) matches COMPLEX*16. Fortran 77 does not have COMPLEX*32 data.
  Your source programs may contain INTEGER, LOGICAL, REAL, or COMPLEX declarations without a kind parameter or size specifier. In this case, either omit or specify the same options that control the sizes of these declarations when compiling the procedures with multiple commands (same rules as Section A.5.1).

Compaq Fortran and Compaq Fortran 77 share the same run-time system, so you can perform I/O to the same unit number with Compaq Fortran and Compaq Fortran 77 procedures. For instance, a Compaq Fortran main program can open the file, a Compaq Fortran 77 function can issue READ or WRITE statements to the same unit, and the Compaq Fortran main program can close the file.

For More Information:

• On the Compaq Fortran language, see the Compaq Fortran Language Reference Manual.
• On passing arguments, function return values, and the contents of registers on Compaq Tru64 UNIX systems, see the Compaq Tru64 UNIX Calling Standard for Alpha Systems.
• On Compaq Fortran intrinsic data types, see Chapter 9.
• On Compaq Fortran I/O, see Chapter 7.
