This section describes how to upgrade a PATHWORKS LAN Manager server using the Upgrade utility. There are several different ways to complete the upgrade. Chapter 3, Changing Server Roles and Domain Names, describes the most common scenarios. In some cases, you need to modify the existing PATHWORKS LAN Manager environment before you can run the Upgrade utility, to preserve the existing database or to avoid a conflict in server roles.

After you have completed the steps described in Chapter 3, Changing Server Roles and Domain Names, you can use the Upgrade utility as described in the following sections:

• The Order for Upgrading Server Information --- describes the order in which you must upgrade servers.
• How the Upgrade Utility Works --- describes the Upgrade utility and how it works.
• Navigating the Upgrade Utility --- describes how to navigate with the Upgrade utility.
• Upgrading a Primary Domain Controller --- describes how to upgrade the PDC.
• Upgrading a Backup Domain Controller, Member Server, or Standalone Server --- describes how to upgrade a BDC, member server, or standalone server.
• Troubleshooting --- describes how to troubleshoot problems that may occur during the upgrade.

The order in which you upgrade servers is important for several reasons:

• When you upgrade a domain with only PATHWORKS LAN Manager servers, you must upgrade the PDC first.
• When upgrading a BDC, member server, or standalone server, the PDC in the domain must already be running PATHWORKS Advanced Server or Windows NT Server software.

Therefore, you must upgrade servers in the following order:

1. PDC
2. BDC, member server, or standalone server

All nodes in an OpenVMS cluster have the same role: PDC or BDC. OpenVMS clusters are upgraded in the same manner as other servers. If all the nodes in the cluster are running PATHOWRKS LAN Manager, they will be upgraded together. If the cluster is a BDC, then upgrade the PDC first.

You can run the Upgrade utility on any member of the cluster regardless of whether the PATHWORKS LAN Manager server is running on that node. However, the node must have access to the PATHWORKS on-disk structure and the shared resources. You only need to run the Upgrade utility once. You need not run it on all nodes in the cluster that are running PATHWORKS LAN Manager.

5.3 How the Upgrade Utility Works

The PATHWORKS Advanced Server kit provides an Upgrade utility that lets you establish a domain for the server and upgrade server information. The first time you run the Upgrade utility, the system lets you create PATHWORKS Advanced Server security account manager (SAM) database files and identify the domain for the server you are upgrading. See Appendix A, Files Created by the Upgrade Utility, in this guide.

The Upgrade utility then lets you generate upgrade reports that show the PATHWORKS LAN Manager server objects that will be upgraded to PATHWORKS Advanced Server objects. You can then review the reports and identify and resolve conflicts to ensure a smooth and complete upgrade. Once the upgrade reports accurately reflect your desired environment, the Upgrade utility allows you to upgrade objects one at a time or all at once.

The Upgrade utility creates reports for the following objects:

• Users and Groups --- The User Upgrade report is used as input to the Group report. Therefore, you must create and edit the user report prior to the group report. When you upgrade users and groups, the Upgrade utility takes each user and group from the PATHWORKS LAN Manager user and groups database, ACCOUNTS.LMX, and moves them into the PATHWORKS Advanced Server SAM database. The reports are not deleted after the upgrade is completed. You can create reports, exit the Upgrade utility, and run Upgrade again to continue.

  Note The upgrade process preserves passwords set with PATHWORKS LAN Manager.


  When two domains are being merged, if two users have the same username, you must give one of the users a new username.
• Shares --- The Shares upgrade upgrades PATHWORKS LAN Manager shares to PATHWORKS Advanced Server shares. When you upgrade shares, the Upgrade utility takes each share from the PATHWORKS LAN Manager share database and moves it into the PATHWORKS Advanced Server share database.
• Miscellaneous (security parameters) --- The miscellaneous option upgrades security ACLs on devices such as printers and CD-ROM drives, and the security policy information (password length, age, and so forth.) You do not need to create a report for Miscellaneous.
• Security (on disk) --- When you upgrade security, the Upgrade utility reads the PATHWORKS LAN Manager Access Control Lists (ACLs), creates a security descriptor, and writes it to the Advanced Server ACL. There are two ways to upgrade security, as described in Section 5.3.1, About Upgrading Security, in this guide.

Before upgrading security on files, you must upgrade all users and groups. Otherwise, the security access control entries (ACEs) that belong to these users and groups will not be upgraded.

There are two ways to upgrade security:

• Use the Upgrade utility as described in Section 5.5, Upgrading a Primary Domain Controller and Section 5.6, Upgrading a Backup Domain Controller, Member Server, or Standalone Server , in this guide. From the Select V5 Objects to Upgrade screen, select Security.
• Allow the PATHWORKS Advanced Server to dynamically upgrade file security the first time a user accesses or references the file after starting the PATHWORKS Advanced Server.

Digital Equipment Corporation recommends that you use the Upgrade utility to upgrade security on files because this procedure provides greater control and definition. This allows you to upgrade while the PATHWORKS LAN Manager server is running. However, if a file is open during the upgrade process, the file may not be upgraded. You can enable dynamic security upgrade, to upgrade remaining files dynamically after you complete the upgrade procedure. Files are upgraded when users make connections to them. Note that dynamic security upgrade slows the performance of the server so it is not recommended as a permanent setting. Dynamic security upgrade is disabled by default. To enable dynamic security, use the PATHWORKS Configuration Manager. Refer to the PATHWORKS for OpenVMS (Advanced Server) Server Administrator's Guide for more information about how to use the Configuration Manager.

The following sections describe the differences between PATHWORKS LAN Manager and Advanced Server permissions. The PATHWORKS Advanced Server security upgrade is designed to preserve access to the PATHWORKS LAN Manager environment. While LAN Manager access can be mapped directly to the PATHWORKS Advanced Server security model, there are some differences. These differences are described in the following sections.

5.3.1.1 Administrator Privilege

The PATHWORKS Advanced Server security upgrade process is designed to preserve the behavior of users with Administrative privilege or their right to have full access to all files accessible in the PATHWORKS LAN Manager environment. The Upgrade utility will grant full access to the ADMIN user and the local Administrators group for any file that has a PATHWORKS LAN Manager security ACE. By doing so, the access to these files is preserved.

5.3.1.2 Permissions Set on Root Device ACLs

The PATHWORKS Advanced Server security upgrade process upgrades all security ACLs on an object. However the access control information set on the parent directory is not propagated to the object with the upgrade. Users may lose access to files they had access to when running PATHWORKS LAN Manager.

With PATHWORKS Advanced Server, the object's parent directory is checked:

• when the object does not have an access control list
• to ensure no explicit deny access entry is specified

The PATHWORKS Advanced Server security upgrade process does not upgrade a group deny-all ACE. With PATHWORKS LAN Manager, if a user was denied access through a deny-all ACE, the user may gain access to a file if another ACE in the ACL grants access. With PATHWORKS Advanced Server, access is denied when any deny ACE is found.

If you used a deny-all ACE to control access to resources in PATHWORKS LAN Manager, you must reapply these ACEs to individual objects.

5.3.1.5 Full Access and Child Delete Permissions

With PATHWORKS LAN Manager, if a user has full access to a directory, and has no access to a file in the directory, the user cannot delete this file. With PATHWORKS Advanced Server, a user with full access to the directory also is granted a new access right called Child-delete. This new access right allows the user to delete any file in the directory and disregards the access setting on the file.

5.3.1.6 Change Attribute (A) and Create (C) Permission Bits

The PATHWORKS Advanced Server security upgrade process does not upgrade the PATHWORKS LAN Manager "Change Attribute" (A) permission. Any Change Attribute operation will be successful regardless of the file or directory permissions.

The PATHWORKS Advanced Server security upgrade process upgrades the PATHWORKS LAN Manager Create (C) permission to the PATHWORKS Advanced Server Write permission. If you use Create permission to control access to a directory, be sure to check these resources after the upgrade, to ensure that the new permission does not cause a security problem.

5.3.1.7 Printer permission "C" and "P"

The PATHWORKS Advanced Server security upgrade will upgrade printer permissions as shown in the following table.

LAN Manager	PATHWORKS Advanced Server Equivalent	Description/Differences
C=Y (Yes)	Print	User can access and send jobs to the printer queue.
C=N (No)	None	User cannot access or send jobs to the printer queue.
None	Manage Documents	User can control settings for print queues and pause, resume, restart, and delete print jobs; applies only to PATHWORKS Advanced Server
P (Yes+Change Permissions)	Full	Users can access and send jobs to the printer queue; manage print jobs; control settings for, set access permissions for, and change properties of the printer queue.

5.4 Navigating the Upgrade Utility

The following table describes how to navigate with the Upgrade utility. You can use either the keyboard or the mouse.

Table 5-1 Navigating the Upgrade Utility

To do this....	Select...
Select an option	Do one of the following: Select the option with the mouse. Use the Tab or arrow keys to highlight the option, and press the space bar to select it. Press an accelerator key.
Move between options	Use the Tab or arrow keys.
Enter information in a field	Do one of the following: Select the field and type the information. Move to the field using the Tab or arrow keys and type the information.
Advance to the next screen	Select the Continue Button and press Enter or Return.
Return to the previous screen	Select the Back Button and press Enter or Return.
Exit from the Upgrade utility	Select the Exit Button and press Enter or Return.
Get information about the utility	Select the Help Button and press Enter or Return.

5.5 Upgrading a Primary Domain Controller

This table lists the steps for upgrading a Primary Domain Controller (PDC).

The sections following this table describe each step in detail.

Table 5-2 Steps for Upgrading a Primary Domain Controller

Step	Section
1.	Step 1: Enter Domain Information (Optional).
2.	Step 2: Enter PDC Information.
3.	Step 3: Log On to the PDC and Create SAM Database Files.
4.	Step 4: Select Objects to Upgrade.
5.	Step 5: Create and Edit Upgrade Reports for Selected Objects, including: Users and groups Shares Security
6.	Step 6: Start and Track the Upgrade.

5.5.1 Start the Upgrade Utility

Install the Upgrade utility, as described in Chapter 4, Installing the Upgrade Utility, in this guide.

Then, start the Upgrade utility as follows:

1. From the OpenVMS account, change the default directory to SYS$UPDATE:

   $ SET DEFAULT SYS$UPDATE

2. At the system prompt, enter:

   $ @PWRK$V6UPGRADE


   The system then displays transport messages and prompts you for the role of the server you are upgrading. For example:

   Will this server be upgraded as a BDC? [no]

3. Enter No or press Return if you are upgrading the PDC. The destination may be either a PDC or a BDC.
   If you are upgrading a BDC, member server, or standalone server, refer to Section 5.6, Upgrading a Backup Domain Controller, Member Server, or Standalone Server , in this guide.

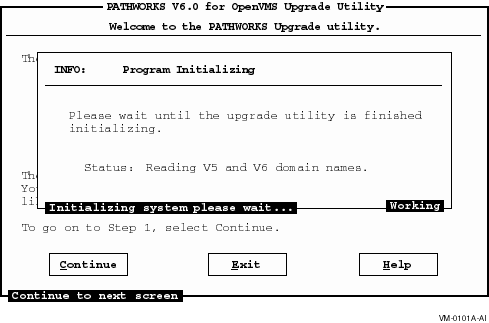

   The system displays the Program Initialization Dialog Box as shown in the following figure.

   Figure 5-1 Program Initialization Dialog Box

   ---


   When the program finishes initializing, the Upgrade utility displays the Main screen as shown in the following figure.

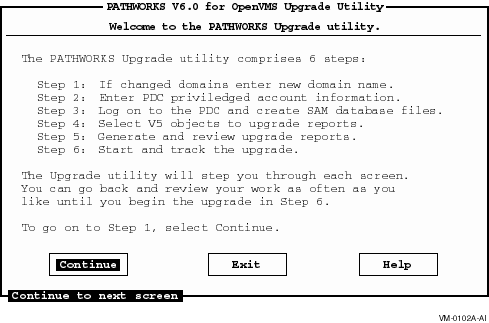

   Figure 5-2 Main Screen

   ---


4. Select the Continue button to go to the Domain Information screen.

If you are not changing domains, select the Continue button to advance to the Primary Domain Controller Information screen.

The Domain Information screen allows you to change the domains.

To change the domain information, follow these steps:

1. From the Main screen, select the Continue button. The Upgrade utility displays the Domain Information screen as shown in the following figure.

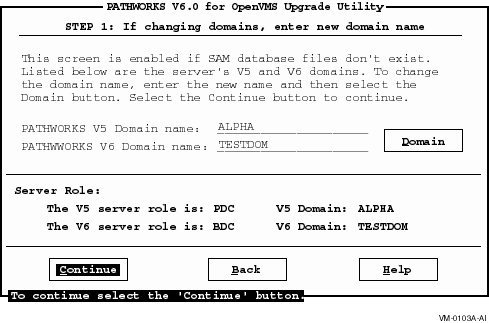

   Figure 5-3 Domain Information Screen

   ---


2. Enter the domain name for the PATHWORKS LAN Manager Server after PATHWORKS V5 Domain Name.
3. Enter the domain name for the PATHWORKS Advanced Server after PATHWORKS V6 Domain Name.
4. Select Continue to advance to the Primary Domain Controller Information screen. Or, if you are changing domains, select the Domain button.
5. The system prompts you to confirm the domain name.
6. Select OK to confirm the name change and the system returns you to the Domain Information screen.
7. Select the Continue button to advance to the next screen.

If you are upgrading a BDC, the Primary Domain Controller Information screen allows you to enter PDC information, as shown in the following figure. If you are upgrading a PDC, this screen is disabled.

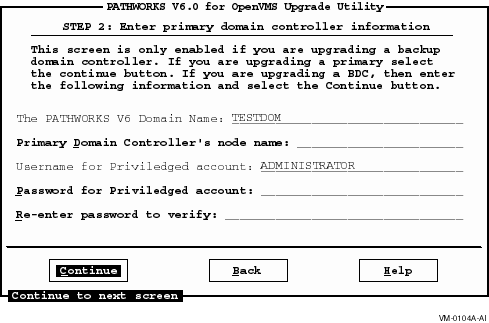

Figure 5-4 Primary Domain Controller Information Screen

Select the Continue button to proceed to Section 5.5.4, Step 3: Log On to the PDC and Create SAM Database Files.

5.5.4 Step 3: Log On to the PDC and Create SAM Database Files

The Log On to PDC and Create SAM Database Files screen allows you to create SAM database files. To create the SAM database files, follow these steps:

1. From the Primary Domain Controller information screen, select the Continue button. The system displays the Log on to PDC and Create SAM Database Files screen shown in the following figure.

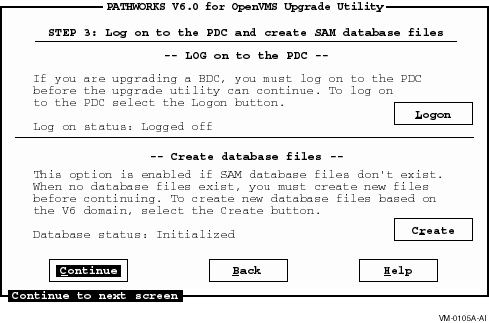

   Figure 5-5 Log On to the PDC and Create Database Files Screen

   ---


2. Select the Create button to create the SAM database files. The system displays the Program Initialization dialog box and creates and initializes the database files. (You only need to do this once.)

Now you are ready to upgrade users, groups, and other server upgrade objects. Begin by creating upgrade reports on each object and resolving conflicts in the upgrade reports.

5.5.5 Step 4: Select Objects to Upgrade

To select objects to upgrade, follow these steps:

1. From the Log On to PDC and Create SAM Database Files screen, select the Continue button. The Upgrade utility displays the Select V5 Objects to Upgrade screen as shown in the following figure.

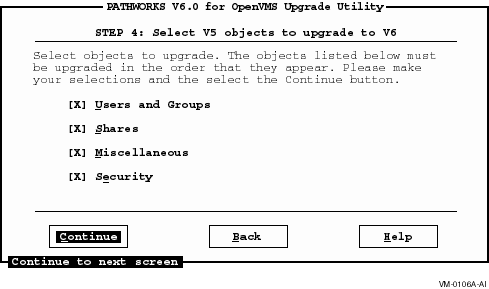

   Figure 5-6 Select V5 Objects to Upgrade Screen

   ---


2. Select the check boxes next to the objects that you want to upgrade. You can upgrade them one at a time or all at once.
3. Select the Continue button to advance to the next screen.

This section describes how to create and edit upgrade reports for selected objects including:

• Users and groups
• Shares
• Security

To create and edit the User Upgrade report, follow these steps:

1. Select Users and Groups on the Select V5 Objects to Upgrade to V6 screen.
2. Select the Continue button. The Upgrade utility displays the Generate Upgrade Reports screen as shown in the following figure.

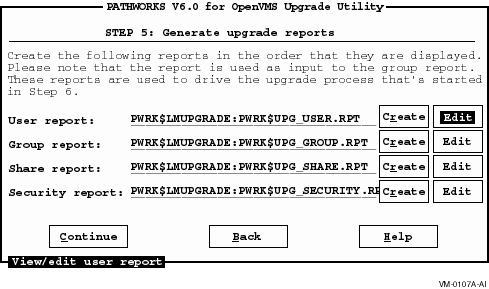

   Figure 5-7 Generate Upgrade Reports Screen

   ---


3. Select the Create button next to User report. The Upgrade utility creates the User report.
4. Select the Edit button next to User report.
   The system prompts you to select an editor to edit the report as shown in the following figure.

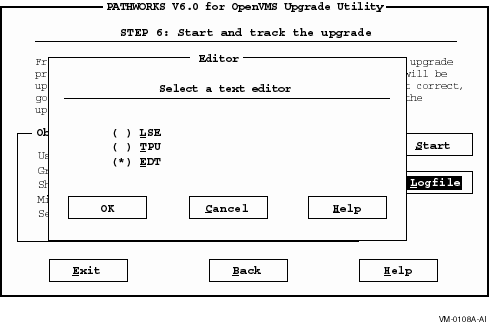

   Figure 5-8 Select a Text Editor Dialog Box

   ---


   The Select a Text Editor dialog box shows a list of the text editors available on the system.
5. Select the editor you wish to use.
6. Select the OK button. The User report is displayed as shown in the following figure.

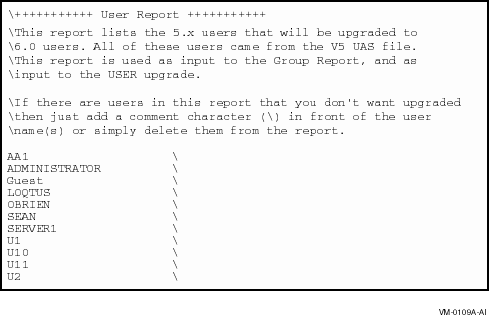

Figure 5-9 User Report Screen

The User report lists the PATHWORKS LAN Manager users that will be upgraded to PATHWORKS Advanced Server users. If there are users in the report that you do not want upgraded, type a backslash (\) in front of the user name or delete the name. Refer to Appendix B, Resolving Log File Error Messages, in this guide for more information about how to edit User reports.

After you finish editing the User report, exit the editor and the system returns you to Step 5: Generate Upgrade Reports screen. Now you can create and edit the Group report.
