This manual provides an overview of high-level programming with open network computing remote procedure calls (ONC RPC), describes how to use the RPCGEN protocol compiler to create applications, and describes the RPC programming interface.
This manual assumes a knowledge of network theory and is for experienced programmers who want to write network applications using ONC RPC without needing to know about the underlying network.
This manual contains eight chapters:
| Chapter 1 |
Provides an overview of high-level programming through remote procedure
calls (RPC), and discusses the RPC model and versions, external data
representation, and RPC independence from network transport protocol.
This chapter is for anyone interested in ONC RPC. |
| Chapter 2 |
Describes how to write RPC client and server applications with the
RPCGEN protocol compiler. It also provides some information on RPCGEN,
client and server programming, debugging applications, the C
preprocessor, and RPC language syntax. This chapter also describes how
to create routines for external data representation (XDR).
This chapter is for programmers who want to use RPCGEN to write RPC-based network applications. |
| Chapter 3 |
Describes the RPC programming interface layers, XDR serialization
defaults, raw RPC, and miscellaneous RPC features.
This chapter is for programmers who need to understand RPC mechanisms to write customized network applications. |
| Chapter 4 |
Contains information about the XDR library.
This chapter is for programmers who want to implement RPC and XDR on new systems. |
| Chapter 5 | Contains descriptions of each of the RPC subroutine calls commonly used by client programs. |
| Chapter 6 | Contains descriptions of each of the RPC subroutine calls used by both client and server programs to access the Portmapper service. |
| Chapter 7 | Contains descriptions of each of the RPC subroutine calls commonly used by client programs. |
| Chapter 8 | Contains descriptions of each of the XDR subroutine calls. |
You might find these documents useful:
For a complete list of all manuals in the DIGITAL TCP/IP Services for OpenVMS documentation set, see the Digital TCP/IP Services for OpenVMS Concepts and Planning guide.
For additional information about DIGITAL TCP/IP Services for OpenVMS products and services, access the DIGITAL OpenVMS World Wide Web site. Use the following URL:
http://www.openvms.digital.com
This manual uses the following terminology:
The following acronyms are used throughout this book:
| BIND | Berkeley Internet Name Domain |
| FTP | File Transfer Protocol |
| SNMP | Simple Network Management Protocol |
| SMTP | Simple Mail Transfer Protocol |
| TCP/IP | Transmission Control Protocol/Internet Protocol |
| UCX | Digital TCP/IP Services for OpenVMS |
| UDP | User Datagram Protocol |
See Appendix A for a full listing of Digital TCP/IP Services for OpenVMS acronyms.
The name of OpenVMS AXP has been changed to OpenVMS Alpha. Any references to OpenVMS AXP or AXP are synonymous with OpenVMS Alpha or Alpha. All IP addresses in this book represent fictitious addresses. The following conventions apply to this book.
| Convention | Meaning |
|---|---|
| UPPERCASE TEXT | Indicates names of OpenVMS and UCX commands, options, utilities, files, directories, hosts, and users. |
| lowercase special type | Indicates UNIX system output or user input, commands, options, files, directories, utilities, hosts, and users. |
| italic type | Indicates a variable. |
| [Return] | Indicates that you press the Return key. |
| [Ctrl/] x | Indicates that you press the Control key while you press the key noted by x. |
| [ ] | In command format descriptions, indicates optional elements. The elements are separated by vertical bars (|). You can enter as many as you want. |
| { } | In command format descriptions, indicates you must enter at least one listed element. The elements are separated by bars (|). |
DIGITAL welcomes your comments on this manual or any of the DIGITAL TCP/IP Services for OpenVMS documents. Send us your comments through any of the following channels:
| Internet | openvmsdoc@zko.mts.dec.com |
| Fax | 603 884-0120, Attention: OSSG Documentation, ZKO3-4/U08 |
|
OSSG Documentation Group, ZKO3-4/U08
110 Spit Brook Rd. Nashua, NH 03062-2698 |
Use the following table to order additional documentation or information. If you need help deciding which documentation best meets your needs, call 800-DIGITAL (800-344-4825).
| Location | Call | Fax | Write |
|---|---|---|---|
| U.S.A. |
DECdirect
800-DIGITAL 800-344-4825 |
Fax: 800-234-2298 |
Digital Equipment Corporation
Mailstop: TAY2-2/11D 153 Taylor Street Littleton, MA 01460 |
| Puerto Rico | 787-781-0505 | Fax: 787-749-8300 | Local DIGITAL subsidiary |
| Canada |
DTN: 621-6005
800-DIGITAL |
Fax: 613-592-1946 |
Digital Equipment of Canada, Ltd.
Box 13000 Kanata, Ontario, Canada K2K2A6 Attn: CICC |
| International | --- | --- |
Local DIGITAL subsidiary or
approved distributor |
| Internal Orders |
DTN: 261-2010
603-791-2010 |
Fax: 800-741-6970 |
U.S. Software Supply Business
Digital Equipment Corporation 8 Cotton Road Nashua, NH 03063-1260 |
High-level programming through open network computing remote procedure calls (ONC RPC) provides logical client-to-server communication for network application development---without the need to program most of the interface to the underlying network. With RPC, the client makes a remote procedure call that sends requests to the server, which calls a dispatch routine, performs the requested service, and sends back a reply before the call returns to the client.
RPC does not require the client to be knowledgeable about the
underlying network. For example, a program can simply call a local C
routine that returns the number of users on a remote system much like
making a system call. You can make remote procedure calls between
different processes on the same system.
1.2 The RPC Model
The remote procedure call model is similar to that of the local model, which works as follows:

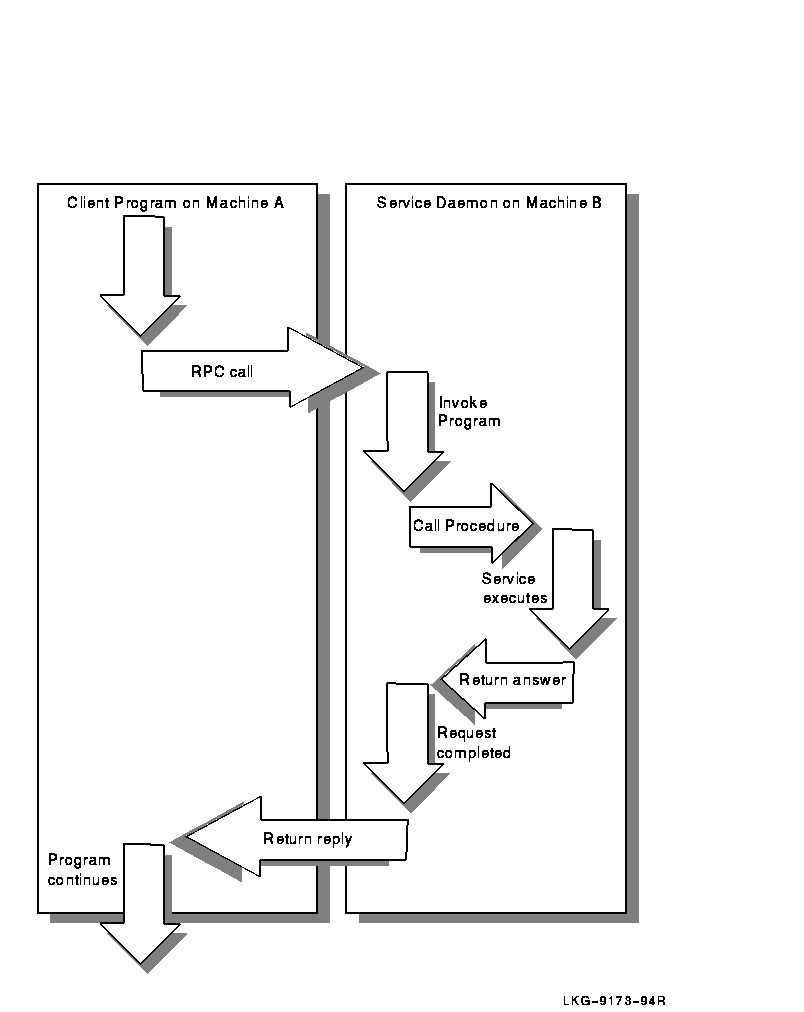

As Figure 1-1 shows, the remote procedure call is similar to the local model, in that one thread of control logically winds through two processes---that of the client (caller) and that of the server:
On the server side, a process is dormant---awaiting the arrival of a call message. When one arrives, the server process computes a reply that it then sends back to the requesting client. After this, the server process becomes dormant again.
Figure 1-1 shows a synchronous RPC call, in which only one of the two processes is active at a given time. The remote procedure call hides the details of the network transport. However, the RPC protocol does not restrict the concurrency model. For example, RPC calls may be asynchronous so the client can do another task while waiting for the reply from the server. Another possibility is that the server could create a task to process a certain type of request automatically, freeing it to service other requests. Although RPC provides a way to avoid programming the underlying network transport, it still allows this where necessary.
Figure 1-1 Basic Network Communication with Remote Procedure Call
1.3 RPC Procedure Versions
Each RPC procedure is defined uniquely by program and procedure
numbers. The program number specifies a group of related remote
procedures, each of which has a different procedure number. Each
program also has a version number so, when a minor change is made to a
remote service (adding a new procedure, for example), a new program
number does not have to be assigned. When you want to call a procedure
to find the number of remote users, you must know the appropriate
program, version, and procedure numbers to use to contact the service.
You can find this information in several places. On UNIX systems, the
/etc/rpc file lists some RPC programs and the RPCINFO command
lists the registered RPC programs and corresponding version numbers
running on a particular system. On OpenVMS systems, the UCX SHOW
PORTMAPPER command serves the same purpose as the RPCINFO command.
Typically, a service provides a protocol description so you can write
client applications that call the service. The RPC Administrator at Sun
Microsystems, Inc. has a list of programs that have been registered
with Sun (that is, have received port numbers from them), but you can
write your own local RPC programs. Knowing the program and procedure
numbers is useful only if the program is running on a system to which
you have access.
1.4 Using Portmapper to Determine the Destination Port Number of RPC Packets
The UCX software starts the Portmapper network service when it receives the first network request for the Portmapper port. Interaction between RPC programs and the Portmapper occurs as follows:
Refer to the Digital TCP/IP Services for OpenVMS Management manual for more information about the
Portmapper service.
1.4.1 Portmapper Notes for UCX
The Portmapper service on UCX differs from Portmapper software on other hosts in the following ways:
You can display current RPC registration information known to the
Portmapper program. On UNIX systems use the rpcinfo command.
On OpenVMS systems use the UCX SHOW PORTMAPPER command. The
rpcinfo or UCX SHOW PORTMAPPER commands can also find the RPC
services registered on a specific host and report their port numbers
and the transports for which the services are registered. For more
information, see the Digital TCP/IP Services for OpenVMS Management manual.
1.5 RPC Independence from Transport Protocol
The RPC protocol is concerned only with the specification and interpretation of messages; it is independent of transport protocols because it needs no information on how a message is passed among processes.
Also, RPC does not implement any kind of reliability; the application itself must be aware of the transport protocol type underlying RPC. With a reliable transport, such as TCP/IP, the application need not do much else. However, an application must use its own retransmission and timeout policy if it is running on top of an unreliable transport, such as UDP/IP.
Because of transport independence, the RPC protocol does not actively interpret anything about remote procedures or their execution. Instead, the application infers required information from the underlying protocol (where such information should be specified explicitly). For example, if RPC is running on top of an unreliable transport (such as UDP/IP) and the application retransmits RPC messages after short timeouts, and if the application receives no reply, then it can infer only that a certain procedure was executed zero or more times. If it receives a reply, then the application infers that the procedure was executed at least once.
With a reliable transport, such as TCP/IP, the application can infer from a reply message that the procedure was executed exactly once, but if it receives no reply message, it cannot assume the remote procedure was not executed.
Note
Even with a connection-oriented protocol such as TCP, an application still needs timeouts and reconnection procedures to handle server crashes.
ONC RPC is currently supported on both UDP/IP and TCP/IP transports. The selection of the transport depends on the application requirements. The UDP transport, which is connectionless, is a good choice if the application has the following characteristics:
TCP (connection-oriented) is a good transport choice if the application has any of the following characteristics:
RPC can handle arbitrary data structures, regardless of the byte order or structure layout convention on a particular system. It does this by converting them to a network standard called external data representation (XDR) before sending them over the network. XDR is a system-independent description and encoding of data that can communicate between diverse systems, such as a VAX, Sun workstation, IBM PC, or CRAY.
Converting from a particular system representation to XDR format is
called serializing; the reverse process is deserializing.
1.7 Assigning Program Numbers
Program numbers are assigned in groups of 0x20000000 according to the following chart:
| 0x00000000--- 0x1fffffff | Defined by Sun Microsystems |
| 0x20000000--- 0x3fffffff | Defined by user |
| 0x40000000--- 0x5fffffff | Transient |
| 0x60000000--- 0x7fffffff | Reserved |
| 0x80000000--- 0x9fffffff | Reserved |
| 0xa0000000--- 0xbfffffff | Reserved |
| 0xc0000000--- 0xdfffffff | Reserved |
| 0xe0000000--- 0xffffffff | Reserved |
Sun Microsystems administers the first range of numbers, which should be identical for all ONC RPC users. An ONC RPC application for general use should have an assigned number in this first range. The second range of numbers is for specific, user-defined customer applications, and is primarily for debugging new programs. The third, called the Transient group, is reserved for applications that generate program numbers dynamically. The final groups are reserved for future use, and are not used.
To register a protocol specification, send a request by network mail to rpc@sun.com, or write to:
RPC Administrator
Sun Microsystems
2550 Garcia Ave.
Mountain View, CA 94043
Include a compilable RPCGEN .X file describing your protocol. You will then receive a unique program number. See Chapter 2 for more information about RPCGEN .X files.
The RPCGEN protocol compiler accepts a remote program interface definition written in RPC language, which is similar to C. It then produces C language output consisting of: client skeleton routines, server skeleton routines, XDR filter routines for both arguments and results, a header file that contains common definitions, and optionally, dispatch tables that the server uses to invoke routines that are based on authorization checks.
The client skeleton interface to the RPC library hides the network from the client program, and the server skeleton hides the network from the server procedures invoked by remote clients. You compile and link output files from RPCGEN as usual. The server code generated by RPCGEN supports INETd. You can start the server via INETd or at the command line.
You can write server procedures in any language that has system calling conventions. To get an executable server program, link the server procedure with the server skeleton from RPCGEN. To create an executable client program, write an ordinary main program that makes local procedure calls to the client skeletons, and link the program with the client skeleton from RPCGEN. If necessary, the RPCGEN options enable you to suppress skeleton generation and specify the transport to be used by the server skeleton.
The RPCGEN protocol compiler helps to reduce development time in the following ways:
Refer to the RPCGEN command description at the end of this chapter for more information about programming applications that use remote procedure calls or for writing XDR routines that convert procedure arguments and results into their network format (or vice versa). For a discussion of RPC programming without RPCGEN, see Chapter 3.
2.2 Simple Example: Using RPCGEN to Generate Client and Server RPC Code
This section shows how to convert a simple routine ---one that prints
messages to the system console on a single system (OPCOM on
OpenVMS)---to an ONC RPC application that runs remotely over the
network. To do this, the RPCGEN protocol compiler is used to generate
client and server RPC code. Example 2-1 (see file
SYS$EXAMPLES:[UCX.RPC]PRINTMSG.C) shows the routine before conversion.
Compile and run the program shown in the example (you will need OPER privileges):
$ CC/DECC PRINTMSG $ LINK PRINTMSG $ MCR SYS$DISK:[]PRINTMSG "Red rubber ball" %%%%%%%%%%% OPCOM 27-SEP-1995 14:39:22.59 %%%%%%%%%%% Message from user GEORGE on BOSTON Message Delivered! $
