Compaq COBOL
Reference Manual
Previous Contents Index

Format 1

  1. Executing the INSPECT statement does not initialize the value of tally-ctr.
  2. If the ALL phrase is present, the value of tally-ctr is incremented by one for each occurrence of compare-val in src-string.
  3. If the LEADING phrase is present, the value of tally-ctr is incremented by one for each contiguous occurrence of compare-val in src-string. The leftmost occurrence of compare-val must be at the position where comparison begins in the first comparison cycle. Otherwise, no tallying occurs.
  4. If the CHARACTERS phrase is present, the value of tally-ctr is incremented by one for each character matched in src-string (see General Rule 6e).

Format 2

  1. The adjectives ALL, LEADING, and FIRST apply to succeeding BY phrases until the next adjective appears.
  2. If the CHARACTERS phrase is present, each character matched in src-string is replaced by replace-char (see General Rule 6e).
  3. When ALL is present, each occurrence of compare-val in src-string is replaced by replace-val.
  4. When LEADING is present, each contiguous occurrence of compare-val in src-string is replaced by replace-val. The leftmost occurrence of compare-val must be at the position where comparison begins in the first comparison cycle. Otherwise, no replacement occurs.
  5. When FIRST is present, the leftmost occurrence of compare-val in src-string is replaced by replace-val.

Format 3

  1. A Format 3 INSPECT statement executes as if there were two successive INSPECT statements with the same src-string. Execution proceeds as if:
    The General Rules for Formats 1 and 2 apply to the corresponding phrases in the Format 3 statement.

Format 4

  1. A Format 4 statement executes as if:
    The individual characters of compare-chars and replace-chars correspond by ordinal position in the data items.

Additional Reference

Examples

In the following examples, the initial values of COUNT1 and COUNT2 are zero.

  1. TALLYING phrase with BEFORE option:


    INSPECT ITEMA TALLYING COUNT1 FOR LEADING "L" BEFORE "A",
       COUNT2 FOR LEADING "A" BEFORE "L".
    ITEMA COUNT1 COUNT2
    LARGE 1 0
    ANALYST 0 1

  2. TALLYING phrase and REPLACING LEADING phrase with AFTER option:


    INSPECT ITEMA TALLYING COUNT1 FOR ALL "L" "R"
       REPLACING LEADING "A" BY "E" AFTER INITIAL "L".
    ITEMA COUNT1 ITEMA
    CALLAR 3 CALLAR
    SALAMI 1 SALEMI
    LATTER 2 LETTER

  3. REPLACING ALL phrase with BEFORE option:


    INSPECT ITEMA REPLACING ALL "A" BY "G" BEFORE "X".
    ITEMA ITEMA
    ARXAX GRXAX
    HANDAX HGNDGX
    HANDAA HGNDGG

  4. TALLYING and REPLACING ALL phrases:


    INSPECT ITEMA TALLYING COUNT1 FOR CHARACTERS AFTER "J"
       REPLACING ALL "A" BY "B".
    ITEMA COUNT1 ITEMA
    ADJECTIVE 6 BDJECTIVE
    JACK 3 JBCK
    JUJMAB 5 JUJMBB

  5. REPLACING ALL phrase:


    INSPECT ITEMA REPLACING ALL "X" BY "Y", "B" BY "Z",
       "W" BY "Q" AFTER "R".
    ITEMA ITEMA
    RXXBQWY RYYZQQY
    YZACDWBR YZACDWZR
    RAWRXEB RAQRYEZ

  1. REPLACING CHARACTERS phrase:


    INSPECT ITEMA REPLACING CHARACTERS BY "B" BEFORE "A".
    ITEMA ITEMA
    12RXZABCD BBBBBABCD
    12RXZBBCD BBBBBBBBB

  2. REPLACING ALL phrase:


    INSPECT ITEMA REPLACING ALL "A" BY "X" ALL "R" BY "X"
       AFTER "XXL".
    ITEMA ITEMA
    AALRRRA XXLRRRX
    AXXLRRR XXXLXXX

  3. CONVERTING phrase:


    INSPECT ITEMA CONVERTING "SIR" TO "DTA"
       AFTER QUOTE BEFORE "@".
    ITEMA ITEMA
    TIRMS"SRXIL@STAR TIRMS"DAXTL@STAR

6.8.21 MERGE

Function

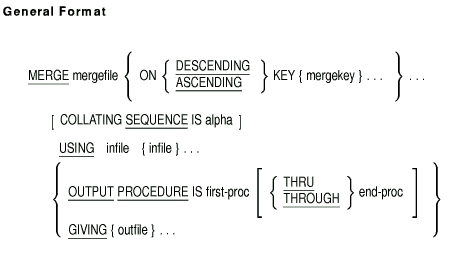

The MERGE statement takes two or more identically sequenced files and combines them according to the key values you specify. During the process, it makes records available, in merged order, to routines in OUTPUT PROCEDURE or to an output file.

mergefile

is a file-name described in a sort-merge file description (SD) entry in the Data Division.

mergekey

is the data-name of a data item in a record associated with mergefile.

alpha

is an alphabet-name defined in the SPECIAL-NAMES paragraph of the Environment Division.

infile

is the file-name of an input file. It must be described in a file description (FD) entry in the Data Division.

first-proc

is the section-name or paragraph-name of the output procedure's first (or only) section or paragraph.

end-proc

is the section-name or paragraph-name of the output procedure's last section or paragraph.

outfile

is the file-name of an output file. It must be described in a file description (FD) entry in the Data Division.

Syntax Rules

  1. MERGE statements can appear anywhere in the Procedure Division except in:
  2. If mergefile contains variable length records, infile records must not be smaller than the smallest record in mergefile nor larger than the largest.
  3. If mergefile contains fixed-length records, infile records must not be larger than the largest record described for mergefile.
  4. If outfile contains variable length records, mergefile records must not be smaller than the smallest record in outfile nor larger than the largest.
  5. If outfile contains fixed-length records, mergefile records must not be larger than the largest record described for outfile.
  6. Each mergekey must be described in records associated with mergefile.
  7. mergekey can be qualified.
  8. mergekey cannot be a group that contains variable occurrence data items.
  9. The description of mergekey cannot contain an OCCURS clause or be subordinate to one that does.
  10. mergefile can have more than one record description. However, mergekey need not be described in more than one of the record descriptions. The character positions referenced by mergekey are used as the key for all the file's records.
  11. The words THRU and THROUGH are equivalent.
  12. If outfile is an indexed file, the first mergekey must be in the ASCENDING phrase. It must specify the same character positions in its record as the prime record key for outfile.

General Rules

  1. The MERGE statement merges all records in the infile files.
  2. If mergefile contains fixed-length records, any shorter infile records are space-filled on the right after the last character. Space-filling occurs before the infile record is released to mergefile.
  3. The leftmost mergekey is the major key, and the next mergekey is the next most significant key. The significance of mergekey data items is not affected by how they are divided into KEY phrases. Only left-to-right order determines significance.
  4. The ASCENDING phrase causes the merged sequence to be from the lowest mergekey value to the highest.
  5. The DESCENDING phrase causes the merged sequence to be from the highest mergekey value to the lowest.
  6. Merge sequence follows the rules for relation condition comparisons.
  7. When the contents of all key data items of one record equal the contents of the corresponding key data items in another record, the order of return from the merge:
  8. The MERGE statement determines the comparison collating sequence for nonnumeric mergekey items when it begins execution. If there is a COLLATING SEQUENCE phrase in the MERGE statement, MERGE uses that sequence. Otherwise, it uses the collating sequence that was established for the program as a whole in the PROGRAM COLLATING SEQUENCE clause of the OBJECT-COMPUTER paragraph. If you do not specify the collating sequence in either the MERGE statement or the OBJECT-COMPUTER paragraph, the program uses the NATIVE collating sequence.
  9. The results of the merge are undefined unless the records in the infile files are ordered as described in the MERGE statement's ASCENDING or DESCENDING KEY clause.
  10. The MERGE statement transfers all records in infile to mergefile. When the MERGE statement executes, infile must not be open.
  11. For each infile, the MERGE statement:
    These implicit OPEN, READ, and CLOSE operations cause associated USE procedures to execute if an exception condition occurs.
  12. OUTPUT PROCEDURE consists of one or more sections that are as follows:
  13. When the MERGE statement enters the OUTPUT PROCEDURE range, it is ready to select the next record in merged order. Statements in the OUTPUT PROCEDURE range must execute at least one RETURN statement to make records available for processing.
  14. The OUTPUT PROCEDURE can consist of any procedure needed to select, modify, or copy the next record made available by the RETURN statement in merged order from the file referenced by mergefile.
  15. The range of the OUTPUT PROCEDURE additionally includes all statements executed as a result of a CALL, EXIT, GO TO, or PERFORM statement. The range of the OUTPUT PROCEDURE also includes all statements in the Declaratives Section that can be executed if control is transferred from statements in the range of the OUTPUT PROCEDURE.
  16. The range of the OUTPUT PROCEDURE must not contain MERGE, SORT, or RELEASE statements.
  17. If the MERGE statement is in a fixed segment, the OUTPUT PROCEDURE range must be either:
  18. If the MERGE statement is in an independent segment, the OUTPUT PROCEDURE range must be either:
  19. If OUTPUT PROCEDURE is used, control passes to its sections during execution of the MERGE statement. When control passes to the last statement in the OUTPUT PROCEDURE range, the MERGE statement ends. Control then transfers to the next executable statement after the MERGE statement.
  20. During execution of statements in the OUTPUT PROCEDURE range---or any USE AFTER EXCEPTION procedure implicitly invoked during the MERGE statement---no statement outside the range can manipulate the files or record areas associated with infile or outfile.
  21. If there is a GIVING phrase, the MERGE statement writes all merged records to each outfile. This transfer is an implied MERGE statement OUTPUT PROCEDURE. Therefore, when the MERGE statement executes, outfile must not be open.
  22. The MERGE statement begins outfile processing as if the program had executed an OPEN statement with the OUTPUT phrase.
  23. The MERGE statement gets the merged logical records and writes them to each outfile. MERGE writes each record as if the program had executed a WRITE statement with no optional phrases.
    For relative files, the value of the relative key data item is 1 for the first returned record, 2 for the second, and so on. When the MERGE statement ends, the value of the relative key data item indicates the number of outfile records.
  24. The MERGE statement terminates outfile processing as if the program had executed a CLOSE statement with no optional phrases.
  25. These implicit OPEN, WRITE, and CLOSE operations cause associated USE procedures to execute if an exception condition occurs. If the MERGE statement tries to write beyond the boundaries of outfile, the applicable USE AFTER EXCEPTION procedure executes. If control returns from the USE procedure, or if there is no USE procedure, outfile processing terminates as if the program had executed a CLOSE statement with no optional phrases.
  26. If outfile contains fixed-length records, any shorter mergefile records are space-filled on the right after the last character. Space-filling occurs before the mergefile record is released to outfile.

Additional References

6.8.22 MOVE

Function

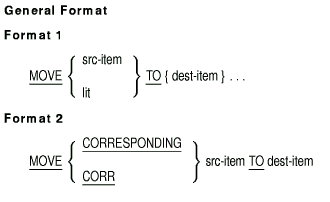

The MOVE statement transfers data to one or more data areas. The editing rules control data transfer.

src-item

is an identifier that represents the sending area.

lit

is a literal that represents the sending area.

dest-item

is an identifier that represents the receiving area.

Syntax Rules

  1. CORR is an abbreviation for CORRESPONDING.
  2. In the CORRESPONDING phrase, both src-item and dest-item must be group items, and there can be only one dest-item.
  3. If any dest-item is numeric or numeric edited, lit cannot be any of the following:
  4. If lit is the figurative constant ALL literal and the usage of dest-item is COMP-1 or COMP-2, the MOVE statement uses only one occurrence of literal.
  5. No operand can be an index data item.

General Rules

  1. In Format 2, when the CORRESPONDING phrase is present, selected items in src-item are moved to selected items in dest-item. The rules for the CORRESPONDING option control these moves. The results are the same as if the MOVE statement were replaced by separate MOVE statements for each pair of corresponding items in src-item and dest-item.
  2. In Format 1, the MOVE statement moves the sending area to the first dest-item, then to each additional dest-item, in the same order in which they appear in the statement.
  3. If src-item is reference-modified, subscripted, or indexed, or is a function-identifier, the reference modifier, subscript, index, or function-identifier is evaluated once, immediately before the move to the first dest-item.
  4. Subscript or index evaluation for a dest-item occurs immediately before the move to that item.
  5. The length of src-item is evaluated once, immediately before the move to the first dest-item.
  6. The length of each dest-item is evaluated immediately before the move to that item.
  7. The result of the first of the following MOVE statements is equivalent to the three that follow. The word temp represents an intermediate result item supplied by the compiler.


    MOVE ITEMA (ITEMB) TO ITEMB, ITEMC (ITEMB).

MOVE ITEMA (ITEMB) TO temp.
MOVE temp TO ITEMB.
MOVE temp TO ITEMC (ITEMB).

Elementary Moves

  1. A move is elementary when dest-item is an elementary item, and the sending area is either an elementary data item or a literal.
    1. An elementary item belongs to one of these categories, depending on its PICTURE clause:
      • Numeric
      • Alphabetic
      • Alphanumeric
      • Numeric edited
      • Alphanumeric edited
    2. Numeric literals are numeric. Nonnumeric literals are alphanumeric.
    3. The figurative constant ZERO is numeric when moved to a numeric or numeric edited item. Otherwise, it is alphanumeric.
    4. The figurative constant SPACE is alphabetic.
    5. All other figurative constants are alphanumeric.
  2. These rules apply to elementary moves between categories:
    1. The figurative constant SPACE, or an alphanumeric edited or alphabetic data item, cannot be moved to a numeric or numeric edited data item.
    2. A numeric literal, the figurative constant ZERO, or a numeric or numeric edited data item, cannot be moved to an alphabetic data item.
    3. A noninteger numeric literal or data item cannot be moved to an alphanumeric or alphanumeric edited data item.
    4. All other elementary moves are valid.

Editing, De-Editing, and Data Conversion During Elementary Moves

  1. Editing, de-editing, or other required internal data conversions occur during elementary moves. They are controlled by the description of dest-item.
  2. When dest-item is alphanumeric or alphanumeric edited, alignment and space-filling occur according to the Standard Alignment Rules.
    If lit or src-item is signed numeric, the operational sign is not moved. If the operational sign occupies a separate character position:
    1. The sign character is not moved.
    2. The size of lit or src-item is considered to be one less than its actual size (in terms of Standard Data Format characters).

    If the sending operand is numeric and contains the PICTURE symbol (P), all digit positions specified with this symbol are considered to have the value zero and are counted in the size of the sending operand.
  3. When dest-item is numeric or numeric edited, decimal point alignment and zero-filling occur according to the Standard Alignment Rules.
    1. When dest-item is a signed numeric item, the sign from lit or src-item is placed in it. If the sending item is unsigned, a positive sign is placed in dest-item.
    2. When dest-item is an unsigned numeric item, the absolute value of lit or src-item is moved.
    3. When lit or src-item is alphanumeric, the move occurs as if the sending item were described as an unsigned numeric integer.
    4. When src-item is numeric edited, the compiler de-edits it before moving it to dest-item. Src-item can be signed.
  4. When dest-item is alphabetic, justification and space-filling occur according to the Standard Alignment Rules.

Nonelementary Moves

  1. A nonelementary move occurs as if it were an alphanumeric-to-alphanumeric elementary move. However, there is no internal data conversion. The move is not affected by individual elementary or group items in either src-item or dest-item, except as noted in the General Rules for the OCCURS clause.

Summary

Table 6-13 summarizes the valid types of MOVE statements. References after slash marks show the applicable General Rule. For example, moving a numeric edited item to an alphabetic item is invalid because of General Rule 9b.

Table 6-13 Valid MOVE Statements
  Category of Receiving Data Item (dest-item)
Category of Sending
Data Item
(lit or src-item) 		Alphabetic Alphanumeric Edited
Alphanumeric 		Numeric Integer
Numeric Noninteger
Numeric Edited
Alphabetic Yes/13 Yes/11 No/9a
Alphanumeric Yes/13 Yes/11 Yes/12
Alphanumeric Edited Yes/13 Yes/11 No/9a
Numeric Integer No/9b Yes/11 Yes/12
Numeric Noninteger No/9b No/9c Yes/12
Numeric Edited No/9b Yes/11 Yes/12

Additional References

Examples

The following examples show the result of executing the statement:


MOVE ITEMA TO ITEMB.

An s indicates a space character.
