Once your cluster is up and running, you can implement routine, site-specific maintenance operations---for example, backing up disks or adding user accounts, performing software upgrades and installations, running AUTOGEN with the feedback option on a regular basis, and monitoring the system for performance.

You should also maintain records of current configuration data, especially any changes to hardware or software components. If you are managing a cluster that includes satellite nodes, it is important to monitor LAN activity.

From time to time, conditions may occur that require the following special maintenance operations:

• Restoring cluster quorum after an unexpected computer failure
• Executing conditional shutdown operations
• Performing security functions in LAN and mixed-interconnect clusters

As a part of the regular system management procedure, you should copy operating system files, application software files, and associated files to an alternate device using the OpenVMS Backup utility.

Some backup operations are the same in an OpenVMS Cluster as they are on a single OpenVMS system. For example, an incremental back up of a disk while it is in use, or the backup of a nonshared disk.

Backup tools for use in a cluster include those listed in Table 10-1.

Plan to perform the backup process regularly, according to a schedule that is consistent with application and user needs. This may require creative scheduling so that you can coordinate backups with times when user and application system requirements are low.

Reference: See the OpenVMS System Management Utilities Reference Manual: A--L for complete information about the OpenVMS Backup utility.

10.2 Updating the OpenVMS Operating System

When updating the OpenVMS operating system, follow the steps in Table 10-2.

Reference: See the appropriate OpenVMS upgrade and installation manual for complete instructions.

10.2.1 Rolling Upgrades

The OpenVMS operating system allows an OpenVMS Cluster system running on multiple system disks to continue to provide service while the system software is being upgraded. This process is called a rolling upgrade because each node is upgraded and rebooted in turn, until all the nodes have been upgraded.

If you must first migrate your system from running on one system disk to running on two or more system disks, follow these steps:

These sections help you add a system disk and prepare a common user environment on multiple system disks to make the shared system files such as the queue database, rightslists, proxies, mail, and other files available across the OpenVMS Cluster system.

10.3 LAN Network Failure Analysis

The OpenVMS operating system provides a sample program to help you analyze OpenVMS Cluster network failures on the LAN. You can edit and use the SYS$EXAMPLES:LAVC$FAILURE_ANALYSIS.MAR program to detect and isolate failed network components. Using the network failure analysis program can help reduce the time required to detect and isolate a failed network component, thereby providing a significant increase in cluster availability.

Reference: For a description of the network failure analysis program, refer to Appendix D.

10.4 Recording Configuration Data

To maintain an OpenVMS Cluster system effectively, you must keep accurate records about the current status of all hardware and software components and about any changes made to those components. Changes to cluster components can have a significant effect on the operation of the entire cluster. If a failure occurs, you may need to consult your records to aid problem diagnosis.

Maintaining current records for your configuration is necessary both for routine operations and for eventual troubleshooting activities.

10.4.1 Record Information

At a minimum, your configuration records should include the following information:

• A diagram of your physical cluster configuration. (Appendix D includes a discussion of keeping a LAN configuration diagram.)
• SCSNODE and SCSSYSTEMID parameter values for all computers.
• VOTES and EXPECTED_VOTES parameter values.
• DECnet names and addresses for all computers.
• Current values for cluster-related system parameters, especially ALLOCLASS and TAPE_ALLOCLASS values for HSC subsystems and computers.
  Reference: Cluster system parameters are described in Appendix A.
• Names and locations of default bootstrap command procedures for all computers connected with the CI.
• Names of cluster disk and tape devices.
• In LAN and mixed-interconnect clusters, LAN hardware addresses for satellites.
• Names of LAN adapters.
• Names of LAN segments or rings.
• Names of LAN bridges.
• Names of wiring concentrators or of DELNI or DEMPR adapters.
• Serial numbers of all hardware components.
• Changes to any hardware or software components (including site-specific command procedures), along with dates and times when changes were made.

The first time you execute CLUSTER_CONFIG.COM to add a satellite, the procedure creates the file NETNODE_UPDATE.COM in the boot server's SYS$SPECIFIC:[SYSMGR] directory. (For a common-environment cluster, you must rename this file to the SYS$COMMON:[SYSMGR] directory, as described in Section 5.10.2.) This file, which is updated each time you add or remove a satellite or change its Ethernet or FDDI hardware address, contains all essential network configuration data for the satellite.

If an unexpected condition at your site causes configuration data to be lost, you can use NETNODE_UPDATE.COM to restore it. You can also read the file when you need to obtain data about individual satellites. Note that you may want to edit the file occasionally to remove obsolete entries.

Example 10-1 shows the contents of the file after satellites EUROPA and GANYMD have been added to the cluster.

$ RUN SYS$SYSTEM:NCP
    define node EUROPA address 2.21
    define node EUROPA hardware address 08-00-2B-03-51-75
    define node EUROPA load assist agent sys$share:niscs_laa.exe
    define node EUROPA load assist parameter $1$DJA11:<SYS10.>
    define node EUROPA tertiary loader sys$system:tertiary_vmb.exe
    define node GANYMD address 2.22
    define node GANYMD hardware address 08-00-2B-03-58-14
    define node GANYMD load assist agent sys$share:niscs_laa.exe
    define node GANYMD load assist parameter $1$DJA11:<SYS11.>
    define node GANYMD tertiary loader sys$system:tertiary_vmb.exe

Reference: See the DECnet--Plus documentation for equivalent NCL command information.

10.5 Cross-Architecture Satellite Booting

Cross-architecture satellite booting permits VAX boot nodes to provide boot service to Alpha satellites and Alpha boot nodes to provide boot service to VAX satellites. For some OpenVMS Cluster configurations, cross-architecture boot support can simplify day-to-day system operation and reduce the complexity of managing OpenVMS Cluster that include both VAX and Alpha systems.

Note: Compaq will continue to provide cross-architecture boot support while it is technically feasible. This support may be removed in future releases of the OpenVMS operating system.

10.5.1 Sample Configurations

The sample configurations that follow show how you might configure an OpenVMS Cluster to include both Alpha and VAX boot nodes and satellite nodes. Note that each architecture must include a system disk that is used for installations and upgrades.

Caution: The OpenVMS operating system and layered product installations and upgrades cannot be performed across architectures. For example, OpenVMS Alpha software installations and upgrades must be performed using an Alpha system. When configuring OpenVMS Cluster systems that use the cross-architecture booting feature, configure at least one system of each architecture with a disk that can be used for installations and upgrades. In the configurations shown in Figure 10-1 and Figure 10-2, one of the workstations has been configured with a local disk for this purpose.

In Figure 10-1, several Alpha workstations have been added to an existing VAXcluster configuration that contains two VAX boot nodes based on the DSSI interconnect and several VAX workstations. For high availability, the Alpha system disk is located on the DSSI for access by multiple boot servers.

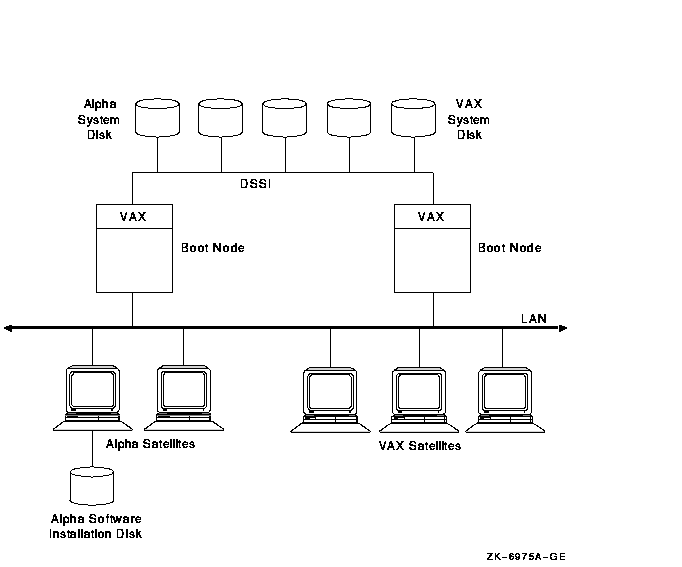

Figure 10-1 VAX Nodes Boot Alpha Satellites

In Figure 10-2, the configuration originally consisted of a VAX boot node and several VAX workstations. The VAX boot node has been replaced with a new, high-performance Alpha boot node. Some Alpha workstations have also been added. The original VAX workstations remain in the configuration and still require boot service. The new Alpha boot node can perform this service.

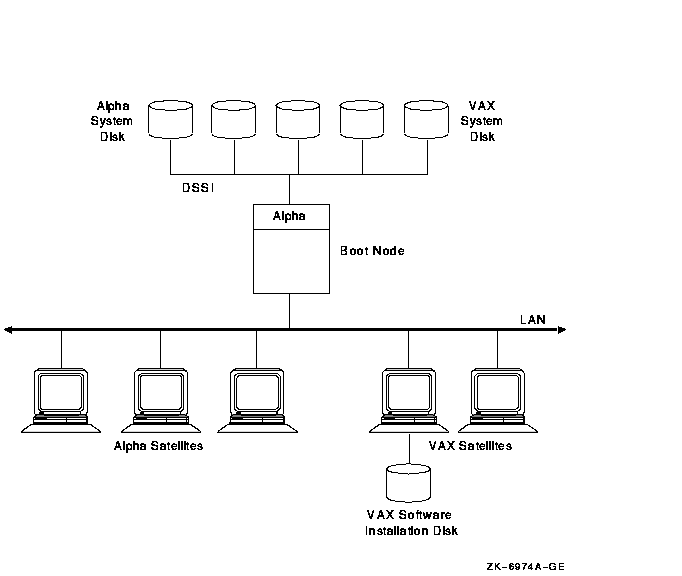

Figure 10-2 Alpha and VAX Nodes Boot Alpha and VAX Satellites

Consider the following guidelines when using the cross-architecture booting feature:

• The OpenVMS software installation and upgrade procedures are architecture specific. The operating system must be installed and upgraded on a disk that is directly accessible from a system of the appropriate architecture. Configuring a boot server with a system disk of the opposite architecture involves three distinct system management procedures:
  • Installation of the operating system on a disk that is directly accessible from a system of the same architecture.
  • Moving the resulting system disk so that it is accessible by the target boot server. Depending on the specific configuration, this can be done using the Backup utility or by physically relocating the disk.
  • Setting up the boot server's network database to service satellite boot requests. Sample procedures for performing this step are included in Section 10.5.3.
• System disks can contain only a single version of the OpenVMS operating system and are architecture specific. For example, OpenVMS VAX Version 7.1 cannot coexist on a system disk with OpenVMS Alpha Version 7.1.
• The CLUSTER_CONFIG command procedure can be used only to manage cluster nodes of the same architecture as the node executing the procedure. For example, when run from an Alpha system, CLUSTER_CONFIG can manipulate only Alpha system disks and perform node management procedures for Alpha systems.
• No support is provided for cross-architecture installation of layered products.

The following examples show how to configure DECnet databases to perform cross-architecture booting. Note that this feature is available for systems running DECnet for OpenVMS (Phase IV) only.

Customize the command procedures in Examples 10-2 and 10-3 according to the following instructions.

Example 10-2 shows how to set up a VAX system to serve a locally mounted Alpha system disk.

$! VAX system to load Alpha satellite
$!
$!  On the VAX system:
$!  -----------------
$!
$!  Mount the system disk for MOP server access.
$!
$ MOUNT /SYSTEM alpha_system_disk: label ALPHA$SYSD
$!
$!  Enable MOP service for this server.
$!
$ MCR NCP
NCP> DEFINE CIRCUIT ccc-n SERVICE ENABLED STATE ON
NCP> SET CIRCUIT ccc-n STATE OFF
NCP> SET CIRCUIT ccc-n ALL
NCP> EXIT
$!
$!  Configure MOP service for the ALPHA satellite.
$!
$ MCR NCP
NCP> DEFINE NODE alpha ADDRESS xx.yyyy
NCP> DEFINE NODE alpha HARDWARE ADDRESS aa-bb-cc-dd-ee-ff
NCP> DEFINE NODE alpha LOAD ASSIST AGENT SYS$SHARE:NISCS_LAA.EXE
NCP> DEFINE NODE alpha LOAD ASSIST PARAMETER ALPHA$SYSD:[satellite_root.]
NCP> DEFINE NODE alpha LOAD FILE APB.EXE
NCP> SET NODE alpha ALL
NCP> EXIT

Example 10-3 shows how to set up an Alpha system to serve a locally mounted VAX system disk.

 $! Alpha system to load VAX satellite
 $!
 $!  On the Alpha system:
 $!  --------------------
 $!
 $!  Mount the system disk for MOP server access.
 $!
 $ MOUNT /SYSTEM vax_system_disk: label VAX$SYSD
 $!
 $!  Enable MOP service for this server.
 $!
 $ MCR NCP
 NCP> DEFINE CIRCUIT ccc-n SERVICE ENABLED STATE ON
 NCP> SET CIRCUIT ccc-n STATE OFF
 NCP> SET CIRCUIT ccc-n ALL
 NCP> EXIT
 $!
 $!  Configure MOP service for the VAX satellite.
 $!
 $ MCR NCP
 NCP> DEFINE NODE vax ADDRESS xx.yyyy
 NCP> DEFINE NODE vax HARDWARE ADDRESS aa-bb-cc-dd-ee-ff
 NCP> DEFINE NODE vax TERTIARY LOADER SYS$SYSTEM:TERTIARY_VMB.EXE
 NCP> DEFINE NODE vax LOAD ASSIST AGENT SYS$SHARE:NISCS_LAA.EXE
 NCP> DEFINE NODE vax LOAD ASSIST PARAMETER VAX$SYSD:[satellite_root.]
 NCP> SET NODE vax ALL
 NCP> EXIT

Then, to boot the satellite, perform these steps:

1. Execute the appropriate command procedure from a privileged account on the server
2. Boot the satellite over the adapter represented by the hardware address you entered into the command procedure earlier.

When a satellite joins the cluster, the Operator Communications Manager (OPCOM) has the following default states:

• For all systems in an OpenVMS Cluster configuration except workstations:
  • OPA0: is enabled for all message classes.
  • The log file SYS$MANAGER:OPERATOR.LOG is opened for all classes.
• For workstations in an OpenVMS Cluster configuration, even though the OPCOM process is running:
  • OPA0: is not enabled.
  • No log file is opened.

Table 10-3 shows how to define the following system logical names in the command procedure SYS$MANAGER:SYLOGICALS.COM to override the OPCOM default states.

$ DEFINE/SYSTEM OP$OPA0_CLASSES CENTRAL,DISKS,TAPE

$ DEFINE/SYSTEM OP$OPA0_CLASSES "CENTRAL,DISKS,TAPE"

$ DEFINE/SYSTEM OP$OPA0_CLASSES "CENTRAL,DISKS",TAPE

The following example shows how to use the OPC$OPA0_CLASSES system logical to define the operator classes to be enabled. The following command prevents SECURITY class messages from being displayed on OPA0.

$ DEFINE/SYSTEM OPC$OPA0_CLASSES CENTRAL,PRINTER,TAPES,DISKS,DEVICES, -
_$ CARDS,NETWORK,CLUSTER,LICENSE,OPER1,OPER2,OPER3,OPER4,OPER5, -
_$ OPER6,OPER7,OPER8,OPER9,OPER10,OPER11,OPER12

In large clusters, state transitions (computers joining or leaving the cluster) generate many multiline OPCOM messages on a boot server's console device. You can avoid such messages by including the DCL command REPLY/DISABLE=CLUSTER in the appropriate site-specific startup command file or by entering the command interactively from the system manager's account.

10.7 Shutting Down a Cluster

The SHUTDOWN command of the SYSMAN utility provides five options for shutting down OpenVMS Cluster computers:

• NONE (the default)
• REMOVE_NODE
• CLUSTER_SHUTDOWN
• REBOOT_CHECK
• SAVE_FEEDBACK

These options are described in the following sections.
